Panasonic S-15MF3E5AN User manual

Model No.
Indoor Units
Type Indoor Units
Type Rated Capacity
15 22 28 36 45 56 60
F3 Middle Static
Pressure Duct
S-15MF3E5AN S-22MF3E5AN S-28MF3E5AN S-36MF3E5AN S-45MF3E5AN S-56MF3E5AN S-60MF3E5AN
Type Indoor Units
Type Rated Capacity
73 90 106 112 140 160
F3 Middle Static
Pressure Duct
S-73MF3E5AN S-90MF3E5AN S-106MF3E5AN S-112MF3E5AN S-140MF3E5AN S-160MF3E5AN
ENGLISH
Read through the Installation Instructions before you proceed with the installation.
In particular, you will need to read under the “IMPORTANT!” section at the top of the page.
WEB-ACXF60-50860-00-EN
Air Conditioner
This air conditioner uses the refrigerant R410A.
INSTALLATION INSTRUCTIONS
01_350221_Eng.indb 1 2023/3/17 10:00:56

2
IMPORTANT ........................3
Please Read Before Starting
1. GENERAL.......................7
1-1. Tools Required for Installation (not
supplied)
1-2. Accessories Supplied with Unit
1-3. Type of Copper Tube and Insulation
Material
1-4. Additional Materials Required for
Installation
2. SELECTING THE INSTALLATION
SITE............................9
2-1. Indoor Unit
3. HOW TO INSTALL THE INDOOR
UNIT ..........................10
3-1. Required Minimum Space for Installation
and Maintenance Services
3-2. Preparation Before Installation
3-3. Fix the Indoor Unit
3-4. Installing the Drain Pipe
3-5. Checking the Drainage
3-6. Connecting Duct to Air Intake Port Side
4. ELECTRICAL WIRING ............26
4-1. General Precautions on Wiring
4-2. Wire Length and Wire Diameter for
Power Supply System
4-3. Wiring System Diagrams
5. HOW TO PROCESS TUBING ......35
5-1. Connecting the Refrigerant Tubing
5-2. Connecting Tubing Between Indoor and
Outdoor Units
5-3. Insulating the Refrigerant Tubing
5-4. Taping the Tubes
5-5. Finishing the Installation
6. HOW TO INSTALL THE TIMER
REMOTE CONTROLLER OR HIGH-
SPEC WIRED REMOTE CONTROLLER
(OPTIONAL PART)...............39
NOTE
Refer to the Installation Instructions attached
to the optional Timer Remote Controller or
optional High-spec Wired Remote Controller.
7. HOW TO INSTALL WIRELESS REMOTE
CONTROLLER ..................39
NOTE
Refer to the Installation Instructions attached to
the optional Wireless Remote Controller.
8. PRECAUTIONS ON TEST RUN.....39
9. CHECKLIST AFTER INSTALLATION
WORK.........................40
10. EXTERNAL STATIC PRESSURE
SETTING.......................41
10-1. How to Set on Indoor Unit Control PCB
10-2. Operating the High-spec Wired Remote
Controller (CZ-RTC5B)
10-3. Operating the Timer Remote Controller
(CZ-RTC4)
10-4. Operating the Wired Remote Controller
(CZ-RTC6 series)
11. APPENDIX .....................61
■Care and Cleaning
■Troubleshooting
■Tips for Energy Saving
Important Information Regarding
The Refrigerant Used ............65
Page Page
CONTENTS
01_350221_Eng.indb 2 2023/3/17 10:00:56

3
IMPORTANT!
Please Read Before Starting
This air conditioner must be installed by the sales dealer
or installer.
This information is provided for use only by authorized
persons.
For safe installation and trouble-free operation, you must:
•This Installation Instructions is for the indoor unit and
read the Installation Instructions of the outdoor unit as
well.
•Carefully read this instruction booklet before beginning.
•This air conditioner is required to have the remote
controller which is adaptable to nanoe™ X function.
•Follow each installation or repair step exactly as shown.
•This air conditioner shall be installed in accordance with
National Wiring Regulations.
•That compliance with national gas regulations shall be
observed.
•The product meets the technical requirements of
EN/IEC 61000-3-3.
•Pay close attention to all warning and caution notices
given in this manual.
WARNING This symbol refers to a hazard or
unsafe practice which can result in
severe personal injury or death.
CAUTION This symbol refers to a hazard or
unsafe practice which can result
in personal injury or product or
property damage.
If Necessary, Get Help
These instructions are all you need for most installation
sites and maintenance conditions. If you require help for
a special problem, contact our sales/service outlet or your
certified dealer for additional instructions.
In Case of Improper Installation
The manufacturer shall in no way be responsible for
improper installation or maintenance service, including
failure to follow the instructions in this document.
SPECIAL PRECAUTIONS
WARNING When Wiring
WARNING
ELECTRICAL SHOCK CAN CAUSE SEVERE PERSONAL INJURY OR
DEATH. ONLY A QUALIFIED, EXPERIENCED ELECTRICIAN SHOULD
ATTEMPT TO WIRE THIS SYSTEM.
•Do not supply power to the unit until all wiring and tubing are completed or reconnected
and checked.
•Highly dangerous electrical voltages are used in this system. Carefully refer to
the wiring diagram and these instructions when wiring. Improper connections and
inadequate grounding can cause accidental injury or death.
•Connect all wiring tightly. Loose wiring may cause overheating at connection points
and a possible fire hazard.
•Provide a power outlet to be used exclusively for each unit.
•Provide a power outlet exclusively for each unit, and full disconnection means having
a contact separation by 3 mm in all poles must be incorporated in the fixed wiring in
accordance with the wiring rules.
•To prevent possible hazards from insulation failure, the unit must be grounded.
•This equipment is strongly recommended to be installed with Earth Leakage Circuit
Breaker (ELCB) or Residual Current Device (RCD). Otherwise, it may cause electrical
shock and fire in case of equipment breakdown or insulation breakdown.
01_350221_Eng.indb 3 2023/3/17 10:00:56

4
When Transporting
•It may need two or more people to carry out the installation work.
•Be careful when picking up and moving the indoor and outdoor units. Get a partner to
help, and bend your knees when lifting to reduce strain on your back. Sharp edges or
thin aluminum fins on the air conditioner can cut your fingers.
When Installing…
•Select an installation location which is rigid and strong enough to support or hold the
unit, and select a location for easy maintenance.
•Make sure to install protective guards on the suction and discharge side to prevent
somebody from touching the fan motor, fan blades or heat exchanger.
…In a Room
Properly insulate any tubing run inside a room to prevent “sweating” that can cause
dripping and water damage to walls and floors.
CAUTION
Keep the fire alarm and the air outlet at least 1.5 m away from the unit.
…In Moist or Uneven Locations
Use a raised concrete pad or concrete blocks to provide a solid, level foundation for the
outdoor unit. This prevents water damage and abnormal vibration.
…In an Area with High Winds
Securely anchor the outdoor unit down with bolts and a metal frame. Provide a suitable
air baffle.
…In a Snowy Area (for Heat Pump-type Systems)
Install the outdoor unit on a raised platform that is higher than drifting snow. Provide
snow vents.
…At Least 1.8 m (Horizontal Installation)
Installation height for indoor unit shall be at least 1.8 m in the case of horizontal
installation.
However, choose the lowest among the following locations.
• Air inlet side of indoor unit
• Air outlet side of indoor unit
• Air inlet port in the room
• Air outlet port in the room
…In Laundry Rooms
Do not install in laundry rooms. Indoor unit is not drip proof.
01_350221_Eng.indb 4 2023/3/17 10:00:56

5
When Connecting Refrigerant Tubing
Pay particular attention to refrigerant leakages.
WARNING
•
When performing piping work, do not mix air except for specified refrigerant in
refrigeration cycle. It causes capacity down, and risk of explosion and injury due to
high tension inside the refrigerant cycle.
•If the refrigerant comes in contact with a flame, it produces toxic gases.
•Do not add or replace refrigerant other than specified type. It may cause product
damage, burst and injury, etc.
•Ventilate the room immediately in the event of a refrigerant gas leakage during
installation. Be careful not to allow contact of the refrigerant gas with a flame as this will
cause the generation of toxic gases.
•Keep all tubing runs as short as possible.
•Apply refrigerant lubricant to the matching surfaces of the flare and union tubes before
connecting them, then tighten the nut with a torque wrench for a leak-free connection.
•Check carefully for leaks before starting the test run.
•Do not leak refrigerant while piping work for an installation or re-installation, and while
repairing refrigeration parts.
Handle liquid refrigerant carefully as it may cause frostbite.
When Servicing
•Be sure to turn off the power before servicing.
•Turn the power OFF at the main power box (mains), wait at least 5 minutes until it
is discharged, then open the unit to check or repair electrical parts and wiring.
•Keep your fingers and clothing away from any moving parts.
•Clean up the site after you finish, remembering to check that no metal scraps or bits of
wiring have been left inside the unit.
WARNING
•This product must not be modified or disassembled under any circumstances.
Modified or disassembled unit may cause fire, electric shock or injury.
•Do not clean inside the indoor and outdoor units by users. Engage authorized
dealer or specialist for cleaning.
•In case of malfunction of this appliance, do not repair by yourself. Contact the
sales dealer or service dealer for a repair and disposal.
CAUTION
•Ventilate any enclosed areas when installing or testing the refrigeration system.
Leaked refrigerant gas, on contact with fire or heat, can produce dangerously toxic
gases.
•Confirm after installation that no refrigerant gas is leaking. If the gas comes in
contact with a burning stove, gas water heater, electric room heater or other heat
source, it can cause the generation of toxic gases.
01_350221_Eng.indb 5 2023/3/17 10:00:56

6
Others
WARNING
•Do not sit or step on the unit. You may fall down accidentally.
CAUTION
•Do not touch the air inlet or the sharp aluminum fins of the outdoor unit.
You may get injured.
•Do not stick any object into the FAN CASE.
You may be injured and the unit may be damaged.
NOTICE
The English text is the original instructions. Other languages are translations of the original instructions.
01_350221_Eng.indb 6 2023/3/17 10:00:57

7
1. GENERAL
This booklet briefly outlines where and how to install the air conditioning system. Please read
over the entire set of instructions for the indoor and outdoor units and make sure all accessory
parts listed are with the system before beginning.
1-1. Tools Required for Installation
(not supplied)
1. Flathead screwdriver
2. Phillips head screwdriver
3. Knife or wire stripper
4. Tape measure
5. Carpenter’s level
6. Sabre saw or keyhole saw
7. Hacksaw
8. Core bits
9. Hammer
10. Drill
11. Tube cutter
12. Tube flaring tool
13. Torque wrench
14. Adjustable wrench
15. Reamer (for deburring)
1-2. Accessories Supplied with Unit
Part Name Figure Q’ty Remarks
Washer 8For suspending indoor
unit from ceiling
Flare
insulator 2For gas and liquid
tubes
Insulating
tape 2For gas and liquid
tubes flare nuts
Drain
insulator 1 For drain hose joint
Hose band 1For securing drain
hose
Packing 2For drain hose joint
(hard material)
Clamper 2 For drain hose joint
Drain hose 1For main unit + PVC
pipe joints
Clamper 2 For electrical wiring
Clamper 2
In the case of using
the Solenoid Valve
Controller (for
connecting 3WAY
VRF outdoor unit)
Filter *When not connecting
the air intake, be sure
to install the filter.
Screw *
Operating
Instructions 1
Installation
Instructions 1
Short-circuit
connection 1For vertical installation
(Located on the
back of the electrical
component box lid.)
* 1 Q’ty : Type 15, 22, 28, 36, 45, 56
2 Q’ty : Type 60, 73, 90
2 Q’ty : Type 106, 112, 140, 160
●Use M10 for suspension bolts.
●Field supply for suspension bolts and nuts.
01_350221_Eng.indb 7 2023/3/17 10:00:57

8
1-3. Type of Copper Tube and Insulation Material
If you wish to purchase these materials separately from a local source, you will need:
1. Deoxidized annealed copper tube for refrigerant tubing.
2. Foamed polyethylene insulation for copper tubes as required to precise length of tubing.
Wall thickness of the insulation should be not less than 8 mm.
3. Use insulated copper wire for field wiring. Wire size varies with the total length of wiring.
See Section “4. ELECTRICAL WIRING” for details.
CAUTION
Check local electrical codes and regulations before obtaining wire. Also, check any
specified instructions or limitations.
1-4. Additional Materials Required for Installation
1. Refrigeration (armored) tape
2. Insulated staples or clamps for connecting wire (See your local codes.)
3. Putty
4. Refrigeration tubing lubricant
5. Clamps or saddles to secure refrigerant tubing
6. Scale for weighing
01_350221_Eng.indb 8 2023/3/17 10:00:57

9
2. SELECTING THE INSTALLATION SITE
2-1. Indoor Unit
AVOID:
●areas where leakage of flammable gas may be expected.
●places where large amounts of oil mist exist.
●direct sunlight.
●locations near heat sources which may affect the performance of the unit.
●locations where external air may enter the room directly. This may cause “condensation” on
the air discharge ports, causing them to spray or drip water.
●locations where the remote controller will be splashed with water or affected by dampness or
humidity.
●installing the remote controller behind curtains or furniture.
●locations where high-frequency emissions are generated.
DO:
●select an appropriate position from which every corner of the room can be uniformly cooled.
●select a location where the ceiling is strong enough to support the weight of the unit.
●make sure to install protective guards on the suction and discharge side to prevent
somebody from touching the fan motor, fan blades or heat exchanger.
●select a location where tubing and drain pipe have the shortest run to the outdoor unit.
●allow room for operation and maintenance as well as unrestricted airflow around the unit.
●the limitation of the tubing length between the indoor and the outdoor units should be
referred to the Installation Instructions of the outdoor unit.
●allow room for mounting the remote controller about 1 m off the floor, in an area that is not in
direct sunlight or in the flow of cool air from the indoor unit.
< Horizontal installation >
350 mm
350 mm
20 mm *
20 mm
650 mm
250 mm
*It is necessary to make space for the cleaning as well as
the maintenance of the drain pan and the heat exchanger.
Do not put any obstacle not to cause obstructing
maintenance or cleaning works.
If the place where the ceiling material cannot be removed,
make an opening section below the bottom surface of the
indoor unit in order to take it out.
If it is impossible to provide an opening, make space more
than 300 mm between the indoor unit’s bottom surface
and the ceiling material.
< Vertical installation >
300 mm
H mm
650 mm
250 mm
H
• Lower side air intake with duct : 300 mm
• Lower side air intake without duct : 200 mm
• Front side air intake : 150 mm
01_350221_Eng.indb 9 2023/3/17 10:00:58

10
3. HOW TO INSTALL THE INDOOR UNIT
3-1. Required Minimum Space for Installation and Maintenance Services
●This air conditioner is usually installed above the ceiling or behind the wall so that the indoor
unit and ducts are not visible. Only the air intake and air outlet ports are visible from below.
●The minimum space for installation and maintenance services is shown in the figure.
< Horizontal installation >
Unit: mm Unit: mm
B
A (Suspension bolt pitch)
B (Inspection access)
Inspection
access
450 × 450
(Field supply)
Inspection access
800 × B
(Field supply) Min. 650
Ceiling (Inspection access)
Floor
(200)
450
Min. 1,800
Min. 350
Min.
250
Min.
20 Min.
20
Min. 300
70
Minimum space for installation and
maintenance services Unit: mm
Type 15, 22, 28,
36, 45, 56 60, 73, 90 106, 112, 140,
160
A (Length) 867 1,067 1,467
B (Length) 850 1,050 1,450
It is necessary to make space for the cleaning and
maintenance of the drain pan, the heat exchanger and filter
fixed inlet.
Do not put any obstacle not to cause obstructing
maintenance or cleaning works.
If the place where the ceiling material cannot be removed,
make an inspection access (800 × B) below the bottom
surface of the indoor unit in order to take it out.
If no space to provide inspection access (800 × B), there are two alternative cases (1or 2as below). However, when choosing
those cases, there is not enough space available to offer heat exchanger maintenance service.
1Make space more than 300 mm between the indoor unit’s
bottom surface and the ceiling material. 2Install inspection access (450 × 450) both edge of indoor unit and make space more than 100 mm between the indoor
unit’s bottom surface and the ceiling material.
(Inspection access)
450
Min.
300
450 450
(Inspection access) (Inspection access)
Min.
100
Unit: mm
Unit: mm
Unit: mm
Inspection access
450 × 450
(Field supply)
Inspection access
450 × 450
(Field supply)
(150) (200)
(Inspection access)
800
01_350221_Eng.indb 10 2023/3/17 10:00:59

11
Unit: mm
Duct
Grille *
Min. 650
Min. 20
Min.
300
Min. 250
Min.
H
Min.
H
< Vertical installation >
* Make it possible to open / close for maintenance services
for the drain pan, the heat exchanger and filter fixed inlet.
H
•Lower side air intake with duct : 300 mm
•Lower side air intake without duct : 200 mm
•Front side air intake : 150 mm
* Make it possible to open / close for maintenance services.
H
•Lower side air intake with duct : 300 mm
•Lower side air intake without duct : 200 mm
•Front side air intake : 150 mm
Grille *
Grille *
Unit: mm
Max. 10 Max. 10
Min. 650
Min. 300
Min. 20
Min. 250
Min. H
Min. H
●It is recommended that the space be provided (450 × 450 mm) for checking and servicing
the electrical system.
Inspection access
450 × 450
(Field supply)
01_350221_Eng.indb 11 2023/3/17 10:01:00

12
Detailed dimensions of indoor unit
Type A B C D E F
mm mm mm mm mm Q’ty
15, 22, 28, 36, 45, 56 867 800 450 (Pitch 150 × 3) 71 592 12
60, 73, 90 1,067 1,000 750 (Pitch 150 × 5) 21 792 16
106, 112, 140, 160 1,467 1,400 1,050 (Pitch 150 × 7) 71 1,192 20
i
f
c
d
a
b
g
h
e
71
255
25
E (Flange O.D.)
54
33.5
D C
154
D
33.5
186
(200)
636
B
A (Suspension bolt pitch)
96
400
26
190
55
55
140
23
340
30 730
250
228
6
140 23
F - ø3.0 holes
Inspection
access
450 × 450
(Field supply)
Inspection access
(Field supply)
(See Section 3-1.)
a) Refrigerant tubing joint (liquid tube)
b) Refrigerant tubing joint (gas tube)
c) Upper drain port VP20 (ø26 mm)
200 mm flexible hose supplied
d) Bottom drain port VP20 (ø26 mm)
e) Suspension lug (4 – 12 × 30 mm)
f) Power supply outlet
g) Fresh air intake port (ø100 mm)
h) Flange for flexible air outlet duct
i) Electrical component box
Unit: mm
01_350221_Eng.indb 12 2023/3/17 10:01:00

13
3-2. Preparation Before Installation
3-2-1. Main Types of Installation
Case A (Standard installation)
Horizontal installation in the ceiling,
rear side air intake
Rear side air intake
Case C
Vertical installation on the sidewall, lower
side air intake
Lower side air intake
*While in heating mode, the temperatures
may increase higher than the set
temperature.
Case B
Horizontal installation in the ceiling, lower
side air intake
Lower side air intake
Case D
Vertical installation on the sidewall, front side
air intake
Front side air intake
*While in heating mode, the temperatures
may increase higher than the set
temperature.
3-2-2. Install the Filter
When not connecting the air intake duct, be sure to install the filters (Accessories).
Case A and Case C are shown below.
Filter (Accessory)
Screw
A
Type 15, 22, 28, 36, 45, 56
Filters (Accessories)
Screws
A
Type 60, 73, 90, 106, 112, 140, 160
View A Main unit Filter
Attach the filter to the main unit while
pushing the tip of the latches in the
direction of the arrow.
Attach the filters (accessories) in the manner shown in the figure.
Securely fix the filters with the screws.
01_350221_Eng.indb 13 2023/3/17 10:01:03

14
3. Attach the filters (accessories) in the manner shown in the figure.
Securely fix the filters with the screws.
Filter
Attach the filter to the main
unit while pushing the tip of the
latches in the direction of the
arrow.
View B
Main unit

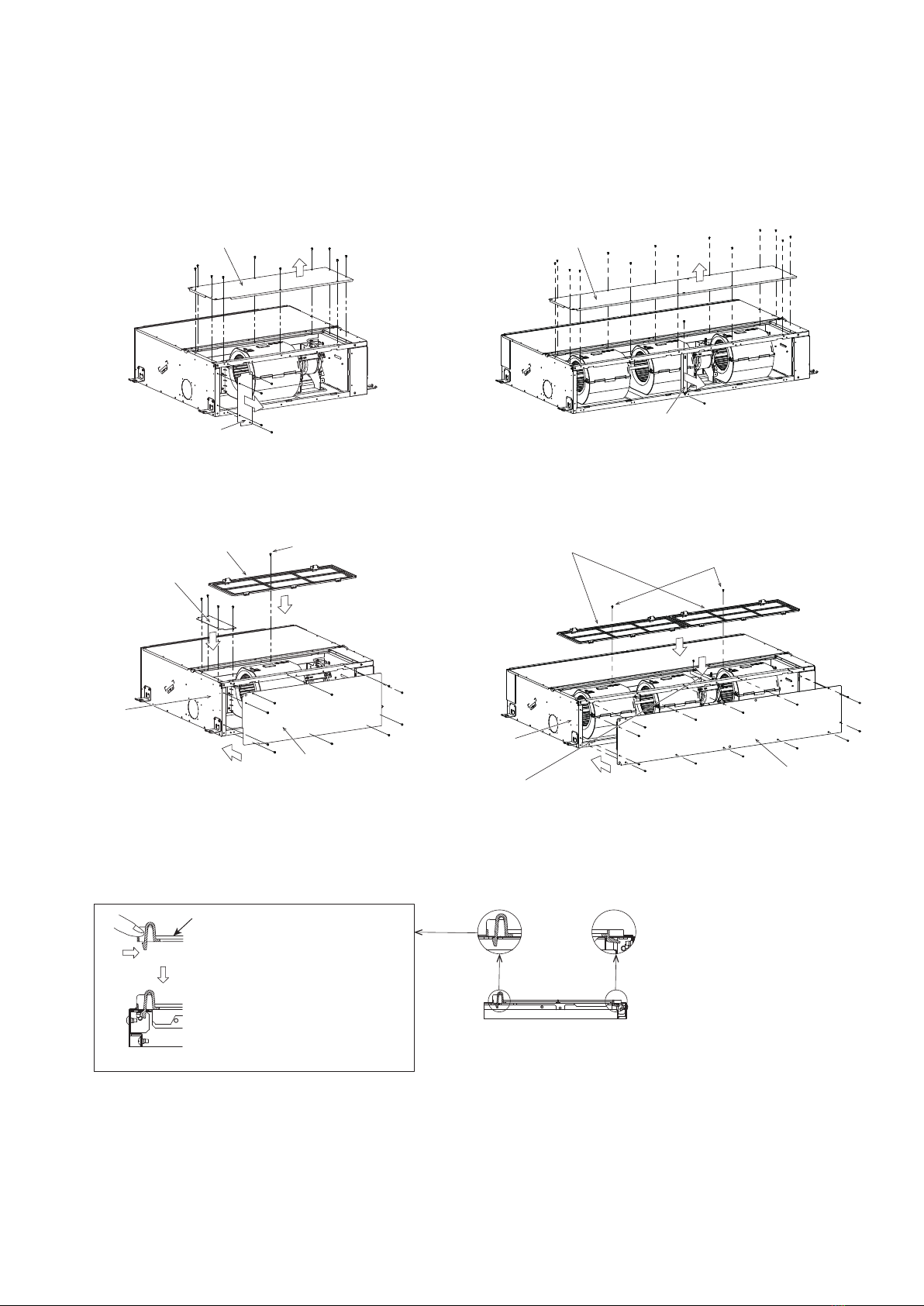

Case B and Case D are shown below.
For Case B and Case D, replace the cover plates in the procedure shown in the figure.
Type 15, 22, 28, 36, 45, 56
1. Remove the cover plates (2 pcs).
Cover plate
Cover plate
2. Attach the cover plates removed in Step
1 and filter (accessory) in the direction
shown in the figure below.
B
Cover plate
Cover plate
Screw
Filter (Accessory)
Type 60, 73, 90, 106, 112, 140, 160
1. Remove the cover plate and the support
plate (Type 106, 112, 140, 160 only).
Cover plate
Support plate (Type 106, 112, 140, 160 only)
2. Attach the cover plate and the support plate
removed in Step 1 and filters (accessories)
in the direction shown in the figure below.
B
Filters (Accessories) Screws
Support plate (Type 106, 112, 140, 160 only)Cover plate
01_350221_Eng.indb 14 2023/3/17 10:01:05

15
3-3. Fix the Indoor Unit
3-3-1. Horizontal Installation
Depending on the ceiling type:

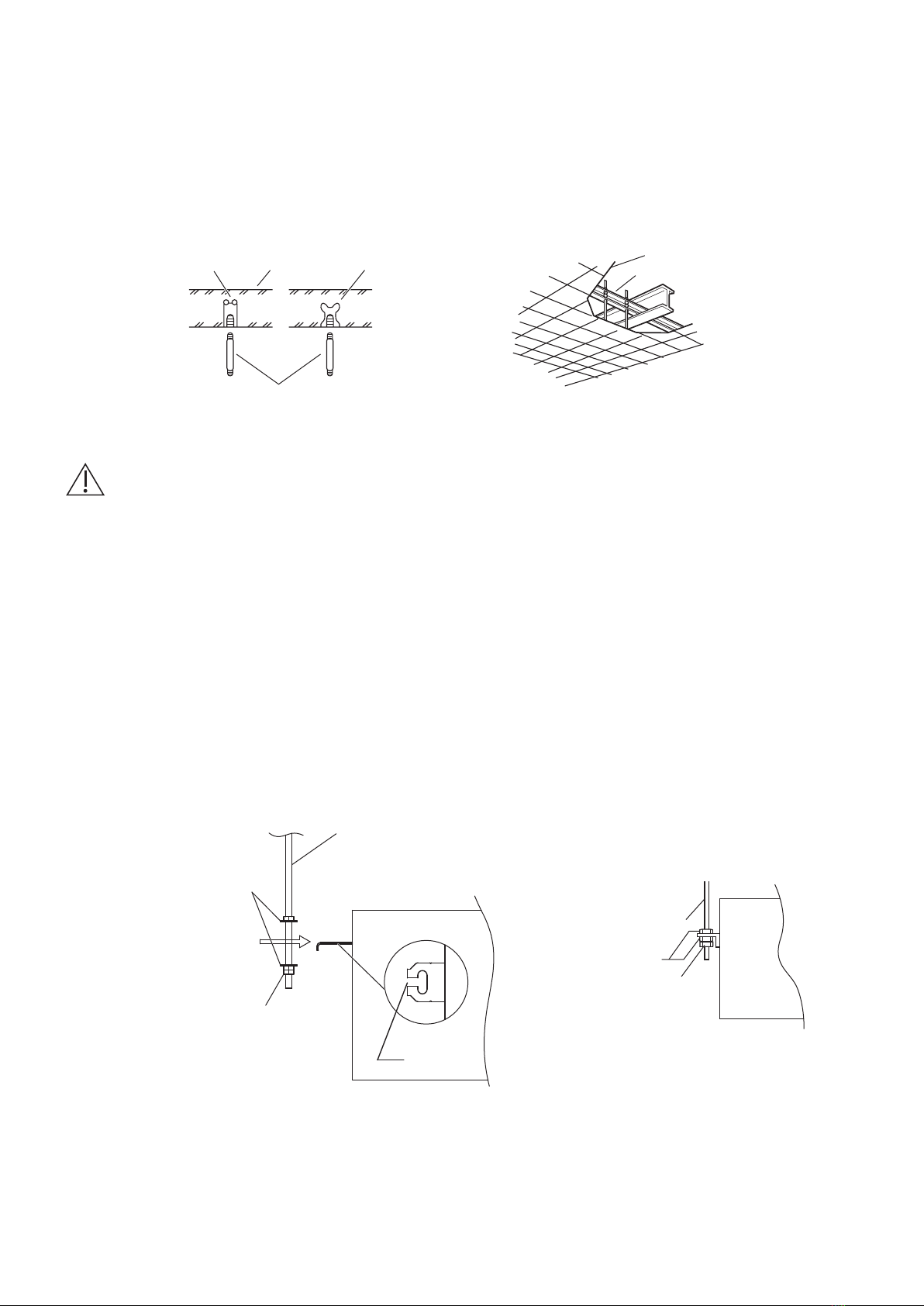

a) Insert suspension bolts.
or
b) Use existing ceiling supports or construct a suitable support.
Insert
Hole-in-anchor
Hole-in-plug Concrete
Suspension bolt (M10 or 3/8”)
(field supply)
a) b)
Ceiling support
Ceiling tiles
WARNING
It is important that you use extreme care in supporting the indoor unit inside the ceiling.
Ensure that the ceiling is strong enough to support the weight of the unit. Before
hanging the unit, test the strength of each attached suspension bolt.
(1) When placing the unit inside the ceiling, determine the pitch of the suspension bolts
referring to the dimensional data as shown in the tables and diagrams under Section 3-1.
Tubing must be laid and connected inside the ceiling when suspending the unit. If the
ceiling is already constructed, lay the tubing into position for connection to the unit before
placing the unit inside the ceiling.
(2) Screw in the suspension bolts allowing them to protrude from the ceiling. (Cut the ceiling
material, if necessary.)
(3)
Thread the 3 hexagonal nuts and 2 washers (field supply) onto each of the 4 suspension bolts.
Use 1 nut and 1 washer for the upper part, and 2 nuts and 1 washer for the lower part, so that
the unit will not fall off the suspension lugs.
Nuts and washers
(use for upper and lower)
Suspension lug
Double nuts
Suspension bolt
Notch
Suspension bolt
Double nuts
Hexagonal nut
01_350221_Eng.indb 15 2023/3/17 10:01:05

16
●This shows an example of installation.
Air outlet duct Bolt anchor
Suspension bolt
Ceiling material
Air outlet grille Indoor unit
●Check to make sure the unit is installed in a horizontal position by using a level.
Water leakage may occur if the unit is not installed horizontally.
3-3-2. Vertical Installation
●To prevent overturning, fasten the unit to the wall securely.
●Check to make sure the wall and the bolts can endure 5 times of weight of the unit. Ensure
to fix the unit.
●In order to suppress vibrations, provide the spacer between the unit and the wall.
●Fasten the hanging brackets and bolts using by the hexagon nuts and washers.
●Check to make sure the unit is installed in a horizontal position by using a level.
Water leakage may occur if the unit is not installed horizontally.
01_350221_Eng.indb 16 2023/3/17 10:01:06

17
3-4. Installing the Drain Pipe
(1) Prepare standard hard PVC pipe (O.D. 26 mm) for the drain and use the supplied hose
band to prevent water leaks.
The PVC pipe must be purchased separately.
The transparent drain part on the unit allows you to check drainage.
CAUTION
●Do not use adhesive tape at the drain connection port on the indoor unit.
●Insert the drain pipe until it contacts the socket, and then secure it tightly with the
hose band.
●Do not use the supplied drain hose bent at a 90° angle. (The maximum permissible
bend is 45°.)
●Tighten the hose clamps so their locking nuts face upward.
(2) Installing the drain hose
●First insert the drain hose (supplied) to the hose band (supplied) and then install the drain
hose to the unit drain port.
●Insert until the drain hose bumps to the end.
●Hose band screw torque is 30 - 35 N · cm.

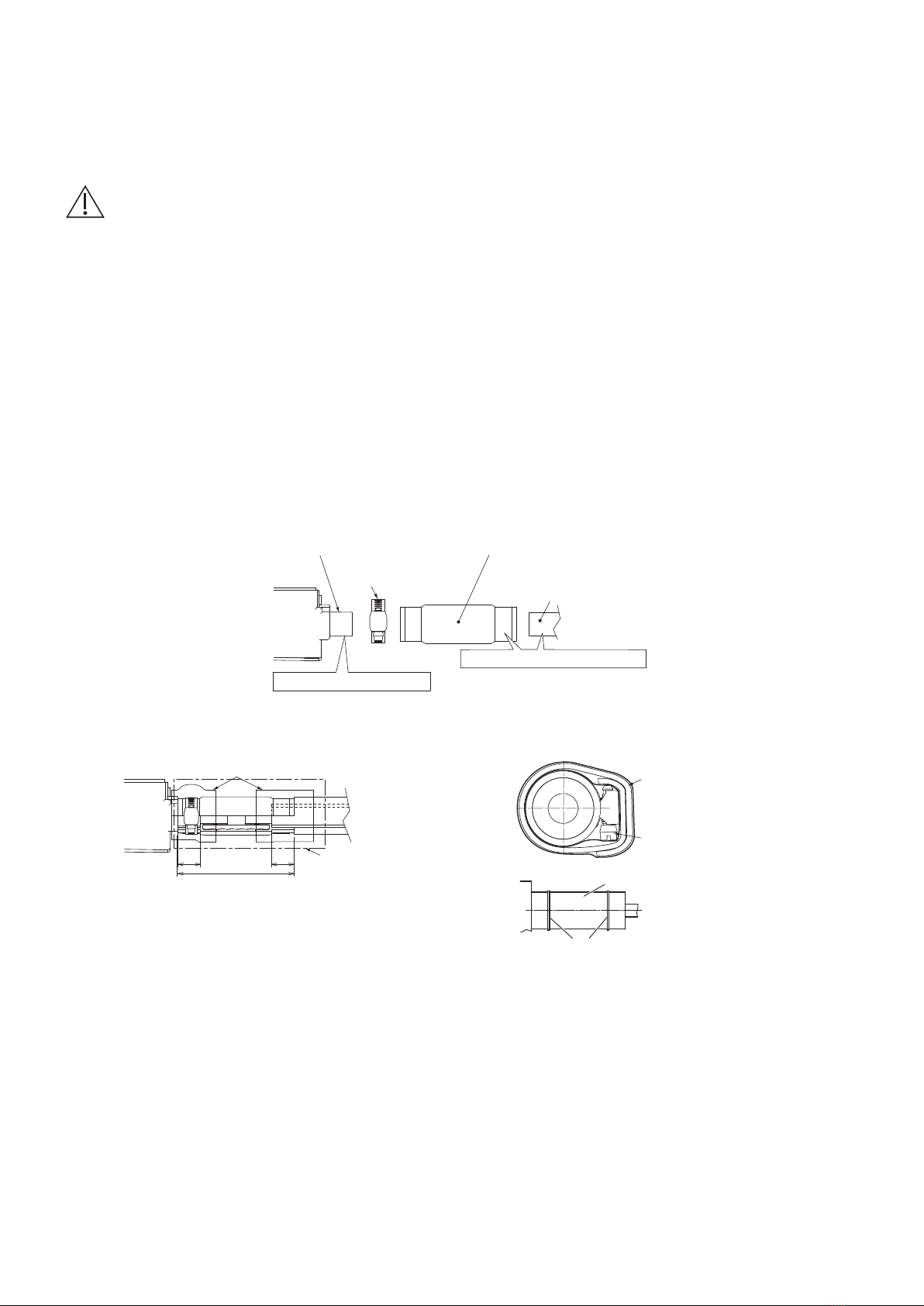

●Connect both the drain hose and PVC pipe (VP20 or similar material, not supplied). Insert
until the PVC pipe bumps to the end and adhere with PVC adhesive.
Unit drain port
Hose band (supplied)
Drain hose (supplied)
Do not use adhesive. Adhere with PVC adhesive.
Hard PVC pipe
(VP20 not supplied)
(3) After connecting the drain pipe securely, wrap the supplied packing and drain pipe insulator
around the pipe, then secure it with the clampers.
Unit: mm
Packing (supplied)
Drain insulator (supplied)
130
26 26
130
26 26
Drain insulator (supplied)
Hose band (supplied)
Drain insulator (supplied)
Clampers (supplied)
01_350221_Eng.indb 17 2023/3/17 10:01:06

18
3-4-1. Horizontal Installation
NOTE
Make sure the drain pipe has a downward gradient (1/100 or more) and that there are no water
traps.
CAUTION
●Do not install an air bleeder as this may cause water to spray from the drain pipe
outlet.
Prohibited
Air bleeder
●If it is necessary to increase the height of the drain pipe, the section directly after the
connection port can be raised a maximum of 500 mm. Do not raise it any higher than
500 mm, as this could result in water leaks.
300 mm or less
500 mm or less
Good
●Do not install the pipe with an upward gradient from the connection port. This will cause the
drain water to flow backward and leak when the unit is not operating.
Upward gradient
Prohibited
●Do not apply force to the piping on the unit side when connecting the drain pipe. The pipe
should not be allowed to hang unsupported from its connection to the unit. Fasten the pipe to
a wall, frame, or other support as close to the unit as possible.
Support pieces
01_350221_Eng.indb 18 2023/3/17 10:01:06

19
3-4-2. Vertical Installation

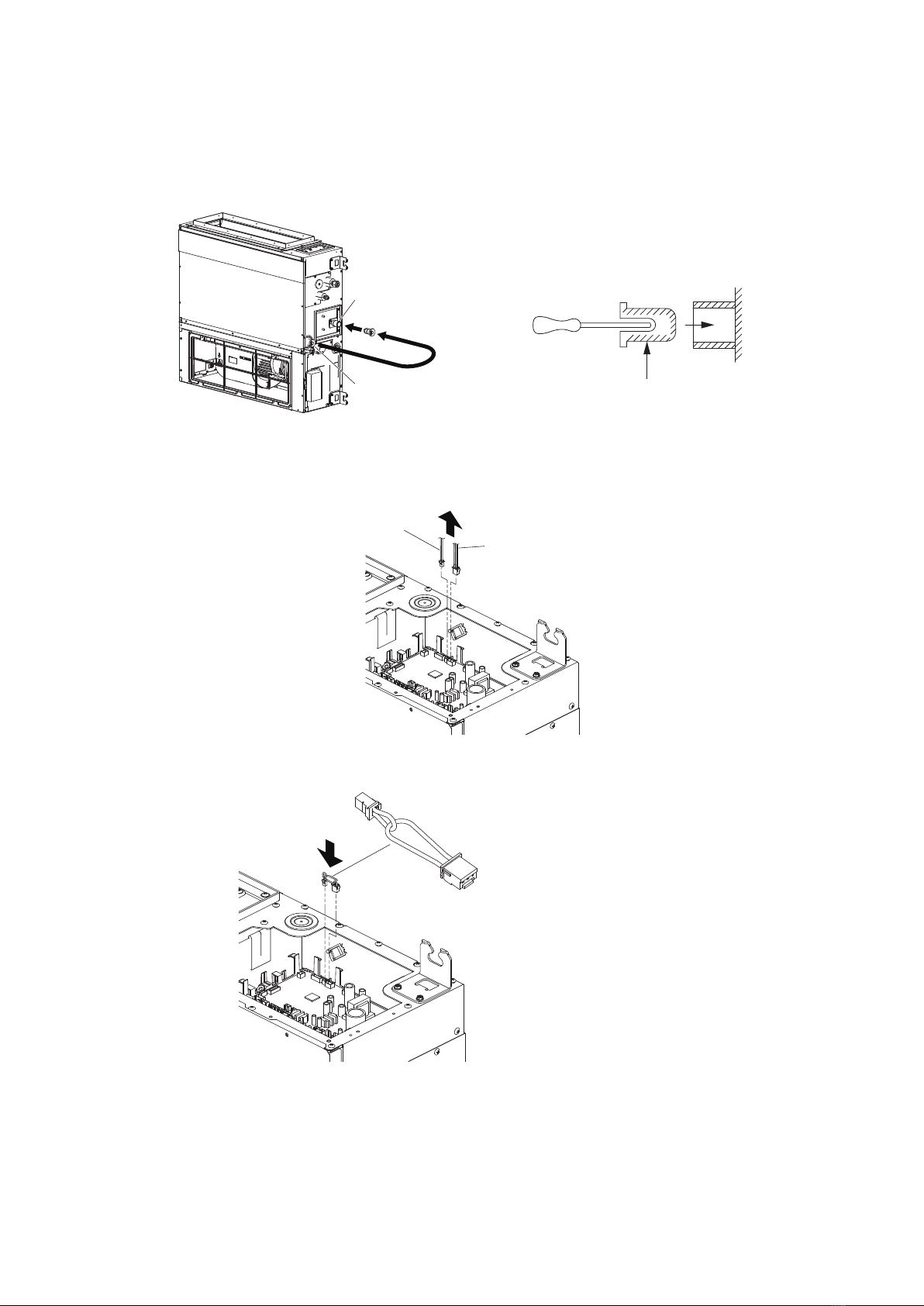

●Replace the drain cap
Remove the drain cap from the bottom drain port and reinstall it to the upper drain port.
The drain cap can be inserted easily by using a screwdriver or similar tool to push the drain
cap into the drain port on the main unit. Push the drain cap into the main unit’s drain port
until it reaches the end-stop.
Upper drain port
(Not used)
Bottom drain port
Screwdriver
Drain cap
Drain port
●Replace the connectors
When installing the unit vertically, disconnect the connectors of the drain pump (3-pin) and
the float switch (2-pin) from the PCB.
Float switch connector
(2-pin) Drain pump connector
(3-pin)
Insert the supplied short-circuit connection to the place where the connectors were removed.
Short-circuit connection (Accessories)
2-pin
2-pin 3-pin
3-pin
* Pay attention to the type of connector.
• A fter switching on the power, invalidate the drain pump and change the heating intake
temperature by setting the remote controller. (For details, see next page.)
01_350221_Eng.indb 19 2023/3/17 10:01:07

20
How to make drain pump ineffective and changing heating intake temperature
Operating the High-spec Wired Remote Controller (CZ-RTC5B)
After completing the address setting under Section “TEST
RUN” of the outdoor unit installation instructions, carry out the
following procedure.
1. Keep pressing the , and buttons
simultaneously for 4 or more seconds.
The “Maintenance func” screen appears on the LCD
display.
Maintenance func
1. Outdoor unit error data
2. Service contact
3. RC setting mode
4. Test run
Sel. Page [ ] Confirm
20:30 (THU)
2. Press the or button to see each menu.
If you wish to see the next screen instantly, press the
or button.
Select “8. Detailed settings” on the LCD display and press
the button.
The “Detailed settings” screen appears on the LCD display.
3. Select the “Unit no.” by pressing the or button
for changes.
4.
Select the “Code no.” by pressing the or button.
Change the “Code no.” to “3F” by pressing the or
button (or keeping it pressed).
5. Select the “Set data” by pressing the or button.
(“0007” or “0000” set at shipment)
Change the Setting Data “0001” by pressing the or
button.
Then press the button.
6.
Select the “Code no.” by pressing the or button.
Change the “Code no.” to “06” by pressing the or
button (or keeping it pressed).
7. Select the “Set data” by pressing the or button.
(“0004” set at shipment)
Change the Setting Data “0000” by pressing the or
button.
Then press the button.
8. Select the “Unit no.” by pressing the or button
and press the button.
The “Exit detailed settings and restart?” (Detailed setting-
end) screen appears on the LCD display.
Select “YES” and press the button.
20:30 (THU)
START
[ ]
Maintenance func
5. Sensor info.
6. Servicing check
8. Detailed settings
Sel. Page [ ] Confirm
20:30 (THU)
7. Simple settings
Detailed settings
Unit no. Code no. Set data
10
1-1 0005
Sel. Next
20:30 (THU)
Detailed settings
Unit no. Code no. Set data
1-1 0007
Sel. Next
20:30 (THU)
3F
Detailed settings
Unit no. Code no. Set data
1-1 0004
Sel. Next
20:30 (THU)
06
Detailed settings
Unit no. Code no. Set data
ALL
Sel. Next
20:30 (THU)
01 0002
Exit detailed settings
and restart?
NOYES
Detailed settings
Unit no. Code no. Set data
1-1
Sel.
20:30 (THU)
3F 0001
[ ] Confirm
Detailed settings
Unit no. Code no. Set data
1-1
Sel.
20:30 (THU)
06 0000
[ ] Confirm
01_350221_Eng.indb 20 2023/3/17 10:01:08
