Panasonic CF-WEB Series Manual

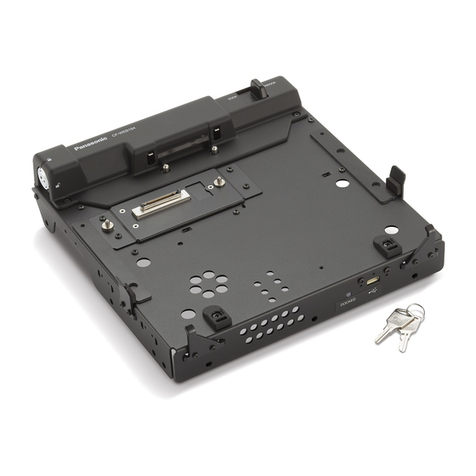

CF-WEB301
CAR MOUNTER KIT
SETTING MANUAL

NOTICE
• CF-WEB301 is one of the components used to assemble an in vehicle mounting system
for Panasonic laptop computer CF-30 series.
• When installing the mounting system, comply with the laws and statutes of the area where
CF-30/CF-WEB301 are used.
• The anti-impact performance of this Car Mounter Kit and this laptop computer is not
guaranteed for the cases of heavy crashes such as emergency brake, car crash
shock, or vibration running on rough or uneven road.
• Please consider end-users usage environment (vehicle type, mounted place, etc) and
make safety extra measures such as anti-drop implementation.
• Precautions for Installing the Car Mounter
• Do Not Install This Product in Unstable State
If balance of the computer is lost, it may fall over or drop, resulting in an injury.
Install the Car Mounter horizontally.
•
Do Not Install This Product Wherever There is a Lot of Water, Moisture, Steam, Dust, Oily Vapors, etc.
Otherwise, possibly resulting in fire or electric shock.

Mount Business Model
PC
Parts Manufacturer A = Panasonic
E.g) TOUGHBOOK CF-30
Docking Unit
Parts Manufacturer B = Panasonic
E.g) CF-WEB301
Mount Parts 1
Parts Manufacturer C
E.g) Anti-vibration cushion
Mount Parts 2
Parts Manufacturer D
Anti-vibration plate, Joint bracket
Mount Parts 3
Parts Manufacturer E
Ex) Arm, Pole
Mount Parts 4
Parts Manufacturer F
Anti-drop parts, Protection cover
Installer
Each component must be
designed in such a way that the
anti-vibration performance of the
whole system is achieved
Coordinator
Customer

Physical Specification
311
296.7
3
52.8 125.1
265.3

303
34.7
13.8 55 52.5 50
9
4- 7
13.8 55 52.5 50
4- 7
9
73.6 59
59
80.2
19.5
31.5
6
240
212.5
11
11
6
(Unit: mm)

Physical Specification (with CF-30)
105.5
(Unit: mm)

Appearance (PORTS)
AB C
DE
A. Key insertion slot
B. Lever DOCK UNDOCK
Slide the lever to the direction of “DOCK”, then turn the key toward
side to lock. When the computer has been installed, be absolutely sure
to lock this lever by turning the key toward side.
C. Expansion Bus Connector
D. Dock indicator DOCKED
GREEN : all ports are ready to use
ORANGE : USB port and LAN port do not function, due to no external
power is connected
RED : Connected PC is not supported or connection error happens
RED (Blinking): An error has occured in the firmware.
Stop using at once, and contact Panasonic Technical Support.
Not lit: 1PC has not installed.
2PC is OFF, Standby or Hibernation.
E. USB port
NOTE
The lock is turned to side at default setting.
When installing the computer, confirm that the lever is slid toward
the UNDOCK side.
ABC DEF GH
I
J
K
L
M
Bottom
A. Wireless Antenna Switch
Switch the antenna of the PC or the antenna connected with this Car
Mounter.
Turn toward EXT side when use the antenna connected with this Car
Mounter.
B. Serial Port B
C. Serial Port A
D. External display port
E. Microphone jack
F. Headphone jack
G. USB ports
H. LAN port
I. Security lock
LOCK
You can connect a Kensington cable. Refer to the instruction manual of the
cable.
J. External ANT A LOWER Port of computer/single (optional)
K. External ANT B UPPER Port of computer (optional)
L. (optional)
M. DC-IN jack DC IN 15.6V
Top

Setting Angle
Within ±5°
Within
±5 degree
OK Out of Range
Recommended Setting Angle Range
The Hard Disk Drive installed in the PC
is recommended to be used within ±5
degree when horizontal
If used out of the recommended Setting Angle Range
Please explain to end user about the following risk:
1. In some cases product life is shortened. Or in some cases
anti-vibration performance is weakened.
2. Even if key is locked, PC may fall down by vibration or
shock. Please use at a place where it will not cause injury
to the user. If necessary please add extra anti-drop or
safety measures.
3. If installed too high, the user may be injured by PC when
dropped. Please consider setting position, for example,
setting the PC lower place.

①②
③
Dock possible
Dock impossible
- Please dock after moving
the lever to the direction of
“UNDOCK”.
- If PC is docked while
the back side expansion
bus connector is out, the
connector will break.
Push these areas, when
pushing down the PC
Never push this area (LCD and
near LCD) strongly. Glass may
break.
If PC is docked with the cover closed, it may damage.
Check the expansion bus connector Open the cover of expansion bus connector
Dock the PC
Notice When Dock (1)

④Slide the lever to the direction of “DOCK”, then turn the key toward side to lock.
Notice When Dock (2)
After lock, pull out the key.
◆When PC is docked and the key is removed,
LCD can open about 180 degrees.
* If excessive power is applied to open the LCD forcibly,
it may cause the failure such as LCD crack.

②
Confirm the following points before detaching.
Slide the lever to the direction of
“UNDOCK”.
◆Notice When Detach
①Turn the key toward side to unlock.

◆Anti-Vibrating Design : Anti-Vibrating Performance of Panasonic Rugged PC
LEVEL-A TEST 1 hour OK
0.04g
2
/Hz
0.002g
2
/Hz
20Hz 2000Hz
0.001g
2
/Hz
0.0005g
2
/Hz
LEVEL-B 7years OK (foresee)
140Hz 500Hz10Hz
0.034g
2
/Hz
0.00004g
2
/Hz
◆Durability of Vibration – Non Operation
(1) When not operating, Panasonic PC can
endure 1 hour’s random vibration as shown as
LEVEL-A in the right Diagram
(3 axis).
(MIL STD 810F 514.5 Category24 Fig.514.5C-17)
(2) Considering the deterioration by vibration, life
prediction method of JIS E4031 or IEC61373
cites; LEVEL-B (in the right Diagram) is the limit
of the vibration level which allows user to use the
PC for 7 years, 250 days/year and 12 hours/day
◆Durability of Vibration – Operation
(1) Panasonic have confirmed that our PC has no
malfunction during random vibration as shown in
the right Diagram has been applied for 1 hour.
* The anti-resonance performance and anti-vibration
performance of this product does not guarantee
damage and breakdown.
* Except for optical disk drive such as DVD drive.
* During vibration, operation speed may slow down.

A
A
A
0.034g2/Hz
0.00004g2/Hz
0.002g2/Hz
◆Anti-Vibration Design :
Vibration isolated
table
Joint bracket
Arm / Pole
Vibration Sensor
Anti-vibration
cushion, etc
◆When installed in the vehicle,
take these precautions so that the
vibration level, which is applied to PC, is
under Line A;
(1) Stabilize fitting position
(2) Suppress resonance and vibration
by anti-vibration cushion or vibration
isolated table
◆If it is impossible to limit the vibration
level under Line A, periodical
maintenance and parts replacement for
wearable parts is recommended.
Limit where it is estimated
to be OK even if we consider
the deterioration by 7 years’
repeated vibration.
Limit where PC can operate without error
* The anti-resonance performance and anti-
vibration performance of this product does
not guarantee damage and breakdown.
PCE0227A
