Panasonic Lumix H-FS014042 User manual

Operating Instructions
INTERCHANGEABLE LENS FOR DIGITAL CAMERA
Model No. H-FS014042
Before connecting, operating or adjusting this
product, please read the instructions completely.
For USA and Puerto Rico assistance, please call: 1-800-211-PANA(7262) or, contact us via the web at: http://www.panasonic.com/contactinfo
For Canadian assistance, please call: 1-800-99-LUMIX (1-800-995-8649) or
send e-mail to: [email protected]
PP
VQT2U00
until
2010/4/30
VQT2U00_ENG_SPA.book 1 ページ ２０１０年４月８日 木曜日 午後７時２８分

2
VQT2U00
Contents
Information for Your Safety..................................... 2
Precautions........................................................... 5
Supplied Accessories ............................................. 6
Attaching/Detaching the Lens................................. 6
Names and Functions of Components ................... 8
Cautions for Use..................................................... 9
Troubleshooting .................................................. 10
Specifications........................................................ 11
Limited Warranty................................................... 12
-If you see this symbol-
THE FOLLOWING APPLIES ONLY IN CANADA.
Information for Your Safety
Keep the unit as far away as possible from
electromagnetic equipment (such as microwave
ovens, TVs, video games, radio transmitters,
high-voltage lines etc.).
≥Do not use the camera near cell phones because
doing so may result in noise adversely affecting
the pictures and sound.
≥
If the camera is adversely affected by electromagnetic
equipment and stops functioning properly, turn the
camera off and remove the battery and/or the
connected AC adaptor. Then reinsert the battery and/
or reconnect the AC adaptor and turn the camera on.
The lens can be used with a digital camera
compatible with the lens mount standard for the
“Micro Four Thirds System”.
≥It cannot be mounted on the Four ThirdsTM mount
specification camera.
Information on Disposal in other Countries
outside the European Union
This symbol is only valid in the
European Union.
If you wish to discard this
product, please contact your
local authorities or dealer and
ask for the correct method of
disposal.
This Class B digital apparatus complies with
Canadian ICES-003.
VQT2U00_ENG_SPA.book 2 ページ ２０１０年４月８日 木曜日 午後７時２８分

3
VQT2U00
≥The digital camera illustrations in these operating
instructions show DMC-G2 as an example.
≥The appearance and specifications of products
described in this manual may differ from the actual
products you have purchased due to later
enhancements.
≥Four ThirdsTM and Four Thirds Logo marks are
trademarks or registered trademarks of Olympus
Imaging Corporation, in Japan, the United States,
the European Union and other countries.
≥Micro Four ThirdsTM and Micro Four Thirds Logo
marks are trademarks or registered trademarks of
Olympus Imaging Corporation, in Japan, the
United States, the European Union and other
countries.
≥G MICRO SYSTEM is a lens exchange type
digital camera system of LUMIX based on a Micro
Four Thirds System standard.
≥Other names, company names, and product
names printed in these instructions are
trademarks or registered trademarks of the
companies concerned.
ENGLISH
VQT2U00_ENG_SPA.book 3 ページ ２０１０年４月８日 木曜日 午後７時２８分

4
VQT2U00
THE FOLLOWING APPLIES ONLY IN THE U.S.A.
FCC Note:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
●Consult the dealer or an experienced radio/TV technician for help.
Any unauthorized changes or modifications to this equipment would void the user’s authority to operate this device.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Responsible Party:
Panasonic Corporation of North America
One Panasonic Way
Secaucus, NJ 07094
Support Contact:
Panasonic Consumer Electronics Company
Telephone No.: 1-800-211-PANA (7262)
VQT2U00_ENG_SPA.book 4 ページ ２０１０年４月８日 木曜日 午後７時２８分

5
VQT2U00
∫Lens Care
≥Sand and dust can damage the lens. Make
sure that no sand or dust gets inside the lens
or the terminals when using the lens on a
beach, etc.
≥This lens is not waterproof. If drops of water
get onto the lens, wipe the lens with a dry
cloth.
≥Do not press the lens with excessive force.
≥When there is dirt (water, oil, and fingerprints, etc.)
on the surface of the lens, the picture may be
affected. Lightly wipe the surface of the lens with a
soft, dry cloth before and after taking pictures.
≥Do not place the lens mount facing downwards.
Do not allow the lens contact point 1to become
dirty.
∫About Condensation (Fogging of the
Lens)
≥Condensation occurs when there are differences
in temperature and humidity as described below.
Condensation can cause the lens to become dirty
and lead to mold and malfunctioning, so exercise
caution in the following situations:
– When the camera is brought indoors from outside
during cold weather
– When the camera is brought into an air-
conditioned car
– When cold air from an air conditioner is directly
blown onto the lens
– In humid places
≥Put the camera into a plastic bag to allow it to
acclimatize to the surrounding temperature in
order to prevent condensation. If condensation
occurs, turn the power off and leave it for about
two hours. Once the camera acclimatizes to the
surrounding temperature the condensation will go
away naturally.
Precautions
VQT2U00_ENG_SPA.book 5 ページ ２０１０年４月８日 木曜日 午後７時２８分

6
VQT2U00
Supplied Accessories
[Inspection to be performed when you unpack
the unit]
When removing the unit from its packing box, check
that the main unit and the supplied accessories are
there and also check their external appearance and
functions to verify that they have not sustained any
damage during distribution and transportation.
If you discover any trouble, contact your vendor
before using the product.
Product numbers correct as of March 2010. These
may be subject to change.
1Lens Storage Bag
2Lens Hood
3Lens Cap
4Lens Rear Cap
(The lens cap and lens rear cap are attached to
the interchangeable lens at the time of
purchase.)
Attaching/Detaching the Lens
≥Refer also to the camera’s operating instructions
for attaching and detaching the lens.
∫Attaching the Lens
≥Check that the camera is turned off.
1 Turn the lens rear
cap to detach it.
A: Lens Rear Cap
2 Align the lens fitting
marks B(red marks) on
the camera body and the
lens and then rotate the
lens in the direction of
the arrow until it clicks.
• Do not press the lens release
button Cwhen you attach a lens.
• Do not try to attach the lens when holding it at an
angle to the camera body as the lens mount may
get scratched.
• Check that the lens is attached correctly.
VFC4456 VYC1009 VYF3201 VFC4315
312 4

VQT2U00_ENG_SPA.book 6 ページ ２０１０年４月８日 木曜日 午後７時２８分

7
VQT2U00
∫Detaching the Lens
≥Check that the camera is turned off.
Press the lens release
button Dwhile turning
the lens as far as
possible in the direction
of the arrow to detach it.
• Attach the lens rear cap so
that the lens contact point does not get
scratched.
• Attach the body cap to the camera so no dirt or
dust will get inside the main unit.
∫Attaching and Detaching the Lens Cap
≥Be careful not to lose
the lens cap.
∫Attaching the Lens Hood
(Supplied Accessory)

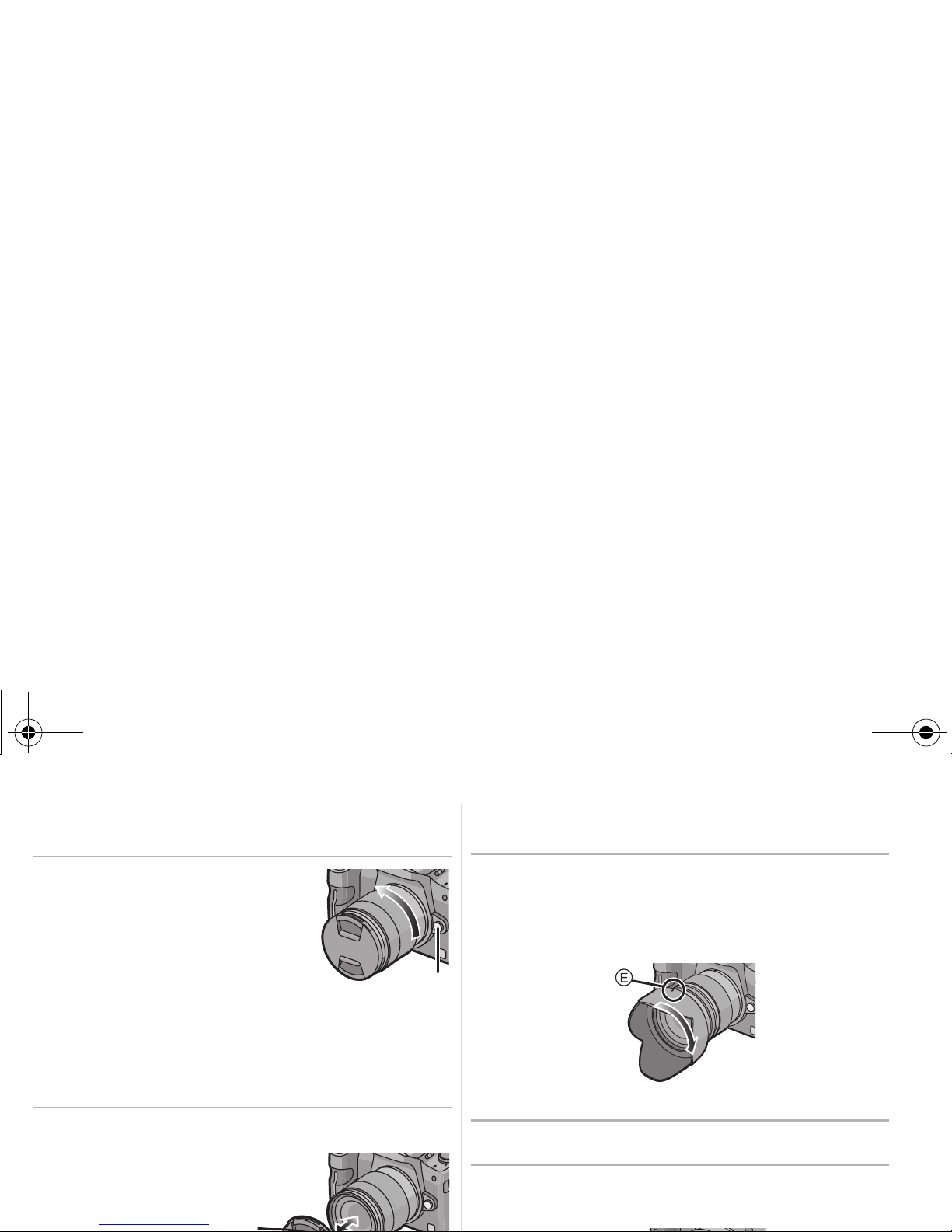

Insert the lens hood into the lens with the
short sides at the top and bottom, and
turn in the direction of the arrow until it
stops.
E: Fit to the mark
∫Temporarily Storing the Lens Hood
1 Turn the lens hood in the direction of the
arrow to detach it.

VQT2U00_ENG_SPA.book 7 ページ ２０１０年４月８日 木曜日 午後７時２８分

8
VQT2U00
2Reverse the lens hood and then attach it
in the same way as shown previously.
• When taking pictures with
the flash with the lens hood
attached, the lower portion
of the screen may turn dark
(vignetting effect) and the
control of the flash may be
disabled because the photo
flash may be obscured by the lens hood. We
recommend detaching the lens hood.
• When using the AF assist lamp in the dark,
detach the lens hood.
∫Attaching Filters
≥Vignetting may occur if using 2 or more
MC protectors (optional:DMW-LMC52),
PL filters (optional:DMW-LPL52) or ND filters
(optional:DMW-LND52), or if using thick
protectors and/or filters.
≥The filter may become impossible to remove if
excessively tightened, so please refrain from
tightening it too much.
≥It is possible to attach the lens cap with the filter
already attached.
≥You cannot attach a conversion lens or adaptor to
this lens. A filter may be used, but attaching any
other element may cause damage to the lens.
Names and Functions of
Components
∫Lens
1Lens surface
2Focus ring
Rotate to focus when taking pictures with manual
focus.
3Zoom ring
Rotate the zoom ring when you wish to take large
(tele) or wide (wide angle) pictures. (35 mm film
camera equivalent: 28 mm to 84 mm)
2345 1
VQT2U00_ENG_SPA.book 8 ページ ２０１０年４月８日 木曜日 午後７時２８分

9
VQT2U00
4Contact point
5Lens fitting mark
Note
≥When flash recording with a close subject, the
light of the flash will be blocked by the lens and
part of the picture may be dark. Check the
distance from the subject when recording.
Cautions for Use
∫About the Lens
Take care not to drop or knock the lens. Also
take care not to put a lot of pressure on the lens.
≥
Take care not to drop the bag that you inserted the
lens in as it may damage the lens. The camera may
stop operating normally and pictures may no longer
be recorded.
When using pesticides and other volatile
substances around the camera make sure that
they do not get onto the lens.
≥
If such substances get onto the lens they can
damage the exterior case or cause the paint to peel.
Do not carry the unit when it is still attached to
the camera body.
≥
Under no circumstances should the unit be stored
in any of the following locations since doing so may
cause problems in operation or malfunctioning.
– In direct sunlight or on a beach in summer
– In locations with high temperatures and humidity
levels or where the changes in temperature and
humidity are acute
– In locations with high concentrations of sand,
dust or dirt
– Where there is fire
VQT2U00_ENG_SPA.book 9 ページ ２０１０年４月８日 木曜日 午後７時２８分

10
VQT2U00
– Near heaters, air conditioners or humidifiers
– Where water may make the unit wet
– Where there is vibration
– Inside a vehicle
≥Refer also to the operating instructions of the
digital camera.
≥When the unit is not going to be used for a
prolonged period, mold and other problems may
cause performance failure. It is recommended that
you check the unit’s operation prior to use.
≥Do not leave the lens in contact with rubber or
plastic products for extended periods of time.
≥Do not touch the lens contact point. Doing so can
cause failure of the unit.
≥Do not disassemble or alter the unit. If the internal
parts require inspection or repair, take the unit to
the vendor.
Do not use benzine, thinner, alcohol or other
similar cleaning agents to clean the lens glass or
exterior cabinet.
≥Using solvents can damage the lens or cause the
paint to peel.
≥Wipe off any dust or fingerprints with a soft, dry
cloth.
≥Use a dry, dust cloth to remove dirt and dust on
the zoom ring and the focus ring.
≥Do not use a household detergent or a chemically
treated cloth.
A sound is heard when the camera is turned on
or off.
≥This is the sound of lens or aperture movement
and is not a malfunction.
When this lens is attached to digital camera,
stabilizer function cannot be turned off or
stabilizer function does not work.
≥The Optical Image Stabilizer function of this lens
only works correctly with supported cameras.
>When older Panasonic digital cameras (DMC-
GF1, DMC-GH1, DMC-G1) are used,
[STABILIZER] in the [REC] mode menu cannot be
set to [OFF]. It is recommended to update the
firmware of the digital camera at the following
website.
http://panasonic.jp/support/global/cs/dsc/
download/
>When using this lens with another make of digital
cameras, the Optical Image Stabilizer function will
not work. (As of March 2010)
For details, contact the respective company.
Troubleshooting
VQT2U00_ENG_SPA.book 10 ページ ２０１０年４月８日 木曜日 午後７時２８分

11
VQT2U00
Specifications
INTERCHANGEABLE LENS FOR DIGITAL CAMERA
“LUMIX G VARIO 14–42 mm/F3.5–5.6 ASPH./MEGA O.I.S.”
Focal length f=14 mm to 42 mm
(35 mm film camera equivalent: 28 mm to 84 mm)
Aperture type 7 leaf shutters/iris diaphragm/circular diaphragm
Aperture range F3.5 (Wide) to F5.6 (Tele)
Minimum aperture value F22
Lens construction 12 elements in 9 groups (1 aspherical lens)
In focus distance 0.3 m (0.99 feet) to ¶ (from the focus distance reference line)
Maximum image magnification 0.16k(35 mm film camera equivalent: 0.32k)
Optical image stabilizer Available
[O.I.S.] switch None
(Setting of the [STABILIZER] is done in [REC] mode menu by
LUMIX digital cameras.)
Mount “Micro Four Thirds Mount”
Angle of view 75x(Wide) to 29x(Tele)
Filter diameter 52 mm (2.05 inch)
Max. diameter 60.6 mm (2.39 inch)
Overall length Approx. 63.6 mm (2.50 inch)
(from the tip of the lens to the base side of the lens mount)
Mass (Weight) Approx. 165 g (0.22 lb)
VQT2U00_ENG_SPA.book 11 ページ ２０１０年４月８日 木曜日 午後７時２８分

12
VQT2U00
Limited Warranty
Limited Warranty Coverage
If your product does not work properly because of a defect in materials or workmanship, Panasonic
Consumer Electronics Company (referred to as “the warrantor”) will, for the length of the period indicated
on the chart below, which starts with the date of original purchase (“warranty period”), at its option either (a)
repair your product with new or refurbished parts, or (b) replace it with a new or a refurbished product. The
decision to repair or replace will be made by the warrantor.
You must Mail-In your product during the warranty period. This warranty only applies to products purchased
and serviced in the United States or Puerto Rico. This warranty is extended only to the original purchaser of
a new product which was not sold “as is”.
Mail-In Service
For assistance in obtaining service in the United States and Puerto Rico please contact:
Panasonic Camera and Digital Service Center
1590 Touhy Ave.
Elk Grove Village, IL 60007
FOR U.S.A. and Puerto Rico
PANASONIC CONSUMER ELECTRONICS COMPANY,
DIVISION OF PANASONIC CORPORATION OF NORTH AMERICA
One Panasonic Way,
Secaucus, New Jersey 07094
Digital Still Camera ACCESSORIES LIMITED WARRANTY
PRODUCT OR PART NAME PARTS LABOR
Interchangeable Lens for Digital Camera 1 (ONE) YEAR 1 (ONE) YEAR
VQT2U00_ENG_SPA.book 12 ページ ２０１０年４月８日 木曜日 午後７時２８分

13
VQT2U00
If repair is needed during the warranty period the purchaser will be required to furnish a sales receipt/proof
of purchase indicating date of purchase.
Also, purchaser will be responsible for shipping the unit to the above address.
Limited Warranty Limits And Exclusions
This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER
normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which
occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures
which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty
installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line
surge, lightning damage, modification, or commercial use (such as in a hotel, office, restaurant, or other
business), rental use of the product, service by anyone other than a Factory Service Center or other
Authorized Servicer, or damage that is attributable to acts of God.
THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER “LIMITED WARRANTY
COVERAGE”. THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL
DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF
THIS WARRANTY.
(As examples, this excludes damages for lost time, travel to and from the servicer, or loss of, or fail-
ure to obtain, images, data or other camera memory content. The items listed are not exclusive, but
are for illustration only.) ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY
OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.
Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations
on how long an implied warranty lasts, so the exclusions may not apply to you.
This warranty gives you specific legal rights and you may also have others rights which vary from state to
state. If a problem with this product develops during or after the warranty period, you may contact your
dealer or Service Center. If the problem is not handled to your satisfaction, then write to the warrantor’s
Consumer Affairs Department at the addresses listed for the warrantor.
PARTS AND SERVICE WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY ARE YOUR
RESPONSIBILITY.
VQT2U00_ENG_SPA.book 13 ページ ２０１０年４月８日 木曜日 午後７時２８分

14
VQT2U00
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario L4W 2T3
PANASONIC PRODUCT – LIMITED WARRANTY
Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship under normal use and
for a period as stated below from the date of original purchase agrees to, at its option either (a) repair your product with
new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase
price. The decision to repair, replace or refund will be made by Panasonic Canada Inc.
This warranty is given only to the original purchaser, or the person for whom it was purchased as a gift, of a Panasonic
brand product mentioned above sold by an authorized Panasonic dealer in Canada and purchased and used in Canada,
which product was not sold “as is”, and which product was delivered to you in new condition in the original packaging.
IN ORDER TO BE ELIGIBLE TO RECEIVE WARRANTY SERVICE HEREUNDER, A PURCHASE RECEIPT OR OTHER
PROOF OF DATE OF ORIGINAL PURCHASE, SHOWING AMOUNT PAID AND PLACE OF PURCHASE IS REQUIRED
FOR CANADA
Digital Camera One (1) year, parts and labour
Digital Photo Peripherals One (1) year, parts and labour
Digital Camera Accessories Ninety (90) days, parts and labour
VQT2U00_ENG_SPA.book 14 ページ ２０１０年４月８日 木曜日 午後７時２８分

15
VQT2U00
LIMITATIONS AND EXCLUSIONS
This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear
and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures
which are caused by products not supplied by Panasonic Canada Inc., or failures which result from accidents, misuse,
abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer
controls, improper maintenance, improper batteries, power line surge, lightning damage, modification, introduction of sand,
humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or
service by anyone other than a Authorized Servicer, or damage that is attributable to acts of God.
Dry cell batteries, printer ink cartridge and paper are also excluded from coverage under this warranty.
Rechargeable batteries are warranted for ninety (90) days from date of original purchase.
THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED,
INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN
NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL
DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF ANY EXPRESS
OR IMPLIED WARRANTY. (As examples, this warranty excludes damages for lost time, travel to and from the Authorized
Servicer, loss of or damage to media or images, data or other memory or recorded content. This list of items is not
exhaustive, but for illustration only.)
In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or
the exclusion of implied warranties, so the above limitations and exclusions may not be applicable. This warranty gives you
specific legal rights and you may have other rights which vary depending on your province or territory.
WARRANTY SERVICE
For product operation and information assistance, please contact:
Our Customer Care Centre: Telephone: 1-800-99-LUMIX (1-800-995-8649)
Fax # : [phone]
Email link: “LUMIX Concierge # Contact us # email” on
https://concierge.panasonic.ca
For defective product exchange within the warranty period, please contact the original Dealer or our Customer Care
Centre.
VQT2U00_ENG_SPA.book 15 ページ ２０１０年４月８日 木曜日 午後７時２８分

Panasonic Consumer Electronics Company,
Division of Panasonic Corporation of North America
One Panasonic Way, Secaucus, NJ 07094
Panasonic Canada Inc.
5770 Ambler Drive, Mississauga, Ontario, L4W 2T3
Panasonic Corporation 2010
P
Printed in Japan
VQT2U00_ENG_SPA.book 26 ページ ２０１０年４月８日 木曜日 午後７時２８分
