Panasonic CF-63 Series User manual

I^nasonic*
Personal Computer
OPERATING INSTRUCTIONS
CF-63 Series
' ■ < ' ' ' ■ y.o j ..
'. ■ 5 '»'V^- > ,V;
-1 S-i^h" *^%"'^i?H5t-:pSWO i'i '-rS IM. ii^'^p-..
' u :-:- :-' .it r. ■ fs^. -rj 1 -. '-
CF-63 Quick Guide
iOji line niamia] an rtio hiird tli^K'i
\C SLTOCn
-Cojitsnts-
• DVD Player
• Key Combinalions
• Status LCD
« ■ >. ■ ? ■ K
Contents
Getting Started
Read Me First. 5
First-time Operation.6
Operation
Starting Up/Shutting Down,....8
Playing Full Motion Video.. 13
Computing On the Road....17
Using the Battery Pack.....20
Security Measures... 2 2
infrared Data Communications.26
Add=ons/Pe ri phe ra Is. 2 7
Usage, Carrying and Maintenance.....32
Troubleshooting
Computer Diagnosis... 3 3
Dealing with Problems... 34
Technical Information .....r, 38
Reinstalling Software... 39
Appendix
LIMITED USE LICENSE AGREEMENT.42
Windows 95 Setup Procedure... 45
Setup Utility....46
Names and Functions of Parts... 48
Specifications. 50
Index... 5 1

Introduction
Thank you for purchasing the Panasonic CF-63 series computer. Please read the operating instructions thoroughly for proper opera¬
tion of your new computer.
Illustrations in this Manual
CAUTION-
NOTE provides^ a usefiii^f^ or helpful information.
CAUTION- f CAUTION indicates a condition that may .Te^ult^insiTiinor pir moderate inju^.;
WABNING: y^BNlNG indicmes^a ha:^<:| tltat may result in riiddbrate or ^ribus iry uiy'. ^ ^
’iStart]-tShut Down]: This illustration-nieans to eliclc [Start], then to click [Shut Down^j^. * 4 » -i *
.. . ^ ^ ^or some a^plicadot^, you i^/meed to doiible-cHclO) ^ ^ 4 % v / ^
: ° “ T^is illustration rneaiis to press the [Entei^ key4^ r - ' ^ ^ ..
:,f7—n; ,,. , ^ "
+ 0/0 : " ThiMlIustratjoh rrieahs to pre^ |Fn3; and while^holdihg down on^fFn], to press 1F3].
Copyright
This manual is copyrighted by Matsushita Electric Industrial Co., Ltd. with all rights reserved. No part of this manual may be
reproduced in any form without the prior written permission of Matsushita Electric Industrial Co., Ltd.
No patent liability is assumed with respect to the use of the information contained herein.
©Matsushita Electric Industrial Co., Ltd. 1997. All Rights Reserved.
Disclaimer
Computer specifications and manuals are subject to change without notice. Matsushita Electric Industrial Co., Ltd. assumes no
liability for damage incurred directly or indirectly from errors, omissions or discrepancies between the computer and the manuals.
Trademarks
PS/2^^< is a trademark of International Business Machines Corporation.
Microsoft®, MS-DOS* and Windows® are registered trademarks of Microsoft Corporation of the United States and/or other coun¬
tries.
Pentium* is a registered trademark, and MMX ™ is a trademark of Intel Corporation.
TranXit ™ is a trademark of Puma Corporation.
Panasonic® is a registered trademark of Matsushita Electric Industrial Co., Ltd.
2

For U.S.A.
Federal Communications Commission Radio
Frequency Interference Statement
Note: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the Panasonic Service Center or an experienced ra¬
dio/TV technician for help.
Warning
To assure continued compliance, use only shielded interface
cables when connecting to a computer or peripheral. Also, any
changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate this equipment.
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including
interference that may cause undesired operation.
r For U.K.
Warning
This apparatus must be earthed for your safety.
To ensure safe operation the three-pin plug must be inserted only
into a standard three-pin power point which is effectively earthed
through the normal household wiring.
Extension cords used with the equipment must be three-core and
be correctly wired to provide connection to earth. Wrongly wired
extension cords are a major cause of fatalities.
The fact that the equipment operates satisfactorily does not
imply that the power point is earthed and that the installation
is completely safe.
For your safety, if you have any doubt about the effective earthing
of the power point, consult a qualified electrician.
FOR YOUR SAFETY PLEASE READ THE FOLLOWING
TEXT CAREFULLY
This appliance is supplied with a moulded three pin mains plug
for your safety and convenience.
A 3 amp fuse is fitted in this plug.
Should the fuse need to be replaced please ensure that the re¬
placement fuse has a rating of 3 amps and that it is approved by
ASTAorBSI to BS 1362.
Check for the ASTA mark or the BSI mark ^ on the body
of the fuse.
If the plug contains a removable fuse cover you must ensure that
it is refitted when the fuse is replaced.
If you lose the fuse cover the plug must not be used until a re¬
placement cover is obtained.
A replacement fuse cover can be purchased from your local
Panasonic Dealer.
IF THE nTTED MOULDED PLUG IS UNSUITABLE FOR
THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE
SHOULD BE REMOVED AND THE PLUG CUT OFF AND
DISPOSED OF SAFELY.
THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK
IF THE CUT OFF PLUG IS INSERTED INTO ANY 13 AMP
SOCKET.
If a new plug is to be fitted please observe the wiring code as
shown below.
If in any doubt please consult a qualified electrician.
Warning:THIS APPLIANCE MUST BE EARTHED.
Important
The wires in this mains lead are coloured in accordance with the
following code:
Green-and-yellow: Earth
Blue: Neutral
Brown: Live
As the colours of the wires in the mains lead of this apparatus
may not correspond with the coloured markings identifying the
terminals in your plug, proceed as follows:
The wire which is coloured GREEN-and-YELLOW must be
connected to the terminal in the plug which is marked by the
letter E or by the safety earth symbol ^ coloured GREEN or
GREEN-and-YELLOW.
The wire which is coloured Blue must be connected to the ter¬
minal which is marked with the letter N or coloured BLACK.
The wire which is coloured Brown must be connected to the
terminal which is marked with the letter L or coloured RED.
The mains plug on this equipment must be used to disconnect
the mains power.
Please ensure that a socket outlet is available near the equip¬
ment and shall be easily accessible.
How to replace the fuse
Open the fuse compartment with a
screwdriver and replace the fuse.
Warnings
• This equipment is not designed for connection to an IT power
system.
(An IT system is a system having no direct connections be¬
tween live parts and Earth; the exposed-conducive-parts of the
electrical installation are earthed.
An IT system is not permitted where the computer is directly
connected to public supply systems in the U.K.)
• Disconnect the mains plug from the supply socket when the
computer is not in use.
This equipment is produced to BS800/1983.
3

Lithium Battery
Precautions
Lithium Battery!
This computer contains a lithium battery to enable the date,
time, and other data to be stored in it.
The battery should only be exchanged by service personnel.
Warning! Risk of explosion from incorrect installation or mis¬
application!
Warnung beziiglich der Lithiumbatterie
(Sicherungsbatterie)
Lithiumbatterie!
Dieser Computer enihalt eine Lithiumbatterie zur Sicherung von
Datum und Uhrzeit der eingebauten Uhr sowie anderer
Systemdaten im Speicher bei einer Unterbrechung der
Hauptstromversorgung. Diese Sicherungsbatterie darf nur von
Kundendienstpersonal ausgewechselt werden.
Warnung! Bei falschem Gebrauch besteht Explosionsgefahr!
Entsorgung gebrauchter Batterien nach Angaben des Herstellers.
Avertissement concernant la pile au lithium
(pile de sauvegarde)
Pile au lithium!
Le micro-ordinateur renferme une pile au lithium qui permet de
sauvegarder certaines donnees comme la date et I'heure
notamment. Elle ne devra etre remplacee que par un technicien
quaiifie.
Avertissement! Risque d'explosion en cas de non respect de cette
mise en garde!
DVD Drive Caution
CAUTION!
THIS PRODUCT UTILIZES A LASER.
USE OF CONTROLS. ADJUSTMENTS OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF.
REFER SERVICING TO QUALIFIED PERSONNEL
WARNUNG!
DIESES PROUKT ERZEUGT LASERSTAHLUNG.
DURCHFUHRUNG ANDERER VORGANGE ALS DER HIER
ANGEGEBENEN KANN ZU GEFAHRLICHER STRAHLUNG
FUHREN.
REPARATUREN DURFEN NUR VON QUALIFIZIERTEM
FACHPERSONAL DURCHGEFUHRT WERDEN.
AVERTISSEMENT!
CET APPAREIL UTILISE UN LASER.
L'UTILISATION DE COMMANDES OU DE R^GLAGES OU
L’EXECUTION DE PROCEDURES AUTRES QUE CELLES
SP^CIFIEES ICI PEUVENT PROVOQUER UNE EXPOSITION A
DES RADIATIONS DANGEREUSES.
NE PAS OUVRIR LES COUVERCLES NI ESSAYER DE R^PARER
SOI-M^ME.
CONFIER TOUT TRAVAIL D’ENTRETIEN A UN PERSONNEL
QUALIFI 6 .
# Usage
Avoid Extreme Heat and Cold
Do not store or use the computer in locations
exposed to heat, direct sunlight, or extreme cold.
Avoid moving the computer between locations
with large temperature differences.
Operation: 5 “’C to 35 ”C (41 °F to 95 "F)
Storage: -20 to 60 °C (-4 °F to 140 °F)
Avoid Direct Sunlight on the LCD Panel
The LCD panel should not be exposed to direct
sunlight or ultraviolet light.
Avoid Humidity, Liquids and Dust
Do not store or use the computer in locations
exposed to high humidity, liquids (including rain)
or dust.
Prevent Shock
Avoid subjecting the computer to severe
vibrations or impact. Do not place the computer
inside a car trunk.
Avoid Radio Frequency Interference
Do not place the computer near a television or
radio receiver.
# Handling
Avoid Magnetic Fields
Keep the computer away from magnets.
Avoid Stacking
Do not place heavy objects on top of the
computer.
Keep Small Objects Away
Do not insert paper clips or other small objects
into the computer.
Do Not Disassemble the Computer
Do not attempt to disassemble your computer.
Avoid Excessive Force on the LCD Panel
Do not apply excessive downward force on the
display when it is completely opened, especially
when plugs and/or cables are connected to the
rear of the computer.
# Cables
Use of an interface cable longer than 3 m (9.84 feet) is not
recommended.
CLASS 1 LASER PRODUCT
LASER KLASSE1
I Bottom

Read Me First
Saving Data on the Hard Disk
• Do not expose your computer to shock.
Please use care when handling your computer, shock may damage your hard disk or make
your software applications and data unusable.
• Do not power down your computer while software applications are running or HDD

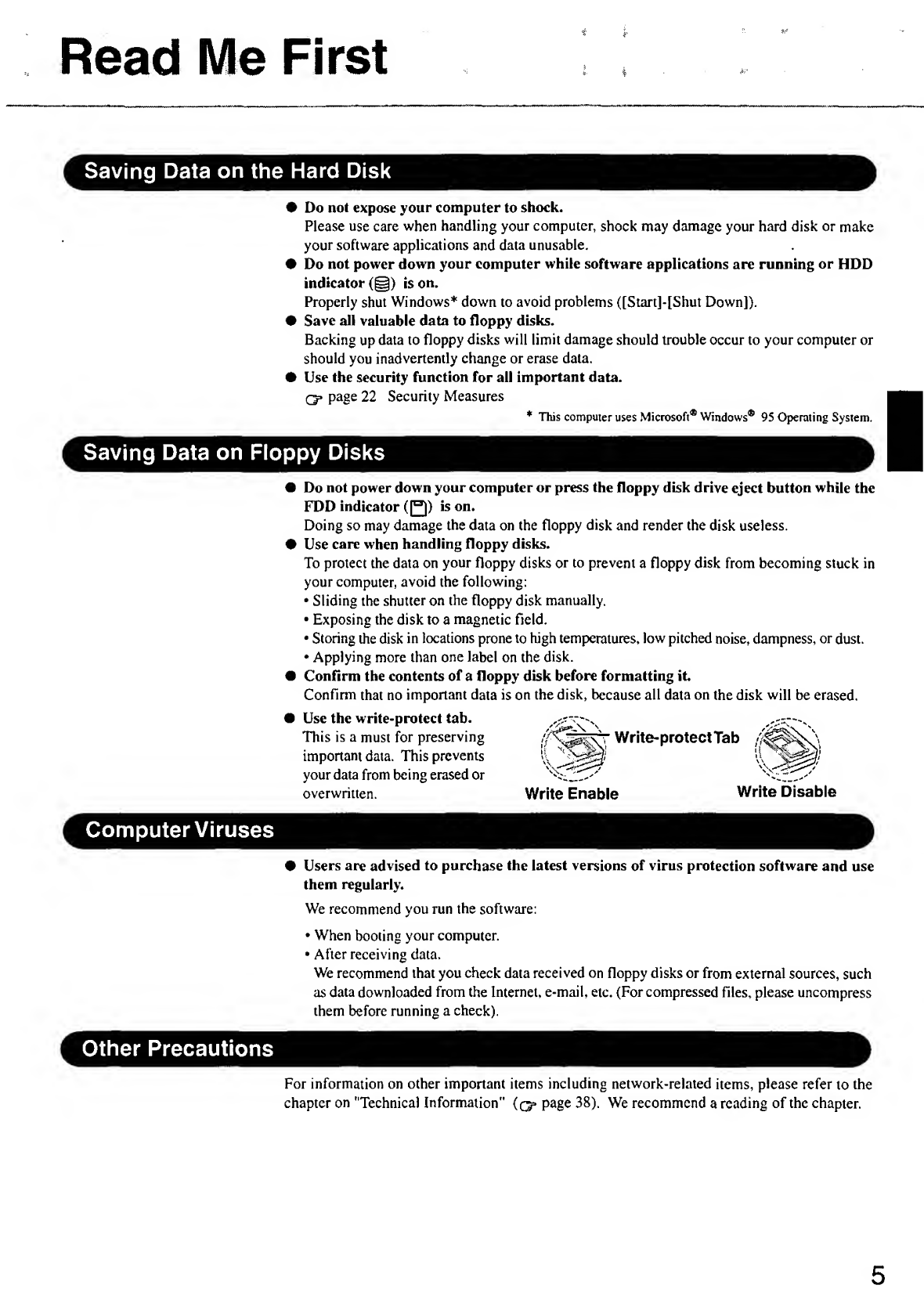

indicator (P) is on.
Properly shut Windows* down to avoid problems ([Start]-[Shut Down]).
• Save all valuable data to floppy disks.
Backing up data to floppy disks will limit damage should trouble occur to your computer or
should you inadvertently change or erase data.
• Use the security function for all important data.
Q» page 22 Security Measures
* This computer uses Microsoft* Windows® 95 Operating System,
Saving Data on Floppy Disks
• Do not power down your computer or press the floppy disk drive eject button while the
FDD indicator (Q) is on.
Doing so may damage the data on the floppy disk and render the disk useless.
• Use care when handling floppy disks.
To protect the data on your floppy disks or to prevent a floppy disk from becoming stuck in
your computer, avoid the following:
• Sliding the shutter on the floppy disk manually.
• Exposing the disk to a magnetic field.
• Storing the disk in locations prone to high temperatures, low pitched noise, dampness, or dust.
• Applying more than one label on the disk.
• Confirm the contents of a floppy disk before formatting it
Confirm that no important data is on the disk, because all data on the disk will be erased.
• Use the write-protect tab.
This is a must for preserving
important data. This prevents
your data from being erased or
overwritten.
Computer Viruses
• Users are advised to purchase the latest versions of virus protection software and use
them regularly.
We recommend you run the software:
• When booling your computer.
• After receiving data.
We recommend that you check data received on floppy disks or from external sources, such
as data downloaded from the Internet, e-mail, etc. (For compressed files, please uncompress
them before running a check).
Other Precautions
For information on other important items including network-related items, please refer to the
chapter on "Technical Information" (q^ page 38). We recommend a reading of the chapter.
Write-protect Tab
Write Enable
Write Disable
5

First-time Operation
It’s now time to get started. Please read the steps below to help you learn what parts are in¬
cluded, and to gain an understanding of some basic computer-related operations.
1 Confirm the inclusion of all parts
Make sure the parts shown in the figure have been supplied. If any of them is missing
or is not working properly, please consult your nearest Panasonic dealer.
Please prepare one 2HD formatted floppy disk to create a backup disk of the
Panasonic utilities. This backup disk is to be used when reinstallation of the
Panasonic utilities becomes necessary.
AC Adapter ...... .,1 AC Cord... 1
Operating Instructions
Firstald CD
Windows 95 System Pack ,..,1
Accessory Catalogue
First-step Guide
Registration Card
Windows 95 CD-ROM
2 Connect your computer to a power outlet
Handling the AC adapter
• Do not twist or pull the AC power cord forceftilly. Doing so may damage the
connections.
• Use only the specified AC adapter (factory control number: CF-AA159) with
your computer. Using an AC adapter other than the one supplied might damage
the battery and/or the computer.
• When the DC plug is not connected to the computer, disconnect the AC cord
from your AC wall outlet as well.
• Problems such as sudden voltage drops/surges may arise during periods of thun¬
der and lightning. Since this could adversely affect your computer, an
uninterruptible power source (UPS) is highly recommended.
6

Move the power
switch toward the
rear direction and
hold it there for one
second until the
power indicator goes
on before releasing it.
3 Read the LIMITED USE LICENSE AGREEMENT (o-page 42)
Confirm that the floppy disk drive is installed.
Before removing the seal covering the power switch, please read the LIMITED USE LI¬
CENSE AGREEMENT. Removal of this seal indicates agreement to the terms specified. To
open the display, slide the latch located at the front and lift open the display. After you have
agreed to the terms, you may turn your computer on.
• Do hot slide the power switch repeatedly.
• After you have turned your computer ofT, you must wait ten seconds before you can
turhiit back on. ^ j ^
Set Windows up
The [Windows 95 Setup] will run after the computer is turned on. Simply follow the on¬
screen instructions.
Xnote) ->
• Please read the supplemental "Windows 95 Setup Procedure" for a more detailed
explanation (C^page 45).
• Moving the cursor (/^) or clicking buttons can be done through the touch pad (C^page 10).
• If the display or the sound quality is not right, you can adjust the brightness and
volume (c^page 48).
Inserting a floppy disk
Label-side up
Label on the top surface, and
inserting the shutter-side
headfirst.
Ejecting a floppy disk
Eject Button
Double-click (Panasonic Setup icon) on Windows
One 2HD formatted floppy disk needs to be prepared. First, write "Firstaid FD" on a blank
label, then stick this label on the floppy disk. Simply follow the on-screen instructions.
-
• Please store the "Firstaid FD" in a safe place. It will enable you to return your computer
to factory condition shodid any problems occur.
• Do not remove the floppy disk while the FDD indicator ([^ ) is on, power down your
computer or use4he suspend function f page II). * -
^Non;- 5 -
About the CF-63 Quick Guide
• This is available as an on-line guide which includes information on the key input com¬
mands, Status LCD, DVD player and the "CF-63 Readme*'”. The "CF-63 Readme*'"
also contains detailed information.
• For the Quick Guide, we recommend setting the Desktop area to "1024 by 768 pixels"
and the Color palette to "High Color (16 bits)" or more.
' Depending on the model, some informtuion may not be available in the Readme file.
This concludes the first-time use operation guidelines.
7

starting Up/Shutting Down
Starting Up
1
Open up the display
Slide the latch as shown and lift open the display.
Xnote)-.
Do not turn on the computer with the LCD panel closed if an external monitor is not
connected. The computer will not power on.
_!_/
Turn your computer on
Move the power switch toward the rear direction and hold it there for one second until
the power indicator goes on before releasing it.
I • Do not slide the power switch repeatedly.
j V# After you have turned your computer off, you must wait ten seconds before you can
turn it back on.
I u# Do not turn the computer OM while your fingers are in contact with the touch pad.
Problems may occur in the operation of the touch pad.
L
If [Enter Password:] or security indicator is displayed,
you must first enter your User Password (Q*page 22).
Upon entering your
User Password and
pressing
[Enter Password:]
or
If the correct password is input,
Over three incorrect attempts,
►
Will Not Start*
(Power off),
* If you are starting from the suspend mode {Q> page 11), if
after ihree attempts the correct password is not input, or if no
password is entered for about a minute, the computer returns
to the suspend mode.
Xnote)-
If the display on the right appears,
the network password has been set.
To read and write data to other
computers, the correct password
must be entered.
\_ J
# When an application or file that was previously displayed ap¬
pears on your screen,
this means the suspend or hibernation mode (c^page 11) has been set.
3
Select your application
You are able to start working on your computer.
8

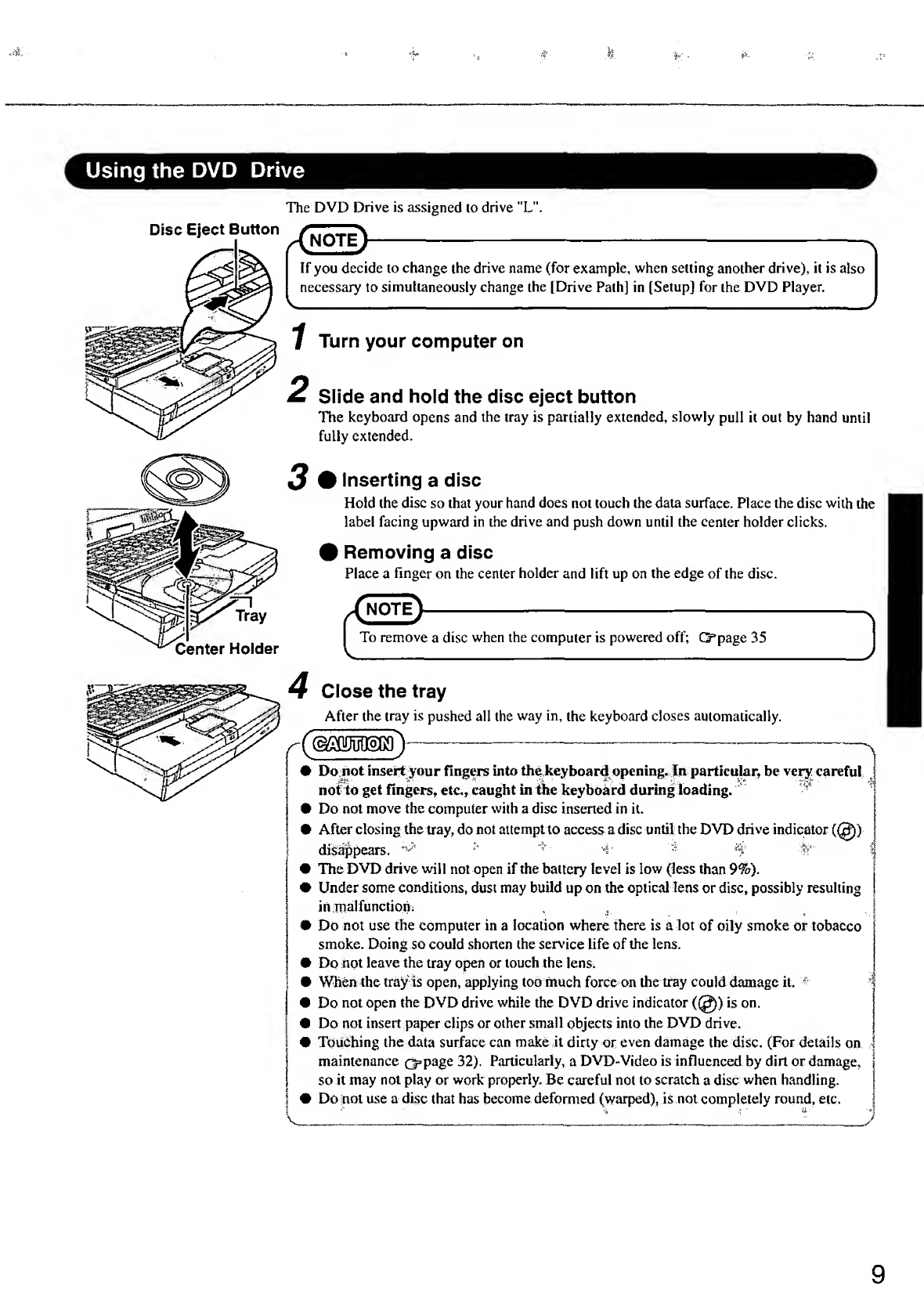

Using the DVD Drive
The DVD Drive is assigned to drive "L".
Disc Eject Button
Xnote>
If you decide to change the drive name (for example, when setting another drive), it is also
necessary to simultaneously change the [Drive Path] in [Setup] for the DVD Player.
Turn your computer on
Slide and hold the disc eject button
The keyboard opens and the tray is partially extended, slowly pull it out by hand until
fully extended.
# Inserting a disc
Hold the disc so that your hand does not touch the data surface. Place the disc with the
label facing upward in the drive and push down until the center holder clicks.
# Removing a disc
Place a finger on the center holder and lift up on the edge of the disc.
I To remove To remove a disc when the computer is powered off; C^page 35
Close the tray
After the tray is pushed all the way in, the keyboard closes automatically.
e^AuinioN
D-
Do iiot insert your fingers into the keyboard opening. In particular, be ve^ careful
not to get fingers, etc., caught in the keyboard during loading. '
Do not move the computer with a disc inserted in it.
After closing the tray, do not attempt to access a disc until the DVD drive indicator (^)
di^^pears.
The DVD drive will not open if the battery level is low (less than 9%).
Under some conditions, dust may build up on the optical lens or disc, possibly resulting
iniraalfunctioh; , .
Do not use the computer in a location where there is a lot of oily smoke or tobacco
smoke. Doing so could shorten the service life of the lens.
Do not leave the tray open or touch the lens.
When the tray is open, applying too much force on the tray could damage it. '
Do not open the DVD drive while the DVD drive indicator {^) is on.
Do not insert paper clips or other small objects into the DVD drive.
Touching the data surface can make it dirty or even damage the disc. (For details on
maintenance Q^page 32). Particularly, a DVD-Video is influenced by dirt or damage,
so it may not play or work properly. Be careful not to scratch a disc when handling.
Do not use a disc that has become deformed (warped), is not completely round, etc.
n

starting Up/ShuttIng Down
Using the Touch Pad
Use the touch pad to move the cursor on the display and perform normal computer operations. It
is not necessary to apply too much pressure on the work surface.
I Do not turn the computer ON while your fingers are in contact with the touch pad. ITie
[ operation of the touch pad may be affected. If operation Is affected, wait at leastJ|ye
I seconds before usi ng the computer.
Moving the cursor
n
I-
Work Surface Cursor
Double-clicking
or
Clicking
Dragging
To change the touch pad settings, select [Mouse] in [Start] - [Settings] - [Control Panel],
Even if [Left-handed] is selected in the mouse settings, tapping the touch pad will have the
same effect as clicking the left button of the touch pad.
10

7 To shut down, save all data and select [Shut Down] from the
[Start] menu
z/noteI-V
From the keyboard,
you may choose to press down on ^ , then select [Shut Down].
Confirm shutdown
Press I to confirm shutdown. Your computer will power off automatically.
(In the OFF state, if you are not recharging your battery pack or if the pack is fully charged, your computer
consumes approximately 1.5W.)
# Restarting your computer (without shutting down)
Select t' yw 1 after selecting [Restart the computer?].
A NOTE )->
To quickly resume computer operation after shutting down,
the suspend and hibernation functions are available (C?below).
r
Restarting your computer in MS-DOS mode
Select |L. ' | after selecting [Restart the computer in MS-DOS mode?].
When returning to Windows 95 from the MS-DOS mode, type ’’EXIT' and not "WIN'
Returning to Windows 95 using the "WIN" command may result in a malfunction.
Starting Up Your Computer Quickly
If you want to immediately start up and continue an application after shutting down your com¬
puter, you can do so by using the suspend or hibernation function.
9 Differences between the suspend function and hibernation function
Function ~ Where data is saved to Speed Requires power supply
Suspend function Memory _ F ast _ Y es (if power is cut, all data is lost)
I Hibernation function Hard disk Somewhat slow Power not required to maintain data
Shutting Down
# Using the suspend function
/^noteI-
Suspend Mode
You can use the suspend function by selecting [Suspend]* from the [Start] menu.
[Suspend] is deleted from the [Start] menu by unchecking [Allow Windows to manage power use on
this computer.] in [Start] • [Settings] - [Control Panel] - [Power] or by unchecking [Show suspend
command on Start menu] in [Advanced].
11

starting Up/Shutting Down
Power Switch
Do not touch the
power switch while
your computer is en¬
tering the hibernation
mode.
Hibernation Mode
Using the hibernation function
It is necessary to set the hibernation function using the Setup Utility.
1 Run the Setup Utility (q> page 46)
2 Using and [§, select [Power Management], then press
4
Using and select [Power Switch], set [Hibernation]
with g, then press
Close the Setup Utility page 46)
^AUililON
Save all data before powering off your computer.
When restarting from or shutting down to the suspend or hibernation mode, do
not touch the touch pad pr move the mousefserial Of PS/2 type) if one is con¬
nected. There are cases where these devices will fail to operate; you will have to
restart your computer using the keyboard (Q»page 11).
Do not power off during; the following periods (you may corrupt your data or
file):
• While the FDD indicator (Q), HDD indicator (^) or DVD drive indicator
(@)ison.
• While playing/iecording audio files. ' ' ■
• While communications software is being used.
Do not use the suspend or hibernation function when using an OS other than
Windows 95, the diagnostics program (DIAG63), or the SetupilUtility, or when
experiencing static electricity or noise.
If you hold down on the |Q, or If key to enter the suspend or hiberna¬
tion mode, aflertesuming^eratioh, you must press te same k%. For example,
if you hold down on the [[ ■ »««*[{ key while sliding the power switch, upon resum¬
ing, if you do not press the |! ♦ »»»«" l[ : key again, only capital letters will result from
typing.
If your computer locks up, press the reset button. All data is lost when this
button is pressed.
In the suspend mode, poWeris consumed, if PC cards (e.g., modem card) are
inserted, more of that power is consumed. When all power has been consumed,
all data at shutdown is lost since it is retained in memory. We therefore recom¬
mend plugging in the AC adapter when using the suspend function.
..y
Resuming Operation
If [Enter Password:] or security indicator (<=(s)) is displayed upon sliding the power switch,
your password has been set {Q*page 8).
I • Do not install or remove peripherals while your computer is in the suspend ( or
I hibernation ( ^ and g)mode; abnormal operation may result.
I • When operation resumes, serial devices such as a mouse or modem, or your PC Cards
I may not work. In such cases, you will need to restart your computer or reinitialize the
! individual devices.
12

; Playing Full Motion Video
. _.. -. - . .,,---.-. . ,M „ ■ - . ■ —, - -:-
To play DVD-Video or MPEG files, mount the FMV Pack2 in the multimedia pocket. The
procedure for changing multimedia pocket units is described below.
Preparations
Installing/Removing the multimedia pocket device
1 Power off your computer (o.page 11 )
Do not shut down using the suspend or hibernation mode.
MP Release
Button
Do not install'Or remove peripherals while your computer is in thd suspend ( or j
hibernation ( ^ and g)mode; abnormal operation may result.' j
2 Removing a multimedia pocket device
Turn the unit over.
(D While holding down the MP release button,
Slide the cover lock.
@ Pull out the multimedia pocket device (floppy disk drive).
G^tiinilON
D:
Donotleave the multimedia pocket empty, as exposure to dust and dirt can cause
malfunctioning. Always keep one of thCiUnits installed. .
3 Installing a multimedia pocket device
(T)Hook the device in place.
@ Push the device into the multimedia pocket until it snaps into place.
@ Slide the cover lock.
Confirm that the MP release button has returned to its original position.
Xnote)-
Even after installing the FMV Pack2, "3 1/2
Floppy (A;)" is displayed in "My Computer",
but access is not possible.
When the display on the right appears, select
[Cancel].
3h Floppy fA;)
A:V IS fKi accessible, -
‘ Thedewe ierwi
' 1^51
13

Playing Full Motion Video
Playing DVD-Video or MPEG Files
palette
Desktop
256 color*
High Color (16 bit)
True Color (24 bit)
1024 by 768 pixels
Supported Supported Supported
800 by 600 pixels
Supported
Supported
Supported
640 by 480 pixels
Supported Supported
Supported
* Even when the Windows setting is for 256 colors, the MPEG data play window can display up to approxi¬
mately 260.000 colors.
Display mode (Internal LCD, External Display, or Simultaneous (both))
Set using the Setup Utility. (G*page 29,46)
Desktop area and Color palette
Set using the Display Properties. (Select [Start] - [Settings] - [Control Panel] - [Display] -
[Settings])
XNOTEj -.
• Regardless of whether DVD-Video playback has been activated or not, when the player
is operating, a screen saver will not activate.
• If you have set a screen saver, the saver will activate during MPEG playback.
• Do not use MPEG screen savers during MPEG playback (Media Player), as an error
will occur.
V_/
Load the disc you wish to play
Insert the DVD-Video or disc that contains MPEG files.
You may also copy MPEG files onto the hard disk.
DVD'Video bearing logo can be played.
Anote) -^.
• Some parts of the DVD-Video functions are not supported.
• It is necessary to close any open MIDI playback application. Also, do not open
any MIDI playback application during DVD-Video (or MPEG file) playback.
• Select [Stan]-[Programs]-[Accessories]'[Multimedia]-[Volume Control], delete
the check mark for [Mute] in [Synthesizer].
\ __ /
Open the viewer application
• DVD-Video
Select [Start] - [Programs] - [Panasonic] - [DVD Player].
IIIIIIIIIIIQI^
rj iMMt
1
I
i
1
fUsmm
^ . ;
; 11*" 1
j l« HDD.®VO«)M IVi Jjj
t "ciicti
• MPEG files
Select [Start] - [Programs] - [Accessories] - [Multimedia] - [Media Player], then select
[MPEG Player for HDD/DVD-ROM] in the [Device] menu.
Once the dialog box appears, select the name of the file you wish to play, then select
r.
14

MPEG FUes:
• Files with the following formats can be played.
Files with the .MPG or .MPEG extension : Also image and voice files com¬
pressed under MPEGl or MPEG2.
There are cases in which some data cannot be played.
• To play a file from [Windows Explorer] or [My Computer], click the file
you wish to play with the right button of the touch pad, and select [Play
(FMV Pack2)] from the pop-up menu that appears.
Video CDs:
• The [Media Player] can play each file (,DAT), one after the other, in the
"Mpegav" folder on a Video CD.
• The combined play of Video CDs is not possible and the playback control
function (Video CD Version 2.0) is not supported.
V_ - _/
• DVD-Video
(Q*CF-63 Quick Guide fj’ ;
r au.1- I
on-line manual on the hard disk)
• MPEG files
1: ^ HutirD? • Hl.tfRi (ftnntrri)
in
.:-i
Use the function buttons for play and stop operations
Troubleshooting
For information on trouble shooting concerning the DVD Player, please refer to the CF-63
Quick Guide available as an on-line manual on the hard disk.
No DVD Player menu appears
The program needs to be installed.
[FMV Pack2 is not installed.] is
displayed
The FMV Pack2 may be improperly installed.
Refer to "Preparations" (C?page 13).
[Files necessary to run the player
cahnot be found.] is displayed
Files needed to run the player is missing or is corrupted.
It is necessary to reinstall the video driver.
(Refer to your CF-63 Operating Instructions)
[DVD Player initialization ,
failure.] is displayed
An error occurred during initialization of the player
application. This occurs when the color palette is set
to “16 Color”, or when another application that is us¬
ing a large part of the video memory is running.
It is necessary to refer to the "Color palette”
(G’page 14) on the correct setting, or to close the
application that is using a large part of the video
memory and restart the player.
[Device specified is currently in
use by another application.] is dis¬
played **
Hardware necessary for running the application is cur¬
rently being used by another application. It is necessary
to close the other application and restart the player.
[Application is already opened.] is
displayed
The player application has already been opened. It may
be hidden in another window.
[Yoiir disc may be invalid or the
disc tray is empty.] is displayed
The disc in the DVD Drive may not be a DVD-Video
disc or the disk tray may be empty. After the disc has
been set, please wait until the DVD drive indicator (@)
goes off. In addition, confirm whether or not the Drive
Path setting is correct (Refer to “Drive Path” in the
CF-63 Quick Guide).
‘ '--'“-r-r-r-r-
You have forgotten the Password
to change the Parental Level
Select [Start] - [Run], input ["c:\Program Files\
Panasonic\ResetPWD.EXE"] and press Enter.
The password is reset.
*1
Or. in the [Device] menu for the [Media Player], [MPEG Player for HDD/DVD-ROM] is not available (cannot be
selected).

Playing Full Motion Video
Adjusting the Configuration
Select [Start] -[Settings] - [Control panel] - [S3 Video Color Control].
The setting’s window will be displayed.
Perform image adjustment while viewing the play screen.
Adjustments cannot be made When the play screen is not displayed.
The following restrictions apply during play
• Do not use the player with the standby, suspend, or hibernation function.
• While DVD-Video (or MPEG file) is being played, the speed at which other applications
are executed or the speed at which the keys are input on the keyboard may be reduced.
• If you run other applications during play the image or sound may be disrupted.
• ’’MS-DOS Prompt” cannot be used during DVD-Video (or MPEG file) playback. Abnor¬
mal operation may occur if it is used.
• Playback may temporarily stop (a few seconds) when the LCD is opened and closed.
• Do not change the display mode during playback.
• When the player start up, the video mode is automatically selected to enable the FMV
Pack2. For this reason, the screen may temporarily flicker during startup.
• DVD-Video purchased in other countries may not be viewable.
• DVD-Video discs will not trigger the “Auto insert notification” function after being set on
the tray.
• When using the FMV Pack2, it is not possible to simultaneously play DVD-Video and an
MPEG file, or multiple MPEG files.
• No sound is produced for the conditions of Pause, Fast Forward, Fast Reverse, Slow
Forward and Slow Reverse.
• Slow Reverse will not display all frames.
• Changing the desktop area of Windows will close the player.
• For some scenes, the operation of basic functions (e.g., play/stop) will not be allowed, the
Audio setting or Angle setting cannot be changed, or the TITLE menu or DVD menu will
not be displayed.
• Regardless of whether playback has been activated or not, when the player is operating,
do not open the tray of the DVD drive by sliding the disc EJECT button (located over the
touch pad).
• If MPEG files (MPEG 1) can not be played as described here (Q*page 13), try playing the
files with another application such as ActiveMovie, etc.
16

Computing On the Road
One of the main features of notebook-type computers is that you have the power of computing
away from your home or office. In the following, information is provided on how to maximize
use of the battery pack which is necessary for such computing.
# Four Important Points
< PQINT—f 2 > Be sure to charge your battery before and after use.
<PQINT"^ To get the maximum use of your battery, set the power
management mode.
JQINT"3 ^ Check to see that you have your AC adapter with you before
leaving your home or office.
Purchasing an extra battery (CF-VZS611) or the optional battery charger
{CF-VCB611) is highly recommended.
j>OINT~^ Always watch your battery level!
Conserving Power
r Things to Remember
# Leave your computer off when it is not in use (o^page 11 )
# Adjust the brightness (dark) with @ + IMI» O 48)
# Before stepping away from your computer, press g + (1^ to
put your computer in the standby mode
The standby mode helps you conserve power by cutting off power to the DVD drive’s
motor and LCD etc.. To resume, you may press any key.
# In the power management mode, the setting of [Advanced] is
recommended (G*page 18)
With the Setup Utility, you can set the [Advanced] mode. This mode allows you to
maximize power save regardless of whether you are using only the battery pack or the
AC adapter.
# Setting the hibernation timeout (o^page 18 )
The hibernation function (C5*page 12) allows you to save power by automatically cutting
off power when the computer is idle or there is no access to individual devices for 4 or 16
minutes. If [Advanced] or [Standard (Battery/AC adapter)] is selected for [Power Sav¬
ing], the hibernation timeout function will go into effect for both the battery pack and
the AC adapter. If, however, [Standard (Battery)] or [OFF] is selected for [Power Sav¬
ing], it will go into effect only during operation by the battery. The standby timeout
function is automatically set when [Advanced] or [Standard] is set. Note that the standby
timeout precedes the hibernation timeout.
It should be noted that for some applications, the hibernation timeout will not work
properly.
Xnote) -.
If you plan to use only the battery pack or set the power management, it is necessary to
check [Allow Windows to manage power use on this computer] in [Start] - [Set¬
tings] - [Control Panel] - [Power], If no check is added, the hibernation timeout will
not occur.
V_/
17

Computing On the Road
Setting Power Management
(How to set [Advanced] and the hibernation timeout)
1 Run the Setup Utility (c^ page 46)
Using and select [Power Management], then press
3 Using and [§, select [Power Saving], then set [Advanced]
with
(To avoid setting the hibernation timeout, press [ e«c [ and proceed on to step 6 .)
4 Using O and select [Power Switch], then set [Hiberna¬
tion] with |§
5 Using and |§, select [Hibernation Timeout], set either [4
min] or [16 min] with g|, then press
6 Close the Setup Utility (c^ page 46)
# Power Management settings
Functions automatically
Power set
Management "-
CPU Speed
Change Mode
HDD and DVD
MotorTimeout
Standby
Timeout
Advanced ^
Enable I min
1 min
Standard (Battery/AC adapter) ^
Enable
I min
2 min
Standard (Battery)* ^
Enable I min
2 min
OFF f"
66
Disable Never
Never
Enabled only when the battery itself is being used.
• CPU Speed Change Mode:
• HDD and DVD MotorTimeout:
• Standby Timeout;
r
In this mode, the CPU is automatically stopped when
there are no operations.
When the DVD or hard disk drive is not accessed for
more than a minute, power to the motor is shut off.
When the computer is idle or a device is not accessed for
one or two minutes, the computer enters the standby
mode.
When you need a network environment
Be sure to disable the hibernation timeout settings with the Setup Utility .
After resuming operation from the hibernation mode, the network connection may be severed or
the computer will not work properly.
In communications when a device like a high-speed modem or ISDN terminal adapter
is connected to the serial port, etc.
There are times when high-speed commurucation is adversely affected if the power management
function is enabled. Please confirm that ^ is displayed by pressing ^ } : to disable the
power management function. After you haye finished using a communication:device, you can
enable t he power management function by pressing ^ + ( !?* ] .
Key operation and full motion video or music playback
When the power saving function is running, you may feel that key and mouse operations
are sluggish. Furthermore, DVD-Video, MPEG file, or music may not be played back
correctly when entering the standby mode during playback.
18

Battery Indicator
Use the Battery Indicator to Check on the Battery Status
Battery indicator
Orange* _
Green*
Red
Blinking red*
Blinking orange for 5
seconds after the AC
adapter is connected*
NOTE
Battery Status
Charging i
Fully-charged
Battery ch^e is low (the charge is less than approx 9% capacity)
Battery pack or charger may not be working properly
Check your connections If the problem persists, consult your
nearest Panasonic dealer
Unable to recharge due to violation of temperature limits
(Q>page 20)
* When ihe AC adapter is connected
Recharging is temporarily stopped when the DVD drive is being accessed In this case,
the battery indicator goes off temporarily
In addition, recharging is temporanly discontinued when [Auto insert notification] (CD-
ROM auto play function) is enabled
Status LCD
Getting a detailed reading
A detailed percentage reading of the battery power
remaining can be obtained on the Status LCD
^note)-
linn 1
>uu%
• The remaining power indicator flashes when the battery is low
• The borders of the indicator (CTJ) flashes on and off if no battery pack is mounted
• An error code is displayed if a battery malfunction occurs
( Q*CF-63 Quick Guide)
• When the battery indicator remains red (or a 99% reading is displayed) for a long
period of time, the actual remaining battery level and the displayed level in all
likelihood differ Should this occur, charge the battery until the indicator is green,
then completely discharge the battery (Disconnect the AC adapter, turn the com¬
puter ON and let the power run down to 0% on the Status LCD )
When the Remaining Battery Charge Becomes Low
Following that,
# Plug in the AC adapter, and fully charge your battery
• Use a spare battery if you have one
• If you have neither the adapter nor an extra battery, save your data and power off your
computer
# If the hibernation function is set
Red indicator lights ^ ... ‘*'1 MKtM K
Beep sounds- "P Hib ernation M ode
(at approx 9% capacity)
(at approx 4% capacity)
** When disabling the speakers with the Setup Utility (or pressing [Q + [~l? ] ) the warning beep is
also disabled
' If the hibernation function is not set
Red indicator lights Beep sounds Computer
^ ^ ^ Q 06 S off
(at approx 9% capacity) (at approx 4% capacity)
(at approx 0% capacity)
Red indicator lights ■
Beep sounds
(at approx 4% capacity)

Using the Battery Pack
Precautions
• Care should be exercised with regard to the following in order to avoid the possibility of
liquid leakage, overheating, or bursting.
• Do not throw the battery pack into a fire or expose it to heat.
• Do not place the battery pack together with articles such as necklaces or hairpins when
carrying or storing it.
• Do not insert sharp objects into the battery pack, expose it to bumps or shocks, deform it,
disassemble it, or modify it.
• Do not short the positive (+) and negative (-) contacts.
• The battery pack is a rechargeable battery intended for use with the CF-63 series or the
specified charger {CF-VCB611). Do not use it with a computer other than the one for
which it was designed.
• Do not charge, use or leave the battery pack for extended periods where it will be exposed
to direct sunlight, in a hot place (in an automobile on a sunny day, for example), or in a cold
place.
• Do not touch the terminals on the battery pack. The battery pack may no longer function
properly if the contacts are dirty or damaged.
• Do not expose the battery to water, or allow it to become wet.
• Do not put the battery into a microwave oven or a pressurized chamber.
• This computer prevents overcharging of the battery by recharging only when the remaining
power is less than approx. 95% of capacity ((5^).
• If the battery should leak and some of the fluid gets into your eyes, do not rub your eyes.
Immediately flush your eyes with clear water and see a doctor for medical treatment as soon
as possible.
• Should the battery emit an abnormal odor, become hot to the touch, become discolored,
change shape, or become in any way different from normal, remove it from the unit or charger
and discontinue use.
• If the battery pack will not be used for a long period of time (a month or more), charge the
battery pack until the remaining battery level becomes 30% to 50% and store it in a cool, dry
place.
• Charging does not take place while the DVD drive indicator (@) is on.
When recharging the battery pack, set the Power-saving function to [Advanced] or [Stan¬
dard (Battery/AC adapter)].
Jnote)--^
• The battery pack may become warm during recharging or normal use. This is com¬
pletely normal.
• Recharging will not commence outside of the allowable temperature range (0 “C to 35 “C
(32°F to 95 °F)). To allow the battery to charge, adjustments have to be made to the tem¬
perature. Once the allowable range requirement is satisfied, charging begins automatically.
Note that the recharging time varies based on the usage conditions. (Recharging takes longer
than usual when the temperature is lO^C or less.)
• If the temperature is low, the operating time is shortened. Therefore, please use the
computer within the allowable temperature range.
• Although the battery has not begun to run out, the battery indicator may sometimes light
up red. emit a beep, and (TIE] may flash on and off. This indicates a significant rise in the
temperature of the battery pack. This is typically caused by the fact that the battery pack
has been delivering a high level of power because the computer has been used with the
display at the brightest setting and with the power-saving function off In order to protect
the battery pack from temperature rises, connect the AC adapter, set the power-saving
function, and turn down the brightness of the display. If power discharge continues for 5
minutes or more while the battery pack’s temperature remains high, the computer switches
automatically to the suspend mode and turns itself off.
V___
20
