Panasonic FV-08VKML1 User manual

READ AND SAVE THESE INSTRUCTIONS.R
Please read these instructionscarefully before attemptingto install,
operate or service the Panasonic Ventilating Fan. Failure to comply
with instructions could result in personal injury and/or property
damage. Please retain this booklet for future reference.
15-16
16
8-10
7
Table of Contents
Unpacking
General Safety Information
14
V
Installation
( Wooden Header )
12
14
Installation
( In Existing Construction )
VI
I
Installation ( Joist Mounting- )I
III
( -Joist Mounting )I
Installation
Maintenance
Practical Guide to Installation
16
Product Service
2

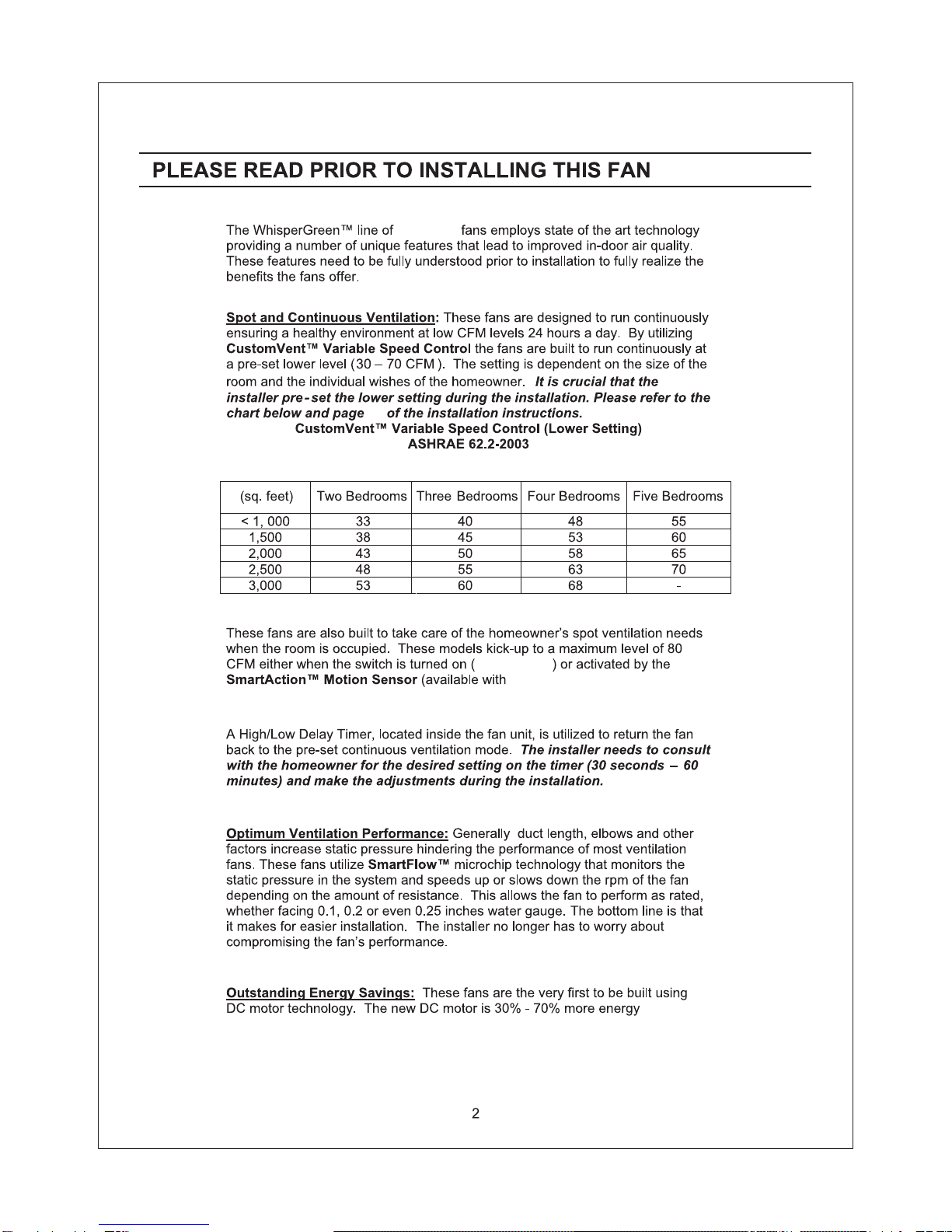

Please Read Prior To Installing This Fan
13
Installation ( Between Joist Mounting )
IV
11-12
II
( Joist Mounting- )II
Installation
Model No. FV-08VKML1
FV-08VKSL1
Ventilating Fan
FV-08VKML1 FV-08VKSL1
Thank you very much for having purchased our Ventilating Fan.
Description
Dimensions
Specifications
6
4
3
3
Supplied Accessories
Wiring Diagram
Switch Indication
Operation
5
5
6
3

than the minimum ENERGY STAR requirements.
5
efficient
FV-08VKSL1
FV-08VKML1 only).
ventilating

These Panasonic ventilating fans use a sirocco fan with dolphin-shaped blades driven by brushless direct
current motor powered by an integral transformer. The motor is designed to have long operating life, high
dynamic response, higher speed ranges with saving energy. The grille can be quickly detached from the main
unit.Adamper for preventing air counterflow is provided. The blower uses a high-capacity sirocco fan developed
to reduce the noise level.
SUPPLIED ACCESSORIES
UNPACKING
DESCRIPTION
The lighting unit is an energy-saving, lighting device which uses two 18W fluorescent lamps and produces
almost the same illumination as a standard 100W incandescent lamp.
This Panasonic ventilating fan (FV-08VKML1) is equipped with a motion sensor that runs automatically when
motion is detected. It is user-adjustable to operate 0.5~60 minutes after motion is no longer detected.
Quantity
Appearance
Part name
Screw
(ST4.2X8)
I
2
1
Grille
Suspension
bracket I
Suspension
bracket II
1
1
2
Screw
(ST4.2X12)
II
Screw
(ST4.2X16)
III
1
Machine screw
(M4X8)
2
Quantity
Appearance
Part name
2
1
1
18W
Fluorescent
lamp
4W
Night lamp
Lighting unit
1
Suspension
bracket III
6
Long screw
(ST4.2X20)
FV-08VKML1
FV-08VKSL1
1
Unpack and carefully remove unit from carton.
Refer to the Supplied Accessories list to verify that all parts are present.

DIMENSIONS
Unit: ( )inches mm
(For 16 inches on center joists, only use suspension bracket , for 19.2 inches on center joists, only use
suspension bracket , If more than 19.2 inches on center, use suspension bracket & .)
I
III II III
Junction box cover
Junction box
Lighting unit
Fluorescent lamp
Night lamp
Part nameNo. Part name No.
1
2
3
4
5
6
7
8
9
10
11
Damper
Fan body
Adaptor
Grille
Suspension bracket
Bracket cover 12 Sensor unit
FV-08VKSL1
FV-08VKML1
6
13 330()
10 1/4 261() 3 1/2 (90)
8
9
10
37/898()
10 1/4 (261)
12 1/8 (307)
6
13 330()
10 1/4 261() 3 1/2 (90)
8
9
10
37/898()
10 1/4 (261)
12 1/8 (307)
12
11
11 3 1/2 (90) 1 (25)
5 1/8 130()
7 7/8 200()
126()
23/470()
3 1/4 (81)
13 1/4~15 1/2 ( 336~394 )
16 1/2~18 3/4 ( 419~480 )
21 1/4~23 1/2 ( 540~597 )
7
3 1/2 (90) 1 (25)
5 1/8 130()
7 7/8 200()
126()
23/470()
3 1/4 (81)
13 1/4~15 1/2 ( 336~394 )
16 1/2~18 3/4 ( 419~480 )
21 1/4~23 1/2 ( 540~597 )
7
4 3/5 (116)
4 3/5 (116)

SWITCH INDICATION
30 40 50 60 70 80
Delay Time
[min]
WI ING DIAG AMRRWI ING DIAG AMRR
Low speed air-volume preset switch positions
Air Volume
[cfm]
High/Low delay time preset switch positions
0.5 123510 20 30 60
Factory setting : 20 minutes
Position ''0'' : Use for factory test only.
0
Factory setting : 50 cfm
Switch indications
on blower unit
Low speed air vol-
ume preset switch
High / Low delay time
preset switch
FV-08VKML1 FV-08VKSL1
White
White
Position " " use for factory test only.
CFM

Duct
diameter
(inches)
416.5 7.5()
(cfm)
(rpm)
FV-08VKML1
FV-08VKSL1
9.5
7.7
6.5
5.8
5.0
70
60
50
40
30
700
666
647
628
620
<0.3
<0.3
SPECIFICATIONS
OPE ATIONROPE ATIONR
Detectible range
The distance that can be
detected is less than 10
feet (3m).
The field of view of the
sensor is 90 .
o
Human
active
Fan active At low
speed When motion is
detected,fan runs
at the high speed.
INSIDE
Remains running
at high speed until
the delay time has
passed.
FV-08VKML1
OUTSIDE
Fan active At low
speed
When manual wall
switch is touched,
fan runs at high
speed.
Motion sensor
The low speed is determined by air volume preset switch.
The delay time is determined by High/Low delay time preset switch.
The unit maintains the higher speed for an adjustable duration of 0.5 to 60 min. after motion is no longer detected.
When manual wall
switch is touched,
Remains running
at high speed until
the delay time has
passed.
FV-08VKSL1
INSIDE
OUTSIDE
Specifications
Reference specifications
Human
active
HVI Certified Performance based on HVI Procedures 915, 916, and 920.
Reference performance based on HVI Procedures 915, 916, and 920.
FV-08VKML1
Noise
(sones)
Duct
diameter
(inches)
40.3 13.0 18 2X80
16.5 7.5()
770
(cfm)
(rpm)
FV-08VKSL1
18 X 2 4
4
4
4
4
Sensor
90o
(3m)
10 feet
Noise
(sones)
Fan body Lighting unit
18 X 2
18 X 2
18 X 2
18 X 2
Fan body Lighting unit
40.3 14.0 18 2X80
16.5 7.5()
800
10.0
8.0
7.0
6.0
4.6
70
60
50
40
30
725
684
662
634
630
<0.3
<0.3
18 X 2 4
4
4
4
4
18 X 2
18 X 2
18 X 2
18 X 2
416.5 7.5()
<0.3
<0.3
<0.3
<0.3
<0.3
<0.3

CAUTION:
1. For general ventilating use only. Do not use to exhaust
hazardous or explosive materials and vapors.
2. Not for use in cooking area. (Fig. B)
3. This product must be properly grounded.
45
o
45
o
Floor
Do not install above or
(Cooking area)
inside this area
equipment
Cooking
Fig. B
3. Follow all local electrical and safety codes, as well as the National Electrical Code
the Occupation Safety and Health Act (OSHA).(NEC) and
4. Always disconnect the power source before working on or near the fan, motor or
light fixture.
5. Protect the power cord from sharp edges, oil, grease, hot surfaces, chemicals or
other objects.
6. Do not kink the power cord.
7. Do not install the unit where ducts are configured as shown in Fig.A.
8. Provide suction parts with proper ventilation.
GENE AL SAFETY INFO MATIONRRGENE AL SAFETY INFO MATIONRR
1. Do not install this ventilating fan where air temperature may exceed 40 C (104 F).
oo
2. Make certain that the electric service supply voltage isAC 120V, 60 Hz.
Fig. A
Adaptor
Prohibited
9. This unit is UL listed for use over a bathtub or shower when installed in a GFCI
protected branch circuit.
10. This product has a fluorescent lamp that contains mercury. Disposal may be regulated
in your community due to environmental considerations. For disposal or recycling
information, please contact your local authorities or the Electronics Industries
Alliance: http://www.eiae.org
Prohibited
Prohibited
Prohibited
WARNING:
To reduce the risk of fire, electric shock or injury to persons, observe the following;
A. Use this unit only in the manner intended by the manufacturer. If you have any questions, contact to
the manufacturer.
B. Installation work and electrical wiring must be done by qualified person(s) in accordance with all
applicable codes and standards, including fire-rated construction.
C. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney)
of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer's
guideline and safety standards such as those published by the National Fire Protection Association
(NFPA), and the American Society for Heating Refrigeration and Air Conditioning Engineers
(ASHRAE) and the local code authorities.
D. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.
E. Ducted fans must always be vented to the outdoors.
F. Do not use this unit with any solid-state control device. Solid state controls may cause harmonic distortion
which can cause motor humming noise.
G. Before servicing or cleaning unit, switch power off at service panel and lock the service disconnecting
means to prevent power from being switched on accidentally. When the service disconnecting means
cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
H. Not to be installed in a ceiling thermally insulated to a value greater than R40. (This is required for
installation in Canada only.)

8
2-Screw (ST4.2X8)I
Suspension bracket III
Suspension bracket II
INSTALLATION JOIST MOUNTING-II()INSTALLATION JOIST MOUNTING-II()
1. Insert the suspension bracket into the fan body and
adaptor. (select the suspension bracket as shown below)
SpacingAon center joists Insert Suspension bracket
12 inches
16 inches
19.2 inches vertical joists
24 inches
Refer to Fig. 1-1
Refer to Fig. 1-2
Refer to Fig. 1-3
Refer to Fig. 1-4
If spacing A on center joists is 24 inches, connect
suspension bracket and (C4 mark to C4 mark)
as shown below : II III
Joists
A
Suspension
bracket III
Suspension
bracket I
Fig.1-1
Fig.1-2
Fig.1-3
Fig.1-4
Fan body
Fan body
Suspension
bracket I
Suspension
bracket III
Suspension
bracket II
Suspension
bracket I
Fan body
Suspension
bracket ISuspension
bracket III
Fan body
Tape
Damper
Adaptor
IMPORTANT :
Remove the tape from damper and adaptor
before installation. As shown below:

Fan body 4 Long screws (ST4.2X20)
Joist
9
Fig.2-2
INSTALLATION JOIST MOUNTING-II( ) CONTINUEDINSTALLATION JOIST MOUNTING-II( ) CONTINUED
3. Install the suspension bracket to joists by using long
screws (ST4.2X20) and secure it to the fan body by
using screw (ST4.2X12) (Fig.3)II
Junction box cover
Fig.4
Conduit
Circular duct
4. Remove junction box cover and secure conduit or
stress relief to junction box knock-out hole. (Fig.4)
CAUTION:
Mount junction box cover carefully so that lead
wires are not pinched.
6. Install a circular duct and secure it with duct tape or
clamps.
Fig.2-1
2. Install the suspension bracket and the flange of fan body
to joists by using long screws (ST4.2X20) ( If spacing A
between joists is 12 inches, install the flange of fan body
according to Fig.2-1, others according to Fig.2-2 to install
the product)
Duct tape
Fig.3
2 Long screws
(ST4.2X20) Screw (ST4.2X12)II
Joist
Joist
5. Refer to wiring diagram of page 5.
Follow all the local electrical safety codes. As well as
the National Electrical Code (NEC).
Using UL approved wire nuts, connect house power
wires to ventilating fan wires:
black to black; white to white; green to green;
Connect the two red wires to the switch for the speed
control. Replace the junction box cover. (Fig.4)
Joist
Wire nut
Green wires
Lead wires
Red wires
Conduit
Junction box
2 Long screws
(ST4.2X20)
Fan body
Junction box
Wire nutLead wires
Conduit
Green wires

10 7/8 (275)
10 7/8 (275)
Ceiling
Sensor unit
Grille
Ceiling
Fig.6-2
Gloves
INSTALLATION JOIST MOUNTING-II( ) CONTINUEDINSTALLATION JOIST MOUNTING-II( ) CONTINUED
8. Insert the plug connector into the receptacle ,
and secure the lighting unit to the fan
body with 1 screw (ST4.2X16) and 2 machine
screws (M4X8). (Fig.5)
II II
III
9. Insert the fluorescent lamps and s cure the night
lamp into the lighting unit. (Fig.5) e
12. Insert mounting springs into the slots as shown and
mount grille to fan body. (FV-08VKSL1) (Fig.7)
Lighting unit
7. Finish ceiling work. Ceiling hole should be aligned
with the edge of the flange. (Fig.5)
10
Slot
Grille
Mounting spring
Lighting unit
Ceiling
Fig.7
10. Insert mounting spring into the slot as shown and
adjust high /low delay time preset switch and low
speed air volume preset switch. Refer to switch
indication of page 5 (FV-08VKML1) (Fig.6-1)
11. Insert the sensor unit into the housing of the grille
and insert other mounting spring into the slot as
shown and mount grille to fan body (FV-08VKML1)
(Fig.6-2, Fig.6-3)
Grille
Mounting spring
Ceiling
Fig.6-3
Gloves
Gloves
Fig.5
Screw (ST4.2X16)III
Machine screw
(M4X8)
4 W Night lamp
Fluorescent lamps
inches (mm)
Fig.6-1
Sensor unit
Ceiling
Grille
Lighting unit
Plug connector II
Machine screw
(M4X8)
CAUTION:
Mount grille carefully so that lead wires are not
pinched.

3. Follow steps 4 to 6 of the installation (page 9) to
complete the duct work and wiring. I
1. Remove the machine screw by using screw driver,
disconnect plug connector from receptacle and
remove adaptor from fan body before installation.
(Fig.8)
If spacing A between joists is 21 1/4 to 23 1/2
inches (540 to 597mm), connect suspension
bracket and (C4 mark to C4 mark) according
to page. 8 Select the suspension bracket
according to spacing A as shown below.
II III
suspension
bracket suspension
bracket I
suspension
bracket III
suspension
bracket &II III
SpacingA
between Joists
inches (mm) 13 1/4~15 1/2
(336~394) 16 1/2~18 3/4 (419~480) 21 1/4~23 1/2 (540~597)
11
INSTALLATION JOIST MOUNTING-II II()INSTALLATION JOIST MOUNTING-II II()
Make sure that adaptor claws are properly inserted
into body slots.
IMPORTANT:
5. Insert the fan body into joists. (Fig.10)
4. Insert to fan body (refering
to step 1 of installation , page 8)
the suspension bracket in
I
Fig.9
inches mm()
Suspension bracket
2 Long screws
(ST4.2X20) Adaptor
Joists
2 Long screws
(ST4.2X20)
Adaptor
13 1/4~15 1/2 ( 336~394 )
16 1/2~18 3/4 ( 419~480 )
21 1/4~23 1/2 ( 540~597 )
A
Gloves
Gloves
1/2 (12.7)
2. Insert the suspension bracket into the adaptor and
secure it to joists by using long screws (ST4.2X20) (Fig.9)
Keep the distance B (1/2 inch, 12.7mm) for the thickness
of ceiling board.
Suspension
bracket I
Fan body
Machine screw
Fig.8
Fig.10
Slots Adaptor
claws
Fan body
Joist Conduit
Junction box cover
Circular duct
Duct tape
Gloves
Screw driver

2. Connect the suspension to fan body. (Fig.13)
(Select the hole by checking -joist size and fix the
screw to the frame hole.)
bracket III
I
3. Connect the fan body to the joist. (Fig.14)I-
4. Follow steps 4 to 12 of installation (page 9, page 10) to
complete the installation work. I
1. Before installation, secure the lighting unit to fan body
(refering to Fig.5 of page 10).
C
Suspension bracket
The suspension can comply with
different kind of joists.
III
III
I-
bracket
C3
C4 C1
C2
C1
C2
C3
C4
4 kinds of joist
inches (mm)
I-
9/16 ( )14.3
11/16 (17.5)
31/32 (24.6)
1 17/32 38.9()
INSTALLATION JOIST MOUNTING- CONTINUEDII II()INSTALLATION JOIST MOUNTING- CONTINUEDII II()
12
INSTALLATION JOIST MOUNTINGIII I(- )INSTALLATION JOIST MOUNTINGIII I(- )
7. Secure to joists by using
long screws(ST4.2X20) and secure it to fan body by
using screw (ST4.2X12) in vertical direction (Fig.12)
the suspension bracket
II
8. Follow steps 7 to 12 of Installation (page 10) to
complete the installation work. I
Fig.14
4 Long screws (ST4.2X20)
I- joist
Fig.13
Screw ST4.2X12()II
Suspension
bracket III
6. Secure the fan body to adaptor by using machine
screw and plug connector to receptacle (Fig.11)
Fig.12
2 Long screws
(ST4.2X20)
Screw (ST4.2X12)II
2 Long screws
(ST4.2X20)
Screw driver
Plug connector I
Receptacle I
Machine screw
Fig.11

Suspension bracket I
Suspension bracket III
Suspension bracket II
2. Insert the suspension bracket into bracket cover of
adaptor side and the back of the fan body. (Fig.15)
(select the suspension bracket according to spacing A
as shown below)
A
16 inches and 19.2 inches
horizental joist
19.2 inches vertical joist
13
INSTALLATION JOIST MOUNTINGIV ( BETWEEN )INSTALLATION JOIST MOUNTINGIV ( BETWEEN )
3. Insert the fan body between joists. Make sure the fan
body is level and square (perpendicular) with the joists.
(Fig.16)
4. Secure the suspension bracket to joists by using long
screws(ST4.2X20) (Fig.17, Fig.18)
5. Secure the suspension bracket to fan body by using
screw (ST4.2X12) (Fig.18)II
6. Follow steps 4 to 12 of installation (page 9, page 10)
to complete the installation work. I
Fig.17
2 Long screws (ST4.2X20)
Joist
4 Long screws (ST4.2X20)
2 Screw
(ST4.2X12)
II
Fig.18
Joists
Fig.16
Junction box
Fan body
Adaptor
inches mm()
A13 1/4~15 3/4 ( 336~400 )
16 1/2~18 3/4 ( 419~480 )
3~5 ( 76~126 )
5 4/5~7 4/5 ( 148~198 )
B
1/2 (12.7)
Fig.15-1
Fig.15-2
Suspension bracket III
Suspension bracket II
Suspension bracket I
16 inches and 19.2 inches
horizental joist
19.2 inches vertical joist
Keep the distance B (1/2 inch, 12.7mm) for the thickness
of ceiling board.
1. Before installation, secure the lighting unit to fan body
(refering to Fig.5 of page 10).

Wire nut
Green wires
Lead wires
Red wires
Conduit
Junction box
Junction box
Wire nutLead wires
Conduit
Green wires
14
INSTALLATION WOODEN HEADEV(R)INSTALLATION WOODEN HEADEV(R)
4. Follow steps 4 to 12 of installation (page 9, page 10)
to complete the installation work. I
3. Install the fan body and secure it by using long
screws(ST4.2X20) (Fig.19, Fig.20)
(275)
(375)
10 7/8
14 3/4
Joist
Header
Joist
2. Install header between joists by using nails or screws.
inches (mm)
Fig.19
Adaptor
Fan body
INSTALLATION IN EXISTING CONST UCTIONVI (R)INSTALLATION IN EXISTING CONST UCTIONVI (R)
(1) To install the fan body, follow the procedures described in lnstallation . Take the following
precautions before installation. II
1. Installation in existing construction.
Installing the fan body in an existing building requires an accessible area (attic or crawl space) above
the planning installation location or existing ducting and wiring.
(2) Inspect duct work and wiring before proceeding with installation.
(3) Plan suitable location for fan body. (next to ceiling joist)
(5) First, remove ceiling section.
(6) Install fan body.
(1) Inspect duct work and wiring before proceeding with installation.
(2) Remove ceiling section.
(3) Install fan body.
CAUTION:
Check area above the planned installation location to be sure that:
1. Duct work can be done and that area is sufficient for proper ventilation.
2. Wiring can be run to the planned location.
3. No wiring or other obstructions shall interfere with installation.
(4) Before installation, provide inspection and maintenance access at a location that will not interfere
with installation work shown in installation .II
2. Installation from accessible area above fan location.
Fig.20
6 Long screws
(ST4.2X20)
Adaptor
Circular duct
1. Before installation, secure the lighting unit to fan body
(refering to Fig.5 of page 10).

15
MAINTENANCE CLEANINGI()MAINTENANCE CLEANINGI()
Fig.22
4. Remove dust and dirt from fan body using a vacuum
cleaner. (Fig.24)
5. Using a cloth dampened with kitchen detergent, remove
any dirt from fan body. Wipe dry with new cloth. (Fig.25)
6. Replace grille.
Fig.24
Fig.25
Fig.23
3. The grille should be dry after cleaning. (Fig.23)
2. Wash and clean grille. (Use non-abrasive kitchen detergent,
wipe dry with new cloth.) (Fig.22)
MAINTENANCE II (REPLACEMENT OF LAMP)MAINTENANCE II (REPLACEMENT OF LAMP)
1. Disconnect power source before working on unit.
2. The lamp's glass is fragile. Please handle with care.To remove lamp, grasp at base and move back
and force to loosen.Do not pull hard on the lamp or you may break the glass.
3. 4W night lamp has threaded base. Remove by turning counterclockwise.
4. Be sure to remove the night lamp before remove fluorescent lamps.
Disconnect power source before working on unit. Routine
maintenance must be done every year.
WARNING:
CAUTION:
1. Never use gasoline, benzene, thinner or any other
such chemicals for cleaning the ventilating fan.
2. Do not allow water to get into the motor.
3. Do not soak resin parts in water over 60 C (140 F).
oo
Glove
Gloves
Vacuum cleaner
Grille Gloves
Sensor unit
Grille
Ceiling
Gloves
Mounting spring
Ceiling
Fig.21-1
Fig.21-2
1. Remove grille pull down one mounting spring. Remove
sensor unit then pull down the other mounting spring.
(Squeeze mounting spring and pull down carefully.) (Fig.21)

Warning Concerning Removal of Covers.
The unit should be serviced by qualified technicians only. No service information is provided for customers.
Your product is designed and manufactured to ensure a minimum of maintenance. However, should your
unit ever require service, a nationwide system of factory service centers and AUTHORIZED INDEPENDENT
SERVICE CENTERS is maintained to support your product's warranty.
(In the U.S.A.,call 1-866-292-7292 to Customer call Center.)
P ODUCT SE VICERRP ODUCT SE VICERR
3. Change the fluorescent lamps (Panasonic FDS
18E27/4,18W or FDS18E35/4, 18W or FDS18E42/4,
18W ) or the 4W night lamp, connect the plug
connector and replace the grille.(Fig.27)II
1. Remove grille. (Squeeze mounting spring and pull
down) (Fig.21 of page 15)
Fig.28
Loose fill or batt insulation can be placed
directly over the fan housing in the attic.
Panasonic fans and fan/light combination
units do not create excessive heat that is
a common problem with recessed light
fixtures or some competitors' fan/light
combinations. Our efficient, cool-running
motors and our fluorescent bulbs do not
create enough ambient heat to be subjected
to these limitations.
Proper insulate the area around the fan to
minimize building heat loss and gain. (Fig.28)
Dryer-hood type vent with
backdraft flap(s).
Caulk termination to duct.
2-3 ft straight run before elbow.
In attic installation,
caulk box to drywall.
Short piece of flexible duct
helps alignment and absorbs
sound. Clamps plus tape at
all flex joints. Foil tape tightly covers all metal
duct joints (glue PVC joints).
Insulation.
P ACTICAL GUIDE TO INSTALLATIONRP ACTICAL GUIDE TO INSTALLATIONR
MAINTENANCE II (REPLACEMENT OF LAMP) CONTINUEDMAINTENANCE II (REPLACEMENT OF LAMP) CONTINUED
X0108-0 08VKML420
PANASONIC CONSUMER ELECTRONICS COMPANY
Division of Panasonic Corporation of North America,
PANASONIC CANADA INC.
5770 Ambler Drive, Mississauga, ON L4W 2T3
www.panasonic.com
One Panasonic Way, Secaucus, NJ 07094
2. Remove the 4 W night lamp. (Fig.26)
Fig.26
Fig.27
Gloves
www.panasonic.ca
