Panasonic FV-15ZY1 User manual

Thank you for purchasing this Panasonic product.
Please read these instructions carefully before attempting to install, operate or service
the Panasonic product. Please carefully read “INSTALLATION INSTRUCTIONS” (P.2~5)
of this instructions before installation. Failure to comply with instructions could result
in personal injury or property damage. Please explain to users how to operate and
maintain the product after installation, and this booklet should be presented to users.
Please carefully read “USE AND MAINTENANCE INSTRUCTIONS” (P.16~17) of this
instructions before operation.
Please retain this booklet for future reference.
Model No.
INSTALLATION AND OPERATING
INSTRUCTIONS
Energy Recovery Ventilator
FV-15ZY1
FV-50ZY1
FV-1KZY1
FV-25ZY1
FV-65ZY1
FV-1HZY1
FV-35ZY1
FV-80ZY1
FV-2KZY1
CONTENTS:
SAFETY INSTRUCTIONS ····················· 2
INSTALLATION INSTRUCTIONS ·············2～5
INSTALLATION AND OPERATING REQUIREMENTS·5～6
PRODUCT FEATURES ······················· 6
SUPPLIED ACCESSORIES ···················· 7

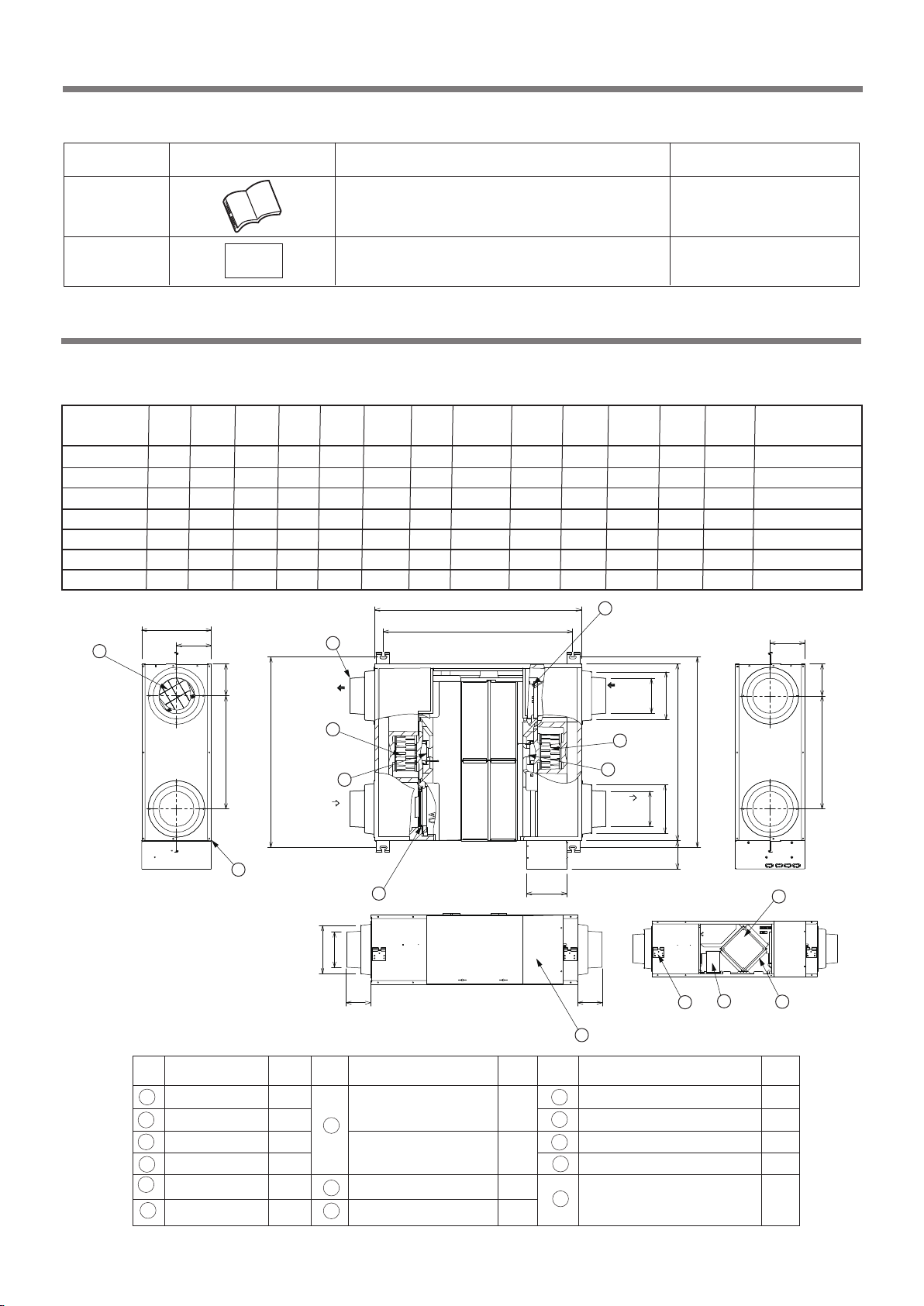

PART NAMES AND DIMENSIONS ···········7～8
WORK BEFORE INSTALLATION ··············· 9
HOW TO INSTALL····················· 10～15
TEST RUN ··························· 15～16
USE AND MAINTENANCE INSTRUCTIONS
··· 16～17

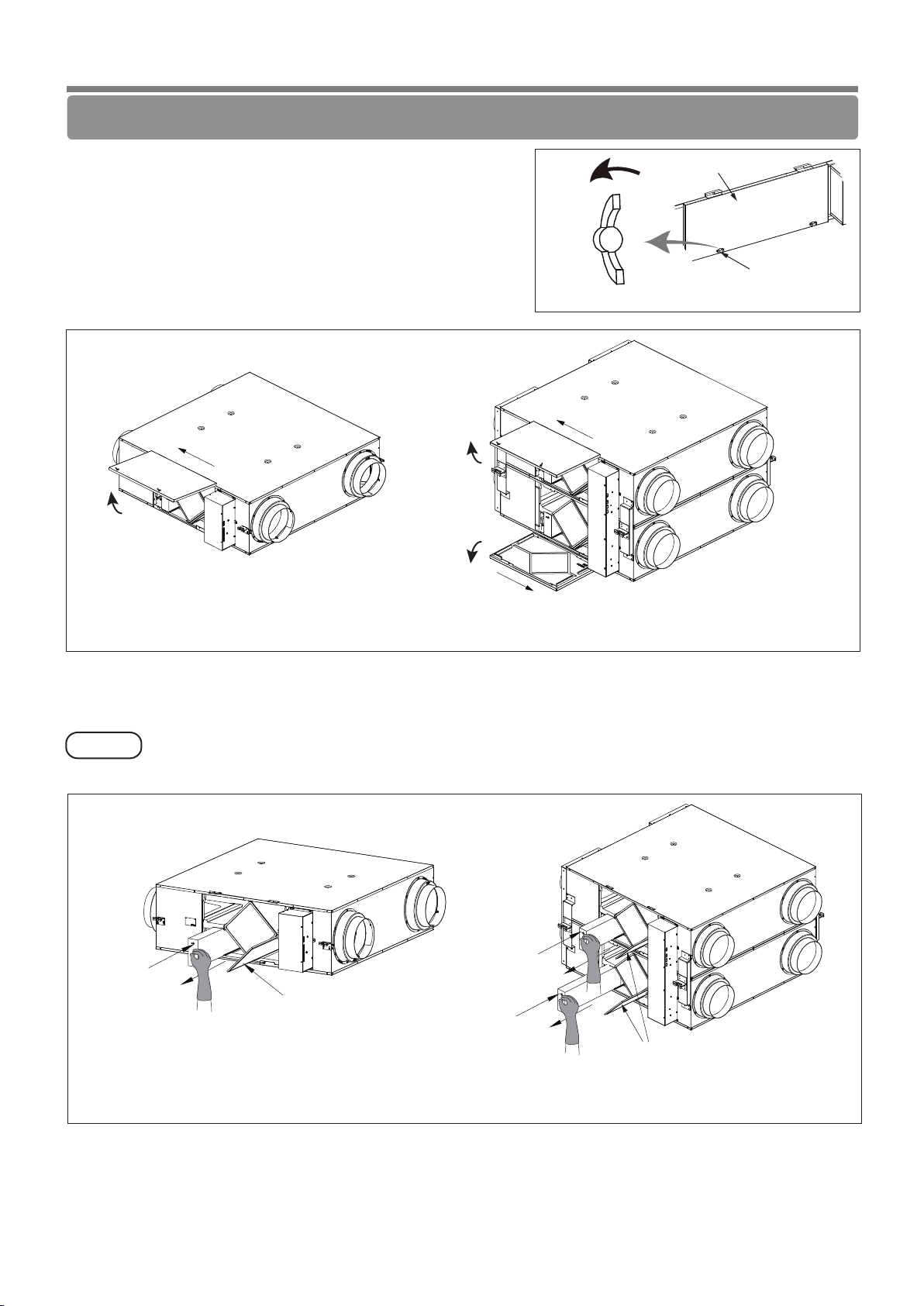

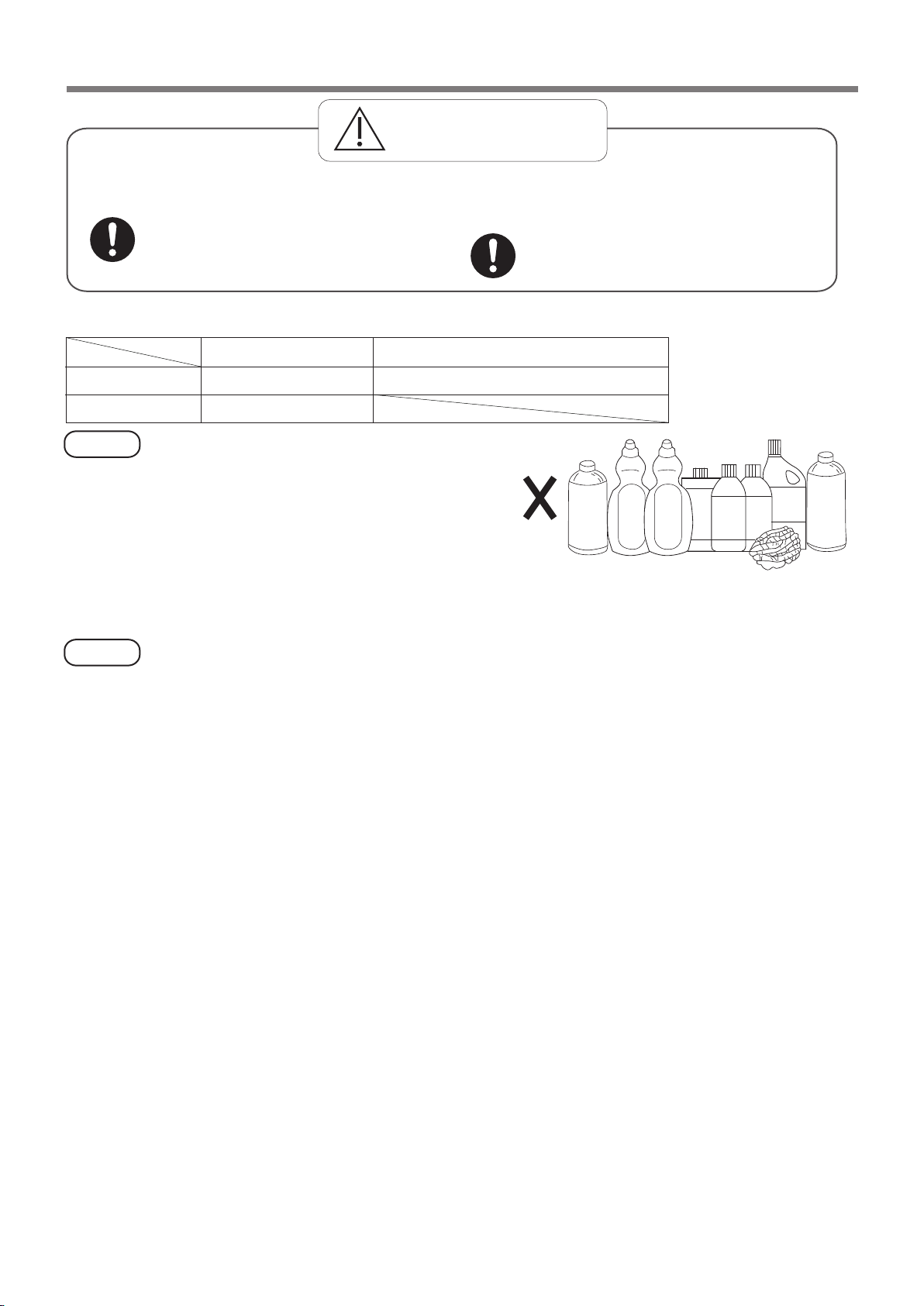

MAINTENANCE······················· 18～20
WIRING DIAGRAM ···················· 21～22
TROUBLESHOOTING ······················ 22
SPECIFICATIONS ·························· 23
OPTIONAL ACCESSORIES ·················· 24

INSTALLATION INSTRUCTIONS
WARNING
This symbol indicates the item is “PROHIBITED” to do.
This symbol indicates the “COMPULSORY” item that must be followed
without failure.
This symbol indicates the item is “CAUTION”.
■Disconnect power supply before maintenance.
■This product is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the product by a person responsible for the safety.
Children should be supervised to ensure that they do not play with the product.
The following instructions should be strictly observed in order to prevent injury to the users and other
people, or damage to property.
The following symbols differentiate the levels of danger or injury that may result if the product is not
used correctly as instructed.
Types of instructions that should be observed have been classified and described by the following
pictorial symbols.
WARNING
CAUTION
■ If the supply cord is damaged, it must be replaced by manufacturer or its service agent or a
similarly qualified person in order to avoid a hazard.
SAFETY INSTRUCTIONS Please observe strictly
2
Otherwise, it may cause the fire, electric
shock and injury. Please contact the
dealer for repair.
Do not disassemble this product for
repair or reconstruction.
The product must be installed by
professionals or trained personnel
with equivalent expertise and skills
according to the national wiring rules.
Otherwise, electric leakage, electric
shock or a fire may be caused due to
incorrect wiring, twisted wiring or wire
clamping.
Improper practice of installation could
cause an electric shock or a fire.
Do not install the product with a
method which is not approved in the
instructions.
Otherwise, it may cause electric shock
when there is a fault or electric
leakage.
The product must be grounded.
Do not operate the product other
than with the rated voltage
(220 V~ 50 Hz).
Otherwise, it may cause damages to
the product or a risk of fire.
This indication means: Must be treated seriously that this
may result in death or serious injury.
This indication means: Must be treated seriously that this
may result in injury or physical damage.

INSTALLATION INSTRUCTIONS
WARNING
CAUTION
3
Please install a suitable all-pole
switch with a contact separation of
more than 3 mm
(site supplied) .
Please use the switch with rated
current above 10 A.
Otherwise, it may cause a short circuit,
thus resulting in a fire.
Otherwise, it may cause indoor hypoxia
or air pollution, or even result in a fire.
Do not install the outside air inlet in
places where combustible gases or
any other exhaust gases may enter
the product.
Otherwise, it may cause fire.
Avoid the back-flow of gas into the
room from an open flue with
flammable gas or other open-fire
appliances.
Otherwise, it may cause
odor pollution. The
filter or the heat
exchange core cannot
be used after it is
clogged with oil;
otherwise, it may cause
a fire.
Do not install the product or the
room air inlet in places with heavy
cooking oil fumes.
Do not install in location where the
product may be exposed to the
combustible gas leakage.
In case gas accumulates around the
product, it may cause the fire.
Otherwise, it may cause poisoning, or
result in a fire due to internal corrosion
or deterioration of the product.
Do not install the product or the
room air inlet in places such as
machinery plants, chemical plants or
research facilities where harmful
gases or gases containing corrosive
ingredients, including acid, alkali,
organic solvent and paint, are
generated.
Do fix this product securely. Do not install the outside air inlet
close to a pollution source.
Otherwise, it may fall off and cause
personal injury. Otherwise, it may pollute the indoor air.
Otherwise, it may fall off and cause
personal injury.
Components must be installed
securely.
Otherwise, it may fall off to cause
personal injury.
The special-purpose or dedicated
parts, such as mounting fixtures,
must be used if such parts are
provided
(include the accessories) .
Owing to the different installation
position for special purpose circuit
breaker, please install an anti-creep
circuit breaker.
It may cause electric leakage if anti-creep
circuit breaker is not installed.
Please wear gloves and other
protective tools.
Otherwise, it may cause personal injury.
Room air inlet
Cooking fumes
ERV

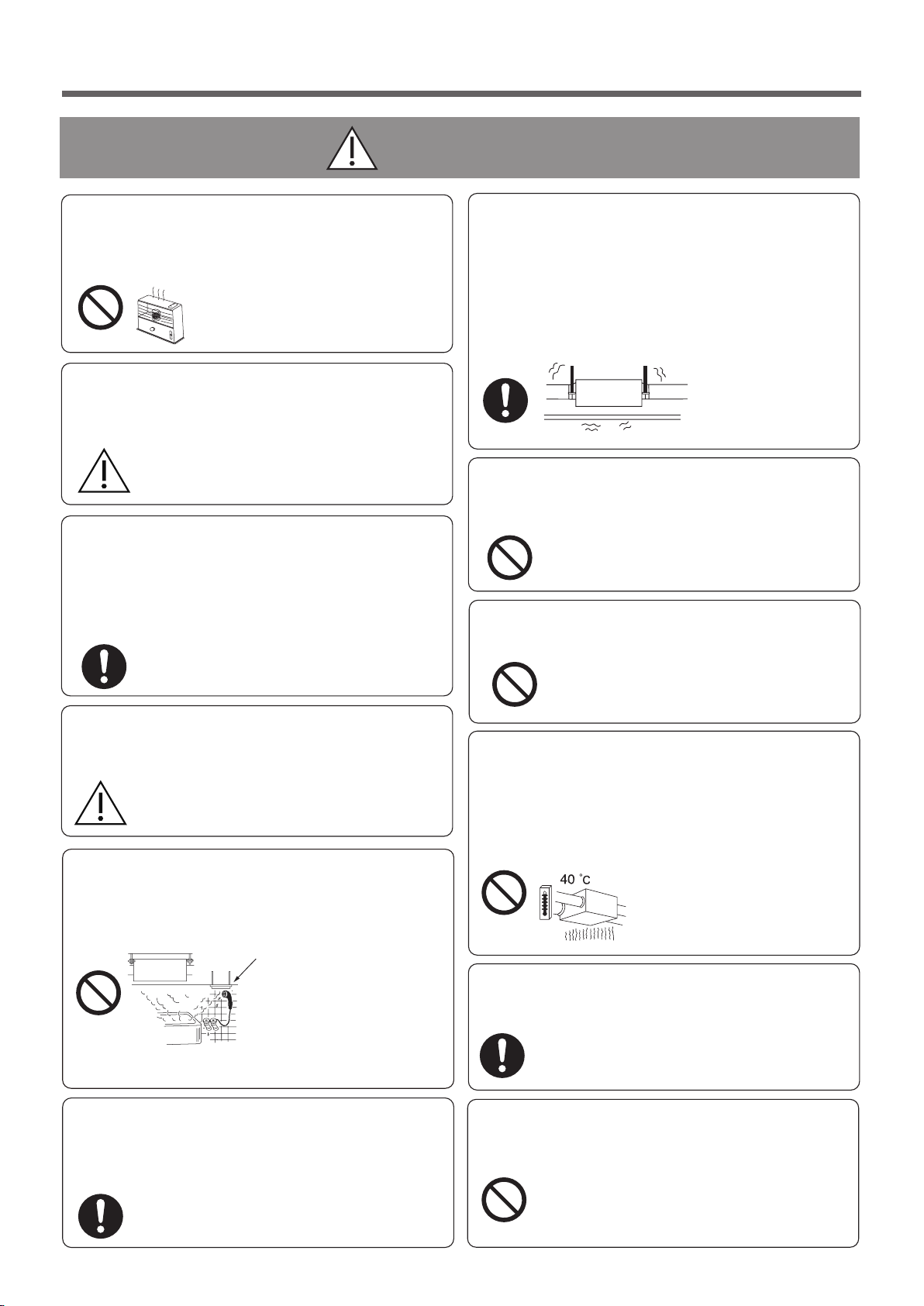

INSTALLATION INSTRUCTIONS
CAUTION
4
Do not operate together with open-
burning appliance (e.g. gas or oil
furnaces).
→
Otherwise, it may cause
carbon monoxide poisoning.
Please use a dedicated
ventilator.
Otherwise, it may
fall off causing
personal injury.
The building structure and fixings
which are used to install the product
must have sufficient strength to
support more than 5 times the
weight of the product. They must be
reinforced if their strength is
insufficient.
Although the power is shut off, part
rotation may occur, resulting in injury.
Please pay attention to the rotation
of
impeller caused by backdraft air in
air duct.
Dropping may cause injury.
Otherwise, it may cause a safety
risk.
Be sure to have the product
transported and installed by two or
more engineers. Please pay attention
to the center of gravity and the
weight when moving the product.
Do not twist the product or
apply
excessive load to the product during
construction.
Dropping may cause injury.
Do not insert fingers or sticks into the
product air inlet, or air outlet.
Otherwise, the operation of rotation
part will cause the personal injury.
ERV Otherwise, dew may be
generated inside the
product, causing electric
shock or water dripping
and thus leading to
property damage.
Do not install the product or the
room air inlet in places where
high-temperature or high-humidity air
may enter the product.
When drilling or cutting the wall or
ceiling, do not damage the wires or
ducts in the wall.
Room air inlet
Usage in high temperature
conditions may cause
distortion of filter, heat
exchange core, or motor
burn-out.
Do not install the product or the
room air inlet in high-temperature
places (where the ambient
temperature exceeds 40 ℃) or places
in direct contact with heat sources.
Please install anti-bird netting or
similar prevention in pipe hood.
Please remove the abnormities such as
bird nests, otherwise it may cause a
lack of oxygen in room.
Otherwise, it may cause indoor air
pollution and thus may harm health.
Install the outside air inlet at a
position where the exhaust air from
the product does not directly flow
back. Otherwise, the filter may be clogged
with dust or dirt, and thus the outside
air inlet may be blocked or shorten the
service life of the filter.
Do not install the product in dusty or
dirty locations.

INSTALLATION INSTRUCTIONS
CAUTION
5
Do not place pets and plants
directly exposed to supply air outlet
or exhaust air outlet.
Otherwise, it may cause discomfort to
pets and dry out plants.
Heat-insulate the outdoor duct
(including the indoor side, if
necessary) to prevent
condensation.
When the ceiling is subject to high
temperature and high humidity,
install a ventilator on the ceiling.
Do not install the product in an
environment where the indoor
temperature is significantly lower
than the outdoor temperature.
If heat insulation is not adequate,
condensate may enter the property
causing damage.
Otherwise, it may cause fire and electric
leakage.
Otherwise, it may cause condensation,
electric shock and malfunction.
INSTALLATION AND OPERATING REQUIREMENTS
■
■
■■
■
It must operate with filter.
If filter is not used, heat exchange core will
be clogged with dirt and dust. The
performance of the product will be
affected, and the product may no longer
operate.
Turn on/off the switch correctly.
If repeatedly turning on or off the
switch, it will affect the product
operations and damage the relay
in the product.
To avoid accidents, the product
shall be installed at least 2.3 m
above the ground level.
(1) Excessive bending (2) Multiple bends. (3) Reduction in diameter of connecting
duct
■Please avoid the following duct installation.
It may cause the unexpected operation.
Ceiling board
ERV
The ground
＞2.3 m
Do not use the「Normal ventilation」
during winter.
Condensation will be produced inside the
supply air outlet if operation mode
「Normal ventilation」is used in a heated
room during winter.

INSTALLATION AND OPERATING REQUIREMENTS
6
Outdoor air condition
Temperature range -10 ℃
～ 40 ℃
relative humidity 85% or less.
Indoor air condition
Temperature range -10 ℃
～ 40 ℃
relative humidity 85% or less.
For example: Indoor air conditions
During cooling period: temperature 27 ℃
relative humidity 50%
During heating period: temperature 20 ℃
relative humidity 40%
Installation requirements:
same as the indoor air conditions.
Using condition
The indoor air here refers to the air in a
living room equipped with an air conditioner.
Do not use this product in refrigerated
warehouses or any other places where the
temperature changes sharply even if the
temperature falls within the above
temperature range.
Using conditions & Precautions
As shown in the following figure, it is supposed
that a high temperature absorbing air condition A
and a low temperature absorbing air condition B
are plotted on the line figure, then a high
temperature air A is exchanged by the unit
and Point C represent the trend of saturation
curve. In this case, it will cause dew or frost
inside the unit. To avoid this, you are required to
heat low temperature air from B to B’ to get C'
below saturation curve before entering the unit.
Be careful of frost and dew
1. Energy saving ventilation
Thanks to efficient recovery of thermal energy lost during Ventilation (load incurred by outside air),
you can save an air-conditioning fee.
2. Facility saving
Thanks to a drastic reduction of load incurred by outside air, you can make air-conditioners more
compact in parallel with the recovery of thermal energy.
3. Humidity adjusting effect
In a cooling mode, a highly humid open-air is brought near to a dehumidified room atmosphere
and then supplied. In a heating mode, a room humidity is transferred to the dry outside air and
then supplied.
4. Comfortable and consistent ventilation
Ventilation is available with least possible fluctuation of a room temperature. Since exhaust and air
intake are performed simultaneously, a stable ventilation is possible even in a highly airtight room.
5. Sound shield effect
The ducts of the unit and the heat exchange core are characteristic of sound shield effect. Thus,
it prevents an outside noise from coming in the unit and also sound inside the unit from going out,
so that the office and store environment can be preserved.
6. RS485 central control
The energy recovery ventilator is connected to a remote control(optional) with RS485 function for
central control management by BMS or similar.
7. Outdoor filters
Outdoor filters conform to F7 class of EN 799 standard.
PRODUCT FEATURES

SUPPLIED ACCESSORIES
PART NAMES AND DIMENSIONS
D E F G H Applicable duct
diameter
FV-15ZY1 860 666 786 610 289 144.5 102 Φ97.6 Φ150 395 107.5 116 168 Φ100
860 791 786 735 289 144.5 102 Φ145 Φ200 470 132.5 116 168 Φ150
968 930 895 874 331 165.5 102 Φ145 Φ200 609 132.5 115 168 Φ150
968 1072 895 1016 331 165.5 114 Φ195 Φ250 665 175.5 115 168 Φ200
1008
1224
1224
1010 934 954 404 202 114 Φ195 Φ250 638 158 121 168 Φ200
1060 1148 1004 404 202 122 Φ245 Φ300 633 185.5 121 168 Φ250
1287 1148 1231 404 202 122 Φ245 Φ300 860 185.5 121 168 Φ250
FV-25ZY1
FV-35ZY1
FV-50ZY1
FV-65ZY1
FV-80ZY1
FV-1KZY1
Model No. A B C J K L M N
Model label 1②
1
Installation and operating instructions
①
The following accessories are provided with the product in the package. When you unpack, check if
the accessories are all included. If not, please contact your dealer.
DrawingNo. Name and Purpose Qty
Unit: mm
Heat exchange
core (FV-15ZY1)
Heat exchange
core (Other models)
EA motor
Adapter
Frame
EA impeller
SA impeller
SA motor
Electrical equipment box 1
1
2
1
4
OA damper motor
RA damper motor 1
1
EA backdraft damper
RA filter
Suspension bracket
Outdoor filter
Part name
No. Qty Qty QtyPart nameNo. Part nameNo.
1
2
3
4
5
1
1
1
2
4
1
1
1
6
8
9
10
11
12
13
14
7
■FV-15ZY1、FV-25ZY1、FV-35ZY1、FV-50ZY1、FV-65ZY1、FV-80ZY1、FV-1KZY1
EA
(Exhaust
Air)
(Outside
Air)
OA
A
F
C
N
M
L L
B
B
K
K
H
H
JJ
GG
H
J
E
F
D
SA
RA
14
8
9
10
11
12
13
1
2
34
56
7
(Supply
Air)
(Room
Air)
(Suspension point dimensions)
(Suspension point dimensions)
(Suspension point dimensions)
7

EA motor
Adapter
EA impeller
SA impeller
SA motor
OA damper motor
RA damper motor
EA backdraft
damper
Heat exchange
core
Frame
Electrical equipment box
2
2
2
8
4
1
RA filter
Suspension bracket 1
Suspension bracket 2
Outdoor filter
Part name
No. Qty Qty QtyPart nameNo. Part nameNo. QtyPart nameNo.
1
2
3
4
5
1 2
4
2
4
8
2
2
2
6
8
9
10
11
13
12
14
15
7
PART NAMES AND DIMENSIONS
Applicable duct
diameter
D E F
FV-1HZY1 1224 1141 1127 1004 808 202 Φ245 Φ300 663 185.5 121 168 Φ250
1224 1368 1127 1231 808 202
G
122
122 Φ245 Φ300 860 185.5 121 168 Φ250FV-2KZY1
Model No. A B C H J K L M N
Unit: mm
■FV-1HZY1、FV-2KZY1
(Exhaust
Air)
(Outside
Air)
L
RA
EA
OA
Main unit
Main
unit
Main
unit
Main
unit
Sub unit
Sub unit Sub unit
Sub unit
N
M
K
K
HH
J
H
J
H
J
J
F
D
A
E
F
E
SA
GG 9
10
11
12
13
14
15
1
2
34
56
7
8
(Room Air)
(Supply
Air)
C
B
B
(Suspension point dimensions)
(Suspension point dimensions)
(Suspension point dimensions)
8

①Please ensure a safe distance (Figure 1)
(1) Ensure the distance between the underside of the unit and ceiling board is over 25 mm .
(2) Ensure the distance between the top of the unit and the mounting face of supports is over 25 mm .
②Set the inspection opening (Figure 2)
(1)No other devices should be set inside the double dot scribing area, which is reserved
for maintenance.
(2)During reverse installation, the position of the inspection opening should also meet the
dimensional relationship shown in Figure 2.
A B 450
450
550
100
Figure 1
Figure 2
Above 25 mm
Above 25 mm
Ceiling board
Above 25 mm
Above 25 mm
Ceiling board
Main unit
Sub unit
Unit: mm
Dimensions of the
inspection opening
Dimensions of the
inspection opening
WORK BEFORE INSTALLATION
A B
FV-15ZY1 210 200
FV-25ZY1 210 200
FV-35ZY1 288 230
FV-50ZY1 288 230
FV-65ZY1 308 250
FV-80ZY1 464 310
FV-1KZY1 464 310
FV-1HZY1 464 310
FV-2KZY1 464 310
Model No.
9

Figure 2

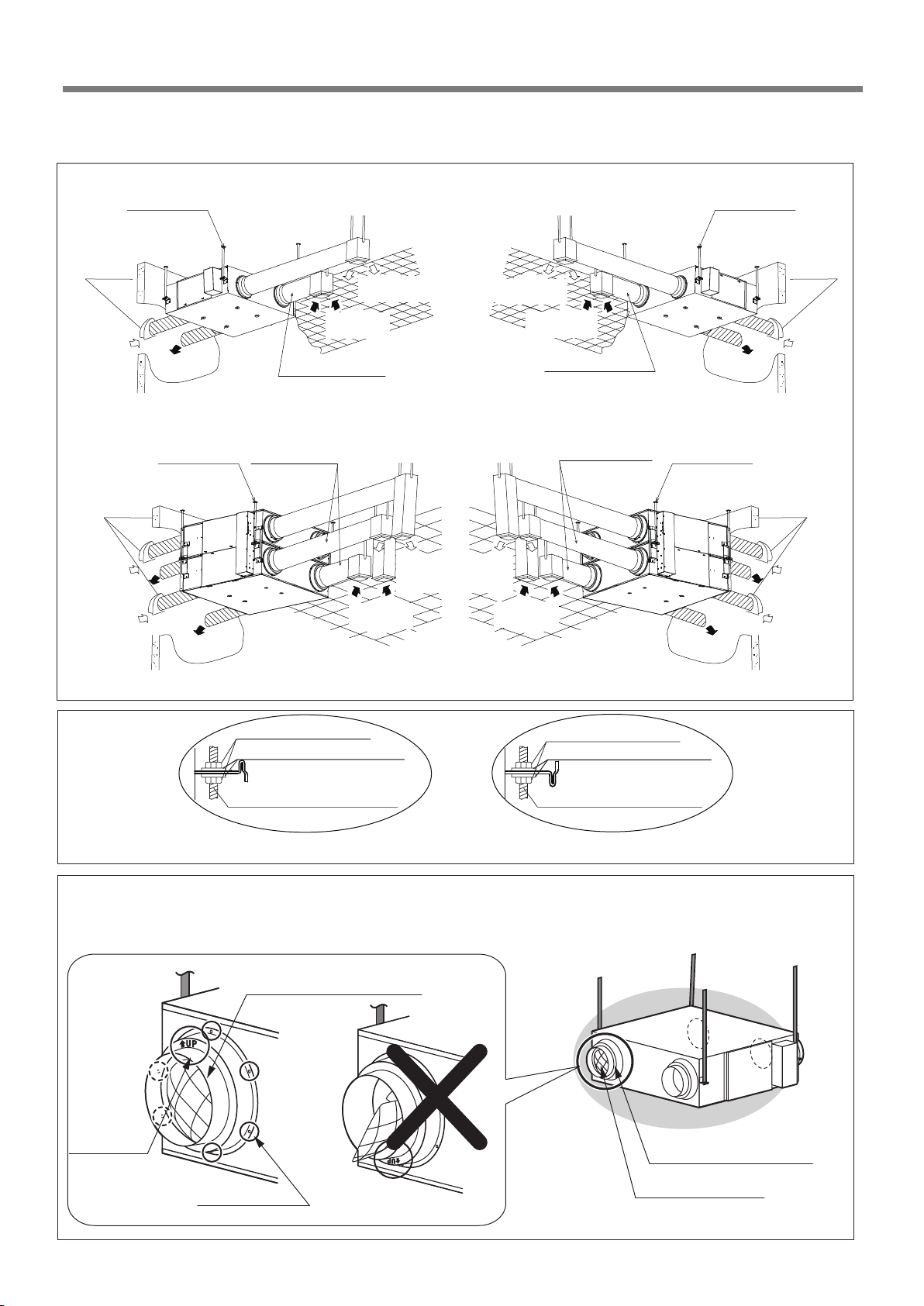

■ Support
Forward installation Reverse installation
Washer (site supplied)
Nut (site supplied)
Support (site supplied)
Washer (site supplied)
Nut (site supplied)
Support (site supplied)
Sub unit
Sub unit
Forward installation Reverse installation
Support Support
Room air duct Room air duct
Pipe hood Pipe hood
OA
(Outside air)
OA
(Outside air)
OA
(Outside air)
OA
(Outside air)
(Exhaust air)
EA
(Exhaust air) EA (Exhaust air)
EA
EA (Exhaust air)
(Supply
air)
SA (Supply
air)
SA
Main
unit
Main
unit
(Room air)
RA (Room air)
RA
Forward installation Reverse installation
Support Support
Room air duct Room air duct
Pipe hood Pipe hood
EA OA
(Outside
air)
OA
(Outside air) (Exhaust air)
EA
(Exhaust air)
(Supply air) (Supply air)
(Room air)
RA
SA
SA
(Room air)
RA
Figure 1
Figure 3
Backdraft damper
■The exhaust air outlet (EA) is equipped with a backdraft damper.
When the suspension direction is opposite to the direction shown in the following figure,
please unfasten the screws and reinstall the air outlet until the arrow mark faces upward.
Screws (4 or 6)
Arrow mark
Upward
Connection at the air outlet
Do not pierce
screws
Exhaust air outlet(EA)
HOW TO INSTALL
■Installation of energy recovery ventilator
■FV-15ZY1、FV-25ZY1、FV-35ZY1、FV-50ZY1、FV-65ZY1、FV-80ZY1、FV-1KZY1
■FV-1HZY1、FV-2KZY1
①Installation diagram(Figure 1、Figure 2、Figure 3)
10

Figure 2
Figure 3
Figure 4

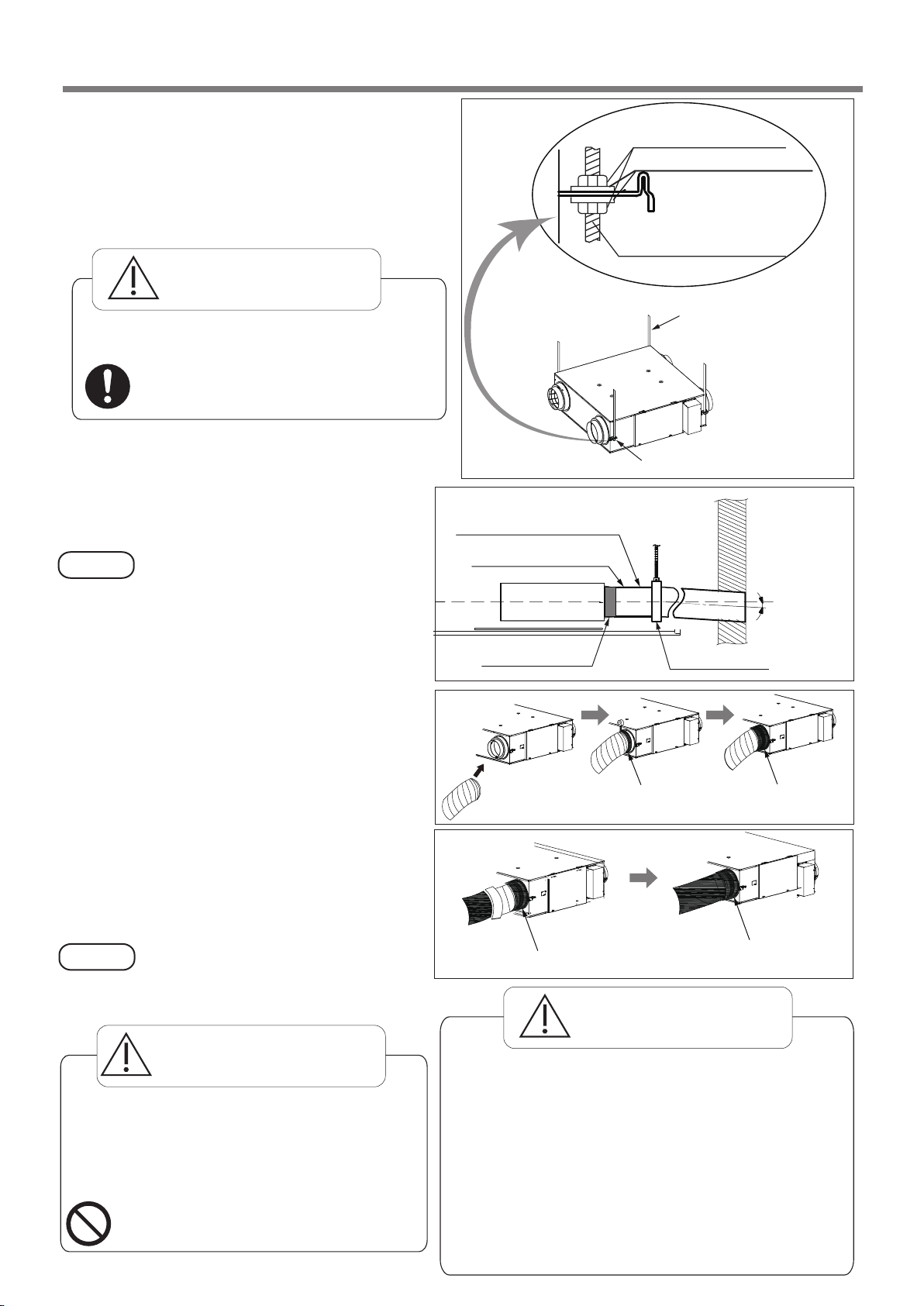

■Duct Installation
②
③
④
⑤
1/100~1/50
①When installing the ducts (2 or 4) connected
to the outdoor side, tilt the ducts to the
outside (at a gradient of 1/100 to 1/50) to
prevent rainwater ingress. (Figure 2)
CAUTION
Suspend the ducts (site supplied) on the ceiling
with support parts (site supplied) to prevent
external force from being applied to the energy
recovery ventilator.
Seal adapter joint and duct( site supplied)
with aluminum tape( site supplied) or seal
tape ( site supplied) to avoid air leakage.
Wrap insulation materials (site supplied) on
the outside of the junction between the
adapter and the duct. (Figure 3)
Insulate the ducts (2 or 4) directly exposed to
outside. (Figure 4)
( Suggested material: glass wool, thickness
25 mm)
(Please purchase a pipe hood or vent cap
separately according to the pipe size.)
Install pipe hood outdoors.
For the FV-1HZY1 and FV-2KZY1 models,
connect the ducts to the main unit and sub unit separately.
When a metal pipe is used, if the pipe
passes through a wall with a metal
structure inside, prevent the metal
pipe contacting with the metal
structure.
Otherwise, it may cause electric shock
or fire.
WARNING When the product is used in an environment
exposed to many insects or with street lights
around the outside air inlet and exhaust air
outlet and where insects are easily attracted,
pipe hood equipped with fly nets should be
used with the product. Insects may be sucked
into the energy recovery ventilator from pipe
hood. Pipe hood cannot completely prevent
insects from passing through the window
screen.
Insulation material
(Adapter and aluminum tape
is needed to insulate.)
Outside air duct;
Exhaust air duct
Aluminum tape Support part
Gradient
Aluminum tape or seal tape Insulation material
Insulation material Insulation material
Notice
Notice
Figure 1
Washer (site supplied)
Nut (site supplied)
Support (site supplied)
Support (site supplied)
Suspension bracket
②
Positioning and installation of supports (Figure 1)
(1)Please set the supports according to the
support parts of the energy recovery ventilator.
(site supplied: M10-M12)
(2)Install the support parts (4) of the energy
recovery ventilator to the suspenders (site
supplied).
HOW TO INSTALL
Otherwise, the product may fall off,
and cause injury.
Be sure to firmly install the supports,
washers and nuts.
CAUTION
11

HOW TO INSTALL
①Strip the power cord. (Figure 1)
Strip the power cord according to the wiring
sketch.
If the power cord is stripped, a short circuit or fire
may occur.
●For the remote control (optional) wiring arrangement,
please refer to the installation and operating
instructions of remote control for more details.
Figure 1Unit: mm
15
15
60 50
■Wiring sketch
Copper wire
Ground wire
(Yellow and green)
Sheath
②Open the cover of electrical equipment box.
(Figure 2)
(1)Remove the screws on the cover of electrical
equipment box.
(2)Remove the cover of electrical equipment box.
③Unfasten the screws on the wire clip that secures
the wire.
Figure 3
Screw
Washer
Copper wire
■Profile of the pillar terminal
Wrap and fix the copper wires on the terminals
■FV-65ZY1
FV-80ZY1
FV-1KZY1
■FV-1HZY1
FV-2KZY1
■FV-15ZY1
FV-25ZY1
FV-35ZY1
FV-50ZY1
Figure 2
④Unfasten the screws on the terminal block, twist
together the copper strands of each core, pass the
wires through the corresponding wire plug and wire
clip, insert them into the wiring part of the terminal
block, and ensure they are all inserted under the
washers. (Figure 3)
Notice
Screws Cover of
electrical
equipment
box
Cover of
electrical
equipment
box
Cover of
electrical
equipment
box Screws Screws
Main
unit
Sub unit
■Wire connection
⑤Connect wires at the corresponding positions . (Figure 4 and Figure 5)
(2)
(1)
(3)
12
Use 3 core wire containing green / yellow wire, each core wire should have cross section area of
2.5 mm2.(Perform wiring according to the local laws and regulations)
Use 2 core wire to link the teminal SW1, SW2 with switch, additionally, please use 4 core wire to
link the other terminals with switch, each core wire should have cross section area of 2.5 mm2.
(Perform wiring according to the local laws and regulations)
It is recommended to use the wire (soft wire) with rated voltage 300 V/500 V to link power supply
cord with switch as stipulated in 60227 IEC 53.

(4) If you need to use the remote control (optional) with RS485 function, please connect the wire
according to the wiring diagram in the instructions of the remote control.
The remote control and the switch cannot be used at the same time.
Notice
■When connecting the switch
Figure 4
开
源
COM
Damper
LO
HI
SW2
SW1
L
N
Power
Make sure
connecting
wires are
securely
fastened
Power cord
Earth
terminal Wire clip
(Make sure the power cord
is securely fastened)
Wire plug
Terminal block
(5)
HOW TO INSTALL
13
If utilising the function to interlock with an air conditioner, use a single-core wire with the cross
section area of 2.5 mm2to connect the terminal SW2 to HI, as shown in Figure 5; use 2 core wire
with the cross section area of 2.5 mm2to connect the terminal SW1, COM to the volt free contact.
(Perform wiring according to the local laws and regulations).
■ When interlocking with air conditioner
Connect the FV-1HZY1 and FV-2KZY1 models to the power cords, switch, remote control and air condi-
tioners by connecting them to only the terminals on main unit rather than the terminals on sub unit.The
methods for connecting the power cord on main unit are consistent with the above steps ①to ⑥.
⑥Fasten the ground wire (yellow and green wire) of the power cord to the earth terminal. (Figure 4 or
Figure 5)
Notice
Notice
Figure 5
●Do not use the air conditioner function with remote control at the same time.
Earth
terminal
Power cord
Make sure connecting wires
are securely fastened
Make sure
connecting
wires are
securely
fastened
开
源
Volt free
contact
Air conditioner
Supplied Power
for Air Conditioner
Controller
for air
conditioner
SW2
SW1
L
N
Power
COM
Damper
LO
HI

(Table 1) (Table 2)
⑦Set the ventilation air volume (Figure 6).
According to the performance (Table 1) of the specific energy recovery ventilator model, select a
ventilation air volume suitable for the size of the property by sliding the switch (Figure 6) (Table 2).
For the FV-1HZY1 and FV-2KZY1 models, adjust the ventilation air volume of only the main unit.
SW1
Hi
SW2 SW3 SW4
Hi
Hi
Hi
Lo Lo Lo Lo
■Remote control
Model No.: FV-SWGR1
FV-15ZY1
H1
H2
H3
H4
L1
L2
L3
L4
FV-25ZY1
FV-35ZY1
FV-50ZY1
H1
H2
H3
H4
L1
L2
L3
L4
H1
H2
H3
H4
L1
L2
L3
L4
H1
H2
H3
H4
L1
L2
L3
L4
FV-65ZY1
H1
H2
H3
H4
L1
L2
L3
L4
H1
H2
H3
H4
L1
L2
L3
L4
H1
H2
H3
H4
L1
L2
L3
L4
H1
H2
H3
H4
L1
L2
L3
L4
FV-80ZY1
FV-1KZY1
FV-1HZY1
H1
H2
H3
H4
L1
L2
L3
L4
FV-2KZY1
100 150 36 90
80 135 29 81
64 120 23 72
49 105 18 63
120 250 43.5 150
97 225 35 135
77 200 28 120
59 175 21 105
140 350 50.5 210
113 315 41 189
90 280 32 168
69 245 24.5 147
130 500 47 300
105 450 38 270
83 400 30 240
64 350 23 210
150 650 54 390
122 585 44 351
96 520 34.5 312
74 455 26.5 273
150 800 54 480
122 720 44 432
96 640 34.5 384
74 560 26.5 336
150 1000 54 600
122 900 44 540
96 800 34.5 480
74 700 26.5 420
130 1500 48 900
107 1350 39 810
85 1200 31 720
64 1050 24 630
130 2000 48 1200
107 1800 39 1080
85 1600 31 960
64 1400 24 840
(m3/h) (m3/h)
SW1 SW2 SW3 SW4
H1(L1)
(Factory set)
H2(L2)
H3(L3)
H4(L4)
Hi Hi Hi Hi
Hi Hi
Hi Hi
Lo Lo
Lo Lo
Lo Lo Lo Lo
Notice
Figure 6
Figure 7
Model No. Notch Notch
External
static
pressure
External
static
pressure
(Pa) (Pa)
Outside air
volume
Exhaust air
volume
Outside air
volume
Exhaust air
volume
Air volume setting
H (High) or L (Low) SA (supply air)
Air volume
setting 1
SA (supply air)
Air volume
setting 1
SA (supply air)
Air volume
setting 2
EA (exhaust air)
Air volume
setting 1
EA (exhaust air)
Air volume
setting 2
SA (supply air)
Air volume
setting 2
EA (exhaust air)
Air volume
setting 1
EA (exhaust air)
Air volume
setting 2
Supply air Exhaust air
Select optional accessories by yourself. (Figure 7)
HOW TO INSTALL
14

TEST RUN
●
ON／OFF
After installation, be sure to perform a test run to check that the wiring is correct.
After confirming the wiring and supply voltage, power on the product and check the indication of
the switch and supply air status according to the following table.
●
Switch/Remote control Supply air/Stop
Switching air volume High/Low Please check whether the air volume changes
with the switching of air volume.
Operating mode
shifting
Heat exchange/
Normal ventilation
Please check whether the product changes with
the selection of operating mode.
(The product stops for a period during shifting)
HOW TO INSTALL
WARNING
■FV-1HZY1
FV-2KZY1
■FV-65ZY1
FV-80ZY1
FV-1KZY1
■FV-15ZY1
FV-25ZY1
FV-35ZY1
FV-50ZY1
Figure 8
■
■
Fix the screws removed in step ②(P.12)
onto the cover of the electrical equipment
box again. (Figure 8)
⑧
When fixing the cover of the electrical equipment box, do not press
the power cord and connecting wires. Otherwise, the power cord and
connecting wires may be damaged.
Firmly install the power cord and connecting wires and secure the
cover of the electrical equipment box to prevent it from tilting. If the
cover of the electrical equipment box is not tightly installed, dust and
moisture will enter, which may cause fire and electric leakage.
15
Cover of
electrical
equipment
box
Screws Cover of
electrical
equipment
box
Cover of
electrical
equipment
box
Screws Screws
Main
unit
Sub unit

Otherwise, it may cause electric shock.
Do not turn on/off the switch with
wet hands.
USE AND MAINTENANCE INSTRUCTIONS
WARNING
Otherwise, it may cause the fire, electric
shock and injury. Please contact the
dealer for repair.
Do not disassemble this product for
repair or reconstruction.
Do not place combustion appliances
in a location where the supply air
outlet or exhaust air outlet blows
directly.
Do not allow the product to come in
contact with water or pour water on
it. (Especially the electrical parts such
as the motor and switches)
Otherwise, incomplete combustion may
occur causing carbon monoxide
poisoning.
It may result in short circuit or electric
shock.
It might cause injuries if it falls down.
All-pole switch accumulated
with too much dust will heat
up. It may cause fire.
Too much dirt or dust attached on the
filter may cause indoor hypoxia.
If the product is no longer required,
remove the product.
When the product is not used for a
long time, please shut off the all-pole
switch.
Please clean the filter regularly.
TEST RUN
●
●
●●
●
●●
●
●
●
●
●
●
●
●
●
●
●● ●
In case of any abnormality, please immediately turn the dedicated circuit breaker to "OFF" and
confirm the wiring again.
Situation Analysis Description
The product does not start
immediately when the
switch or remote control is
turned on.
The OA damper will be
turned on first. This is normal. Please wait
patiently for about 15 seconds.
The product does not start
when the switch or
remote control is turned on.
The power supply is
abnormal. Check the power supply.
Check whether the
wiring is correct. Check the wiring according to
the wiring diagram.
No air blows out.
Noise
The duct leaks or is
blocked.
The fixings are loose.
The impeller operates
abnormally.
Check that the duct is free of
leakage and unblocked.
Check the suspension brackets
and ensure that they are not
loose.
Please contact the dealer.
The connection between
the adapter and the duct is
abnormal.
Check that the adapter and the
duct are correctly and firmly
connected.
After the test run, the cover of electrical equipment box must be installed properly.
●Please paste the model label near the switch.
The model label is put in a plastic bag with the installation and operating instructions.
Please do not forget to use the label.
16

Do not place any object on the
product.
Please stop the product immediately
and contact the dealer or similarly
qualified
person to repair it when
abnormal operation
is found such as
noise, vibration, or burnt smell.
Otherwise, it may cause an
unexpected accident.
Do not place obstacles near the air
intake opening or discharging air
opening.
Otherwise, it may cause the injury.
Avoid facing directly into the air
outlet (especially when operating).
The dirt may get into your eyes.
Please ensure access equipment is
firmly secured when conducting
maintenance.
Otherwise, falling may cause physical
injury.
Do not use the product near the
combustible spray.
Otherwise, it may cause fire.
When any object leaks, water may
enter the product, causing electric
shock. When foreign matters enter
the product, the impeller may be
damaged, causing injury.
Please shut off the all-pole switch
before maintenance.
Otherwise, it may cause
electric shock and injury.
Do not incline the product during
disassembly.
The accumulated water inside the
product may leak into the property.
Please contact authorized dealer for
repair.
→
USE AND MAINTENANCE INSTRUCTIONS
WARNING
Do not turn the switch on/off when
there are combustible gas leaks.
Sparks from the switch may cause gas
explosion.
Please entrust the dealer or similarly
qualified person to repair the product
excluding filter maintenance.
Otherwise, it may cause the fire, electric
shock and injury.
CAUTION
Please consult specialist if the product
is used for special purpose.
If the product is used for special
purposes such as preservation of food,
animals, plants, precision instruments
and artwork, it may affect the quality.
It is forbidden to operate the
product without filters.
The dirt and dust attached to the heat
exchange core will lower its
performance, and might leak into the
room causing discomfort.
17

MAINTENANCE
Outdoor filter
RA filter
■
■
Alkaline
detergent
Benzene
Metallic brush
Thinner
Kerosene
Alcohol
Alkalescent detergent
Anti-mildew detergent
Solvent
Clean the product only with neutral detergents.
Do not use any of the chemicals or articles as shown,
as they may corrode or scratch the product.
■
■
Notice
Notice
Please wear gloves during main-
tenance. Please pay attention to the iden-
tifier of the filter when cleaning
or replacing the filter.
The incisions of sheet metal and resin
parts, as well as bulges and sharp
corners of the product, may cause
injury.
Otherwise, the purification efficiency
may decrease.
CAUTION
About the service life of the filter
Cleaning Replacement
About once a month
About once a month
About once every four to six months
Protect your eyes when cleaning or replacing the
filter. Otherwise, dust attached on the filter may
enter your eyes. If necessary wear eye protection.
To prevent the dust adsorbed on the filter from diffusing in the room during cleaning, please clean
the filter outdoors or use a vacuum cleaner that can remove PM2.5 particles.
The service life of filter is set based on the operation of 10 hours every day.
The air volume and purification efficiency may decrease depending on the operating environment
and time. When cleaning the outdoor filters, if you observe that the side to which the arrows of the
outdoor filters point become black, please replace the outdoor filters in time.
If the product is used in an excellent environment and the concentration of particles with diameter
below 2.5 µm is lower than 50 µg/m3, the deviation of test data may be large due to the accuracy
of the test instrument, leading to the decrease of the purification efficiency calculated based on the
above test data.
If the energy recovery ventilator is used for a long time, the outdoor filters of the energy recovery
ventilator will be blocked by dirt and dust, which will cause the decrease of the air exchange volume
and air exchange effect, leading to louder noise. Please clean the outdoor filters regularly according
to the amount of dirt and dust attached to the filters.
If the product is used in a harsh environment (dusty area), the air volume and purification
efficiency of the product may decrease drastically. To maintain the performance of the product,
please increase the frequency of cleaning or replacing the outdoor filter appropriately.
The replacement standard is evaluated according to the independent benchmark of the company.
The actual operating environment may be different.
The test instrument used by the company is TSI 8530.
1.
2.
3.
4.
5.
6.
7.
18

MAINTENANCE
Clean and replace the outdoor filter
①
②
■
FV-15ZY1～FV-1KZY1 FV-1HZY1、FV-2KZY1
FV-1HZY1、FV-2KZY1
A
BB
A
B
A
③
FV-15ZY1～FV-1KZY1
C
C
C
Outdoor filter
Outdoor filter
Outdoor filter
RA filter
RA filter
Notice
Figure 1
Figure 2
Figure 3
How to maintain and replace the filters
Loosen the butterfly bolts that secure the inspection
cover. (Figure 1)
Rotate the inspection cover along the direction
indicated by arrow "A". Then slide and remove the
inspection cover along the direction indicated by
arrow "B". (Figure 2)
Loosen
Inspection cover
Butterfly bolt
Remove two (one set) outdoor filters (Figure 3) along the direction indicated by arrow "C".
The RA filters can be cleaned at the same time if needed.
FV-1HZY1/FV-2KZY1 energy recovery ventilator includes four (2 sets) outdoor filters.
19

MAINTENANCE
FV-1HZY1、FV-2KZY1FV-15ZY1～FV-1KZY1
④
※
⑤
⑥
Outdoor filter
Outdoor filter Outdoor filter
Outdoor filter
Heat exchange core
RA filter CAUTION
Figure 4
Figure 5
Use a vacuum cleaner to remove dust or dirt from the outdoor filters or RA filters.
This step can be omitted during replacement. (Figure 4)
Vacuum
cleaner
Vacuum
cleaner
Do not clean the outdoor filters
by washing them with water.
Otherwise it may damage the
outdoor filters and degrade
their performance.
CAUTION
Please pay attention to the
installation directions of the
filters.Improper installation
may reduce the purification
efficiency.
Please insert the cleaned or new outdoor filters into the energy recovery ventilator along the
guide rail. (Figure 5)
The arrow should point to the heat exchange core.
Fix the inspection cover by reversing the steps.
20
