Panasonic EBL128 User manual

User manual
MEW01624
Revision -
Fire alarm system
EBL128
EBL128 version 2.0.x
Daily user's manual
Author: Jan Pettersson
Date of issue: 2013-10-18
Date of rev:

This page has deliberately been left blank.

Panasonic Eco Solutions Nordic AB
MEW01624 Rev: - EBL128 version 2.0.x, Daily user's manual
1
Table of contents
1Introduction________________________________ 3
2Front______________________________________ 4
3Log on to the Control Unit (c.i.e.) ______________ 5
4Perform monthly test (H1) ___________________ 9
5Disable or re-enable (H2) ___________________ 10
5.1 Disable zone (B1) _________________________________ 10
5.2 Disable zone-address (B2) __________________________ 11
5.3 Disable output (B3) _______________________________ 12
5.4 Disable all control, ventilation, exting or interlocking outputs
(B4) 13
5.5 Re-enable zone (B5) _______________________________ 14
5.6 Re-enable zone-address (B6) ________________________ 15
5.7 Re-enable output (B7) _____________________________ 16
5.8 Re-enable all control, ventilation, exting or interlocking
outputs (B8) ___________________________________________ 17
5.9 Disable / re-enable alarm devices (B9) ________________ 18
5.10 Disable / re-enable outputs for routing equipment (B10)___ 19
5.11 Disable / re-enable alert annunciation function (B11) _____ 20
6Set calendar and clock (H3) _________________ 21
7Present system status (H4) __________________ 22
7.1 Disablement (U1)_________________________________ 22
7.2 Disablement by time channel (U2)____________________ 23
7.3 Sensor values (U3)________________________________ 24
7.4 Sensors activating SERVICE signal (U4) ______________ 25
7.5 Technical warning (U5) ____________________________ 26
7.6 Event log (U6) ___________________________________ 27
7.7 Version and alarm counter (U7)______________________ 28
8FAULT Acknowledge (H6)__________________ 29
9Perform ZONE TEST (H7) _________________ 30
10 Interlocking outputs and inputs (H9) _________ 31
10.1 Activated interlocking outputs / inputs (C1) ____________ 31
10.2 Activate interlocking output (C2) ____________________ 32
10.3 Reset interlocking output (C3)_______________________ 33
10.4 Disable interlocking output (C4) _____________________ 34
10.5 Re-enable interlocking output (C5) ___________________ 35
11 Change password (H10) ____________________ 36
12 Revision history____________________________ 37

Panasonic Eco Solutions Nordic AB
MEW01624 Rev: - EBL128 version 2.0.x, Daily user's manual
2

Panasonic Eco Solutions Nordic AB
MEW01624 Rev: - EBL128 version 2.0.x, Daily user's manual
3
1 Introduction
This document is intended to be used for the daily duties like
disablements / re-enablements, zone tests, etc. in the EBL128 system.
The document describes the main menus (incl. the sub menus) valid
for user level / type "Building officer".
1
Due to continual development and improvement different S/W
versions can be found. This document is valid for EBL128 S/W
version 2.0.x. (x=0 at the "Date of issue" or "Date of revision".)
This document is less detailed and shorter than the Operating
Instruction, MEW01623.
NOTE! In the left margin are pictures of the buttons / keys used in
the menu respectively. Each picture is only shown one time in each
menu –not each time the button / key should be used.
A User name and a Password is required to Log on to the control
unit, i.e. for access to the menu system.
2
NOTE! In case of fire alarm activated in the system, you have access
to the special menus X1-X9 without any log on to the control unit.
The PC program EBLWin is used for commissioning, etc. User
names and Passwords can be added and edited via this program.
1
User levels 1, 2A, 2 B and 2C according to EN54-2.
2
The menus available are depending on the user level / type for the user
respectively, see chapter "Log on to the Control Unit (c.i.e.)", page 4.

Panasonic Eco Solutions Nordic AB
MEW01624 Rev: - EBL128 version 2.0.x, Daily user's manual
4

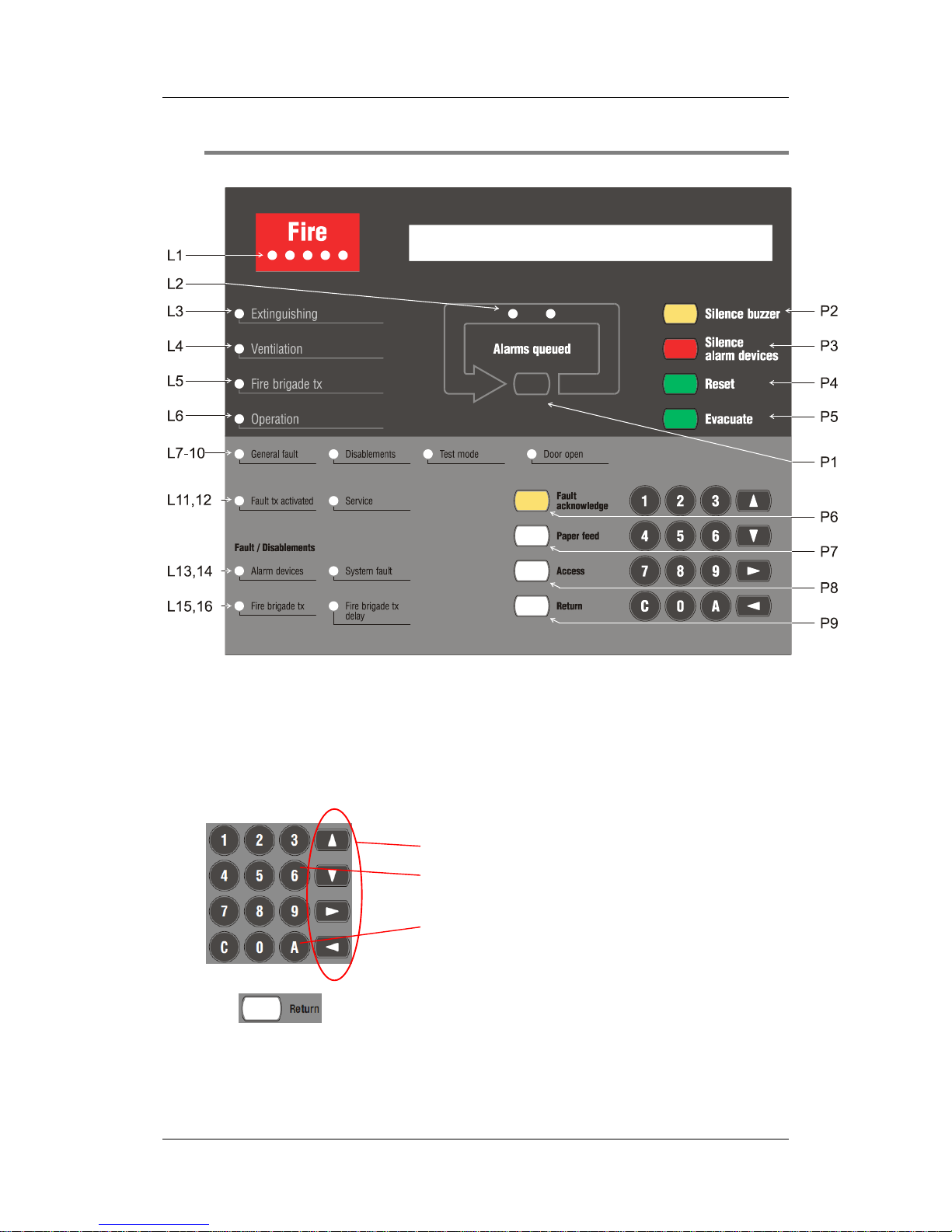

2 Front
Front, upper (dark grey) part. Fire Brigade Panel (FBP).
Front, lower (light grey) part. Information LEDs, buttons and keypad.
L1-L16 and P1-P9 refer also to the Operating Instructions, MEW01623.
Keypad
Use the arrow keys ( , , , ) to step in the
menu lists and in the selected menu respectively.
A quick jump to a menu can be done by pressing the
corresponding digit key, e.g. "6" for menu H6.
Press Ato accept / select.
Press Return (P9) to stop the enting of data and to
jump one step upwards in the menu system, e.g. from a
sub menu to a main menu.
You will normally get some information that the action / operation you wanted is
performed, (e.g. "Output xx disabled"). If not, the information will be "Operation
failed".(Also e.g. if you try to disable a unit that doesn't exists in the installation.)

Panasonic Eco Solutions Nordic AB
MEW01624 Rev: - EBL128 version 2.0.x, Daily user's manual
5
3 Log on to the Control Unit (c.i.e.)
User name
Up to ten (10) User names (0, 1, 2 - - 9) might be programmed.
Default are three User names available (0, 1 and 2) but they might
have been changed and/or User names 3 –9 might have been added
during the commissioning of the system. User name examples:
0Information only
1 Building officer
2 Service personnel
3 Mr. Xxxxxxxxx
4 Miss Yyyyyyyyy
etc.
Password
Each User name has a Password that gives access to a user level /
type, i.e. "Information only", "Building officer" or "Service
personnel".
User levels (access level types):
Information only
Building officer
Service personnel
Access to menus according to the following pages.
How to log in
Press the button "Access" (P8).
Log in as:
0: Information only ->
With the keypad select 0, 1, 2 - - 8 or 9 for a User name.
(Or use "→" to scroll through the available User names.)
Press "A" to accept.
Type the Password for that User name. (Six digits. * * * * * *)
For the default "0" (Information only) is no Password required.
After typing a correct Password, main menu H1 or H4 (depending on
the user level) will be visible.
Press "A" to accept, scroll with "↑" and "↓" or do a quick jump
3
to
the wanted main menu. Press "A" to accept a jump to the first sub
menu, e.g. from menu H4 to U1.
3
E.g. in menu H1 press "6" for a quick jump to menu H6.

Panasonic Eco Solutions Nordic AB
MEW01624 Rev: - EBL128 version 2.0.x, Daily user's manual
6
Log out
You will be logged out when you close the door or 60 minutes after
the last action (i.e. if the key pad / push buttons have not been used for
60 min.).
If you leave the menu system but not close the door, press "Access"
(P8) to open menu H1 directly, i.e. log in is not required.
For the different user levels the following menus will be available:
Information only
H4 Present system status
U1 Disablement
U2 Disablement by time channel
U3 Sensor values
U4 Sensors activating SERVICE signal
U5 Technical warning
U6 Event log
U7 Version and alarm counter
H6 Display FAULTS (No possibility to Acknowledge the faults.)
H9 Interlocking outputs and inputs (Only sub menu C1 available.)
C1 Activated interlocking outputs / inputs
H10 Change password (Only the Password for the User name that
was used for log on to the control unit can be changed.)

Panasonic Eco Solutions Nordic AB
MEW01624 Rev: - EBL128 version 2.0.x, Daily user's manual
7
Building officer (Described in this document.)
H1 Perform monthly test
H2 Disable or re-enable
B1 Disable zone
B2 Disable zone-address
B3 Disable output
B4 Disable all control, ventilation, exting or interlocking outputs
B5 Re-enable zone
B6 Re-enable zone-address
B7 Re-enable output
B8 Re-enable all control, ventilation, exting or interlocking
outputs
B9 Disable / re- enable alarm devices
B10 Disable / re- enable outputs for routing equipment
B11 Disable / re- enable alert annunciation function
H3 Set calendar and clock
H4 Present system status
U1 Disablement
U2 Disablement by time channel
U3 Sensor values
U4 Sensors activating SERVICE signal
U5 Technical warning
U6 Event log
U7 Version and alarm counter
H6 FAULT Acknowledge
H7 Perform ZONE TEST
H9 Interlocking outputs and inputs
C1 Activated interlocking outputs / inputs
C2 Activate interlocking output
C3 Reset interlocking output
C4 Disable interlocking output
C5 Re-enable interlocking output
H10 Change password (Only the Password for the User name that
was used for log on to the control unit can be changed.)

Panasonic Eco Solutions Nordic AB
MEW01624 Rev: - EBL128 version 2.0.x, Daily user's manual
8
Service personnel
H1 Perform monthly test
Same as Building officer but also the following menus:
H5 Service
A1 Calibration of superviced outputs
A2 Sensitive fault detection mode
A3 Service mode for COM loop
A4 Display current consumption in unit
A5 Display current consumption on COM loop
A6 Display statistics for COM loop
A7 Activate address setting mode for DU
A8 Show information about site specific data
H8 Maintenance
S1 Disconnect / Re-connect COM loop
S2 Disconnect / Re-connect zone line input
S3 Disconnect / Re-connect addressable zone interface input
S4 Acknowledge SERVICE signal
S5 Restore weekly average to default
S6 Test of alarm devices
S7 Safe shut down of control unit
S8 Activate zone-address in alarm mode
S9 Activate output
S10 Reset activated output

Panasonic Eco Solutions Nordic AB
MEW01624 Rev: - EBL128 version 2.0.x, Daily user's manual
9
4 Perform monthly test (H1)
Not available for users with access level / type "Information only".
Regarding the "Test mode" (see below) see also page 30.
Log in with a User name and Password for typ Building officer (or
Service personnel), see page 5.
H1 Perform monthly test
Press "A".
Check that all LEDs light up!
Press "A".
The c.i.e. buzzer sounds, all the dots in the display are shown and all
LEDs on the front are turned on.
Press "A". Up to four zones can be set in test mode. Use the keypad
to type the zone numbers. Press "A" to start the test.
Perform the tests. Press "A" to end the test..
If the routing equipment shall not be tested press "A" and the
monthly test is completed. Press "A" to menu H1. Go to below.
If the routing equipment shall be tested press "1". To start the test
press "A". Started test is indicated by LED "Fault tx activated" (L11)
and after 30 seconds also LED "Fire brigade tx" (L5).
4
After 60
seconds (in total) the routing equipment test is ended and the LEDs
are turned off. The monthly test is completed. Press "A" to menu H1.
Menu H1 is shown. Scroll to another menu or leave the menu system
by pressing "Return" (P9).
4
If a "Fire brigade tx" output is programmed.

Panasonic Eco Solutions Nordic AB
MEW01624 Rev: - EBL128 version 2.0.x, Daily user's manual
10
5 Disable or re-enable (H2)
Not available for users with access level / type "Information only".
Any disablement in the system is indicated by the LED
"Disablements" (L8).
5.1 Disable zone (B1)
All zones (01-99) can be individually disabled via menu B1.
Normally all alarm points within the zone will be disabled except the
addressable manual call points.
Log in with a User name and Password for typ Building officer (or
Service personnel), see page 5.
H1 Perform monthly test
Scroll (or press "2") to menu H2.
H2 Disable or re-enable
Press "A" to sub menu B1.
B1 Disable zone
Press "A".
Use the keypad to type the zone number (01-99). Press "A".
The zone can be automatically re-enabled.
If automatic re-enabling shall notbe used press "A". Go to .
If automatic re-enabling shall be used, press "1" and use the keypad
to set the time. Press "A".
The zone is disabled. Press "A". When required, disable more zones
or press "Return" to menu B1.
Scroll to another menu or press "Return" to menu H2. Scroll to
another menu or leave the menu system by pressing "Return".

Panasonic Eco Solutions Nordic AB
MEW01624 Rev: - EBL128 version 2.0.x, Daily user's manual
11
5.2 Disable zone-address (B2)
Not available for users with access level / type "Information only".
Up to 100 addressable alarm points (zone-address) can be individually
disabled via menu B2. Also addressable manual call points.
Log in with a User name and Password for typ Building officer (or
Service personnel), see page 5.
H1 Perform monthly test
Scroll (or press "2") to menu H2.
H2 Disable or re-enable
Press "A" to sub menu B1.
B1 Disable zone
Scroll (or press "2") to menu B2.
B2 Disable zone-address
Press "A".
Use the keypad to type the zone number (01-99) and the address (01-
99). Press "A".
The alarm point can be automatically re-enabled.
If automatic re-enabling shall not be used press "A". Go to .
If automatic re-enabling shall be used, press "1" and use the keypad
to set the time. Press "A".
The alarm point (zone-address) is disabled. Press "A". When
required, disable more alarm points or press "Return" to menu B2.
Scroll to another menu or press "Return" to menu H2. Scroll to
another menu or leave the menu system by pressing "Return".

Panasonic Eco Solutions Nordic AB
MEW01624 Rev: - EBL128 version 2.0.x, Daily user's manual
12
5.3 Disable output (B3)
Not available for users with access level / type "Information only".
Up to 100 control outputs, except outputs of type "alarm device",
can be individually disabled via menu B3. Disabled output will stay
in (or return to) the normal condition for the output respectively.
Log in with a User name and Password for typ Building officer (or
Service personnel), see page 5.
H1 Perform monthly test
Scroll (or press "2") to menu H2.
H2 Disable or re-enable
Press "A" to sub menu B1.
B1 Disable zone
Scroll (or press "3") to menu B3.
B3 Disable output
Press "A".
Use the keypad to select "type" of output:
0=Loop unit (3361, 3364, 3377/4477, 3379, 4380 or 4383) output.
1=C.i.e. output S0 or S1. (Default programmed as type "Alarm
device", i.e. cannot be individually disabled.)
2=C.i.e. output R0. (Default programmed as type "Routing
equipment" –Fire brigade tx, i.e. can in that case also be disabled via
menu B10.)
3=C.i.e. expansion board (4581 or 4583) output.
Press "A".
Depending on the selected type, use the keypad to type additional
data:
0: Output number (0-2)
5
and COM loop (technical) address.
1: Output (S)number 0-1.
2: Output (R)number 0
3: Output number (0-7) and expansion board number (0-3).
Press "A".
Disabled (or not disabled) output information is shown. Press "A".
When required, disable more outputs or press "Return" to menu B3.
Scroll to another menu or press "Return" to menu H2. Scroll to
another menu or leave the menu system by pressing "Return".
5
Regarding the units 3377/4477 and 3379: Output number 0=high priority,
1=medium priority and 2=low priority.

Panasonic Eco Solutions Nordic AB
MEW01624 Rev: - EBL128 version 2.0.x, Daily user's manual
13
5.4 Disable all control, ventilation, exting or
interlocking outputs (B4)
Not available for users with access level / type "Information only".
Outputs programmed as type Control (general), type Fire ventilation,
type Extinguishing system and type Interlocking can for the type
respectively be collectively disabled (all at the same time) via menu
B4. Disabled output will stay in (or return to) the normal condition
for the output respectively.
Log in with a User name and Password for typ Building officer (or
Service personnel), see page 5.
H1 Perform monthly test
Scroll (or press "2") to menu H2.
H2 Disable or re-enable
Press "A" to sub menu B1.
B1 Disable zone
Scroll (or press "4") to menu B4.
B4 Disable all control, ventilation, exting
or interlocking outputs
Press "A".
Use the keypad to select output type:
0=Outputs type Control (not control neutral).
1=Outputs type Ventilation
2=Outputs type Extinguishing
3=Output type Interlocking.
Press "A".
Disabled (or not disabled) output type information is shown. Press
"A". When required, disable more output types or press "Return" to
menu B4.
Scroll to another menu or press "Return" to menu H2. Scroll to
another menu or leave the menu system by pressing "Return".

Panasonic Eco Solutions Nordic AB
MEW01624 Rev: - EBL128 version 2.0.x, Daily user's manual
14
5.5 Re-enable zone (B5)
Not available for users with access level / type "Information only".
Disabled zones are listed in menu H4/U1.
Re-enabling via menu B5 has higher priority than automatic re-
enabling.
NOTE! Alarm points that have been individually disabled via menu
H2/B2 cannot be collectively re-enabled via menu B5. They have to
be individually re-enabled via menu H2/B6.
If there is nothing to re-enable, --- List is empty --- will be
shown.
Log in with a User name and Password for typ Building officer (or
Service personnel), see page 5.
H1 Perform monthly test
Scroll (or press "2") to menu H2.
H2 Disable or re-enable
Press "A" to sub menu B1.
B1 Disable zone
Scroll (or press "5") to menu B5.
B5 Re-enable zone
Press "A". L=This is a list in which you can scroll. Select a zone.
To re-enable the selected zone press "A".
When required, re-enable more zones or press "Return" (P9) to
menu B5.
Scroll to another menu or press "Return" to menu H2. Scroll to
another menu or leave the menu system by pressing "Return".

Panasonic Eco Solutions Nordic AB
MEW01624 Rev: - EBL128 version 2.0.x, Daily user's manual
15
5.6 Re-enable zone-address (B6)
Not available for users with access level / type "Information only".
Disabled alarm points (zone –address) are listed in menu H4/U1.
Re-enabling via this menu has higher priority than automatic re-
enabling.
Alarm points / zones disabled via the "Encapsulation function" have to
be re-enabled via this menu (B6) before they can activate a new alarm.
In this case a zone will be presented as ZZ - 00 (ZZ=01-99).
If there is nothing to re-enable, --- List is empty --- will be
shown.
Log in with a User name and Password for typ Building officer (or
Service personnel), see page 5.
H1 Perform monthly test
Scroll (or press "2") to menu H2.
H2 Disable or re-enable
Press "A" to sub menu B1.
B1 Disable zone
Scroll (or press "6") to menu B6.
B6 Re-enable zone-address
Press "A". L=This is a list in which you can scroll. Select an alarm
point (zone-address).
To re-enable the selected alarm point press "A".
When required, re-enable more alarm points or press "Return" (P9)
to menu B6.
Scroll to another menu or press "Return" to menu H2. Scroll to
another menu or leave the menu system by pressing "Return".

Panasonic Eco Solutions Nordic AB
MEW01624 Rev: - EBL128 version 2.0.x, Daily user's manual
16
5.7 Re-enable output (B7)
Not available for users with access level / type "Information only".
Disabled outputs are listed in menu H4/U1.
If there is nothing to re-enable, --- List is empty --- will be
shown.
Log in with a User name and Password for typ Building officer (or
Service personnel), see page 5.
H1 Perform monthly test
Scroll (or press "2") to menu H2.
H2 Disable or re-enable
Press "A" to sub menu B1.
B1 Disable zone
Scroll (or press "7") to menu B7.
B7 Re-enable output
Press "A".
Only disabled "types" will be shown. Use the keypad to select "type"
of output:
0=Loop unit (3361, 3364, 3377/4477, 3379, 4380 or 4383) output.
1=C.i.e. output S0 or S1. (Default programmed as type "Alarm
device", i.e. cannot be individually disabled.)
2=C.i.e. output R0. (Default programmed as type "Routing
equipment" –Fire brigade tx, i.e. can in that case also be disabled via
menu B10.)
3=C.i.e. expansion board (4581 or 4583) output.
Press "A". L=This is a list in which you can scroll. Select the output
to re-enable press "A".
When required, re-enable more outputs or press "Return" (P9) until
menu B7 is shown.
Scroll to another menu or press "Return" to menu H2. Scroll to
another menu or leave the menu system by pressing "Return".

Panasonic Eco Solutions Nordic AB
MEW01624 Rev: - EBL128 version 2.0.x, Daily user's manual
17
5.8 Re-enable all control, ventilation, exting or
interlocking outputs (B8)
Not available for users with access level / type "Information only".
Disabled outputs are listed in menu H4/U1.
If there is nothing to re-enable, --- List is empty --- will be
shown.
Log in with a User name and Password for typ Building officer (or
Service personnel), see page 5.
H1 Perform monthly test
Scroll (or press "2") to menu H2.
H2 Disable or re-enable
Press "A" to sub menu B1.
B1 Disable zone
Scroll (or press "8") to menu B8.
B8 Re-enable all control, ventilation, exting
or interlocking outputs
Press "A".
Only disabled output types will be shown. Use the keypad to select
output type:
0=Outputs type Control (not control neutral).
1=Outputs type Ventilation
2=Outputs type Extinguishing
3=Output type Interlocking.
Press "A".
When required, re-enable more outputs or press "Return" (P9) until
menu B8 is shown.
Scroll to another menu or press "Return" to menu H2. Scroll to
another menu or leave the menu system by pressing "Return".

Panasonic Eco Solutions Nordic AB
MEW01624 Rev: - EBL128 version 2.0.x, Daily user's manual
18
5.9 Disable / re-enable alarm devices (B9)
Not available for users with access level / type "Information only".
Disabled alarm devices are listed in menu H4/U1.
Outputs for alarm devices can be collectively disabled and re-enabled
via this menu (B9). Disabled output will stay disabled, until re-
enabled again via this menu.
Alarm devices = outputs programmed as type "alarm device" as well
as the COM loop units 3377/4477, 3379, 4380 and 4383.
When all outputs of type Alarm devices have been disabled, also the
LED "Fault / Disablements Alarm devices" (L13) will be turned ON.
When all outputs of type Alarm devices have been re-enabled, the
LED "Fault / Disablements Alarm devices" (L13) will be turned
OFF.
NOTE! This function for alarm devices is not the same as for push
button "Silence alarm devices" (P3) –unless the option Button
"Silence alarm devices" disables alarm devices, is selected in EBLwin
System properties. This menu (B9) has higher priority than the push
button "Silence alarm devices".
Log in with a User name and Password for typ Building officer (or
Service personnel), see page 5.
H1 Perform monthly test
Scroll (or press "2") to menu H2.
H2 Disable or re-enable
Press "A" to sub menu B1.
B1 Disable zone
Scroll (or press "9") to menu B9.
B9 Disable / re-enable alarm devices
Press "A".
Alarm devices in normal condition
or
Alarm devices disabled
will be shown.
Press "A". The condition changes.
Press "Return" (P9) to menu B9.
Scroll to another menu or press "Return" to menu H2. Scroll to
another menu or leave the menu system by pressing "Return".
