Panasonic MEW01349 User manual

Operating Instructions
MEW01349
Revision -
Fire Alarm System EBL512 G3
V1.1.x
Author: Jan Pettersson
Date of issue: 2011-02-18
Date of rev:

This page has deliberately been left blank.

Panasonic Electric Works Nordic AB
MEW01349 Rev: - Operating Instructions Fire alarm system EBL512 G3, V1.1.x
1
Table of contents
1Introduction________________________________ 6
2Definitions / Explanations ____________________ 8
2.1 PEWN AB________________________________________ 8
2.2 Alarm points ______________________________________ 8
2.2.1 Smoke detector ________________________________ 8
2.2.2 Sensor _______________________________________ 8
2.2.3 Analog detector________________________________ 8
2.2.4 Analog (Sensor) Base (ASB) _____________________ 8
2.2.5 Conventional detector ___________________________ 8
2.2.6 (Conventional Detector) Base (CDB) _______________ 8
2.2.7 Addressable___________________________________ 8
2.2.8 Conventional zone line input / External line__________ 9
2.3 Output unit _______________________________________ 9
2.4 Output / Control output______________________________ 9
2.5 Short circuit isolator (ISO) ___________________________ 9
2.6 Display unit (DU) __________________________________ 9
2.7 COM loop ________________________________________ 9
2.8 Control Unit / C.U. / C.I.E.___________________________ 9
2.9 Fire Brigade Panel (FBP) ____________________________ 9
2.10 Control panel (CP) _________________________________ 9
2.11 System__________________________________________ 10
2.12 Network / TLON®/ LonWorks®/ Echelon / Node / TLON
Conn. board / Gateway / Sub net / Backbone net / Router / Repeater 10
2.13 LED____________________________________________ 10
2.14 External Indicator (LED) ___________________________ 10
2.15 Display / LCD____________________________________ 10
2.16 Door open (Door / Key switch)_______________________ 10
2.17 Site Specific Data (SSD)____________________________ 11
2.18 Software (S/W) / System program ____________________ 11
3Overview _________________________________ 12
3.1 The EBL512 G3 system ____________________________ 12
3.1.1 Printer ______________________________________ 12
3.1.2 Expansion boards _____________________________ 12
3.1.3 Power supply_________________________________ 12
3.2 S/W versions _____________________________________ 13
3.3 Documents ______________________________________ 13
3.4 Applications _____________________________________ 13
3.5 PC S/W _________________________________________ 13
3.5.1 WinG3______________________________________ 13
3.5.2 TLON Manager_______________________________ 14
3.5.3 WebG3 Config tool____________________________ 14
4Control Unit ______________________________ 15

Panasonic Electric Works Nordic AB
MEW01349 Rev: - Operating Instructions Fire alarm system EBL512 G3, V1.1.x
2
5LED indicators and push buttons _____________ 17
6The display (LCD) _________________________ 21
6.1 Areas in the display________________________________ 21
6.2 The symbol area __________________________________ 21
6.3 The information area priority order____________________ 22
6.4 System information in the LCD ______________________ 23
6.4.1 User definable system information ________________ 23
7Access levels_______________________________ 24
7.1 Access level 1 ____________________________________ 25
7.2 Access level 2A___________________________________ 25
7.3 Access level 2B___________________________________ 26
7.4 Access level 3A___________________________________ 27
7.5 Access level 3B___________________________________ 27
7.6 Access level 4 ____________________________________ 27
8"Silence Alarm devices"_____________________ 28
8.1 Silence alarm devices (inside switch) __________________ 28
8.2 New Zealand FB Silence switch (outside switch)_________ 29
9Disable / Re-enable alarm devices_____________ 31
10 "Silence buzzer" ___________________________ 32
11 Disable / Re-enable all control, extinguishing,
ventilation and interlocking outputs ________________ 33
12 Evacuate__________________________________ 34
13 Open door ________________________________ 35
13.1 Outputs for routing equipment (Fire brigade tx and Fault tx) 35
14 Technical number / Presentation number ______ 36
14.1 Technical number for COM loop units_________________ 36
14.2 Presentation number _______________________________ 37
15 Alarm types _______________________________ 38
15.1 Pre-warning______________________________________ 38
15.2 Fire alarm _______________________________________ 39
15.2.1 Enter the menu during fire alarm _________________ 42
15.2.2 Acknowledged and Isolated alarm ________________ 43
15.3 Heavy smoke alarm / Heavy heat alarm ________________ 43
15.4 Alert Annunciation alarm (AA alarm) _________________ 44
15.5 Key cabinet alarm _________________________________ 45
15.5.1 Key cabinet opened before a fire alarm_____________ 45
15.5.2 Key cabinet opened in conjunction with a fire alarm __ 45
15.6 Co-incidence alarm (2-address / -zone dependence)_______ 46
15.7 Alarm Acknowledgement Facility (AAF)_______________ 47
15.8 Quiet alarm ______________________________________ 47
16 Alarm reset _______________________________ 49
16.1 Pre-warning reset _________________________________ 49

Panasonic Electric Works Nordic AB
MEW01349 Rev: - Operating Instructions Fire alarm system EBL512 G3, V1.1.x
3
16.2 Fire alarm reset ___________________________________ 49
16.2.1 All _________________________________________ 49
16.2.2 Single_______________________________________ 49
16.2.3 Single with automatic disablement ________________ 50
16.2.4 Acknowledged and Isolated alarm ________________ 50
16.3 Heavy smoke / heat alarm reset ______________________ 50
16.4 Alert Annunciation ________________________________ 50
16.5 Key cabinet alarm reset_____________________________ 51
16.6 Co-incidence alarm ________________________________ 51
16.7 Alarm Acknowledgement Facility (AAF) reset __________ 51
16.8 Quiet alarm reset__________________________________ 51
17 Fault_____________________________________ 52
17.1 Fault messages ___________________________________ 54
17.2 Fault acknowledge ________________________________ 69
18 Commissioning an installation _______________ 71
18.1 Single Control Unit________________________________ 71
18.2 Control Units in a TLON network ____________________ 72
18.2.1 TLON network installation ______________________ 72
18.3 Add a Control Unit in a TLON network________________ 73
18.4 Make two TLON networks one. ______________________ 73
18.5 Delete a Control Unit in a TLON network ______________ 73
19 Programming (SSD download) _______________ 75
19.1 Check Loop______________________________________ 75
19.2 Single Control Unit________________________________ 75
19.3 Control Units in a TLON network ____________________ 76
19.4 User definable text messages download ________________ 76
20 New system program (S/W) version download __ 77
20.1 Single control unit (c.i.e.) ___________________________ 77
20.2 Control Units in a TLON network ____________________ 79
21 Upgrade number of alarm points _____________ 80
21.1 Control Units in a TLON network ____________________ 80
22 Restart ___________________________________ 81
23 Access____________________________________ 85
24 Perform monthly test (H1)___________________ 87
25 Disable or re-enable (H2)____________________ 90
25.1 Disable zone (H2/B1) ______________________________ 91
25.2 Disable zone / address (H2/B2)_______________________ 92
25.3 Disable output (H2/B3)_____________________________ 94
25.4 Re-enable zone (H2/B4) ____________________________ 95
25.5 Re-enable zone / address (H2/B5)_____________________ 96
25.6 Re-enable output (H2/B6)___________________________ 97
25.7 Disable / re-enable output type (H2/B7)________________ 98
25.8 Disable / re-enable alarm devices (H2/B8)_____________ 100

Panasonic Electric Works Nordic AB
MEW01349 Rev: - Operating Instructions Fire alarm system EBL512 G3, V1.1.x
4
25.9 Disable / re-enable routing equipment (H2/B9) _________ 102
25.10 De-activate Alert Annunciation function (H2/B10) ____ 103
26 Set calendar and clock (H3)_________________ 104
27 Present system status (H4)__________________ 105
27.1 Disablement (H4/U1) _____________________________ 105
27.2 Disablement by time channel (H4/U2) ________________ 106
27.3 Open doors (H4/U3) ______________________________ 107
27.4 Sensor values (H4/U4) ____________________________ 108
27.4.1 Reset of a week average sensor value_____________ 110
27.5 Sensors activating SERVICE signal (H4/U5)___________ 111
27.6 Event log (H4/U6)________________________________ 112
27.7 Show information (H4/U7) _________________________ 112
28 Service (H5)______________________________ 115
28.1 Access code for service / maintenance (H5 and H8)______ 116
28.2 Calibration of supervised outputs (H5/A1)_____________ 117
28.3 Sensitive fault detection mode (H5/A2) _______________ 118
28.4 Service mode for COM-loop (H5/A3) ________________ 119
28.5 Display current consumption in unit (H5/A4)___________ 121
28.6 Display current consumption COM-loop (H5/A5) _______ 122
28.7 Display statistics for communication (H5/A6) __________ 123
28.8 Activate address setting mode for DU (H5/A7) _________ 125
29 FAULT Acknowledge (H6) _________________ 126
30 Perform ZONE TEST (Test mode) (H7) ______ 127
31 Maintenance (H8) _________________________ 129
31.1 Access code for service / maintenance ________________ 129
31.2 Disconnect loop (H8/S1)___________________________ 129
31.3 Re-connect loop (H8/S2)___________________________ 131
31.4 Acknowledge SERVICE signal (H8/S3)_______________ 132
31.5 Clear weekly average (H8/S4) ______________________ 134
31.6 Test of alarm devices (H8/S5)_______________________ 135
31.7 Safe shut down of control unit (H8/S6) _______________ 137
31.8 Activate address in alarm mode (H8/S7) ______________ 139
31.9 Synchronize the control units (H8/S8) ________________ 141
31.10 Change code for service / maintenance (H8/S9)_______ 143
31.11 Change code for PC-communication (H8/S10) _______ 144
32 Interlocking outputs and inputs (H9) _________ 145
32.1 Activated interlocking outputs / inputs (H9/C1)_________ 145
32.2 Activate interlocking output (H9/C2) _________________ 146
32.3 Reset interlocking output (H9/C3) ___________________ 147
32.4 Disable interlocking output (H9/C4)__________________ 148
32.5 Re-enable interlocking output (H9/C5)________________ 149
33 Change access code for daily duties (H10) _____ 150
34 Annual control ___________________________ 151

Panasonic Electric Works Nordic AB
MEW01349 Rev: - Operating Instructions Fire alarm system EBL512 G3, V1.1.x
5
35 How to change paper in the printer __________ 152
36 Replacing a TLON connection board and/or the
Main board____________________________________ 153
37 Battery maintenance_______________________ 154
38 How to avoid unnecessary (nuisance) fire alarms155
39 Information regarding radioactive radiation source157
40 Revision history___________________________ 158

Panasonic Electric Works Nordic AB
MEW01349 Rev: - Operating Instructions Fire alarm system EBL512 G3, V1.1.x
6
1 Introduction
EBL512 G3 Operating Instructions is a document intended to be used
by the end-user and the fire brigade personnel as well as service /
commissioning engineers.
Due to continual development and improvement, different S/W
versions are to be found. This document is valid for S/W version
1.1.x. On the date / rev date of this document x = 0.
Since the EBL512 G3 control unit (c.i.e.) is produced for many
countries the look, the texts, the functions, etc. might vary.
Products
Consists of one or more parts (HW) according to a Product Parts
List. A product has:
a type number
5000 EBL512 G3 c.i.e. Configured for 128, 256 or 512 alarm
points and with or without printer depending on article number.
5001 EBL512 G3 c.i.e. No front panel and no Plexiglas in the
door. Configured for 128, 256 or 512 alarm points depending
on the article number.
an article number is often the same as the type no. but a country
code can be added (e.g. SE for Sweden). If also the letters PRT
are added in the article number the product comes with a printer.
If digits are added to the article number they are showing the
number of alarm points configured (e.g. 5000PRTSE-128).
a product name (e.g. EBL512 G3 CU, 128 alarm points, with
printer)
HW
A HW (e.g. a printed circuit board) has:
a type number (e.g. 5010)
an article number, often = the type no. and sometimes is a
country code added (e.g. 5010SE)
a product name (e.g. Main Board 128 alarm points)
a p.c.b. number (e.g. 9290-3B) and can also have a configuration
(e.g. CFG: 2) and a revision (e.g. REV: 2)
sometimes a S/W
S/W
A S/W has:
a version number (e.g. V1.1.x)

Panasonic Electric Works Nordic AB
MEW01349 Rev: - Operating Instructions Fire alarm system EBL512 G3, V1.1.x
7
sometimes additional information, such as Convention (different
functions / facilities), Language, Number of addresses, etc.
PC S/W
A PC S/W is a program used for programming, commissioning, etc. It
has a version number.

Panasonic Electric Works Nordic AB
MEW01349 Rev: - Operating Instructions Fire alarm system EBL512 G3, V1.1.x
8
2 Definitions / Explanations
Definitions / explanations / abbreviations / etc. frequently used or not
explained elsewhere in the document.
2.1 PEWN AB
Panasonic Electric Works Nordic AB
2.2 Alarm points
Units, which can generate a fire alarm (in the control unit), i.e. analog
detectors (sensors), conventional detectors, manual call points, etc.
2.2.1 Smoke detector
Analog and conventional photoelectric (optical) smoke detectors are
available.
2.2.2 Sensor
Sensor = Analog detector
2.2.3 Analog detector
Contains an A/D-converter. The Control Unit pick up the digital
values ("sensor values") for each detector individually. All
evaluations and "decisions" are then made in the c.i.e. Analog
detectors are addressable –an address setting tool is used for detector
types 33xx / 430x.
An analog detector has to be plugged in an analog sensor base (ASB).
2.2.4 Analog (Sensor) Base (ASB)
A sensor is plugged in an ASB, which is connected to a COM loop
(see below).
2.2.5 Conventional detector
Detector with only two statuses, i.e. normal and fire alarm. The
detector contains a closing contact and a series alarm resistor.
Normally plugged in a conventional detector base CDB (see below)
connected to a conventional zone line input, with an end-of-line
device. Some types are connected directly on zone line.
2.2.6 (Conventional Detector) Base (CDB)
A conventional detector is plugged in a CDB, connected to a
conventional zone line input.
2.2.7 Addressable
A unit with a built-in address device, i.e. each unit is individually
identified, handled and indicated in the c.i.e.
(The unit can be an I/O unit with a zone line input, to which one or
more conventional "alarm points" can be connected.)

Panasonic Electric Works Nordic AB
MEW01349 Rev: - Operating Instructions Fire alarm system EBL512 G3, V1.1.x
9
2.2.8 Conventional zone line input / External line
Input intended for one or more conventional alarm points. End-of-line
device in the last alarm point.
2.3 Output unit
Addressable unit with programmable control outputs. Connected to a
COM loop (see below).
2.4 Output / Control output
Defined or programmable function. Relay output or voltage output
(supervised / monitored), in the c.i.e. or an output unit.
2.5 Short circuit isolator (ISO)
Addressable unit for automatic disconnection of a part (segment) of a
COM loop (see below) in case of a short circuit on the loop.
(According to EN54-2: One ISO is required per 32 alarm points on
the COM loop.)
2.6 Display unit (DU)
Addressable unit for fire alarm presentation (incl. user definable text
messages, if programmed).
2.7 COM loop
Loop = a cable, with two wires, to which all the addressable units can
be connected. Starts in the c.i.e. and it returns back to the c.i.e.
2.8 Control Unit / C.U. / C.I.E.
Control Unit = Control and Indicating Equipment = Unit to which the
alarm points are connected (via a COM loop). Indicates fire alarm,
fault condition, etc. Fire Brigade Panel & Control Panel (see below)
included or not included. Printer included or not included.
2.9 Fire Brigade Panel (FBP)
Unit intended for fire alarm presentation, etc. for the fire brigade
personnel. Can be a part of the control unit (front) or a separate unit
(external FBP).
In the ext. FBP, a printer can be included or not included.
2.10 Control panel (CP)
A part of the control unit (front), intended for the building occupier,
service personnel, etc., to "communicate" with the control unit /
system.

Panasonic Electric Works Nordic AB
MEW01349 Rev: - Operating Instructions Fire alarm system EBL512 G3, V1.1.x
10
2.11 System
Several control units connected via a TLON network (co-operating
control units).
2.12 Network / TLON®/ LonWorks®/ Echelon /
Node / TLON Conn. board / Gateway / Sub
net / Backbone net / Router / Repeater
Brief explanations to the words/expressions to be found in connection
with a "network". See also separate TLON Technical description.
TLON®= TeleLarm Local Operating Network = a LonWorks®- based
network for communication between several units/nodes. The
protocol is LonTalk and the transmission works with doubly-
terminated bus topology (Echelon FTT-10). To connect a control unit
to the network, a TLON connection board is plugged in the control
unit. (Old installations: Some control units, not prepared for network
connection, could be connected via a serial interface and a Gateway).
A network can be one sub net (FTT-10) or several sub nets, connected
via routers. (In the TLON Network a sub net = a channel.)
Routers are also used to increase the maximum cable length, node to
node, in a network.
All network programming (configuration) are made with the PC
program "TLON Manager".
2.13 LED
LED (Light Emitting Diode) = Yellow, green or red optical indicator
("lamp").
2.14 External Indicator (LED)
A unit with an LED. Connected to an ASB, CDB or a detector with a
built-in LED. Old installations: Also connected to an ADB.
Lit when the built-in LED is lit.
2.15 Display / LCD
LCD (Liquid Crystal Display) = Display (in the c.i.e. or Display unit)
for presentation of fire alarms, fault messages, etc. a graphical
monochrome LCD (320 x 240 dots) and backlight.
2.16 Door open (Door / Key switch)
In EBL512 G3 there is a door switch, which is activated when the
control unit door is open. In some other units this door switch is
replaced with a key switch.
When the door is open a message "Door is open in this unit" is shown
in the LCD.

Panasonic Electric Works Nordic AB
MEW01349 Rev: - Operating Instructions Fire alarm system EBL512 G3, V1.1.x
11
2.17 Site Specific Data (SSD)
The SSD is unique for each installation. All alarm points,
presentation numbers, user definable text messages, programmable
outputs, etc. are created in the PC program WinG3 and also
downloaded in EBL512 G3 with WinG3.
2.18 Software (S/W) / System program
The S/W makes the control unit (the microprocessor) work. It is
factory downloaded but a new version can be downloaded in EBL512
G3 on site.

Panasonic Electric Works Nordic AB
MEW01349 Rev: - Operating Instructions Fire alarm system EBL512 G3, V1.1.x
12
3 Overview
3.1 The EBL512 G3 system
EBL512 G3 is a microprocessor controlled intelligent fire alarm
system, intended for analog addressable smoke detectors, as well as
conventional detectors and manual call points. Programmable control
outputs and output units are available. Up to 1020 addresses (of
which up to 512 can be alarm points) can be connected to each control
unit (c.i.e.) - according to EN54-2.
EBL512 G3 is available in several types, versions and configurations.
It can be connected to a TLON network, i.e. in a "system", with up to
30 control units. Each control unit has access to all information.
Product type no.
Product name
5000
EBL512 G3 c.i.e. With or without a printer.
With front and display.
5001
EBL512 G3 c.i.e.
Without front, display and printer. No door.
EBL512 G3 is designed according to the European standard EN54,
part 2 and 4. The Swedish front conforms to SS3654.
3.1.1 Printer
The control unit EBL512 G3 type 5000 can be delivered with a printer
("PRN" included in the article number) or without a printer.
1
In Ext. Fire Brigade Panel 1826 it is possible to mount an optional
Printer 1535.
3.1.2 Expansion boards
In the control unit (c.i.e.) it is possible to mount up to six expansion
boards. The following types are available:
Product type no.
Product name
Note
4580
8 zones expansion board
4581
8 relay outputs expansion board
4583
Inputs and outputs expansion board
Regarding the expansion boards, see also the EBL512 G3 Planning
Instructions and drawings.
3.1.3 Power supply
The main power source is a built-in switched power supply (rectifier)
5037, 230 V AC / 24 V DC, 6.5 A.
The second power source is a backup battery (2 x 12 V). In the c.i.e.
1
Printer 5058 is a spare part for the c.i.e. type 5000 with a printer, i.e. it
comes without a mounting frame etc.

Panasonic Electric Works Nordic AB
MEW01349 Rev: - Operating Instructions Fire alarm system EBL512 G3, V1.1.x
13
is space for two 27 Ah batteries. Larger batteries (up to 65 Ah) have
to be placed outside the c.i.e.
The batteries and the power supply are connected to the Main board
(5010), which handles the charging of the batteries, etc. See the
EBL512 G3 Planning Instructions, chapter "Power supply" for more
information.
3.2 S/W versions
Due to continual development and improvement, different S/W
versions can be found. When installing a new control unit in a system
with "older" control units, you might have to update the S/W in the
old control units. The same S/W version is required in all control
units.
3.3 Documents
The following documents are available:
Planning instructions MEW01182
Operating Instructions
Drawings
Normally, information found in one of the documents is not found in
another document, i.e. the documents complement each other.
3.4 Applications
The EBL512 G3 system is intended for small, medium and large
installations. The intelligent control units offer the system designer
and end user a technically sophisticated range of facilities and
functions. Programming (PC software WinG3 and TLON Manager)
and commissioning of the control unit / system is very easy.
Start with one control unit and then later when it is required, add more
units. The TLON network makes it possible to install the control units
in one building or in many buildings.
3.5 PC S/W
3.5.1 WinG3
WinG3 is used for programming and commissioning of one or more
control units:
create / download / backup (upload) of site specific data (SSD)
download of software / settings / conventions / configurations /
control unit & system properties / etc.
create / download the user definable text messages (alarm texts)
shown in the display in the C.U. and ext. FBP / Display units.
WinG3 shall have the same (or higher) version number as the EBL512
G3 software version number (e.g. 1.0.x and 1.0.x respectively).
Backup require the same version number (in WinG3 and in EBL512
G3). Old SSD files can be opened and saved in a newer (higher)
version of WinG3 and thereafter downloaded.

Panasonic Electric Works Nordic AB
MEW01349 Rev: - Operating Instructions Fire alarm system EBL512 G3, V1.1.x
14
3.5.2 TLON Manager
TLON Manager is used for the TLON Network programming.
3.5.3 WebG3 Config tool
A PC tool, WebG3 Config tool is used for configuration of the Web-
server II (1598).

Panasonic Electric Works Nordic AB
MEW01349 Rev: - Operating Instructions Fire alarm system EBL512 G3, V1.1.x
15
4 Control Unit
Figure 1. Left: The EBL512 G3 Control Unit 5000, with printer.
The look might vary according to configuration, country, etc.
Right: The EBL512 G3 Control Unit 5001.
Depending on country, convention, configuration, etc. the look,
language and functions might vary. Figure 1 shows an EBL512 G3
type 5000 with a front with texts in English. Fronts with texts in other
languages are available. EBL512 G3 is housed in a grey metal
cabinet. The door has a Plexiglas ahead of the front and display, see
Figure 1. A key is required to open the door to get full access to the
push buttons on the front, i.e. the Fire Brigade Panel (FBP) and the
Control Panel (CP).
EBL512 G3 type 5001 has no front, display and printer and is housed
in a grey metal cabinet without a door.

Panasonic Electric Works Nordic AB
MEW01349 Rev: - Operating Instructions Fire alarm system EBL512 G3, V1.1.x
16

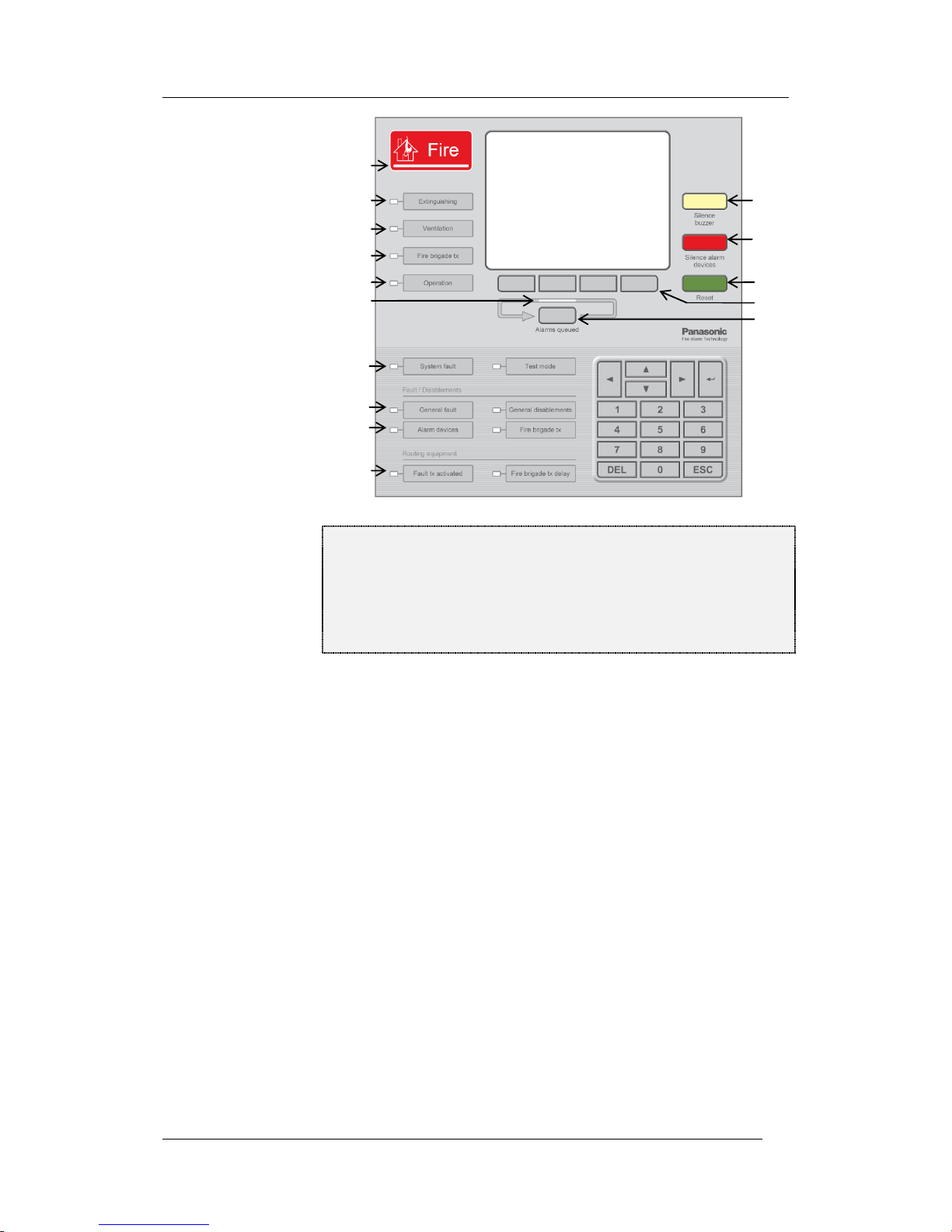

Figure 2. The EBL512 G3 front with display; The Fire Brigade
Panel (FBP) is the upper part and the Control Panel (CP) is the
lower part. The look might vary according depending on
language, country, etc. (A front with texts in English is shown in
the figure). See also chapter "LED indicators and push
buttons", page 17.
The fire brigade personnel use the FBP to see which alarm point /
zone(s) having activated fire alarm and to take required operational
control of the system. In the graphical display, the information in the
upper part is depending on how many alarm points / zones having
generated fire alarm. In the middle part a user definable text message
(alarm text) is shown for each alarm point / zone in alarm - if
programmed.
The CP is to "communicate" with the system, i.e. for commissioning,
monthly tests, maintenance, etc. Access codes for different access
levels are required. A keypad is used to get access to the system (a
menu tree with main and sub menus) and for different manoeuvres.
The CP has several LEDs for system status.
In the Australian front only, below the "P3" button, there is also a
"Disable" push button, with which you can "Disable zones in alarm".
L3
L6
L2
L1
L4
L5
L7, L8
L9, L10
L11, L12
L13, L14
P1
P2
P3
P8
P4 –P7

Panasonic Electric Works Nordic AB
MEW01349 Rev: - Operating Instructions Fire alarm system EBL512 G3, V1.1.x
17
5 LED indicators and push buttons
LEDs and push buttons can vary according to type and configuration
(convention / country / language).
See also Figure 2, page 16.
LED indicators on the Fire Brigade Panel (FBP)
LED indicator
Indicating
L1
Fire (5 red)
Fire alarms (see below)
Co-incidence alarm
Pre-warning
Quiet alarm (normally Australia only)
Alarm Acknowledgement Facility (AAF) alarm (Australia
only)
See also chapter "Alarm types", page 38.
L2
Extinguishing (red)
Output(s) for extinguishing equipment activated. (Or a
programmable input type "Extinguishing" is activated.)
L3
Ventilation (yellow)
Output(s) for fire/smoke ventilation equipment activated. (Or
a programmable input type "Ventilation" is activated.)
L4
Fire brigade tx (red)
Output "Fire alarm" for fire brigade tx (routing equipment)
and/or corresponding programmable output(s) of type
"Routing equipment") is/are activated. (Or a programmable
input type "Activated routing equipment" is activated.)
Test of routing equipment in progress (see menu H1).
L5
Operation (green)
The c.i.e. is powered via the rectifier and/or the battery.
L6
Alarms queued (2 red)
More than one unit / zone have activated fire alarm. Use
push button "Alarms queued" (P8) to scroll amongst the
alarm points or soft key "Next zone" (P5) to scroll amongst
the zones.
NOTE! Fire alarms are:
Fire alarm (incl. test mode alarm)
Heavy smoke/heat alarm
Alert Annunciation (AA) alarm
Key cabinet alarm
Acknowledged alarm (New Zealand only)
Isolated alarm (New Zealand only)

Panasonic Electric Works Nordic AB
MEW01349 Rev: - Operating Instructions Fire alarm system EBL512 G3, V1.1.x
18
Push buttons on the Fire Brigade Panel (FBP)
Push button
Operation/function
P1
Silence buzzer (yellow)
Used to silence the buzzer in the c.i.e.
P2
Silence Alarm devices
(red)
Used to silence alarm devices / sounders (i.e. outputs of type
"Alarm devices" will be de-activated). Silenced Alarm
devices is indicated to the right in the display's soft key area
(a symbol near this button), see page 21.
P3
Reset (green)
Used to reset:
Fire alarms (see below)
Co-incidence alarms (if not automatically reset)
For more information see "Alarm reset", page 49.
NOTE! P3 has to be pressed for > 0.5 sec.
Disable (yellow)
NOTE! This button exists in the Australian front only!
Disable zones in alarm.
P4 –P7
Soft keys (grey)
The operation/function is shown above the key in the display
(i.e. the soft key area). The function of a soft key may vary
depending on the situation. If nothing is shown above the
key in the display, the key has no function for the moment.2
P8
Alarms queued (grey)
Used when LEDs "Alarms queued" (L6) are lit, to
scroll/browse through the queued alarm points. Function, see
chapter "Fire alarm", page 39, under LEDs "Alarms
queued".
NOTE! Fire alarms are:
Fire alarm
Heavy smoke/heat alarm
Alert Annunciation (AA) alarm
Key cabinet alarm
Acknowledged alarm (New Zealand only)
Isolated alarm (New Zealand only)
2
The soft key "P7" has the function Evacuate in the following conventions:
Belgian, Brittish Standard, Hungarian, Spanish and Ukrainian. In all other
conventions it has the function Alert Annunciation Acknowledge.
