Panasonic KX-TGP550 T04 User manual

Thank you for purchasing a Panasonic product.
Please read this installation manual before using the unit and
save it for future reference.
Document Version: 2012-01
This unit is an additional handset compatible with the following
series of Panasonic SIP Cordless Phone:
KX-TGP500/KX-TGP550/KX-TGP551
You must register this handset with your base unit before it can
be used. This installation manual describes only the steps
needed to register and begin using the handset. For further
details, please read the base unit’s User Guide on the
Panasonic Web site at:
http://www.panasonic.com/sip (for users in the United States)
http://panasonic.net/pcc/support/sipphone (for users in Canada)
Charge the batteries for about 6 hours before initial use.
Additional Cordless Handset
Installation Manual
Model No. KX-TPA50
Contents/Contenu/Contenido
English instructions
Instructions en français
Instrucciones en español
Page/Page/Página
1 - 10
(1) - (10)
<1> - <7>

2
Accessory information
Supplied accessories
*1 The handset cover comes attached to the handset.
Note:
LPlease read the additional/replacement accessory section of the base
unit’s User Guide on the Panasonic Web site. See page 1 for
Panasonic URL.
Setting up
Connections
Note:
LUse only the supplied Panasonic AC adaptor PQLV219 or PQLV219
(03).
Accessory item/Order number Quantity
Charger/PNWETGP500B 1
AC adaptor/PQLV219Z or PQLV219 (03)Z 1
Rechargeable batteries/HHR-4DPA
(Part No. HHR-65AAABU or N4DHYYY00002)
2
Handset cover*1/PNYNTGA641TR 1
Belt clip/PNKE1029Z1 1
(120 V AC,
60 Hz) Hooks

3
LThe AC adaptor must remain connected at all times. (It is normal for
the adaptor to feel warm during use.)
LMake sure that the wall is strong enough to support the weight of the
unit.
Battery installation/Battery charge
Important:
LUse the supplied rechargeable batteries. For replacement, we
recommend using the Panasonic rechargeable batteries noted on
page 2.
LWipe the battery ends (S, T) with a dry cloth.
LAvoid touching the battery ends (S, T) or the unit contacts.
LConfirm correct polarities (S, T).
LUSE ONLY Ni-MH batteries AAA (R03) size.
LDo NOT use Alkaline/Manganese/Ni-Cd batteries.
Charge for about 6 hours.
LWhen the batteries are fully charged, the charge indicator goes off.
Note:
LIf the batteries are fully charged, but the operating time seems to be
shorter, clean the battery ends (S, T) and the charge contacts with a
dry cloth and charge again.
Rechargeable Ni-MH
ONLY
Confirm
“Charging”is
displayed.
Charge indicator

4
Registering a handset to the base unit
1Base unit:
NKX-TGP500
Press and hold {ALL}for about 4 seconds until the STATUS
indicator flashes in red.
NKX-TGP550/KX-TGP551
Press and hold {ALL}for about 4 seconds until the registration tone
sounds and the STATUS indicator flashes in red.
LIf all registered handsets start ringing, press the same button to
stop. Then repeat this step.
LThe next step must be completed within 90 seconds.
2Handset:
Press {OK
L }, then wait until a long beep sounds.
Note:
LIf an error tone sounds, or if _is still displayed, register the handset
according to the registering section of the base unit’s User Guide on
the Panasonic Web site. See page 1 for Panasonic URL.
Display language
1{MENU}(center of joystick) i{#}{1}{1}{0}
2{V}/{^}: Select the desired setting.
3Press down the center of the joystick to save. i{OFF}

5

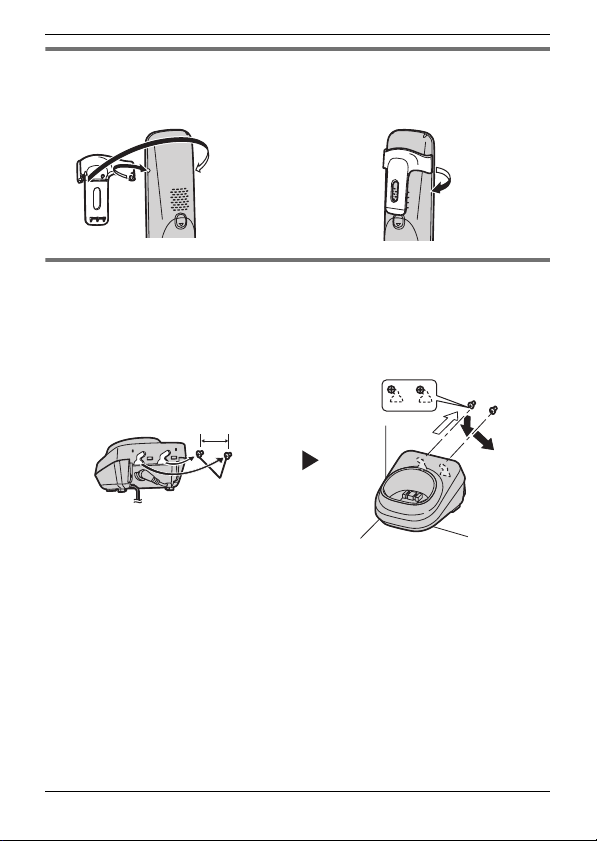

Belt clip
Wall mounting
1Drive the screws (not supplied) into the wall.
2Mount the charger (A), then slide it down (B) and to the right (C)
until it is secure.
NTo attach NTo remove
25.4 mm
(1 inch)
Screws
A
B
C

6
For your safety
To prevent severe injury and loss of life/property, read this section carefully before
using the product to ensure proper and safe operation of your product.
WARNING
Power connection
LCompletely insert the AC adaptor/power plug into the power outlet. Failure to do
so may cause electric shock and/or excessive heat resulting in a fire.
LRegularly remove any dust, etc. from the AC adaptor/power plug by pulling it
from the power outlet, then wiping with a dry cloth. Accumulated dust may cause
an insulation defect from moisture, etc. resulting in a fire.
LUnplug the product from power outlets if it emits smoke, an abnormal smell, or
makes an unusual noise. These conditions can cause fire or electric shock.
Confirm that smoke has stopped emitting and contact your phone system dealer.
Installation
LTo prevent the risk of fire or electrical shock, do not expose the product to rain or
any type of moisture.
LDo not place or use this product near automatically controlled devices such as
automatic doors and fire alarms. Radio waves emitted from this product may
cause such devices to malfunction resulting in an accident.
CAUTION
Installation and relocation
LThe AC adaptor is used as the main disconnect device. Ensure that the AC outlet
is installed near the product and is easily accessible.
Battery
LWe recommend using the supplied batteries or additional/replacement batteries
noted on page 2 for replacement battery information. USE ONLY rechargeable
Ni-MH batteries AAA (R03) size.
LRisk of explosion if battery is replaced by an incorrect type. Dispose of used
batteries according to the instructions.
LDo not mix old and new batteries.
LDo not open or mutilate the batteries. Released electrolyte from the batteries is
corrosive and may cause burns or injury to the eyes or skin. The electrolyte is
toxic and may be harmful if swallowed.
LExercise care when handling the batteries. Do not allow conductive materials
such as rings, bracelets, or keys to touch the batteries, otherwise a short circuit

7
may cause the batteries and/or the conductive material to overheat and cause
burns.
LCharge the batteries provided with or identified for use with this product only, in
accordance with the instructions and limitations specified in this manual.
LOnly use a compatible charger to charge the batteries. Do not tamper with the
charger. Failure to follow these instructions may cause the batteries to swell or
explode.
Attention:
Important safety instructions
When using your product, basic safety precautions should always be followed to
reduce the risk of fire, electric shock, and injury to persons, including the following:
1. Do not use this product near water for example, near a bathtub, washbowl,
kitchen sink, or laundry tub, in a wet basement or near a swimming pool.
2. Do not use the telephone to report a gas leak in the vicinity of the leak.
3. Use only the power cord and batteries indicated in this manual. Do not dispose
of batteries in a fire. They may explode. Check with local codes for possible
special disposal instructions.
SAVE THESE INSTRUCTIONS
Other information
LOperating the product near electrical appliances may cause interference. Move
away from the electrical appliances.
Routine care
LWipe the outer surface of the product with a soft moist cloth.
LDo not use benzine, thinner, or any abrasive powder.
Notice for product disposal, transfer, or return
LThis product can store your private/confidential information. To protect your
privacy/confidentiality, we recommend that you erase information such as
A nickel metal hydride battery that is
recyclable powers the product you have
purchased.
Please call 1-800-8-BATTERY (1-800-822-
8837) for information on how to recycle this
battery.

8
phonebook or caller list entries from the memory before you dispose of, transfer,
or return the product.
FCC and other information
This equipment is hearing aid compatible as defined by the FCC in 47 CFR Section
68.316.
When you hold the phone to your ear, noise might be heard in your Hearing Aid.
Some Hearing Aids are not adequately shielded from external RF (radio frequency)
energy. If noise occurs, use an optional headset accessory or the speakerphone
option (if applicable) when using this phone. Consult with your audiologist or
Hearing Aid manufacturer about the availability of Hearing Aids which provide
adequate shielding to RF energy commonly emitted by digital devices.
WHEN PROGRAMMING EMERGENCY NUMBERS AND(OR) MAKING TEST
CALLS TO EMERGENCY NUMBERS:
1) Remain on the line and briefly explain to the dispatcher the reason for the call.
2) Perform such activities in the off-peak hours, such as early morning or late
evenings.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired
operation.
Privacy of communications may not be ensured when using this phone.
CAUTION:
Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this device.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.

9
– Consult the dealer or an experienced radio/TV technician for help.
FCC RF Exposure Warning:
LThis product complies with FCC radiation exposure limits set forth for an
uncontrolled environment.
LThis handset may not be collocated or operated in conjunction with any other
antenna or transmitter.
LFor body-worn operation, the handset must be used only with a non-metallic
accessory. Use of other accessories may not ensure compliance with FCC RF
exposure requirements.
Notice:
LFCC ID can be found inside the battery compartment or on the bottom of the unit.
Notice
Compliance with TIA-1083 standard:
Telephone handsets identified with this logo have reduced
noise and interference when used with T-Coil equipped hearing
aids and cochlear implants.
T
Compatible with
Hearing Aid T-Coil
TIA-1083
LThis product is designed for use in the United States of America and Canada.
Sale or use of this product in other countries may violate local laws.
LCet appareil est conçu pour être utilisé aux États-Unis d’Amérique et le
Canada. La vente ou l’emploi de cet appareil dans certains autres pays peut
constituer une infraction à la législation locale.
LEste producto está diseñado para usarse en los Estados Unidos de América.
La venta o el empleo de este producto en ciertos países puede constituir
violación de la legislación local.
Lҏ౰ࠢட࣏୽ٺҢՄ೩Ȅӵڏт୽ড়᎛୵ܖٺҢȂџ૖ོႂІ࿋ӴݲٽȄ
Lߎߩ⵾ຠߪޔᣣᧄ࿖ᄖߢߩ૶↪ࠍ⋡⊛ߣߒߡ⸳⸘ߐࠇߡ߅ࠅޔᣣᧄ࿖ౝߢߩ
૶↪ߪᴺᓞ㆑෻ߣߥࠅ߹ߔޕᓥߞߡޔᒰ␠ߢߪᣣᧄ࿖ౝߦ߅޿ߡߪේೣߣߒ
ߡୃℂߥߤߩࠨ࡯ࡆࠬߪ⥌ߒ߆ߨ߹ߔޕ

10
Industry Canada Notices and other information
NOTICE:
This equipment meets the applicable
Industry Canada Terminal Equipment
Technical Specifications. This is
confirmed by the registration number.
The abbreviation, “IC:”, before the
registration number signifies that
registration was performed based on
a Declaration of Conformity indicating
that Industry Canada technical
specifications were met. It does not
imply that Industry Canada approved
the equipment.
Users should ensure, for their own
protection, that the electrical ground
connections of the power utility,
telephone lines and internal metallic
water pipe system, if present, are
connected together. This precaution
may be particularly important in rural
areas.
NOTICE:
Operation is subject to the following
two conditions: (1) this device may
not cause interference, and (2) this
device must accept any interference,
including interference that may cause
undesired operation of the device.
Privacy of communications may not
be ensured when using this
telephone.
Some cordless telephones operate at
frequencies that may cause
interference to nearby TVs and
VCRs. To minimize or prevent such
interference, the base of the cordless
telephone should not be placed near,
o
r on top of, a TV or VCR. If
interference is experienced, move
the cordless telephone further away
from the TV or VCR. This will often
reduce, or eliminate, interference.
RF Exposure Warning:
LThis product complies with IC
radiation exposure limits set forth
for an uncontrolled environment.
LTo comply with IC RF exposure
requirements, the base unit must
be installed and operated 20 cm
(8 inches) or more between
product and all person’s body
(excluding extremities of hands,
wrist and feet).
LThis product may not be collocated
or operated in conjunction with any
other antenna or transmitter.
LFor body-worn operation, the
handset must be used only with a
non-metallic accessory. Use of
other accessories may not ensure
compliance with IC RF exposure
requirements.
