Panasonic EP1022 - MASSAGE LOUNGER User manual

Panasonic.
Operating
Instructions
Manuel
d'utilisation
Instrucciones
de funcionamiento
Household Massage Lounger
Feuteuil vibromasseur
Silla de masaje para el hogar
Model No.EP1022
Modéle No.EP 1022
Modelo No.EP 1022
Before
operating
this
unit,
please
read
these
instructions
completely
and
save
this
manual
for
future
use.
Avant
d'utiliser
cet
appareil,
veuillez
lire
complétement
ces
instructions
et
conserver
ce
manuel
à
titre
de
référence.
Antes
de
utilizar
esta
unidad,
lea
completamente
estas
instrucciones
y
guarde
este
manual
para
utilizarlo
en
el
futuro
en
caso
de
ser
necesario

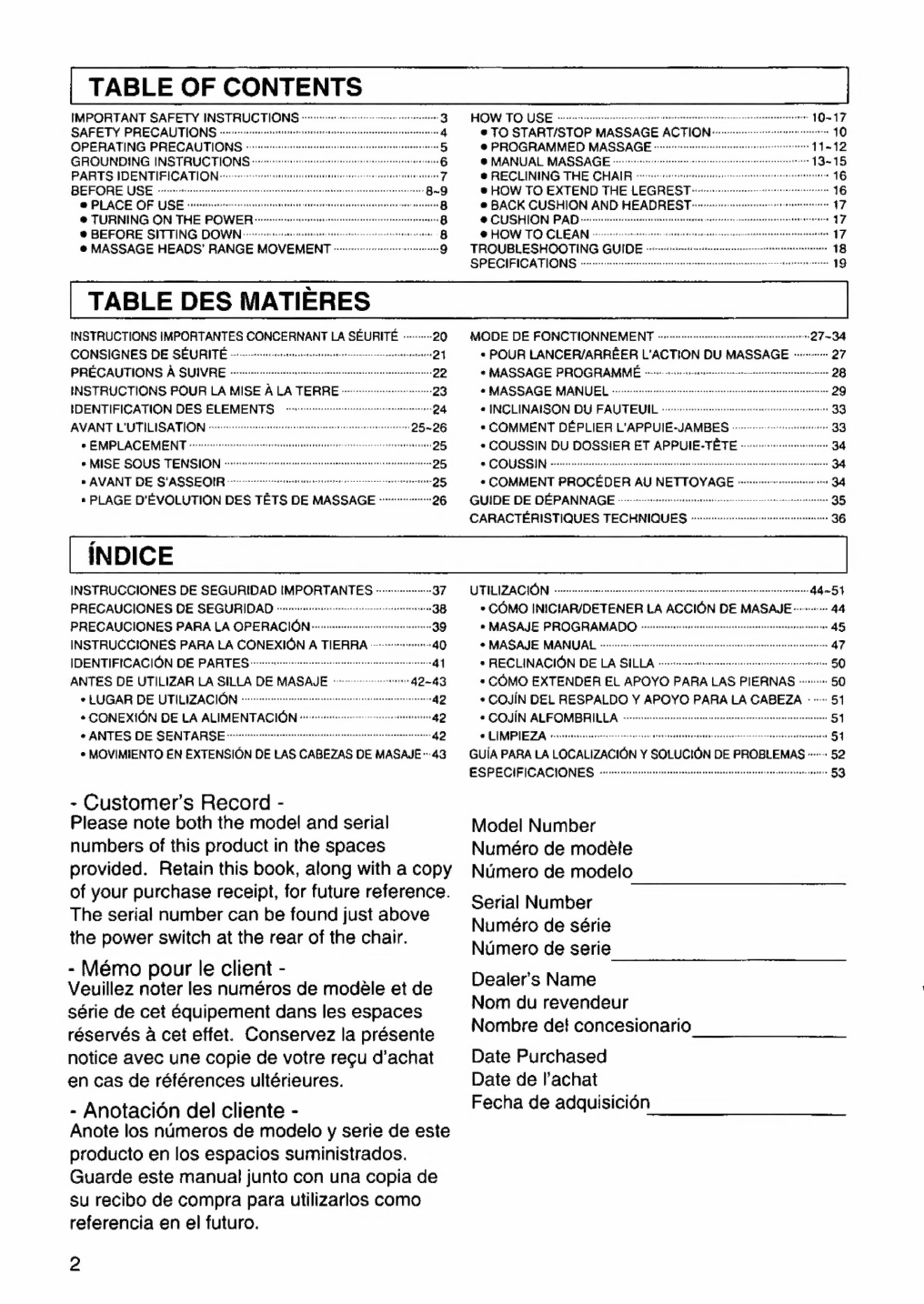

TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS ~ 3
SAFETY PRECAUTIONS - = 4
GROUNDING INSTRUCTIONS -.. I— ———————————9 6
PARTS IDENTIFICATION A IS, 7
e PLACE OF USE LE RIERA e!
o TURNING ON THE POWER: ————-——————Á 8
e BEFORE SITTING DOWN - Ó—9 B
e MASSAGE HEADS’ RANGE MOVEMENT --————9
HOW TO USE
e TO START/STOP MASSAGE ACTION- cerner

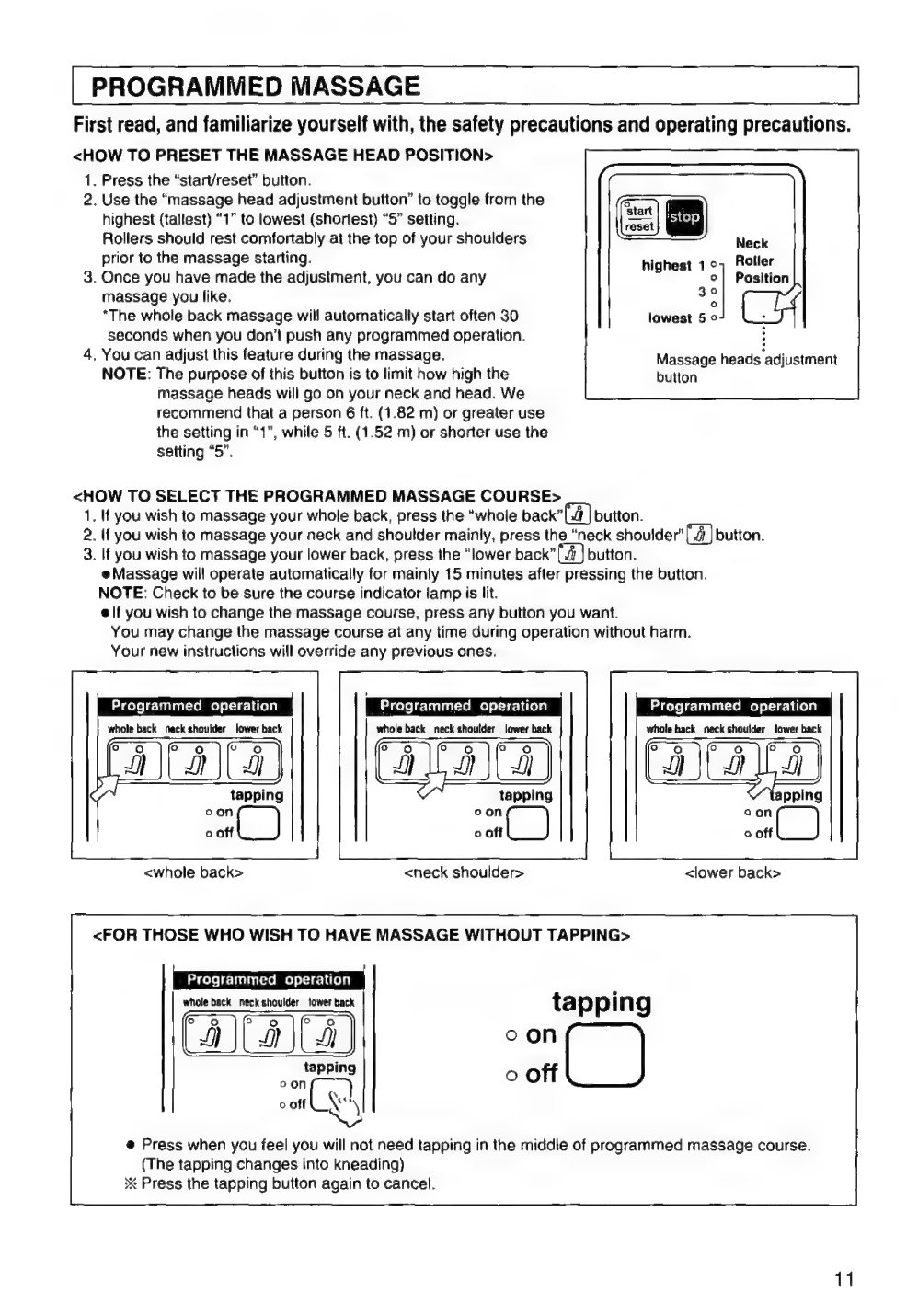

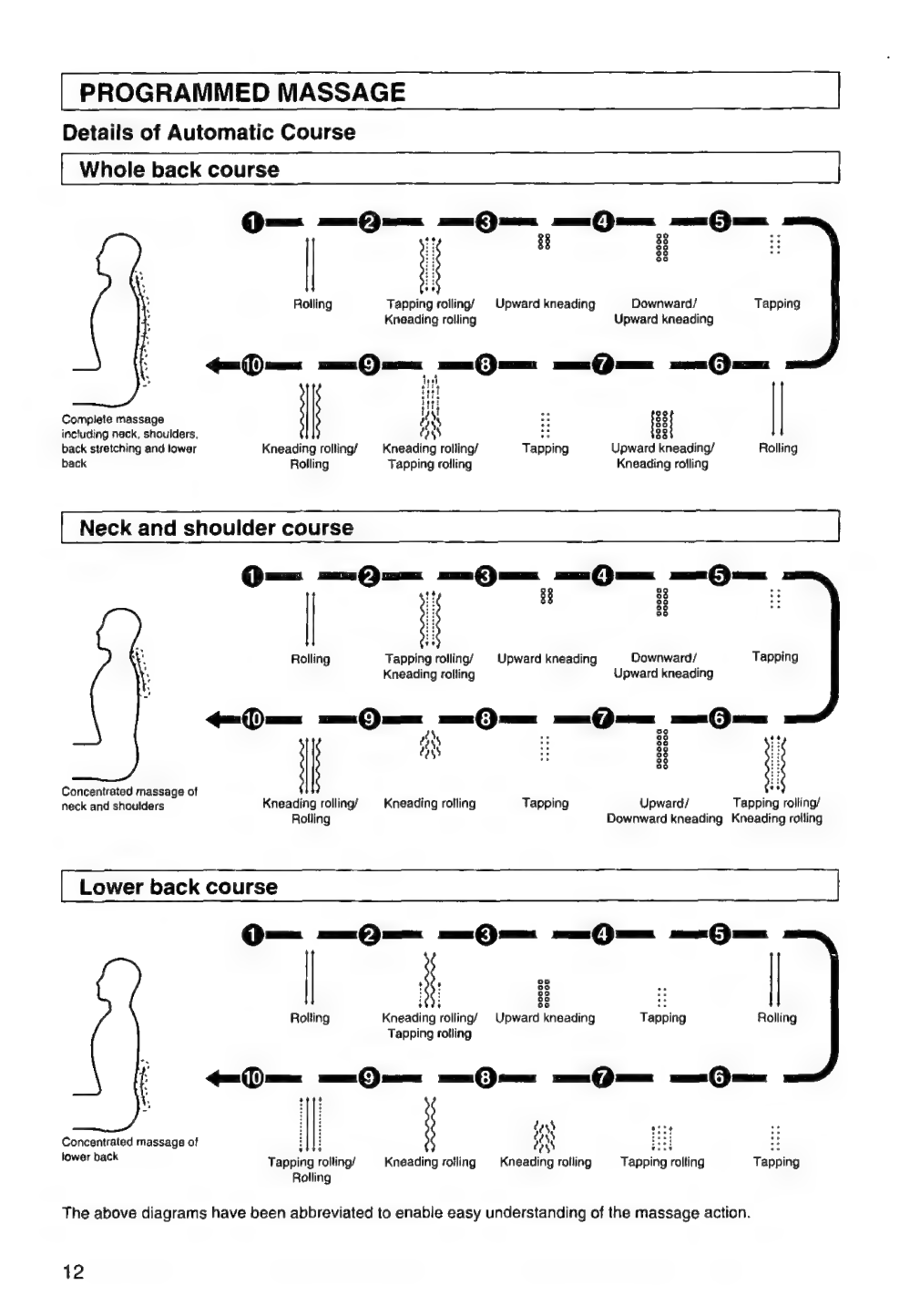

e PROGRAMMED MASSAGE C

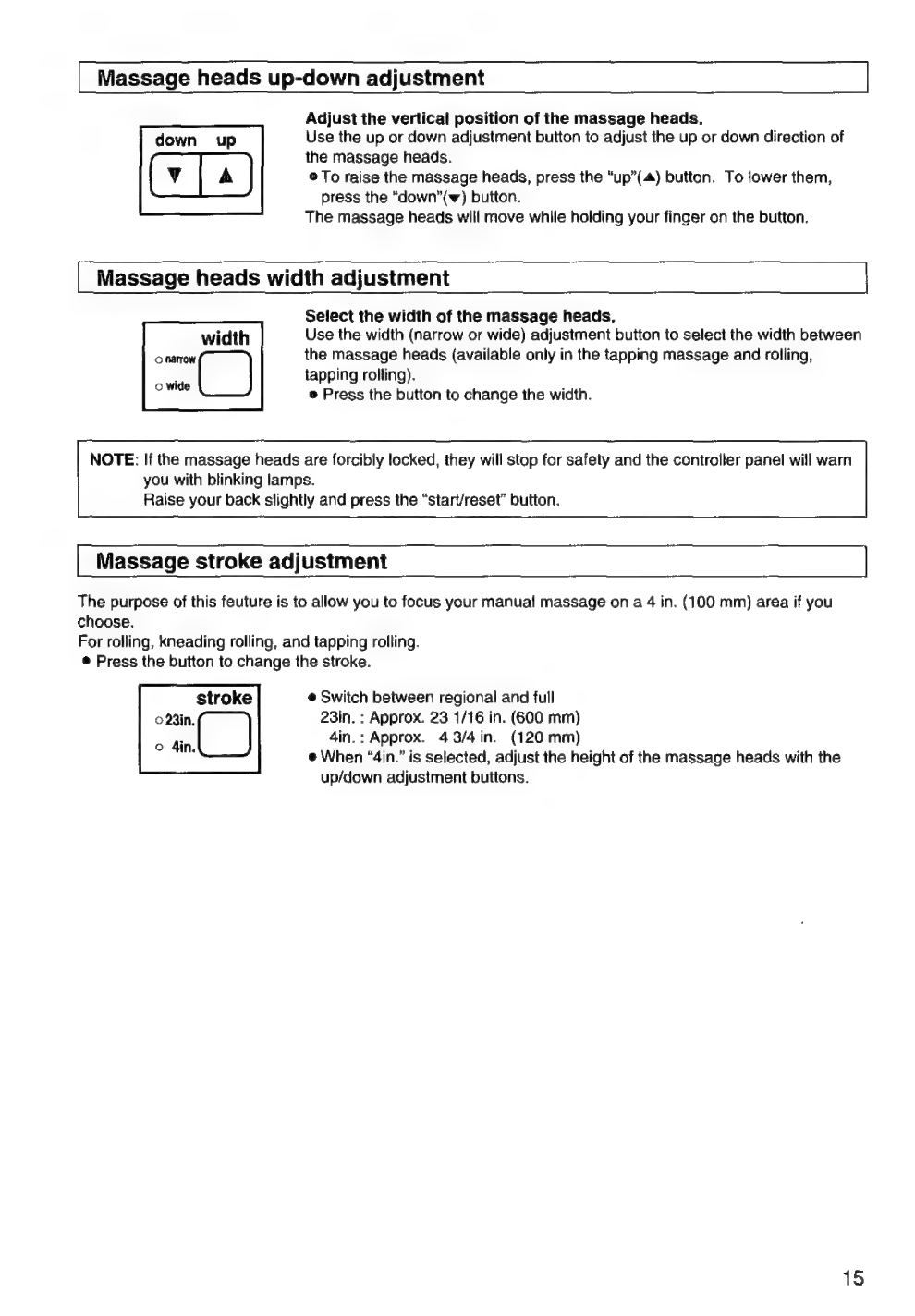

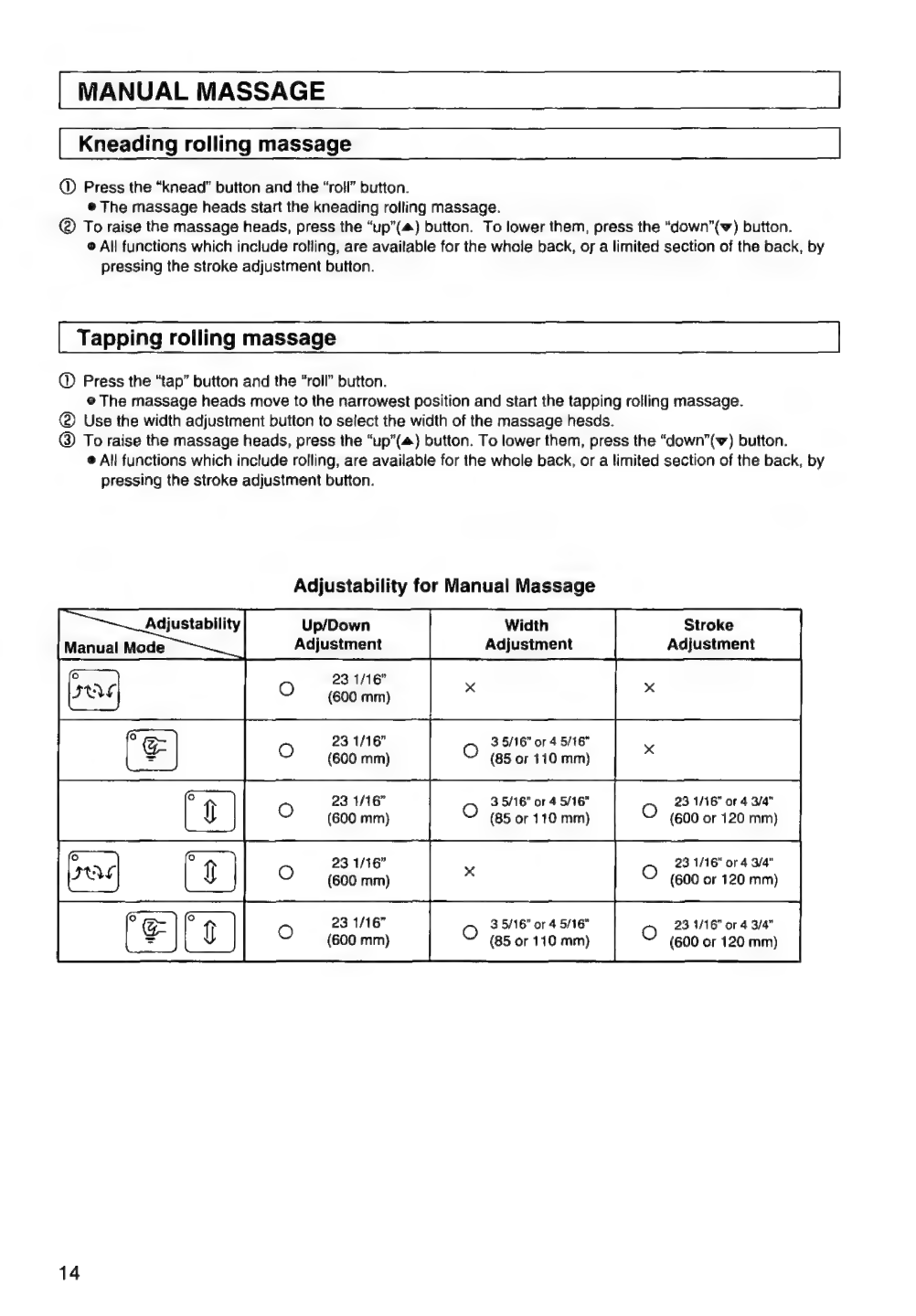

e MANUAL MASSAGE --

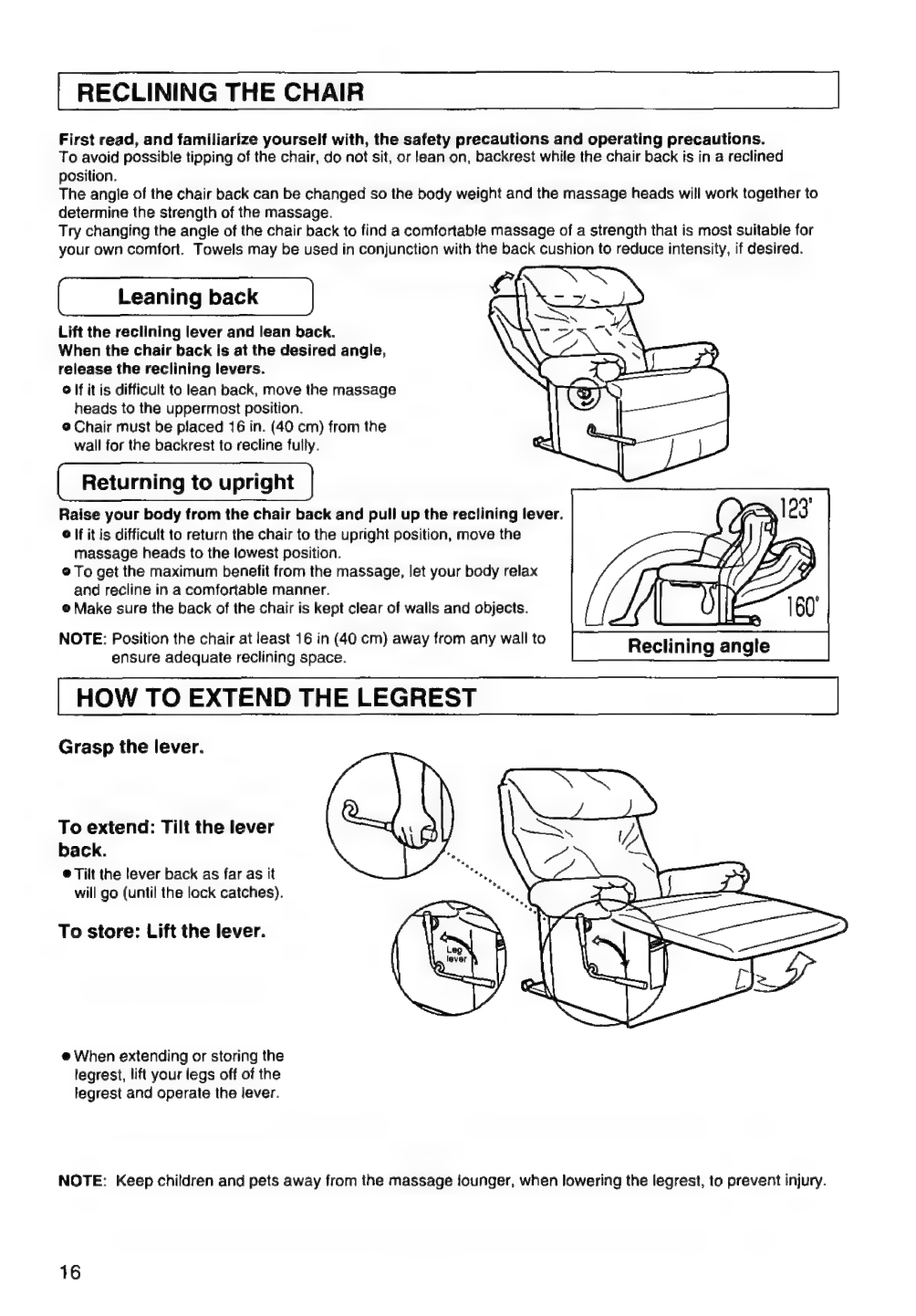

e RECLINING THE CHAIR
e HOW TO EXTEND THE LEGREST -- : ae
e BACK CUSHION AND: HEADREST” emere
e CUSHION PAD -- n T

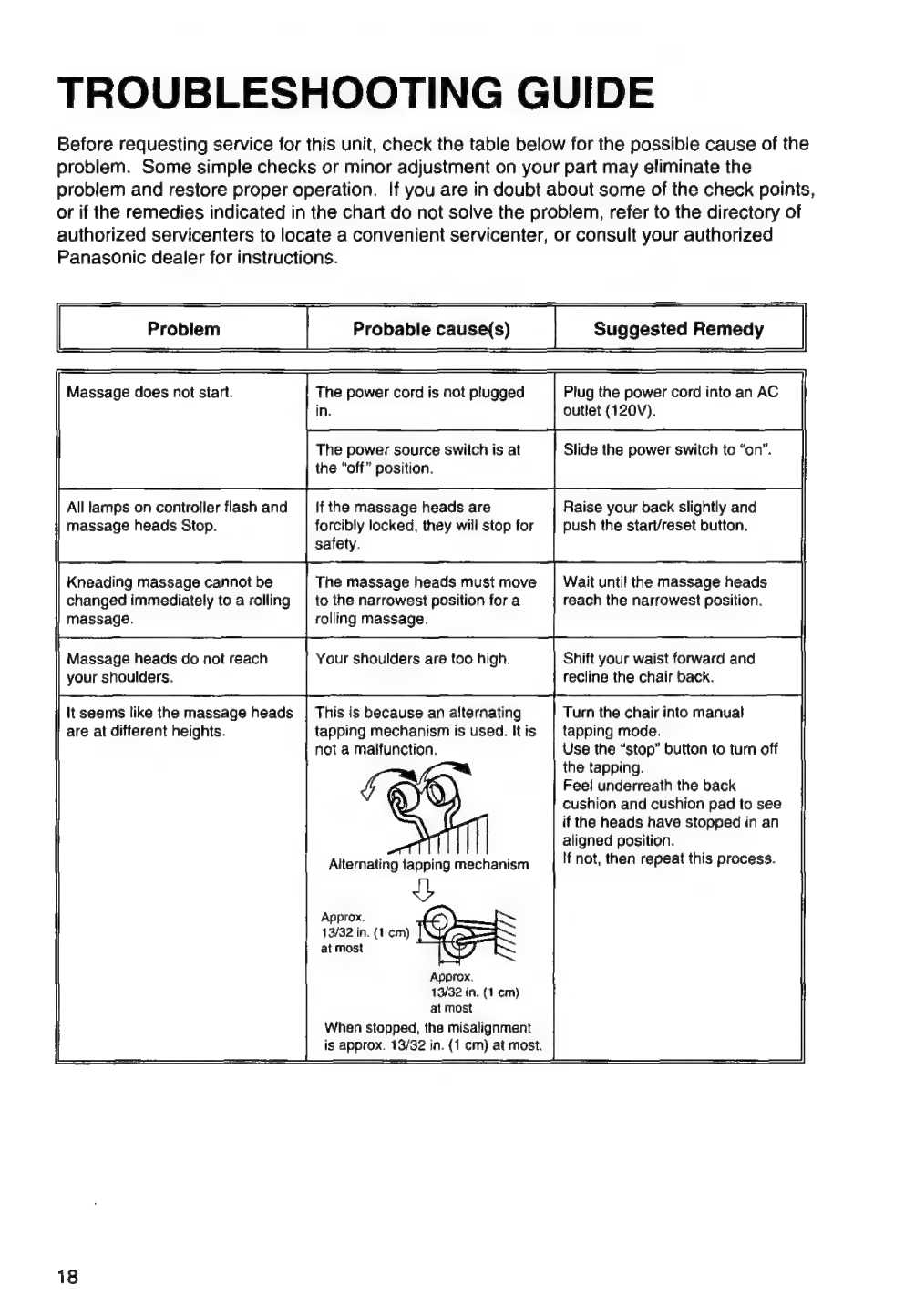

TROUBLESHOOTING GUIDE - NU EI PR Ron SURE e pn An
SPECIFICATIONS - — ———À— ERA
TABLE DES MATIERES
INSTRUCTIONS IMPORTANTES CONCERNANT LA SEURITE ---------20
CONSIGNES DE SÉURITÉ -----------...-.-. ——— (€ 21
PRÉCAUTIONS À SUIVRE
INSTRUCTIONS POUR LA MISE A LA TERRE...
IDENTIFICATION
DES
ELEMENTS
24
AVANT
L'UTILISATION
see
25-26
*
MISE
SOUS
TENSION
-
95
*
AVANT
DE
S'ASSEOIR
--
0
Sinis
E
*
PLAGE
D'ÉVOLUTION
DES
sTÉTS
DE
MASSAGE
ore
26
MODE DE FONCTIONNEMENT -«- nnne
* POUR LANCER/ARRÉER L'ACTION DU MASSAGE
« MASSAGE PROGRAMME S A ————— M"
+ MASSAGE MANUEL -- —— ects
+ INCLINAISON DU FAUTEUIL -- Series
* COMMENT DÉPLIER L'APPUIE-JAMBES -
* COUSSIN DU DOSSIER ET APPUIE- TÊTE -
* COUSSIN - " mentir
+ COMMENT PROCÉDER AU NETTOYAGE t u
GUIDE DE DÉPANNAGE -- rennes
CARACTÉRISTIQUES TECHNIQUES men
INDICE
INSTRUCCIONES DE SEGURIDAD IMPORTANTES - 087
PRECAUCIONES DE SEGURIDAD -- eS Bl
PRECAUCIONES PARA LA OPERACIÓN: RER NE RSS 39
INSTRUCCIONES PARA LA PONPON A TIERRA 40
IDENTIFICACIÓN DE PARTES ~ emm E
ANTES DE UTILIZAR LA SILLA DE MASAJE ^n 42-43
* LUGAR DE UTILIZACIÓN -- xus dias 2-42
* CONEXIÓN DE LA ALIMENTACIÓN erre “42
. ANTES DE SENTARSE O€——————————————— neaee 42
* MOVIMIENTO EN EXTENSIÓN DE LAS CABEZAS DE MASAJE --43
- Customer's Record -
Please note both the model and serial
numbers of this product in the spaces
provided. Retain this book, along with a copy
of your purchase receipt, for future reference.
The serial number can be found just above
the power switch at the rear of the chair.
- Mémo pour le client -
Veuillez noter les numéros de modéle et de
série de cet équipement dans les espaces
réservés à cet effet. Conservez la présente
notice avec une copie de votre recu d'achat
en cas de références ultérieures.
- Anotación del cliente -
Anote los nümeros de modelo y serie de este
producto en los espacios suministrados.
Guarde este manual junto con una copia de
su recibo de compra para utilizarlos como
referencia en el futuro.
2
UTILIZACIÓN -- I zs
* CÓMO INICIAR/DETENER LA A ACCIÓN D DE MASAJE eree
* MASAJE PROGRAMADO oi
+ MASAJE MANUAL -- ste nn este Mere SE
* RECLINACIÓN DE LA SILLA - e vee
+ CÓMO EXTENDER EL APOYO PARA LAS PIERNAS
TTA 50
+ COJÍN DEL RESPALDO Y APOYO PARA LA CABEZA : ~~ 51
+
COJÍN
ALFOMBRILLA
-
dido
51
“LIMPIEZA
coi
tds
51
GUÍA
PARA
LA
LOCALIZACIÓN
Y
SOLUCIÓN
DE
PROBLEMAS
»---
52
ESPECIFICACIONES
-
:
e
53
Model Number
Numéro de modéle
Nümero de modelo
Serial Number
Numéro de série
Nümero de serie
Dealer's Name
Nom du revendeur
Nombre de! concesionario
Date Purchased
Date de l'achat
Fecha de adquisición

COMPLIMENTS
Thank you for purchasing the “Household Massage Lounger”, "EP1022".
For optimum performance and safety, please read these instructions carefully.

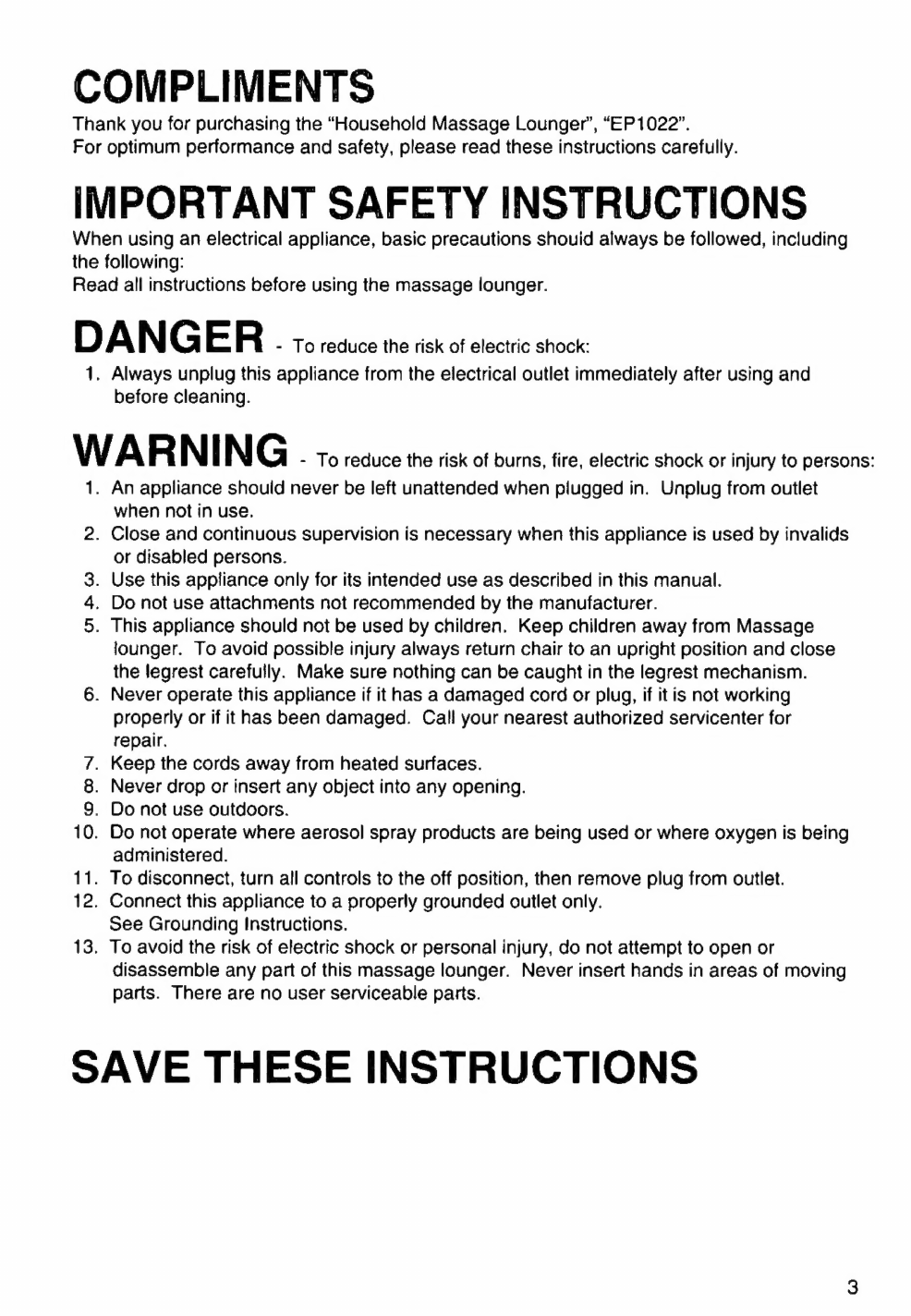

IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions shouid always be followed, including
the following:
Read all instructions before using the massage lounger.
DAN G E R - To reduce the risk of electric shock:
1. Always unplug this appliance from the electrical outlet immediately after using and
before cleaning.
WA R N | N G. To reduce the risk of burns, fire, electric shock or injury to persons:
Ci RO
. An appliance shouid never be left unattended when plugged in. Unplug from outlet
when not in use.
. Close and continuous supervision is necessary when this appliance is used by invalids
or disabled persons.
. Use this appliance only for its intended use as described in this manual.
. Do not use attachments not recommended by the manufacturer.
. This appliance should not be used by children. Keep children away from Massage
lounger. To avoid possible injury always return chair to an upright position and close
the legrest carefully. Make sure nothing can be caught in the legrest mechanism.
. Never operate this appliance if it has a damaged cord or plug, if it is not working
properly or if it has been damaged. Call your nearest authorized servicenter for
repair.
. Keep the cords away from heated surfaces.
. Never drop or insert any object into any opening.
. Do not use outdoors.
. Do not operate where aerosol spray products are being used or where oxygen is being
administered.
. To disconnect, turn all controls to the off position, then remove plug from outlet.
. Connect this appliance to a properly grounded outlet only.
See Grounding Instructions.
. To avoid the risk of electric shock or personal injury, do not attempt to open or
disassemble any part of this massage lounger. Never insert hands in areas of moving
parts. There are no user serviceable parts.
SAVE THESE INSTRUCTIONS

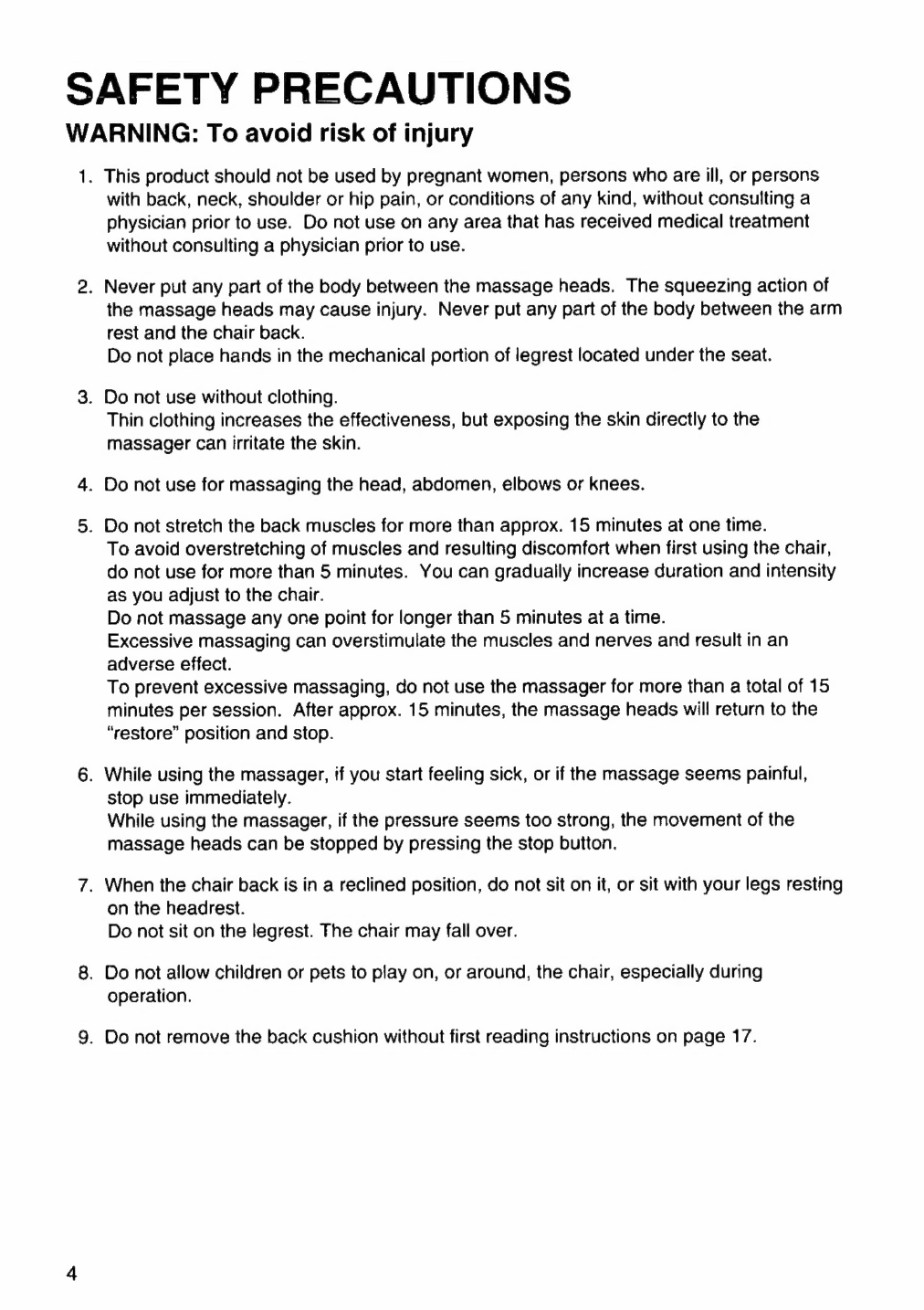

SAFETY PRECAUTIONS
WARNING: To avoid risk of injury
1.
This product should not be used by pregnant women, persons who are ill, or persons
with back, neck, shoulder or hip pain, or conditions of any kind, without consulting a
physician prior to use. Do not use on any area that has received medical treatment
without consulting a physician prior to use.
. Never put any part of the body between the massage heads. The squeezing action of
the massage heads may cause injury. Never put any part of the body between the arm
rest and the chair back.
Do not place hands in the mechanical portion of legrest located under the seat.
Do not use without clothing.
Thin clothing increases the effectiveness, but exposing the skin directly to the
massager can irritate the skin.
. Do not use for massaging the head, abdomen, elbows or knees.
. Do not stretch the back muscles for more than approx. 15 minutes at one time.
To avoid overstretching of muscles and resulting discomfort when first using the chair,
do not use for more than 5 minutes. You can gradually increase duration and intensity
as you adjust to the chair.
Do not massage any one point for longer than 5 minutes at a time.
Excessive massaging can overstimulate the muscles and nerves and result in an
adverse effect.
To prevent excessive massaging, do not use the massager for more than a total of 15
minutes per session. After approx. 15 minutes, the massage heads will return to the
"restore" position and stop.
. While using the massager, if you start feeling sick, or if the massage seems painful,
stop use immediately.
While using the massager, if the pressure seems too strong, the movement of the
massage heads can be stopped by pressing the stop button.
. When the chair back is in a reclined position, do not sit on it, or sit with your legs resting
on the headrest.
Do not sit on the legrest. The chair may fall over.
. Do not allow children or pets to play on, or around, the chair, especially during
operation.
. Do not remove the back cushion without first reading instructions on page 17.

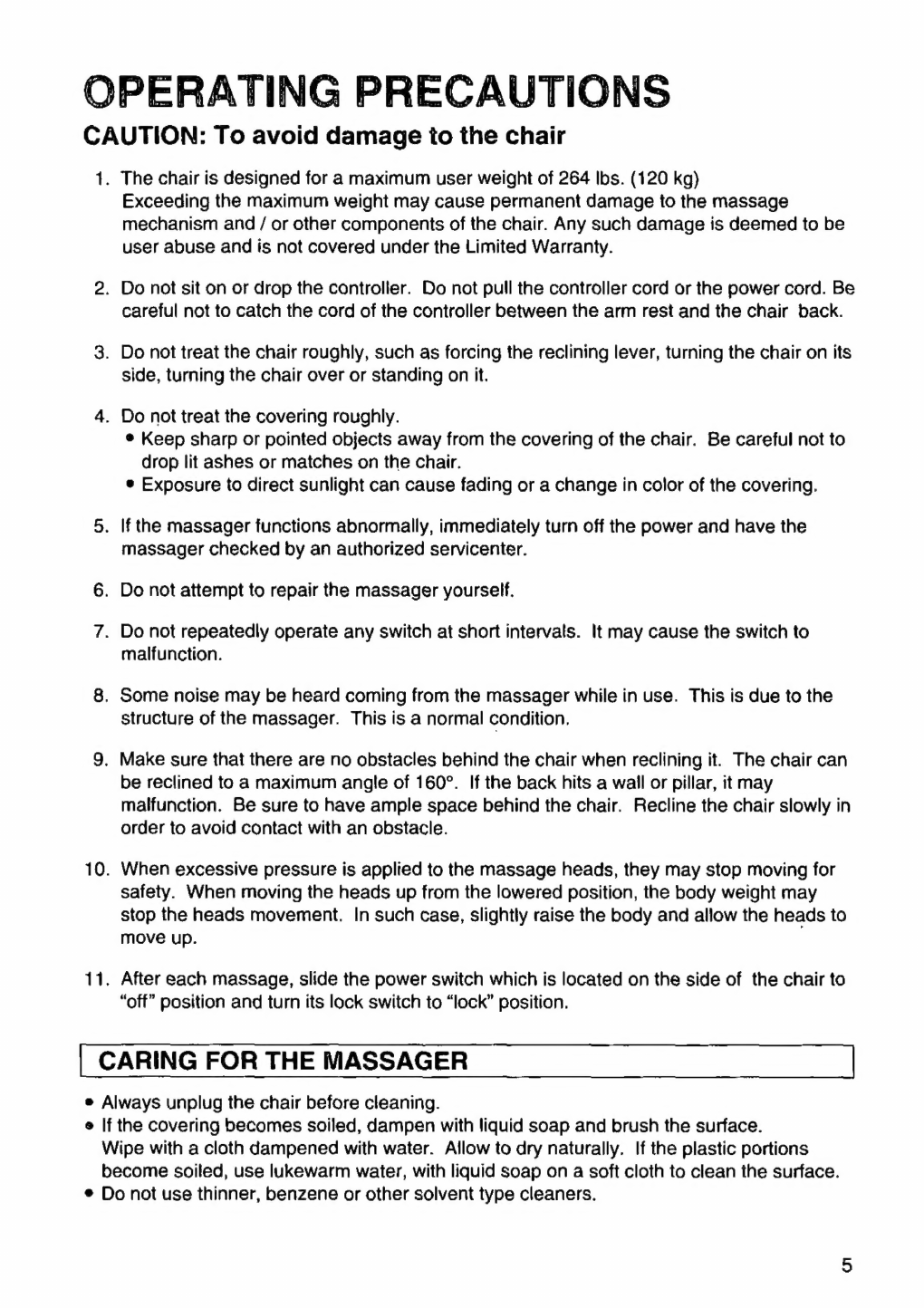

OPERATING PRECAUTIONS
CAUTION: To avoid damage to the chair
1. The chair is designed for a maximum user weight of 264 lbs. (120 kg)
Exceeding the maximum weight may cause permanent damage to the massage
mechanism and / or other components of the chair. Any such damage is deemed to be
user abuse and is not covered under the Limited Warranty.
2. Do nat sit on or drop the controller. Do not pull the controller cord or the power cord. Be
careful not to catch the cord of the controller between the arm rest and the chair back.
3. Do not treat the chair roughly, such as forcing the reclining lever, turning the chair on its
side, turning the chair over or standing on it.
4. Do nat treat the covering roughly.
* Keep sharp or pointed objects away from the covering of the chair. Be careful not to
drop lit ashes or matches on the chair.
* Exposure to direct sunlight can cause fading or a change in color of the covering.
5. If the massager functions abnormally, immediately turn off the power and have the
massager checked by an authorized servicenter.
6. Do not attempt to repair the massager yourself.
7. Do not repeatedly operate any switch at short intervals. It may cause the switch to
malfunction.
8. Some noise may be heard coming from the massager while in use. This is due to the
structure of the massager. This is a normal condition.
9. Make sure that there are no obstacles behind the chair when reclining it. The chair can
be reclined to a maximum angle of 160°. If the back hits a wall or pillar, it may
malfunction. Be sure to have ample space behind the chair. Recline the chair slowly in
order to avoid contact with an obstacle.
10. When excessive pressure is applied to the massage heads, they may stop moving for
safety. When moving the heads up from the lowered position, the body weight may
stop the heads movement. In such case, slightly raise the body and allow the heads to
move up.
11. After each massage, slide the power switch which is located on the side of the chair to
"off" position and turn its lock switch to "lock" position.
CARING FOR THE MASSAGER
e Always unplug the chair before cleaning.
e |f the covering becomes soiled, dampen with liquid soap and brush the surface.
Wipe with a cloth dampened with water. Allow to dry naturally. If the plastic portions
become soiled, use lukewarm water, with liquid soap on a soft cloth to clean the surface.
e Do not use thinner, benzene or other solvent type cleaners.

GROUNDING INSTRUCTIONS
This product must be grounded. If it should malfunction or breakdown, grounding provides
a path of least resistance for electric current to reduce the risk of electric shock.
This product is equipped with a cord having an equipment-grounding conductor and a
grounding plug. The plug must be plugged into an appropriate outlet that is properly
installed and grounded in accordance with all local codes and ordinances.
DANGER
Improper connection of the equipment-grounding conductor can result in a risk of electric
shock. Check with a qualified electrician if you are in doubt as to whether the product is
properly grounded. Do not modify the plug provided with the product even if it does not fit
the outlet. Have a proper outlet installed by a qualified electrician.
This product is for use on a nominal 120-volt circuit and has a grounding plug that looks like
the plug illustrated in Figure A. Make sure that the product is connected to an outlet
having the same configuration as the plug. No adaptor should be used with this product.
Figure A
5—— GROUNDED
OUTLET
GROUNDING
PIN

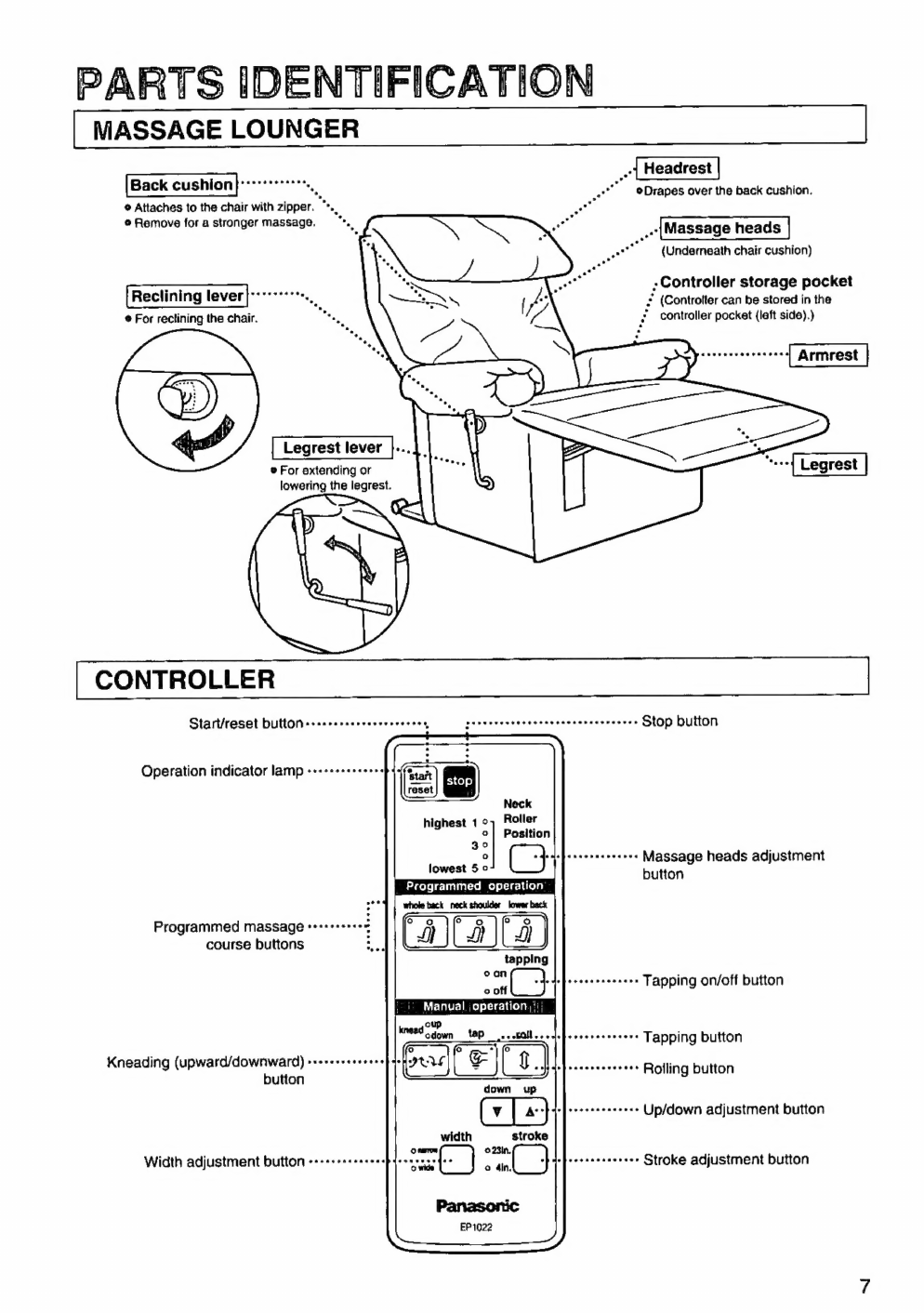

PARTS IDENTIFICATION
MASSAGE LOUNGER
e
7
..]
Headrest
Hess
i
A
oDrapes
over
the
back
cushion.
o Attaches to the chair with zipper. ™.,
[Massage heads
9 Remove for a stronger massage.
"(Underneath chair cushion)
;Controller storage pocket
7 (Controller can be stored in the
e
For
din"
the
chair.
Tus
"
controller
pocket
(left
side).)
D
ZN
€.
0
Nee
RASEN
[Armrest
|
e
For
egrest
tever
or
"-=-[
Legrest
|
lowering the legrest.
[Reclining
lever]
[Reclining
lever]
waves
ette
i
CONTROLLER
Start/reset button ++..».»..»....... TP pee OPEN TENTE TEE EC ERP EEE Stop button
Operation indicator lamp +++...
highest 1 oy Roller
o| Position
i $ | (+ did Massage heads adjustment
owest — button
Programmed operation
Programmed massage +++...
course buttons Al
ZILIIIL Tapping on/off button
sense Tapping button
Kneading (upward/downward) ------ ess d MES OM
buted Rolling button
sense Up/down adjustment button
Width adjustment button +++++e...cespiessrsne 3 ia pforsacocaniiso Stroke adjustment button
EP1022

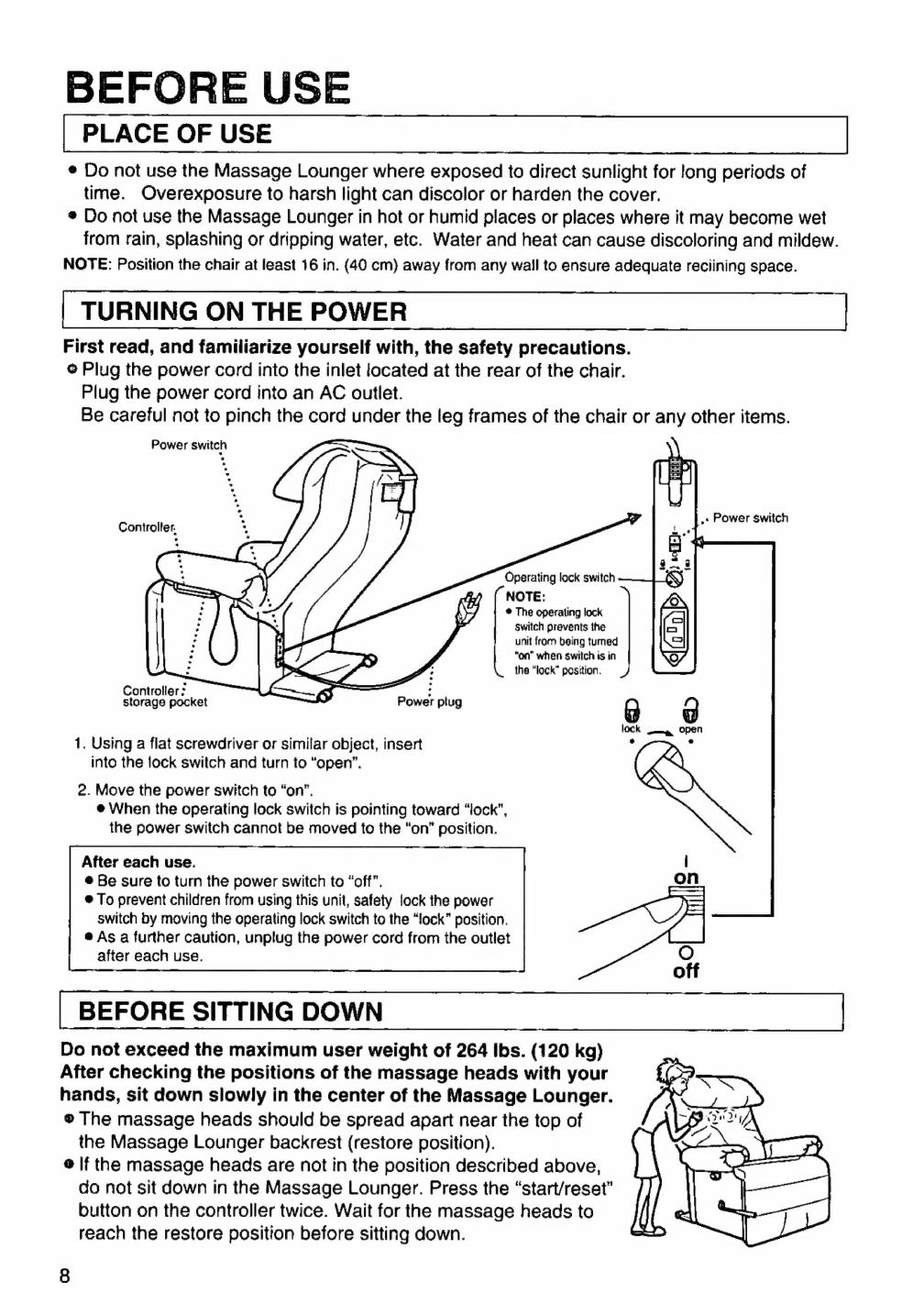

BEFORE USE
e Do not use the Massage Lounger where exposed to direct sunlight for long periods of
time. Overexposure to harsh light can discolor or harden the cover.
* Do not use the Massage Lounger in hot or humid places or places where it may become wet
from rain, splashing or dripping water, etc. Water and heat can cause discoloring and mildew.
NOTE: Position the chair at least 16 in. (40 cm) away from any wall to ensure adequate reciining space.
TURNING ON THE POWER
First read, and familiarize yourself with, the safety precautions.
9 Plug the power cord into the inlet located at the rear of the chair.
Plug the power cord into an AC outlet.
Be careful not to pinch the cord under the leg frames of the chair or any other items.
Power Switch
Control!
,»
Power
switch
ontroller.
Operating lock switch
NOTE:
* The operating lock
Switch prevents the
unit from being turned
“on” when switch is in
the "lock" position.
Controller?
storage pocket
Power plug
1. Using a flat screwdriver or similar object, insert
into the lock switch and turn to “open”.
2. Move the power switch to "on".
e When the operating lock switch is pointing toward "lock",
the power switch cannot be moved to the "on" position.
After each use.
€ Be sure to turn the power switch to "off",
e To prevent children from using this unit, safety lock the power
switch by moving the operating lock switch to the “lock” position.
e As a further caution, unplug the power cord from the outlet
after each use. O
BEFORE SITTING DOWN
Do not exceed the maximum user weight of 264 Ibs. (120 kg)
After checking the positions of the massage heads with your
hands, sit down slowly in the center of the Massage Lounger.
9 The massage heads should be spread apart near the top of
the Massage Lounger backrest (restore position).
9 |f the massage heads are not in the position described above,
do not sit down in the Massage Lounger. Press the "start/reset"
button on the controller twice. Wait for the massage heads to
reach the restore position before sitting down.

MASSAGE HEADS” RANGE MOVEMENT
The width between the massage heads can be adjusted for tapping, rolling, regional rolling,
tapping rolling massage and regional tapping rolling massage.
The heads can be set at different widths for a wide range, giving you a massage any place
you like from the neck to the lower back.
<UPWARD, DOWNWARD, KNEADING ROLLING, AND REGIONAL KNEADING ROLLING>
Massage range width : 2 15/16 in. (75 mm) (width cannot be adjusted)
Neck —————————»
2 15/16 in. (75 mm)
(Minimum width)
23 1/16 in. (600 mm)
Lower back
«TAPPING, ROLLING, REGIONAL ROLLING, TAPPING ROLLING AND REGIONAL
TAPPING ROLLING»
Massage range width : 3 5/16 in. or 4 5/16 in. (85 mm or 110 mm)
Neck ——_———————_»
3 5/16 in. (85 mm)
4 ss in (110,mm). 23 1/16 in. (600 mm)
Lower back

HOW TO USE
Before using, first read all the instructions including the warnings, safety and operating precautions as well as
the section on programmed and manual massage.
«BEGINNING OPERATION»
1. To operate the massager, press the "start/reset" button.
9 Check to be sure the operation indicator lamp is lit.
Operation indicator
lamp
highest 1 o, Roller
9| Position
go
o
lowest 5 o
2. If you wish to stop the massage "immediately" press the "stop" button.
The massage heads will stop where they are.
e Check to be sure the operation indicator lamp goes out. To resume massage, press the "start/reset"
button.
o
start
E FOR
Neck
highest 1 oy Roller
o| Position
go
o
lowest 5o
3. After final use, press the "start/reset" button.
e The massage heads will go up, spread out and stop in the restore position. With the heads in this
position you can sit comfortably, using the massager as a regular chair.
€ Be sure to store the controller in the pocket on the side of the left arm rest when not in use.
Operation indicator S
ue Dems
P Neck
highest 1° Roiler
1 Positlon
C)
go
o
lowest 5 ©
Automatic timer for massage lounger
e To prevent excessive massage there is a built-in timer which, after approx. 15 minutes of operation, will
automatically return the massage heads to the "restore” position and stop their motion.
e Turning on the operation switch while the massage heads are moving to the “restore” position will reset
the time for another 15 minutes (approximately).
e |f the programmed massage button is pressed, the unit will stop after finishing the program.
10
