Panasonic KX-NCP500 User manual

Model No. KX-NCP500
KX-NCP1000
Pure IP-PBX
Quick Reference Guide for
Communication Assistant
Thank you for purchasing a Panasonic Pure IP-PBX.
Please read this manual carefully before using this product and save this manual for future use.
KX-NCP500/KX-NCP1000: PBMPR Software File Version 1.0000 or later
In this manual, the suffix of each model number is omitted (e.g., KX-NCP500NE).

Introduction
Communication Assistant (CA) is a Computer Telephony Integration (CTI) application that integrates with your
Panasonic PBX, and allows you to perform many telephone operations from your PC.
About the Quick Reference Guide
This Quick Reference Guide is designed to serve as an overview of the features, setup and installation of
Communication Assistant.
The Quick Reference Guide is divided into the following sections:
1 Specifications
This section provides general information about the features in Communication Assistant.
2 System Connection Diagram
This section shows how Communication Assistant fits into your network.
3 System Requirements
This section provides the minimum and recommended system requirements for installing
Communication Assistant on a PC.
4 Software Installation
This section explains how to install and uninstall Communication Assistant.
IMPORTANT
CA stores personal information. In order to prevent data theft and leakage, we recommend the following:
•Set a password-protected screensaver to activate after your computer has been idle for a set amount
of time.
•When users change extensions, desks, etc., make sure that the access rights for their previous and
new extensions are correct.
•Use Windows Update to keep your system up-to-date with the latest software patches.
•Set a login password that is at least 5 characters long, and contains a combination of letters and
numbers.
Trademarks:
•Microsoft, Internet Explorer, Outlook, Windows, and Windows Vista are either registered trademarks or
trademarks of Microsoft Corporation in the United States and/or other countries.
•Intel, Celeron and Pentium are trademarks of Intel Corporation in the U.S. and other countries.
•All other trademarks identified herein are the property of their respective owners.
•Microsoft product screen shots reprinted with permission from Microsoft Corporation.
2 Quick Reference Guide for Communication Assistant
Introduction

Table of Contents
1 Specifications ...........................................................................................4
2 System Connection Diagram ................................................................11
3 System Requirements ...........................................................................12
4 Software Installation ..............................................................................13
4.1 Installing and Starting Communication Assistant .......................................................13
4.2 Uninstalling Communication Assistant ........................................................................15
Quick Reference Guide for Communication Assistant 3
Table of Contents

1 Specifications
Features
Contact List with Presence
You can easily make calls using a customisable contact list that is displayed on your PC, and search for a
desired contact simply and quickly. You can also see the phone status, PC status, and the absent message
of other extensions from the contact list before you make a call.
CA Pro Contact List CA Basic Contact List Presence Window
•When you receive a call, information about the caller is displayed if it is registered in the contact list.
•While you are logged in, if you do not use your PC for a set amount of time, your absent message will be
automatically set to the current weekday and time of your PC.
•The colour of the PC icon in the contact list shows the contact’s login status:
: The user is logged in.
: The user is logged in, but the auto absent message has been set.
: The user is not logged in.
CRM Integration
You can make calls directly from CRM (Customer Relationship Management) software using TAPI.
You can also make calls with Microsoft® Office Outlook® 2003/2007 without using TAPI. When you install CA
on a PC, a new toolbar containing the Dial box, Answer button and Hang-up button is added to Outlook.
Note
This feature may not work with some CRM software depending on the software’s specifications.
Call History
You can view your incoming and outgoing call history. Information such as the destination and duration of the
call, the time of the call, and whether the call was answered is displayed for each call.
4 Quick Reference Guide for Communication Assistant

You can also save the history list to a CSV file.
Absent Message/Forward/Do Not Disturb
You can change the absent message, forward, and do not disturb (DND) settings of your extension.
When you change your absent message, your forward/DND settings can be changed automatically, and a
feature number, such as “Extension dial lock” can be dialled automatically.
Call Control
When a conversation starts, operation buttons are automatically displayed on your PC for telephone functions
such as transferring a call, holding a call, and establishing a conference.
IP Camera Integration (Panasonic HX-HCM/BB-HCM/BL-C series cameras)
If a Panasonic IP Camera is available on the network, you can view images or streaming video from the IP
camera while talking with the other party (e.g., extension, doorphone).
Note
This feature requires Internet Explorer® version 6.0 or higher.
Voice Processing System (VPS) Integration
You can record conversations to voice mail automatically or manually. When a message is left on your mailbox,
a message waiting indication is displayed.
Voice Mail Assistant Integration
By clicking the message waiting icon and selecting Call Voice Mail, you can operate your voice mail from the
PC with Voice Mail Assistant.
•In order to use Voice Mail Assistant, the VM IP address must be set correctly.
•Voice Mail Assistant uses 2 fixed ports: 20000 and 20001.
•You can customise your mailbox, such as setting the notification schedule.
Quick Reference Guide for Communication Assistant 5

Note
This feature requires voice mail firmware version 2.1 (main software version 2.50 or later).
IP Softphone
You can use the built-in IP Softphone. A KX-NCS32xx activation key must be installed in your PBX.
You can record all phone conversations to your PC if a KX-NCS81xx licence is installed in your PC.
Chat
You can start a text chat session with other CA users. This feature is useful for tasks such as confirming whether
a colleague is available for a phone conversion.
•A chat session uses 1 available port in the range 42525–42534.
System Speed Dial Control
If you log in at an extension that is assigned as a manager in its class of service (COS) settings on the PBX,
you can add, edit and delete entries in the Speed Dial list.
You can also copy entries from the call history.
6 Quick Reference Guide for Communication Assistant

Supervisor Features
If you log in to CA in supervisor mode, you can monitor the status of incoming call distribution (ICD) groups,
listen in on conversations, take over calls, and perform other supervisory functions.
Note
•To use the listen-in function, your extension must have “Call Monitor” enabled in its class of service
(COS) settings on the PBX.
•To use the busy override/take over functions, your extension must have “Busy Override” enabled in its
class of service (COS) settings on the PBX.
Feature Comparison
CA has 3 operating modes: Basic, Pro, and Supervisor. The following table summarises the features available
for each mode.
Feature Basic Pro Supervisor
View other extensions’ presence from main menu No Yes Yes
Maximum number of contacts 10 1000 1000
Maximum history length 10 calls 1000 calls 1000 calls
ICD group login/logout No Yes Yes
Listen-in/Busy override/Take over No No Yes
ICD group supervisor No No Yes
Note
•A CA activation key for the desired number of users must be registered in the PBX. See the
KX-NCP500/KX-NCP1000 Installation Manual for details about the activation keys.
Quick Reference Guide for Communication Assistant 7

•You must enable CA mode for the extensions that will use CA in the PBX settings.
•To use Supervisor mode, you must set the appropriate extension as an ICD group supervisor in the
PBX settings.
•CA Pro has a 60-day trial mode, where you can use all of the features of CA Pro without installing an
activation key (CA Pro trial). The 60-day trial period begins once you have installed CA on a PC.
•Up to 5 users can use CA Basic without installing an activation key.
Login Capabilities
A total of 128 users can simultaneously log in to CA.
The following table shows the maximum number of users that can simultaneously log in for each mode.
Login Mode/Software No. of Users
CA Basic 128
CA Pro 128
CA Pro trial 2
CA Supervisor 4
Dial Modification
When you make an external call from the contact list or a CRM application, or copy an external phone number
to CA from another application, the number is modified according to the dial modification settings.
Example
Copy a telephone number on another application software.
Paste the number into CA’s dial box by pressing CTRL+V.
8 Quick Reference Guide for Communication Assistant

The telephone number is modified automatically, as programmed by the user.
1. On the Go To menu, select Options, and then select Dial Modification.
The following window is displayed:
A
B
C
A
Minimum digits of public telephone number
Specifies the minimum number of digits required to treat the dialled number as an external telephone
number. If the number of digits dialled is less than the specified value, it will not be treated as an external
call. The default value is 7. For example, a number is treated as below by default.
1234576 = 7 digits ® External telephone number
123456 = 6 digits ® Not an external telephone number
B
Remove “(0)” check box
Deletes the string “(0)” from a copied external telephone number.
[Example]
[phone]P12 ® [phone]P12
C
Telephone Number Modification
A dialled number is modified according to the Telephone Number Modification table.
[Example]
Dial Modification Settings
No. Leading Digits to Remove
(Max. 16 digits)
Added Number
(Max. 8 digits)
1 +8192
2 +81 0
3 + 001
4 092
Modifications
Dialled Number Corresponding
Table No.
Removed
Digits
Added
Digits Modified Number
[phone] +8192 — 123-4567
Quick Reference Guide for Communication Assistant 9

Dialled Number Corresponding
Table No.
Removed
Digits
Added
Digits Modified Number
[phone] [phone]
[phone] + 001 001-44-66-111-4444
092-111-8888 4 092 — 111-8888
2. Configure Minimum digits of public telephone number, Remove “(0)”, and the Telephone Number
Modification table as desired.
3. Click OK.
Conditions
•Digital proprietary telephones (DPTs), analogue proprietary telephones (APTs), IP proprietary telephones
(IP-PTs), IP softphones, portable stations (PSs), and single line telephones (SLTs) can be used with CA.
•If you log in to CA using an SLT extension, you cannot use the answer call, hold retrieve, busy override,
listen in, TRS change, or call waiting functions in CA.
•Call control functions, including making calls, are not supported with a PS.
•The following are not supported in CA:
–Call handling with a PS in Wireless XDP Parallel mode
–Calls using the PDN/SDN button
–Voice Mail Assistant for Centralised Voice Mail
•When logging in to CA, if you enter the wrong password for a given extension number a pre-programmed
number of times, the CA password will be locked. When this happens, the extension PIN is also locked.
When the PIN lock is cleared by using PT Manager programming, the CA password and CA password lock
are also cleared.
•The VM menu feature for a display PT should be disabled in the class of service (COS) settings on the
voice processing system (VPS). If it is not disabled, you cannot record a VM greeting message in CA.
•If the PBX settings are changed, you must restart CA in order for the changes to be reflected in CA.
•Calls that you make or receive from your extension when you are not logged in to CA are not recorded in
the call history.
•The contents and design of the software are subject to change without notice.
10 Quick Reference Guide for Communication Assistant

2 System Connection Diagram
The figure below illustrates an example network setup using CA.
1
2
3
4
5
7
8
9
6
6
10
Remote Office
A
Telephone Company
B
Panasonic KX-NCP Series PBX
C
LAN
D
Panasonic Network Camera
E
Voice Processing System
F
PC running CA
G
Proprietary Telephone or Single Line Telephone
H
Doorphone and Door Opener
I
IP Proprietary Telephone
J
PC running CA with Softphone
Quick Reference Guide for Communication Assistant 11

3 System Requirements
The table below summarises the minimum and recommended requirements for running CA.
Minimum Recommended
CPU 1.0 GHz Intel® Pentium®/Celeron® process-
or or comparable CPU
2.0 GHz Intel Pentium/Celeron processor
or comparable CPU
RAM 128 MB 1024 MB
OS Microsoft Windows® XP Professional
Service Pack 2 or later
Windows Vista®
Windows XP Professional Service Pack 2
or later
Windows Vista
Hard Disk 1.5 GB available space 2.0 GB available space
Video Resolution 1024 ´ 768 1280 ´ 1024
Interface 10Base-T 10/100Base-T
12 Quick Reference Guide for Communication Assistant

4 Software Installation
4.1 Installing and Starting Communication Assistant
Note
When you start CA, make sure you are logged in to an account that has administrator privileges.
1. Double-click “Setup.exe”, and follow the on-screen guidance to install CA.
2. When you start CA for the first time, the screen below is displayed.
Select the display language, and enter your international call access number and international area code.
You must enter your international area code in order to proceed.
Select your operating mode:
•Standard user (CA Pro): Log in using Pro mode.
•Standard user (CA Basic): Log in using Basic mode.
•ICD Group Supervisor (CA Supervisor): Log in using Supervisor mode.
Note
See Feature Comparison (Page 7) for a summary of the different modes.
3. Click Save.
Quick Reference Guide for Communication Assistant 13
4.1 Installing and Starting Communication Assistant

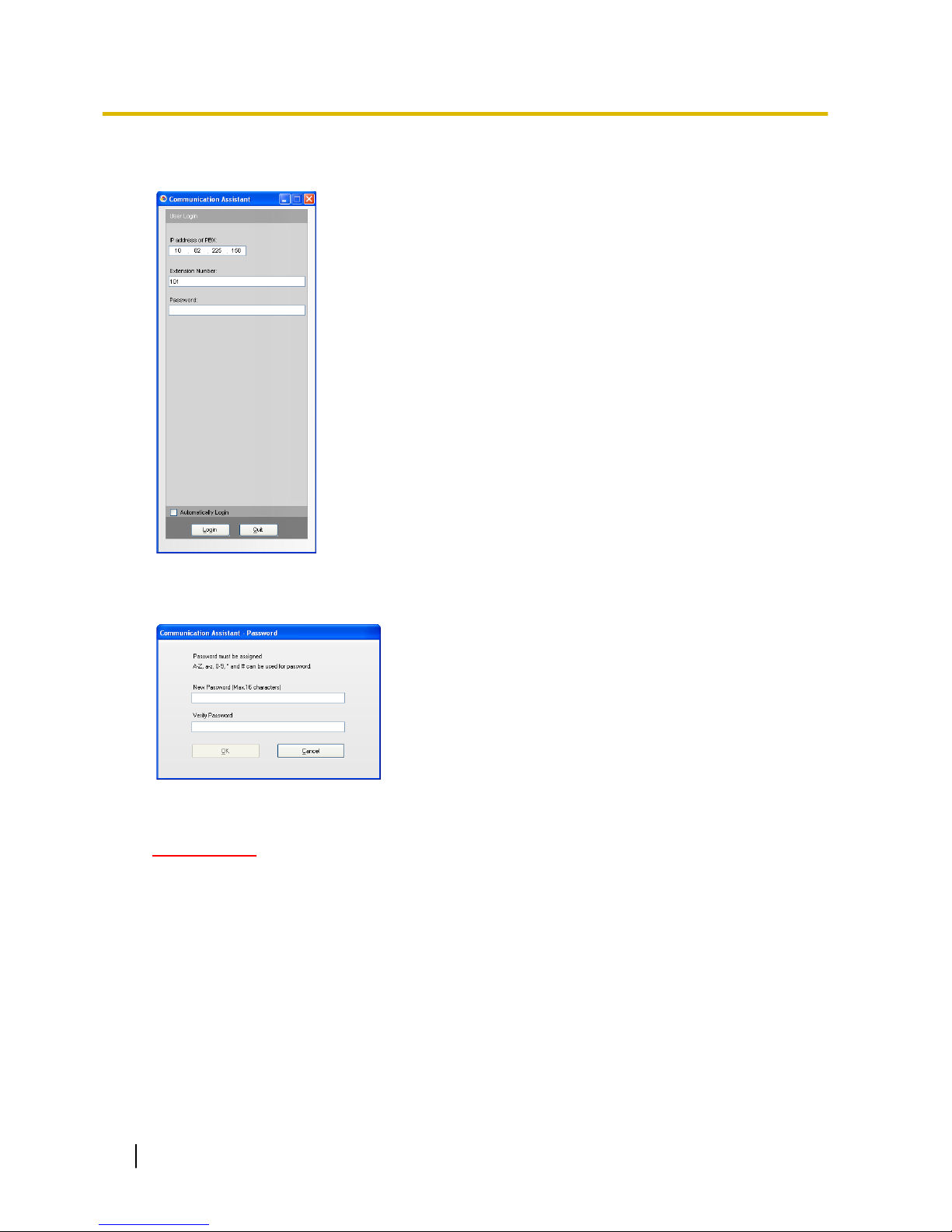

4. Enter the IP address of the PBX you are connecting to, your extension number, and password.
If this is the first time you are logging in for the extension, leave the password blank.
5. If you are allowed to log in with a blank password, a dialogue box is displayed prompting you to create a
password. Enter a password in New Password, and then re-enter it in Verify Password.
Click OK.
IMPORTANT
In order to prevent unauthorised access to your CA account, enter a password that is at least 5
characters long, and contains a combination of letters and numbers.
14 Quick Reference Guide for Communication Assistant
4.1 Installing and Starting Communication Assistant

After you have entered a new password, the CA main screen is displayed.
4.2 Uninstalling Communication Assistant
1. To uninstall CA, perform one of the following procedures.
•On the Start menu, point to All Programs ® Panasonic ® Communication Assistant, and select
Uninstall.
•From the Control Panel, double-click Add or Remove Programs, select Communication
Assistant, and then click Remove.
Quick Reference Guide for Communication Assistant 15
4.2 Uninstalling Communication Assistant

Panasonic Communications Co., Ltd.
1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan
Copyright:
This material is copyrighted by Panasonic Communications Co., Ltd., and may be reproduced for internal use only.
All other reproduction, in whole or in part, is prohibited without the written consent of Panasonic Communications
Co., Ltd.
© 2008 Panasonic Communications Co., Ltd. All Rights Reserved.
PSQX4923ZA KK0808MP0
