Product Name : DLP™Projector
SPEC FILE
Product Number : PT-LW271
As of August 2013. Specifications and appearance are subject to change without notice.
SFD13M011-1

SPEC FILE
DLP™Projector
2/12
PT-LW271
As of August 2013
SFD13M011-1
Main unit
Power supply
Power consumption
DLP™ chip Panel size
Display method
Pixels
Lens
Lamp
Screen size
Brightness*3
Center-to-corner uniformity*3
Contrast*3
Resolution
RGB
YPBPR(YCBCR)
Video
Optical axis shift
Keystone correction range
Installation
Terminals HDMI IN
COMPUTER 1/2 IN
R, G, B
Y, P B(CB), PR(CR)
VIDEO IN
MONITOR OUT
AUDIO 2 IN
SERIAL IN
100−240 V AC, 50/60 Hz
220 W (0.5 W when STANDBY MODE set to ECO*1, 6.0 W when
STANDBY MODE set to NORMAL.*2 )
16.5 mm (0.65 inches) diagonal (16:10 aspect ratio)
DLP™ chip × 1, DLP™ system
1,024,000 (1,280 × 800) pixels
Manual zoom 1.1× (1.55–1.70:1 throw ratio), manual focus,
F 2.5–2.67, f 21.8 – 24.0 mm
190 W UHM lamp × 1
0.76–7.62 m (30– 300 inches), 16:10 aspect ratio
2,700 lumens (Lamp Power : Normal, Color Mode : Dynamic)
80%
7,500:1 (full on/off, Lamp Power: AUTO, input signal: RGB,
Color Mode: Dynamic)
1,280 x 800 pixels (Input signals that exceed this resolution will be
converted to 1,280 x 800 pixels.)
fH: 15 kHz – 91.1 kHz, fV: 24 Hz–85.1 Hz, dot clock: 162 MHz or lower
Scanning frequency HDMI fH: 15 kHz – 91.1 kHz, fV: 24 Hz– 85.1 Hz, dot clock 25–162 MHz
525i (480i): fH15.75 kHz; fV60 Hz,
625i (576i): fH15.63 kHz; fV50 Hz,
525p (480p): fH31.50 kHz; fV60 Hz,
625p (576p): fH31.25 kHz; fV50 Hz,
750 (720)/60p: fH45.00 kHz; fV60 Hz,
750 (720)/50p: fH37.50 kHz; fV50 Hz,
1125 (1080)/60i: fH33.75 kHz; fV60 Hz,
1125 (1080)/50i: fH28.13 kHz; fV50 Hz,
1125 (1080)/24p: fH27.00 kHz; fV24 Hz,
1125 (1080)/60p: fH67.50 kHz; fV60 Hz,
1125 (1080)/50p: fH56.25 kHz; fV50 Hz
fH: 15.75 kHz, fV: 60 Hz [NTSC/NTSC4.43/PAL-M/PAL60]
fH: 15.63 kHz, fV: 50 Hz [PAL/PAL-N/SECAM]
10:-1.2
Vertical: ±40° (manual)
Ceiling/floor
HDMI 19-pin x 1 (Deep Color, compatible with HDCP)
, front/rear
D-sub HD 15-pin (female) × 2,
G: 0.7 Vp-p (1.0 Vp-p for sync on G), 75 ohms;
B, R: 0.7 Vp-p, 75 ohms;
HD/VD, SYNC: high impedance, TTL (positive/negative)
Y: 1.0 Vp-p (including sync signal);
PB(CB), PR(CR): 0.7 Vp-p, 75 ohms
Pin jack × 1, 1.0 Vp-p, 75 ohms
D-sub HD 15-pin (female) × 1
M3 (L, R) × 1, 0.5 Vrms (for VIDEO)
AUDIO 1 IN M3 (L, R) × 1, 0.5 Vrms (for COMPUTER)
AUDIO OUT Mini jack × 1 (monitor out: 0– 2.0 Vrms, variable)
D-sub 9-pin (female) × 1 for external control (RS-232C compliant)
LAN RJ-45 × 1 for network connection, 100Base-TX/10Base-T,
compliant with PJLink™ (class 1)
525i(480i)*4, 625i(576i)*4, 525p (480p), 625p (576p), 750 (720)/60p,
750 (720)/50p, 1125 (1080)/60i, 1125 (1080)/50i, 1125 (1080)/24p,
1125 (1080)/60p, 1125 (1080)/50p, VESA CVT-RB compliant
VGA (640 × 480) – UXGA (1,600 × 1,200), Audio signal: linear
PCM (sampling frequencies: 48 kHz, 44.1 kHz, 32 kHz)
Specifications

SPEC FILE
DLP™Projector
3/12
PT-LW271
As of August 2013
SFD13M011-1
Remote control unit
Power supply
Operation range*7
Dimensions (W × H × D)
Weight
Supplied accessories
Optional accessories
Ceiling mount bracket
3 V DC (Lithium coin cell battery x 1)
Approx. 8 m (26 ft 3 in) when operated from directly in front of the sig-
nal receptor
40.6 x 86.5 x 7.2 mm (1-19/32 × 3-13/32 × 9/32 inches)
Approx. 23 g (0.8 oz) (including battery)
Power cord (× 1) (× 2 for PT-LW271EA)
Wireless remote control unit (× 1)
Battery for remote control (CR2025 type × 1)
Computer cable (for VGA) (× 1)
ET-PKV100H (for high ceilings)
ET-PKV100S (for low ceilings)
Attachment for ceiling mount bracket ET-PKL300B
Replacement lamp unit ET-LAL330
Weights and dimensions shown are approximate. Specifications and appearance are subject to change without notice.
*1 When [VGA Out (Standby)] / [In Standby Mode (Audio)] are all set to [Off].
*2 When [VGA Out (Standby)] / [In Standby Mode (Audio)] are all set to [On].
*3 Measurement, measuring conditions, and method of notation all comply with ISO 21118 international standards.
*6 With lens at shortest position.
*7 Operation range differs depending on environments.
*5 With legs at shortest position.
*4 Only compatible with dot clock frequency of 27 MHz (pixel repetition signal)
Dimensions (W × H × D)
Weight
Operation noise*3
Operating temperature
Operating humidity
288 × 100*5× 231* 6mm (11-11/32 × 3-15/16*5× 9-3/32* 6inches)
Approx. 2.5 kg (5.5 lbs)
34 dB (LAMP POWER: NORMAL), 29 dB (LAMP POWER: ECO)
5°C – 40°C (41°F – 104°F) [Less than 750 m (2,500 ft) above sea level];
5°C – 35°C (41°F – 95°F) [750 – 1,500 m (2,500 – 5,000 ft) above sea level]
5°C – 30°C (41°F – 86°F) [1,500 – 3,000 m (5,000 – 10,000 ft) above sea level]
20%–80% (no condensation)
Built-in speaker
Power cord length
Cabinet materials
7 × 4 cm Oval x1 output power 8 W (Monaural)
1.8 m (5 ft 11 in) (2.0m (6 ft 7 in) for PT-LW271U)
Molded plastic (PC)

SPEC FILE
DLP™Projector
4/12
PT-LW271
As of August 2013
SFD13M011-1

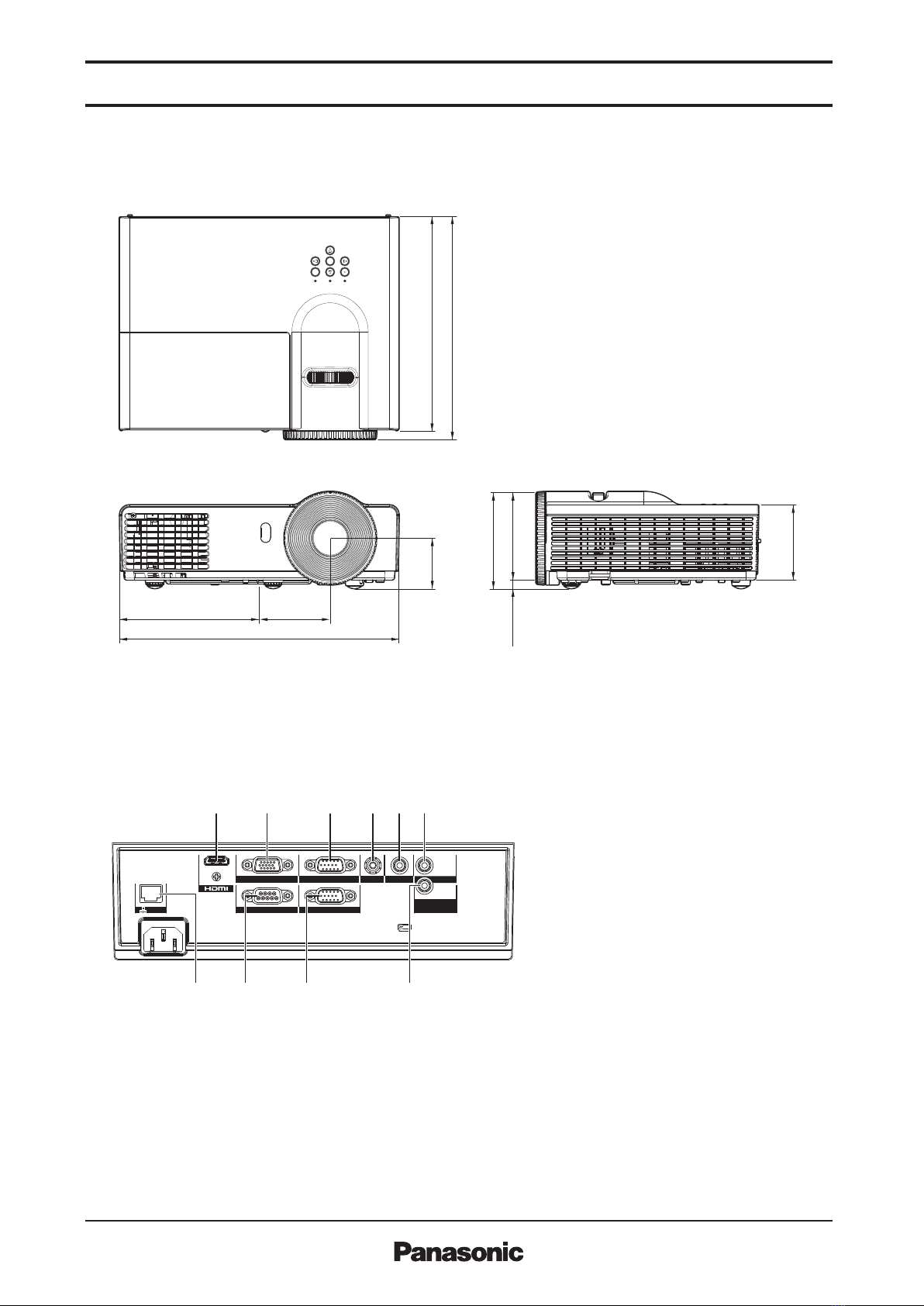

Dimensions
Terminals
1 HDMI input
2 Monitor output
3 Computer 1 input
4 Video input
5 Audio 2 input for VIDEO
6 Audio 1 input for COMPUTER
7 LAN connector
8 Serial input
9 Computer 2 input
10 Audio output
unit : mm (inch)
NOTE: This illustration is not drawn to scale.
COMPUTER 1 IN
COMPUTER 2 IN
VIDEO IN
SERIAL IN
MONITOR OUT
LAN
IN
AUDIO 1 IN AUDIO 2 IN
VARIABLE
AUDIO OUT
288 (11-11/32)
73 (2-7/8)144 (5-21/32)
220 (8-21/32)
231−236 (9-3/32−9-9/32)
52(2-1/16)
77(3-1/32)
91(3-19/32)9(11/32)
100(3-15/16)
2 3 4 5 61
10987

SPEC FILE
DLP™Projector
5/12
PT-LW271
As of August 2013
SFD13M011-1
unit : mm (inch)
NOTE:
Illustrations show the projector
installed using optional ceiling mount
bracket ET-PKV100H and attachment
ET-PKL300B.
This illustration is not drawn to scale.
Caution:
• All construction work should be done by a qualified technician.
• When mounting to the ceiling, use the special mounting bracket. Furthermore, in order to prevent it from falling
down from the ceiling, use the supplied wire on the mounting bracket.
Standard setting-up position
Lower edge of projected image
Upper edge of projected image
908–1,478
(35-3/4–58-3/16)
Adjustable in
30-mm
(1-3/16-inch) step.
113 118
ø38
(1-1/2)
(4-14/32) (4-21/32)
L
L
L
HSHHSW
Screen
Screen
180.2
(7-3/32)
176
(6-15/16)
140
(5-1/2)
200
(7-7/8)
226
(8-29/32)
38
(1-1/2)

SPEC FILE
DLP™Projector
6/12
PT-LW271
As of August 2013
SFD13M011-1
0.76 m
1.02 m
1.27 m
1.52 m
1.78 m
2.03 m
2.29 m
2.54 m
3.05 m
3.81 m
5.08 m
6.35 m
7.62 m
1.0
1.3
1.7
2.0
2.3
2.7
3.0
3.3
4.0
5.0
6.7
8.3
10.0
1.1
1.5
1.8
2.2
2.6
2.9
3.3
3.7
4.4
5.5
7.3
9.2
11.0
-0.05
-0.07
-0.08
-0.10
-0.12
-0.13
-0.15
-0.17
-0.20
-0.25
-0.33
-0.42
-0.50
30˝
40˝
50˝
60˝
70˝
80˝
90˝
100˝
120˝
150˝
200˝
250˝
300˝
/
/
/
/
/
/
/
/
/
/
/
/
/
(3.3)
(4.4)
(5.5)
(6.6)
(7.7)
(8.8)
(9.9)
(11.0)
(13.1)
(16.4)
(21.9)
(27.4)
(32.9)
(3.6)
(4.8)
(6.0)
(7.2)
(8.4)
(9.6)
(10.8)
(12.0)
(14.4)
(18.0)
(24.0)
(30.0)
(36.0)
(-0.16)
(-0.22)
(-0.27)
(-0.33)
(-0.38)
(-0.44)
(-0.49)
(-0.55)
(-0.66)
(-0.82)
(-1.10)
(-1.37)
(-1.64)
Projection size
[diagonal]
Projection distance [L]
Min [wide] Max [telephoto]
Height from the edge of screen
to center of lens [H]
Projection distance for 16:10 aspect ratio screen
unit: meters (feet)
0.76 m
1.02 m
1.27 m
1.52 m
1.78 m
2.03 m
2.29 m
2.54 m
3.05 m
3.81 m
5.08 m
6.35 m
7.62 m
1.0
1.4
1.7
2.1
2.4
2.7
3.1
3.4
4.1
5.1
6.9
8.6
10.3
1.1
1.5
1.9
2.3
2.6
3.0
3.4
3.8
4.5
5.6
7.5
9.4
11.3
-0.07
-0.10
-0.12
-0.14
-0.17
-0.19
-0.22
-0.24
-0.29
-0.36
-0.48
-0.60
-0.72
30˝
40˝
50˝
60˝
70˝
80˝
90˝
100˝
120˝
150˝
200˝
250˝
300˝
/
/
/
/
/
/
/
/
/
/
/
/
/
(3.4)
(4.5)
(5.6)
(6.8)
(7.9)
(9.0)
(10.1)
(11.3)
(13.5)
(16.9)
(22.5)
(28.1)
(33.8)
(3.7)
(4.9)
(6.2)
(7.4)
(8.6)
(9.9)
(11.1)
(12.4)
(14.8)
(18.5)
(24.7)
(30.9)
(37.1)
(-0.24)
(-0.32)
(-0.39)
(-0.47)
(-0.55)
(-0.63)
(-0.71)
(-0.79)
(-0.95)
(-1.18)
(-1.58)
(-1.97)
(-2.37)
Projection size
[diagonal]
Projection distance [L]
Min [wide] Max [telephoto]
Height from the edge of screen
to center of lens [H]
Projection distance for 16:9 aspect ratio screen
unit: meters (feet)
NOTE:
• The value for L (distance to screen) varies slightly depending on the zoom lens characteristics.
• At the shortest projection distance, the zoom lens characteristics may cause slight image distortion.

SPEC FILE
DLP™Projector
7/12
PT-LW271
As of August 2013
SFD13M011-1
Calculation of the projection distance
For a screen size different from the above, use the equation below to calculate the projection distance.
Aspect ratio 16:10
minimum L (m) = (diagonal screen size in inches) × 0.03338
maximum L (m) = (diagonal screen size in inches) × 0.03660
Aspect ratio 16:9
minimum L (m) = (diagonal screen size in inches) × 0.03429
maximum L (m) = (diagonal screen size in inches) × 0.03764
NOTE:
Distances calculated with the above equations will include a slight error.

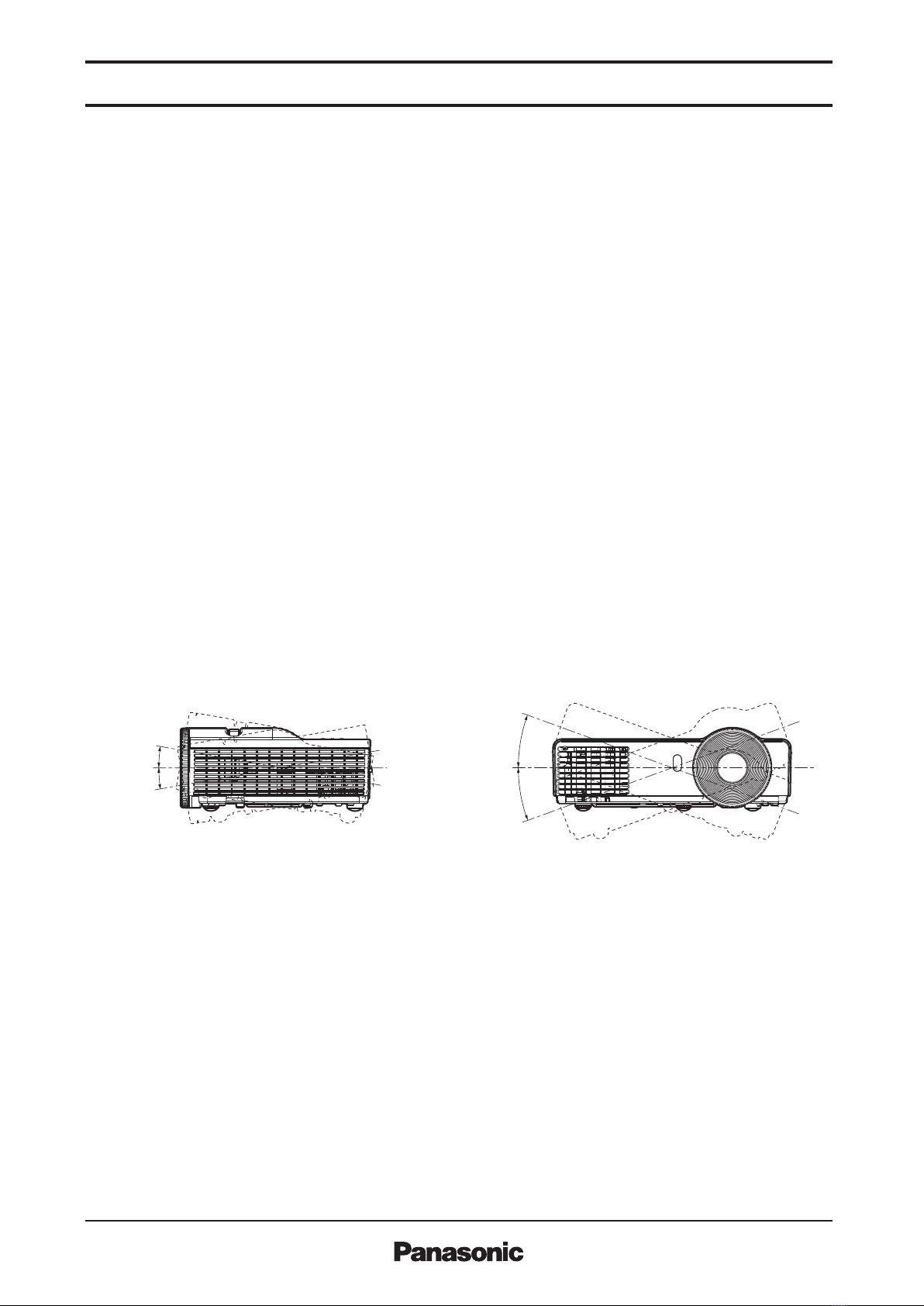

Installable angle
Install the projector at an angle within the range shown below.
• Vertical direction
The projector may be installed at a vertical
angle of 10°.
• Horizontal direction
The projector may be installed at a horizontal
angle of 20°.
–10°
+10°
–20°
+20°

SPEC FILE
DLP™Projector
8/12
PT-LW271
As of August 2013
SFD13M011-1
List of compatible signals
The signals that can be input to this projector are shown in the table below.
Display mode Display
resolution
(dots)1
Scanning frequency
H
(kHz)
V
(Hz)
Dot clock
frequency
(MHz)
Format
720 × 480i
720 × 576i
720 × 480i
720 × 576i
720 × 483
720 × 576
1280 × 720
1920 × 1080i
1920 × 1080
640 × 480
800 × 600
15.7
15.6
15.7
15.7
15.6
15.6
31.5
31.3
45.0
37.5
33.8
28.1
27.0
67.5
56.3
31.5
35.0
37.5
37.9
43.3
35.1
37.9
46.9
48.1
53.7
49.7
59.9
50.0
59.9
59.9
50.0
50.0
59.9
50.0
60.0
50.0
60.0
50.0
24.0
60.0
50.0
59.9
66.7
75.0
72.8
85.0
56.3
60.3
75.0
72.2
85.1
74.6
–
–
27.0
13.5
13.5
27.0
27.0
27.0
74.3
74.3
74.3
74.3
74.3
148.5
148.5
25.2
30.2
31.5
31.5
36.0
36.0
40.0
49.5
50.0
56.3
57.3
NTSC/NTSC4.43/PAL-M/PAL60
PAL/PAL-N/SECAM
525i (480i)
625i (576i)
525p (480p)
625p (576p)
750(720)/60p
750(720)/50p
1125(1080)/60i
1125(1080)/50i
1125(1080)/24p
1125(1080)/60p
1600 × 1200
1400 × 1050
1280 × 960
1280 × 1024
65.3
75.0
60.0
60.0
121.8
162.0
SXGA+
UXGA
1125(1080)/50p
VGA
SVGA
MAC16
VIDEO
HDMI
HDMI
YCBCR
YCBCR
HDMI/YPBPR
60.0
75.2
60.0
75.0
108.0
130.0
MSXGA
SXGA
HDMI/RGB
832 × 624
48.4
56.5
60.0
68.7
60.0
70.1
75.0
85.0
65.0
75.0
78.8
94.5
XGA
1280 × 720
1024 × 768
44.8
49.7
47.7
1280 × 800
1366 × 768
60.0
59.8
59.8
74.5
83.5
84.8
60.31280 × 768 74.9 102.3
47.81280 × 768 59.9 79.5
WXGA
64.0
91.2
60.0
85.0
108.0
157.5
80.0 75.0 135.0
68.7 75.1 100.0
MAC21 1152 × 870
*1 The “i” appearing after the resolution indicates an interlaced signal.

SPEC FILE
DLP™Projector
9/12
PT-LW271
As of August 2013
SFD13M011-1
Serial connector
The serial connector complies with RS-232C. To control the projector from a personal computer, com-
mands must be input through communication software, based on the format and satisfying the commu-
nication conditions shown below.
Communication conditions (factory setting)
Pin assignments and signal names
6
15
9
D-sub 9-pin (female) Serial input
Description
NC
Send data
Receive data
NC
Ground
Signal name
–
TXD
RXD
–
GND
No.
1
2
3
4
5
Description
NC
Connected internally
Connected internally
NC
Signal name
–
CTS
RTS
–
No.
6
7
8
9
Signal level
Synchronization method
Baud rate
Parity
Character length
Stop bit
X parameter
S parameter
RS-232C-compliant
Start-stop synchronization
19,200 bps
None
8 bits
1 bit
None
None
Cable specifications
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
7
8
9
PC (DTE)Projector
NC
NC
NC
NC
NC
NC
NC
NC

SPEC FILE
DLP™Projector
10/12
PT-LW271
As of August 2013
SFD13M011-1
* STX and ETX are character chords. STX is 02 and ETX is 03 when expressed in hexadecimal.
Basic format
Transmission from the computer begins with STX, then the ID, command, parameter, and ETX are sent
in this order. Add parameters according to the details of control.
CAUTION
• It may not be possible to send or receive commands for about 10 to 60 seconds when the lamp is first turned on. If this
occurs, wait for 60 seconds, then try sending or receiving again.
• When sending multiple commands, be sure to wait for at least 0.5 second after receiving a response from the projector before
sending the next command.
• Additional time is sometimes required for response due to processing inside the projector. Set the time-out period for com-
mand response to 10 seconds or more.
Start
(1 byte)
End
(1 byte)
Colon
(1 byte)
Colon
(1 byte)
Parameters
(undefined length)
Command
(3 bytes)
(Control and/or query commands)
STX ETXC1 P1 P2 ... PnC2 C3 ::
Control commands
Command : Parameter Function Callback
PON
POF
IIS:HD1
IIS:RG1
IIS:RG2
IIS:VID
OSH:0
OSH:1
POWER (STANDBY)
INPUT SELECT
AV MUTE
PON
POF
IIS:HD1
IIS:RG1
IIS:RG2
IIS:VID
OSH:0
OSH:1
Standby power on
Standby power off
HDMI
Computer 1
Computer 2
Video
AV mute off
AV mute on
* Do not send PON, POF or OSH commands continuously in a short period of time. Doing so may burst the lamp or shorten the lamp replacement
cycle.
* When a command that cannot be executed during standby mode is sent, the projector will send an ER401 command in reply.

SPEC FILE
DLP™Projector
11/12
PT-LW271
As of August 2013
SFD13M011-1
Status request commands
Command:Parameter Function DescriptionCallback
QPW
QSH
QIN
QVX:RTMI0
Q$L
Main power status
AV mute function status
Input signal status
Projector run time
Lamp run time
Standby
On
Standby
Off
On
HDMI
Computer 1
Computer 2
Video
00000h–99999h
0000h–9999h
000
001
0
1
HD1
RG1
RG2
VID
Q$S Lamp on status 0
1
2
3
p1p2p3p4p5
p1p2p3p4
QTM:0 Temperature status p0 = Internal temperature
p1p2p3p4/p5p6p7p8 (*1)
*1p1p2p3p4: Celsius (°C), p5p6p7p8: Fahrenheit (°F)
Command example
To s et the AV mute function off, send the command as shown below.
OSH : 0 ETX
Command
STX
Start Parameter End
NOTE: When sending commands without parameters, a colon (:) is not necessary.
NOTE: If a wrong command is received, the projector will send an ER401 or ER402 command to the computer.
Lamp on control in progress
Lamp on
Lamp off control in progress

SPEC FILE
DLP™Projector
12/12
PT-LW271
As of August 2013
SFD13M011-1

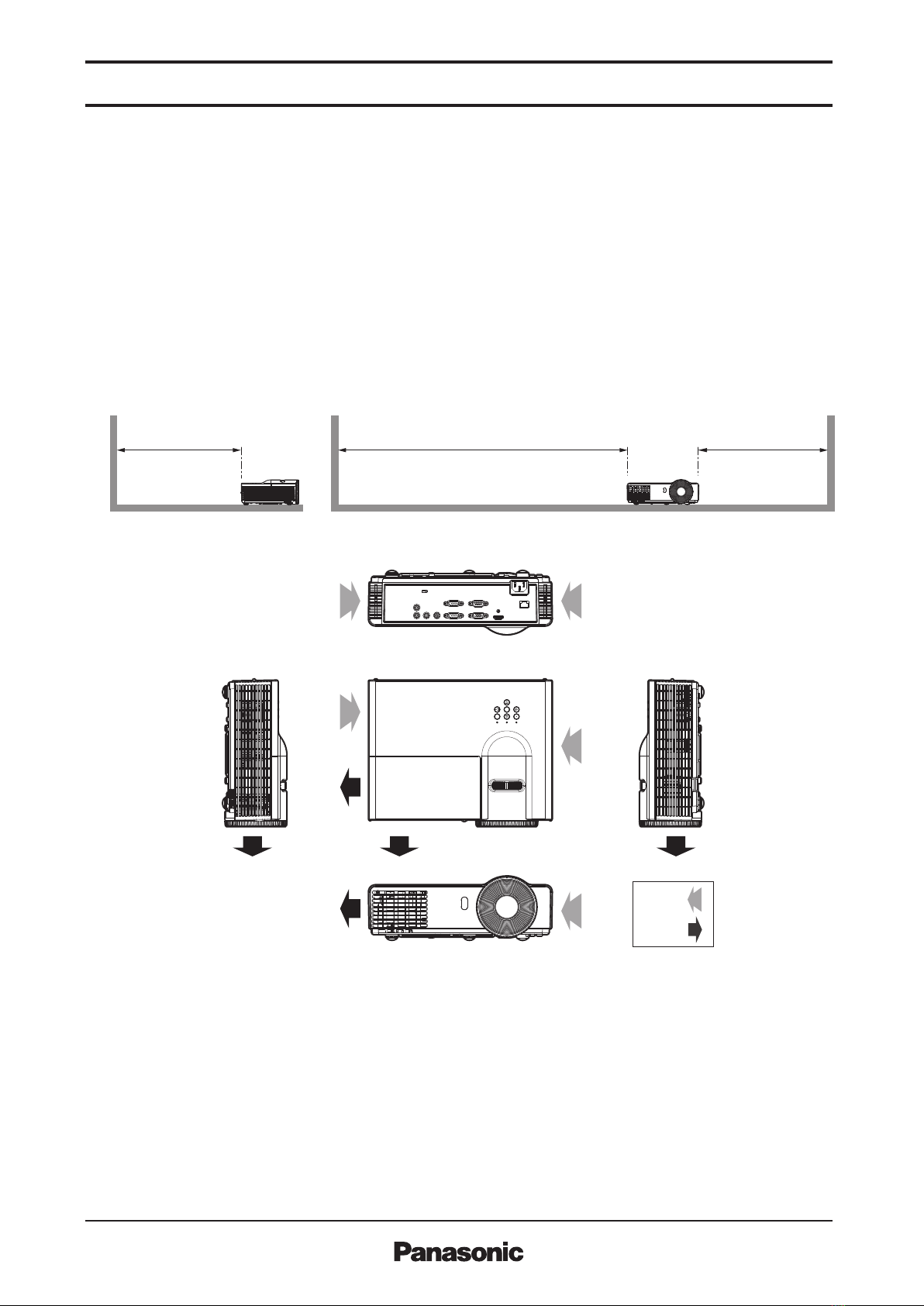

Notes on projector placement and operation
The projector uses a high-wattage lamp that becomes very hot during operation. Please observe the
following precautions.
1. Never place objects on top of the projector while it is operating.
2. Make sure there is the unobstructed space as shown below or more around the projector’s exhaust
openings. In addition to this space, also ensure that there is a sufficient work space for removing
and installing the lamp, air filter and other parts.
3. Make sure that nothing blocks the projector’s air intake and exhaust openings. Also, install the pro-
jector so that cool or hot air from other air conditioning equipment does not flow directly toward the
projector’s air intake or exhaust openings.
4. Do not install the projector in an enclosed space. If it is necessary to install it in an enclosed
space, add a separate ventilation system. If ventilation is insufficient, hot air will accumulate at the
intake opening. This may cause the projector’s protective circuit to interrupt projector operation.
Direction of air intake and exhaust
500 mm (19-11/16˝)
or more
500 mm (19-11/16˝)
or more
1000 mm (39-3/8˝)
or more
Intake
Exhaust
Operating the projector continuously
1. If the projector is to be operated continuously 22 hours or more, lamp replacement cycle duration
becomes shorter.
2. The lamp replacement cycle duration becomes shorter if the projector is operated repeatedly for short
periods (one hour or less).
Weights and dimensions shown are approximate. Specifications and appearance are subject to change without notice.
Product availability differs depending on region and country. This product may be subject to export control regulations.
DLP and the DLP logo are trademarks of Texas Instruments.
P
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
JLink is a registered trademark, or a trademark application has been filed, in Japan, the United States, and other countries and regions.
All other trademarks are the property of their respective trademark owners.
