Panasonic CZ-CAPWFC1 User manual

Contents
Safety Precautions ...................................... 2
System Overview......................................... 5
Parts Identication ...................................... 6
Parts.............................................................. 7
Dimensions .................................................. 7
WLAN Adaptor Installation ......................... 8
Connecting Network.................................. 11
Use the “Panasonic Comfort Cloud”....... 18
WLAN Adaptor Q & A ................................ 27
Firmware Update Function ....................... 29
Software License Information .................. 29
Specications ............................................ 36
USER’S MANUAL
WLAN Adaptor
Model No. CZ-CAPWFC1
Panasonic Corporation
1006 Kadoma, Kadoma City, Osaka, Japan
Panasonic Corporation
http://www.panasonic.com
POWER
LINK
RESET
SETUP
F1218-11218
ACXF60-34441
Thank you for purchasing this Panasonic product.
Please read these instructions carefully before using this product, and save this
manual for future use.
1_WLAN Adaptor_CZ-CAPWFC1_En.indd 1 2018/12/27 18:13:47

2
Please Read Before Starting
These instructions are all you need for most installation sites and maintenance
conditions. If you require help for a special problem, contact our sales/service outlet or
your certied dealer for additional instructions.
The English text are the original instructions. Other languages are translations
of the original instructions.
Safety Precautions
We assume no responsibility for accidents or damages resulting from methods other
than those described in the USER’S MANUAL or methods without using specied parts.
Malfunctions that occur due to the unauthorised installation methods are not covered
by the product warranty.
●
This WLAN Adaptor shall be installed in accordance with National Wiring Regulations.
●Read the installation instructions of devices to be connected as well.
●When relocating or repairing this WLAN Adaptor, provide the USER’S MANUAL to
the servicing personnel.
●Please provide this USER’S MANUAL to the user after installation.
Instruct user to keep it in a safe place along with the air conditioner instruction
manuals.
WARNING This symbol refers to a hazard or unsafe practice which can result in
severe personal injury or death.
CAUTION This symbol refers to a hazard or unsafe practice which can result in
personal injury or product or property damage.
Precautions for Installation setup and WLAN Adaptor
WARNING
zTurn off the circuit breaker of the units before installation.
zSelect an installation location which is rigid and strong enough to
support or hold the WLAN Adaptor, and select a location for easy
maintenance.
zUse only the parts specied by Panasonic as supplied
accessories.
zEnsure cables are installed properly so that external forces cannot
affect them.
zDisassembly and modication of the WLAN Adaptor is not
permitted under any circumstances.
1_WLAN Adaptor_CZ-CAPWFC1_En.indd 2 2018/12/27 18:13:47

3
WARNING
zThe WLAN Adaptor must be installed by the sales dealer or
installer.
zWhen installing the WLAN Adaptor, use appropriate protective
equipment and tools for safety.
zThe WLAN Adaptor should be securely installed in accordance
with the USER’S MANUAL.
zElectric work must be performed by authorised personnel in
accordance with the local regulations and the instructions detailed
in the USER’S MANUAL.
zTo avoid malfunctions caused by radio wave interference, keep the
WLAN Adaptor away from devices such as other wireless device,
microwaves and the device that use 2.4 GHz signal. Depending on
the area, the module may not be available.
zAttach the electrical cover to the indoor unit securely.
zMake sure to connect the WLAN Adaptor to the P.C. board and
terminal board of the indoor unit properly.
zDo not set up in hospitals or places where electronic medical
devices are located.
zIf you have a cardiac pacemaker or implantable cardioverter
debrillator, please keep at least 15 cm away from the WLAN
Adaptor.
zDo not use the WLAN Adaptor near to automatic control
equipment (automatic door, re alarms, etc.).
zIn case of an abnormal condition (such as a burning smell), stop
the indoor unit and turn the breaker OFF.
zDo not operate with wet hands.
zDo not splash water on the WLAN Adaptor or use it in the
bathroom.
1_WLAN Adaptor_CZ-CAPWFC1_En.indd 3 2018/12/27 18:13:48

4
CAUTION
zGround yourself to discharge static electricity before performing
any wiring.
zDo not install the WLAN Adaptor in places with direct sunlight or
where the ambient temperature is 55 ˚C or more or is 0 ˚C or less.
zThe connecting cable must not touch piping directly.
zDo not set up where children can reach the WLAN Adaptor.
zDo not stand on an unstable surface when operating or checking
the WLAN Adaptor.
zDo not use in special environments.
Use in places with much oil (including machine oil), steam,
ammable or corrosive gas, voltage uctuation, surrounding the
metal body, may lead to severe decrease in functionality and
damage to parts.
zDo not use the WLAN Adaptor nearby other wireless devices,
microwaves, cordless phones, or facsimiles.
zThis equipment is not suitable for use in locations where children
are likely to be present.
zThis appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be supervised
to ensure that they do not play with the appliance.
<for European market only>
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
1_WLAN Adaptor_CZ-CAPWFC1_En.indd 4 2018/12/27 18:13:48

5
NOTE
●Install the WLAN Adaptor vertically or horizontally.
●When attaching the WLAN Adaptor, be sure to use the supplied screws and
conrm that the WLAN Adaptor is xed to the surface so that there are no gaps.
●The warranty does not cover the product if it falls from an elevated location.
●The WLAN coverage must include the air conditioner installation location.
●Please write down the model information and more on the last page “Setting
Information”, when you install the WLAN Adaptor.
●Requires a smartphone or tablet that is iOS/Android compatible.
● Please ensure that the Router supports the WPA2-PSK (TKIP/AES) encryption
setting before commencement of the installation of this WLAN Adaptor.
●To complete connection of this WLAN Adaptor to the wireless network service the
Router may be required.
●The End user should read and accept the Terms of use and Privacy Notice in the
contents of “Panasonic Comfort Cloud” app.
●Please avoid to set up multiple WLAN Adaptor registrations at the same time.
●There is a risk of unauthorised operation if a vulnerable password is set for the
wireless router.
●Users are responsible for all costs associated with downloading and using the
Comfort Cloud App and WLAN Adaptor, including without limitation all fees
charged by your Device carrier and internet service provider and any other WLAN
or data access charges.
●Panasonic WLAN Adaptor is designed for communication to the “Panasonic
Comfort Cloud”.
●Third party WLAN interfaces cannot be connected to the “Panasonic Comfort
Cloud”.
●Updates to the service may mean there are changes to the design of the
“Panasonic Comfort Cloud” app screen and display.
System Overview
POWER
LINK
RESET
SETUP
Indoor unit (example: 4-way cassette)
WLAN Adaptor
CZ-CAPWFC1
Wireless
LAN
Router
Internet
Wired remote
controller
Smartphone
1_WLAN Adaptor_CZ-CAPWFC1_En.indd 5 2018/12/27 18:13:48

6
Parts Identication
POWER
LINK
RESET
SETUP
1
2
3
4
5
No Item Description
1POWER LED
(green)
Indicates that the WLAN Adaptor is being supplied with
power.
On : Power being supplied
Off : No power being supplied
2LINK LED (green)
Indicates the communication status of the WLAN Adaptor
to the router.
Off : Not connected to router
Blinks : In the process of connecting with router
On : Connected to router
The LINK LED does not light if the WLAN Adaptor cannot
connect with a router.
The following are cases with special LED indications.
●When SETUP button is pressed and held
The LED blinks to indicate how much time has elapsed.
Blinks once after 5 seconds have elapsed
Blinks twice after 10 seconds have elapsed
Blinks three times after 15 seconds have elapsed
Blinks four times after 20 seconds have elapsed
Blinks ve times after 25 seconds have elapsed
Blinks six times after 30 seconds have elapsed
Lights constantly after 35 seconds have elapsed
●When operating in WPS mode
Blinks at 1.0-second intervals
●When operating in AP mode
Blinks at 0.5-second intervals
1.0-second interval
0.5-second interval
1_WLAN Adaptor_CZ-CAPWFC1_En.indd 6 2018/12/27 18:13:48

7
No Item Description
3 RESET button* Resetting the hardware
Use to restart the WLAN Adaptor.
4 SETUP button* Used when making network settings.
Refer to “Connecting Network” (Page 11) for details.
5Communication
lines (L=1.9 m)
These are the communication lines connecting the indoor
units and the WLAN Adaptor.
Refer to “WLAN Adaptor Installation” (Pages 8, 9)
for details.
* Initialising the WLAN Adaptor
Press and hold the SETUP button (30 to 35 seconds). After this, press the RESET
button within 5 seconds to initialise.
Parts
Adaptor Unit (1)
(CZ-CAPWFC1)
Screw (2)
M3.8 x 16
Clamper (3) USER’S MANUAL (1)
Dimensions
POWER
LINK
RESET
SETUP
30
120
(mm)
70 24.8
95
POWER
LINK
RESET
SETUP
1_WLAN Adaptor_CZ-CAPWFC1_En.indd 7 2018/12/27 18:13:49

8
WLAN Adaptor Installation
Basic Wiring Diagram
Irrespective of the number of indoor units, the WLAN Adaptor must be used together
with a remote controller.
A remote controller must be connected and it should be set as the “main unit” in the
main-sub remote controller settings.
●Refer to the remote controller installation instructions for details on how to make the
main-sub settings for the remote controller.
● Total length of remote controller wiring: Within 500 m
(Remote controller wiring between indoor units is within 200 m)
●Number of units that can be connected for group control
• Indoor units : Up to 8 units
• WLAN Adaptor : 1 unit
• Wired remote controller : 1 unit
●The system operates irrespective of the indoor unit you choose to connect the
WLAN Adaptor and remote controller to.
When there is 1 indoor unit
T10
1 2
R1 R2
CN03
Indoor unit
Example
WLAN Adaptor
Remote controller wiring
(eld supply)
●No polarity
Terminals for remote
controller wiring
Wired
remote
controller
(main unit)
Communication lines
(1.9 m total length)
T10 connector
1_WLAN Adaptor_CZ-CAPWFC1_En.indd 8 2018/12/27 18:13:49

9

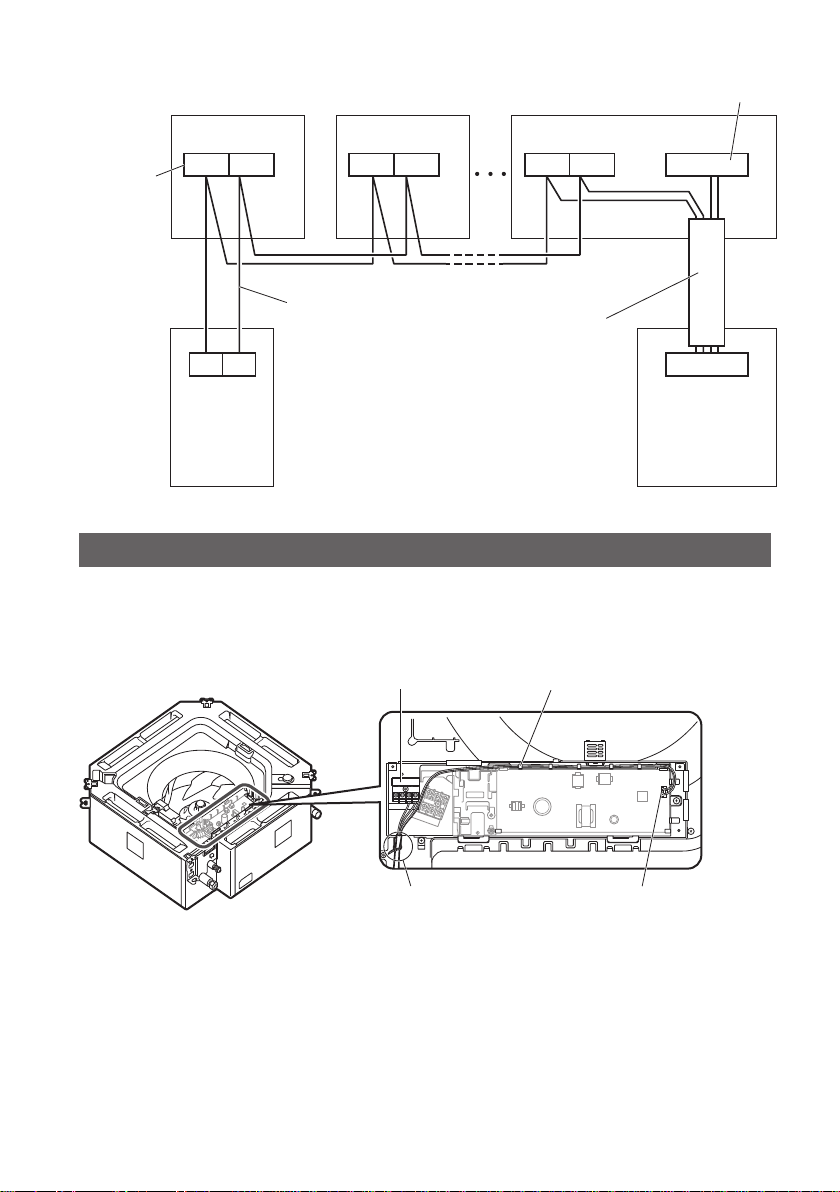

When there are multiple indoor units
T10R1 R2
CN03
1 2
R1 R2 R1 R2
Indoor unit
Example
WLAN Adaptor
Remote controller
wiring
(eld supply)
●No polarity
Wired
remote
controller
(main unit)
Communication lines
(1.9 m total length)
Indoor unit Indoor unit
Terminals
for remote
controller
wiring
T10 connector
Example of standard installation
1Connect the communication lines to the indoor unit.
Example: With a 4-way cassette indoor unit
Remote controller terminal board
Thread the leads through the
catches in the electrical box.
Fix in place with the included
clampers
T10 connector
●Fix the communication lines in place with the included clampers*.
* Make sure the clampers hold the parts coated in white.
●Lead wires* with crimper terminals should be connected to the remote
controller terminal board. Lead wires* with connectors should be connected to
the T10 connector.
* There may be left over lead wires depending on the type of indoor unit. Tie
back left over lead wires with the included clampers.
* The lead wires with crimper terminals have no polarity.
1_WLAN Adaptor_CZ-CAPWFC1_En.indd 9 2018/12/27 18:13:49

10
2Remove the top case.
Use a  at head screwdriver or similar
tool to push in the catch on the bottom
case and remove the top case.
Take care not to break the catch when
pushing with the screwdriver.
3When attaching the bottom
case to the wall
Screws (supplied): 2
Attach the WLAN Adaptor to the wall
with the UP mark facing upwards.
Please ensure screws are tightened
 rmly. Do not overtighten screws as
this may damage the casing.
Ensure that the screws do not contact
metallic parts within the wall.
4Attach the top case.
Fit the upper catches before
 tting the lower catch.
Take care not to pinch the
communication lines in the
case.
Top case
Bottom case
Catch
Bottom case
Screw (supplied)
Wall to which the
WLAN Adaptor is  xed
Upper catches (2 places)
Lower catch
When  tting the lower catch, press down on it with a  at head
screwdriver or similar tool and then  t the top case onto it.
* Note that applying too much pressure to the  at head screwdriver
may result in damage to the catch.
Top case
Bottom case
1_WLAN Adaptor_CZ-CAPWFC1_En.indd 10 2018/12/27 18:13:50
