Panasonic HD-PLC DA-PU100 User manual

Operating Manual
PLC Adaptor
Model No. DA-PU100
• Thank you for purchasing this Panasonic
product.
•Please read this Operating Manual
carefully before installing the product.
• Keep all documentation in a safe place for
future reference.
• To obtain the Installation Manual, contact
your dealer.
• This product is compatible with "HD-PLC
multi-hop technology".
Things you should keep a record of:
Date of purchase
Model number
Serial number
Dealer’s name and address
Dealer’s telephone number
Table of Contents
For Your Safety 2
Introduction 4
Precautions 5
Location of controls 6
Connection of power supply 7
Appendix 8
PNQX8788ZA P0718AG0
Printed in Vietnam

For Your Safety
To prevent severe injury and loss of life, read this section carefully before using the product
to ensure proper and safe operation.
• The following types of symbols are used to describe the level of injury and/or damage
that may occur if the product is used incorrectly.
• The following types of symbols are used to classify and describe the type of instructions
to be observed. (The following symbols are examples.)
This type of symbol is used to
alert operators to actions that
must not be performed.
This type of symbol is used to
alert operators to a procedure
that must be performed.
WARNING
Denotes a potential hazard that could result in
serious injury or death.
• Do not install the product near medical devices, and do not connect it to the
same power line as a medical device. If high-frequency signals from the
product affect the medical equipment, it may cause malfunction and
accidents.
• Keep the screws, fixing brackets, USB connector cap, LAN connector cap,
RS-485 terminal, and terminal cover out of reach of children to prevent
swallowing.
• Do not damage the terminals.
• Do not get the product wet.
• Do not install or inspect the product with wet hands.
• Do not touch the product during a thunderstorm.
• Do not disassemble or alter the product.
• Do not put metal or foreign objects inside the product.
• Do not drop the product or subject it to strong impacts.
• Do not overload the AC outlets and extension cords.
• Do not disassemble the product.
• Be sure to attach the terminal cover. High voltage can cause fire or electric
shocks.
2

• Install, inspect, and repair the product only after disconnecting it from power.
• After installation, ensure the area around the product is safe.
• Only qualified electrical workers may install, inspect, and repair the product.
• Fasten the terminal screw firmly with the appropriate torque.
• Install the product in the distribution box.
• Cut the circuit breaker immediately if the product emits smoke, overheats, or
produces abnormal smells or noises. Use a certified circuit breaker with a
contact gap of 3 mm (0.12 in.) or more, and install it near this product.
CAUTION
Denotes hazards that could result in minor injury or
damage to the product.
• Do not install the product in a location that is subject to large amounts of
water, humidity, dust, or soot (such as in a kitchen or near a humidifier), nor in
a location where corrosive gases (such as ammonia, hydrogen sulfide, or
chlorine) are present.
• Do not install the product in a location that is unstable or subject to heavy
vibrations.
• Keep away from fire.
• Disconnect the power when the product will not be used for an extended
period of time, or when the product will be inspected.
• Disconnect the power if the product falls or becomes damaged.
• Be sure to secure the product with all 3 of the fixing brackets.
• Confirm the strength of the mounting location. Consider whether the
mounting location is strong enough to hold the product for an extended
period of time. A weakening of the mounting location may lead to the product
falling. The mounting location must be able to support a force of 12.26 N
(1.25 kgf) or more at each screw position. If the mounting location does not
provide sufficient support, it must be reinforced to provide sufficient support,
or falling prevention measures must be taken. If the product will be installed
150 cm or higher off the floor, be sure to take falling prevention measures.
• When mounting the product, ensure that the metal parts of the product, such
as the fixing screws, do not come into contact with other metal parts.
• If you stop using the product, remove the product from the distribution box to
eliminate the risk of falling.
• Ensure that the environment inside the distribution box meets the
temperature and humidity requirements.
3

Introduction

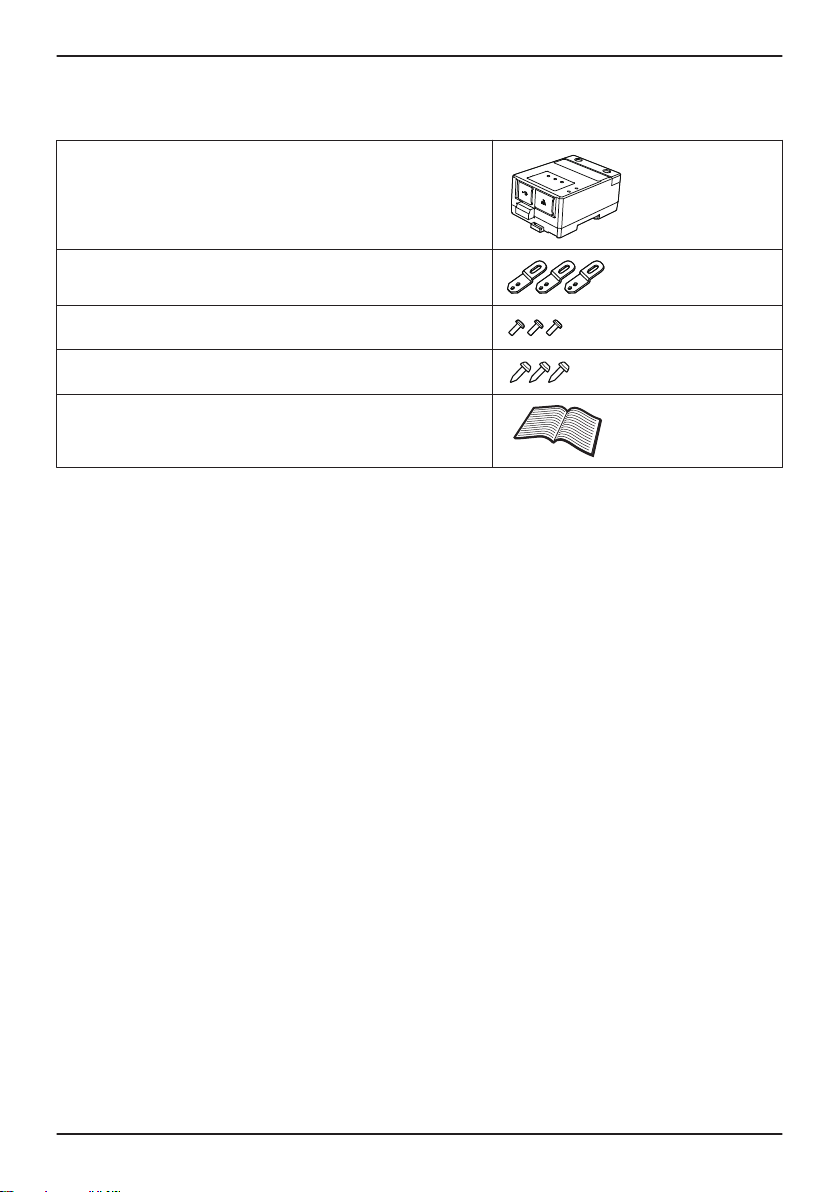

Check that all accessories are included before installing the product.
PLC Adaptor (1)
Fixing brackets (3)
Small fixing screws (3)
Large fixing screws (3)
Operating Manual (this manual) (1)
4

Precautions
• This product is for indoor use only.
• Panasonic is not responsible for any loss of data and other direct or indirect damage
caused by external factors such as power failures or noise on electrical wiring.
• This product may be a source of electrical interference for the following devices:
–Other PLC devices that use different transmission methods
–Remote controlled devices using radio waves
–Short wave radios, lights with dimmers, touch lamps, wireless mice, etc.
• If this device interferes with other products, try the following countermeasures:
–If this device interferes with short wave radios:
• Keep the short wave radio away from the wall.
• Use a different frequency.
• Certain electrical devices emit electrical noise. If this noise is passed on to the electrical
wiring, it may interfere with the performance, speed, and reliability of the product. We
recommend connecting an electrical noise filter to noise emitting devices.
Note
• The following devices are most likely to emit noise:
–Other PLC devices that use different transmission methods
–Battery chargers (including cell phone chargers), AC adaptors (for modems, routers,
laptop PCs, etc.), hair dryers, vacuum cleaners, power drills, lights with dimmers, and
touch lamps.
• Do not connect the product to a power outlet with a noise filter or a surge protector.
• This product transmits data over existing electrical wiring. Electrical noise, the length of
the wiring, and the specification of the circuit breaker may be causes of interference.
Also, if there is strong radio equipment nearby, it may cause low speeds or disrupt
communication.
• If the wiring from the product is too long, data communication may be affected.
• Do not connect the product to a backup power supply device, such as a UPS
(uninterruptable power supply).
• Keep the product away from devices with a magnet. They may interfere with the product.
• Do not place the product near air conditioners or heaters. They may damage the product.
• Graphical symbols on the product.
～Alternating current Double insulation
5

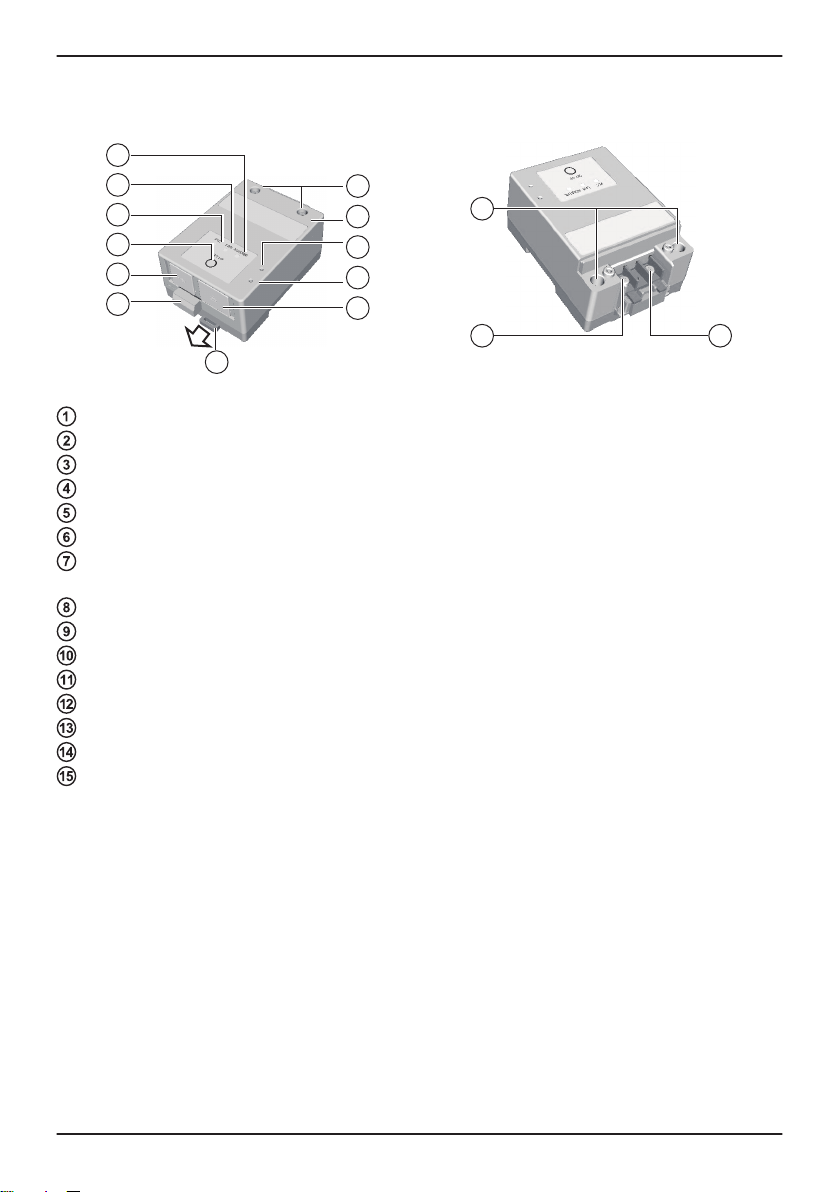

Location of controls
Unit
1
2
3
5
4
6
7
8
9
10
11
12
With the terminal cover removed
14
13
15
MASTER indicator: Indicates whether the product is a MASTER or TERMINAL.
LAN indicator: Indicates the status of the LAN connection.
PLC indicator: Indicates the status of the PLC link.
SET UP button: For details, refer to the Installation Manual.
USB connector
RS-485 terminal
DIN rail lever: Pull the lever in the direction of the arrow to release the product from the
DIN rail.
LAN connector
RESET button: Resets the product.
CLEAR button: Restores the factory default settings.
Terminal cover
Terminal cover screws
Holes for fixing screws
Power terminal (N phase)
Power terminal (L phase)
6

The state of each indicator
MASTER indicator On (green)*1 Operating as PRIMARY MASTER.
On (orange)*1 Operating as SECONDARY MASTER.
Off Operating as TERMINAL.
LAN indicator Blinking Connected to the LAN.
PLC indicator On (green)*1 Connected to a PLC device.
On (orange)*1 Connected to power, but not connected to
a PLC device.
Off Power is not connected.
*1 After turning on the power, the LED lights steady for 8 hours, and then blinks after that.
If you press the SET UP button, the LED lights steady for 1 minute, and then blinks after
that.
Connection of power supply

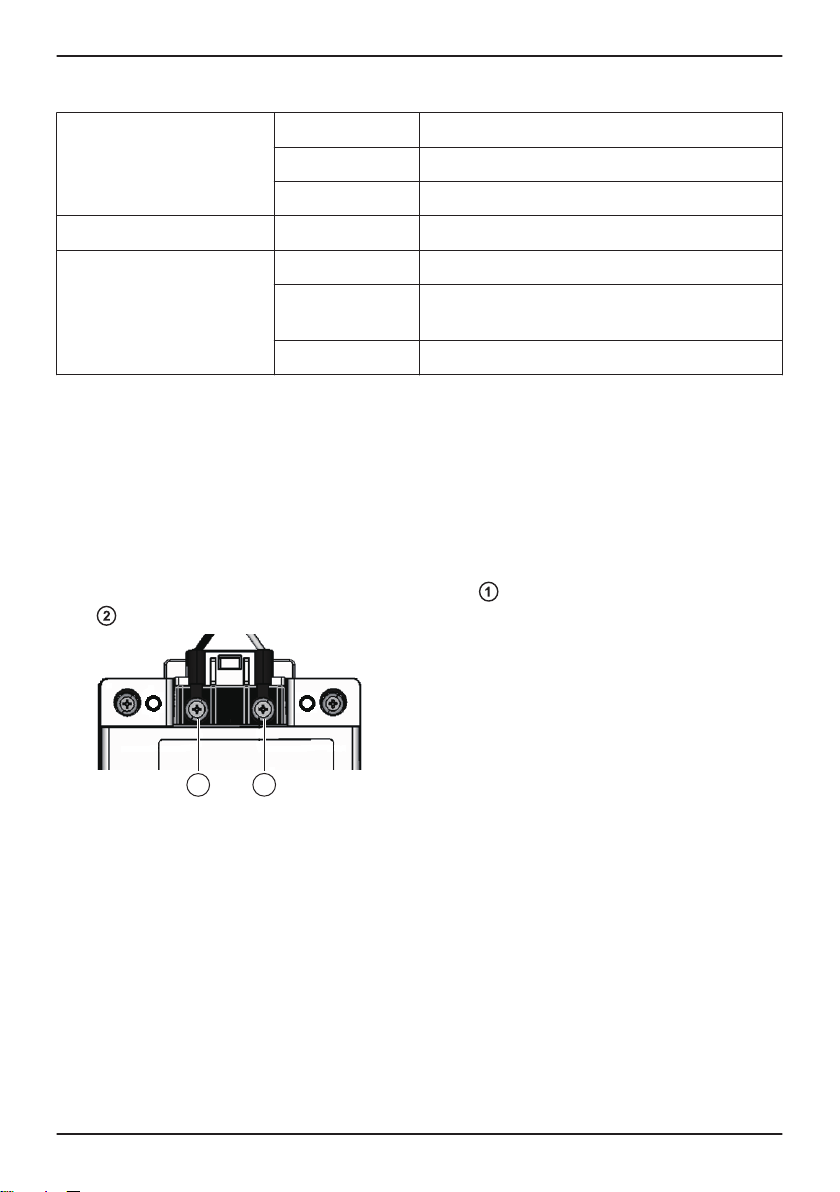

Follow this procedure to wire the product to the distribution box.
1. Remove the terminal cover.
2. Wire the L phase of the power line to terminal L ( ) and the N phase to terminal N
( ).
12
• Applicable AWG value is 20 - 14. Use certified or equivalent wires for the electric
wires of this product.
3. Attach the terminal cover.
• For other details, please refer to the Installation Manual.
7

Appendix
Troubleshooting
Symptom Possible Cause Remedy
None of the
indicators light
or blink.
Power is not connected. Connect a power source.
The product might be
malfunctioning.
If the PLC indicator does not
light, contact your dealer.
The PLC
indicator lights
or blinks
orange.
Another product is not turned on. Turn on another device set to
operate as the master or a
terminal device.
A power strip with a noise filter or
surge protector is being used.
If you are using a power strip,
use one that does not include a
noise filter or surge protector.
A power strip with a long power
cord is being used.
Use a power strip whose power
cord is as short as possible.
Due to the wiring conditions
between PLC adapters or the
effects of noise, the PLC signal is
not reaching its destination.
Reevaluate the installation
locations, or add another PLC
adapter (relay unit) to the power
wires on the transmission route.
The LAN
indicator does
not light.
A LAN cable is not connected. Check the connection of the LAN
cable.
The network device is not turned
on.
Turn on the network device.
The wired connection function of
a network device is not enabled.
Disable the wireless connection
function of the device, and
enable the wired connection
function.
The PLC
indicator lights
red.
The product's operation might be
frozen.
Either turn off the power and
then turn it on again, or press
and hold the RESET button for at
least 1 second.
8

Factory Reset
This function will erase all of the settings in this product and initialize it to the factory default
settings.
1. Connect the product to a power source.
2. Press and hold the CLEAR button for more than 3 seconds.
Notice
• After the indicators light, wait at least 30 seconds before terminating power to the
product.
9

Specifications
Unit
Operating
environment
Temperature: -25 ℃ – 60 ℃ (-13 ℉ – 140 ℉)
Humidity: 20 % RH – 85 % RH (No condensation)
Degree of protection
from solid objects
IP5X
External dimensions Width × Height × Depth (Approx.):
75 mm × 102 mm × 47 mm (2.95 in. × 4.02 in. × 1.85 in.)
(Unit only. Not including protrusions.)
Weight Approx. 260 g (0.57 lb.) (Unit only)
Power requirements AC 100 – 240 V, 50/60 Hz
Power consumption Avg. 4 W, Max. 7 W (100 V)
Avg. 6 W, Max. 8.5 W (240 V)
Interface PLC port*1 / Ethernet port*1 / RS-485 port*1 / USB port*1
Protocol TCP/IP / DHCPc / HTTPd: IPv4 / IPv6
SNMP/MIB: IPv4
*1 1ch
PLC port
Standard HD-PLC multi-hop
Multi-hop 10
Communication
speed
240 Mbps*1
Frequency band 2 MHz – 28 MHz
Modulation method Wavelet OFDM (2 PAM - 32 PAM)
Access method CSMA/CA
Error correction Reed-Solomon encoder/decoder
Convolutional encoder/Viterbi decoder
LDPC-CC (Low Density Parity Check-Convolutional Codes)
Security AES 128-bit encryption
Communication
distance
Approx. 200 m (656 ft)*2 between PLC adaptors
10

Number of terminal
adaptors
Max. 1,024 units*3 per 1 MASTER unit
*1 The indicated value is the theoretical maximum. Actual speeds will be less than this
value.
*2 This value may differ based on the operating environment.
*3 The maximum number of terminal adapters may vary depending on the operating
environment.
Ethernet port
Physical interface IEEE 802.3 (10BASE-T) / IEEE 802.3u (100BASE-TX) /
Auto MDI/MDI-X / Auto Negotiation
Protocol TCP/IP (IPv4 / IPv6)
Access method CSMA/CD
Number of
connectable devices
Max. 8 devices per MASTER or TERMINAL adaptor*1
*1 This is the recommended number when using a switching hub.
RS-485 port
Standard EIA-485
Connection method Half-duplex
Max. cable length Max. 1,200 m (approx. 4,000 ft)*1
Communication
speed
300 / 600 / 1,200 / 2,400 / 4,800 / 9,600 / 19,200 / 38,400 /
57,600 / 115,200 / 230,400 / 250,000 / 460,800 / 921,600 bps*1
Response time The time "Command/Response communication time*2" with
"About 10 ms per hop" added.
Number of
connectable devices
Max. 31 slave units*3 per MASTER unit
Supported protocols Non procedural
Applicable AWG wire
value
AWG28 – AWG16*4
Appropriate torque to
clamp the wires
0.22 N·m – 0.25 N·m
*1 The communication distance and communication speed may vary depending on the
connected devices and operating environment. The communication distance and
communication speed may vary depending on the connected devices and operating
environment.
11

*2 This product uses the "Store and Forward" method, in which it accumulates commands/
responses and then forwards them. Therefore, some forwarding delay will occur.
*3 The master/slave setting for RS-485 is separate from the MASTER/TERMINAL setting
for PLC.
*4 Shielded twisted-pair wiring is recommended.
USB port
USB USB 2.0 / USB 1.1 (Type-A)*1
Forwarding method Control forwarding, bulk forwarding, interrupt forwarding.*2
Number of connected
devices
Max. 5 devices per 1 adaptor (including hubs).*3
The number of connected devices that can be used on 1 PC is
64 devices.*3
*1 The communication distance and communication speed may vary depending on the
connected devices and operating environment. Also, this product does not support high-
speed data transfer.
*2 Web cameras, USB speakers, or other USB devices that use isochronous forwarding for
real-time operation cannot be used with this product. Other USB devices might also not
be usable depending on their driver specifications.
*3 The number of devices that can be connected depends on the usage environment and
the type of device.
12

About the licenses
• This product includes software developed by the OpenSSL project for use in the
OpenSSL Toolkit. (http://www.openssl.org/)
Trademarks
• HD-PLC and the HD-PLC logo are trademarks or registered trademarks of Panasonic
Corporation in Japan and in other countries.
13

Note
14

Note
15

限用物質含有情況標示
設備名稱：PLC 轉接器，型號（型式）：DA-PU100
單元 Unit
限用物質及其化學符號
鉛
(Pb)
汞
(Hg)
鎘
(Cd)
六價鉻
(Cr+6)
多溴聯苯
(PBB)
多溴二苯醚
(PBDE)
筐体 ○ ○ ○ ○ ○ ○
電路板 － ○ ○ ○ ○ ○
固定用模具、螺絲 ○ ○ ○ ○ ○ ○
外箱、使用說明書 ○ ○ ○ ○ ○ ○
備考 1.〝○〞係指該項限用物質之百分比含量未超出百分比含量基準值。
備考 2.〝－〞係指該項限用物質為排除項目。
Panasonic Corporation
Web site: http://www.panasonic.com/
© Panasonic Corporation 2018
