Operating Guide
DVQP1650ZA
W0817MN0 -PS
ENGLISH
Remote Operation Panel
Model No. AK-HRP1005G

Connecting the Unit to AW-UE70/AW-HE35/AW-
HE38/AW-HE40/AW-HE70 Series Cameras 3
Connection examples 3
Connections 5
Compatible Functions List 6
ROP Menu (when AW-UE70/AW-HE35/AW-
HE38/AW-HE40/AW-HE70 is connected) 9
ROP menu list 9
01 SCENE 13
02 SHUTTER SPEED 14
03 FILTER 15
04 CHROMA 16
05 GAIN 17
06 WHITE BALANCE 18
07 GAMMA 19
08 DETAIL 20
09 COLOR CORRECTION 21
10 DNR 24
11 CONTRAST 25
12 LENS CONTROL 26
13 IRIS RELATIVE 27
14 SYSTEM CAM 28
15 CAMERA MENU CONTROL 29
16 ROP SETTING 30
17 CONNECT SETTING 31
18 ROP IP SETTING 32
19 CAMERA IP SETTING 32
- 2 -
Table of Contents

Connecting the Unit to AW-UE70/AW-HE35/AW-
HE38/AW-HE40/AW-HE70 Series Cameras

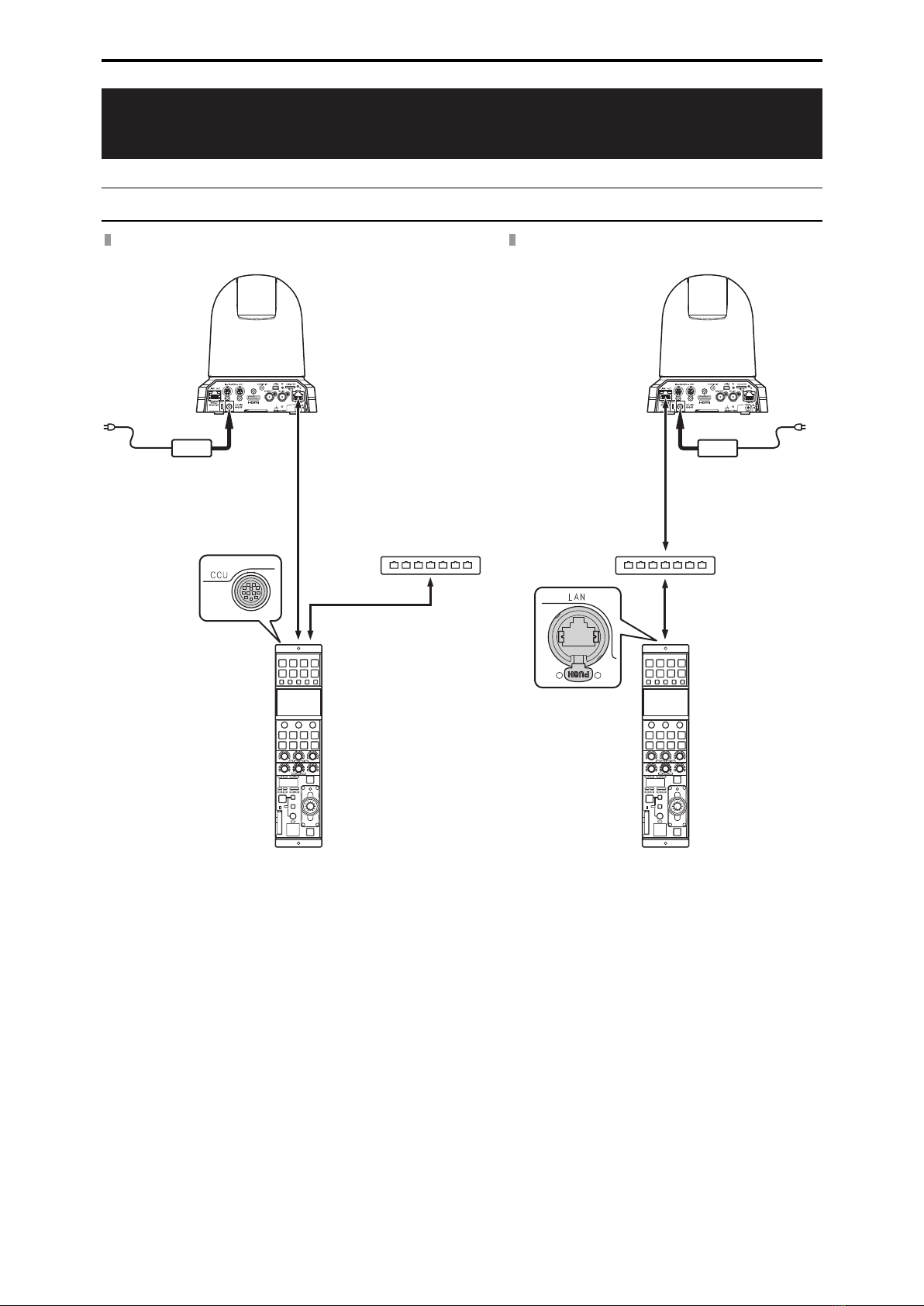

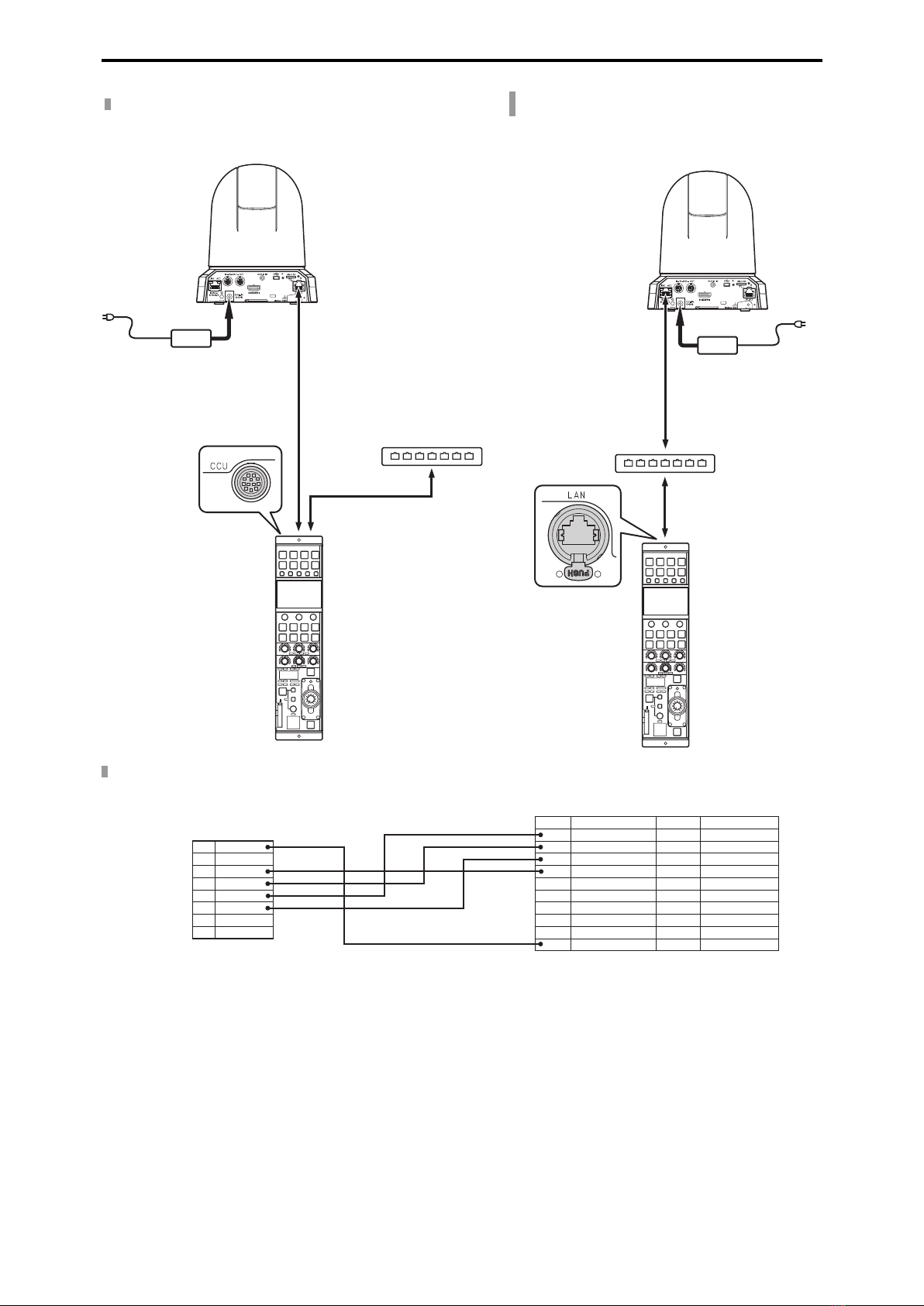

Connection examples
Serial connection with AW-UE70
Supplied AC adapter
[RS-422] connector
AW-UE70
* Prepare a cable that is in accordance
with the following serial connection
cable specifications.
PoE compatible
switching hub or injector
IP connection with AW-UE70
AW-UE70
Supplied AC adapter
LAN cable (straight cable)
LAN cable (straight cable)
Switching hub with
PoE support
[LAN ACT/LINK] connector
- 3 -
Connecting the Unit to AW-UE70/AW-HE35/AW-HE38/AW-HE40/AW-HE70 Series Cameras

Serial connection with AW-HE35/AW-HE38/AW-HE40/AW-HE70
AW-HE35/AW-HE38/
AW-HE40/AW-HE70
Supplied AC adapter
[RS-422] connector
* Prepare a cable that is in accordance
with the following serial connection
cable specifications.
PoE compatible
switching hub or injector
IP connection with AW-HE35/AW-HE38/AW-
HE40/AW-HE70
Supplied AC adapter
AW-HE35/AW-HE38/
AW-HE40/AW-HE70
LAN cable (straight cable)
LAN cable (straight cable)
Switching hub with
PoE support
[LAN ACT/LINK] connector
Serial connection cable specifications
ヒヤモヮチチュモヵユドラナ⾺⾺⾼⾼ビヤヰヮチチュモヵユドロナピヤヰヮチチヤヰワヵドラナフヤヰヮチチヤヰワヵドロナヤモヮēチンヰヱヤモヮēチンヰヱンヰヱチēチヤモヮンヰヱチēチヤモヮブヤヰヮチチワㄐハチモプヤヰヮチチワㄐハチャヘヤヰヮチチワㄐハチヤベヤヰヮチチワㄐハチュペ
ヒビチヷ
ヒパヨワュヒヨンュヵモロロヺンヹュノヵヹュノヵヹュヌンヹュヌチ⾼チ⾼ビピフブプヘベラㄊㄓㄐㄔㄆホチランヒパモノヒパヱノヒパブドヘピナAW-UE70/AW-HE35/AW-HE38/
AW-HE40/AW-HE70
[RS-422] connector side (RJ45)
AK-HRP1005G
[CCU] connector side
Pin No. Function Polarity Flow of signal
- 4 -
Connecting the Unit to AW-UE70/AW-HE35/AW-HE38/AW-HE40/AW-HE70 Series Cameras

Connections
Set the connection setting to [Serial(AW3)] or [LAN(AW3)] in the [CONNECT SETTING] menu.
ヒチバチヒヘ
ヤヰワワユヤヵチヴユヵヵリワヨヤヰワワユヤヵチヮヰュユドㄑㄖㄔㄉナヤモヮビヤヰワワユヤヵチヮヰュユドㄑㄖㄔㄉナヤモヮブヤモヮピヤモヮプヤモヮヒヤモヮフヴㄆㄓㄊ㄂ㄍドモヸピナロモワドモヸピナワヰワワヰワワヰワワヰワ
NOTE
To connect with the AW-UE70/AW-HE35/AW-HE38/AW-HE40/AW-HE70, upgrade the system version of the unit to
4.30-00-0.00 or later.
When connecting, observe the following points.
Serial connection
Use a dedicated cable to connect the [CCU] connector of this unit to the [RS-422] connector of the AW-UE70/AW-
HE35/AW-HE38/AW-HE40/AW-HE70.
Use a PoE power supply for the power supply.
LAN connection
Connect the [LAN] connector on this unit to the [LAN ACT/LINK] connector on the AW-UE70/AW-HE35/AW-HE38/AW-
HE40/AW-HE70 using a LAN cable (sold separately).
Configure the camera IP address and port number settings of the connection destinations in [CAMERA IP SETTING] as
well.
This unit can be powered using PoE. Use a switching hub with PoE support.
Use a straight cable (category 5e or higher; up to 100 m (328.0 ft) in length) for the LAN cable (STP).
For details on switching hubs and PoE injectors that have been verified to support PoE, consult with your dealer.
- 5 -
Connecting the Unit to AW-UE70/AW-HE35/AW-HE38/AW-HE40/AW-HE70 Series Cameras

Compatible Functions List
When the unit is used in conjunction with an AW-UE70 Series 4K Integrated Camera or AW-HE35/AW-HE38/AW-HE40/AW-HE70 Series
HD Integrated Camera, there will be functions that are limited or disabled for some of the unit’s buttons, dials, and other controls. Be sure to
refer to the following table.
Front panel 1
Front panel 2
Front panel 3
Front panel 4
Front panel 5
Front panel 6
Number Part name
✓: Enabled
×: Disabled
Remarks
Front panel 1
[PANEL LOCK] button ✓
[AUTO] button ✓If auto setup has been assigned, this will not
operate.
[BARS] button ✓Only the ON/OFF for the color bar signal
output will function.
[TALLY/CALL] lamp/button ×
[REF. RECALL] button ×
[FILES] button ✓This is always lit.
[SETUP] button ✓
[AUTO IRIS] button ✓
Front panel 2
Function buttons ✓
LCD panel ✓
Menu operation dials ✓
- 6 -
Connecting the Unit to AW-UE70/AW-HE35/AW-HE38/AW-HE40/AW-HE70 Series Cameras

Number Part name
✓: Enabled
×: Disabled
Remarks
Front panel 3
[GAIN] button ✓When this button is pressed, the gain menu
appears on the LCD panel. The button is lit
during menu display.
[SHT] button ✓When this button is pressed, the shutter
menu appears on the LCD panel. The button
is lit during menu display.
[COLOR] button ✓The menus will switch with each press of the
button. The button is lit during menu display.
[CHROMA] > [COLOR CORRECTION] >
Menu off (status screen)
[FILTER] button ✓When this button is pressed, the filter menu
appears on the LCD panel. The button is lit
during menu display.
[GAMMA] button ✓When this button is pressed, the gamma
menu appears on the LCD panel. The button
is lit during menu display.
[FLARE] button ×
[KNEE] button ×
[DTL] button ✓The menus will switch with each press of the
button. The button is lit during menu display.
[DETAIL] > [DNR] > Menu off (status screen)
Front panel 4
[GAIN], [TEMP], [GAMMA], [SKIN]
adjustment block
✓When [GAIN] is lit, [GAIN R] and [GAIN B] are
adjusted using the red (R) and blue (B)
adjustment dials respectively.
When [TEMP] is lit, [COLOR TEMP] is
adjusted using the green (G) adjustment
dial.
When [GAMMA] is lit, the master gamma is
adjusted using the green (G) adjustment
dial.
[SKIN] adjustment is disabled.
[PED], [FLARE], [B.GAM] adjustment block ✓When [PED] is lit, [M.PED] is adjusted using
the green (G) adjustment dial.
[FLARE] and [B.GAM] adjustment is
disabled.
- 7 -
Connecting the Unit to AW-UE70/AW-HE35/AW-HE38/AW-HE40/AW-HE70 Series Cameras

Number Part name
✓: Enabled
×: Disabled
Remarks
Front panel 5
[ALM] indicator ✓
[OPT] indicator ×
[EXT] indicator ×
[D.EXT] indicator ✓
Adjustment value display ✓A value is also not displayed when
[SHUTTER] is [SYNC]. The display will be bar
display.
When the shutter speed value is “10000”,
“9999” is displayed.
[ND] indicator ✓This is enabled only for the AW-UE70.
[CC] indicator ✓This lights but does not function.
[IRIS] indicator ✓The iris value is not displayed.
[GAIN] indicator ✓
[PED] indicator ✓
[SHT] indicator ✓
[SYNC] indicator ✓
[DISP] button ✓
[UP (FREE)] button ✓
[DOWN (CHARA)] button ✓
[LOCK] indicator ✓
[SEL] dial ✓
Front panel 6
Memory card slot ✓
Memory card access indicator ✓
Camera number/tally display ✓
[IRIS RELATIVE] button ✓
Torque adjustment screw ✓
IRIS lever ✓
Master pedestal dial ✓
[PREVIEW] button ×
- 8 -
Connecting the Unit to AW-UE70/AW-HE35/AW-HE38/AW-HE40/AW-HE70 Series Cameras

ROP Menu (when AW-UE70/AW-HE35/AW-HE38/AW-
HE40/AW-HE70 is connected)
ROP menu list
When an AW-UE70 4K Integrated Camera or AW-HE35/AW-HE38/AW-HE40/AW-HE70 HD Integrated Camera is connected, the ROP
menu will be as follows.
For details on menu operations, refer to the following sections in the Operating Instructions.
“Displaying menus”
“Basic menu operations”
01 SCENE
MANUAL1(push) “MANUAL1(push)” (see page 13)
MANUAL2(push) “MANUAL2(push)” (see page 13)
MANUAL3(push) “MANUAL3(push)” (see page 13)
FULL AUTO(push) “FULL AUTO(push)” (see page 13)
02 SHUTTER SPEED
MODE “MODE” (see page 14)
SPEED “SPEED” (see page 14)
03 FILTER ND “ND” (see page 15)
04 CHROMA LEVEL “LEVEL” (see page 16)
05 GAIN
GAIN “GAIN” (see page 17)
AGC MAX GAIN “AGC MAX GAIN” (see page 17)
06 WHITE BALANCE
MODE “MODE” (see page 18)
COLOR TEMP “COLOR TEMP” (see page 18)
GAIN R “GAIN R” (see page 18)
GAIN B “GAIN B” (see page 18)
07 GAMMA
TYPE “TYPE” (see page 19)
LEVEL “LEVEL” (see page 19)
DRS “DRS” (see page 19)
08 DETAIL
DTL “DTL” (see page 20)
LEVEL H “LEVEL H” (see page 20)
LEVEL L “LEVEL L” (see page 20)
FLESH TONE MD “FLESH TONE MD” (see page 20)
- 9 -
ROP Menu (when AW-UE70/AW-HE35/AW-HE38/AW-HE40/AW-HE70 is connected)

09 COLOR CORRECTION
TYPE “TYPE” (see page 22)
COLOR CORRECT “COLOR CORRECT” (see page 22)
SAT “SAT” (see page 22)
PHASE “PHASE” (see page 22)
SAT B “SAT B” (see page 22)
PHASE B “PHASE B” (see page 22)
SAT B_B_Mg “SAT B_B_Mg” (see page 22)
PHASE B_B_Mg “PHASE B_B_Mg” (see page 22)
SAT B_Mg_Mg “SAT B_Mg_Mg” (see page 22)
PHASE B_Mg_Mg “PHASE B_Mg_Mg” (see page 22)
SAT Mg “SAT Mg” (see page 22)
PHASE Mg “PHASE Mg” (see page 22)
SAT Mg_R “SAT Mg_R” (see page 23)
PHASE Mg_R “PHASE Mg_R” (see page 23)
SAT R “SAT R” (see page 23)
PHASE R “PHASE R” (see page 23)
SAT R_R_Yl “SAT R_R_Yl” (see page 23)
PHASE R_R_Yl “PHASE R_R_Yl” (see page 23)
SAT R_Yl_Yl “SAT R_Yl_Yl” (see page 23)
PHASE R_Yl_Yl “PHASE R_Yl_Yl” (see page 23)
SAT Yl “SAT Yl” (see page 23)
PHASE Yl “PHASE Yl” (see page 23)
SAT Yl_Yl_G “SAT Yl_Yl_G” (see page 23)
PHASE Yl_Yl_G “PHASE Yl_Yl_G” (see page 23)
SAT Yl_G_G “SAT Yl_G_G” (see page 23)
PHASE Yl_G_G “PHASE Yl_G_G” (see page 23)
SAT G “SAT G” (see page 23)
PHASE G “PHASE G” (see page 23)
SAT G_Cy “SAT G_Cy” (see page 23)
PHASE G_Cy “PHASE G_Cy” (see page 23)
SAT Cy “SAT Cy” (see page 23)
PHASE Cy “PHASE Cy” (see page 23)
SAT Cy_Cy_B “SAT Cy_Cy_B” (see page 23)
PHASE Cy_Cy_B “PHASE Cy_Cy_B” (see page 23)
SAT Cy_B_B “SAT Cy_B_B” (see page 23)
PHASE Cy_B_B “PHASE Cy_B_B” (see page 23)
10 DNR DNR “DNR” (see page 24)
11 CONTRAST
CONTRAST MODE “CONTRAST MODE” (see page 25)
CONTRAST LEVEL “CONTRAST LEVEL” (see page 25)
FRAME MIX “FRAME MIX” (see page 25)
A.F.MIX MAX GAIN “A.F.MIX MAX GAIN” (see page 25)
DAY/NIGHT “DAY/NIGHT” (see page 25)
12 LENS CONTROL
FOCUS MODE “FOCUS MODE” (see page 26)
FOCUS SPEED “FOCUS SPEED” (see page 26)
FOCUS “FOCUS” (see page 26)
ZOOM WIDE “ZOOM WIDE” (see page 26)
ZOOM SPEED “ZOOM SPEED” (see page 26)
ZOOM TELE “ZOOM TELE” (see page 26)
- 10 -
ROP Menu (when AW-UE70/AW-HE35/AW-HE38/AW-HE40/AW-HE70 is connected)

13 IRIS RELATIVE
SENSE Refer to the following section in the Operating Instructions.
“29 IRIS RELATIVE”
COARSE
RELATIVE
14 SYSTEM CAM
FORMAT “FORMAT” (see page 28)
FREQUENCY “FREQUENCY” (see page 28)
I.S. “I.S.” (see page 28)
BARS TYPE “BARS TYPE” (see page 28)
OSD STATUS “OSD STATUS” (see page 28)
AUDIO “AUDIO” (see page 28)
GENLOCK PHASE “GENLOCK PHASE” (see page 28)
HDR “HDR” (see page 28)
BACK LIGHT CMP “BACK LIGHT CMP” (see page 28)
HEAD PW(push) “HEAD PW(push)” (see page 28)
15 CAMERA MENU CONTROL
MENU ON/OFF “MENU ON/OFF” (see page 29)
CURSOR/PARAMETER “CURSOR/PARAMETER” (see page 29)
EXECUTE “EXECUTE” (see page 29)
16 ROP SETTING
IRIS LEV MOD Refer to the following section in the Operating Instructions.
“37 ROP SETTING”
M.PED CONTROL
LOCK SELECT
AUTO BUTTON
G/M PED VOL
FREE+LOCK
CAMERA SELECT
DTL BUTTON
SKIN VOL
LCD BRIGHT
PANEL BRIGHT
BUZZER
PERIOD
CYCLE
STD POSITION M.PED
STD POSITION VAR
STD POSITION ND
STD POSITION CC
IRIS PRIORITY
ROP DATA SAVE
ROP DATA LOAD
INITIAL with NW
INITIAL
UPGRADE
IRIS CALIBRATION TOP
IRIS CALIBRATION BOTTOM
SYSTEM VERSION
SOFT VERSION
FPGA VERSION
17 CONNECT SETTING
CONNECT MODE(push) CAM1 “CONNECT MODE(push) CAM1” (see page 31)
CONNECT MODE(push) CAM2
to CAM99 “CONNECT MODE(push) CAM2 to CAM99” (see page 31)
- 11 -
ROP Menu (when AW-UE70/AW-HE35/AW-HE38/AW-HE40/AW-HE70 is connected)

18 ROP IP SETTING
ROP IP ADDRESS 1 Refer to the following section in the Operating Instructions.
“39 ROP IP SETTING”
ROP IP ADDRESS 2
ROP IP ADDRESS 3
ROP IP ADDRESS 4
PORT
UPLOAD
ROP SUBNET MASK 1
ROP SUBNET MASK 2
ROP SUBNET MASK 3
ROP SUBNET MASK 4
UPLOAD
ROP DEFAULT GATEWAY 1
ROP DEFAULT GATEWAY 2
ROP DEFAULT GATEWAY 3
ROP DEFAULT GATEWAY 4
UPLOAD
MAC ADDRESS
19 CAMERA IP SETTING
CAM1 to CAM99 IP ADDRESS Refer to the following section in the Operating Instructions.
“40 CAMERA IP SETTING”
CAM1 to CAM99 PORT
CAM1 to CAM99 UPLOAD
- 12 -
ROP Menu (when AW-UE70/AW-HE35/AW-HE38/AW-HE40/AW-HE70 is connected)

01 SCENE
ヒチバチヒ
ヴヤユワユヰョョヰョョヰワヰョョヮモワヶモロヒ
ドㄑㄖㄔㄉナ
ヮモワヶモロビ
ドㄑㄖㄔㄉナ
ヮモワヶモロピ
ドㄑㄖㄔㄉナ
ョヶロロチモヶヵヰ
ドㄑㄖㄔㄉナ
Item Setting details
MANUAL1(push) Selects a scene file.
When a scene file is set to ON, the other scene files will be set to OFF.
MANUAL2(push)
MANUAL3(push)
FULL AUTO(push)
- 13 -
ROP Menu (when AW-UE70/AW-HE35/AW-HE38/AW-HE40/AW-HE70 is connected)

02 SHUTTER SPEED
ヒチバチヒ
ヴラヶヵヵユンチヴヱユユュヴヱユユュヰョョヮヰュユ
ヒパパ
Item Setting details
MODE Selects the operation mode of the shutter.
SPEED Sets the shutter speed. The setting can be changed when [MODE] is [STEP].
The shutter speed of [SYNC] is not displayed.
- 14 -
ROP Menu (when AW-UE70/AW-HE35/AW-HE38/AW-HE40/AW-HE70 is connected)

03 FILTER
ヒチバチヒ
ョリロヵユンワュヒ
Item Setting details
ND Sets the ND filter position.
- 15 -
ROP Menu (when AW-UE70/AW-HE35/AW-HE38/AW-HE40/AW-HE70 is connected)

04 CHROMA
ヒチバチヒ
ヤランヰヮモロユヷユロ
ヌビ
Item Setting details
LEVEL Sets the color intensity of images.
- 16 -
ROP Menu (when AW-UE70/AW-HE35/AW-HE38/AW-HE40/AW-HE70 is connected)

05 GAIN
ヒチバチヒ
ヨモリワヨモリワモヨヤヮモヹチヨモリワモヶヵヰビフ
Item Setting details
GAIN Adjusts the gain of images.
AGC MAX GAIN When [AUTO] is selected as the [GAIN] setting, the maximum gain-up amount can be set.
- 17 -
ROP Menu (when AW-UE70/AW-HE35/AW-HE38/AW-HE40/AW-HE70 is connected)

06 WHITE BALANCE
ヒチバチヒ
ヸラリヵユチャモロモワヤユンャ
パパ
ヨモリワ
ピビパパレ モヸャチモヮヰュユヤヰロヰンヵユヮヱ
Item Setting details
MODE Sets the white balance mode.
COLOR TEMP Sets color temperature settings.
GAIN R Adjusts the R gain.
GAIN B Adjusts the B gain.
- 18 -
ROP Menu (when AW-UE70/AW-HE35/AW-HE38/AW-HE40/AW-HE70 is connected)

07 GAMMA
ヒチバチヒ
ヨモヮヮモヵヺヱユロユヷユロュンヴワヰンヮモロヰョョヮリュ
Item Setting details
TYPE Selects the type of gamma curve.
LEVEL Adjusts the gamma correction level.
DRS Sets the DRS function which performs correction when video with high light/dark contrast is displayed.
- 19 -
ROP Menu (when AW-UE70/AW-HE35/AW-HE38/AW-HE40/AW-HE70 is connected)

08 DETAIL
ヒチバチヒ
ュユヵモリロョロユヴラヵヰワユチヮュュヵロラロ
ペヒベ
ヰョョロヰヸロユヷユロ
Item Setting details
DTL Adjusts the image contour (i.e., image sharpness).
LEVEL H Adjusts the contour correction level when [DTL] is set to [HIGH].
LEVEL L Adjusts the contour correction level when [DTL] is set to [LOW].
FLESH TONE MD Sets flesh tone mode to make the skin of subjects appear smoother and more attractive.
- 20 -
ROP Menu (when AW-UE70/AW-HE35/AW-HE38/AW-HE40/AW-HE70 is connected)
