Panasonic CZ-RTC4A User manual

A
°
Operating Instructions
Timer Remote Controller
Model No. CZ-RTC4A
ACXF55-38730
https://eu.datanavi.ac.smartcloud.panasonic.com/
documents/index.htm?model=CZ-RTC4A
ENGLISH
Before operating the unit, read these operating instructions thoroughly and keep them for future
reference.
Installation Instructions Separately Attached.

2
Thank you for purchasing the
Panasonic timer remote controller.
●Read the Operating Instructions
carefully for safe use. This
manual describes the Operating
Instructions of the timer remote
controller. Read this manual as
well as operating instructions
supplied with indoor units and
outdoor units.
●Be sure to read the “Safety
Precautions” (P.3) before
using.
●Keep this manual with operating
instructions supplied with indoor
units and outdoor units in a safe
place.
●Be sure to keep this manual in a
place easily accessible by users.
In the case of user change, be
sure to give this manual to the
new user.
The English text is the original
instructions. Other languages
are translation of the original
instructions.
NOTICE
CONTENTS Page
●Safety Precautions .............................. 3
●Part Names ...........................................4
• Control panel .......................................4
• Screen display
..................................... 5
Preparations
●Basic Operations .................................6
• How to Operate ...................................6
• Setting the Present Time .....................8
●Weekly Program Function
.................. 9
• Checking the Weekly Timer
................. 9
• Changing the Program Timer ............10
• Deleting the Program Timer
.............. 12
• Invalidating the Program Timer
......... 13
• Duplicating the Program Timer
.......... 14
• Before Asking Repair Work ...............15
How to Use
●Outing Function .................................16
• Setting the Outing Function
............... 17
●Sleeping Function
............................. 18
●ECONAVI Function
............................ 21
●nanoeTMX/ECONAVI Function
........... 22
• ON/OFF setting of nanoeTMX/
ECONAVI function
............................. 22
Setting Change
●Troubleshooting ................................ 23
●Specifications
.................................... 25
When Necessary

3
WARNING
This symbol refers to a hazard or unsafe practice
which can result in severe personal injury or death.
This symbol refers to a hazard or unsafe practice which can
result in personal injury or product or property damage.
Matters to be observed Prohibited matters
WARNING
CAUTION
CAUTION
Do not use this appliance in a potentially explosive
atmosphere.
In case of malfunction of this appliance, do not repair by
yourself. Contact the sales or service dealer for repair.
• Do not operate with wet hands.
• Do not wash with water.
In case of emergency, remove the power plug from the
socket or switch off the circuit breaker or the means
by which the system is isolated from the mains power.
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance
by a person responsible for their safety. Children should be
supervised to ensure that they do not play with the appliance.
<for European market only>
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
Safety Precautions

4
A
°
°
13
6
5
4
3
1
2
12
11
10
987
Control panel
1 Operation indicator
Illuminates during operation. Blinks during alarm.
2 Start/Stop button
Starts/Stops operation.
3 Fan speed
Changing the fan speed.
4 Swing/Air direction
Use this button to set the auto swing or air direction to a specific angle.
5 Unit select
When more than one indoor unit is operated by one remote control unit, this button is used to
select a unit when adjusting the air direction.
6 Sleeping
7 Ventilation
Use this button when you installed a fan available in the market. Pressing this button turns on
and off the fan. When turning off the air conditioner, the fan will be also turned off.
8 Filter reset
Use this button to reset the filter sign. When is displayed, press this button after cleaning the
filter.
9 Timer setting buttons
10 Remote control sensor
Normally, the temperature sensor of the indoor unit is used to detect the temperature.
However, it is also possible to detect the temperature around the remote control unit.
11 Mode select
Pushing this button selects an operation mode.
12 nanoeTMX/ECONAVI
Use this button to turn on/off the nanoeTMX/ECONAVI Function.
13 Temperature setting buttons
Changing the temperature setting.
Part Names

5

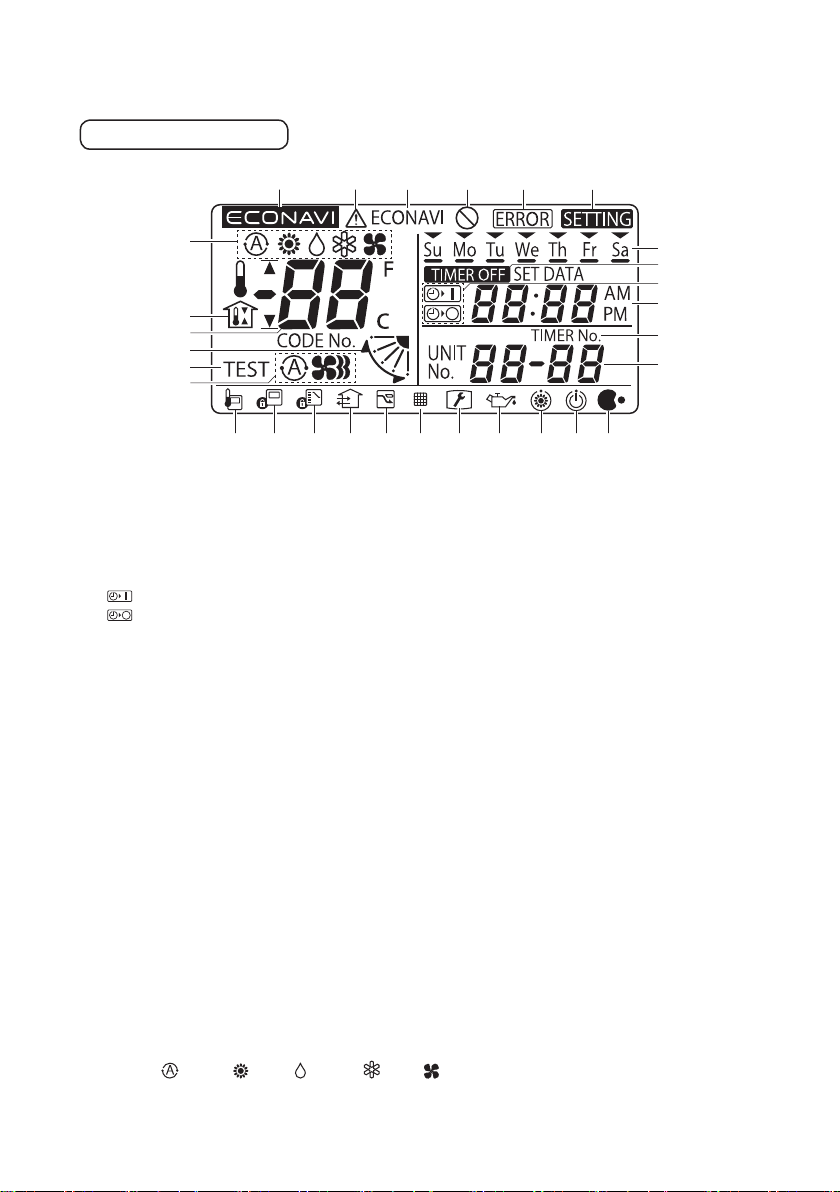

Screen display
1Displayed if the selected feature was disabled during installation.
2Displayed when a mistake is made during timer setting.
3Appears when the timer program is being set.
4Indicates today’s day of the week.
5Displayed when the timer has been turned OFF.
6Timer program indication
: The indoor unit starts operation at the programmed time.
: The indoor unit stops operation at the programmed time.
7Displays the present time on a 24-hour clock. Also, displays settings in the various setting
modes.
8Appears when the time program is being set.
9Indicates the unit No. of the selected indoor unit.
10 Appears when nanoeTMX is being set to ON.
Appears with displaying 28 if there is a problem on nanoeTMX.
11 Appears during the peak cut mode (Demand) if an electric heat pump (EHP) air conditioner is
used or during standby if a gas heat pump (GHP) air conditioner is used.
12 Appears when the fan of the indoor unit is stopped or in low fan speed.
13 The engine oil needs to be replaced. (Only when using a gas heat pump air conditioner.)
14 Appears when the maintenance function (monitoring sensor temperatures) is activated.
15 The indoor unit filter needs to be cleaned.
16 Appears during the sleeping function.
17 Appears when a fan available in the market is installed and is operating.
18 Switching operation modes is prohibited. (Switching to Auto mode is also prohibited.)
19 Remote control operation is restricted by a central control device.
20 Appears when the remote control sensor is used.
21 The selected fan mode is displayed.
22 Appears while in test operation.
23 Indicates the flap position.
24 Indicates the set temperature.
25 Appears during the outing function.
26 Displays the selected operation mode.
(AUTO /HEAT /DRY /COOL /FAN )
27 Appears when ECONAVI is being set to ON.
28 When inspection is required.
29 Appears with displaying 27 if there is a problem on ECONAVI.
°
°
2827
20 19 18 17 16 15 14 13 12 11 10
29 1 2 3
4
26
24
25
21
23
22
5
6
7
8
9
Part Names

6

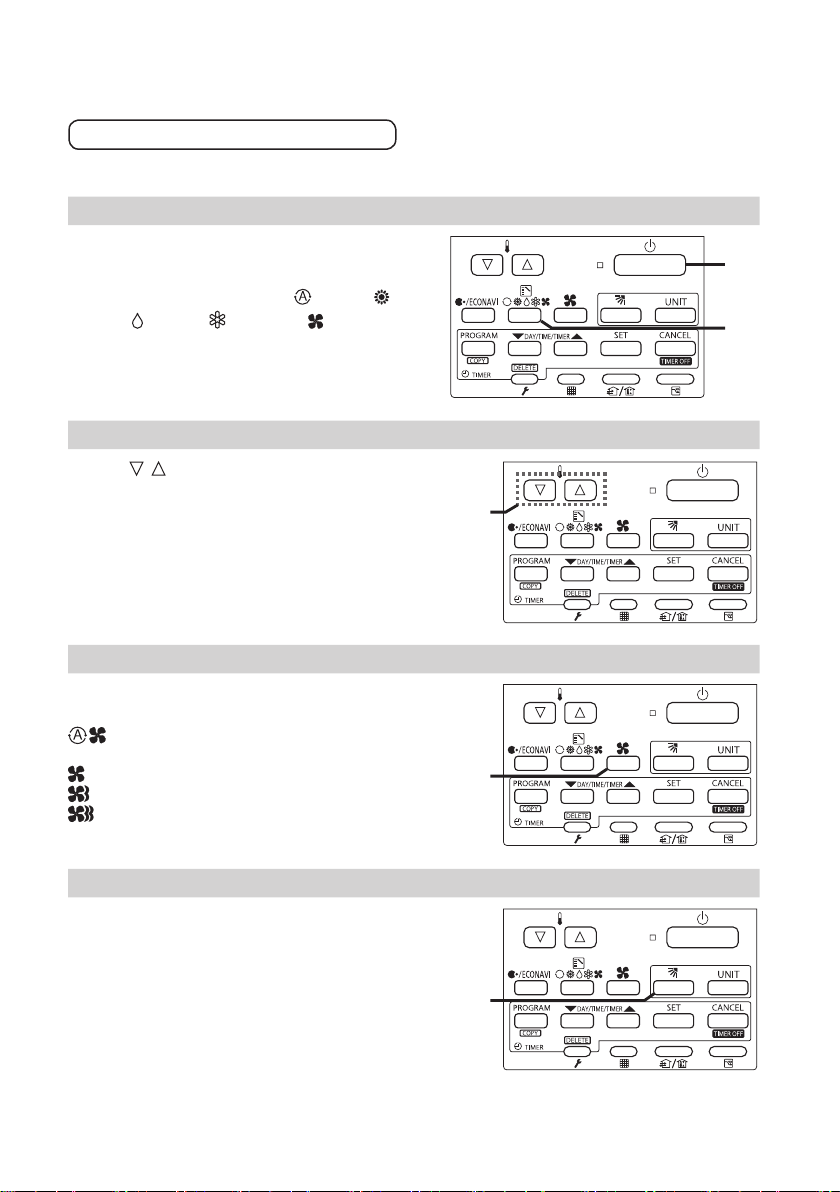

How to Operate
Turn on the indoor unit before operation. See operating instructions of the indoor unit.
Start/Stop operation / Operation mode
1. Press [Start/Stop] to start operation.
2. Press the mode select button to select
the mode among AUTO , HEAT ,
DRY , COOL and FAN .
* Auto: The mode is automatically switched to
Cool or Heat to achieve the set temperature.
A
1
2
Set temperature
Press [ / ] to set the desired
temperature.
Cannot be set in Fan mode.
A
Temperature
Fan speed
Press the fan speed button to set
the fan speed.
: Automatically switches the fan
speed.
: Low
: Medium
: High
A
Fan speed
Flap
Press the flap button to adjust the
flap position.
A
Flap
Basic Operations

7
Note
●If the heating performance is insufficient in Low fan speed, change the fan
speed to Medium or High .
●The temperature range that can be set varies depending on the model.
●Temperature sensor detects temperature in the vicinity of the air inlet of the
indoor unit. The detected temperature slightly differs from the room temperature
depending on the installation condition. The set temperature is a guideline of
room temperature.
Basic Operations

8

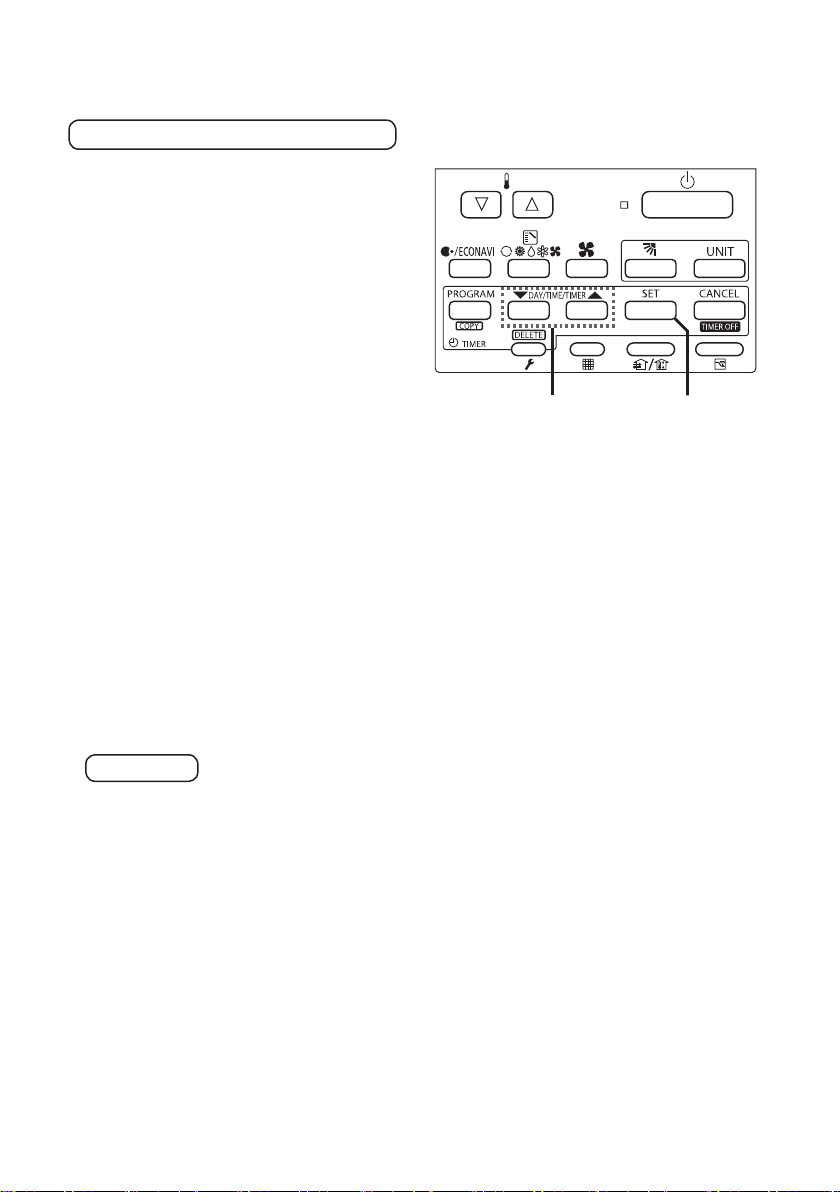

Setting the Present Time
1Press and hold [SET] for more than
2 seconds to enter the present day
and time setting mode.
Once you enter the setting mode,
“SETTING”, “▼”(day) and “time” flash.
A
2 / 3 / 4 1 / 3 / 4
2Set “▼” to today’s day of the week.
Press [▲] to move “▼” (flashing on the
display) in the order of: Su →Mo →Tu →....
Press [▼] to move it in the order of: Su →
Sa →Fr →....
Press [SET] to store.
3Press [▼/▲] to change the present
“hour” in the range of 0 to 23*1.
Set the present hour and press [SET].
The “hour” digits light up, and the “minute”
digits start flashing.
*1If the clock uses the 12 hours AM/PM
setting, the hour is displayed in the range of
AM 1 to 12 / PM 1 to 12.
4Press [▼/▲] to change the present
“minute” in the range of 0 to 59.
Set the present minute and press [SET].
The day and time are set and the unit
finishes the setting mode.
Note
●If the present time is invalid, “– – : – –” is displayed. If the power failure occurs,
check if the set data of day and time are valid.
Basic Operations

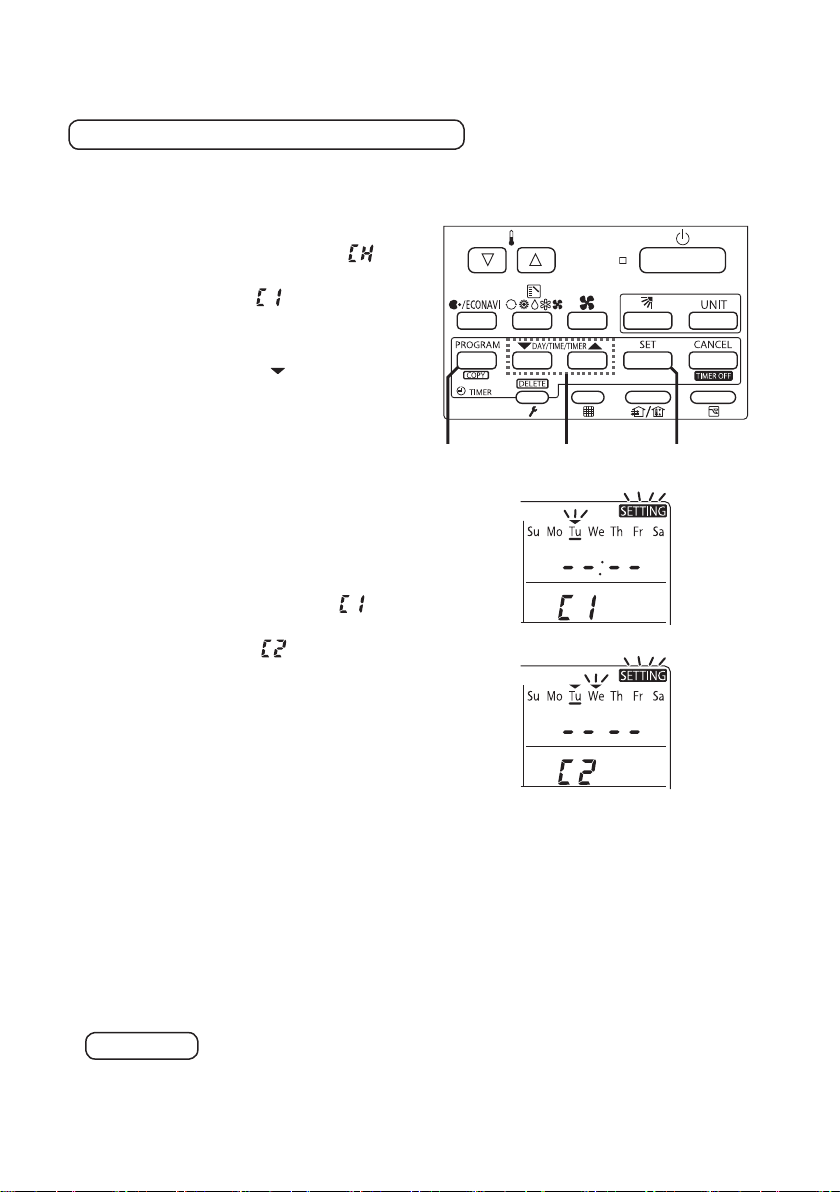

9

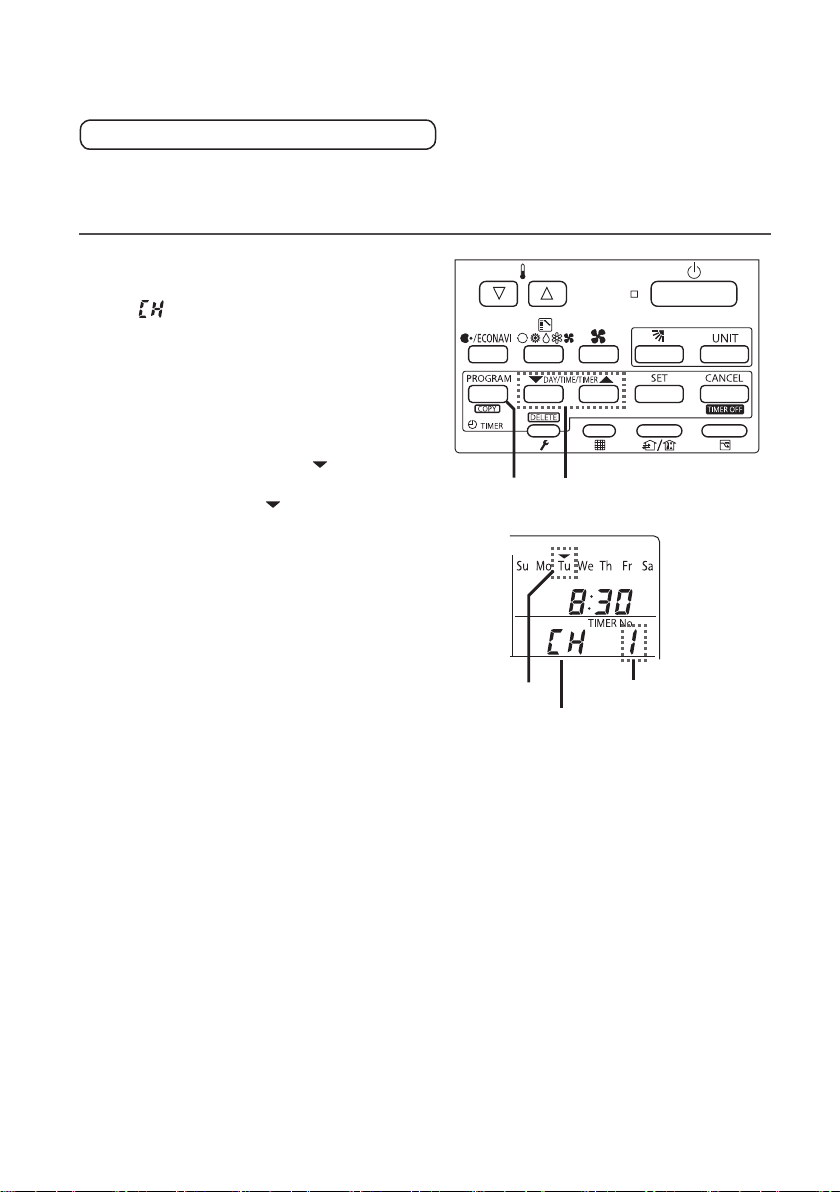

• Set the weekly program assigning a given timer to each day of the week.
Maximum of 6 programs a day and 42 programs a week can be set.
Select the day and the TIMER number you want to program.
1Press [PROGRAM] to enter the
program confirmation mode
“ ” and start setting.
Once you enter the program confirmation
mode, the present day is indicated as
TIMER No. “1”.
TIMER No. 1-6
2
program CHeck
A
2 / 31
2Select the day.
Press [▼/▲] to move the “ ” horizontally on
the day to select.
Press [▲] to move “ ” (flashing on the
display) in the order of: Su →Mo →Tu....
Press [▼] to move it in the order of : Su →
Sa →Fr....
“– – : – –” is displayed when the program is
not set.
Press [SET] to fix the day.
3Select a Timer number.
Press [▼/▲] to select a TIMER No. from 1
to 6.
Press [▲] to move up from 1.
Press [▼] to move down from 6.
Checking the Weekly Timer
Weekly Program Function

10

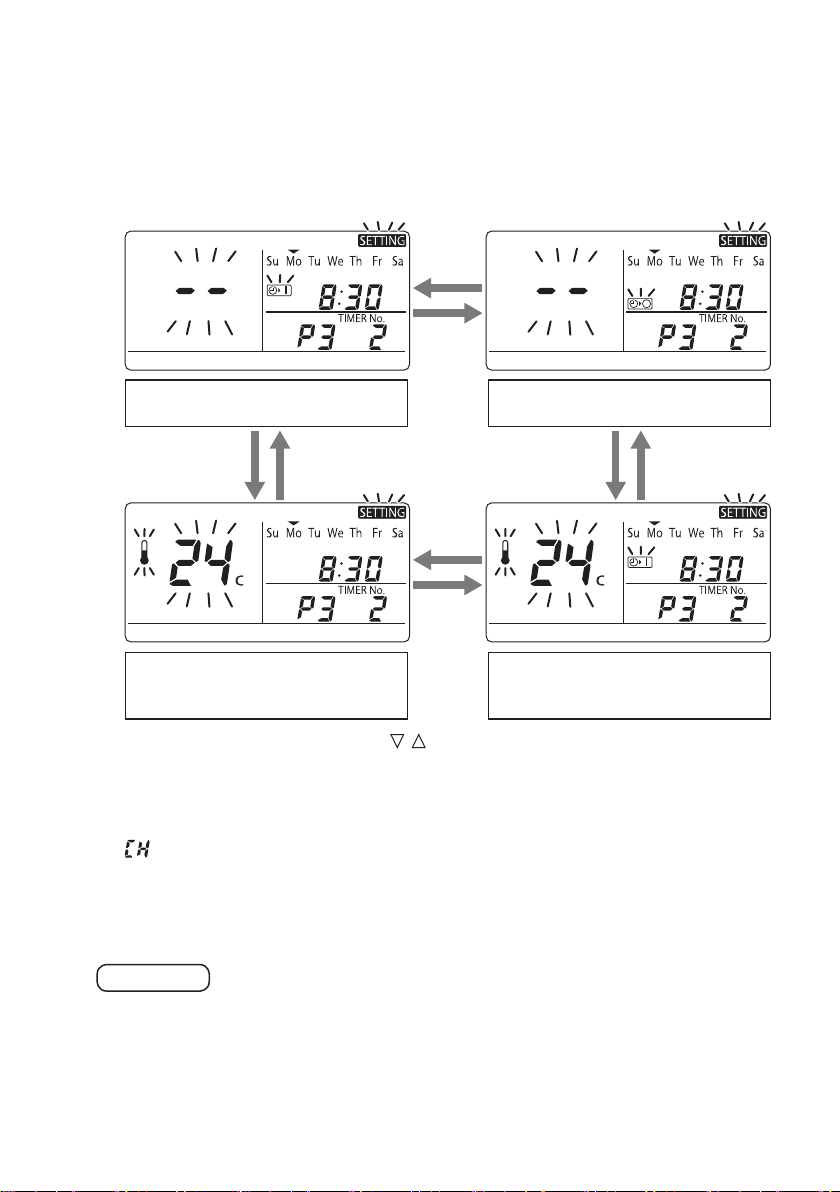

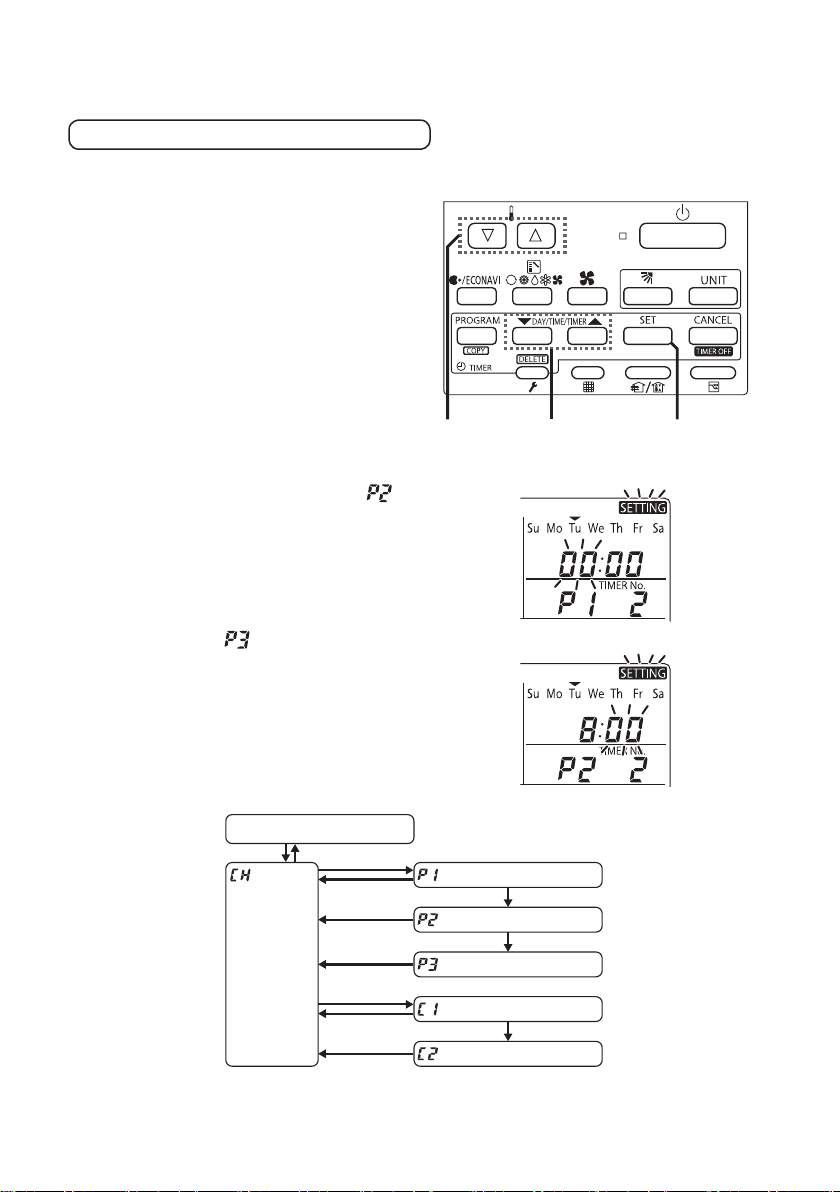

To set the weekly program, follow the steps.
1Select the program you want to
set in the program confirmation
mode, and press [SET]. This enters
the setting mode of the program
currently displayed.
* In the program setting mode, [SETTING],
“hour”, “minute” and “item” flash on the
display.
Program step1
Program step2
A
2 / 3 / 44 1 / 2 / 3 / 4
2Set the “hour”. (Program step 1)
Press [▼/▲] to set the “hour”.
Confirm the “hour” and press [SET]. This
enters the program changing mode
(setting of the “minute”).
3Set the “minute”. (Program step 2)
Press [▼/▲] to set the “minute”.
Confirm the “minute” and press [SET].
The unit enters (the program pattern
selection mode).
SET
SET
SET
SET
CANCEL,DEL
program check
CANCEL
CANCEL,DEL
CANCEL
PROGRAM
PROGRAM
Program Changing hour digits
Changing minute digits
Changing patterns
Selecting copy source
Selecting copy destination
normal remote controller
SET,CANCEL,DEL
SET,CANCEL
Changing the Program Timer
Weekly Program Function

11
4Set the program pattern. (Program step 3)
There are 4 program patterns.
Pressing [▼/▲] repeats the following display patterns.
Pattern 1 (Default display)
>ź@
Pattern 2
>Ÿ@
The indoor unit starts operation at the
programmed time.
The indoor unit stops operation at the
programmed time.
°°
>ź@
>Ÿ@
Pattern 4
>Ÿ@ >Ÿ@
Pattern 3
>ź@ >ź@
The indoor unit starts operation at the
programmed time and changes the
temperature settings.
The indoor unit changes the
temperature setting at the
programmed time.
For Pattern 3 and Pattern 4: Press [ / ] to change the temperature setting.
5Select the program pattern and press [SET].
The program timer setting is confirmed and the unit enters the confirmation mode
.
Note
●If you press [CANCEL] during the setting, it returns to the program confirmation
mode.
●If there is no operation made for 10 minutes during the setting, it returns to the
normal mode.
In this case, all the settings in progress will be invalid.
Weekly Program Function

12
To delete the program timer setting, follow the steps below.
1Press [PROGRAM] to enter the
program confirmation mode.
A
41 5 2 / 3
2Press [▼/▲] to select the day of the
program you want to delete.
Press [SET] to fix the day.
3Press [▼/▲] to select a TIMER No.
(from 1 to 6).
4Press [SET] to display the program
setting mode .
5Press [DELETE] to delete the
program.
Deleting the Program Timer
Note
●After deleting, the unit returns to the program confirmation mode .
●If you press [CANCEL] during the setting, the unit returns to the program
comfirmation mode.
●If there is no operation made for 10 minutes during the setting, the unit returns to
the normal mode.
Weekly Program Function

13
Invalidating the Program Timer
If you want to stopping the program operation for more than 1 week, you can invalidate
all the timer settings.
Once the timer settings are invalidated, the program will not be operated until the
invalidation is cancelled.
How to invalidate the program timer
1. Press and hold [CANCEL]([TIMER
OFF]) for more than 2 seconds.
[TIMER OFF] is displayed and the programs will
be invalidated from the next one.
A
1
How to cancel the program timer invalidation
1. Press and hold [CANCEL]([TIMER
OFF]) for more than 2 seconds.
[TIMER OFF] disappears and the programs will
be validated from the next one.
A
1
■If Power Failure Occurred
If the power recovers in a short time period, the program after the recovered time will
be valid.
If more than one hour has passed for power return after power failure, the present time
information will be lost. In this case, the program will not be operated.
Weekly Program Function

14
You can duplicate the preset program by day.
■Select the copy source.
1If [PROGRAM]([COPY]) is pressed
in program checking mode , it
enters the copy mode (Selecting
the copy source ) of the program
timer.
While in the copy mode of the program
timer, [SETTING] and (day) of the copy
source flash on the display.
A
1 2 / 4 3 / 4
2Press [▼/▲] to select the day of the
copy source.
Select the copy destination.
3If [SET] is pressed in the mode of
selecting the copy source , it
enters the copy mode (Selecting the
copy destination ) of the program
timer.
4Press [▼/▲] to select the day of the
copy destination. Then, press [SET]
to complete copying and return to
the program checking mode.
Duplicating the Program Timer
Note
The program will be overwritten if the preprogrammed day is selected as a copy
source.
Weekly Program Function

15
Before Asking Repair Work
Before asking repair work, please check the following.
Trouble Possible Cause/Remedy
“ERROR” is displayed
when the minute digits are
entered.
If there is another TIMER No. which has the program of the same
time and same day, you cannot overlap the setting.
The set data is not stored. The stored programs are automatically sorted by the time. Check if
the data is stored in the other TIMER No.
Program does not
function.
Check if the time indication is not “– – : – –”.
When the time is invalid, the program is also invalid.
Check the remote controller prohibition inside.
In that case, the program is invalid.
Weekly Program Function

16

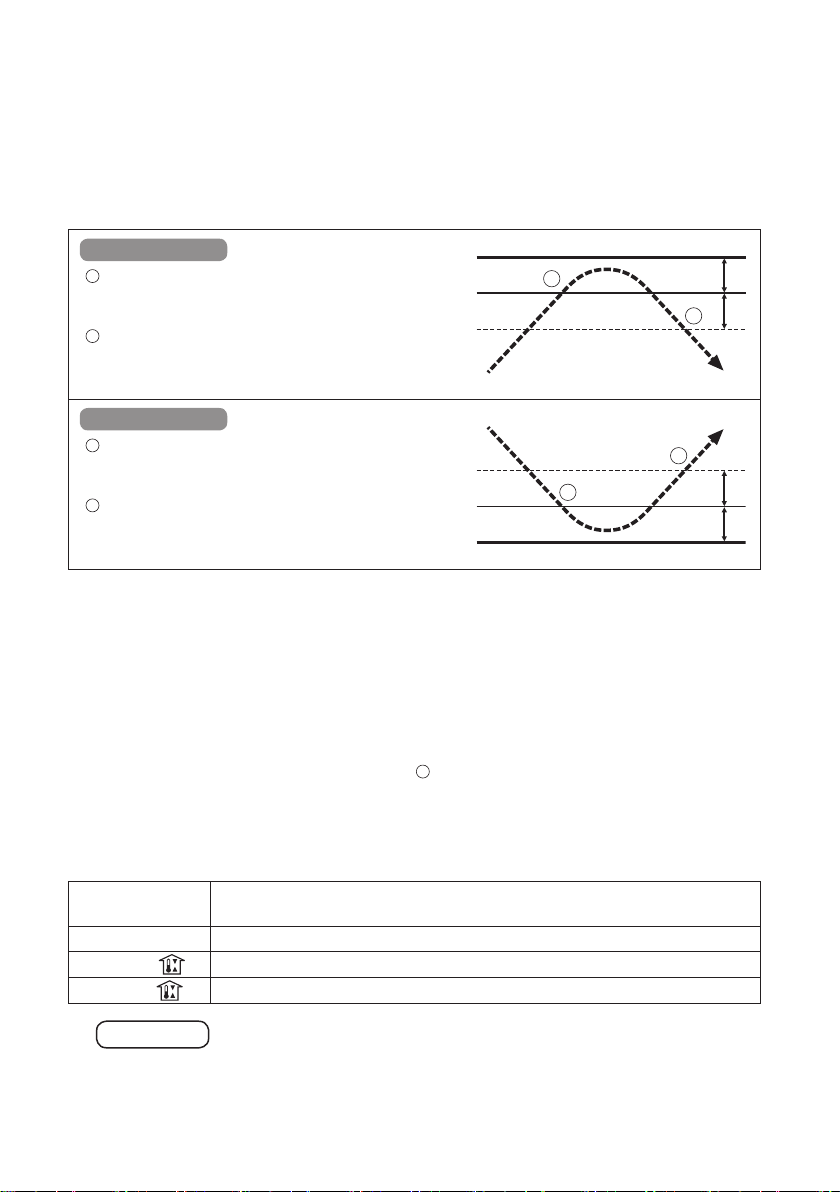

Outing function is a function that prevents the room temperature from
increasing too much (or decreasing too much) when no one is in the room.
An air conditioner works automatically if this function is set effective.
General Performance of the Outing Function
1
2
The air conditioner starts operation when the
room temperature increases up to –1°C of the
upper limit.
The air conditioner stops operation when the
room temperature decreases up to –2°C of the
upper limit.
COOL / DRY Outing function upper limit
1°C
1
21°C
Room temperature
1
2
The air conditioner starts operation when the
room temperature decreases up to +1°C of the
lower limit.
The air conditioner stops operation when the
room temperature increases up to +2°C of the
lower limit.
HEAT
Outing function Lower limit
1
2
1°C
1°C
Room temperature
[Precautions]
• The outing control only starts/stops the air conditioner. It does not change the
operation mode/temperature setting.
Therefore, the operation mode/temperature needs to be set beforehand so that
the outing function turns on the air conditioner with your desired operation mode/
temperature setting.
• If the room temperature rapidly changes, the room temperature may get over the
upper or lower limit when the outing function is activated.
• The outing function is invalid during FAN/AUTO operation mode.
• The air conditioner’s stop order (stated in 2/ above) is valid only when the outing
function is operated.
If operated using other remote control unit (or a centralized control device such as a
system control), the outing function does not work.
• Outing function indication
Outing function
indication Status
Off The outing function is not set.
Flashing The outing function is now being set or under operation.
Lighting Although the outing function is set, it is not under operation.
Note
A remote controller may lose outing function operation information when it is cut for
more than 24 hours during the outing function operation by electricity. It reverts from
the blackout, and an air conditioner does not drive in outing function when operation
is started. At this time, an air conditioner does not stop at outing function.
Outing Function

17
1Press and hold [Ventilation] for more
than 2 seconds to display
the upper limit temperature setting
screen.
[SETTING], , and the upper limit
temperature start flashing.
(The default value of the upper limit
temperature is 38 °C.)
A
1 2 / 32 / 3
°
2
°
3
2Press [ / ] to select the upper
limit temperature, and press [SET]
to fix the value. The lower limit
temperature setting screen is
displayed.
3Press [ / ] to select the lower limit
temperature, and press [SET] to
fix the value. The outing function
setting is completed.
(The default value of the lower limit
temperature is 10 °C.)
* The unit returns to the normal mode if [CANCEL] is pressed or there is no operation
made for 3 minutes during the setting. In this case, all the settings in progress will be
lost.
Canceling the outing function
1. Press and hold [Ventilation] for more
than 2 seconds while the outing
function is set.
A
1
Setting the Outing Function
Outing Function

18
This function leads you to a comfortable sleep and changes the room temperature
during your sleep.
• You can set the off timer every one hour from 1 to 10 hours.
■Display of remote control unit (during the time setting)
Sleeping function
indication
Off time
In case the present time is 23:00.
Operating time
■Display of remote control unit (during sleeping function setting)
°
Sleeping function
indication
* If no operation is made for 3 minutes, the time setting mode will be automatically
finished.
Sleeping Function

19
Ex. In case of 7 hours timer
1Press [Sleeping].
• Each time the button is pressed, the
indication changes in the following order.
A
211
(every one hour)
(Press [CANCEL] to stop the time setting.)
2Press [SET].
• The sleeping operation starts.
■When the off time comes:
• The indoor unit stops.
* The temperature returns to the setting at the time when sleeping function
operation started.
To cancel the sleeping function operation
1. Press [Sleeping].
* The temperature setting remains at the time
cancelled.
A
1
• The following buttons also cancel the sleeping function operation.
[Start/Stop] button
Stops the indoor unit after the sleeping function operation is cancelled.
[Mode select] button
Changes the operation mode after the sleeping function operation is cancelled.
Sleeping Function

20
■If [Sleeping] button does not work.
Or, in the case of operation not being started even if [SET] is pressed.
Check the following table.
Item Display of the remote control unit
(Lighting/flashing indication) Contents
1The Error indication flashes
(for several seconds). The clock is not set.
2“This function is not available” indication
lights up (for several seconds).
When the operation mode is set to AUTO or
FAN, this function is not available.
3Centralized control indication flashes
(for several seconds).
The centralized control device is prohibited
from starting/stopping the unit or changing the
temperature setting.
The sleeping function operation will be cancelled in the following cases:
1: When the unit is operated to stop or change the temperature setting by the other remote
control unit or centralized control device.
2: When the unit is operated to stop or change the temperature setting with the weekly program
function / outing function.
3: When the centralized control unit is prohibited from stopping the unit or changing the
temperature setting.
Note
Trouble Possible Cause/Remedy
The temperature setting does not
decrease (increase).
The temperature over the upper or lower limit or each operation
mode cannot be set.
Operation under the sleeping function
does not finish.
Note if you change the time after the sleeping function started. The
operation does not finish until it reaches to the set starting time.
Sleeping Function
