Installation Instructions
Wired Remote Controller
Model No. CZ-RTC6BLW
CZ-RTC6WBLW
Safety Precautions ……………………… 2
System Overview ………………………… 5
Part Names (Control panel) …………… 6
Dimensions ………………………………… 6
Installation Precautions ………………… 7
Mounting …………………………………… 8
Setting ……………………………………… 10
Test run …………………………………… 14

Troubleshooting …………………………… 15
Specifications …………………………… 16
Page
ENGLISH
Read through the Installation Instructions before you proceed with the installation.
In particular, please carefully read the “Safety Precautions”.

2
Please Read Before Starting
These instructions are all you need for most installation sites and maintenance
conditions. If you require help for a special problem, contact our sales/service outlet or
your certified dealer for additional instructions.
●
This product is a remote controller that comes equipped with Bluetooth®wireless
technology.
NOTICE
The English text is the original instructions. Other languages are translations of the
original instructions.
Safety Precautions
We assume no responsibility for accidents or damages resulting from methods other than those
described in the Installation Instructions or methods using unspecified parts.
Malfunctions that occur due to unauthorised installation methods are not covered by the product
warranty.
● This remote controller must be installed in accordance with National Wiring Regulations.
● Please also read installation instructions of connected devices.
● When relocating or repairing this remote controller, provide the Installation Instructions to the
servicing personnel.
WARNING CAUTION
This symbol refers to a hazard or unsafe
practice which can result in severe personal
injury or death.
This symbol refers to a hazard or unsafe
practice which can result in personal injury or
product or property damage.
Prohibited matters
Precautions for Installation setup
WARNING
Turn offthe circuit breaker of the units before
installation.
Select an installation location which is rigid and strong
enough to support or hold this remote controller, and
select a location for easy maintenance.
Use only the parts specified by Panasonic as supplied
accessories.
Ensure cables are installed properly so that external
forces cannot affect them.
Disassembly and modification of this remote controller is
not permitted under any circumstances.

3
WARNING
This remote controller must be installed by the sales dealer
or installer.
When installing the remote controller, use appropriate
protective equipment and tools for safety.
This remote controller should be securely installed in
accordance with the Installation Instructions.
Electric work must be performed by authorised personnel
in accordance with the local regulations and in accordance
with the Installation Instructions.
To avoid malfunctions caused by radio wave interference,
keep the remote controller away from devices such as
other wireless device, microwaves and the device that use
2.4 GHz signal. Depending on the area, the module may
not be available.
Attach the electrical cover to the indoor unit securely.
Make sure to connect the remote controller to the P.C.
board and terminal board of the indoor unit properly.
Do not set up in hospitals or places where electronic
medical devices are located.
If you have a cardiac pacemaker or implantable
cardioverter defibrillator, please keep at least 15 cm away
from the remote controller.
Do not use the remote controller near to automatic control
equipment (automatic door, fire alarms, etc.).
In case of an abnormal condition (such as a burning smell),
stop the indoor unit and turn the breaker OFF.
Do not operate with wet hands.
Do not splash water on the remote controller or use it in the
bathroom.

4
CAUTION
Ground yourself to discharge static electricity before
performing any wiring.
Do not install the remote controller in places with direct
sunlight or where the ambient temperature is 40 ˚C or more
or is 0 ˚C or less. Follow specifications. (P.16)
The connecting cable must not touch piping directly.
Do not set up where children can reach the remote controller.
Do not stand on an unstable surface when operating or
checking the remote controller.
Do not use in special environments.
Use in places with much oil (including machine oil),
steam, flammable or corrosive gas, voltage fluctuation,
surrounding the metal body, may lead to severe decrease
in functionality and damage to parts.
Do not use the remote controller nearby other wireless
devices, microwaves, cordless phones, or facsimiles.

5
NOTE
● Install this remote controller vertically.
● When attaching this remote controller, be sure to use the supplied screws and confirm
that remote controller is fixed to the surface so that there are no gaps.
● The warranty does not cover the product if it falls from an elevated location.
● Requires a mobile device that is iOS/Android™ compatible.
● The End user should read and accept the Terms of use and Privacy Notice in the
contents of “Panasonic H&C Control App”.
● Please avoid to set up multiple remote controller registrations at the same time.
● Users are responsible for all carrier costs associated with installing the
“Panasonic H&C Control App” on the mobile device.
● Panasonic Wired Remote Controller is designed for communication to the
“Panasonic H&C Control App”.
● Third party Bluetooth®interfaces cannot be connected to the “Panasonic H&C Control App”.
● Updates to the service may mean there are changes to the design of the “Panasonic
H&C Control App” screen and display.
datanavi
This unit supports datanavi.
For details on the usage, supporting regions, etc.,
visit the following URL.
https://datanavi.ac.smartcloud.panasonic.com/global/
System Overview
Indoor unit (example: 4-way cassette)
Mobile device
(“ Panasonic H&C Control App ”)
Remote controller
CZ-RTC6BLW / CZ-RTC6WBLW
Bluetooth®
functionality
Router
Internet
Mobile device
( “Panasonic ComfortCloud” )
Wireless
LAN

6
Part Names (Control panel)
The control panel colour of CZ-RTC6WBLW is white.
5) Start/Stop button
Starts/Stops operation.
2) Menu button
4) Enter button
Fixes the selected
content.
3) Up/Down
buttons
Selects an item.
1) LCD screen
● When pressed repeatedly
during operation, this shows
operating status confirmation,
set temperature, operation
mode, fan speed, flap, and
the menu screen.
● The menu screen is
displayed if you press while
stopped.
repeatedl
y
o
n,
this shows
s
con
fi
rmation,
e
, o
per
ation
e
d
, fl
ap
, a
nd
e
n.
e
n
is
u p
ress while
Note
Press centre No pen No glove
Dimensions
25 25 䃥4
60
10
4×10
4
3030
1510
86
86
Supplied accessories
Screw
M3.8 x 16
(2)
Operating
Instructions
(1)
Installation
Instructions
(1)
Instruction
(1)
Clamper
(1)
* Remote control wiring is not supplied. (field supplied item)
(mm)

7
Installation Precautions
Installation location
1 to
1.5m
50
mm
50 mm
50 mm
50 mm
Floor
Install at the height of 1 to 1.5 m from the floor
( Location where average room temperature can be detected ).
Keep a space around the remote controller as detailed
on the figure shown left.
Avoid the following locations for installation.
• In the shadow or backside of objects deviated from the
room airflow
• Location where condensation occurs
( The remote controller is not moisture proof or drip proof )
• Location near heat source
 Keep distance of 1 m or more from the TV, radio and PC.
(Image blur or related noise may occur)
 Do not use in special environments.
Use in places with much oil (including machine oil),
steam, flammable or corrosive gas, voltage fluctuation,
surrounding the metal body, may lead to severe
decrease in functionality and damage to parts.
Remote control wiring
Wiring diagram
1
2
R1
R2
Indoor unit
Terminals for RC wiring
RC
RC wiring (field supply)
• No polarity
Type of wiring
Use cables of 0.75 to 1.25 mm2.
Total wire length: 100 m or less
Number of connectable units
Remote controller:
1 unit connection only
Indoor unit: Max. 8
 Use the field supplied RC wiring with at least 1 mm in thickness of insulation part including the
sheath.
Wiring Regulations may differ depending on location. For field wiring rules, please refer to your
LOCAL ELECTRICAL CODES.
You must ensure that installation complies with relevant rules and regulations.
 Be careful not to connect cables to other terminals of indoor units (e.g. power source wiring
terminal). Malfunction may occur.
 Do not bundle together with the power source wiring or store in the same metal tube. Operation
error may occur.
 If noise is induced to the unit power supply, attach a noise filter.
Attention
Wiring as shown below is prohibited.
R1 R2
12
R1 R2
Indoor unit Indoor unit
RC
RC wiring

8
Mounting
1 Remove the top case.
1Insert the screwdriver to the bottom case.
Insert the flat-blade screwdriver to the claws as show in
the figure.
2Push the flat-blade screwdriver in.
Push down the flat-blade screwdriver along with the slope
of the claws until the top case comes off.
Bottom case
Topcase
Claw (2 locations)
A
Flat-blade screwdriver
Topcase
Bottom case
Claw
Flat-blade screwdriver
View A
2 Mount to the wall.
There are 2 types of wall-mounting methods: Exposed type and Embedded type.
Mounting the bottom case
Tighten the screws securely until the screw heads touch the bottom
case.
(Otherwise, loose screw heads may hit the PCB and cause
malfunction when mounting the top case.)
Do not over-tighten the screws.
(The bottom case may be deformed, resulting in the unit becoming
detached from the surface it is fixed to.)
Connection to the remote controller terminal board
Depress the push button using a round bar or finger, insert the
remote control wiring securely from the wiring insertion slot and
release the push button.
Pull the remote control wiring lightly, and confirm it is secured.
There is the danger of shorting if copper wire is exposed. Make sure
the wire is properly inserted.
insertion slot
push button
remote controller terminal board
Attention

9
Exposed type
3
*It is also possible to mount in the order
2
→
1
→
3
.
Screw
(Supplied)
Claw (2 locations)
Claw (2 locations)
1Mount the bottom case to the wall.
●Pass the wire through the wiring
hole in the bottom case and lay the
wire out along the groove.
Mount the top case.
●
Align the claws of the top
case and then align the
claws of the bottom case.
Cut here with
a nipper and
remove the burr
with a file.
Connect the remote control wiring.
• Be sure not to allow unnecessary wires to remain
in the remote controller case when wiring. Be
careful not to allow wires to be in contact with
parts on the PCB. For connection method, refer
to
“ Connection to the remote controller terminal
board
” in “ Attention ” .
Avoid the
wire being
caught.
Hole for screw
Clamper
(supplied)
• Insert the clamper from the
position indicated by the arrow,
as shown in the diagram at right.
• Put the locking part of the
clamper in the channel as
indicated by the arrow.
• If you lock at the top, it may not
be possible to close the bottom
case.
Remove the coating. Approx. 9 mm
Remove the sheath. Approx. 130 mm
●Make sure the wiring connection is in the
correct direction.
● There will be a slight difference in length due
to the wiring diameter, so make adjustments
on site when performing the installation.
Remote controller
terminal board
Push the sheath
Push the sheath
in to the back as
in to the back as
shown on the
shown on the
illustration.
illustration.
Insert the wire properly
Insert the wire properly
into the channel on the
into the channel on the
bottom case, and make
bottom case, and make
sure the wire is not
sure the wire is not
pinched when the case
pinched when the case
is attached to the wall.
is attached to the wall.
A protective film is attached on the Control panel.
2

10
Setting
For Wireless LAN setting method, refer to the Operating Instructions.
Preparation: Turn on the circuit breaker of units and then turn the power on. The remote controller starts, and
wait until the [Assigning] display disappears.
(If [Assigning] continues to blink for 10 minutes or more, check the address setting of indoor units.
Refer to indoor/outdoor unit installation details.)
Menu
Language Clock
Bluetooth®functionality
Steps 1 and 2 are common operations for each item.
1When stopped
Press .
When operating
Press repeatedly until the menu
screen is displayed.
•To return to the top screen, press .
2Select the
item to set.
Press
→.
Number for the
selected item
Total number of items
Embedded type
*It is also possible to mount in the order
2
→
1
→
3
.
Screw
(Supplied)
Claw (2 locations)
Claw (2 locations)
Connect the remote control wiring.
• Be sure not to allow unnecessary wires to remain
in the remote controller case when wiring. Be
careful not to allow wires to be in contact with
parts on the PCB. For connection method, refer
to
“ Connection to the remote controller terminal
board
” in “ Attention ” .
2
Hole for screw
Mount the top case.
●
Align the claws of the top
case and then align the
claws of the bottom case.
● If the wiring is difficult to
move, loosen the screw in
the lower case, work on the
wiring, then screw in the
screw after finishing the work.
3Mount the bottom case to
the wall.
●Pass the wire through the
wiring hole in the bottom case.
1
Avoid the
wire being
caught.
Clamper
(supplied)
• Insert the clamper from the
position indicated by the arrow,
as shown in the diagram at right.
• Put the locking part of the
clamper in the channel as
indicated by the arrow.
• If you lock at the top, it may not
be possible to close the bottom
case.
Remote controller
terminal board
Remove the coating. Approx. 9 mm
● Make sure the wiring connection
is in the correct direction.
Pass the wire under the rib.
Pass the wire under the rib.
A protective film is attached on the Control panel.

11
Language Clock
3
Select the language
to display from
among
7 languages shown
on the right.
FRANÇAIS
DEUTSCH
ITALIANO
ESPAÑOL
POLSKI
РУССКИЙ
ENGLISH 3Set the preset date and
time.
Press
→(Repeat)
→. ( Press to finish. )
Press
→→.
(Press to finish.)
•Default setting : ENGLISH
•[--] appears in situations where the clock is reset,
such as when power is not supplied to the remote
controller for 24 hours or more.
Bluetooth®functionality
3Select
[Enable/disable].
Press →.
Number for the
selected item
Total number of items
4Select [Enable].
Press →
→.
( Press twice to finish. )
Enable
Disable
To disable Bluetooth® functionality
1. Start with step 1 and select [Disable] in Step 4.
2. Press .
3. Press twice to finish.

Connecting with the “Panasonic H&C Control App”
Before connecting, set Bluetooth® functionality to [Enable].(Step 4)
When connecting, try getting the mobile device as close as possible to the remote controller.
1.
Start the “Panasonic H&C Control App”.
The following Steps 3 and 4 are required only when
connecting for the first time.
3. Confirm the numbers on the mobile device match
the 6 digits on the remote controller.
4. Start connecting.
Mobile device
Tap “Pair”.
Remote controller
Press .
• “ ” is displayed on the top screen when the
Bluetooth
®
connection is established. Once this step
is complete, subsequent connections will be made
automatically.
2. Select the remote controller you want to operate.
Tap
•
If the remote controller is not displayed, slide down to
update and the remote controller is detected.
When Bluetooth®connection is complete, mobile device information is stored, and the above Steps 3 and 4 are
unnecessary next time Bluetooth®connection is made.

12

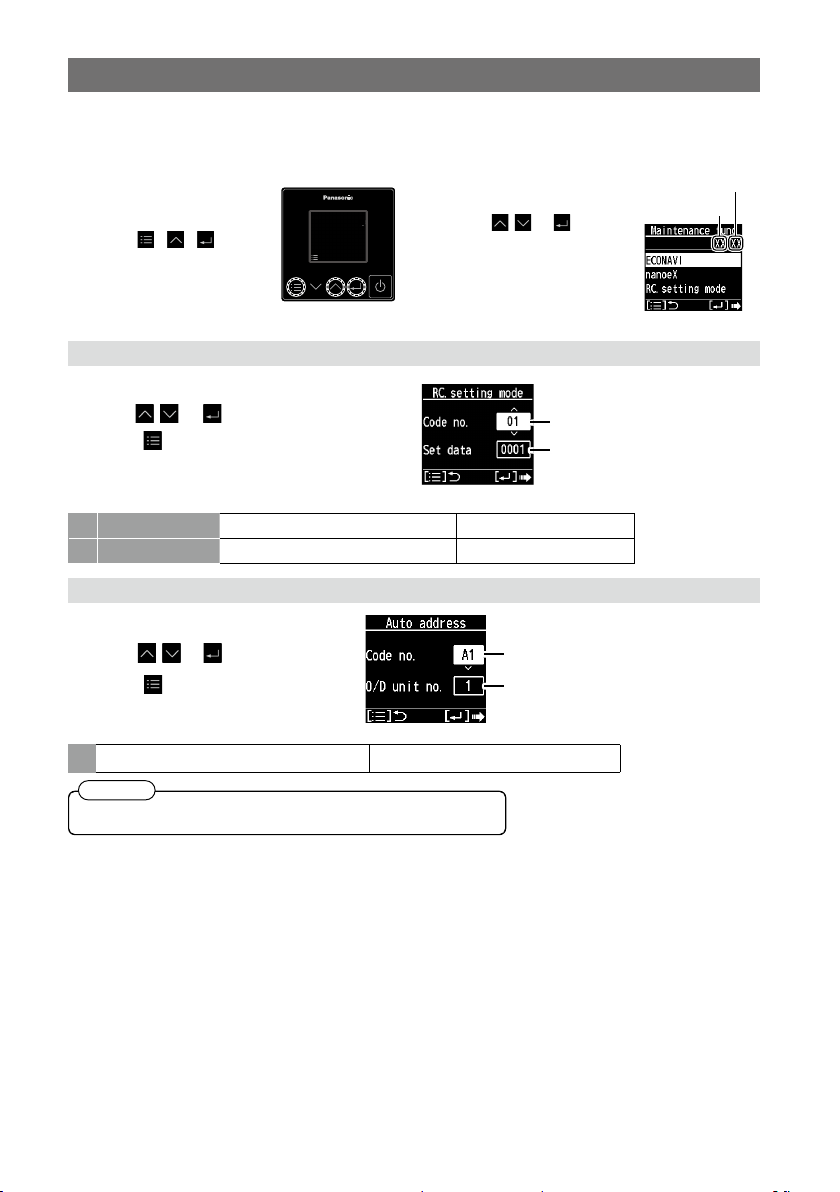

Maintenance func
RC. setting mode Auto address Detailed settings Sensor info. Service check
Set elec. consumption
Check this item as necessary.
Steps 1 and 2 are common operations for each item.
1
Press and hold the
3 buttons simultaneously,
for at least 4 seconds.
Press , , .
2Select the
item to set.
Press →.
Number for the
selected item
Total number of items
RC. setting mode
3Set.
(Select the Code no. and Set data.)
Press →. (Repeat) Code no.
Set data
4Press .
After Selecting [YES], the unit restarts.
Code no . Set data
01 Main/sub Set this when using 2 remote controllers. • 0000: Sub
• 0001: Main (factory setting)
2F Password change Set the administrator password. • 0000 to 9999
• 0000 (factory setting)
Auto address
3Set.
(Select the Code no. [A1] and O/D unit no.)
Press →. (Repeat)
4Press .
After Selecting [YES], the unit restarts.
Code no. O/D unit no.
A1 Set the Auto address for each O/D unit no.
Select the O/D unit no. (outdoor unit) for Auto address. • Outdoor unit number
 Set Auto address after all units are turned on and 90 seconds or more have passed.
 Operate the units after Auto address is set and 90 seconds or more have passed.
Attention
Code no.
O/D unit no.

13

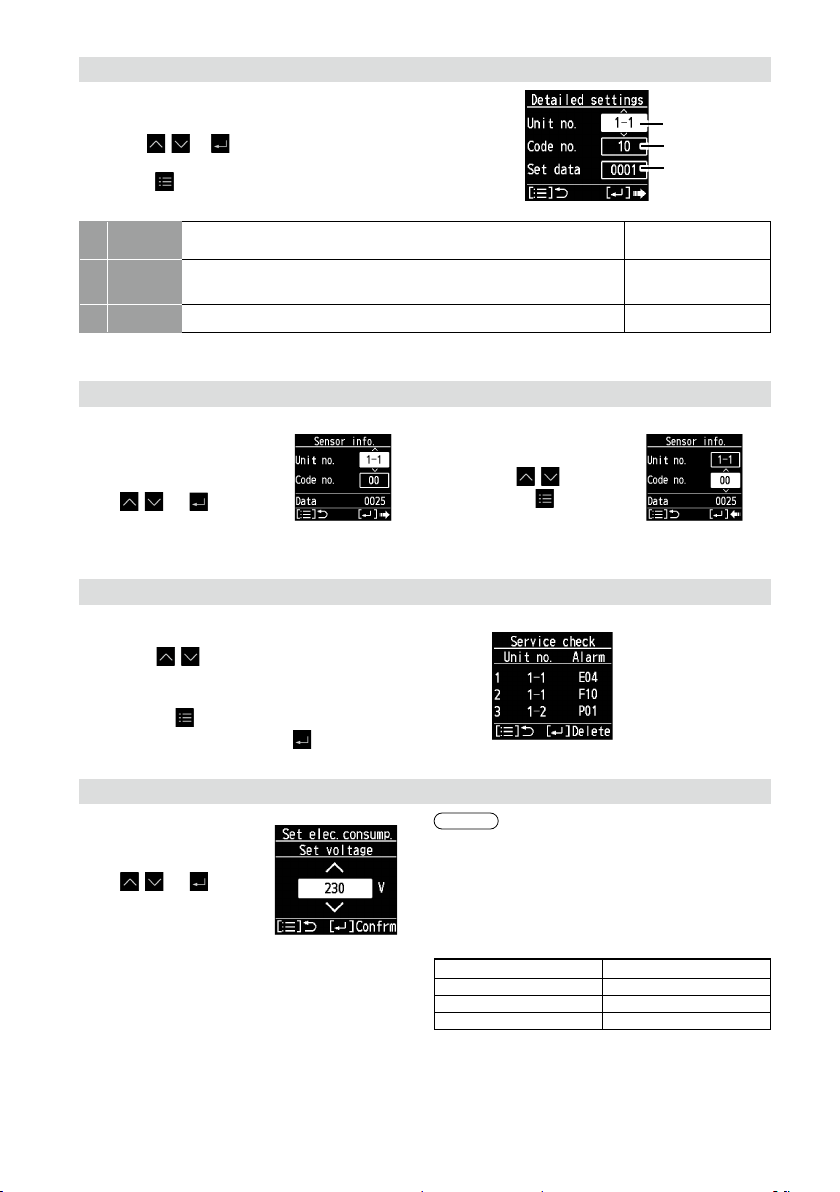

Detailed settings
3Set.
(Select the indoor unit number, Code no. and Set data.)
(When selecting Code no., refer to the following table.)
Press →. (Repeat)
Indoor unit number
Set data
Code no.
4Press .
After Selecting [YES], the unit restarts.
Code no. Set data
31 Vent output
setting
Set this when connecting a commercially sold fan, etc. to the ventilation
fan output “FAN DRIVE:2P (White)” on the indoor control board.
*Dedicated cables (optional) are required.
• 0000: Not connected
• 0001: Connected
32 Temp sensor
setting
Set this when measuring the room temperature with the room temperature sensor of the remote controller.
• When using the main and sub remote controllers, the main one is enabled.
• When using with the remote sensor in combination, set the indoor unit setting data.
* This setting is not available during group-controlling.
• 0000: Indoor unit
• 0001: Remote controller
33 Temp display
setting Set the type of temperature display. • 0000: °C
• 0001: °F
* Depending on the type of indoor unit, Code no. may be displayed with 6 digits. In this case, read as follows.
e.g. 10 →000010
Sensor info.
This displays each sensor temperature of the remote controller, indoor units and outdoor units.
3Select.
(Select the unit number and
Code no.)
Press
→. (Repeat)
4Confirm the
content.
Press .
●Pressing
will return to the
Maintenance func
screen.
Service check
This displays the alarm history.
3Confirm the content.
Press .
Information of the last 4 errors is displayed.
[ -- ] shows that no error has occurred.
●Pressing will return to the Maintenance func screen.
●To delete the error history, press and select [YES].
Set elec. consumption
3Set.
(Select the power supply
voltage of outdoor units.)
Press
→.
Note
• Set the power supply voltage of outdoor units to calculate electric
consumption of the Power consumption monitor.
• If the setting differs from the power supply voltage of outdoor units,
the electric consumption value of the Power consumption monitor will
differ from the actual calculation result by a power meter.
• Depending on the outdoor unit model, this cannot be set.
■When 3-phase model connections are used
for outdoor units
Power supply voltage Setting value
380 V 220 V
400 V 230 V
415 V 240 V
4Select [YES].

14
Test run
1
Press and hold the
3 buttons
simultaneously, for at
least 4 seconds.
Press , , .
2Select [Test run].
Press →. Number for the
selected item
Total number of items
3Select [ON].
(The unit enters the test operation mode. Then, [TEST]
turns on.) 4Perform the test
operation.
Press .
Press →.
Press .5Finish the test operation.
Perform step 1 and 2, and then select [OFF] in step 3. ([TEST]
display disappears.)
 The test operation can be performed in Heat or Cool mode.
 Temperature cannot be changed.
 The test operation mode is automatically turned offin 60
minutes. (To prevent continuous test operation)
 Outdoor units do not operate for approx. 3 minutes after the
power is turned on or operation is stopped.
Do not use this mode for purposes other than the test operation.
(To prevent overload of the units)
Read the Installation Instructions supplied with the units.
Attention

15
Troubleshooting
The “Panasonic
H&C Control App”
cannot be installed
in mobile device.
●Check if OS of the mobile device is compatible. The
“Panasonic H&C Control App” is not guaranteed to work with
all versions of iOS and Android™ OS.
See page 16 for the versions of the OS for mobile devices that are supported by the
“Panasonic H&C Control App” and the Bluetooth
®
versions.
Remote controller
and mobile
device cannot
be connected
via Bluetooth®
functionality.
●
Confirm that the remote controller is turned on.
● Check the following if “ ” is not displayed on the top screen.
– Confirm that the Bluetooth®setting on the remote controller is
set to [Enable]. (
refer to page 11 )
– If the mobile device to be connected by Bluetooth®functionality
is far away from the remote controller, try getting it as close as
possible to the remote controller.
– Check the connection method of the remote controller and that
of the mobile device (
refer to page 11 ).
The remote
controller
screen displays
“ ” “ ”.
(alternately)
●Bluetooth®module is considered abnormal.
→Set Bluetooth®functionality to [Disable] with the remote
controller (refer to page 11 ) and contact the retailer or point
of purchase with the Model No. and problem.
Change of
mobile device’s
model.
●Ensure the mobile device compatibility.
Install the “Panasonic H&C Control App” and start it.
Complete by initial connection setup. (refer to page 11)
Change of remote
controller.
●Confirm that the Bluetooth®setting on the remote controller is
set to [Enable].
●Complete by initial connection setup. (refer to page 11)

16
Specifications
Model No. CZ-RTC6BLW / CZ-RTC6WBLW
Dimensions (H) 86 mm × (W) 86 mm × (D) 25 mm
Weight 0.10 kg
Temperature/Humidity range
0 ˚C to 40 ˚C / 20% to 80% (No condensation) *Indoor use only.
Power Source DC16 V (supplied from indoor unit)
Clock
Precision
± 30 seconds/month (at normal temperature 25 ˚C)
*Adjust periodically.
Holding
time
24 hours (When fully charged) (at normal temperature 25 ˚C)
*Approx. 8 hours are required for full charge.
Number of connected indoor units Indoor unit: Up to 8 units (Within group-controlling)
OS version on the mobile device
for “Panasonic H&C Control App”
Check on the relative app store for supported OS versions.
Bluetooth®version 4.2 or later
OS version on the mobile device for
“Panasonic Comfort Cloud”app
Check on the relative app store for supported OS versions.
•The Bluetooth®word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use
of such marks by Panasonic Corporation is under license. Other trademarks and trade names are those of
their respective owners.
•iOS is the name of the OS of Apple Inc. IOS is a trademark or registered trademark of Cisco in the US and
other countries which has been licensed for use.
•Apple and the Apple logo are trademarks of Apple Inc. that are registered in the US and other countries.
App Store is a service mark of Apple Inc.
•Android™, Google Play™ and Google Play™ logos are registered trademarks of Google LLC.
Maximum radio-frequency power transmitted in the frequency bands
Type of wireless Frequency band Max EIRP (dBm)
Bluetooth® functionality 2402 - 2480 MHz 6.7 dBm
Wireless LAN functionality 2412 - 2472 MHz 20 dBm

WEB-ACXF60-39654-EN
W1020-20423
Panasonic Corporation
http://www.panasonic.com
© Panasonic Corporation 2020-2023
