Panasonic KV-S4065CL - Sf Clr Duplex 65PPM USB 2.0 Lgl 300PG... User manual

© 2008 Panasonic Communications Co., Ltd.
All rights reserved. Unauthorized copying and distri-
bution is a violation of law.
Order Number KM70804376CE
Category Number G14
High Speed Color Scanner
Model No. KV-S4065CL
KV-S4065CW
KV-S4065CWCN
KV-S4085CL
KV-S4085CW
KV-S4085CWCN

236

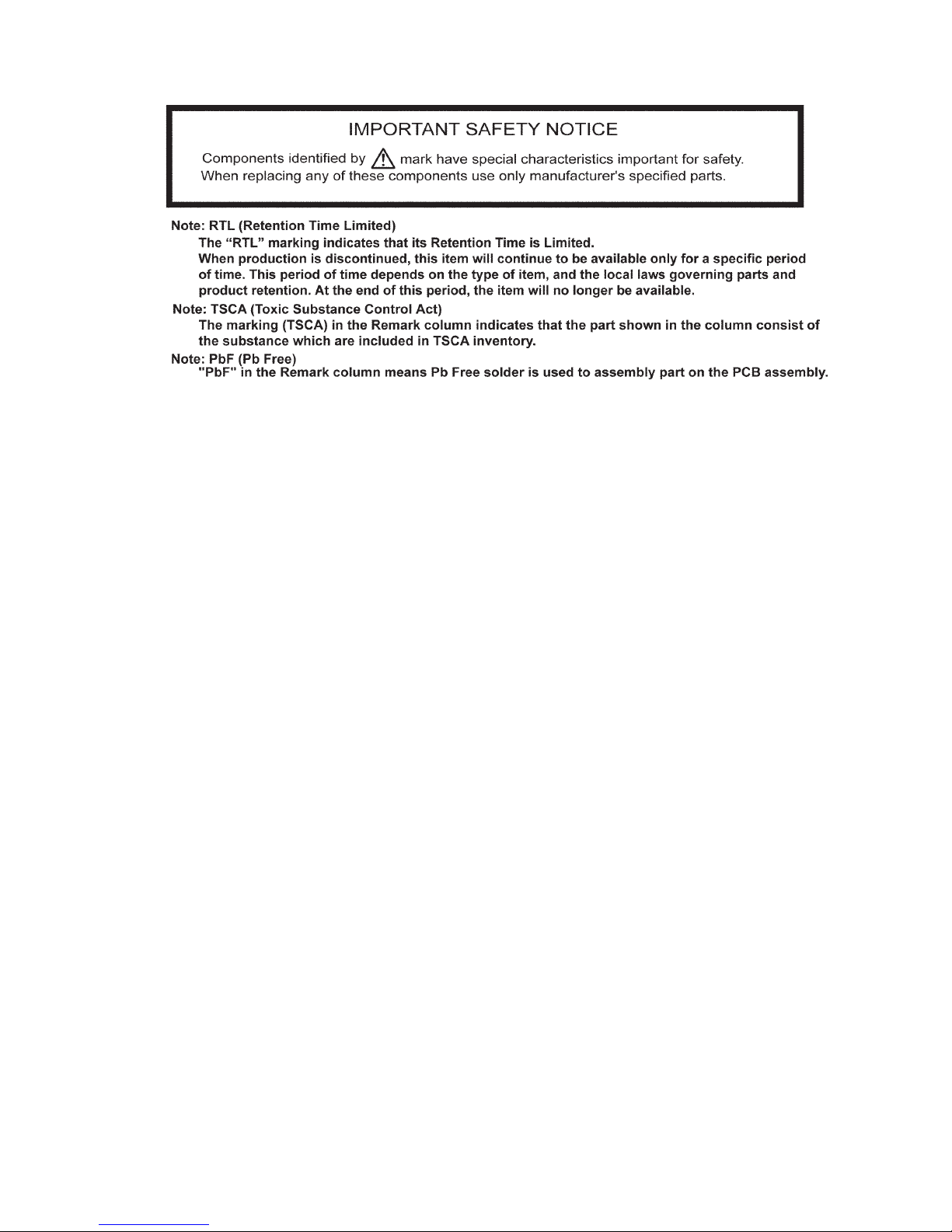

14 PARTS LOCATION AND MECHANICAL PARTS LIST

237

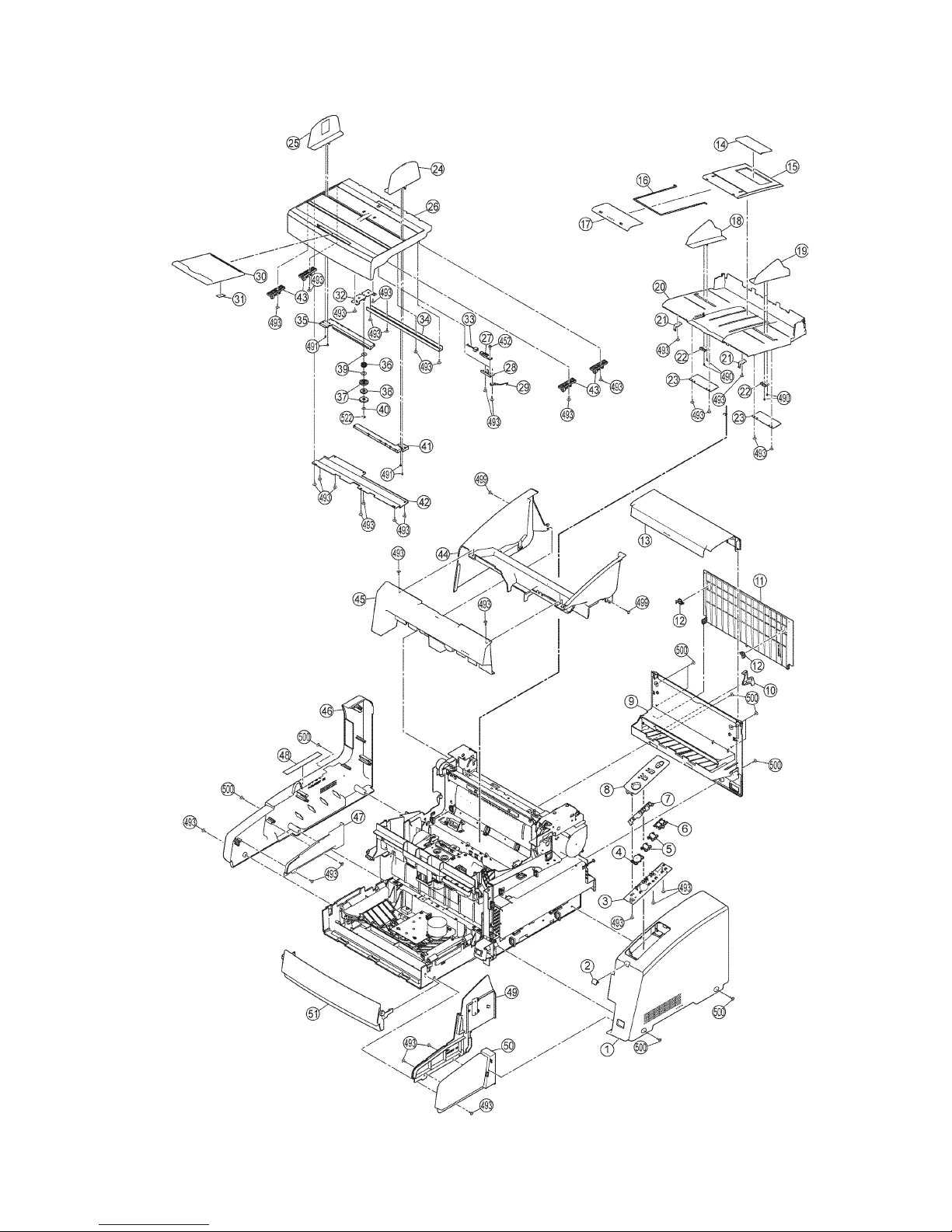

14.1. Exterior

238
Safety Ref. No. Part No. Part Name & Description Remarks
1 PJKMC0018Z Right Cover ISO:PS
2 PJHRC0397Z LED Cover 2 ISO:PS
3 PJWP099903A PANEL Board (RTL) PbF
4 PJHRC0398Z START/STOP Button ISO:PS
5 PJHRC0400Z ADF Button ISO:PS
6 PJHRC0399Z Hopper Button ISO:PS
7 PJHRC0396Z LED Cover 1 ISO:PS
8 PJKPC0068Z Panel Cover ISO:PS
9 PJKUC0004Z Rear Cover ISO:PS
10 PJHRC0392Z Switch Link ISO:POM
11 PJKCC0020Z Straight Path Tray ISO:PS
12 PJHRC0391Z Rear Hook ISO:POM
13 PJKCC0019Z Post-Imprinter Cover ISO:PS
14 PBHRA0186Z-1 Exit Sub Stopper ISO:ABS
15 PBHAA0035Z-1 Extension Sub Tray ISO:PS
16 PJUKC0130Z Stacker Extension Guide
17 PJKPC0067Z Exit Stopper ISO:ABS
18 PJHRC0393Z Exit Document Guide L ISO:ABS
19 PJHRC0394Z Exit Document Guide R ISO:ABS
20 PJYE09990M Stacker ISO:PS
21 PJHRC0401Z Hook ISO:POM
22 PJHRC0395Z Guide Stopper ISO:POM
23 PJHEC0175Z Stacker Cover
24 PJZV09990M Document Guide R
25 PJZV09991M Document Guide L
26 PJZV09992M Hopper Plate for KV-S4085CW/KV-S4085CWCN/KV-
S4065CW/KV-S4065CWCN
26 PJZV09993M Hopper Plate for KV-S4085CL/KV-S4065CL
27 B3NZB0000006 Photo Coupler (Paper Sensor)
28 PJULC0053Z Plate
29 PJJTC0023Z Grand Cable
30 PBKMA0049Z-1 Hopper Extension tray ISO:ABS
31 PJHGC0059Z Stopper Rubber
32 PJZH09990M Pinion Plate
33 PJJRC3191Z H_Home-Paper Exist Cable
34 PJULC0091Z Hopper Reinforce Plate
35 PJHRC0376Z Rack L
36 PJBVC0167Z Pinion Spring
37 PJDGC0212Z Pinion ISO:POM
38 PJHGC0052Z Pinion Pad
39 RWPS8-025 Polyslider
40 RWPS5-025 Spacer
41 PJHRC0375Z Rack R
42 PJUEC0333Z Hopper Back Plate
43 PJHRC0377Z Arm Keeper
44 PJYF09990M Top Cover ISO:PS
45 PJKMC0022Z Front Cover for KV-S4085CW/KV-S4085CWCN/KV-S4085CL ISO:PS
45 PJKMC0022Y Front Cover for KV-S4065CW/KV-S4065CWCN/KV-S4065CL ISO:PS
46 PJKMC0017Z Left Cover ISO:PS
47 PJKEC0068Z Left Inner Cover ISO:PS
48 PJQTC0222Z Caution Label 1
49 PJKEC0067Z Right Inner Cover ISO:PS
50 PJKMC0019Z Right Hopper Cover ISO:PS
51 PJKMC0020Z Front Hopper Cover ISO:PS
452 XTB3+6FFJ Screw
490 XTW26+8SFJ65 Screw
491 XTW26+8PFJ Screw
493 XTW3+10PFJ Screw
499 XTW3+6LFJ Screw
500 XTW3+8LFJ Screw
522 XUC4FJ E-ring

239

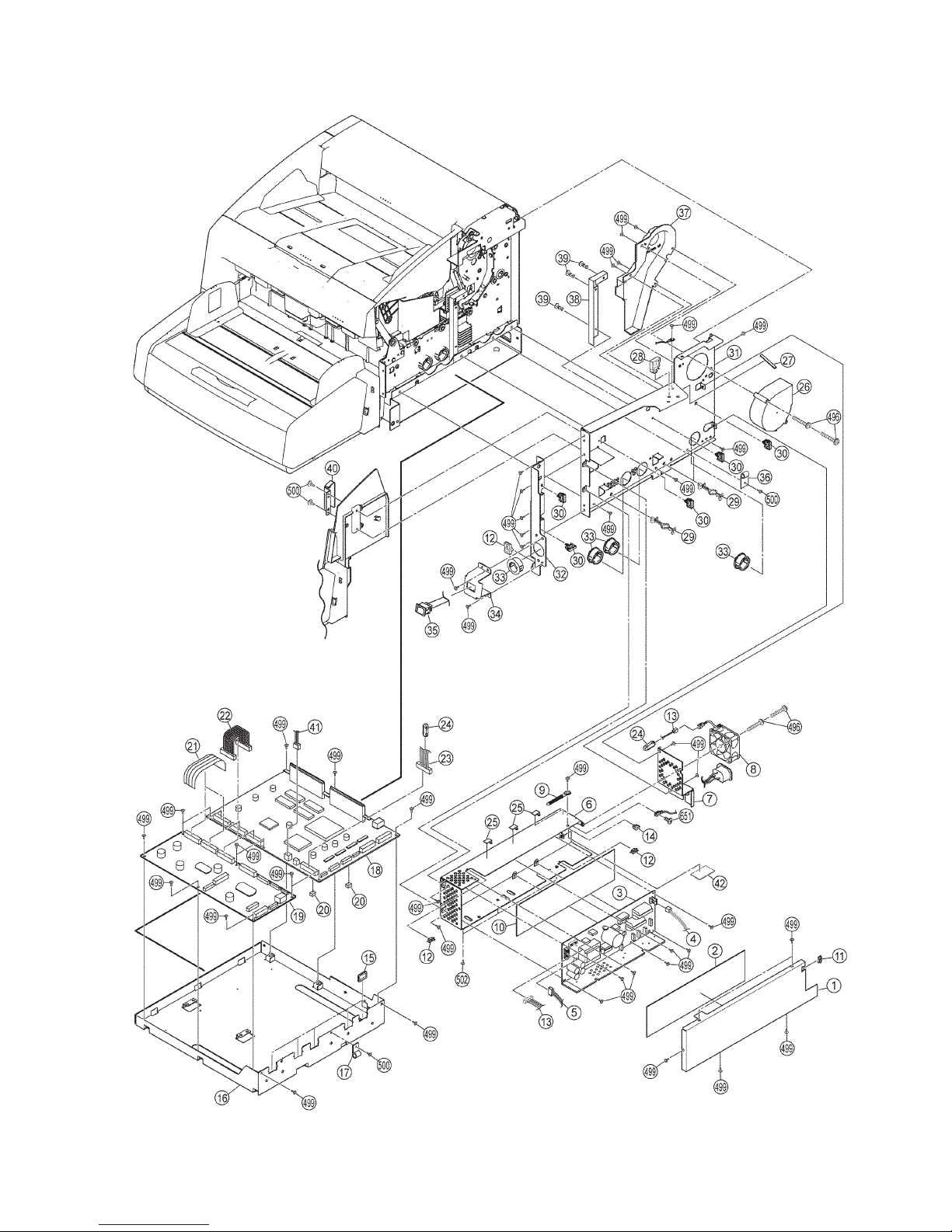

14.2. Board Box Unit and others

240
Safety Ref. No. Part No. Part Name & Description Remarks
1 PJMCB0096Y Power Board Box Cover
2 PJHXC0002Z Power Sheet 2 ISO:PPE
3 PJWP09993M POWER Board (RTL) PbF
4 PJJRC3186Y AC Inlet Cable
5 PJJRC3183Z Power-Drive Cable
6 PJMCB0090X Power Board Box
7 PJUEC0309Z FAN Plate
8 L6FAKEDK0011 FAN Motor 1
9 PJUQC0010Z Clip
10 PJHXB0018Z-0 Power Sheet ISO:PPE
11 EDS-0607M Edge Saddle ISO:PA66
12 EDS-1208UV0 Edge Saddle ISO:PA66
13 PJJRC3185Z Power-Fan Cable
14 LWS1SV0BK Locking Wire Saddle ISO:PA66
15 EDS-17L Lock Edge Saddle ISO:PA
16 PJUEC0303Z Board Plate
17 AL5 Clamper
18 PJWP09990M MAIN Board for KV-S4085CW/KV-S4085CWCN/KV-S4085CL (RTL) PbF
18 PJWP09991M MAIN Board for KV-S4065CW/KV-S4065CWCN/KV-S4065CL (RTL) PbF
19 PJWP09992M DRIVE Board (RTL) PbF
20 PJHGC0058Z Rubber Spacer
21 PJJEC3460Z Main-Drive FFC Cable
22 PJJRC3165Z Main-Drive Power Cable
23 PJJRC3166Z Main-Panel Cable
24 J0KG00000055 Ferrite Core
25 K-103G-R Clamper
26 L6FCYYYK0002 FAN Motor 2
27 CE012-L45 Edging
28 LWS5S2WV0 Locking Wire Saddle
29 NPL-1230 Harness Clamp ISO:PA
30 LWS-3S Clamper
31 PJUEC0305Z Right Side Plate
32 PJUEC0308Z Right Reinforce Plate
33 TB-1926 Bushing
34 PJMEC0105Z Power Switch Holder
35 PJJRC3187Z AC Switch Cable
36 NK-5N Clamp
37 PJHRC0415Z Fan Duct ISO:PS
38 PJHEC0181Z Air Flow Guide
39 VJF0036 Rivet
40 PJUEC0335Z Transport Plate
41 PJJRC3170Z Main-Pickup Sensor Cable
42 PJHEC0197Z Heat Protect Sheet ISO:PPE
496 XTW3+30LFJ Screw
499 XTW3+6LFJ Screw
500 XTW3+8LFJ Screw
502 XTW3+8SFJ Screw
651 XYN4+F6FJ Screw

241
14.3. Sub Chassis
14.3.1. Sub Chassis-1

242
Safety Ref. No. Part No. Part Name & Description Remarks
1 PJHRC0360Z Conveyor Upper 1 for KV-S4085CW/KV-S4085CWCN/KV-
S4085CL
1 PJHRC0360Y Conveyor Upper 1 for KV-S4065CW/KV-S4065CWCN/KV-
S4065CL
2 PJDFC0242Z Separation Roller Shaft
3 DDLF-1060ZZH Ball Bearing
4 PJNW525Z Spacer ISO:PA
5 PJDRC0143Z Separation Roller
6 PJHRC0373Z Separation Roller Base
7 PJUEC0273Z Release Hook
8 PJBVC0139Z Conveyor Roller Assist Spring
9 PJUEC0274Z Release Lever Plate
10 PJHRC0363Z Release Lever
11 PJDFC0240Z Release Lever Shaft
12 PJWP099903J BENT PAPER L (R) SENSOR Board (RTL) PbF
13 PJWP099903L BENT PAPER R (R) SENSOR Board (RTL) PbF
14 PJHRC0362Z Bent Paper Sensor Cover
15 PJWP099903N BEND PAPER L (S) SENSOR Board (RTL) PbF
16 PJWP099903K BEND PAPER R (S) SENSOR Board (RTL) PbF
17 PJJRC3198Z PBD_R/L-PBD_Generator Cable
18 PJWP099903H DOUBLE FEED DETECTOR LCR Board for KV-S4085CW/KV-
S4085CWCN/KV-S4085CL
(RTL) PbF
18 PJWP099913H DOUBLE FEED DETECTOR LCR Board for KV-S4065CW/KV-
S4065CWCN/KV-S4065CL
(RTL) PbF
19 PJJRC3196Z Rly_Upper-DF_LCR Cable
20 PJMEC0022Y Transport Hook
21 PJBVC0191Z Transport Spring
22 PJNW413Y Spacer
23 PJNEC0017Z Screw
24 PBDRA0029Y Free Roller 1 ISO:POM
25 PJUEC0270Z Free Roller Plate 2
26 PJDFC0239Z Free Roller Shaft
27 PJNW4111Z Spacer ISO:PA
28 PJBVC0181Z Free Roller Spring 1
29 PJUEC0269Z Free Roller Plate 1
30 PJULC0100Z Reinforce Plate L3
31 PJZU09990M Separation Roller Earth Plate
32 PJJTC0028Z FG Cable
33 PJDFC0245Z Separation OWC Shaft
34 PJDGC0209Z OWC Gear
35 B-F6-14 Bearing
36 PJZV09994M Feed Unit Assemble
37 PJDRC0140Z Paper Feed Roller
38 PJHRC0364Z Paper Feed Roller Base
39 PJHEC0177Z Spacer
40 B40S2M100GB Feed Belt 2
41 PJDAC0017Z Pulley Gear
42 PJDFC0243Z Roller Holder Shaft
43 PJBVC0169Z Spring
44 PJJTC0024Z FG Cable
45 PJUEC0275Z Displacement Sensor Plate
46 L2CG00000003 Roller Pressure Sensor
47 PJJRC3252Z Pickup Sensor Cable
48 PJHEC0169Z White Sheet
49 PJBUC0123Z Beam
50 PJHRC0372Z Beam Press
51 PJZU09991M Center Plate Sub Ass'y
52 YMC10-0-V0 Clamp
53 TB-1216 Bushing
54 TB-1520 Bushing ISO:PA
55 EDS-0607M Edge Saddle ISO:PA66
56 PJWP099902H SLIP DETECTOR SENSOR RELAY Board (RTL) PbF
57 WLS-03-0 Spacer
58 PJHEC0182Z Sheet
59 EDS-1 Edge Saddle
60 PJUEC0277Z Feed Motor Plate
61 L6HAYYYK0032 Motor
62 L6HBYYYC0003 Motor
63 RF1401-A5 Motor Rubber
64 PJZU09992M Motor Plate
65 PJDGC0210Z Separation Gear 1
66 PJJTC0026Z FG Cable
67 PJJRC3179Z Drive-Separate Feed Motor Cable

243
68 J0KG00000001 Ferrite Core
69 PJJTC0025Z FG Cable
70 K-103G-R Clamper
134 PJDGC0211Y Separation Gear 2
349 XNA3FJ Cap Nut
380 XPJ2C10VW Pin
423 XSN3+4FJ Screw
493 XTW3+10PFJ Screw
499 XTW3+6LFJ Screw
501 XTW3+8PFJ Screw
521 XUC3FJ E-ring
643 XYN3+F6FJ Screw
644 XYN3+J6FJ Screw
645 XYN3+F8FJ Screw
651 XYN4+J6FJ Screw
Safety Ref. No. Part No. Part Name & Description Remarks

244

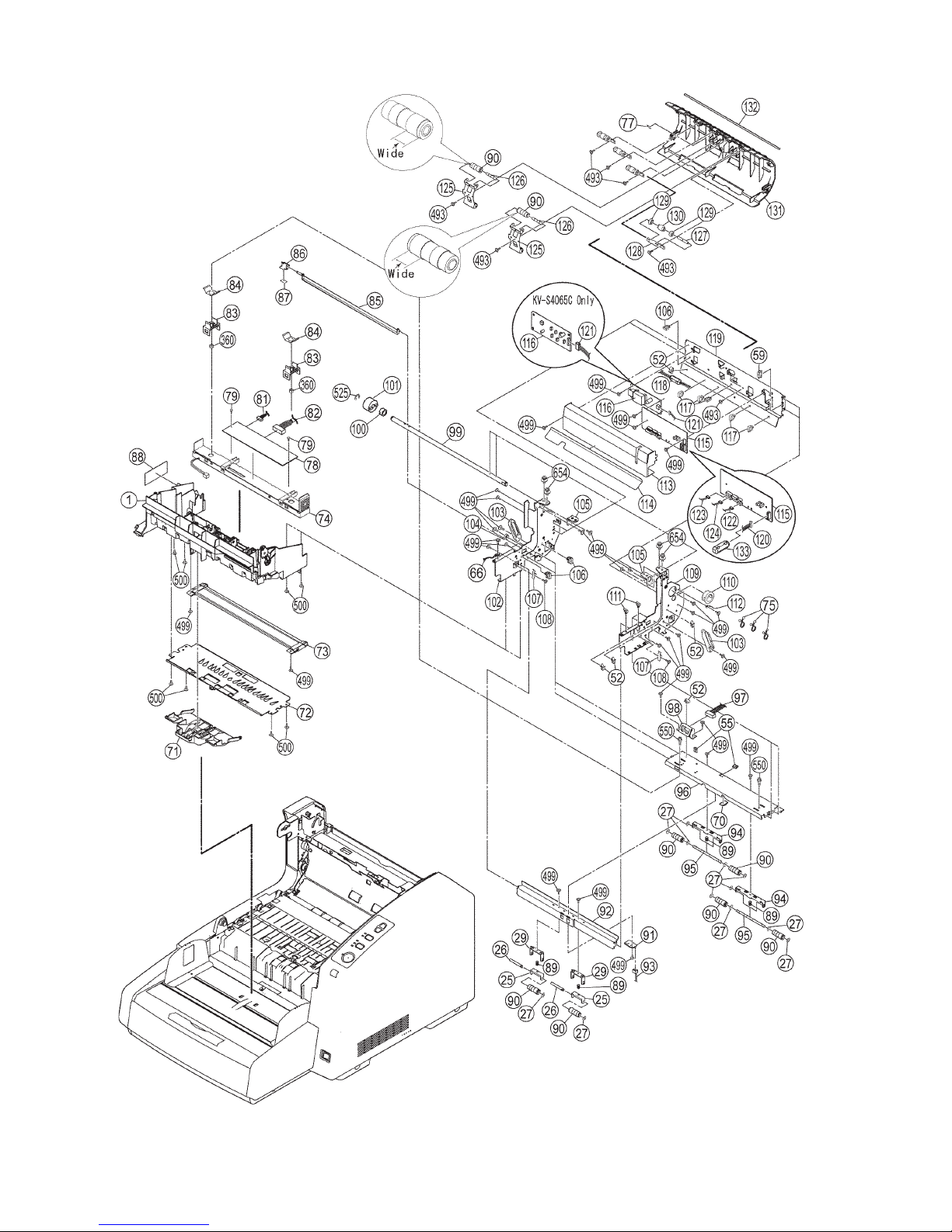

14.3.2. Sub Chassis-2

245
Safety Ref. No. Part No. Part Name & Description Remarks
25 PJUEC0270Z Free Roller Plate 2
26 PJDFC0239Z Free Roller Shaft
27 PJNW4111Z Spacer ISO:PA
29 PJUEC0269Z Free Roller Plate 1
52 YMC10-0-V0 Clamp
55 EDS-0607M Edge Saddle ISO:PA66
59 EDS-1 Edge Saddle
70 K-103G-R Clamper
71 PJYK09990M Roller Cover
72 PJUEC0272Z Conveyor Upper 2
73 PJZE099900M Image Sensor Cover F for KV-S4085CW/KV-S4085CWCN/
KV-S4065CW/KV-S4065CWCN
73 PJZE099915M Image Sensor Cover F for KV-S4085CL/KV-S4065CL
74 PJWU09990M SENSOR UNIT for KV-S4085CW/KV-S4085CWCN
74 PJWU09991M SENSOR UNIT for KV-S4085CL
74 PJWU09992M SENSOR UNIT for KV-S4065CW/KV-S4065CWCN
74 PJWU09993M SENSOR UNIT for KV-S4065CL
75 0LS-150BK Clamper
77 PJHEC0203Z Shade Sheet
78 PJWP099905A AFE FRONT Board for KV-S4085CW/KV-S4085CWCN/KV-
S4065CW/KV-S4065CWCN
(RTL) PbF
78 PJWP099915A AFE FRONT Board for KV-S4085CL/KV-S4065CL (RTL) PbF
79 P3055SN Nylon Rivet ISO:PA66
81 PJJRC3175Y Drive-AFE F Power Cable
82 PJJRC3078Z Main-Front_AFE Cable
83 PJHRC0385Z CIS Holder ISO:POM
84 PJBUC0125Z CIS Spring Plate
85 PJZE09992M Reference Plate F
86 PJBCC0024Z Lever
87 PJQTC0093Z W/B Arrow Sign
88 PJHEC0197Z Heat Protect Sheet ISO:PPE
89 PJBVC0182Z Free Roller Spring 2
90 PJDRC0077Y Free Roller
91 PJWP099903M STARTING SENSOR Board (RTL) PbF
92 PJULC0092Z Reinforce Plate L 2
93 PJJRC3191Z H_Home-Paper Exist Cable
94 PJUEC0271Z Free Roller Plate 3
95 PJDFC0067Z Free Roller Shaft
96 PJULC0086Z Reinforce Plate L1
97 PJJRC3167Z Main-PreImprinter Cable
98 PJUEC0306Z Imprinter Connector Plate
99 PJDFC0248Z Support Shaft
100 PJHRC0433Z Support Shaft Collar
101 0WH10-3.0NRW OWH Hinge R
102 PJUAC0244Z Sub Chassis L
103 PJHRC0405Z Stacker Lock Rod
104 PJBUC0013Z Sensor Spring
105 PJUEC0307Z Reinforce Plate Sub
106 LWS-1S Clamper
107 PJUSB0100Z Imprinter Lock Spring
108 PJNAC0027Z Screw
109 PJUAC0243Z Sub Chassis R
110 TB-1926 Bushing
111 LAMS-05 Clamper ISO:PA66
112 PJJTC0022Z FG Cable
113 PJMCC0117Z Inverter Cover
114 PJHEC0199Z Cover Sheet
115 PJWP099902A RELAY(UPPER) Board for KV-S4085CW/KV-S4085CWCN/KV-
S4085CL
(RTL) PbF
115 PJWP099912A RELAY(UPPER) Board for KV-S4065CW/KV-S4065CWCN/KV-
S4065CL
(RTL) PbF
116 N0ZZ00000018 Lamp Inverter Board for KV-S4085CW/KV-S4085CWCN/KV-
S4085CL
116 PJWP099907A LED Drive Board for KV-S4065CW/KV-S4065CWCN/KV-
S4065CL
(RTL) PbF
117 LWS-3S-2WV0 Locking Wire Saddle
118 J0KG00000133 Ferrite Core for KV-S4085CW/KV-S4085CWCN/KV-
S4085CL
119 PJULC0085Z Reinforce Plate Upper
120 PJJRC3171Z Main-RLY Upper Cable
121 PJJRC3177Z Drive-Inverter F Cable for KV-S4085CW/KV-S4085CWCN/
KV-S4085CL
121 PJJRC3258Y Drive-Inverter F Cable for KV-S4065CW/KV-S4065CWCN/
KV-S4065CL

246
122 PJJRC3197Z Rly_Upper-PBD R Cable
123 PJJRC3200Z Rly_Upper-Encorder_Rly Cable
124 PJJRC3203Z Rly_Upper-PBD L Cable
125 PJBUC0120Z Spring Plate 1
126 PBDFA0102Y Free Roller Shaft 2
127 PJDFC0276Z Exit Free Roller Shaft
128 PJBUC0121Z Spring Plate 2
129 PJDRC0139Z Exit Free Roller 2
130 PJDRC0138Z Exit Free Roller 1
131 PJHRC0359Z Turn Conveyor Inner
132 PBHRA0150Z Ink Absolution Felt
133 J0KG00000013 Ferrite Core
360 XNG4BFJ Nut
493 XTW3+10PFJ Screw
499 XTW3+6LFJ Screw
500 XTW3+8LFJ Screw
525 XUC8FJ E-ring
550 XVE4B8FJ Bolt
654 XYN4+J10FJ Screw
Safety Ref. No. Part No. Part Name & Description Remarks

247

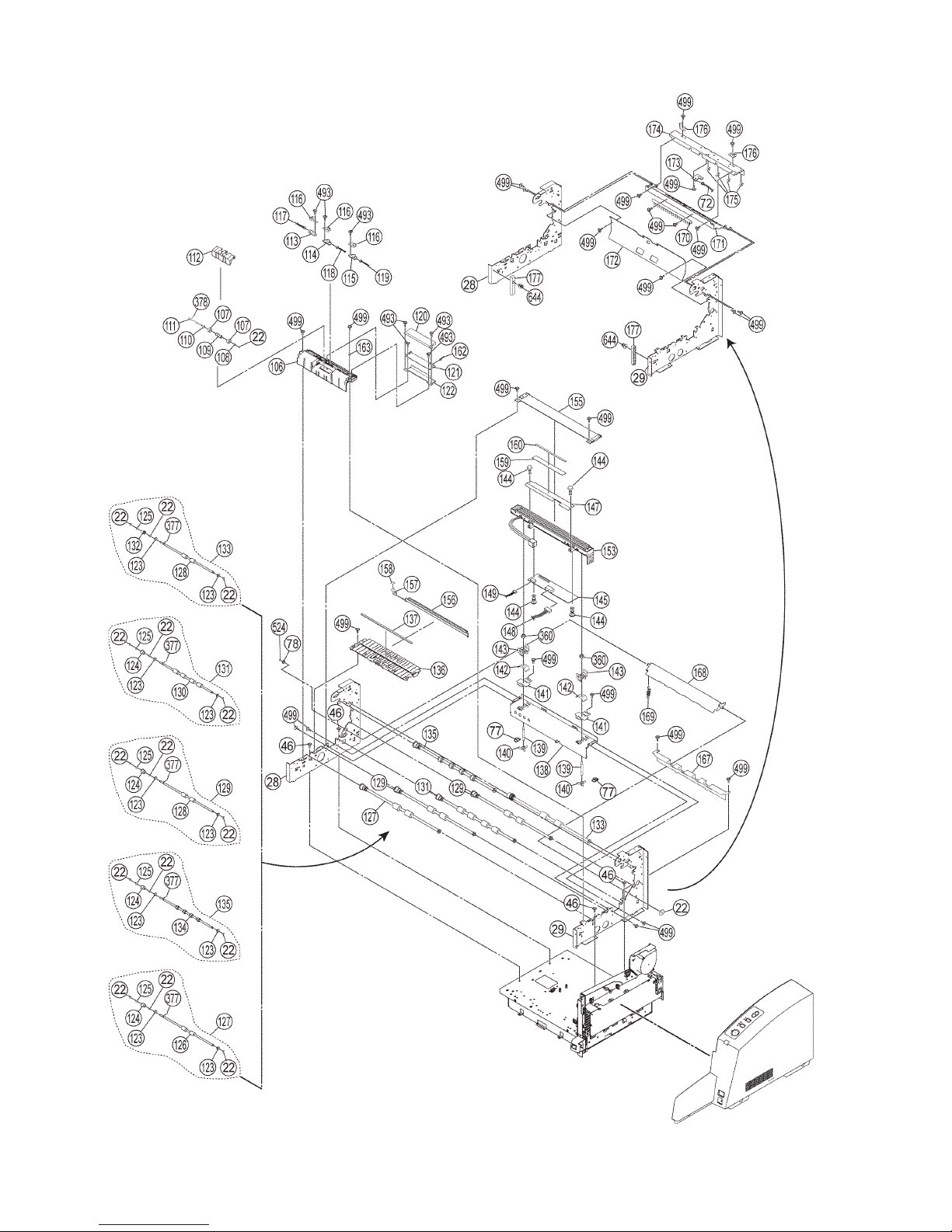

14.4. Main Chassis
14.4.1. Main Chassis-1

248
Safety Ref. No. Part No. Part Name & Description Remarks
1 PJUJC0038Z Bottom Frame
2 NF-3531 Plastic Foot
3 PJUJC0037Z Bottom Plate
4 PJUAC0242Z Hopper base
5 LWS-3S-2WV0 Locking Wire Saddle
6 KGLS-8RT-V0 Locking Card Spacer
7 LWS-1S Clamper
8 KGPS-14S Spacer
9 PJHRC0379Z Drive Rack ISO:POM
10 PJWP099903F HOPPER HOME Board (RTL) PbF
11 PJUEC0282Z Interrupt Plate
12 PJHRC0380Z Support Arm ISO:ABS
13 PJHRC0402Z Arm Fulcrum Collar ISO:POM
14 PJHRC0403Z Support Arm Fulcrum Collar ISO:POM
15 PJNW4111Z Spacer ISO:PA
16 PJHRC0378Z Arm ISO:ABS
17 PJUEC0332Z Arm Reinforce Plate
18 PJZU09993M Motor Plate
19 PBDGA0033Y Slow Shift Gear ISO:POM
20 PBDGA0032Z Intermediate Gear ISO:POM
21 PJDGC0213Z Hopper Drive Gear ISO:POM
22 PJNW525Z Spacer ISO:PA
23 RWPS5-025 Spacer
24 L6HAYYYK0030 Motor
25 PJJTC0025Z FG Cable
26 PJJRC3173Z Main-Hopper Home Cable
27 PJJRC3277Z Hopper Motor Cable
28 PJZB09990M Main Chassis L
29 PJZB09991M Main Chassis R
30 PBDGA0059Z Pulley Gear ISO:POM
31 DDL-850ZZH Ball Bearing
32 RWPS5-100 Spacer
33 PBHMA0125Z Belt Holder
34 DR-20-H5-R Tension Roller
35 B80S2M530GB Conveyor Belt
36 PBDGA0008Y Scanner Drive Gear ISO:POM
37 PBDSA0094Z Tension Spring
38 PJBVC0180Z Tension Spring 2
39 PBMDX0468Y Tension Plate Ass'y
40 RWPS5-10025 Polyslider
41 PJZU09994M Tension Plate 2 Sub
42 PBHDA0001Y Screw
43 PJZU09995M Lock Plate
44 PJUEC0292Z Imprinter Plate L
45 PJUSB0099Z Imprinter Lock Spring
46 PJNAC0027Z Screw
47 PJBUC0124Z Sensor Spring
48 L6HBKJGD0003 Motor
49 PBHE28Z Damper
50 PJULC0087Z Reinforce Plate Lower 1
51 PJHEC0069Z Black Sheet
52 TB-1926 Bushing
53 K0KAAF000008 Micro Switch
54 TB-1116 Bush
55 TB-9513 Bush
56 PJUEC0293Z Imprinter Plate R
57 PJUSB0100Z Imprinter Lock Spring
58 PJULC0102Z Hinge Plate 2
59 B-F10-60 Bearing
60 PBDGA0082Z Gear
61 PJDGC0234Z Hinge Gear
62 PJDIC0027Z Joint
63 0WH10-3.0NLW OWH Hinge L
64 PJZU09996M Hinge Plate
65 PJWP099903D POST-IMPRINTER DOOR Board (RTL) PbF
66 EDS-0607U Edge Saddle
67 PJULC0089Z Reinforce Plate Lower 3
68 PJWP099903C PAPER JAM SENSOR Board (RTL) PbF
69 EDS-1 Edge Saddle
70 PJHEC0071Z STRAIGHT EXIT Board Sheet
71 PJWP099903B POINTER Board (RTL) PbF
73 PJJRC3189Z Pointer-Post IMP Door Cable

249
74 PJJRC3188Z Pointer-Jam Cable
75 PJJRC3174Z Main-Pointer Cable
76 PJJRC3168Z Main-PreImprinter Cable
77 K-103G-R Clamper
79 PJUEC0302Z DFP Support Plate
80 PJZU09997M DFP Motor Plate
81 L6HAYYYK0029 Motor
82 PJJRC3181Y Drive-Retard Motor/Hopper Relay Cable
83 PJDGC0210Z Separation Gear 1
84 PJJRC3184Z Drive-Interlock Cable
85 PJJRC3180Z Drive-Conveyor Motor Cable
86 PJWP099903G DFP HOME Board (RTL) PbF
87 PJJRC3192Z Rly_Lower-Retard_Home Cable
88 PBHRA0023Z Hopper Cam Shutter ISO:ABS
89 PJDHC0021Z Release Cam
90 PBDGA0056Z Hopper Powerful Cam ISO:POM
91 B-F6-171 Bearing
92 PBDGA0015Z Hopper Cam ISO:POM
93 PJDFC0250Z DFP Adjust Shaft
94 RWPS6-025 Spacer
95 PBDGA0038Z Retard Gear ISO:POM
96 PJUEC0299Z DFP Press Plate
97 PJBVC0170Z Spring
98 PJMEC0103Z Discharge Brush
99 PJUEC0298Z DFP Plate
100 PJDFC0249Z DFP Unit Fitting Shaft
101 PJHXC0006Z Inverter Sheet Upper ISO:PPE
102 N0ZZ00000018 Lamp Inverter Board for KV-S4085CW/KV-S4085CWCN/KV-
S4085CL
102 PJWP099907A LED Drive Board for KV-S4065CW/KV-S4065CWCN/KV-
S4065CL
(RTL) PbF
103 PJHXC0007Z-0 Inverter Sheet Lower ISO:PPE
104 PJMEC0009Z Inverter Cover Lower
105 PJWW09990M Drive-Inverter B Cable for KV-S4085CW/KV-S4085CWCN/
KV-S4085CL
105 PJWW09991M Drive LED (B) Cable for KV-S4065CW/KV-S4065CWCN/KV-
S4065CL
146 PJDGC0239Z Hopper Gear
164 J0KG00000055 Ferrite Core
166 J0KE00000085 Ferrite Core
178 RWPS5-10-013 Polyslider
380 XPJ2C10VW Pin
424 XSN3+6FJ Screw
493 XTW3+10PFJ Screw
499 XTW3+6LFJ Screw
500 XTW3+8LFJ Screw
524 XUC6FJ E-ring
642 XYN23+J12FJ Screw
644 XYN3+J6FJ Screw
651 XYN4+J6FJ Screw
654 XYN4+J10FJ Screw
Safety Ref. No. Part No. Part Name & Description Remarks

250
14.4.2. Main Chassis-2

251
Safety Ref. No. Part No. Part Name & Description Remarks
22 PJNW525Z Spacer ISO:PA
46 PJNAC0027Z Screw
72 PJJRC3190Z Pointer-Ending (F) Cable
77 K-103G-R Clamper
78 PBFV4Z Bushing ISO:POM
106 PJYK09992M Conveyor Lower 1
107 PJDRC0144Z DFP Roller
108 B-S6-1365 Metal
109 PJHRC0389Z DFP Roller Base
110 PJDEC0098Z Torque Limiter
111 PJDFC0251Z DFP Roller Shaft
112 PJYK09991M DFP Cover
113 PJWP099902C DOUBLE FEED DETECTOR L Board for KV-S4085CW/KV-
S4085CWCN/KV-S4085CL
(RTL) PbF
114 PJWP099902D DOUBLE FEED DETECTOR C Board (RTL) PbF
115 PJWP099902E DOUBLE FEED DETECTOR R Board for KV-S4085CW/KV-
S4085CWCN/KV-S4085CL
(RTL) PbF
116 PJMCC0120Z Double Feed Detector Plate
117 PJJRC3195Z RLY_LOWER-D_F_L(R) Cable for KV-S4085CW/KV-
S4085CWCN/KV-S4085CL
118 PJJRC3194Z Rly_Lower-DFD_C Cable
119 PJJRC3193Z Rly_Lower-DFD_R Cable for KV-S4085CW/KV-S4085CWCN/
KV-S4085CL
120 PJMCC0119Z Relay Shield Cover
121 PJWP099902B RELAY(LOWER) Board for KV-S4085CW/KV-S4085CWCN/KV-
S4085CL
(RTL) PbF
121 PJWP099912B RELAY(LOWER) Board for KV-S4065CW/KV-S4065CWCN/KV-
S4065CL
(RTL) PbF
122 PJMCC0118Z Relay Shield Plate
123 DDLF-1260ZZR Bearing
124 PBDGA0058Z Drive Pulley Gear
125 PJNW610Z Spacer ISO:PA
126 PJDRC0145Z Drive Roller 1
127 PJZR09990M Drive Roller 1 Assembly
128 PJDRC0146Z Drive Roller 2
129 PJZR09991M Drive Roller 2 Assembly
130 PJDRC0147Z Drive Roller 3
131 PJZR09992M Drive Roller 3 Assembly
132 PBDGA0059Z Pulley Gear ISO:POM
133 PJZR09993M Drive Roller 2-2 Assembly
134 PJDRC0148Z Exit Roller
135 PJZR09994M Exit Roller Assembly
136 PJHRC0382Z Conveyor Lower 2 for KV-S4085CW/KV-S4085CWCN/KV-
S4085CL
ISO:ABS+PC
136 PJHRC0382Y Conveyor Lower 2 for KV-S4065CW/KV-S4065CWCN/KV-
S4065CL
ISO:ABS+PC
137 PBHRA0150Z Ink Absolution Felt
138 PJULC0088Z Reinforce Plate Lower 2
139 PJDEC0087Z Screw Pin
140 PJHRC0387Z CIS Adjust Lever
141 PJUEC0296Z CIS Attachment
142 PJBUC0125Z CIS Spring Plate
143 PJHRC0385Z CIS Holder
144 P3055SN Nylon Rivet ISO:PA66
145 PJWP099905B AFE BACK Board for KV-S4085CW/KV-S4085CWCN/KV-
S4065CW/KV-S4065CWCN
(RTL) PbF
145 PJWP099915B AFE BACK Board for KV-S4085CL/KV-S4065CL (RTL) PbF
147 PJHEC0174Z AFE Board Cover ISO:PPE
148 PJJRC3164Z Main-Back_AFE Cable
149 PJJRC3176Z Drive-AFE B Power Cable
153 PJWU09994M SENSOR UNIT for KV-S4085CW/KV-S4085CWCN
153 PJWU09995M SENSOR UNIT for KV-S4085CL
153 PJWU09996M SENSOR UNIT for KV-S4065CW/KV-S4065CWCN
153 PJWU09997M SENSOR UNIT for KV-S4065CL
155 PJZE099901M Image Sensor Cover B for KV-S4085CW/KV-S4085CWCN/
KV-S4065CW/KV-S4065CWCN
155 PJZE099925M Image Sensor Cover B for KV-S4085CL/KV-S4065CL
156 PJZE09993M Reference Plate B
157 PJBCC0025Z Lever
158 PJQTC0093Z W/B Arrow Sign
159 PJHEC0207Z AFE Cover Sheet
160 PJHEC0208Z AFE Cover Black Sheet
162 PJJRC3172Z Main-RLY Lower Cable
163 PJDEB0024Z Collar

252
167 PJUEC0286Z Conveyor Lower 3
168 PJZU09998M Pointer Ass'y
169 PJBVC0171Z Pointer Spring
170 PBMEA0010Z Discharge Brush
171 PJUEC0288Z Exit Conveyor
172 PJUEC0287Z Outer Conveyor
173 PJWP099903E EXIT SENSOR Board (RTL) PbF
174 PJUEC0289Z Exit Sensor Plate
175 YMC10-0-V0 Clamp
176 PJHRC0401Z Stacker Hook ISO:POM
177 PJHRC0440Z Lift Guide ISO:POM
360 XNG4BFJ Nut
377 XPL2B10WVW Pin
378 XPL2B12WVW Pin
493 XTW3+10PFJ Screw
499 XTW3+6LFJ Screw
524 XUC6FJ E-ring
644 XYN3+J6FJ Screw
Safety Ref. No. Part No. Part Name & Description Remarks

253

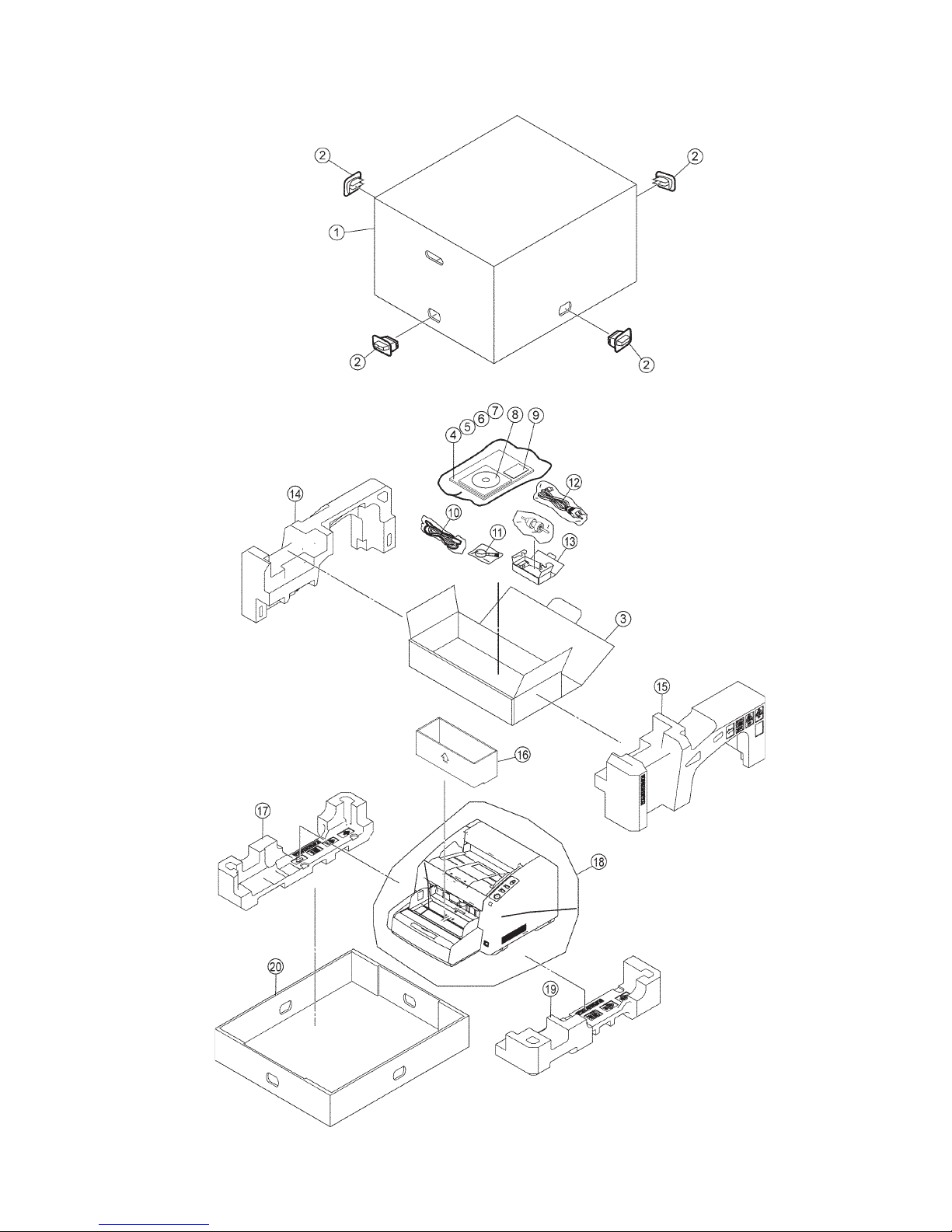

14.5. Packing

254
14.6. Tool
Safety Ref. No. Part No. Part Name & Description Remarks
1 PJYC09990M Outer Carton for KV-S4085CW(Except for Europe and
China)
1 PJYC09990U Outer Carton for KV-S4085CW(Only for Europe)
1 PJYC09990CN Outer Carton for KV-S4085CW(Only for China)
1 PJYC09991M Outer Carton for KV-S4085CL(Except for Europe)
1 PJYC09991U Outer Carton for KV-S4085CL(Only for Europe)
1 PJYC09992M Outer Carton for KV-S4065CW(Except for Europe and
China)
1 PJYC09992U Outer Carton for KV-S4065CW(Only for Europe)
1 PJYC09991CN Outer Carton for KV-S4065CW(Only for China)
1 PJYC09993M Outer Carton for KV-S4065CL(Except for Europe)
1 PJYC09993U Outer Carton for KV-S4065CL(Only for Europe)
2 HP-601W2-S Joint ISO:PP
3 PJPKB0139Z Accessory Box
4 PJQXC0125Z Installation Manual (English)
5 PJQXC0131Z Installation Manual (Korean)
6 PJQXC0132Z Installation Manual (simplified Chinese)
7 PJQXC0133Z Installation Manual (traditional Chinese)
8 PJJXC0203Q CD-ROM (Except for China)
8 PJJXC0340W CD-ROM (Only for China)
9 PBHSA0055Z Roller Cleaning Paper
10 K1HY04YY0002 USB Cable
11 PJIUA0001Z Blower Brush
12 K2CG3DH00032 Power Cord for USA Type
12 K2CM3DH00012 Power Cord for Germany Type
12 K2CT3DH00024 Power Cord for UK Type
12 K2CK3DH00020 Power Cord for Australia Type
12 K2CM3YY00003 Power Cord for Korea Type
12 K2CK3DH00033 Power Cord for China Type
12 K2CG3DH00045 Power Cord for Taiwan Type
13 PJPNC0256Z DFP Roller Pad
14 PJPNC0236Z Left Top Cushion ISO:EPS
15 PJPNC0237Z Right Top Cushion ISO:EPS
16 PJPNC0240Z Hopper Cushion
17 PJPNC0238Z Left Bottom Cushion ISO:EPS
18 PJPPB0018Z Plastic Bag
19 PJPNC0239Z Right Bottom Cushion ISO:EPS
20 PJPGC0932Z Bottom Carton
Safety Ref. No. Part No. Part Name & Description Remarks
1 PBQX90095Z-J Test Chart A (A4) (10 Pieces)
2 PJQXC0081Z-J Shading Sheet (10 Pieces)
3 PBQX90121Z-J Adjustment Paper (50 Pieces)
4 PBQX90104Z-J Test Chart A (10 Pieces)
5 PBQX90105Z-J Test Chart B (10 Pieces)
6 PJHEC0201Z Focus Chart
7 T4E30725-2 Polyester Tape (19mm)
8 T4E307100 Polyester Tape (100mm)
9 RMA02M705-08 Eco Solder
