Panduit TMSTEH-TOOL User manual

Page: 1 of 2
TMSTEH-TOOL
PA29513A01
Rev. 00 8-2019
TMSTEH-TOOL OPERATION INSTRUCTIONS
FOR USE WITH: TMSTEH SERIES STUD MOUNTS
Panduit Corp. 2019
Original Instructions
INTRODUCTION
The TMSTEH-TOOL installs stud mounts with the aid of a power drill reducing the risk of repetitive injury.
Mounts grip onto the tool due to the interference fit of the drafted side walls allowing the installation to be a one
hand operation when needed. Follow instructions below to insure optimum performance from the TMSTEHS
series stud mounts.
WARNING: SAFETY GLASSES MUST BE WORN AT ALL TIMES WHILE
USING THIS TOOL.

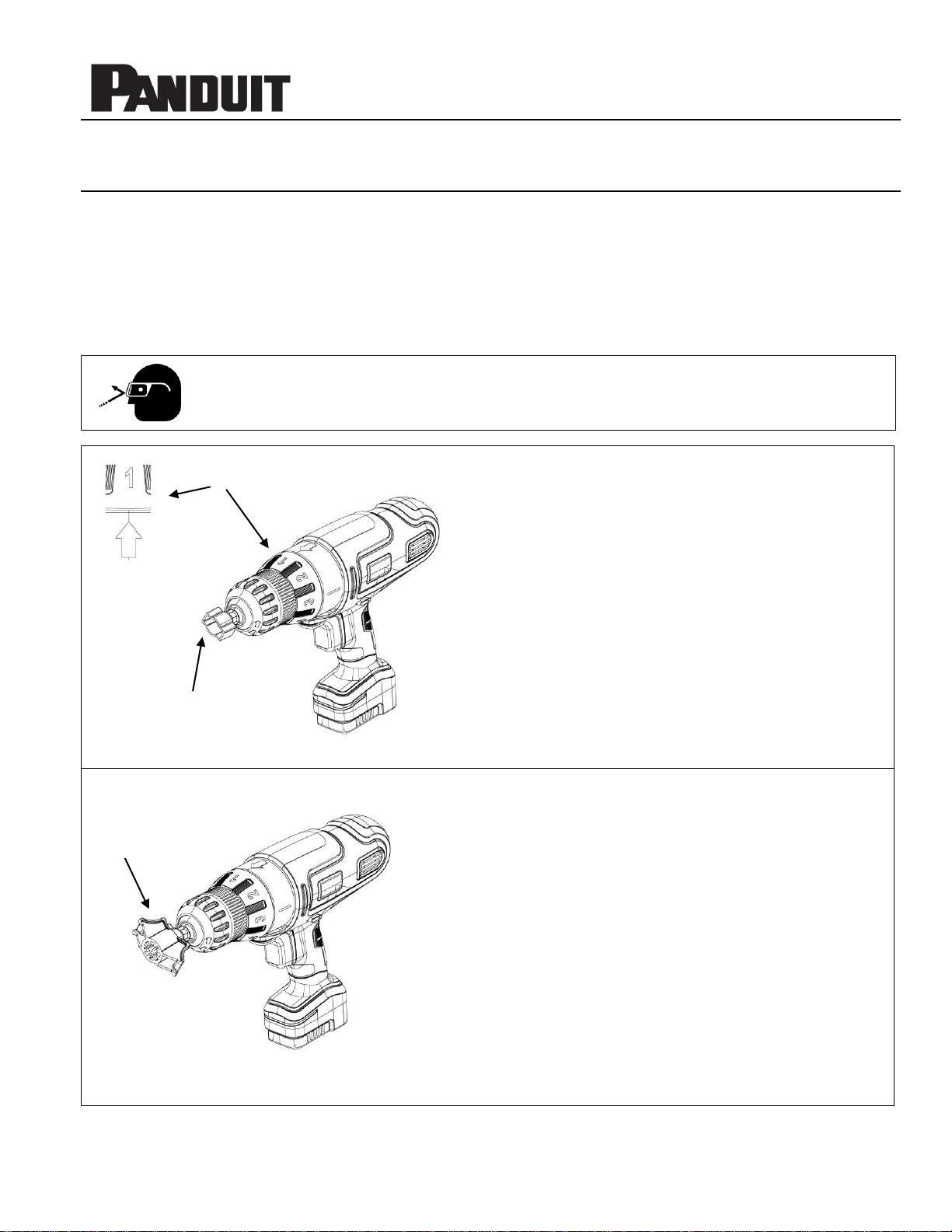

FIG 01
1. Insert TMSTEH-TOOL into 3/8”drill
chuck as deep as possible and tighten
chuck onto tool.
2. Set drill to “screw”or “torque”setting.
3. Set the torque control to the lowest
setting. Generally, this would be a
setting of 1.
1
3
4. Press TMSTEHS* mount on tool.
5. Center mount opening on stud and use
drill to thread the mount on until torque
setting has been reached.
4

© Panduit Corp. 2019
OPERATION INSTRUCTIONS TMSTEH-TOOL
Page: 2 of 2
North America Tech Support:
[email protected]
Tel: [phone]
www.panduit.com
EU Tech Support:
[email protected]
Tel: [phone]
Fax: [phone]
6. If mount is not fully seated on threaded
stud, increase torque setting on drill by 1
and attempt install again.
7. Repeat step 6 until mount is fully seated
on threaded stud.
6 & 7
