Paradyne COMSPHERE 3800 Series Owner's manual

COMSPHERE
3800 SERIES MODEMS
MODELS 3810, 3811, AND 3820
JAPAN SUPPLEMENT
Document No. 3810-A2-GB93-20

ANovember 1996 3810-A2-GB93-20
COMSPHERE
3800 Series Modems
Models 3810, 3811, and 3820
User’s Guide
Japan Supplement
3810-A2-GB93-20
3rd Edition (November 1996)
Changes and enhancements to the product and to the information herein will be documented and issued as a new release to
this manual.
Warranty, Sales, and Service Information
Contact your sales or service representative directly for any help needed. For additional information concerning warranty,
sales, service, repair, installation, documentation or training, use one of the following methods:
•Via the Internet: Visit the Paradyne World Wide Web site at http://www.paradyne.com
•Via Telephone: Call our automated call system to receive current information via fax or to speak with a company
representative.
— Within the U.S.A., call 1-800-870-2221
— International, call 813-530-2340
Trademarks
All products and services mentioned herein are the trademarks, service marks, registered trademarks or registered service marks of their
respective owners.
COPYRIGHT 1996 Paradyne Corporation. All rights reserved.
This publication is protected byfederal copyright law. No part of this publication may be copied or distributed, transmitted, transcribed, stored in a retrievalsystem,
ortranslatedintoanyhumanorcomputerlanguageinanyformorbyanymeans,electronic,mechanical,magnetic,manualorotherwise,ordisclosedtothirdparties
without the express written permission of Paradyne Corporation, 8545 126th Avenue North, P.O. Box 2826, Largo, Florida 33779-2826.
ParadyneCorporationmakesnorepresentationorwarrantieswithrespecttothecontentshereofandspecificallydisclaimsanyimpliedwarrantiesofmerchantability
orfitness fora particularpurpose. Further,Paradyne Corporationreserves theright torevise thispublicationandtomake changesfrom timeto timein thecontents
hereof without obligation of Paradyne Corporation to notify any person of such revision or changes.
Printed on recycled paper

i3810-A2-GB93-20 November 1996
Table of Contents
1. Introduction
Overview 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Warnings 1-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Technical Specifications 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Equipment List 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2. Installation
Overview 2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3800 Series Modem Package 2-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Model 3810 or Model 3820 Modem Installation 2-1. . . . . . . . . . . . . . . .
Model 3810 or Model 3820 Dial-Line Connection 2-3. . . . . . . . . .
Model 3810 4-Wire/2-Wire Leased-Line Connection 2-3. . . . . . . .
Model 3810 2-Wire Leased-Line Connection 2-3. . . . . . . . . . . . . .
AC Power Transformer Connection 2-3. . . . . . . . . . . . . . . . . . . . .
Model 3811 Modem Installation 2-4. . . . . . . . . . . . . . . . . . . . . . . .
3. Restrictions and Configuration Options
Overview 3-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Restrictions 3-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Configuration Tables 3-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

COMSPHERE 3800 Series Modems
ii November 1996 3810-A2-GB93-20
List of Tables
Table Page
1-1 Technical Specifications for Japan 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-2 Equipment List for Japan 1-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3-1 Configuration Options for Japan 3-2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-13810-A2-GB93-20 November 1996
Introduction
Overview
This supplement highlights all safety warnings, installation procedures, features, and functions that
are unique to COMSPHERE 3800 Series modems installed in Japan. This document is intended to
be used in conjunction with the COMSPHERE 3800 Series Modems, Models 3810, 3811, and
3820, User’s Guide. Please consult this User’s Guide for overall operation of the 3800 Series
modem.
This document consists of three chapters. Chapter 1 contains safety warnings, technical
specifications, and an equipment list. Chapter 2 provides installation procedures for Model 3810,
3811, and 3820 modems installed in Japan. Chapter 3 lists configurations options that differ from
what is described in the COMSPHERE 3800 Series Modems, Models 3810, 3811, and 3820,
User’s Guide.
Safety Warnings
The following warning applies to 3800 Series modems installed in Japan.

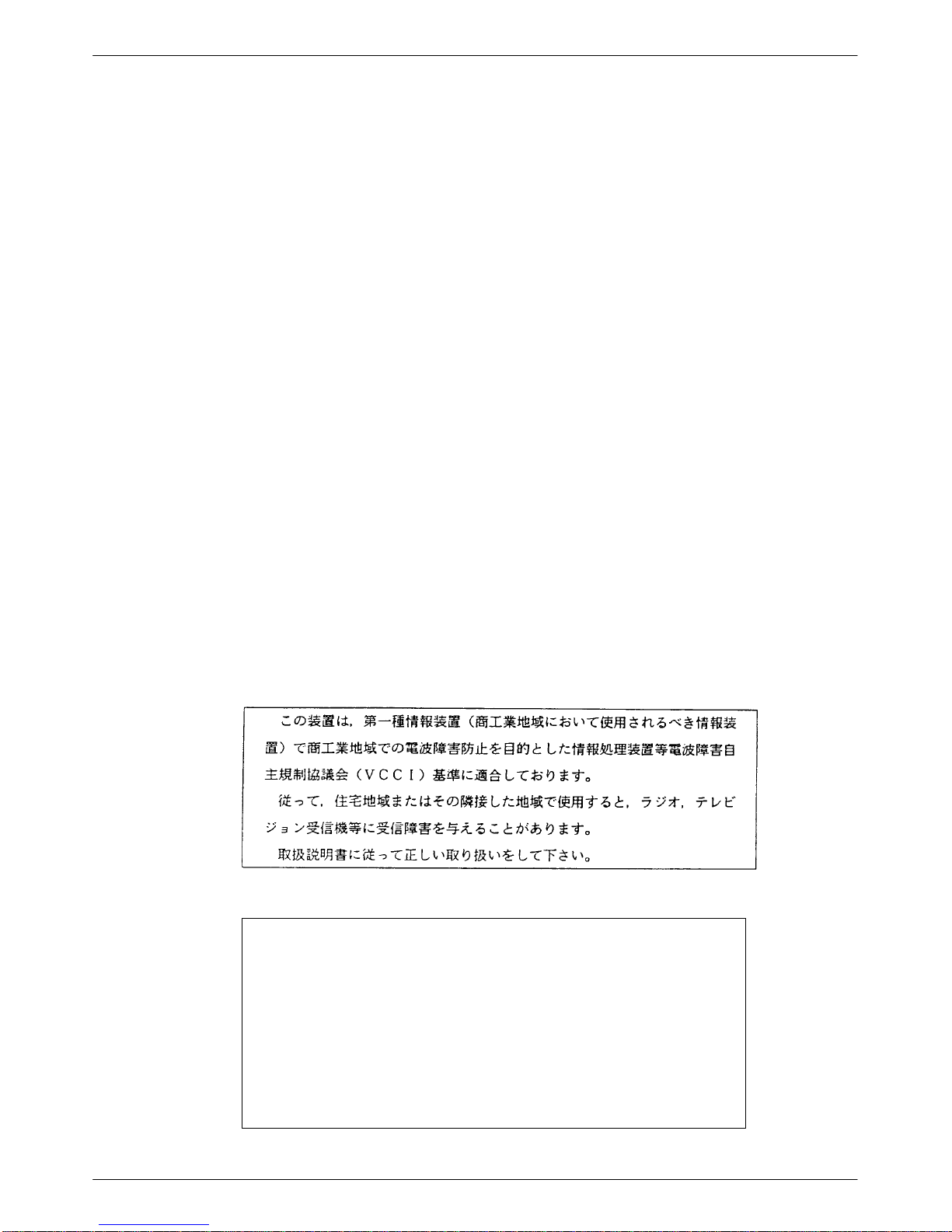

THIS EQUIPMENT IS IN THE 1ST CLASS CATEGORY (INFORMATION
EQUIPMENT TO BE USED IN COMMERCIAL AND/OR INDUSTRIAL AREAS)
AND CONFORMS TO THE STANDARDS SET BY THE VOLUNTARY
CONTROL COUNCIL FOR INTERFERENCE BY DATA PROCESSING
EQUIPMENT AND ELECTRONIC OFFICE MACHINES AIMED AT
PREVENTING RADIO INTERFERENCE IN COMMERCIAL AND/OR
INDUSTRIAL AREAS.
CONSEQUENTLY, WHEN USED IN A RESIDENTIAL AREA OR IN AN
ADJACENT AREA THERETO, RADIO INTERFERENCE MAY BE CAUSED
TO RADIOS AND TV RECEIVERS, ETC.
READ THE INSTRUCTIONS FOR CORRECT HANDLING.
1

COMSPHERE 3800 Series Modems
1-2 November 1996 3810-A2-GB93-20
Technical Specifications
Table 1-1 shows technical specifications that are unique to 3800 Series modems installed in Japan.
Table 1-1
Technical Specifications for Japan
Specification Description
AC POWER
REQUIREMENTS 100 Vac 10%, 50/60 Hz
DIAL AND LEASED
TRANSMIT LEVEL Adjustable transmit level from 0 dBm to -15 dBm
TELEPHONE INTERFACE
Dial-Line Connectivity
Leased-Line Connectivity
RJ11C (Model 3810 and Model 3820)
RJ21X 50-pin connector (Model 3811)
RJ11C Service Line (Model 3811)
JM8 (Model 3810—requires 8-position to 6-position
crossover cable)
6-pin center pair leased jack (Model 3820)
50-pin mass termination (Model 3811)
Equipment List
Table 1-2 shows a list of modems and telephone cords available for use in Japan.
Table 1-2
Equipment List for Japan
Equipment Model/
Part Number
Model 3810 (90—110V) 4-wire/2-wire standalone
Model 3811 4-wire/2-wire carrier card
Model 3820 (90—110V) 2-wire standalone
6-position, 4-wire modular cord, 7-foot length
8-position to 6-position crossover modular cord
3810-A1-603
3811-B1-003
3820-A1-603
125-0067-0031
125-0054-1531

2-13810-A2-GB93-20 November 1996
Installation
Overview
This chapter provides installation procedures for the Model 3810, 3820, and 3811 modems
installed in Japan.
3800 Series Modem Package
After opening the modem’s package, check for damage and verify that the following items are
present:
For the standalone models
•Manual and reference card
•Model 3810 or Model 3820 modem
•Power transformer
•One 6-position, 4-wire modular cord (Model 3810 and Model 3820)
•One 8-position to 6-position crossover modular cord (Model 3810 only)
For the carrier-mounted model
•Manual and reference card
•Model 3811 modem
•Rear connector plate with two DB-25-P edge card connectors
If any hardware components are damaged, notify your sales representative.
Model 3810 or Model 3820 Modem Installation
The following procedures describe how to connect the standalone modem to the dial line, leased
line, and ac power transformer.
Before installing your modem, make sure your installation site is clean and well-ventilated. Allow
space around the modem for installing cables and telephone cords, and make sure the modem is
located within reach of the ac power outlet. The distance between your modem and DTE should be
minimized if DTE data rates exceed 19,200 bps. Also, low capacitance cables may be necessary
for speeds greater than 19,200 bps or distances greater than 50 feet.
Figure 2-1 and Figure 2-2 show how Model 3810 and Model 3820 modems are connected to
certain TELCO jack types using the supplied cables.
2

COMSPHERE 3800 Series Modems
2-2 November 1996 3810-A2-GB93-20
Figure 2-1. Model 3810 Rear Panel
Figure 2-2. Model 3820 Rear Panel

Installation
2-33810-A2-GB93-20 November 1996
Model 3810 and Model 3820 Dial-Line Connection
Use the following procedure to connect the modem to the dial network interface:
1. Insert the 6-position, 4-conductor modular plug into the jack labeled DIAL/LEASED
(3820), Figure 2-1.
2. Insert the other end of the modular cord into the dial network interface.
Model 3810 4-Wire/2-Wire Leased-Line Connection
Use the following procedure to connect a Model 3810 to the leased-line network interface:
1. Insert the 8-position modular plug into the jack labeled PHONE/LEASED (3810),
Figure 2-1.
2. Insert the 6-position modular plug into the leased-line network interface.
3. If the Model 3810 has a dial backup line, follow the steps listed in the Model 3810 and
Model 3820 Dial-Line Connection section.
Model 3820 2-Wire Leased-Line Connection
Use the following procedure to connect a Model 3820 modem to the 6-pin, center pair, leased-line
network interface:
1. Insert the 6-position, 4-conductor modular plug into the jack labeled DIAL/LEASED
(3820), Figure 2-2.
2. Insert the other end of the modular cord into the leased-line network interface.
AC Power Transformer Connection
The 90–110 volt power transformer is equipped with a 5-pin DIN connector for modem
connection, and a grounded line cord for AC power outlet connection.
Use the following procedure to connect the standalone modem to an ac power outlet:
1. Make sure the modem’s power switch is in the Off position.
2. Insert the power transformer’s 5-pin DIN male connector into the modem’s rear panel ac
power receptacle (Figures 2-1 and 2-2).
3. Insert the line cord’s wall plug into the appropriate grounded ac outlet.
4. Refer to the Modem Power-Up section in Chapter 2 for modem start-up procedures.

COMSPHERE 3800 Series Modems
2-4 November 1996 3810-A2-GB93-20
Model 3811 Modem Installation
To install the Model 3811 modem (carrier card) into the COMSPHERE 3000 Series Carrier, follow
the same installation procedures described in the Model 3811 Modem Installation section in
Chapter 2. For correct power, DTE, dial, and leased-line cabling procedures, refer to the
COMSPHERE 3000 Series Carrier, Installation Manual.
Note that the Model 3811 supports the following features:
•Carrier assembly
— 3000-B1-601 – COMSPHERE 3000 Series Carrier with 100 volt power supply
•Network Interface Modules (NIMs)
— 3000-F1-003 – RJ21X NIM without the Make Busy and Service Line feature
— 3000-F1-010 – RJ21X NIM with the Make Busy feature
— 3000-F1-016 – RJ21X NIM with the Service Line feature
— 3000-F1-018 – RJ21X NIM with the Make Busy and Service Line features
•Cables
— 3600-F2-503 – 50-pin to eight 8-position keyed modular plugs used for leased-line
networks
— 3600-F2-505 – 50-pin to eight 8-position keyed modular RJ45S plugs used with NIMs
for dial-line networks

3-13810-A2-GB93-20 November 1996
Restrictions and Configuration
Options
Overview
This chapter lists restrictions and configuration options that are unique to the operation of 3800
modems installed in Japan. The information described in this chapter differs from what is listed in
the COMSPHERE 3800 Series Modems, Models 3810, 3811, and 3820, User’s Guide.
If a configuration option is not listed in this supplement, your modem’s functionality and operation
follow what is described in the COMSPHERE 3800 Series Modems, Models 3810, 3811, and 3820,
User’s Guide.
Restrictions
Due to JATE (Japan Approvals Institute for Telecommunications Equipment) regulations, only 3
attempts to dial a number are permitted in a 3-minute period. If a fourth attempt is made to dial the
same number, the modem returns the ERROR return code. This restriction applies to number
dialed from the command line or from a directory. An occurrence of the restriction is canceled
when a different number is dialed, or when 3 minutes have elapsed.
The fax feature is not available on modems installed in Japan.
3

COMSPHERE 3800 Series Modems
3-2 November 1996 3810-A2-GB93-20
Configuration Tables
Table 3-1 describes configuration options that are different for 3800 Series modems installed in
Japan.
Table 3-1
(1 of 2)
Configuration Options for Japan
Blind Dial Paus: 4sec
Nxt 4sec 2sec 6sec 8sec 10sec 20sec
Blind Dial Pause. Determines how long the modem waits before dialing a telephone
number when DialTone Detect is disabled.
NOTE: The Blind Dial Pause configuration option only appears when the Dial Tone
Detect configuration option is disabled.
The factory default is 4sec.
AT command is S-Register S6=
n, where n is a value from 2 to 255 in 1-second
increments.
NoAnswer Timout: 45sec
Nxt 45sec 30sec
No Answer Abort Time-out. Determines the number of seconds an originating modem
waits before abandoning a call attempt when no answer tone is received.
NOTE: Although DCP selections are limited to 30 or 45 seconds, values from 1 through
45 can be set with the AT command.
The factory default is 45sec.
AT command for No Answer Timeout is S-Register S7=
n , where n is a value from 1 to 45
in 1-second increments.
Dial TX Level: -9 dBm
Nxt –9 dBm 0 dBm –1 dBm –2 dBm –3 dBm –4 dBm –5 dBm
–6 dBm –7 dBm –8 dBm –10 dBm –11 dBm –12 dBm –13 dBm
–14 dBm –15 dBm
Dial Transmit Level. Sets the power output level of the transmit signal over dial lines. This
value is adjustable from 0 dBm to –15 dBm.
The AT command for Dial TX Level is &I n , where n is:
0 = 0 dBm 8 = –8 dBm
1 = –1 dBm 9 = –9 dBm
2 = –2 dBm 10 = –10 dBm
3 = –3 dBm 11 = –11 dBm
4 = –4 dBm 12 = –12 dBm
5 = –5 dBm 13 = –13 dBm
6 = –6 dBm 14 = –14 dBm
7 = –7 dBm 15 = –15 dBm

Restrictions and Configuration Options
3-33810-A2-GB93-20 November 1996
Table 3-1
(2 of 2)
Configuration Options for Japan
Factory Default Templates for Cellular
The AT command &F5 or the front panel selection Cellular (Mobile) sets the following
configuration options:
Option AT Command Value
Maximum Frame Size \A4
Error Control Mode \N4
Auto-Answer Rings S0=3
No Answer Timeout S7=45
No Carrier Disconnect S10=100
V.32bis Train S43=1
V.32bis Autorate S76=3
V.42 ARQ Window Size S89=9
Cellular Enhancements S91=1
The AT command &F6 or the front panel selection Cellular (PSTN) sets the following
configuration options:
Option AT Command Value
Transmit Level &I15
Error Control Mode \N4
No Answer Timeout S7=45
No Carrier Disconnect S10=100
V.32bis Train S43=1
V.42 ARQ Window Size S89=9
Cellular Enhancements S91=17
