Paradyne 9261 User manual

TM
1
9261 Dual T1 Network Access Module (NAM)
Installation Instructions
Document Number 9261-A2-GN10-00
September 1997
Before You Begin
Make sure you have:
An operable T1 network connection
An async (VT100-compatible) terminal emulation
Housing and other associated hardware
Applicable cables
Package Checklist
Verify that your package contains the following:
T1 NAM and associated I/O card
Affidavit Requirements for Connection to Digital Service
Warranty

Safety, Regulatory, Warranty and Service Information
(Document No. 9000-A2-GX41)
Available Option
The following option is separately orderable:
RJ48C modular cable for network access (14)

2
What Does a T1 NAM Do?
The T1 NAM acts as an interface between the T1 digital network and the customer
premises equipment, converting signals received from the DTE to bipolar signals that
can be transmitted over T1 and Fractional T1 lines. The 9261 T1 NAM also provides an
additional T1 network interface connector. Typical applications include:
HWide Area Networks (WANs)
HChannel extension
HVideo teleconferencing
Cables You May Need to Order
The following cables are specifically for this product. See page A of either the
Model 916x/926x T1 Access Mux User’s Guide (Document No. 9161-A2-GB20) or the
Model 916x/926x T1 Access Mux Technical Reference (Document No. 9161-A2-GH30)
for ordering information. You can also see the Technical Reference for cable pin-out
information.
If connecting to a . . . Order a . . .
Terminal or printer (DB25
interface/connector) COM Port-to-Terminal/Printer cable (14)
PC (DB9 interface/connector –
EIA-232 connection) COM Port-to-PC cable (14)
DTE with a V.35
interface/connector MS34 to DB25 adapter cable for each port: Port 1
and/or Port 2 (1′)
DTE with a RS-449
interface/connector DB37 to DB25 DTE adapter cable for each port:
Port 1 and/or Port 2 (1′)
DTE with a V.11/X.21
interface/connector DB15 to DB25 adapter cable for each port: Port 1
and/or Port 2 (1′)
LAN Adapter COM Port-to-LAN Adapter cable (14)

3
Recommended Order of Installation
1. First, install the I/O card.
2. Connect all cables into the I/O card.
3. Install the NAM.
4. Go to the
2-Slot Housing Installation Instructions (Document No. 9000-A2-GN15),
5-Slot Housing with AC Power Supply Installation Instructions (Document
No. 9000-A2-GN16), or
5-Slot Housing with DC Power Supply Installation
Instructions
(Document No. 9000-A2-GN1C) for power-up verification procedures.
Tools Required
HA small Phillips screwdriver (#1 or #2) to install the T1 NAM
HA small, flat-blade screwdriver to install the:
— I/O card
— Cable connections

NAM
Rear Panel
PORT 2
9261
NET 1
DBM
PORT 1
COM
NET 1
DBM
(For
Future
Use)
NET 2
Port 1
Port 2
COM
97-15637
NET 2
4
Installing the I/O Card
The NAM’s I/O card provides the COM port, network, and
DTE connections. The I/O card inserts directly behind the NAM
that it supports. Slot numbers are identical (in this case, Slot 01)
to facilitate correct installation.
1. Remove the I/O card from the shipping box. Handle only
by the top and bottom edges to avoid damaging the card.
2. At the rear of the housing, align the I/O card with the
upper and lower tracks of the slot. Push gently towards
the midplane until it stops and you cannot push the card
any further.
496-15155
Screws
Rear View
Screws
5-Slot 2-Slot
3. There are two captive screws on the I/O card. Using a
screwdriver, alternately tighten each screw until the
screws are all the way in.

COM
9261
NET 1
Port 1
PORT 2
Port 1
DBM
NET 2
97 -15639
DTE
Cable
DTE
Cable
V.35, RS-449,
V.11/X.21
Adapter Cable
DTE
DTE Port 2
5
Connecting to the Network
1. Insert the 8-pin connector on the
RJ48C network cable into the NET 1
and/or NET 2 interface.
2. Insert the other end of the cable into
the RJ48C modular jack.
Connecting to a DTE
If the DTE cable type is
V.35, RS449, or V.11/X.21
(separately orderable):
1. Connect the plug to the
V.35, RS449, or V.11/X.21
end of the adapter
cable (as appropriate).
2. Connect the EIA 530A
end of the adapter cable
to PORT 1 or PORT 2.
If the DTE cable type is
EIA 530A:
1. Connect the EIA-530A
end of the DTE cable to
PORT 1 or PORT 2.
RJ48C
Jack
9261
NET
NET 1
97-15638
DBM
NET 2

6

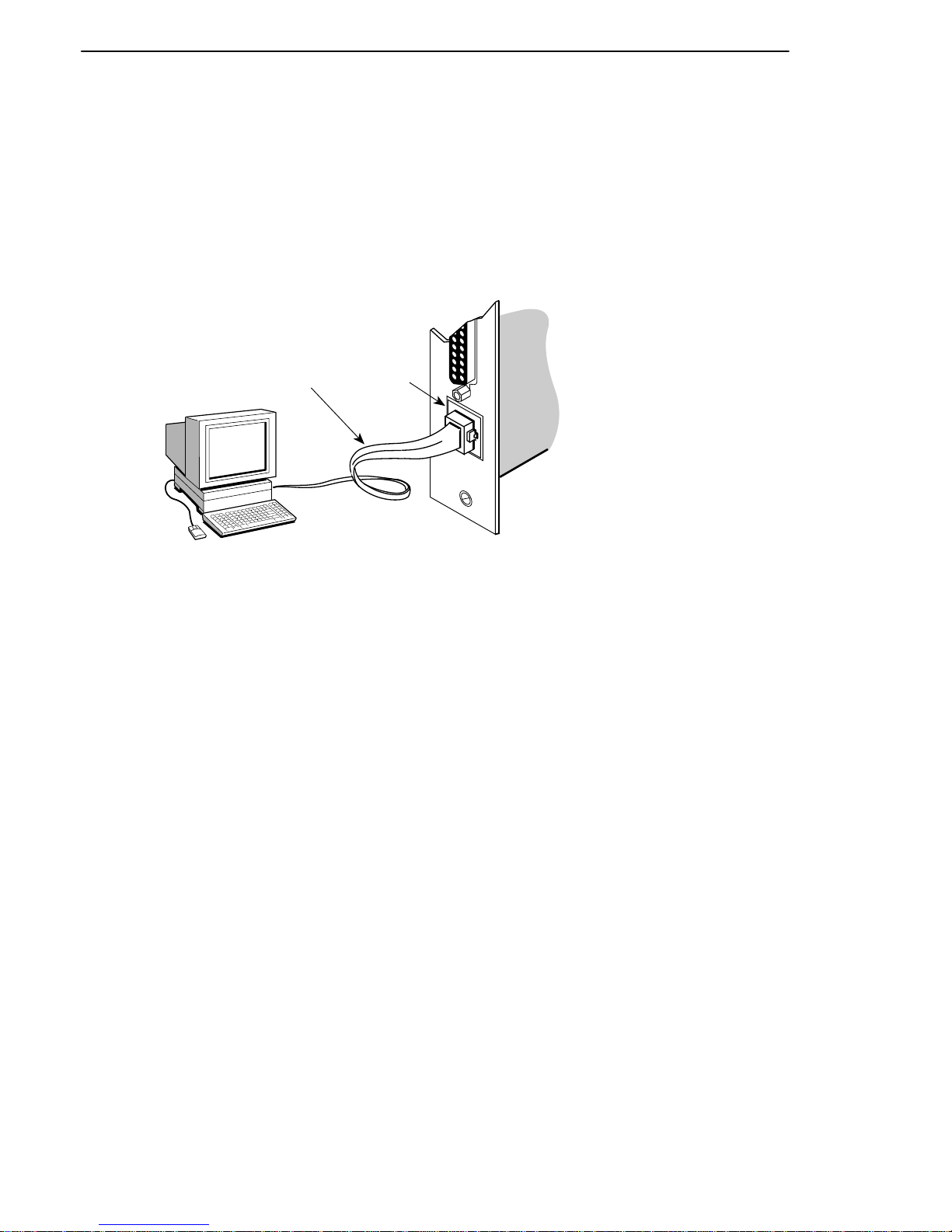

Connecting the COM Port to a User Interface
1. Insert the 8-pin end of the cable into the COM port.
2. Insert the other end of the cable into the user interface (VT100-compatible terminal
emulation) connector.
3. Press Return on the keyboard to display the Main Menu. If you need to configure
for other than a direct link, see the
Technical Reference .
Set the speed of the async (VT100-compatible) terminal so
it matches the NAM's factory-loaded data rate of 19.2 kbps,
character length set to 8, parity set to None, and stop bits
set to 1.The flow control should be set to None or
Hardware.
PORT 2
COM
COM
496-15052-01
COM Port-to-Terminal/Printer
Cable or
COM Port-to-PC Cable
*
*

496-15149
7

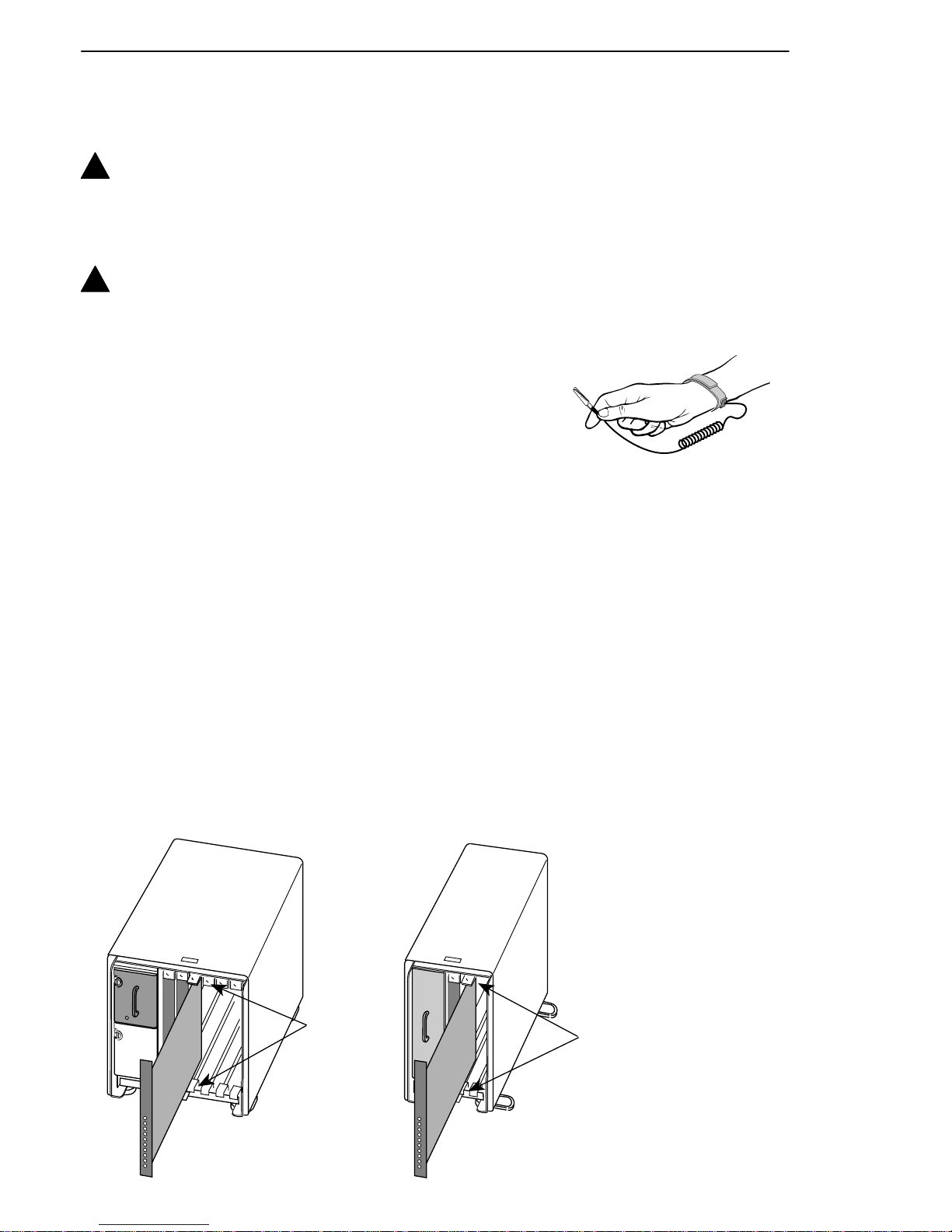

Installing the T1 NAM
!WARNING:
Do NOT remove any jumpers located on the battery. To do so can cause
non-volatile memory loss. Should a jumper become separated from the
battery, contact your service representative immediately.
!HANDLING PRECAUTIONS FOR STATIC-SENSITIVE DEVICES
This product is designed to protect sensitive
components from damage due to electrostatic
discharge (ESD) during normal operation. When
performing installation procedures, however,
take proper static control precautions to prevent
damage to equipment. If you are not sure of the
proper static control precautions, contact your
nearest sales or service representative.
The NAM is always installed in Slot 01.
CAUTION:
Be sure that you install the NAM in the correct slot so that it mates with its
matching I/O card. Otherwise, you could damage your card.
1. Remove the housing’s bezel, if applicable. See the housing installation instructions
for information.
2. Remove the NAM from the shipping box. Handle only by the top and bottom edges
to avoid damaging the card.
3. At the front of the housing, align the NAM with the upper and lower tracks of
Slot 01.
97-15156-01
Ejector
Latches
FrontView
2-Slot
5-Slot
Ejector
Latches

8
4. Slide into the tracks until the NAM seats with the midplane connectors. Be careful
not to force the card or bend any pins.
5. Close both the upper and lower ejector latches on the housing to lock in place,
then tighten the captive screws on the ejector latches.
6. Replace the housing’s bezel, if applicable.
Removing/Replacing a Card
Card removal procedures differ, depending on whether you are removing the card from
the front or rear of the housing.
If you are removing the . . . Then go to . . .
NAM Removing/Replacing the NAM .
I/O card Removing/Replacing the I/O Card .
Removing/Replacing the NAM
1. Remove the housing’s bezel, if applicable. See the housing installation instructions
for information.
2. Remove the captive screws from the ejector latches on front of the housing.
3. Press open the ejector latches to disengage the card.
4. Supporting the card by its edges, pull straight out until the card clears the housing.
5. Align the replacement card with the upper and lower tracks of the slot. Slide
forward until the NAM seats. Be careful not to force or bend any pins.
6. Close both the upper and lower ejector latches on the housing to lock in place,
then tighten the captive screws.
7. Replace the housing’s bezel, if applicable.

9
Removing/Replacing the I/O Card
1. Remove the NAM from the housing (see Removing/Replacing the NAM ).
2. Remove the network, DTE, and COM port cables from the I/O card (if applicable).
3. Using a screwdriver, loosen the upper and lower screws fastening the card to the
housing’s frame.
4. Gently pull the I/O card away from the midplane until it clears the housing.
5. Align the replacement card with the upper and lower tracks of the slot. Push gently
towards the midplane until it stops and you cannot push the card any further.
6. Alternately tighten each captive screw until the screws are all the way in.
7. Reattach the cables as appropriate.
Power-Up
Go to your housing instructions to perform power-up, if needed. The housing
instructions also contain troubleshooting information.

2–OK
OK
ALM
TST
BKP
SIG
OOF
ALM
SIG
OOF
ALM
1–OK
9261
IN
OUT
IN
OUT
IN
OUT
IN
OUT
NET1 NET2 NET1 MON NET2 MON NET 1 NET 2 PORT
97-15647
Test
Jacks
LEDs
10
Front Panel LEDs and Test Jacks
The T1 NAM has 12 LED (light-emitting diode) status indicators and four sets of test
jacks.
Test Jacks
The NAM contains four sets of test jacks. Use these for:
HAccessing and testing towards the Network 1 interface
HAccessing and testing towards the Network 2 interface
Refer to
Troubleshooting and Maintenance in the Technical
Reference for more information on the test jacks.
General Status LEDs
Label Indication Color What It Means
OK Power and
Operational
Status
Green ON – NAM has power
and is
operational.
OFF – NAM is in a
power-up
self-test, or there
is a failure.
CYCLING – The unit is in
Minimum mode.
Requires an FTP
download.
ALM System
Failure/
Self-Test
Red ON – NAM has just
been reset, or an
error or fault has
been detected.
OFF – No failures have
been detected.
TST Test Mode Yellow ON – Loopback or test
pattern in
progress,
initiated locally,
remotely, or from
the network.
OFF – No tests are
active.
BKP Backup Yellow Not supported. Remains
off except during a Lamp
Test.

11
Network 1 and Network 2 Interface LEDs
Label Indication Color What It Means
SIG Signal Green ON – A recoverable signal is present on
the Network 1/Network 2 interface.
OFF – The signal cannot be recovered
from the Network 1/Network 2
interface. An LOS condition exists.
OOF Out of Frame Yellow ON – At least one OOF was detected
during the sampling period.
OFF – No OOFs were detected during the
sampling period.
ALM Alarm Yellow ON – An alarm condition is present on the
Network 1/Network 2 interface.
Current alarm conditions:
HLoss of Signal (LOS)
HLoss of Frame (LOF)
HExcessive Error Rate (EER)
HYellow Alarm
HAlarm Indication Signal (AIS)
OFF – No alarm condition is present on
the Network 1/Network 2 interface.
Port 1 and Port 2 LEDs
Label Indication Color What It Means
1-OK
2-OK Operational Status Green ON – The interchange circuits for the port are in the correct state to transmit
and receive data.
OFF – The port is idle. Occurs if the port is
disabled, if an EDL Out of Frame or
EER condition is present, if a DCLB
is active, or if the port is configured
to monitor DTR and/or RTS and the
lead(s) is not asserted.

12
Troubleshooting
Symptom Possible Cause Solutions
No power, or none of the
system LEDs are lit. For DC power source, DC power is not present.
For AC power source, the
wall receptacle has no
power, or the housing’s
power cord is not securely
plugged into the wall
receptacle or the back of
the housing.
Check the DC power
source.
1. Check the wall
receptacle power by
plugging in some
equipment that is known
to be working.
2. Check that the power
cord is securely attached
the housing.
LED is burned out.
cord is securely attached
at both ends.
3. Check the circuit
breaker.
Run the Lamp Test. If the
LED in question does not
flash with the other LEDs,
then contact your service
representative.
Power-Up Self-Test fails.
Only Alarm LED is on
after power-up.
The NAM has detected an
internal hardware failure. 1. Reset the NAM and try
again (see the User’s
Guide).
2. Contact your service
representative.
Cannot access the NAM
or the user interface. Login or password is incorrect, COM port is
misconfigured, or the NAM
is otherwise configured so it
prevents access.
1. Reset the NAM (see the
User’s Guide).
2. Contact your service
representative.
Device Fail appears on
the System Health and
Status screen.
The NAM detects an
internal hardware failure. Record the 8-digit code from the System Health
and Status screen, then
contact your service
representative.
Not receiving data at
DTE interface. Not cross-connected to the correct timeslot(s). Verify cross connections using the Cross Connect
configuration option.

13
Technical Specifications
Specification Criteria
Weight
T1 NAM
T1 I/O card 1 lb. 2 oz. (.51 kg)
6 oz. (.17 kg)
Size
T1 NAM
T1 I/O card 11.58″x 8.00″(29.41 cm x 20.32 cm)
2.90″x 10.15″(7.37 cm x 25.78 cm)
Power Consumption 9.4 watts, 0.78 amps input current at 12 volts
Physical Environment
Operating temperature
Storage temperature
Relative humidity
Shock and vibration
35°F to 122°F (1.7°C to 50°C)
–4°F to 158°F (–20°C to 70°C)
5% to 85% (noncondensing)
Withstands normal shipping and handling
Network 1/2 T1 Interface
Physical Interface (USA)
Physical Interface (Canada)
Framing Format
Coding Format
Line Build-Out (LBO)
ANSI PRM
Bit Stuffing
Yellow Alarm Generation
RJ48C
CA81A using adapter cable
D4, ESF
AMI, B8ZS
0.0 dB, –7.5 dB, –15 dB, –22.5 dB
Selectable
FCC Part 68, AT&T TR 62411
Selectable
DTE Ports/Interfaces
Standards
Rates EIA 530A, V.35, RS-449, V.11, X.21
Nx64 – 64K to 1.536 Mb
Nx56 – 56K to 1.344 Mb
COM Port/Interface
Data Rates 9.6, 14.4, 19.2, 28.8, 38.4 , 57.6, and 115.2 kbps
57.6 or 115.2 kbps are recommended for FTP
download only
DBM (Backup) connector
(reserved for future use) One 8-position modular keyed USOC RJ45 jack

14
Specification Criteria
Clocking Sources T1 network interface (1 or 2), any port, internal
clock, or external clock
Loopbacks
Standard
Additional
Network Line Loopback, Network Payload
Loopback, V.54 Loop 2 (DCLB) and V.54 Loop 3
(DTPLB)
Network Repeater Loopback, DTE Loopback
Pin Assignments
NET 1/2 Ports/Interfaces
Function Circuit Pin #
Receive ring from the network R1 1
Receive tip from the network T1 2
Transmit ring to the network R 4
Transmit tip to the network T 5
COM Port/Interface
Signal Direction Pin #
DCE Transmit Clock (TXC) Out 1
DCE Receive Data (RXD) Out 2
Signal Ground (SG) — 3
DCE Transmit Data (TXD) In 4
DCE Data Terminal Ready (DTR) In 5
DCE Carrier Detect (CD) Out 6
DCE Request to Send (RTS) In 7
DCE Receive Clock (RXC) Out 8

15
DTE Ports/Interfaces
Signal Circuit
Mnemonic ITU/ CCITT # Direction 25-Pin Pin #
Shield — — — 1
Transmitted Data (TXD) BA 103 To DCE 2 (A)
14 (B)
Received Data (RXD) BB 104 From DCE 3 (A)
16 (B)
Request to Send (RTS) CA 105 To DCE 4 (A)
19 (B)
Clear to Send (CTS) CB 106 From DCE 5 (A)
13 (B)
Data Set (or DCE) Ready
(DSR) CC 107 From DCE 6
Signal Ground/Common (SG) AB 102A — 7
Received Line Signal Detector
(RLSD or LSD) CF 109 From DCE 8 (A) 10 (B)
Transmit Signal Element
Timing (TXC – DTE Source) DA 113 To DCE 11 (B) 24 (A)
Transmitter Signal Element
Timing (TXC – DCE Source) DB 114 From DCE 12 (B) 15 (A)
Receiver Signal Element
Timing (RXC – DCE Source) DD 115 From DCE 17 (A) 9 (B)
Local Loopback (LL) LL 141 To DCE 18
Data Terminal (or DTE)
Ready (DTR) CD 108/1, /2 To DCE 20
Remote Loopback (RL) RL 140 To DCE 21
Signal Common AC 102B — 22, 23
Test Mode Indicator (TM) TM 142 From DCE 25
