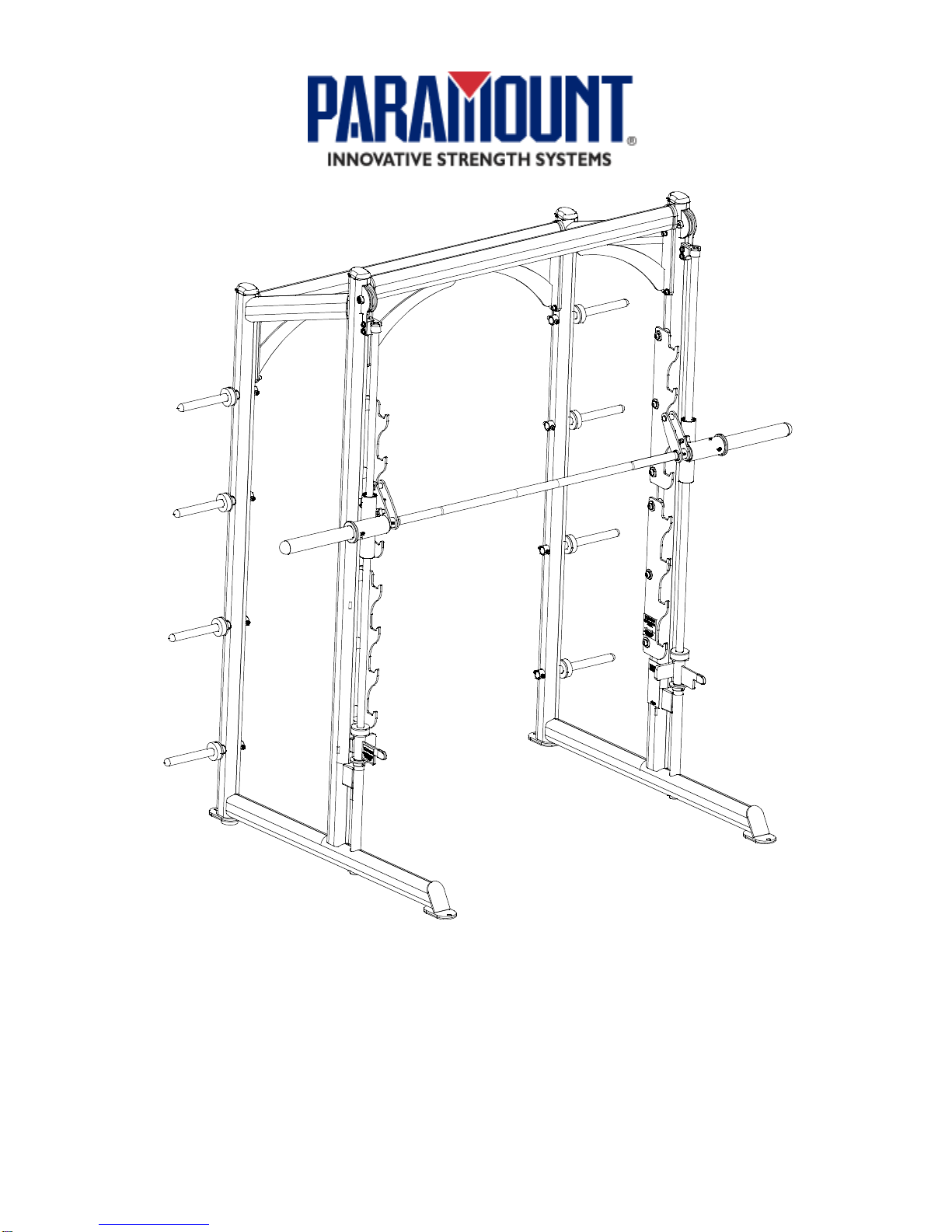

Paramount Fitness XFW 6800 User manual

PERFORMANCE XL FREE WEIGHTS
XFW 6800
SMITH PRESS
ASSEMBLY MANUAL
AM-XFW6800
Rev 07-05

1
SAFETY
1. Cables: Check the entire length of the cable weekly. Pay close attention to the area
going over pulleys and to the end connections. Inspect the cable end fittings daily.
Replace all cables at first signs of wear. Use only Paramount supplied replacement
cables.
2. Nuts, Bolts, and Fasteners: Check tightness weekly. If any hardware has become
loose, retighten and/or use Loctite™Threadlocker 242.
3. Frames, Lifting Arms, and Catch Hooks: Inspect weekly for integrity and function.
Replace any component at first signs of wear.
4. DO NOT attempt to free any jammed assemblies by yourself as this may cause injury.
5. Review and understand all of the warning labels affixed to the machines and the
facility safety sign. Replace any warning label at first sign of wear. Labels and the Facility
Safety Sign may be obtained from Paramount free of charge. Stay clear of moving com-
ponents and do not wear loose or dangling clothing while exercising. Keep headset
cords close to the body and away from moving components.
6. Be certain that machine operation is understood before machine is used. Refer to
the instruction label or wall chart provided with the machine.
7. Check regularly the functionality of your machine by verifying the following:
•Cables and end fittings are intact and tensioned properly
•All adjustments are possible and carried out with ease
•The exercise is performed smoothly, free of noise and/or binding
•The guide rods and linear bearings are properly lubricated
8. Keep children away from this equipment.
9. Follow the installation guidelines provided with the products.
10. Retain these instructions for future reference.
If you have any questions, do not hesitate to contact your Paramount dealer or Para-
mount Fitness Corp. at [phone] or www.paramountfitness.com.
See Maintenance Schedule label on machine for component schedule.

MAINTENANCE
1. Frames: Wipe all machines down with a damp cloth and dry completely each day.
This includes painted, chrome parts and upholstered pads.
2. Painted/chrome parts: Use Simple Green or similar cleaner for light dirt and grime.
Use TurtleWax®Polishing Compound or a good car polish to remove heavier dirt and
grease as well as for polishing. DO NOT use solvents, lacquer thinner, acetone or finger
nail polish remover. For scuffs and marks that are not removed by the above methods
use a soft scrub cleanser.
3. Exercise instruction labels: Clean with soap and water as needed.
4. Linear bearing shafts: Wipe down linear rails using a light application of Mag-
nalube®lubricant or a similar teflon grease on a weekly basis to remove dust, hair, and
dirt.
5. Bronze bushings: Check monthly for signs of wear and replace as needed. Lubri-
cate monthly with Tri-FlowTM.
We recommend that you purchase the Paramount Performance Kit (P/N KIT-01) to main-
tain your Paramount products. This will insure that the proper maintenance materials
required will be used. Please refer to the General Maintenance Manual (p/n AM-GMM)
for other important safety and maintenance information.
2

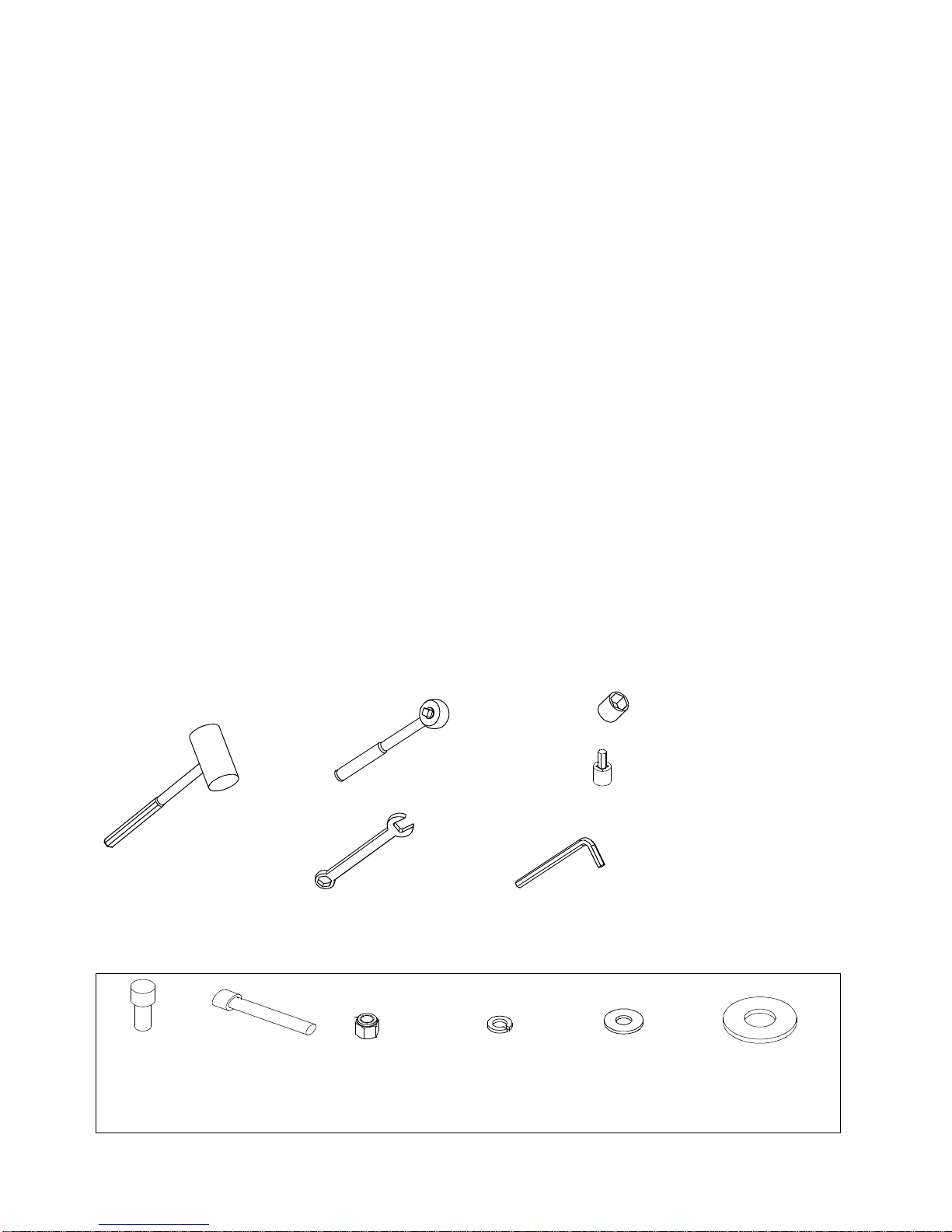

RUBBER MALLET
SOCKET WRENCH
1/2” WRENCH
1/2” SOCKET
Tools Required:
5/16” ALLEN WRENCH
1/4” ALLEN WRENCH
1/4” ALLEN BIT
5/16” ALLEN BIT
1/8” ALLEN WRENCH
AND /OR
7/32” ALLEN BIT
7/32” ALLEN WRENCH
Hardware Bag 1:
C 623
3/8-16 x 1’’
SHCS
(8)
C 619
5/16-18x1 3/4
SHCS (8)
C 731A
5/16-18
Locknut (8)
C 749
3/8”Split
Lockwasher
(8)
C 754C
3/8”Flat
Washer (8)
C 757
1’’ Flat
Washer (6)

3

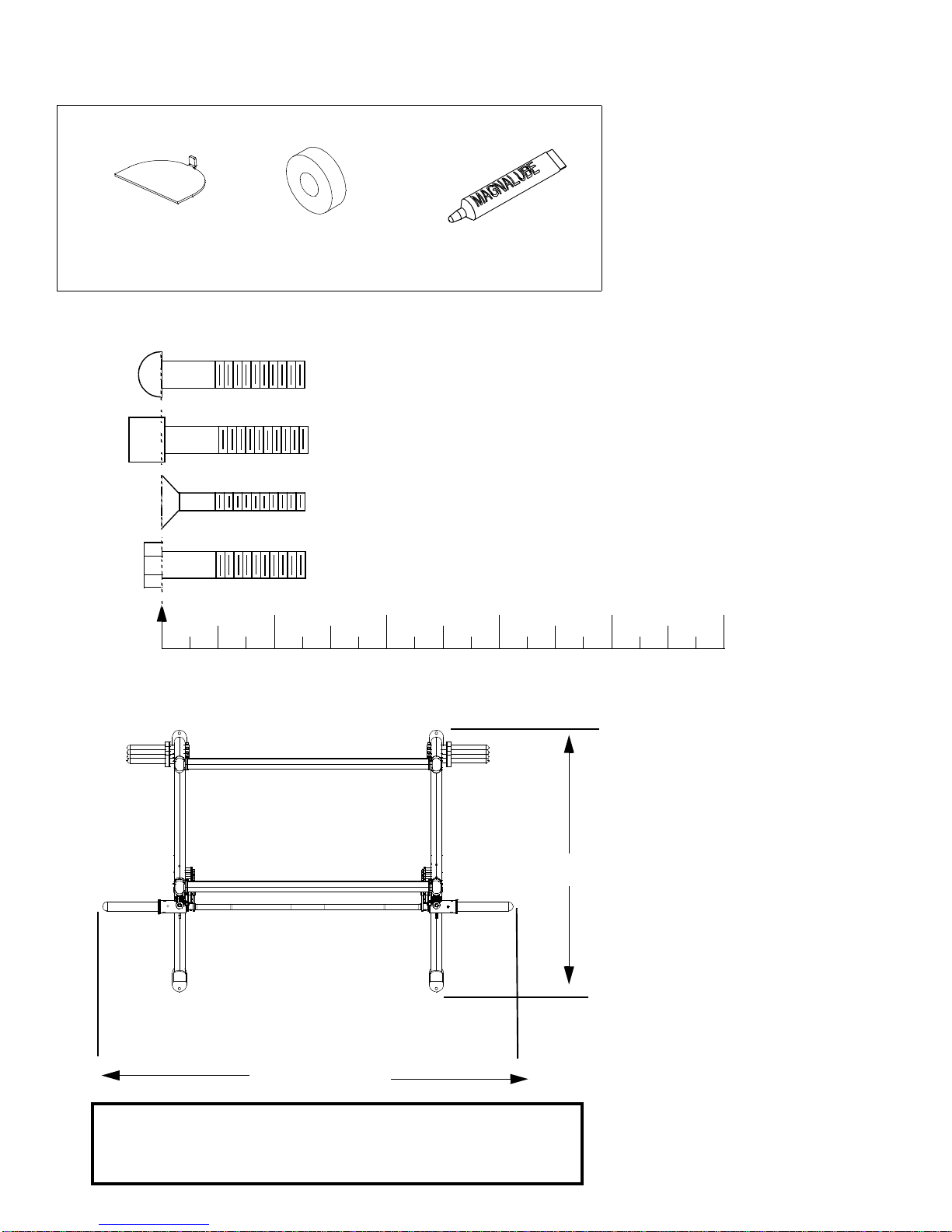

HARDWARE MEASUREMENT GUIDE:
FHCS - FLAT HEAD CAP SCREW
HHCS - HEX HEAD CAP SCREW
BHCS - BUTTON HEAD CAP SCREW
MEASURE BOLT
FROM HERE
12345
SHCS - SOCKET HEAD CAP SCREW
B 683 (10) L 101
6805SHM001 (4)
Hardware Bag 2:
MINIMUM FLOOR AREA REQUIRED:
55”(140 cm)
86”(218.5 cm) Height= 88”(223.5 cm)
Weight= 370lbs. (174 kg)
max number of 45lb (20.45kg) weights(per side) = 6
DO NOT USE 100 LB PLATES ON THIS MACHINE!

4

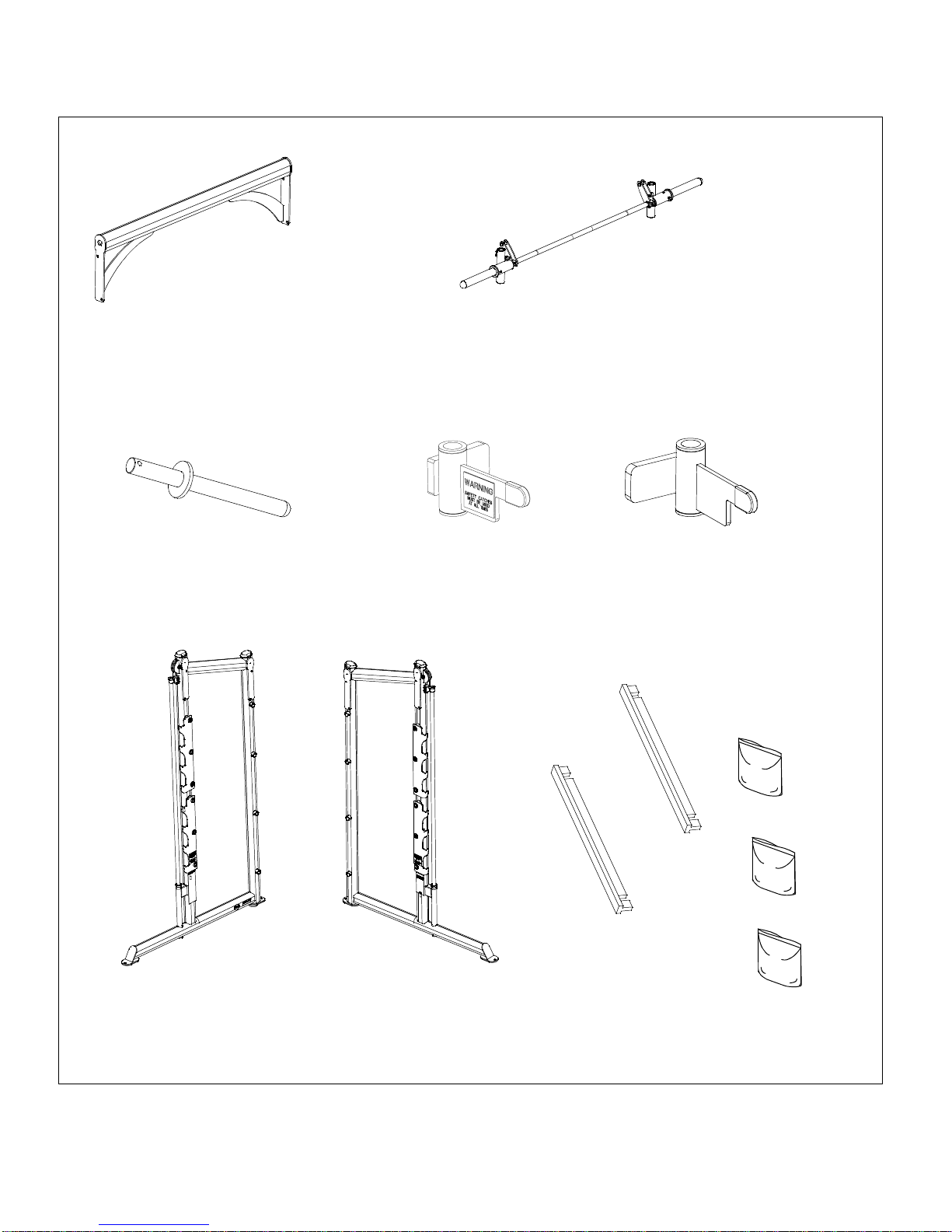

6805TFR000(1)
TOP BRACE
6805WTS000 (8)
WEIGHT PLATE
HOLDER
6805SFR000X
LF. SIDE FRAME
ASSY.
6805SFR010X
RT. SIDE FRAME
ASSY.
6805BAR000X
LIFTING BAR
6805STP000X
LF. STOP ASSY. 6805STP005X RT. STOP ASSY.
HWXFW68-1
HWXFW68-2
6805TFR000X(1)
HWXFW68-3
WOOD
SPACER [2]
6805SPC010
PACKING LIST:

5
1
DO NOT REMOVE
CABLE TIE YET.
6805WTS000
B683
C619 C731A
45 lb or 35 lb plates
45 lb or 35 lb plates
25 lb plates
10 lb plates
6805SFR000X

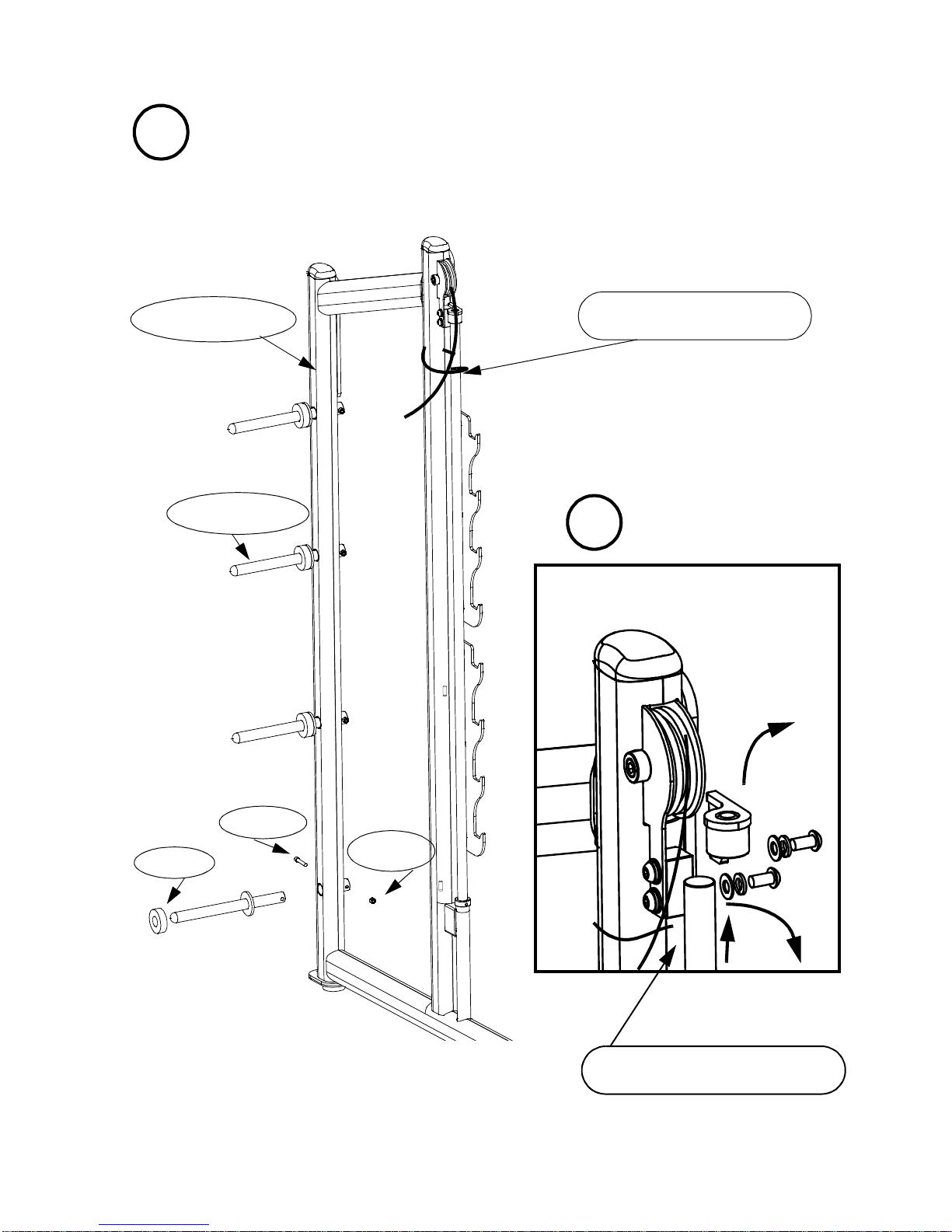

INSTALL WEIGHT POSTS ON BOTH UPRIGHT FRAMES
REMOVE LINEAR ROD
ASSEMBLIES.
DO NOT REMOVE
CABLE TIE YET.
2

C 757
B 683
6805STP000X
LEFT SIDE
WHEN FACING
MACHINE
S 532
INTO
EACH
BEARING
INSERT
ROD SLOW
& SQUARE

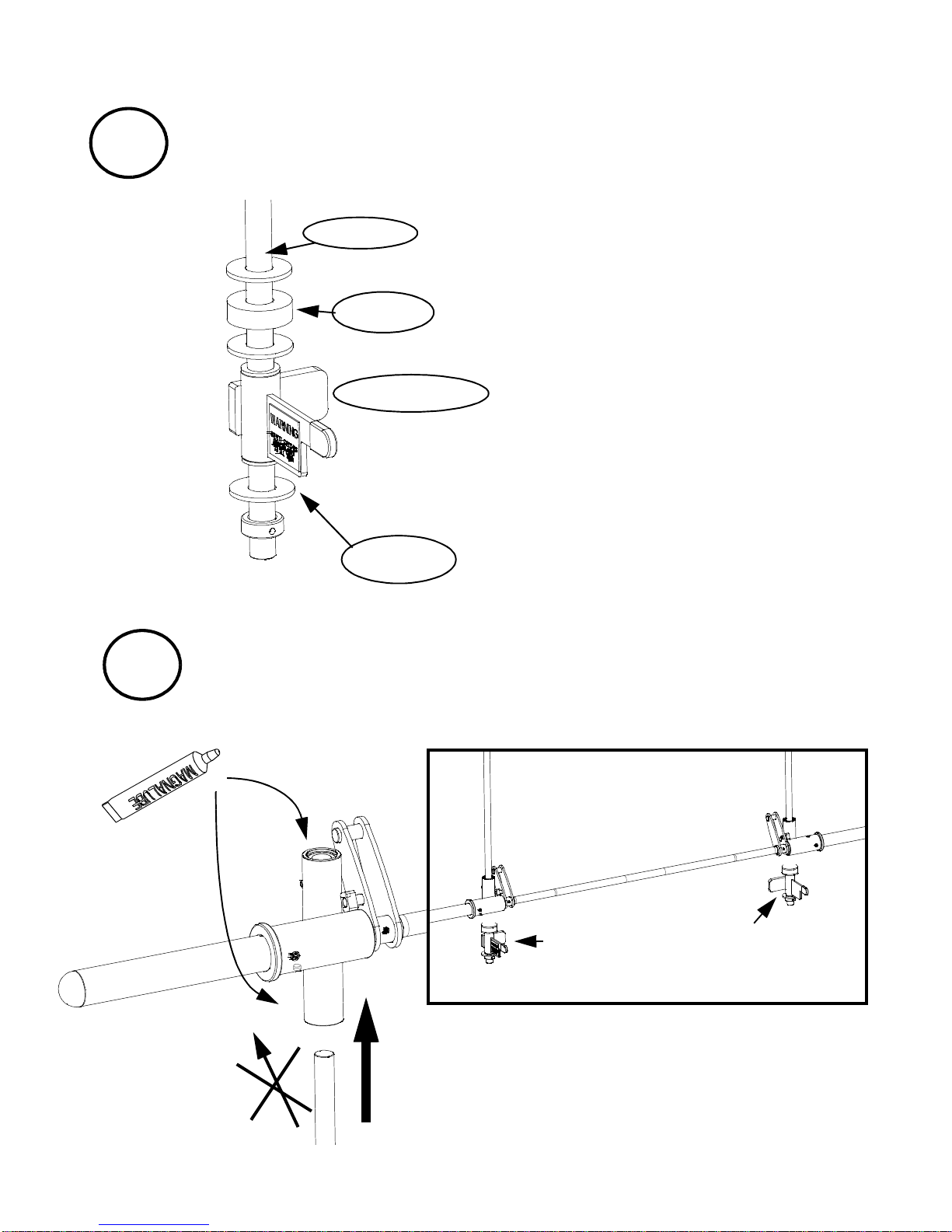

INSTALL STOPS AND HARDWARE ONTO EACH LINEAR BAR.
CAREFULLY INSTALL BOTH LINEAR RODS INTO
THE LIFTING ARM ASSEMBLY. INSERT THE
ROD SLOWLY THROUGH EACH BEARING.
NOTE STOP ORIENTATION
LEFT
RIGHT
6
3a
3b

7

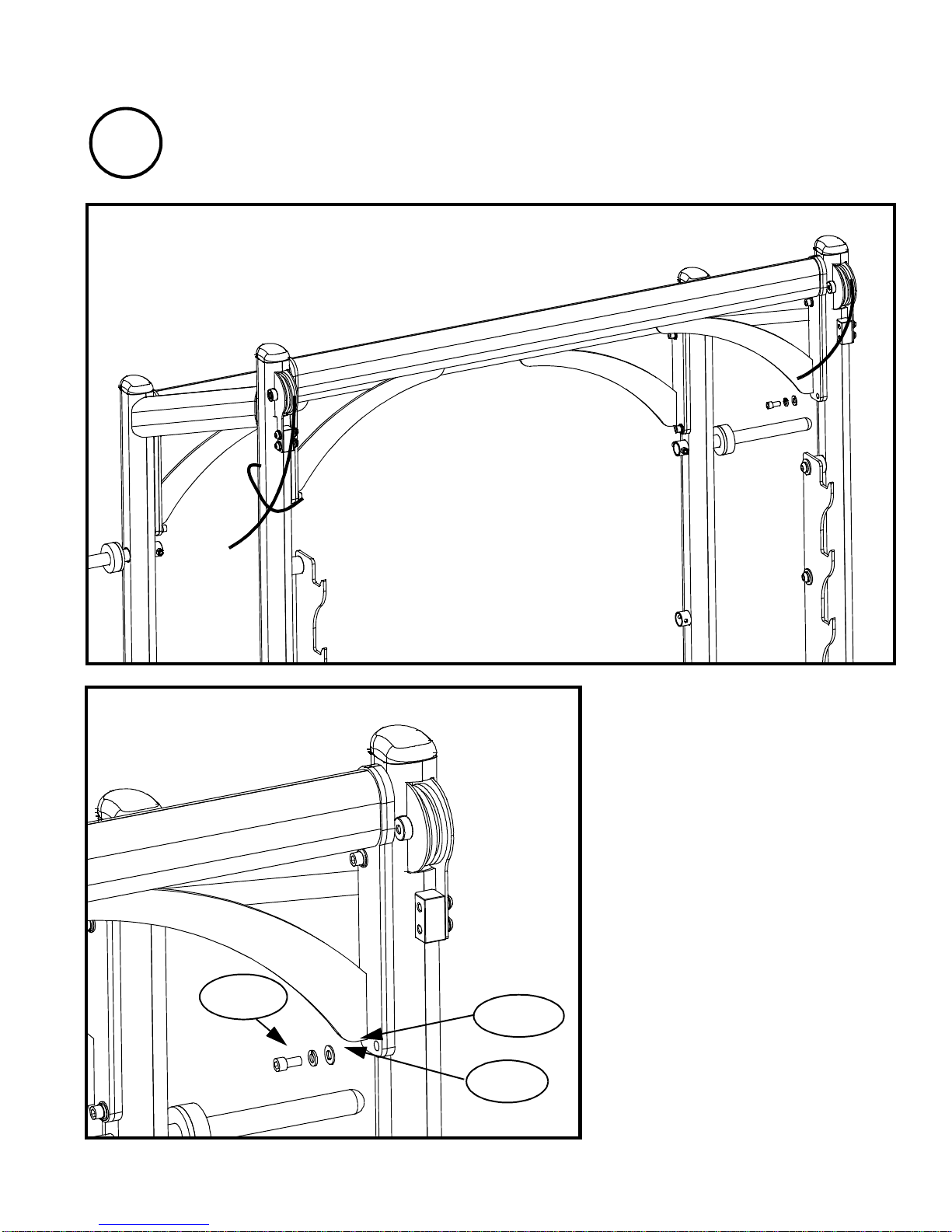

INSTALL FRONT AND REAR TOP FRAMES. KEEP HARDWARE
LOOSE!
C 623
C 749
C 754C
4

8

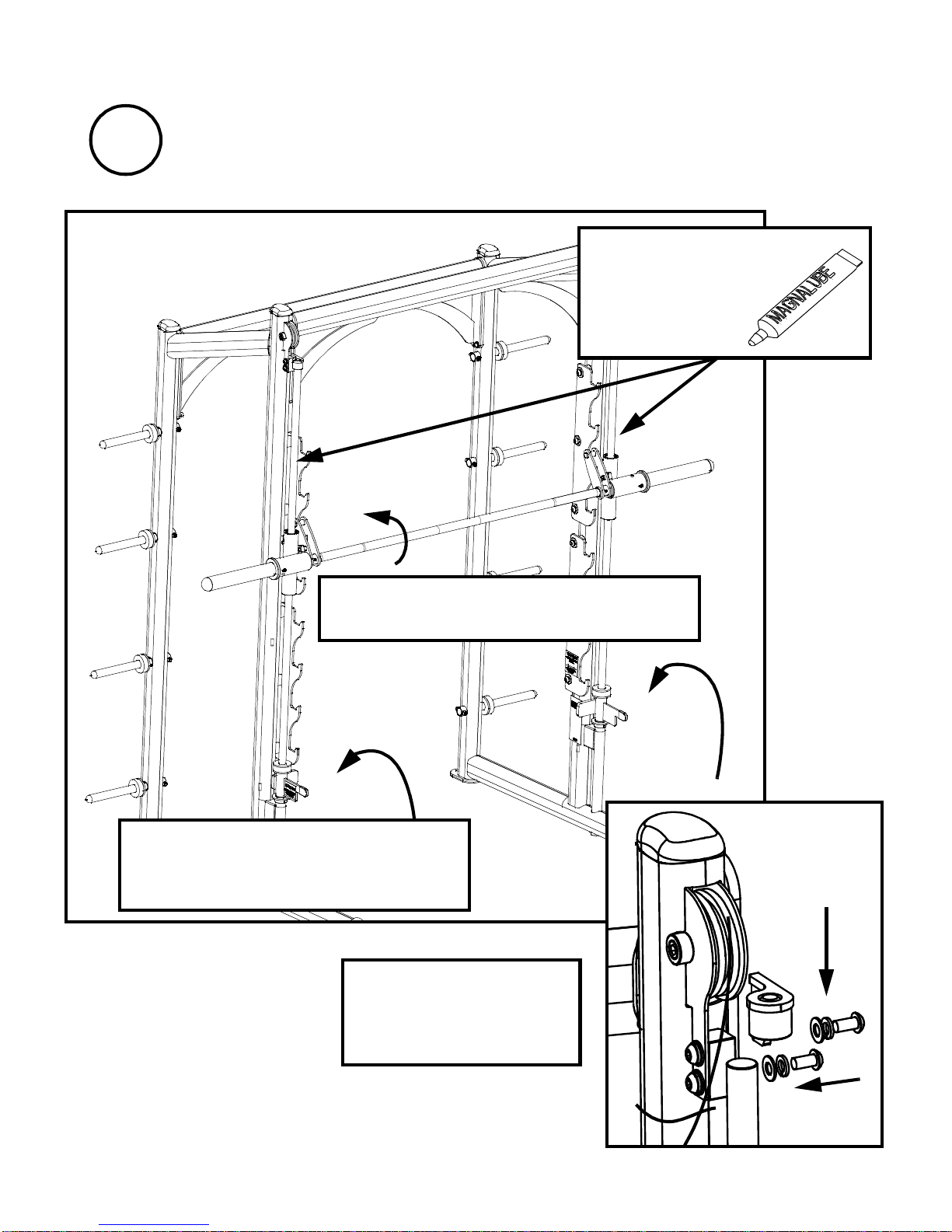

[A] CAREFULLY LIFT LIFTING ARM
LINEAR RODS AND STOPS UP AND
INTO THE FRAME ASSEMBLY.
[C] LATCH CATCH HOOKS ONTO
ONE OF THE UPPER POSITIONS
INSTALL LIFTING ARM AND LINEAR RODS AS A SET INTO THE
SIDE FRAMES. TWO PEOPLE WILL BE REQUIRED.
[B] REINSTALL ROD
SUPPORTS AND
HARWARE.
[D] APPLY TO
LINEAR RODS
AFTER
INSTALLATION
5

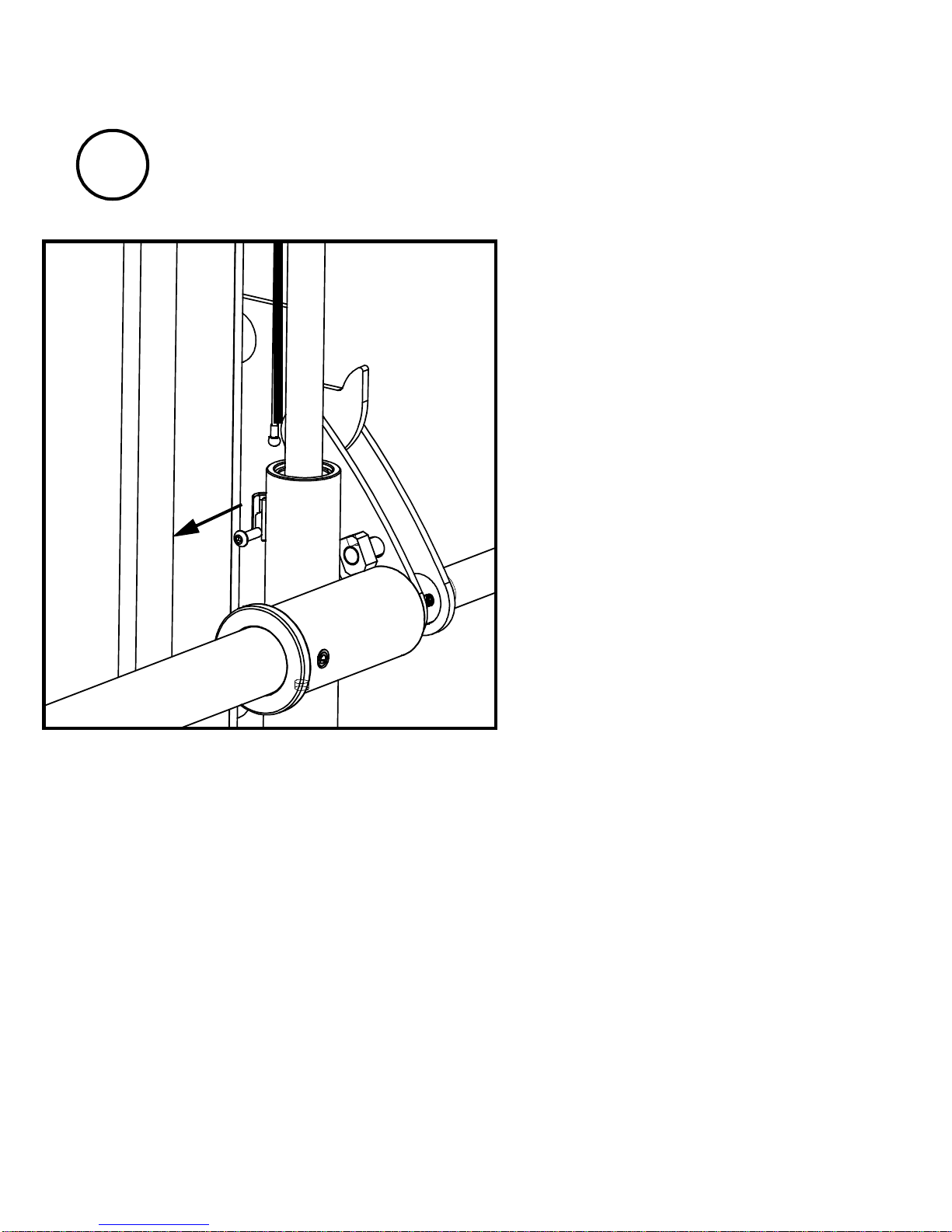

WITH TOP FRAME HARDWARE LOOSE, INSERT BOTH
WOOD SPACERS
9
TIGHTEN THE TOP FRAME BOLTS
INSPECT THE TOP FRAME PLATES
WHERE THEY ATTACH TO THE
SIDE FRAMES ON THE OTHER SIDE
ON ONE SIDE OF THE MACHINE
FOR BOTH TOP FRAME ASSEMBLIES.
OF THE MACHINE. IF A GAP IS
PRESENT, INSTALL A SHIM
6805SHM001. NOW TIGHTEN THE
REMAINING HARDWARE.
REMOVE THE WOOD SPACERS
FROM THE BASE. [SOME MOVEMENT
OF THE FRAME WILL OCCUR]
