Paramount Fitness DBL05-25 Assembly instructions

ELECTRIC FIREPL ACE INSERT
Model #: DBL05-2 5
* Save this manual for future reference.
R
CUS
Warning: Do not move insert while operating.
1
YEAR
W
A
R
R
A
N
T
Y
limited
Owner’s Manual
& Safety Instructions
For customer service, parts
or warranty issues:
e-mail customercar[email protected]
Item#:EF-312-25KIT

Read these instructions completely before
beginning installation. Failure to follow them
could cause a heater malfunction resulting in
serious injury and/or property damage.
WARNING: All electric heaters have
hot and arcing or sparking parts inside.
Do not use it in areas where gasoline,
paint or flammable liquids are present.
WARNING: This electric fireplace is
tested and listed for use only with the
optional accessories listed in these
instructions. Use of optional
accessories not specifically tested for
this electric fireplace could void the
heater warranty and/or result in a
safety hazard.
This electric fireplace meets the
construction and safety standards of H.U.D.
for application in manufactured homes when
installed according to these instructions.
2
!
!

Important Safety Instructions.....................................................
Listing Approvals .....................................................................
Product Dimension Specifications .............................................
Locating Fireplace ..................................................................
Unpacking and Testing Fireplace ..............................................
Installation ............................................................................
Finishing Checklist ..................................................................
Operating Instructions ............................................................
.........................................................................
Troubleshooting......................................................................16
Warranty.................................................................................17
Maintenance
3
TABLE OF CONTENTS
4
6
7
8
9
10
12
13
15

4
IMPORTANT SAFETY INSTRUCTIONS
Prior to plugging your heater into an electrical outlet,
verify that the circuit breakers for the outlet are on.
The heater may emit a slight, harmless odor when first
used. This odor is normal and it is caused by the initial
heating of internal heater elements and will not occur
again.
If your heater does not emit heat, consult the operation
section of this manual for further information.
Use with a CSA or UL certified surge protector.
KEEP DRAPERY AND OTHER FURNISHINGS AT
LEAST 3 FEET (0.9m) FROM THE FRONT AND
SIDES OF THE HEATER.
CAUTION: High temperature, risk of fire,
keep electrical cords, drapery,
furnishings, and other combustibles at
least 3 feet (0.9m) from the front of the
heater and away from the side and rear.
WARNING: Servicing should be done only
while the heater is disconnected from the
power supply circuit.
1/
2/
3/
!
!
SA1965 SA1965
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
NO USER-SERVICEABLE PARTS INSIDE
HIGH TEMPERATURE
KEEP ELECTRICAL CORDS
4/

5
IMPORTANT SAFETY INSTRUCTIONS
When using electric appliances, basic precautions should
always be followed to reduce the risk of fire, electric shock,
and injury to persons, including the following:
Read all instructions before using this heater.
This heater is hot when in use. To avoid burns, do not let bare
skin touch hot surfaces. If provided, use handles when moving
this heater. Keep combustible materials, such as furniture,
pillows, bedding, papers, clothes, and curtains at least 3 feet
(0.9 meters) from the front of the heater and keep them away
from the sides and rear.
Extreme caution is necessary when any heater is used by or
near children or invalids and whenever the heater is left
operating and unattended.
Always unplug heater when not in use.
Do not operate any heater with a damaged cord or plug or after
the heater malfunctions, has been dropped or damaged in any
manner. Return heater to authorized service facility for
examination, electrical or mechanical adjustment, or repair.
Do not use outdoors.
This heater is not intended for use in bathrooms, laundry areas
and similar indoor locations. Never locate heater where it may
fall into a bathtub or other water container.
Do not run cord under carpeting. Do not cover cord with throw
rugs, runners, or the like. Arrange cord away from traffic area
and where it will not be tipped over.
To disconnect heater, turn controls to off, then remove plug from
outlet.
Connect to properly grounded outlets only.
Do not insert or allow foreign objects to enter any ventilation or
exhaust opening as this may cause an electric shock or fire, or
damage the heater.
1/
2/
3/
4/
5/
6/
IMPORTANT INSTRUCTIONS
8/
7/
9/
10/
11/

6
LISTING APPROVALS
This heater has been tested in accordance with the CSA Standards for
fixed and location-dedicated electric room heaters in the United States
and Canada. If you need assistance during installation, please contact
your local dealer.
Note: This heater
must be
electrically wired
and grounded in
accordance with
local codes or, in
the absence of
local codes, with
National Electric
Code ANSI/NFPA
70-latest edition
or the Canadian
Electric Code,
CSA C22.1 as
appropriate.
Description: 25"FireplaceInsert
Voltage: 120VAC
MAX 1500W
15Amp Grounded Circuit
Watts:
Amps:
IMPORTANT SAFETY INSTRUCTIONS
25.39" (645mm)
21.26" (540mm)
9.37" (238mm)
Width:
Height:
Depth:
Net Weight:
Gross Weight:
26.43lbs (12kgs)
33.04lbs (15kgs)
Model Number: DBL05-25
To prevent a possible fire, do not block air intakes or exhaust in
any manner. Do not use on soft surfaces, like a bed, where
openings may become blocked.
A heater has hot and arcing or sparking parts inside. Do not use
it in areas where gasoline, paint, or flammable liquids are used
or stored.
Use this heater only as described in this manual. Any other use
not recommended by the manufacturer may cause fire, electric
shock, or injury to persons.
Avoid the use of an extension cord because the extension cord
may overheat and cause a risk of fire. However, if you have to
use an extension cord, the cord shall be No.14 AWG minimum
size and rated not less than 1875 watts.
SAVE THESE INSTRUCTIONS
12/
13/
14/
15/
16/

7
PRODUCT DIMENSION SPECIFICATIONS
Figure 1
Fireplace Dimensions
Back
Front
Front
View
Back
View

WARNING: Due to high temperatures, this electric fireplace
should be located out of traffic. Keep combustible materials
such as furniture, pillows, bedding, papers, clothes and
curtains at least 3 feet (0.9m) from the front of the heater.
WARNING: Never locate this electric fireplace where it
may fall into a bathtub or other water container.
NOTICE: Minimum clearance of 1" on all sides
must be maintained at all times. Illustrations
throughout these instructions reflect typical
installations and are for design purposes only.
Actual installations may vary slightly due to
individual preferences.
CAUTION: Wear
gloves and safety
glasses for protection
during installation and
maintenance.
Figure 2 illustrates a variety
of ways the fireplace may be
located in a room. The heater
may be installed directly on
the floor (uncarpeted), or
raised on a hearth.
Figure 2
Heater Locations
8

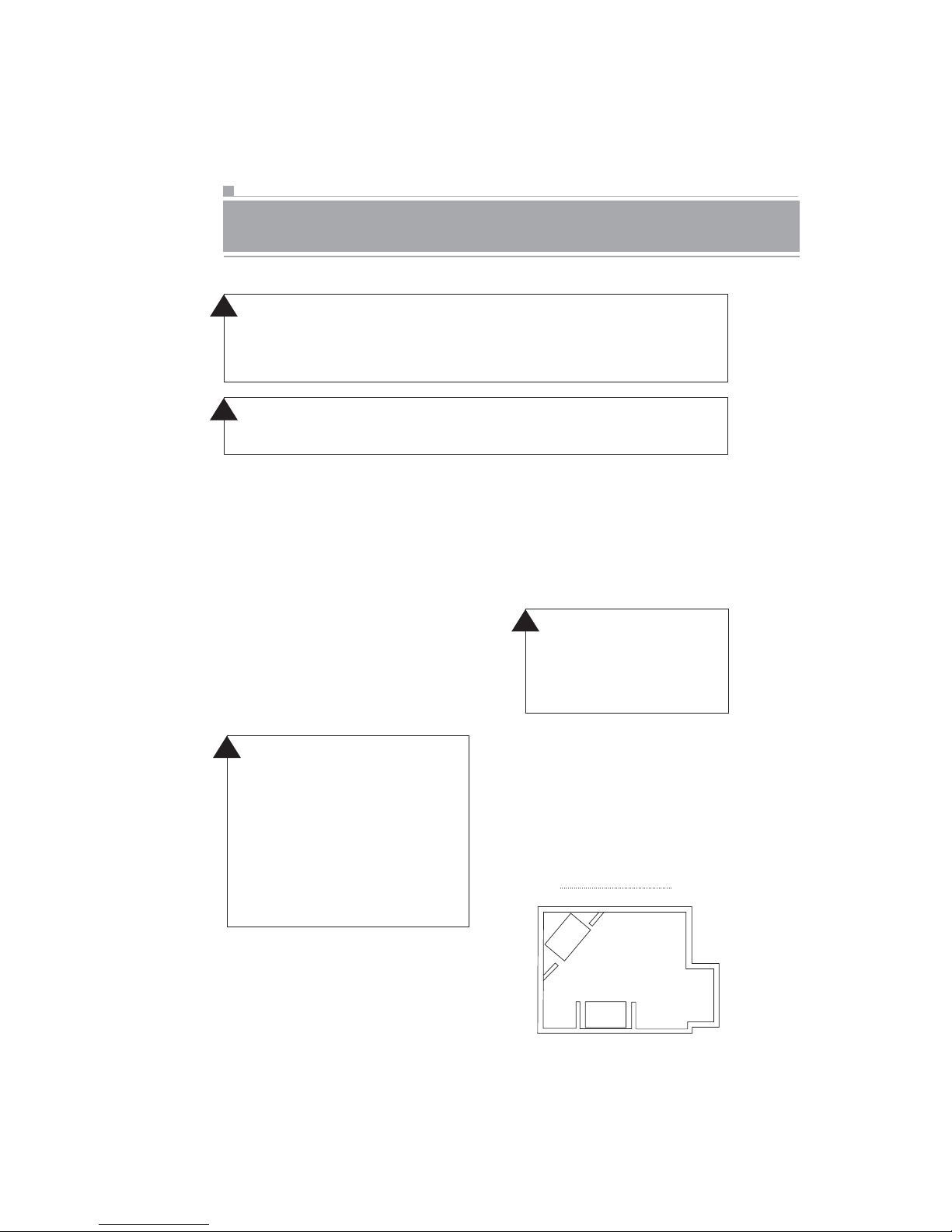

LOCATING FIREPLACE
!
!
!
!WARNING:To
preventcontactwith
sagging or loose
insulation, the electric
fireplace must not be
installed against vapor
barrier or exposed
insulation. Localized
overheating could occur
and a fire could result.

9
Carefully remove the unit from the box. Prior to installing the unit, test to
make sure the unit operates properly. To do this, plug the unit's power
supply cord into a conveniently located 120-Volt grounded outlet.
CAUTION: Theunit'spowersupplycordmustbe
connected to a properly grounded and protected 120volt
outlet. Always use ground fault protection where required
by the electrical code.
WARNING: Donotoperatetheunitif
it is damaged or has malfunctioned.
!
!
UNPACKING AND TESTING FIREPLACE

10
WARNING: RISK OF FIRE! To prevent a possible fire, do not
blockairintakeorexhaustinanymanner. Donotuseonsoft
surfaces where openings may become blocked.
WARNING: RISK OF FIRE! Do not blow or place insulation
against the fireplace.
WARNING: This electric fireplace is tested and listed for use
only with the approved optional accessories. Use of optional
accessories not specifically tested for this electric fireplace
couldvoidthewarrantyand/orresultinasafetyhazard.
INSTALLATION
WARNING: RISK OF FIRE! The power cord must not be
pinched against a sharp edge. Secure cord to avoid tripping or
snagging to reduce the risk of fire, electric shock or personal
injury. Do not run cord under carpeting. Do not cover cord with
throw rugs, runners or the like. Arrange cord away from traffic
areas and where it will not be tripped over.
WARNING: If the infor-
mationinthese
instructions is not
followedexactly,afire
or explosion may result
causing property
damage, personal injury
or death.
Donotstoreoruse
gasoline or other
flammable vapors in the
vicinity of this or any
other heater.
BEFORE
INSTALLATION
Select a suitable location
that is not susceptible to
moisture and is away from
drapes, furniture and high
traffic areas. Note: Follow
all national and local
electrical codes. This
fireplace can be installed
into either an existing
fireplace opening or as new
construction / renovation.
NOTICE: Never pick unit up
by louvers. Louvers will
bend.
!
!
!
!
!

11
New Construction or Renovation
INSTALLATION
Existing Fireplace Installation
Thoroughly clean out the existing fireplace and hearth area.
Plan the power supply. If an existing grounded outlet is near the
fireplace, the power cord can run behind the fireplace. If the cord is
not long enough to reach the outlet, a grounded extension cord
minimum AWG No. 14 and rated to a minimum of 1875 watts may be
used. If you plan to cut or drill a hole in the existing fireplace for wiring,
it is best to hire a professional to do this step in order to prevent
personal injury. To reduce the risk of fire, do not run the power cord
under rugs, carpets, etc. Arrange the power supply cord away from
high traffic areas where it may pose a tripping hazard.
Select a location that is not prone to moisture and
is located at least 0.9 m or 3 feet away from
combustible materials such as curtains or drapes,
furniture, bedding, paper, etc.
Place the unit in selected location to see how it will
look in the future.
Mark the desired location on the floor and store
unit in a safe, dry and dust free location.
Frame in an opening leaving at least 1/4" (6 mm)
around the edge of the unit. Any new wiring must
be done in compliance with local and national
codes and other applicable regulations in order to
reduce the risk of fire, electric shock or other
injuries. Therefore, it is strongly recommended
that you hire a professional to complete any such
work.
1/
2/
3/
4/

12
INSTALLATION
Installing the Fireplace Insert
Once the site has been prepared, the fireplace insert can be installed.
Make sure the main power switch is in the "OFF" position.
Plug the fireplace into a 15-amp/120 volt, grounded outlet. Use a CSA
or UL approved surge protector.
Push fireplace insert so that the trim is against the finished mantel or
wall surface.
1/
2/
3/
4/
WARNING: Grills on this
electric fireplace cannot, in
anyway,becoveredasit
may create a fire hazard.
!
> Power supply service must be completed prior to finishing to avoid
reconstruction.
> Grills and air openings cannot be covered in any circumstances.
FINISHING CHECKLIST

13

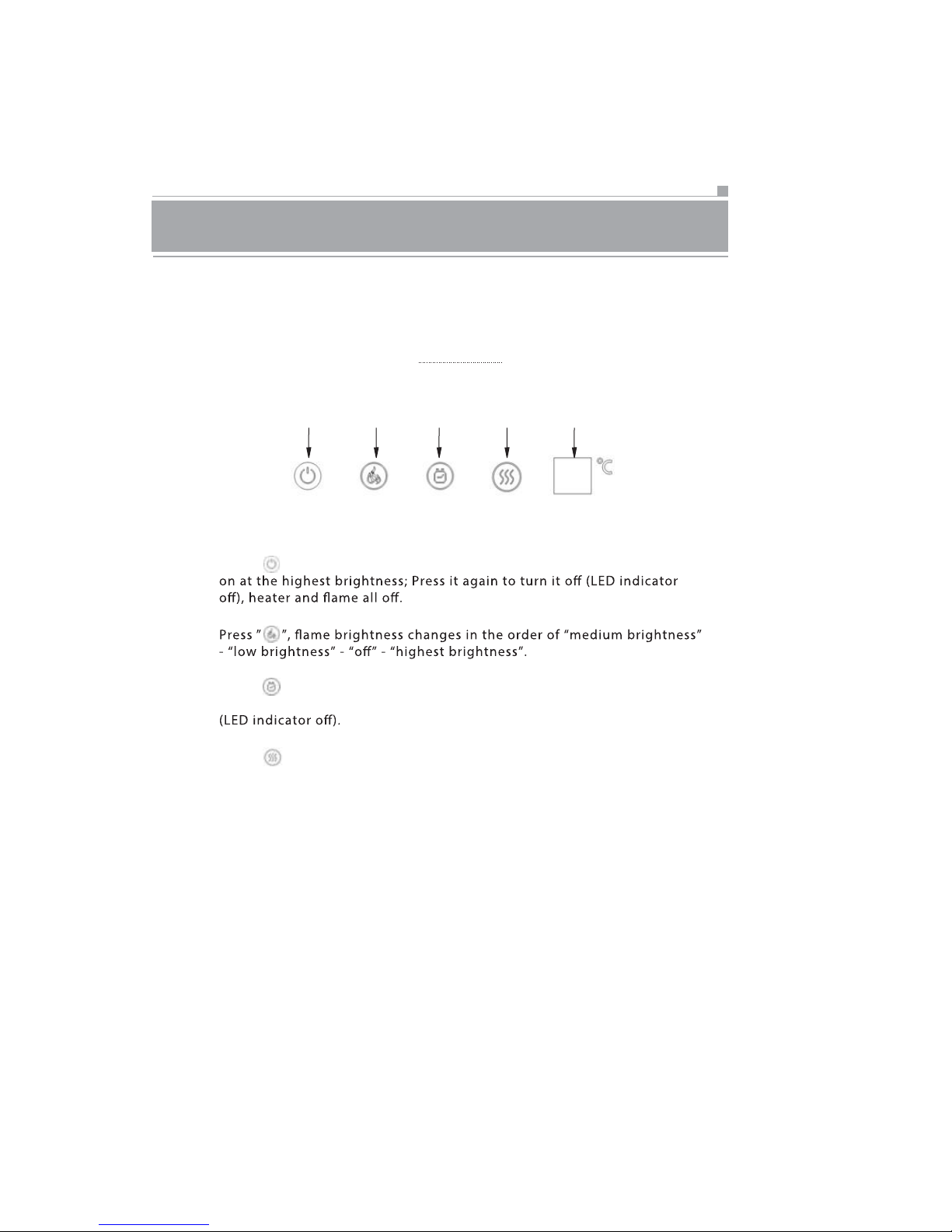

The controls (see Figure 3) are located on the top right corner of the unit.
Figure 3
Controls For
Electric Fireplace
OPERATING INSTRUCTIONS
Flame Heater Indicator
ON/OFF
Power Timer
Press“ ” to turn on the unit. Flame and ember LEDs will be turned
Press“ ” button, the timer setting variesfrom: “30min”, “1 hour”, “2 hours”,
“3 hours”, “4 hours”, “5 hours”, “6 hours”, “7 hours”, “8 hours”, and “No”
Press“ ” button, pre-setthe room temperature to: “18℃”, “19℃“, “20℃”,
“21℃”, “22℃”, “23℃”, “24℃”, “25℃”, “26℃”, “27℃”, “28℃”, “ON”, and “No”.
The pre-set temperature will blink 5 times, and then it shows the current
room temperature.
Note: button indicator light will turn on for 5 seconds after pressing
any button.

When the unit is o, press the “ ” button, and the unit turns
on with all the settings remaining the same as the last time
it was shut o. When the unit is on, pressing the “ ” button
will turn o the unit, ember bed, ame, and heater. All the
functional buttons only work after turning on the “ ”.
Plug in your electric replace; turn on the power switch.
There will be two “Beep” sounds that indicate the unit is
plugged in. Press the “ ” button: ame and ember LEDs
will be turned on at the highest brightness, while the
heater remains o.
14
Note: Make sure your
batteries are fully
charged and installed
correctly in your remote
control.
OPE R ATIN G B Y R EMO T E C O N TRO L
OPERATING INSTRUCTIONS
1/
2/
3/
4/
5/
6/
8/
7/

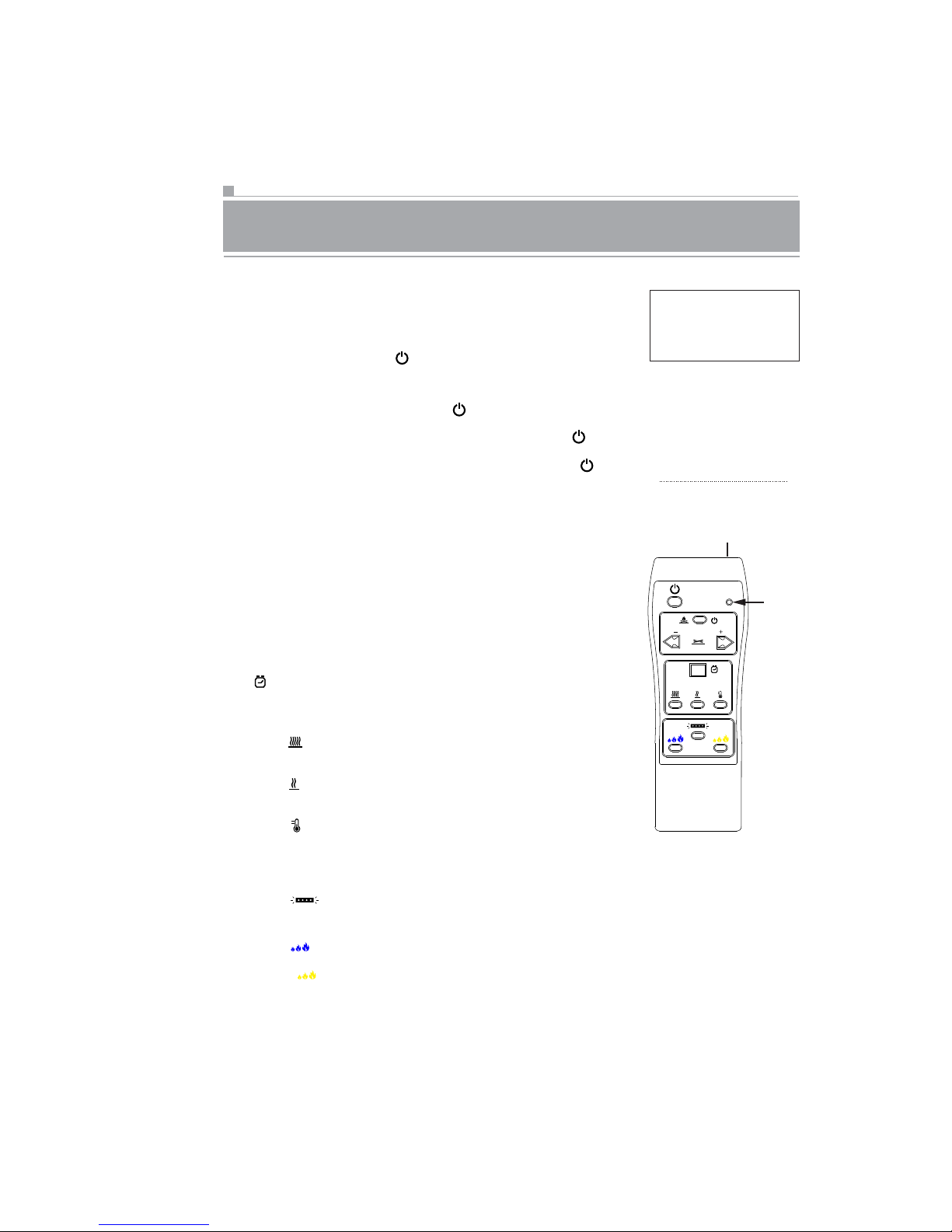

Figure 4
Remote Control For
Electric Fireplace
Infrared Ray Exit
Indicator
Light
When the ame and ember is turned on, pressing the
“DISPLAY ON OFF” button will turn them o. Pressing it
again will turn them on again, the ame and ember setting
remains the same as last time it was shut o.
EMBER “ - ” button, press it and the ember light changes
in the sequence of “highest brightness”, “medium
brightness”, “lowest brightness”, and “o”.
EMBER “ + ” button, press it and the ember light changes
in the sequence of “o”, “lowest brightness”, “medium
brightness”, and “highest brightness”.
“ ” button, the timer setting varies from: “30min”,
“1 hour”, “2 hours”, “3 hours”, “4 hours”, “5 hours”,
“6 hours”, “7 hours”, “8 hours”, and “No”.
Press “ ” to set whether to let the button indicator be lit
constantly or let it turn o after 5 seconds.
9/ Press “ ” button to set the brightness of the blue ame: High, medium, low, and o.
10/ Press “ ” button to set the brightness of the yellow ame: High, medium, low, and o.
Press “ ”, 2 sets of heater will be working at max 1500W,
LED screen shows “H2”, pressing again will turn it o.
Press “ ”, only one heater will be working at 750W,
LED screen shows “H1”, pressing again will turn it o.
Press “ ”, pre-set the room temperature to: “18℃”, “19℃“,
“20℃”, “21℃”, “22℃”, “23℃”, “24℃”, “25℃”, “26℃”, “27℃”,
“28℃”, “ON”, and “No”. The pre-set temperature will blink
5 times, and then it shows the current room temperature.

15
Preparation for Maintenance
WARNING: Always disconnect the power and allow the
electric fireplace to cool before performing any cleaning,
maintenance or relocation of this electric fireplace. Turn
controls to OFF and remove plug from outlet or turn off the
house circuit breaker to electric fireplace receptacle.
MAINTENANCE
!

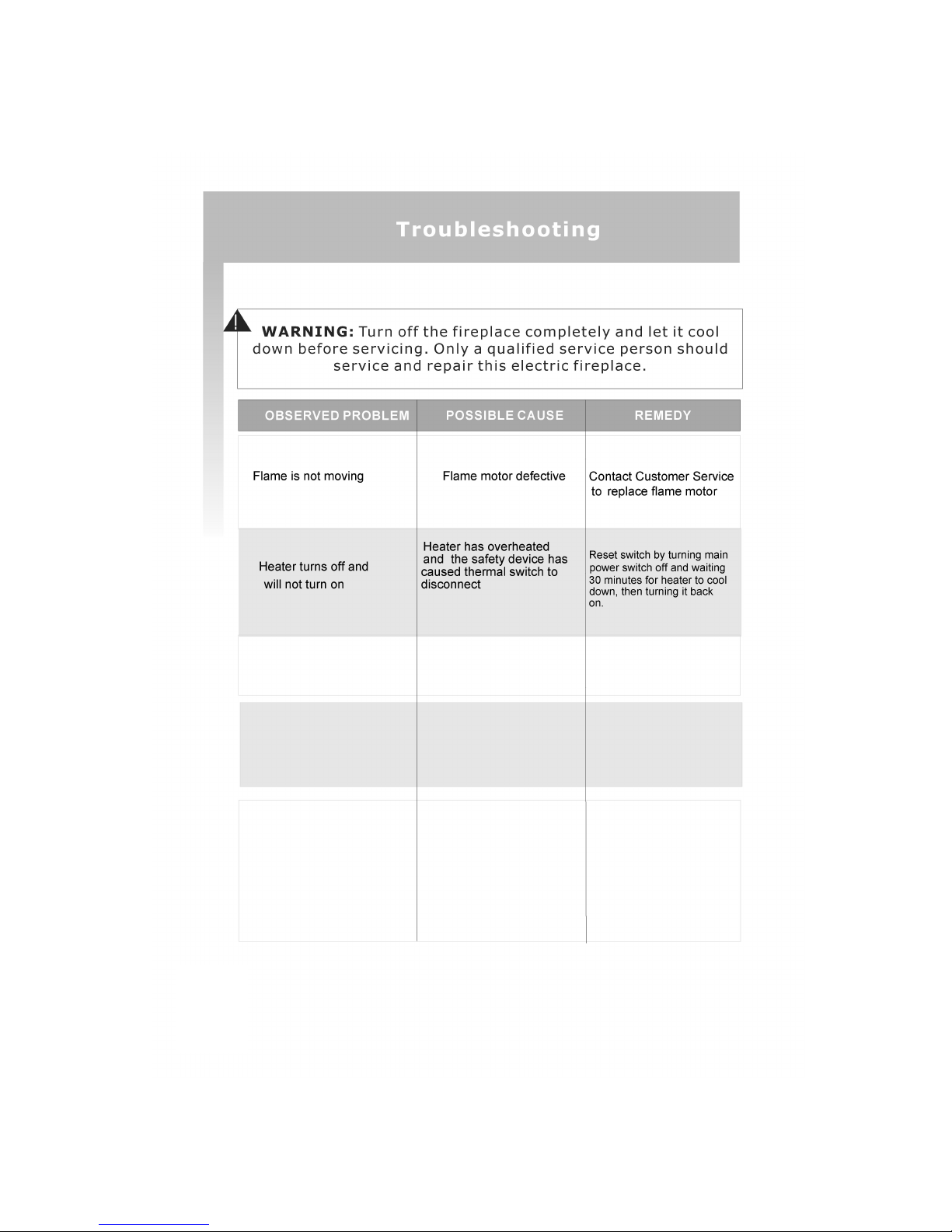

Flame sputters Flame motor is defective
Call a qualied service
technician to replace
ame motor
Remote control does not
work
Low batteries Replace AA batteries in
remote control
Fireplace turns o and will
not turn on
Fireplace has overheated
and safety device has
caused thermal switch to
disconnect or home circuit
breaker has opened
Turn o the replace
completely then contact
the qualied service
person to service and
repair this replace.
16

WARRANTY
17
For questions, concerns or problems with our product please
email our customer service department:
[email protected] or call 1-800-561-5550.
DATED PROOF OF PURCHASE REQUIRED FOR WARRANTY SERVICE.
WARRANTY
This product is inspected, tested and carefully packaged to minimize the chance of
damage during shipment. If a part (excluding light bulbs and fuses*) within one year from
the date of purchase proves to be defective in material or fabrication under normal
use, the part will be repaired or replaced. The Company’s obligation under the warranty
is to replace or repair defective parts at our discretion. Any expenses or damage resulting
from the installation, removal or transportation of the product will be the responsibility
of the owner and are not covered by this warranty. The owner assumes all other risks
arising from the use or misuse of the product. The warranty will be void if the product
damage or failure is deemed by the Company to be caused by accident,
alteration, misuse, abuse, incorrect installation or removal, or connection to an incorrect
power source by the owner. The Company neither assumes, nor authorizes any person or
entity to assume for it any obligation or liability associated with its products.
Light bulbs and fuses are not covered under this warranty. If you have any questions
regarding the warranty or service, please call our toll free number: 1-800-561-5550.
Customer Service
JR Home Products
Unit 1 - 5628 Riverbend Drive, Burnaby BC, V3N 0C1
Toll Free: 1-800-561-5550
E-mail: [email protected]
Registration can be completed online at www.jrhome.com or by mailing this form.
You MUST register your product to receive warranty service.
IMPORTANT

Warranty Registration Information Form / Formulaire d’enregistrement de la garantie
Name / Nom:
Street / Adress:
City / Ville: Province / Province:
Postal Code / Code postal:
Daytime Phone # / No téléphone jour: Evening Phone # / No téléphone soir: E-Mail Address / Courriel: Product/Produit:
Place of Purchase / Lieu de l’achat: Date of Purchase / Date de l’achat: Model # / No de modèle: Serial # / Numéro de série:
You MUST register your product to receive
warranty service. For warranty service, contact J&R Home Products at the address, phone numbers listed below within 30 days of purchase. Be sure to
have your sales receipt and original date of
purchase. All warranty service will be coordinated by J&R Home Products service center.
Vous DEVEZ enregistrer votre produit pour vous
prévaloir de la garantie. Afin de faire valoir la garantie, communiquez
avec J&R Home Products à l’adresse et aux
numéros indiqués ci-dessous dans les 30 jours
suivant la date d’achat. Ayez en main votre reçu
et la date d’achat. Toutes les demandes liées
aux garanties seront traitées par le centre de
service de J&R Home Products.
Please mail to / Veuillez poster le tout à : Parts & Service Department, J&R Home Products Ltd. Unit 1 - 5628 Riverbend Drive, Burnaby BC, V3N 0C1 1.800.561.5550
