Paramount Fitness DBL05-A3 User manual

ELECTRICFIREPL ACE INSERT
Model #: DBL05-A3
*Savethismanualforfuturereference.
&
OWNER'S
R
CUS
IMPORTANTSAFETY
MANUAL
INSTRUCTIONS
Warning:Donotmoveinsertwhileoperating.
1
YEAR
W
A
R
R
A
N
T
Y
limited
FORCUSTOMERSERVICEINQUIRIES,PLEASECALL1-800-561-5550.

Read these instructions completely before
beginning installation. Failure to follow them
could cause a heater malfunction resulting in
serious injury and/or property damage.
WARNING: All electric heaters have
hot and arcing or sparking parts inside.
Do not use it in areas where gasoline,
paint or flammable liquids are present.
WARNING: This electric fireplace is
tested and listed for use only with the
optional accessories listed in these
instructions. Use of optional
accessories not specifically tested for
this electric fireplace could void the
heater warranty and/or result in a
safety hazard.
This electric fireplace meets the
construction and safety standards of H.U.D.
for application in manufactured homes when
installed according to these instructions.
2
!
!

Important Safety Instructions.....................................................
Listing Approvals .....................................................................
Product Dimension Specifications .............................................
Locating Fireplace ..................................................................
Unpacking and Testing Fireplace ..............................................
Installation ............................................................................
Finishing Checklist ..................................................................
Operating Instructions ............................................................
.........................................................................
Troubleshooting......................................................................18
Warranty.................................................................................19
Maintenance
3
TABLE OF CONTENTS
4
6
7
8
9
10
12
13
15

4
IMPORTANT SAFETY INSTRUCTIONS
Prior to plugging your heater into an electrical outlet,
verify that the circuit breakers for the outlet are on.
The heater may emit a slight, harmless odor when first
used. This odor is normal and it is caused by the initial
heating of internal heater elements and will not occur
again.
If your heater does not emit heat, consult the operation
section of this manual for further information.
Use with a CSA or UL certified surge protector.
KEEP DRAPERY AND OTHER FURNISHINGS AT
LEAST 3 FEET (0.9m) FROM THE FRONT AND
SIDES OF THE HEATER.
CAUTION: High temperature, risk of fire,
keep electrical cords, drapery,
furnishings, and other combustibles at
least 3 feet (0.9m) from the front of the
heater and away from the side and rear.
WARNING: Servicing should be done only
while the heater is disconnected from the
power supply circuit.
1/
2/
3/
!
!
SA1965 SA1965
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
NO USER-SERVICEABLE PARTS INSIDE
HIGH TEMPERATURE
KEEP ELECTRICAL CORDS
4/

5
IMPORTANT SAFETY INSTRUCTIONS
When using electric appliances, basic precautions should
always be followed to reduce the risk of fire, electric shock,
and injury to persons, including the following:
Read all instructions before using this heater.
This heater is hot when in use. To avoid burns, do not let bare
skin touch hot surfaces. If provided, use handles when moving
this heater. Keep combustible materials, such as furniture,
pillows, bedding, papers, clothes, and curtains at least 3 feet
(0.9 meters) from the front of the heater and keep them away
from the sides and rear.
Extreme caution is necessary when any heater is used by or
near children or invalids and whenever the heater is left
operating and unattended.
Always unplug heater when not in use.
Do not operate any heater with a damaged cord or plug or after
the heater malfunctions, has been dropped or damaged in any
manner. Return heater to authorized service facility for
examination, electrical or mechanical adjustment, or repair.
Do not use outdoors.
This heater is not intended for use in bathrooms, laundry areas
and similar indoor locations. Never locate heater where it may
fall into a bathtub or other water container.
Do not run cord under carpeting. Do not cover cord with throw
rugs, runners, or the like. Arrange cord away from traffic area
and where it will not be tipped over.
To disconnect heater, turn controls to off, then remove plug from
outlet.
Connect to properly grounded outlets only.
Do not insert or allow foreign objects to enter any ventilation or
exhaust opening as this may cause an electric shock or fire, or
damage the heater.
1/
2/
3/
4/
5/
6/
IMPORTANT INSTRUCTIONS
8/
7/
9/
10/
11/

6
LISTING APPROVALS
This heater has been tested in accordance with the CSA Standards for
fixed and location-dedicated electric room heaters in the United States
and Canada. If you need assistance during installation, please contact
your local dealer.
Note: This heater
must be
electrically wired
and grounded in
accordance with
local codes or, in
the absence of
local codes, with
National Electric
Code ANSI/NFPA
70-latest edition
or the Canadian
Electric Code,
CSA C22.1 as
appropriate.
Description: 27" Fireplace Insert
Voltage: 120VAC
MAX 1500W
15Amp Grounded Circuit
Watts:
Amps:
IMPORTANT SAFETY INSTRUCTIONS
27.17" (690 mm)
28.74" (730mm)
11.02" (280mm)
Width:
Height:
Depth:
Net Weight:
Gross Weight:
66lbs (30kgs)
70.4lbs (32kgs)
Model Number: DBL05-A3
To prevent a possible fire, do not block air intakes or exhaust in
any manner. Do not use on soft surfaces, like a bed, where
openings may become blocked.
A heater has hot and arcing or sparking parts inside. Do not use
it in areas where gasoline, paint, or flammable liquids are used
or stored.
Use this heater only as described in this manual. Any other use
not recommended by the manufacturer may cause fire, electric
shock, or injury to persons.
Avoid the use of an extension cord because the extension cord
may overheat and cause a risk of fire. However, if you have to
use an extension cord, the cord shall be No.14 AWG minimum
size and rated not less than 1875 watts.
SAVE THESE INSTRUCTIONS
12/
13/
14/
15/
16/

7
PRODUCT DIMENSION SPECIFICATIONS
Figure 1
Fireplace Dimensions
27.17" (690mm)
11.02"
(280mm)
25.5"
(648mm)
20.8" (528mm)
28.74"
(730mm)
23.5" (597mm)
Top View
Back
Front
Front
View
Back
View

WARNING: Due to high temperatures, this electric fireplace
should be located out of traffic. Keep combustible materials
such as furniture, pillows, bedding, papers, clothes and
curtains at least 3 feet (0.9m) from the front of the heater.
WARNING: Never locate this electric fireplace where it
may fall into a bathtub or other water container.
NOTICE: Minimum clearance of 1" on all sides
must be maintained at all times. Illustrations
throughout these instructions reflect typical
installations and are for design purposes only.
Actual installations may vary slightly due to
individual preferences.
CAUTION: Wear
gloves and safety
glasses for protection
during installation and
maintenance.

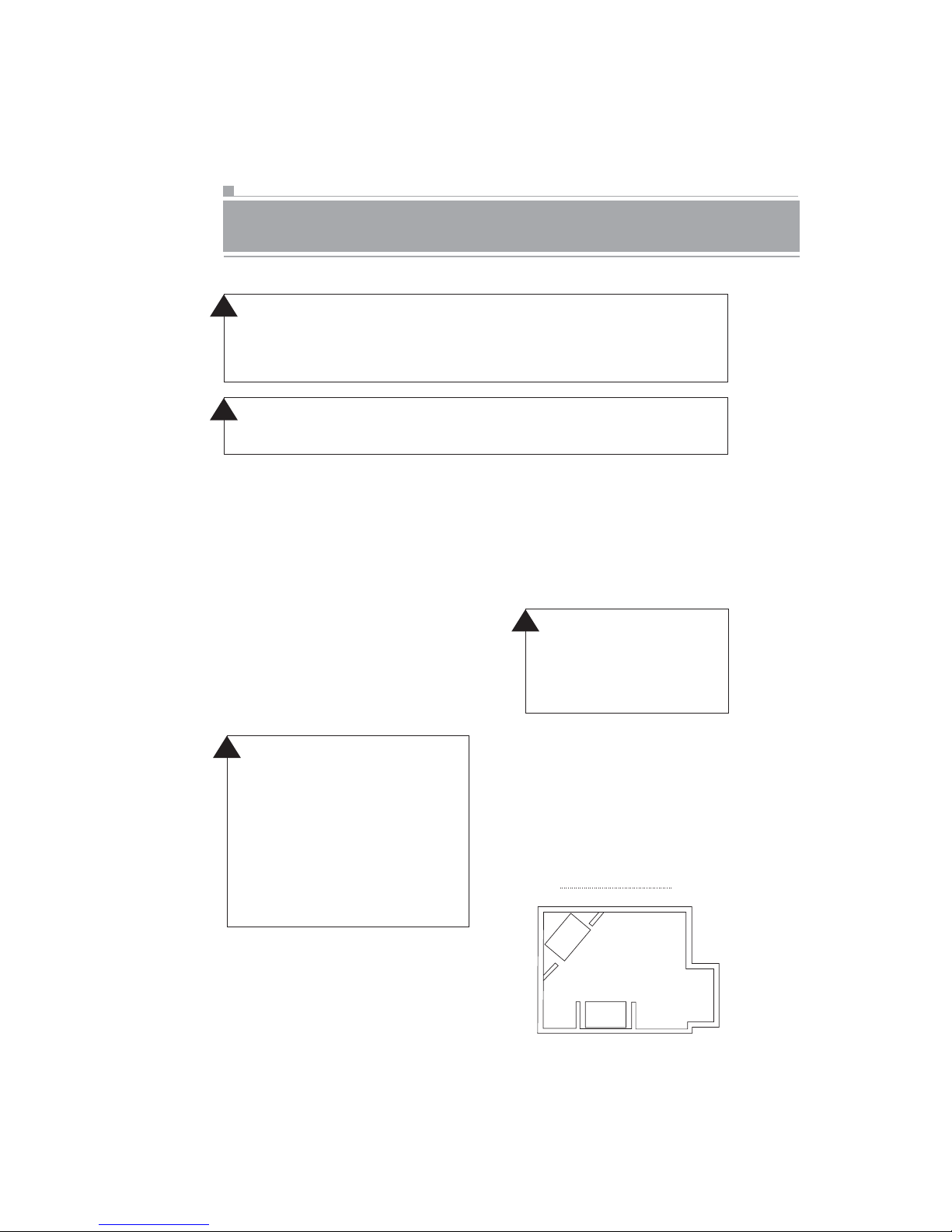

Figure 2 illustrates a variety
of ways the fireplace may be
located in a room. The heater
may be installed directly on
the floor (uncarpeted), or
raised on a hearth.
Figure 2
Heater Locations
8
LOCATING FIREPLACE
!
!
!
!WARNING:To
preventcontactwith
sagging or loose
insulation, the electric
fireplace must not be
installed against vapor
barrier or exposed
insulation. Localized
overheating could occur
and a fire could result.

9
Carefully remove the unit from the box. Prior to installing the unit, test to
make sure the unit operates properly. To do this, plug the unit's power
supply cord into a conveniently located 120-Volt grounded outlet.
CAUTION: Theunit'spowersupplycordmustbe
connected to a properly grounded and protected 120volt
outlet. Always use ground fault protection where required
by the electrical code.
WARNING: Donotoperatetheunitif
it is damaged or has malfunctioned.
!
!
UNPACKING AND TESTING FIREPLACE

10
WARNING: RISK OF FIRE! To prevent a possible fire, do not
blockairintakeorexhaustinanymanner. Donotuseonsoft
surfaces where openings may become blocked.
WARNING: RISK OF FIRE! Do not blow or place insulation
against the fireplace.
WARNING: This electric fireplace is tested and listed for use
only with the approved optional accessories. Use of optional
accessories not specifically tested for this electric fireplace
couldvoidthewarrantyand/orresultinasafetyhazard.
INSTALLATION
WARNING: RISK OF FIRE! The power cord must not be
pinched against a sharp edge. Secure cord to avoid tripping or
snagging to reduce the risk of fire, electric shock or personal
injury. Do not run cord under carpeting. Do not cover cord with
throw rugs, runners or the like. Arrange cord away from traffic
areas and where it will not be tripped over.
WARNING: If the infor-
mationinthese
instructions is not
followedexactly,afire
or explosion may result
causing property
damage, personal injury
or death.
Donotstoreoruse
gasoline or other
flammable vapors in the
vicinity of this or any
other heater.
BEFORE
INSTALLATION
Select a suitable location
that is not susceptible to
moisture and is away from
drapes, furniture and high
traffic areas. Note: Follow
all national and local
electrical codes. This
fireplace can be installed
into either an existing
fireplace opening or as new
construction / renovation.
NOTICE: Never pick unit up
by louvers. Louvers will
bend.
!
!
!
!
!

11
New Construction or Renovation
INSTALLATION
Existing Fireplace Installation
Thoroughly clean out the existing fireplace and hearth area.
Plan the power supply. If an existing grounded outlet is near the
fireplace, the power cord can run behind the fireplace. If the cord is
not long enough to reach the outlet, a grounded extension cord
minimum AWG No. 14 and rated to a minimum of 1875 watts may be
used. If you plan to cut or drill a hole in the existing fireplace for wiring,
it is best to hire a professional to do this step in order to prevent
personal injury. To reduce the risk of fire, do not run the power cord
under rugs, carpets, etc. Arrange the power supply cord away from
high traffic areas where it may pose a tripping hazard.
Select a location that is not prone to moisture and
is located at least 0.9 m or 3 feet away from
combustible materials such as curtains or drapes,
furniture, bedding, paper, etc.
Place the unit in selected location to see how it will
look in the future.
Mark the desired location on the floor and store
unit in a safe, dry and dust free location.
Frame in an opening leaving at least 1/4" (6 mm)
around the edge of the unit. Any new wiring must
be done in compliance with local and national
codes and other applicable regulations in order to
reduce the risk of fire, electric shock or other
injuries. Therefore, it is strongly recommended
that you hire a professional to complete any such
work.
1/
2/
3/
4/

12
INSTALLATION
Installing the Fireplace Insert
Once the site has been prepared, the fireplace insert can be installed.
Make sure the main power switch is in the "OFF" position.
Plug the fireplace into a 15-amp/120 volt, grounded outlet. Use a CSA
or UL approved surge protector.
Push fireplace insert so that the trim is against the finished mantel or
wall surface.
1/
2/
3/
4/
WARNING: Grills on this
electric fireplace cannot, in
anyway,becoveredasit
may create a fire hazard.
!
> Power supply service must be completed prior to finishing to avoid
reconstruction.
> Grills and air openings cannot be covered in any circumstances.
FINISHING CHECKLIST

13

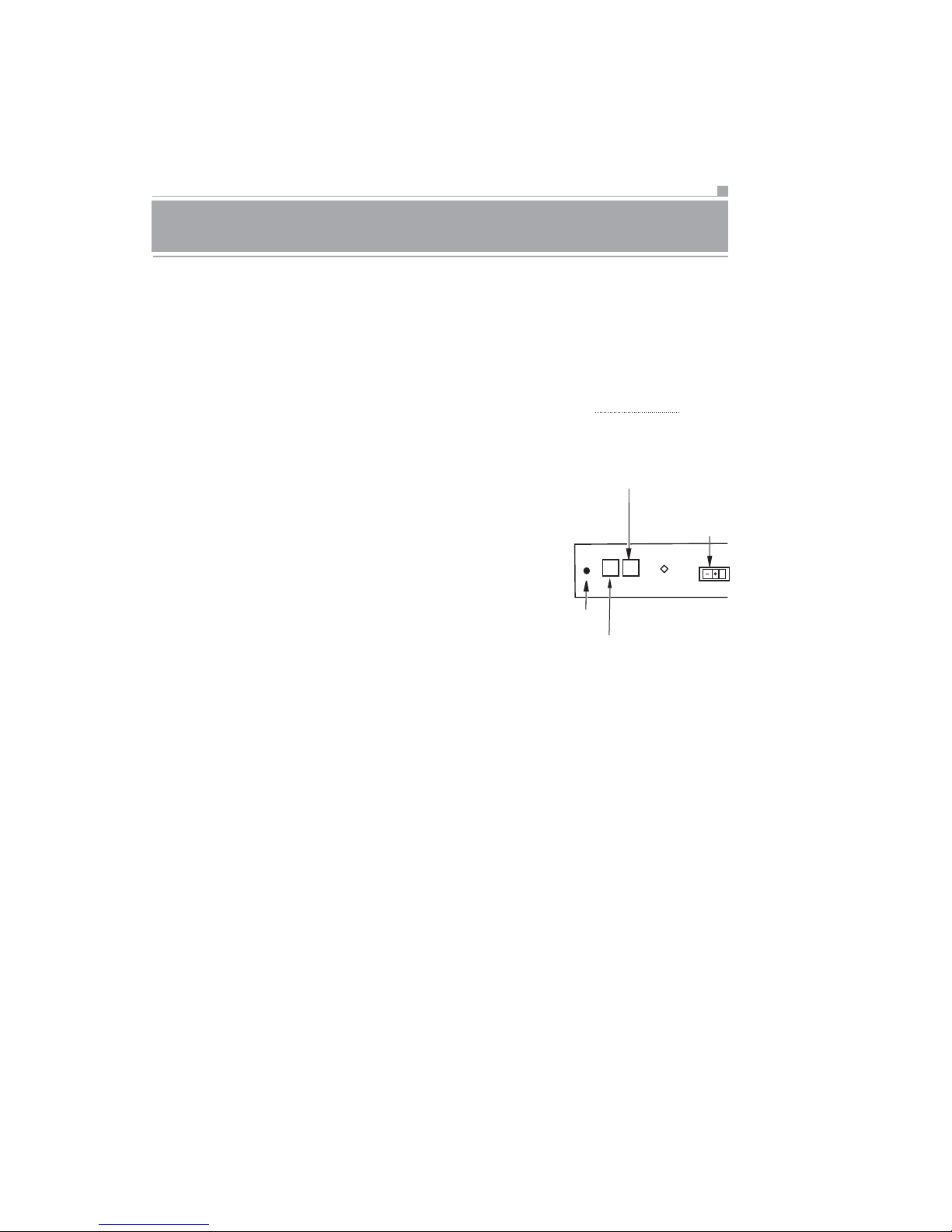

The controls (see Figure 3) are located on the bottom right corner of the
unit.
Figure 3
Controls For
Electric Fireplace
Plug in your electric fireplace.
This switch is located on the right side
of the control panel.
When the unit is first turned on, the
default settings are as follows:
- Ember bed: LOW
- Flame: HIGH
- Heater: OFF
The HEATER LED is located to the right
of the FLAME Button. Push the TEMP
button to cycle through different heater
settings. Press and release
the TEMP button to cycle through LO,
MED,HIandOFF.EachtimetheTEMP
button is pushed, the HEATER LED will
change to its corresponding color:
Green for LO, Orange for MED, Red for
HI, and blank for OFF. When the heater
is turned on, heat will emit through
the vents located in the middle of the
top louver panel (see Figure 1, page 7).
The heater has a built-in thermostat so
it will shut off automatically once the
pre-set temperature is reached. It will
also turn on automatically if the room
temperature drops below the pre-set
temperature. Note: When the heater is
turned on for the first time, it may
release a slight, harmless odour. This
odour is a normal occurrence caused
by the initial heating of the internal
heating elements and should not occur
again.
Main ON/OFF Power Switch and LED:
Temperature Control Button and LED:
OPERATING INSTRUCTIONS
1/
2/
3/
4/ Flame Control Button: This button is located to the
right of the TEMP Button (see Figure 3). After power is
turned on, push the FLAME control button to adjust
the flame and ember bed brightness. Press and
release the Flame Control Button to cycle through LO,
MED,HI and OFF.
ON/OFF
Power Button
Heater
Temperature
Control Button
Flame Control
Button
Remote Control
Receiver
TEMP FLAME

Common Observed Problems:
There is no flame
Flame is dim or dark in certain areas
Flame is not moving or glowing
WARNING: Do not install replacement bulbs that exceed
specified maximum watts.
!
15
Preparation for Maintenance
WARNING: Always disconnect the power and allow the
electric fireplace to cool before performing any cleaning,
maintenance or relocation of this electric fireplace. Turn
controls to OFF and remove plug from outlet or turn off the
house circuit breaker to electric fireplace receptacle.
Turn off electric fireplace or the house circuit breaker to the
fireplace before performing any cleaning and/or maintenance.
Allow electric fireplace to cool completely.
MAINTENANCE
!
Most halogen light bulbs are rated to last approximately 1800 hours.
Like all light bulbs, halogen bulbs require periodic replacement. When
the bulbs in your unit have burned out you will notice one or more of
following:
Your fireplace unit must be opened in order to replace the light
bulbs. To reduce the number of times you need to open the unit,
replace all bulbs at the same time if they are close to the end of their
rated life.
There are a total of 6 halogen light bulbs
(type GX6.35 rated 120volts, 35watts) in
your unit:
* provide illumination for the
ember bed
* provide illumination for
flame generation
* for replacement
2 bulbs
2 bulbs
2 extra bulbs
Bulb Type:
GX 6.35 120v, 35W
Maximum
WARNING: Thehalogenlightbulbsinyourunitcanbecome
extremely hot. Allow at least 10 minutes between turning off the
heater and removing the light bulbs to avoid accidental burns.
!
6 pcs included

14
Figure 4
Remote Control For
Electric Fireplace
Plug in your electric fireplace.
Push the ON/OFF Power Button to turn
the unit on.
When operating the remote control, it
must be pointed at the sensor on the
bottom PANEL.
The ON/OFF button at the top left of the
remote is the main ON/OFF power button.
Pressing this button activates the power
to the unit.
To adjust the ember bed lighting and
flame brightness, press the "-" or "+"
EMBER buttons. There are seven levels
of brightness.
The HEATER button activates the heater,
The heater is pre-set to the following
temperatures: HI will shut off when room
reaches approximately 86 F (30 C).
MED will shut off when room reaches
approximately 75 F (24 C). LO will shut
off when room reaches approximately
64 F (18 C).
To adjust the height of the flame, press "-
" or "+" FLAME buttons. There are seven
levels of flame effect.
To turn off the fireplace, press the
ON/OFF button once. When you restart
the fireplace with the remote control, all
of the features you had set will remain in
effect. NOTICE: This remote control must
remain within 8 meters or 26 feet of the
fireplace to be effective.
Note: Make sure your
batteries are fully
charged and installed
correctly in your remote
control.
OPERATING BY REMOTE CONTROL
OPERATING INSTRUCTIONS
1/
2/
3/
4/
5/
6/
Infrared Ray Exit
Indicator
Light
ON/OFF
+
-
EMBER
HEATER
FLAME
-+
7/

16
MAINTENANCE
Remove the screw as shown in Figure 6
that is used to secure the flame
generation cylinder drum.
Squeeze half of drum cylinder until its top
edge clears the top drum track. Remove
the bottom edge of the cylinder drum
from the bottom drum track. This will give
you access to the light bulbs. Note: Do
not exert excessive pressures on the
drum cylinder as this may cause damage.

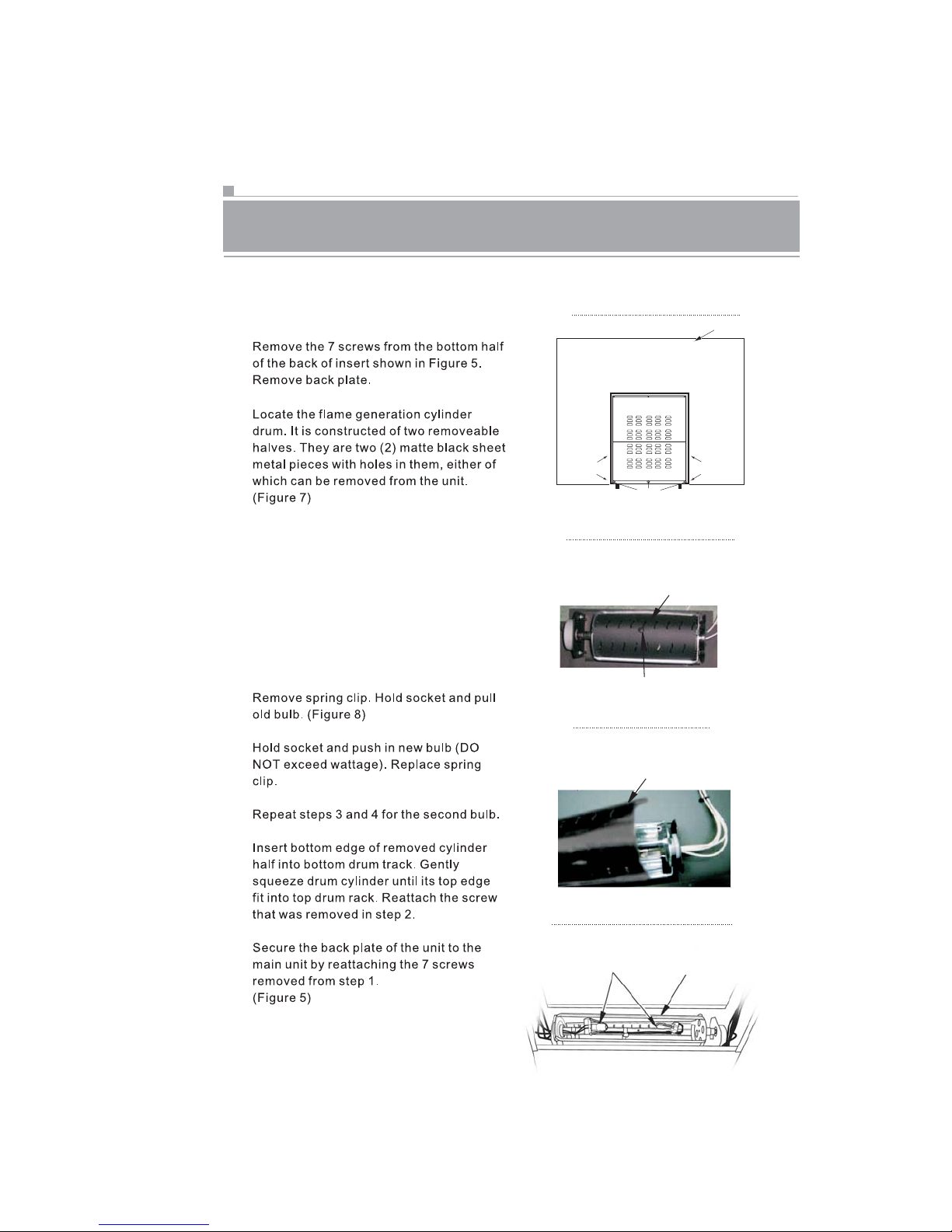

Flame Generation Bulb Replacement
1/
2.1/
2.2/
2.3/
3/
4/
Figure 7
Flame Generation
Cylinder Drum
Flame Drum Cylinder
Figure 5
Back Plate
5/
3Screws
On The Back
Two S cre ws
On The Side
Two S cre ws
On The Side
Figure 8
Drum Bulb Replacement
Flame Drum
Cylinder (Half)
Bulbs with
Spring Clips
6/
Figure 6
Flame Generation
Cylinder Drum
Flame Drum Cylinder
Screw
7/
Mantel

17
MAINTENANCE
Ember Bed Bulb Replacement Figure 9
Back Plate
3Screws
On The Back
Two S cre ws
On The Side
Two S cre ws
On The Side
Mantel
Figure 10
Ember bed bulb
Replacement
4/
1/
2/
3/
5/
6/
7/
Figure 11
Ember bed bulb
Replacement
BACK GLASS
The glass is cleaned in the factory during assembly. During shipment,
installation, handling, etc. the glass surface may collect dust particles.
These can be removed by buffing lightly with a clean dry cloth.
To remove fingerprints or other marks, the glass can be cleaned with a
damp cloth using a good quality household glass cleaner. The glass
should be completely dried with a lint free cloth or paper towel.
In the event of glass breakage, vacuum all remaining glass pieces with
a shop vac. DO NOT VACUUM WHILE PIECES ARE HOT. Replace
glass only with replacement part specifically for this heater. Never
substitute material. Only fully tempered safety glass may be used on
this heater.
1/
2/
3/

WARNING: Turn off the fireplace completely and let cool
before servicing. Only a qualified service person should
service and repair this electric fireplace.
POSSIBLE CAUSE
OBSERVED PROBLEM
REMEDY
!
18
TROUBLESHOOTING
Dimornoflame 1. Bulb(s) are burnt out
2. Wiring is loose
1. Inspect bulbs and
replace if necessary
2. Inspect wiring for
loose connections and
repair or replace if
necessary
Ember is not glowing
or dimming 1. Bulb(s) are burnt out 1. Inspect bulbs and
replace if necessary
Flame is not moving 1. Loose wiring
2. Flame motor defective
1. Inspect wiring for
loose connections
2. Call a qualified
service technician to
replace flame motor
Flame sputters 1. Flame motor is
defective
1. Call a qualified
service technician to
replace flame motor
No warm air is coming
out of the heater
1. Room temperature is
higher than the heater
setting (if it is set to LO)
1. Set heater to MED
or HI (Please refer
to pages 13 and 14)
Remote control does not
work 1. Low batteries 1. Replace AA batteries
in remote control
Fireplace will not come
on when switch is flipped
to ON
1. Fireplace is not
plugged in to an electrical
outlet
2. Fireplace fuse has
blown
1. Check plug
2. Replace fireplace
fuse with F3.15A fuse
Fireplace turns off and will
not turn on
1. Fireplace has
overheated and safety
device has cause thermal
switch to disconnect or
home circuit breaker has
opened
1. Turn off the fireplace
completely then contact
the qualified service
person to service and
repair this fireplace

This insert is inspected, tested and carefully packaged to
minimize the chance of damage during shipment. If a part
(excluding light bulbs and fuses*) within one year from the
date of purchase proves to be defective in material or
fabrication under normal use, the part will be repaired or
replaced. The Company's obligation under the warranty is
to replace or repair defective parts at our discretion. Any
expenses or damage resulting from the installation,
removal or transportation of the product will the
responsibility of the owner and are not covered by this
warranty. The owner assumes all other risks arising out
from the use or misuse of the product. The warranty will be
void if the product damage or failure is deemed by the
Company to be caused by accident, alteration, misuse,
abuse, incorrect installation or removal, or connection to
an incorrect power source by the owner. The Company
neither assumes, nor authorizes any person or entity to
assume for it any obligation or liability associated with its
products.
* Light bulbs and fuses are not covered under
this warranty
If you have any
questions regarding
the warranty or service,
please email:
par[email protected]
WARRANTY
19

IMPORTANT
Only return this product to the
store if it was purchased within
90 days. If you have problems
after 90 days of purchase,
please email our customer
service department for any
questions or concerns:
or please call 1-800-561-5550.
DATED PROOF OF PURCHASE
REQUIRED FOR WARRANTY
SERVICE.
[email protected]
Approved for use in
Canada and the United States
