Paramount Fitness EF-123 User manual

R
CUS
Modèle : EF-123
* Save this manual for future reference.
ELECTRIC FIREPLACE INSERT
INSTRUCTIONS FOR USE
For cus tomer service,parts
or warranty issues:
Call 1-800-561-5550
or e-mail [e-mail]

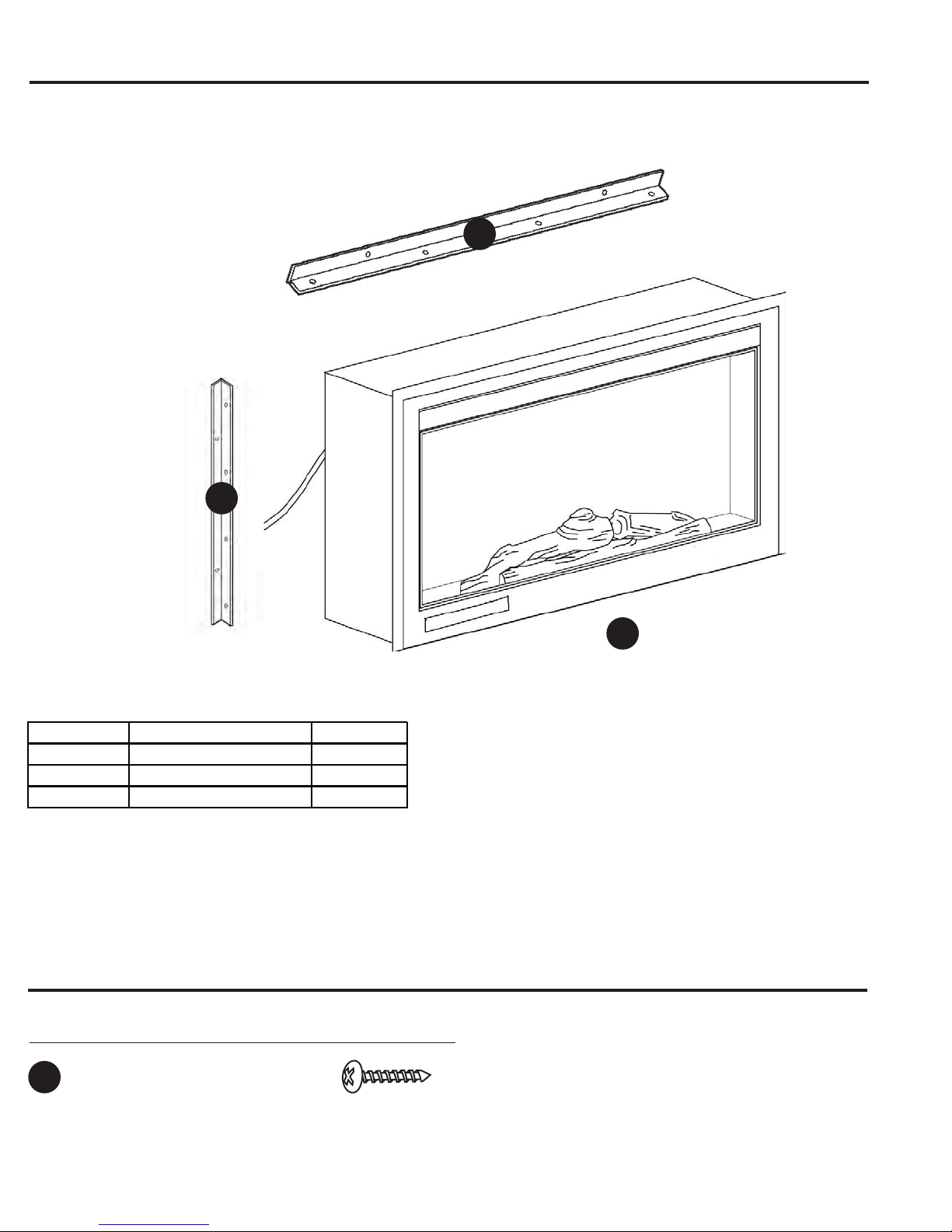

PACKAGE CONTENTS
2
.ytQtraP
2A
1B
Descri
p
tion
Side Trim
To
p
Trim
B
A
C
C1
Insert
HARDWARE CONTENTS
Quantity
(Shown to size)
Part Description
AA Screws 28
(7 Extra)

WARNINGS AND CAUTIONS
CAUTION
• Read all instructions and warnings carefully before starting installation.
• The final location of your fireplace should have clear access to a grounded electrical outlet.
• Take care when moving assembled mantel. It will take two adults to move into final position.
• Some steps are more easily handled with two adults.
• All panels are labeled Left and Right as viewed from the front of mantel.
• Use the hardware that is provided and read each step before beginning assembly.
• Do not overtighten hardware. Do not attempt to install electric insert until the mantel is fully assembled.

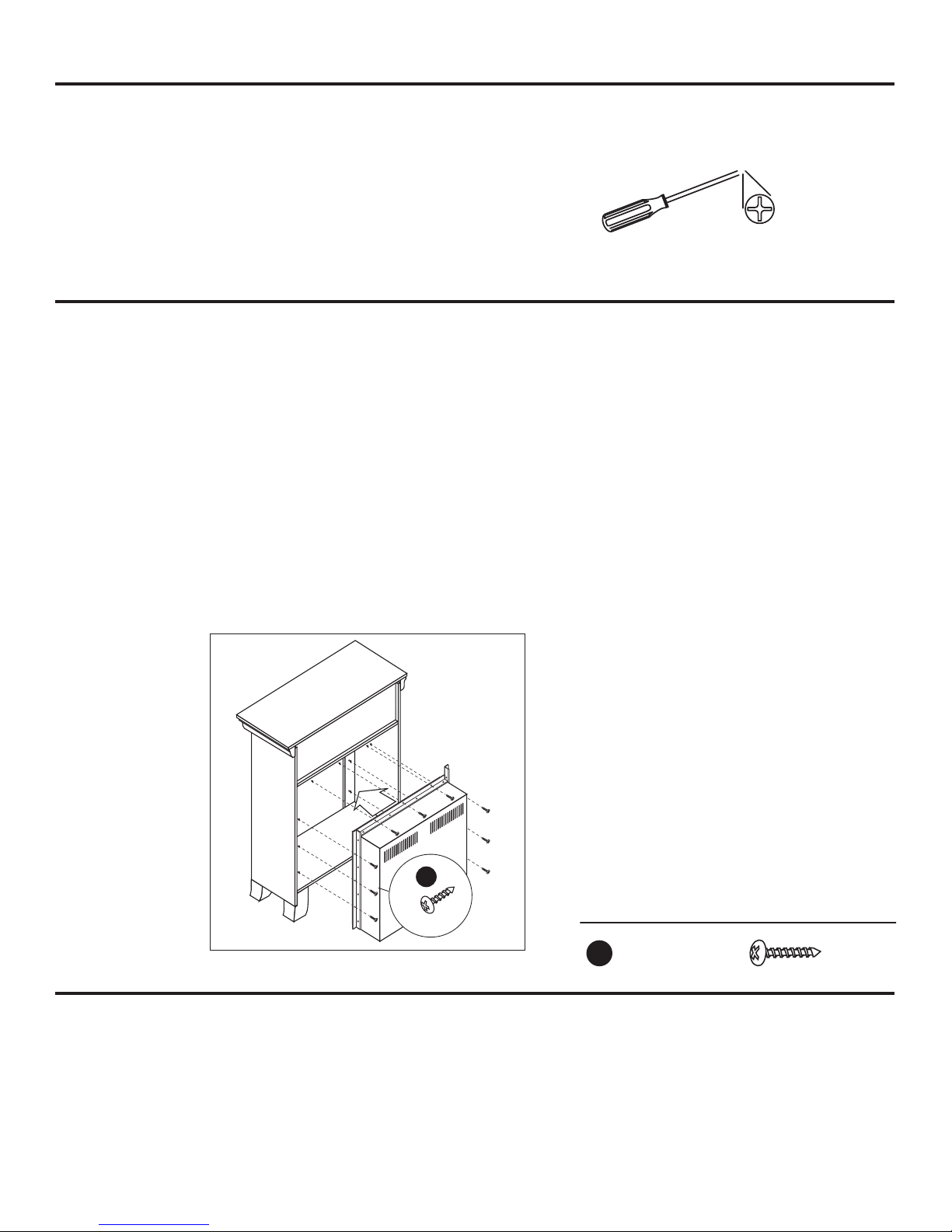

• The insert must be installed from the back of the mantel, do not attempt to insert mantle from the
front, it will not fit and will cause damage to the mantel.
• Use caution when opening carton and unwrapping pieces so as not to damage the contents.
• Do not use a knife.
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and diagram above. If any part is missing or damaged, do not attempt to assemble the
product. Contact customer service for replacement parts.
Estimated Assembly Time: 30 minutes
Tools Required for Assembly (not included): Phillips screwdriver, 2 AAA batteries
3
PRODUCT SPECIFICATIONS
Voltage 120VAC, 60HZ
AMPS 12.5 AMPS
Watts 1,500 Watts

IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of fire, electrical shock or personal injury, the following must be read
before using or plugging this electric fireplace into an electrical outlet.
• The heater is hot when in use, do not come in contact with hot surfaces.
• Keep combustible materials, such as furniture, pillows, bedding, papers, clothing, and curtains at
least 3 feet away from fireplace.
• Do not block the air intake or exhaust of the heater in any manner. Do not use on soft surfaces
such as beds, where heater openings may become blocked.
• Needs to be used with wood fireplace mantel
• Use extreme caution when using fireplace near children, or where children may be present.
• Do not leave fireplace unattended
• Do not attempt to move fireplace when hot.
• When not in use, store fireplace unplugged in a dry location
• Do not operate electric fireplace if the cord or plug has become damaged.
• Discontinue use if the heater malfunctions, has been dropped or damaged in any manner.
• Only an authorized service center should attempt to repair electric insert.
• Do not use outdoors, intended for indoor use only.
• This electric fireplace is not intended to be used in bathrooms, laundry rooms, or any other
location where the electric fireplace may become damp, or come in contact with water.
• Never operate electric fireplace where it may fall into a bathtub, pool or any other water container.
• Do not run power cord under carpeting, rugs, runners, or any other covering. Keep cord from
crossing traffic areas to avoid tripping.
• Always turn electric insert off before unplugging heater from outlet.
• Keep area around fireplace neat and clean.
• To avoid electrical shock, fire, or damage to heater, do not insert any foreign objects into
ventilation or exhaust of heater.
• This heater produces arcing sparks, keep all flammable liquids, such as gasoline, paint, or
solvents, away from heater.
• Only use this fireplace as described in this manual. Any other use is not recommended, and may
cause fire, electrical shock, or personal injury.
• Do not alter or modify this fireplace in any manner
• This fireplace is intended for residential use only, not intended for commercial use.
• Position the fireplace in a location near an electrical outlet so the use of an extension cord is not
needed. If an extension cord must be used, it must be a minimum of 14AWG and is rated for
1875 watts.
• This fireplace must be electrically grounded in accordance with local codes.
• This fireplace is to be used on a 120 V, 15 AMP grounded circuit.
• Do not use in an outlet that is controlled by a switch or dimmer switch.

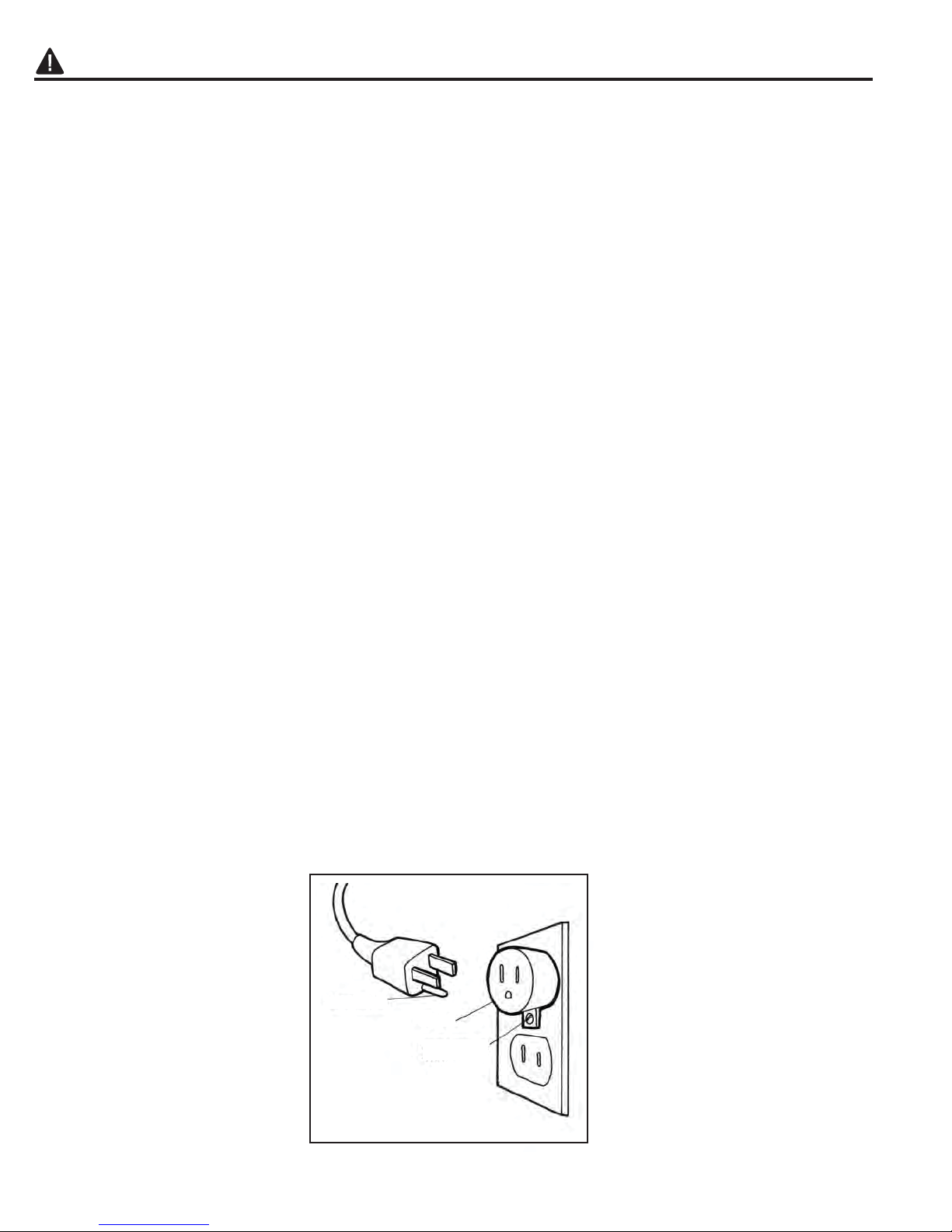

• The cord supplied with the heater is equipped with a 3-blade plug.
The round pin on the plug is for grounding purposes. If a 3-slot
outlet is not available, and adapter must be used. The adapter
must be properly grounded to the outlet box. (see Fig. 1)
• To avoid circuit overload, do not plug any other appliances
into the same circuit as the fireplace.
4Fig. 1

ASSEMBLY INSTRUCTIONS
5
1. Locate 2 side trim pieces (A)
and 1 top trim piece (B). Align slotted
holes in trim pieces with holes on tops and
sides of insert (C). See Fig. 2
Attach trim pieces to electric insert (C)
using 4 screws (AA) per piece of trim.
Tighten using a Phillips screwdriver.

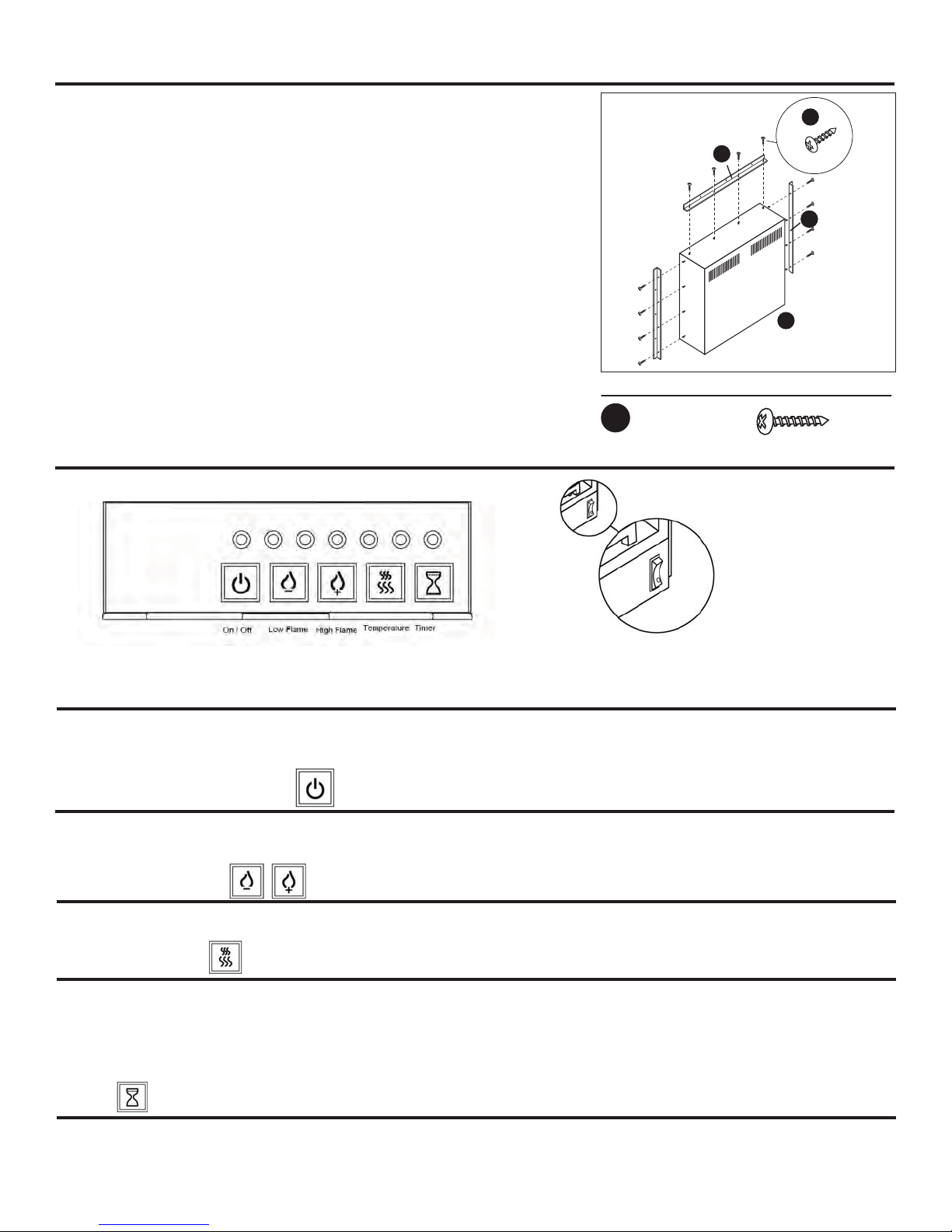

CONTROL PANEL / FUNCTIONS
OPERATING INSTRUCTIONS
LOCATION
POWER /ON/OFF BUTTON
Push the power button once (indicator light will come on) to supply power for all of the functions.
Push button once to turn all functions off.
FLAME INTENSITY
HEAT SETTINGS
TIMER
Push the flame + or - button for desired flame
This fireplace insert consists of a fan forced electric heater with two heat settings, 750 watts or 1,500
watts. For low heat, push the temperature button once (indicator light will illuminate). For high heat,
push the temperature button a second time (indicator light will illuminate). Note: the fan may con-
tinue to run for a short time after the heat is turned off. The fan will turn off automatically.
This electric fireplace is equipped with a timer ranging from 1/2 hour to 7 1/2 hrs. Press the timer
button to the desired time (indicator lights will illuminate). Push button once for every 1/2 hour
increment. Do not leave heater unattended.

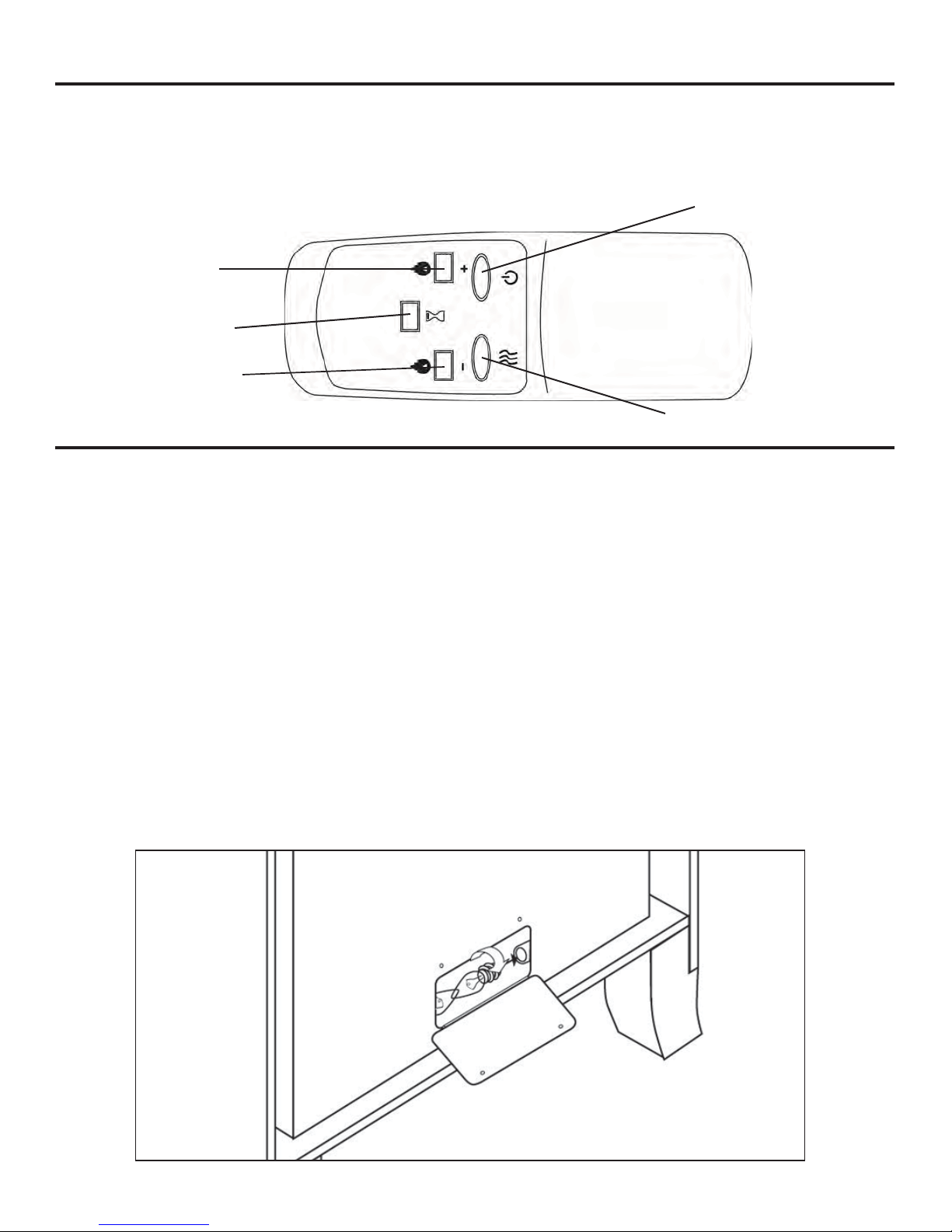

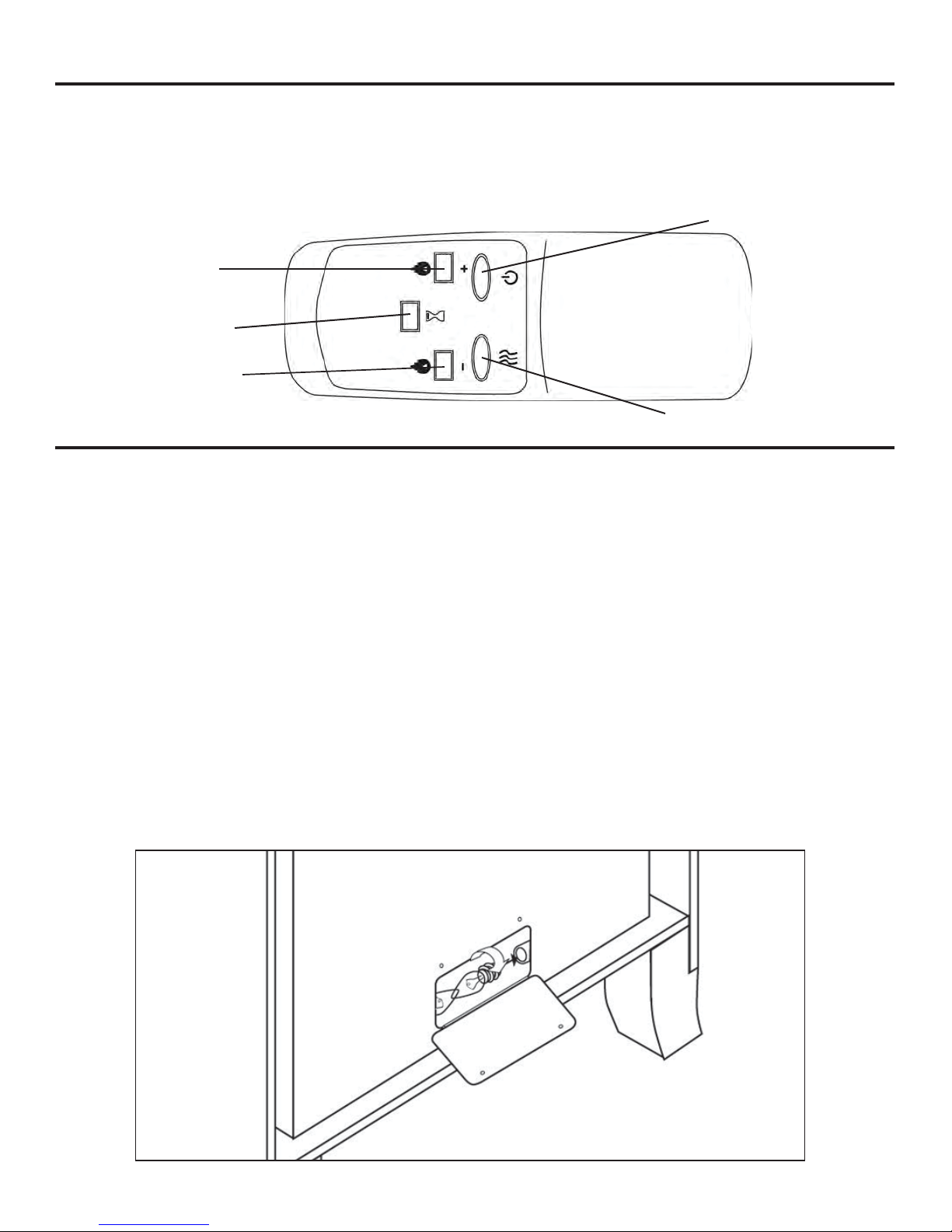

Control Panel Master Power Button
The Master Power Button is located in the lower right hand corner of the front insert. The control
panel is located in the lower left corner of the front of the insert. Open the door to access.
Fig. 2
B
A
C
AA
Hardware Used
AA Screws X 12
