Paramount Fitness FS1010-T-167 User manual

1
US
R
C
RR
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance
2. Extinguish any open flame
3. If odor continues, immediately
call gas supplier.
PLEASE retain this manual for
future reference.
FOR YOUR SAFETY
Do not store or use gasoline or
other flammable vapors or liquids
in the vicinity of this or any other
appliance.
WARNING: For outdoor use only.
OUTDOOR PROPANE FIREPIT
OWNER’S MANUAL
For cus tomer service, parts
or warranty issues:
Call 1-800-561-5550 or e-mail
[e-mail]
Model#: FS1010-T-167
Item#: FP-301
ANSI Z21.97-2014, CSA STD 2.41-2014 Outdoor Decorative Gas Appliances

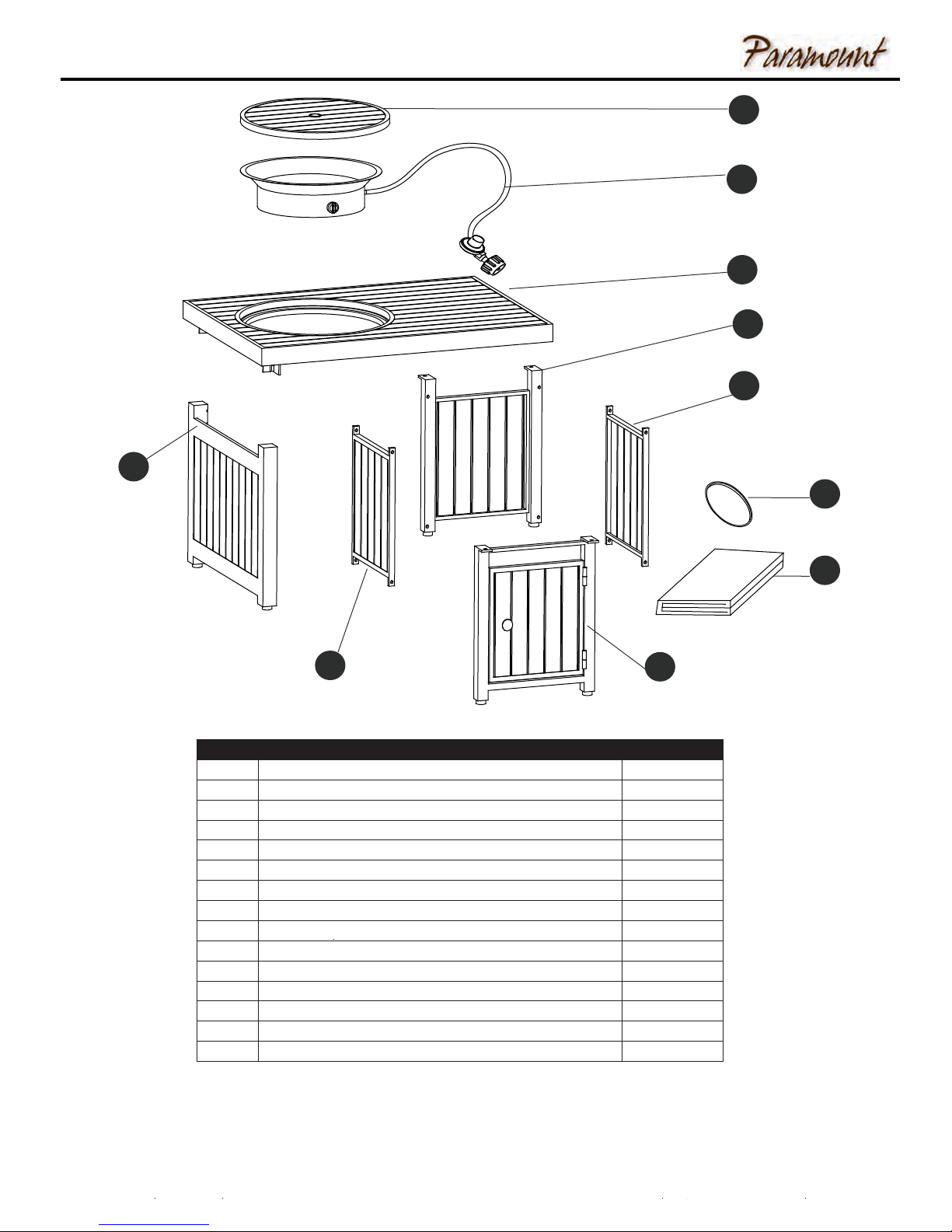

PACKAGE CONTENTS
2
N
0
PART DESCRIPTION QUANTITY
1revoCrenruBA
1
poTelbaT
B
1
renruB
C
1D
22lenaPediSE
13lenaPediSF
GSide Panel 4 1
H4
I4
J8
L
Bolt 8 40mm Nut M8 Washer Spring Washer(* )/ ( )/ /
1
M
Bolt 6 25mm Washer(* )/ ( )M6
1
1
revirdwercS
N
1
hcnerW
O
Allen Wrench
Glass Beads 2boxes/4bags
A
B
C
D
Protective Fire Pit Cover
Door Frame)(
E
Bolt 8 35mm Washer(* )/
K
EF
G
1lenaPediS
Spring Washer/

If you have any questions regarding this product, please contact customer service at
[email protected] or 1-800-561-5550, 7am - 4pm, PST, Monday - Friday.
HARDWARE CONTENTS
3
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install
Solid fuels shall not be burned in this appliance.
the product.
DANGER DANGER
DANGER indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury. FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the appliance and
immediately call you gas supplier or fire department.
DANGER
Failure to comply with the precautions and instructions
provided with this fire pit can result in death, serious
bodily injury and property loss or damage from
hazards of fire, explosion, burn, asphyxiation, and/or
carbon monoxide poisoning. Only persons who can
understand and follow the instructions should use or
service this fire pit.
This appliance has been tested to and complies with the
The installation must conform to local codes or in
the absence of local codes to the National Fuel Gas Code, ANSIZ223.1. This manual contains important
information about the assembly, operation and maintenance of this fire pit. General safety information
is presented in these first few pages and is also located throughout the manual. Keep this manual for
future reference and to educate new users of this product. This manual should be read in conjunction
with the labeling on the product. Safety precautions are essential when any mechanical or propane
fueled equipment is involved. These precautions are necessary when using, storing, and servicing.
Using this equipment with the respect and caution demanded will reduce the possibilities of personal
injury or property damage. The following symbols shown below are used extensively throughout this
manual. Always heed these precautions, as they are essential when using any mechanical or fueled
equipment.
IJ
Bolt(8*40mm)
Nut(M8)
Washer
Spring washer
Qty. 4
Bolt (6*25mm)
Washer
Qty. 8
L
K
Wrench
Qty 1
M
Allen wrench
Qt
Qt y y. 1 1
Screwdriver
H
Bolt (8*35mm)
Washer
Qty. 4
ANSI Z21.97-2014, CSA STD 2.41-2014
Outdoor Decorative Gas Appliances.
Spring washer

4
SAFETY INFORMATION
DANGER
• CARBON MONOXIDE HAZARD
• This fire pit is a combustion appliance. All combustion
appliances produce carbon monoxide (CO) during the
combustion process. This product is designed to produce
extremely minute, non-hazardous amounts of CO if used
and maintained in accordance with all warnings and
instructions. Do not block air flow into or out of the fire pit.
• Carbon Monoxide (CO) poisoning produces flu-like
symptoms, watery eyes, headaches, dizziness, fatigue
and possibly death. You can't see it and you can't
smell it. It's an invisible killer. If these symptoms are
present during operation of this product get fresh air
immediately!
• For outdoor use only.
• Never use inside house, or other unventilated or
enclosed areas.
• This fire pit consumes air (oxygen). Do not use in
unventilated or enclosed areas to avoid endangering
your life.
WARNING
DANGER
• EXPLOSION - FIRE HAZARD
• Keep solid combustibles, such as building materials,
paper or cardboard, a safe distance away from the
fire pit as recommended by the instructions.
• Provide adequate clearances around air openings
into the combustion chamber.
• Never use the fire pit in spaces which do or may
contain volatile or airborne combustibles, or products
such as gasoline, solvents, paint thinner, dust particles
or unknown chemicals.
• During operation, this product can be a source of
ignition. Keep fire pit area clear and free from
combustible materials, gasoline, paint thinner, cleaning
solvents and other flammable vapors and liquids. Do
not use fire pit in areas with high dust content.
Minimum fire pit clearances from combustible
materials: two (2) feet from the sides & two (2) feet
from the rear.
We cannot foresee every use which may be made of
our fire pit.
Check with your local fire safety authority if you have
questions about fire pit use.
Other standards govern the use of fuel gases and heat
producing products for specific uses. Your local
authorities can advise you about these.
If no local codes exist, follow National Fuel Gas Code,
ANS Z223.1. In Canada, installation must conform to
local codes. If no local codes exist, follow the current
National standards of CANADA CAN/CGA-B 149.2.
DANGER
WARNING
Do not store or use gasoline or other flammable vapors
and liquids in the vicinity of this or any other appliance.
An LP-cylinder not connected for use shall not be
stored in the vicinity of this or any other appliance.
WARNING
Improper installation, adjustment, alteration, service or
maintenance can cause property damage, injury or
death. Read the installation, operation and
maintenance instructions thoroughly before installing
or servicing this equipment.
CARBON MONOXIDE HAZARD
This appliance can produce
carbon monoxide which has
no odor. Using it in an enclosed
space can kill you. Never use this
appliance in an enclosed space
such as a camper, tent or home.
WARNING: For Outdoor Use Only
DANGER
• EXPLOSION - FIRE HAZARD
• Never store propane near high heat, open flames,
pilot lights, direct sunlight, other ignition sources or
where temperatures exceed 120 degrees F (49°C).
• Propane vapors are heavier than air and can
accumulate in low places. If you smell gas, leave the
area immediately.
• Never install or remove propane cylinder while fire pit
is lighted, near flame, pilot lights, other ignition sources
or while fire pit is hot to touch.
• This fire pit is red hot during use and can ignite
flammables too close to the burner. Keep flammables
at least 2 feet from sides & 2 feet from rear. Keep
gasoline and other flammable liquids and vapors well
away from fire pit.
• Store the propane cylinder outdoors in a well ventilated
space out of reach of children. Never store the propane
cylinder in an enclosed area (house, garage, etc.). If
fire pit is to be stored indoors, disconnect the propane
cylinder for outdoor storage.
WARNING
WARNING indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury.

5
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and hardware contents above. If any part is missing or damaged, do not
attempt to assemble the product. Contact customer service for replacement parts.
Estimated Assembly Time: 60 minutes
Tools Required for Assembly (not included):
Leak Detection Solution.
WARNING
California Proposition 65
Combustion by-products produced when using
this product contain chemicals known to the State
of California to cause cancer, birth defects, and
other reproductive harm.
WARNING
BURN HAZARD
fire pit unattended when hot or in use.

WARNING

is invisible, odorless, and flammable. An odorant is
normally added to help detect leaks and can be
described as a rotten egg smell. The odorant can
fade over time so leaking gas is not always detectable
by smell alone.

will sink to the lowest level possible. It can ignite by
ignition sources including matches, lighters, sparks or
open flames of any kind many feet away from the
original leak. Use only propane gas set up for vapor
withdrawal.

ordinances and codes or with ANS/NFPA 58. Turn off
propane when not in use.
WARNING

temperatures. Stay away from these surfaces to avoid
burning skin or igniting clothing.

of the fire pit.

from the fire pit, or place on or near the fire pit.

servicing the appliance prior to placing back in service.

service person. The fire pit should be inspected
before use and annually by a qualified service person.
More frequent cleaning may be required as necessary.
It is imperative that the control compartment, burners,
and circulating air passageway of the appliance be
kept clean.
SAFETY INFORMATION
CAUTION

which, if not avoided, may result in minor or moderate
personal injury, or property damage.
CAUTION
SERVICE SAFETY

propane cylinder valve outlet is clean.

leaks using soapy water. Never use a flame.

way or use with any device.
WARNING
Certain materials or items, when stored under the
fire pit, will be subjected to radiant heat and could be
seriously damaged.

6

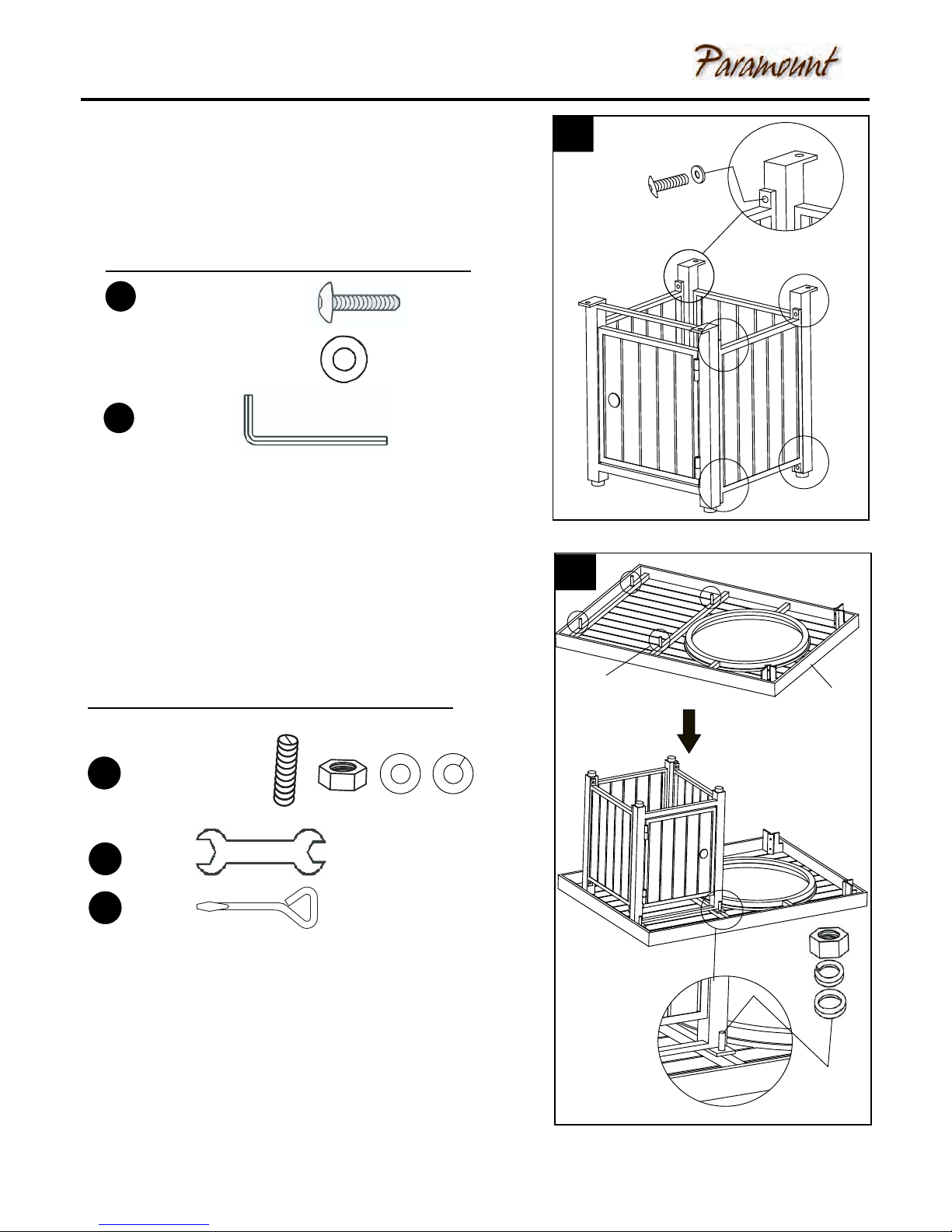

ASSEMBLY INSTRUCTIONS
Hardware Used
1
2
Hardware Used
Jx 8
Bolt(6*25mm)
Washer (M6) x 8
M
E
J
1.Connect Side Panels D E F with Bolt (6 *25mm)/
Washer (J) as shown in Figure 1 using Allen Wrench .
(NOTE:Don't over tighten the bolt.)
ED
F
I
I
Bolt (8*40mm),
x 4
Washer,
Spring washer
Nut(M8),
L
K
2. Attach the 4 - Bolt(8*40mm) (I) to the holes of the Table
Top (C).
Then attach the
Bolt(8*40)/
assembled panels to the table top with 4
Washer/Spring Washer/Nuts (I).
(NOTE:Tighten all the Bolts and Nuts.)
C
I

7
ASSEMBLY INSTRUCTIONS
3
4
G
H
Hardware Used
Hx 4
Bolt(8*35mm)
Washer x 4
L
3.Connect Side Panels 4(G) with Bolt (8 *35mm)/spring
Washer/washer(H) as shown in Figure using Wrench .
(NOTE:Tighten all Bolts.)
4.Put the Burner(B) on the table top,The hose of the burner
passes under the table top like the picture showing.
B
Spring Washer x 4
Note: Ensure the burner control knob and the door
frame (F) are on the same side of the unit.
F

8
ASSEMBLY INSTRUCTIONS
5
5. Pour the Glass Beads (N) around the Burner (B). Put
the Burner Cover (A) on the Burner when the fire pit table
is NOT in use.
6. Connect the hose and regulator to the cylinder, The propane gas and
cylinder are sold separately. Use a standard 20 lb. propane cylinder only.
Use this fire pit only with a propane vapor withdrawal supply system. See
Chapter 5 of the standard for storage and handling of liquefied petroleum
gas, ANSI/NFPA 58. Your local library or fire department should have this
book. Storage of an appliance indoors is permissible only if the cylinder is
disconnected and removed from the appliance. A cylinder must be stored
outdoors in a well-ventilated area out of reach of children. A disconnected
cylinder must have dust caps tightly installed and must not be stored in a
building, garage or any other enclosed area. The maximum inlet gas supply
pressure: 250 psi. The minimum inlet gas supply pressure: 5 psi.
The minimum hourly of 10000 Btu is required input rating for a fire pit for
automatic operation at rating less than full input rating. The pressure
regulator and hose assembly supplied with the appliance must be used.
The installation must conform with local codes, or in the absence of local
codes, with national fuel gas code, ANSI Z223.1/NFPA54, natural gas and
propane Installation Code, CSA B149.1, or propane storage and handling
code, B149.2.
When the fire pit is completely cool, you may cover it with
Protective Fire Pit Cover (O). DO NOT PUT THE
PROTECTIVE FIRE PIT COVER ON A HOT FIRE PIT
TABLE.
AN

9
ASSEMBLY INSTRUCTIONS
A dented , rusted or damaged propane cylinder may be
hazardous and should be checked by your cylinder
supplier. Never use a p ropane cylinder with a damaged
valve connection.
The propane cylinder must be constructed and ma rked
in accordance with the specifications for LP gas
cylinders of the U.S. Department of Transportation
(DOT) or the standard for cylinders, spheres and
tubes for transportation of dangerous goods and
commission, CAN/CSA-B339.
The cylinder must have a listed overf illing prevention
device.
The cylinder must have a connection device compatible
with the connection for the appliance.
The cylinder used must include a collar to protect the
cylinder valve.
Never connect an unregulated propane cylinder to the
heater.
Attach regulator to cylinder. Complete attachment.
Install cylinder.
Do not store a spare LP-gas cy linder under or near this appliance;
Never fill the cylinder beyond 80 percent full;
Place the dust cap on the cy linder valve outlet whenever the cylinder is not
in use. Only install the type of dust cap on the cylinder valve that is provided with
the cylinder valve. Other type of caps or plugs may result in leakage of propane.
Attention: T H I S P RODUCT IS NOT FOR CO MMERCIAL USE INTENDED
FOR RESIDENTIAL USE ONLY.
Do not siit or stand on this table .
Keepchildren away during assembly, This item contains small parts which can be
swallowed by children.
Do not use indoors and inside any enclosure.
Retain the assembly instructions for future reference.
Installer - Please leave these instructions with the owner.
Secure the propane cylinder with the cylinder screw by
tightening the screw until it comes in contact with the
cylinder.

Underside of burner
10
NEVER perform a leak test when smoking.

11
11

12

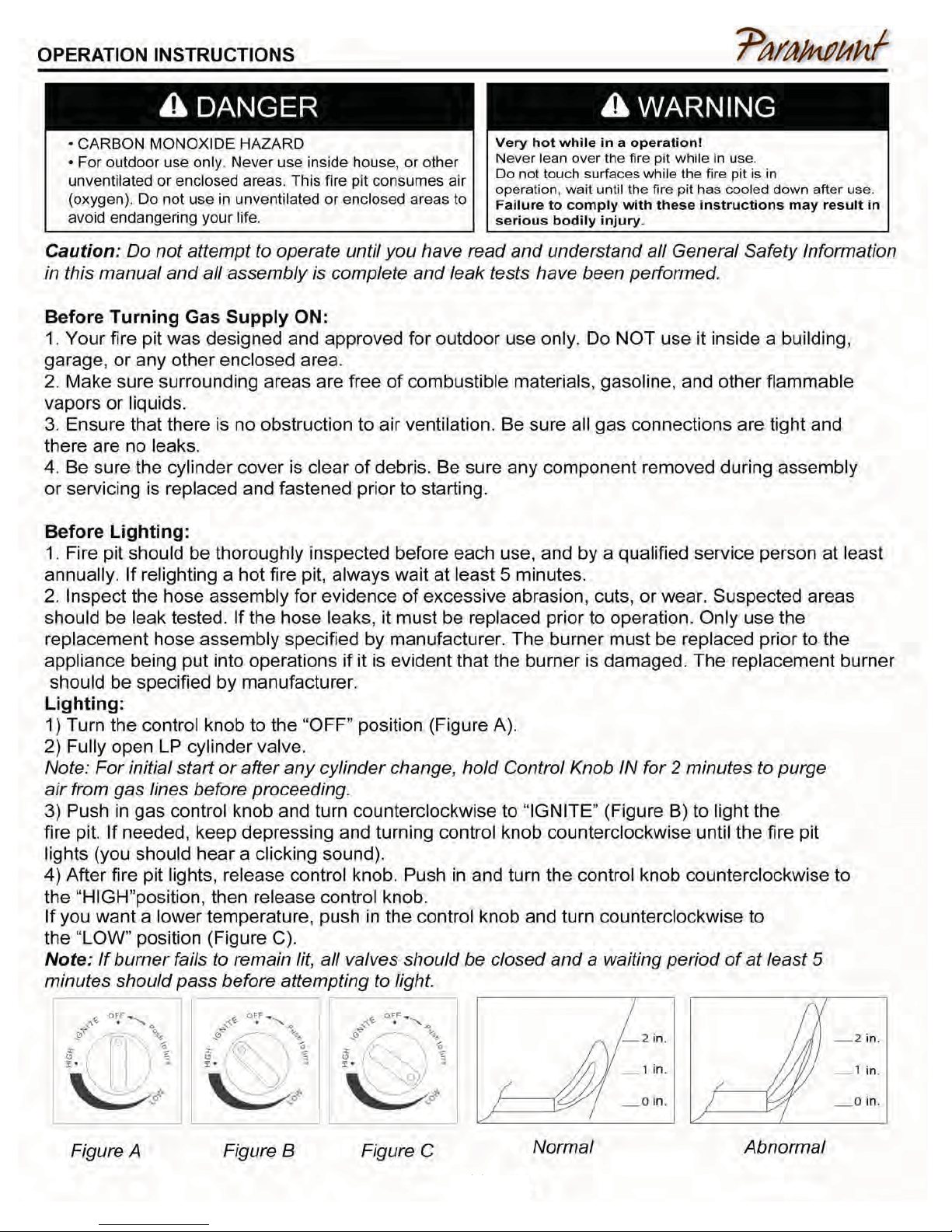

OPERATION INSTRUCTIONS
Shut Down:
1. To extinguish burner depress control knob and continue to turn it clockwise to OFF.
2. Turn cylinder valve clockwise to OFF and disconnect regulator when heater is not in use.
Operation Checklist
For a safe and pleasurable heating experience, perform this check before each use.
Before Operating
1. I am familiar with entire owner s manual and understand all precautions noted.
2. All components are properly assembled, intact and operable.
3. No alterations have been made.
4. All gas connections are secure and do not leak.
5. Wind velocity is below 10 mph.
6. Unit will operate at reduced efficiency below 40F.
7. Fire pit is outdoors (outside any enclosure).
8. There is adequate fresh air ventilation.
When fire pit is ON:
Burner will display tongues of blue and yellow flame. These flames should not be yellow or produce thick
black smoke, indicating an obstruction of airflow through the burners. The flame should be blue with
straight yellow tops. If excessive yellow flame is detected, turn off heater and consult Troubleshooting
on page 15.
Re-lighting:
1. Turn control knob to OFF.
2. Repeat the Lighting steps on prior page.
WARNING
FOR YOUR SAFETY
Be careful when attempting to manually ignite this
fire pit. olding in the control knob for more than 10
seconds before igniting the gas will cause a ball of
flame upon ignition.
WARNING
FOR YOUR SAFETY
Fire pit will be hot after use. Handle with extreme care.

13
OPERATION INSTRUCTIONS
CARE AND MAINTENANCE
9. Fire pit is away from gasoline or other flammable liquids or vapors.
10. Fire pit is away from windows, air intake openings, sprinklers and other water sources.
11. Fire pit is at least 24 in. on rear and at least 24 in. on sides from combustible materials.
12. Fire pit is on a hard and level surface.
13. There are no signs of spider or insect nests.
14. All burner passages are clear.
15. All air circulation passages are clear.
16. Children and adults should be alerted to the hazards of high surface temperatures and should stay
away to avoid burns or clothing ignition.
17. Young children should be carefully supervised when they are in the area of the fire pit.
18. Clothing or other protective material should not be hung from the fire pit, or placed on or near the
fire pit.
19. Any guard or other protective device removed for servicing the fire pit must be replaced prior to
operating the fire pit.
20. Installation and repair should be done by a qualified service person. The fire pit should be inspected
before use and at least annually by a qualified service person.
21. More frequent cleaning may be required as necessary. It is imperative that control compartment,
burner and circulating air passageways of the fire pit be kept clean.
After Operation
1. Gas control is in OFF position.
2. Gas Tank valve is OFF.
3. Disconnect Gas line.
WARNING
FOR YOUR SAFETY:
 fire pit for at least 45 minutes
after use.



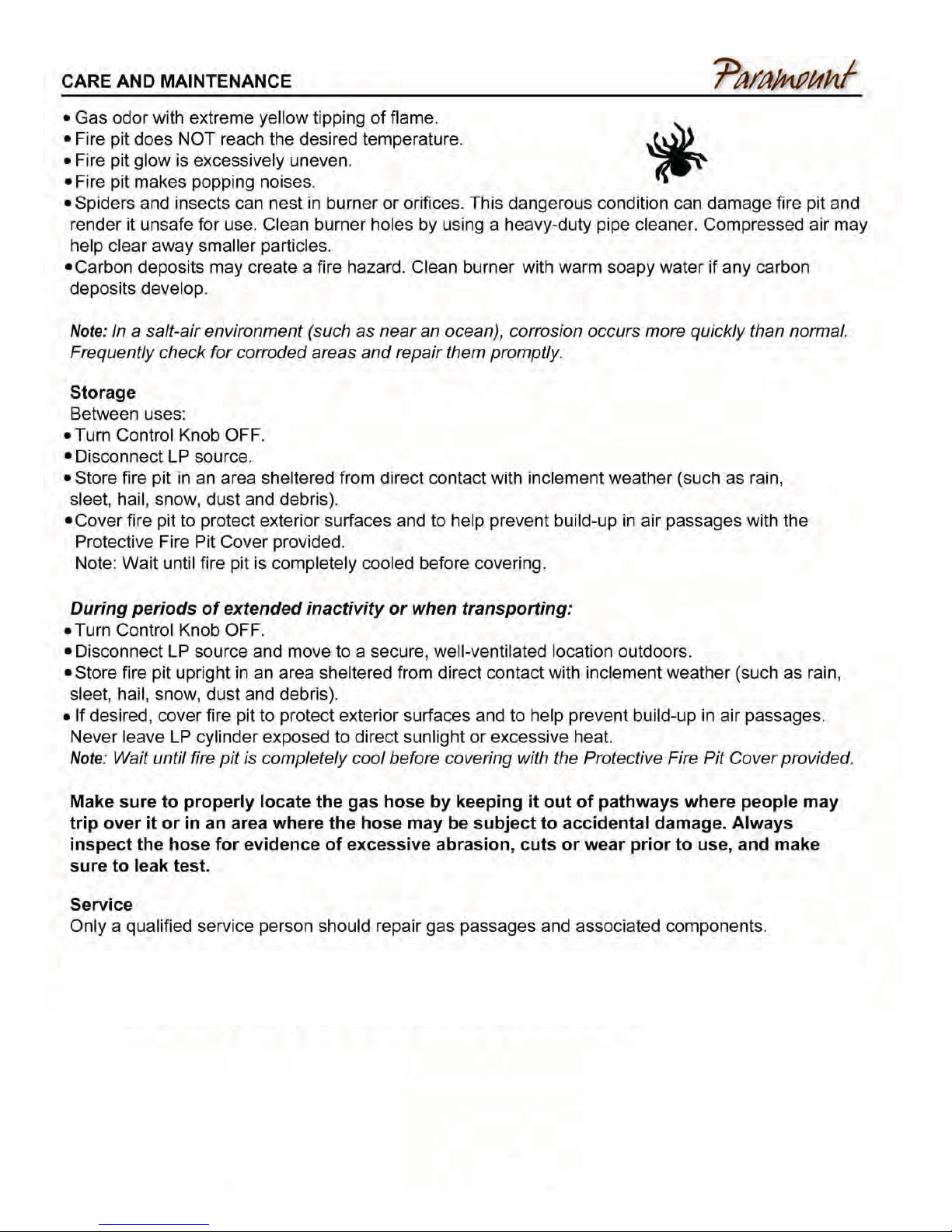

To enjoy years of outstanding performance from your fire pit, make sure you perform the following
maintenance activities on a regular basis:
Keep exterior surfaces clean.
1. Use warm soapy water for cleaning. Never use flammable or corrosive cleaning agents.
2. While cleaning your unit, be sure to keep the area around the burner dry at all times. Do not submerge
the control valve assembly. If the gas control is submerged in water, do NOT use it. It must be replaced.
a. Keep the appliance area clear and free from combustible materials, gasoline and other
flammable vapors and liquids.
b. Do not obstruct the flow of combustion and ventilation air.
c. Keep the ventilation opening(s) of the cylinder enclosure free and clear from debris.
3. Air flow must be unobstructed. Keep controls, burner, and circulating air passageways clean. Signs
of possible blockage include:

Caution: Always allow fire pit to cool before attempting service.
14

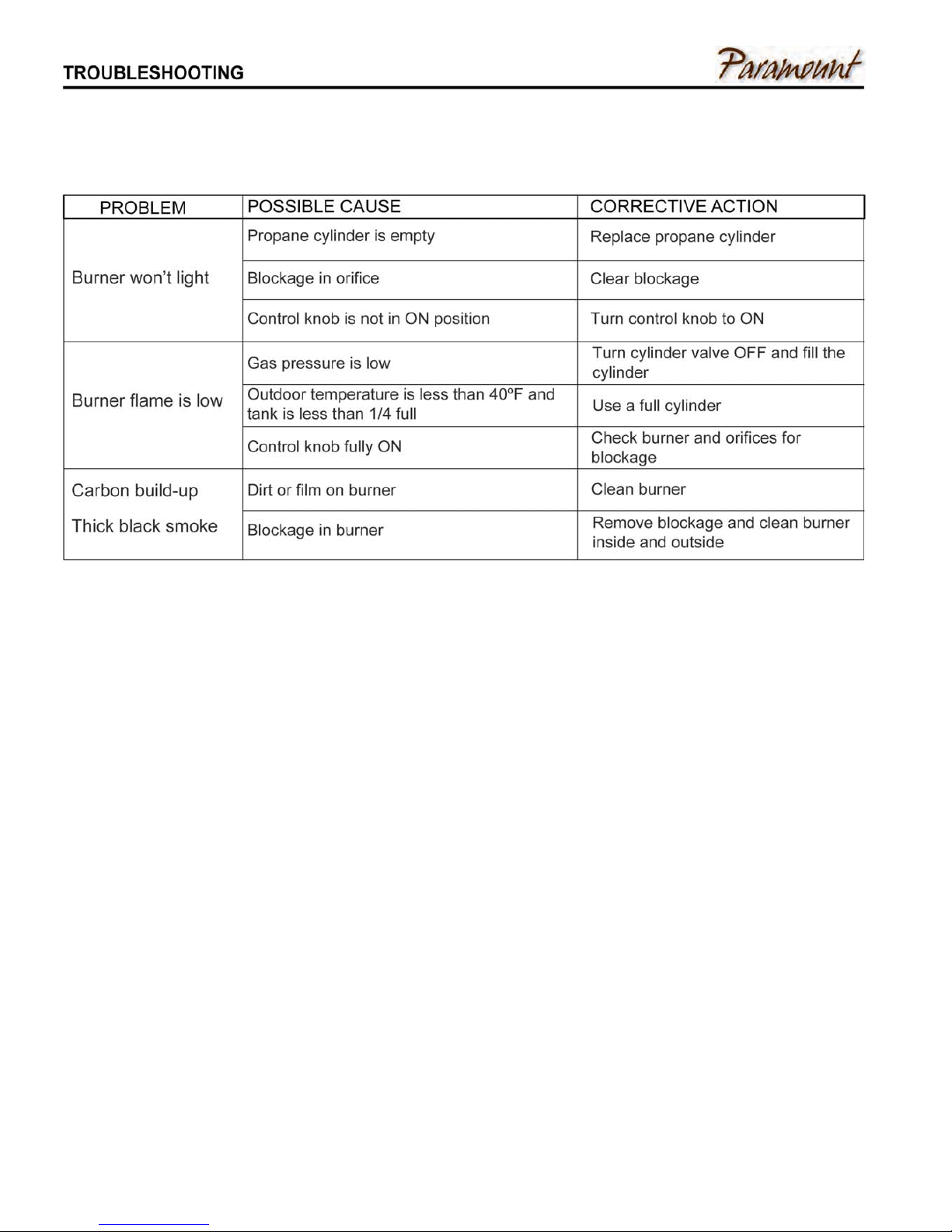

15

IMPORTANT
For questions, concerns or problems with our product please
email our customer service department:
[email protected] or call 1-800-561-5550.
DATED PROOF OF PURCHASE REQUIRED FOR WARRANTY SERVICE.
WARRANTY
This product is inspected, tested and carefully packaged to minimize the chance of
damage during shipment. If a part (excluding light bulbs and fuses*) within one year from
the date of purchase proves to be defective in material or fabrication under normal
use, the part will be repaired or replaced. The Company’s obligation under the warranty
is to replace or repair defective parts at our discretion. Any expenses or damage resulting
from the installation, removal or transportation of the product will be the responsibility
of the owner and are not covered by this warranty. The owner assumes all other risks
arising from the use or misuse of the product. The warranty will be void if the product
damage or failure is deemed by the Company to be caused by accident,
alteration, misuse, abuse, incorrect installation or removal, or connection to an incorrect
power source by the owner. The Company neither assumes, nor authorizes any person or
entity to assume for it any obligation or liability associated with its products.
Light bulbs and fuses are not covered under this warranty. If you have any questions
regarding the warranty or service, please call our toll free number: 1-800-561-5550.
Customer Service
JR Home Products
Unit 306 - 19100 Airport Way, Pitt Meadows, BC V3Y 0E2
Toll Free: 1-800-561-5550
E-mail: [email protected]
Warranty Registration Information Form / Formulaire d’enregistrement de la garantie
Registration can be completed online at www.jrhome.com or by mailing this form.
Name / Nom:
Street / Adress:
City / Ville:
Province / Province:
Postal Code / Code postal:
Daytime Phone # / No téléphone jour:
Evening Phone # / No téléphone soir:
E-Mail Address / Courriel:
Product/Produit:
Place of Purchase / Lieu de l’achat:
Date of Purchase / Date de l’achat:
Model # / No de modèle:
Serial # / Numéro de série:
You MUST register your product to receive
warranty service.
For warranty service, contact J&R Home
Products at the address, phone numbers listed
below within 30 days of purchase. Be sure to
have your sales receipt and original date of
purchase. All warranty service will be
coordinated by
J&R Home Products service center.
Vous DEVEZ enregistrer votre produit pour vous
prévaloir de la garantie.
Afin de faire valoir la garantie, communiquez
avec J&R Home Products à l’adresse et aux
numéros indiqués ci-dessous dans les 30 jours
suivant la date d’achat. Ayez en main votre reçu
et la date d’achat. Toutes les demandes liées
aux garanties seront traitées par le centre de
service de J&R Home Products.
Please mail to / Veuillez poster le tout à : Parts & Service Dept., J&R Home Products Ltd. Unit 306 - 19100 Airport Way, Pitt Meadows, BC V3Y 0E2 Toll Free Tel [phone]
You MUST register your product to receive warranty service.
