Park Safe PS033 User manual

AUTOMOTIVE
Monitors and Camera
Install Guide V2
Specications Subject To Change Without Notice

CONTENTS
IMPORTANT NOTES ON WIRING 1
RECOMMENDED WIRING EXAMPLES ON NON CANBUS VEHICLES 2
- Typical wiring for always on monitors and camera system
- Typical wiring for monitors and camera system on reverse
RECOMMENDED WIRING EXAMPLES ON CANBUS VEHICLES 3
- CANBUS VEHICLE. Typical wiring for monitors and camera system on reverse (PSPK4)
- CANBUS VEHICLE. Typical wiring for always on monitors and camera system (PSPK5)
CANBUS VEHICLES AND CANBUS INTERFACE UNITS 4
- PSPK4 - Provides 12v on reverse
- PSPK5 - Provides 12v on ignition
- CANRUI Engineers programming kit
OEM BRAKE LIGHT CAMERAS 5
- OEM brake light cameras and Factory t head units
- Mounting of Monitors. Dash Mounted and Mirror Style Monitors
- Dash Mounted Monitor
- Mirror Monitors
- Clip on Mirrors.
- Universal bracket type mirrors
- OEM Replacement mirrors
- OEM Replacement mirrors with self applying window boss
MULTI FUNCTION CAMERAS - ONE BUTTON CONTROL 6
- Mode Select
- Programming
MOUNTING AND WIRING OF CAMERAS 7
- Wiring
- Cameras with 4 pin connections.
- Cameras with Phono/RCA connections.
CAMERAS WITH OWN POWER SUPPLY 7
MONITOR MENUS AND CHAINGING SETTINGS 8/9
- Monitor Keys
- Monitor Menu
- Seeing Video Image
MAINTANCE OF MONITORS AND CAMERAS 11
- Trouble Shooting
NOTES 12
WARRANTY 13

IMPORTANT NOTES ON WIRING
(See wiring examples on page 3/4 & 7)
1. Isolate all power. Make sure the vehicle power is o when installing camera and monitor system.
2. Camera positions. Check position of cameras for ideal view before mounting. (See page 7)
3. Vehicles with CANBUS lighting systems. (See wiring example on page 3) The CANBUS system
may see the monitor and camera as extra power drain and may react to this by reducing the voltage on
the circuit they have been connected to. This can then case an adverse eect of the camera and monitor.
You may see interference, lines or no image, often only seen when engine is running. (When engine is
o, but ignition is on the CANBUS does not always react the same way and the monitor and camera may
work correctly. Check system with both engine o and engine on).
Any connection to the vehicle should be on a isolated circuit, either by using a relay (not always
guaranteed to work on CANBUS Systems) or ideally use a PSPK5 (12v on ignition from CANBUS) you
should avoid powering monitors and cameras directly from the reverse lighting circuit.
The PSPK4 oers 12v out on reverse and is also a useful product to use in the wiring of vehicle monitors
and cameras requiring only power on, on reverse.
The PSKP4 and PSPK5 are 1 Amp rated so it recommended to use the PSPK modules to trigger a relay if
you plan to use more than 1 Amp, most monitor and camera systems will exceed 1 Amp.
NOTE: It is recommended you do not cut any CANBUS wiring and you check with manufactures warranty
rst before attaching any aftermarket products to the existing CANBUS wiring system.PSPK4 and PSPK5
are designed to work with CANBUS circuits.
4. Using the monitor trigger. If it is a single camera and monitor install you do not need to use the
monitor trigger.
If you want the monitor and camera on all the time wire monitor and camera to ignition.
The monitor trigger is only typically used if you have more than one camera, ie. Side camera and reverse
camera. Side camera on all time, Reverse camera only selected when reversing (Use trigger for reverse
camera).
Note: Some models of Parksafe monitors will only show parking gridlines if the trigger is used.
5. Connectors and cable joints. Make sure all external joints are sealed. Ideally seal any joints with self
amalgamating tape this is to prevent any moisture travelling inside the cable into the camera and
causing moisture ingress issues.
Page 1

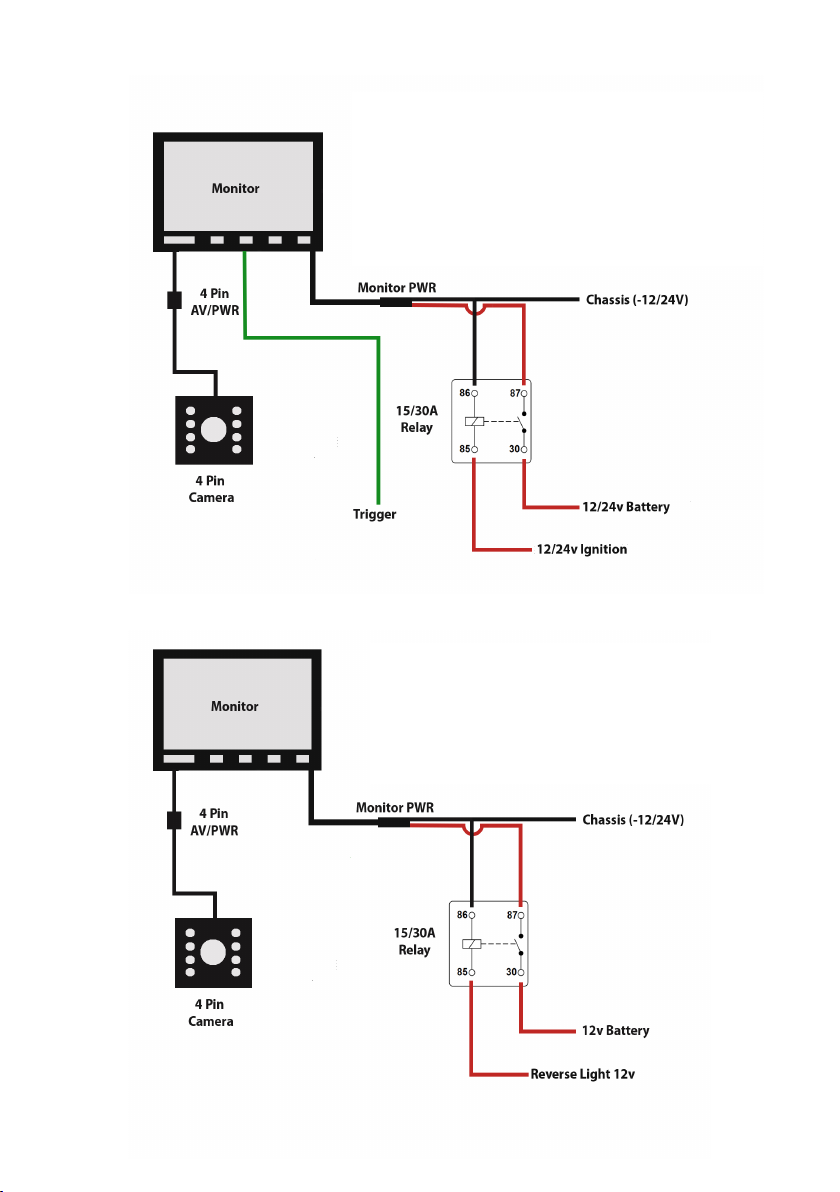

RECOMMENDED WIRING EXAMPLES ON NON CANBUS VEHICLES
TYPICAL WIRING FOR MONITOR AND CAMERA
SYSTEM ON REVERSE
The wiring will allow for the monitor and camera to
activate when the vehicles reverse gear is selected, at all
other times the monitor and camera will be o.
Relay is used to prevent power draw from battery when
system is o and isolate the circuit from the vehicle.
TYPICAL WIRING FOR ALWAYS ON MONITOR AND
CAMERA SYSTEM
When the vehicles ignition is on, the camera and monitor is
always on. A relay is used to prevent power draw from battery
when the system is o and isolate the circuit from the vehicle.
If more than one camera is used then use the trigger wire to
control the camera view.
Page 2

RECOMMENDED WIRING EXAMPLES ON CANBUS VEHICLES
CANBUS VEHICLE - TYPICAL WIRING FOR MONITOR AND CAMERA FOR
POWER ON WHEN IN REVERSE (PSPK4)
Use PSPK4 for 12v on reverse to prevent any CANBUS errors on vehicle or
low power dropout from CANBUS ECU.
Relay is used as PSPK4 is rated at 1 Amp max.
CANBUS VEHICLE - TYPICAL WIRING FOR MONITOR AND CAMERA FOR
ALWAYS ON POWER (PSPK5)
Use PSPK5 for 12v on ignition to prevent any CANBUS errors on vehicle or
low power dropout from CANBUS ECU.
If more than one camera is used then use the trigger wire to control the
camera view.
Relay is used as PSPK4 is rated at 1 Amp max.
Page 3

CANBUS VEHICLES AND CANBUS INTERFACE UNITS
It is highly recommended that you use a CANBUS Interface unit to make any connections to the vehicle
when tting monitors and camera systems to prevent any issues with power, interference and warranty
claims.
PSKP4 / PSKP5 are 12 volt only. Do not connect to 24 volt systems. The PSKP4 and PSPK5 are 1 Amp rated
so use a relay for devices rated above 1 Amp (See wiring examples on page 3).
IMAGE OF PSPK4
PSPK4 - Provides 12v on reverse
Ideal for having the system activate when the vehicle is placed into reverse gear. At all other times the
system will be inactive or to use as a way of getting a reverse signal for a monitor trigger. For CAN High
and CAN Low location and connection refer to vehicle specications or Parksafe Automotive.
Wiring
- RED - 12 volt DC Live via 5 amp fuse, AA or permanent Live
- BLACK - Ground/Chassis
- WHITE - CAN High
- BLUE - CAN Low
- PURPLE - 1 Amp Rated Max. Connect to monitor and camera power feeds via relay. Can also be used to
provide a reverse trigger output from the vehicle to activate the trigger on the monitor ideal if you have
power feed issues or cannot nd a reverse feed on the vehicle.
IMAGE OF PSPK5
PSPK5 - Provides 12v on ignition
Ideal for having the system activate when the vehicle is running for an always on view of the camera or
cameras. For CAN High and CAN Low location and connection refer to vehicle specications or Parksafe
Automotive.
Wiring
- RED - 12 volt DC Live via 5 amp fuse, AA or permanent Live
- BLACK - Ground/Chassis
- WHITE - CAN High
- BLUE - CAN Low
- PURPLE - 1 Amp Rated Max. Connect to power feeds of monitor and cameras via relay.
CANRUI
CANBUS Engineers programming kit
Essential for for onsite diagnostics and reprogramming of PSPK1 on vehicles that need special
programming. Everything you need to get your customers car talking to our parking sensor interface
without having to revisit site.
Page 4

OEM BRAKE LIGHT CAMERAS
Parksafe Automotive oer a range of OEM brake light cameras for specic vehicles.
Depending on the model the brake light camera it may contain LED’s or a bulb for the illumination of the
brake light during braking. If the brake light camera does not contain LED’s or a bulb then the original
unit LED array will be used by unclipping the LED array from the original unit and clipping it into the
replacement brake light combined camera.
Brake light cameras with IR illumination - The IR LEDS are provided power by the camera and will only
come on at night in dark conditions.
OEM brake light cameras and factory t head units.
Brake Light cameras that are to be tted to vehicles that will feed the video to the vehicles original head
unit are usually required to be NTSC format. PAL format cameras may not be compatible, please check
with the manufactures spec of original head unit.
OEM head unit programmers and OEM interface modules are available from Parksafe Automotive please
follow the instructions given with these units. Please refer to Parksafe Automotive catalogue or website
for information on OEM interfaces and programmers. The camera used should be NTSC.
Mounting of Monitors. Dash Mounted and Mirror Style Monitors.
Dash mounted monitors.
Mount the monitor in a position where it will not interfere with the drivers view using the supplied
monitor mounting system. Depending on the model or monitor you will be provided with a U shaped
bracket that will be mounted with the use of screws or bolts to the desired position or a fan bracket that
will stick to the desired position using 3M double sided pad or pads. If using the 3M pads make sure both
surfaces are clean, grease and oil free and dry. Warming the surface will allow for better adhesion.
Mirror monitors.
Mirrors monitors are provided in several options.
Clip on mirrors.
This type simply clips on to the existing mirror and then the cables go to the roof lining and then to the
location where you want to make all connections.
Universal bracket type mirrors.
These mirror monitors have a universal bracket that allows you to x the monitor to the roof lining or
another suitable position.
OEM replacement mirrors.
These mirror monitors are provided with a stalk and adaptor that allows you to use the existing
windscreen boss. This oers an OEM look. Adaptors are available for most vehicles please enquire at
Parksafe Automotive for your type of vehicle. Parksafe Automotive may require a photograph go the
original windscreen boss to ID the correct adaptor.
OEM replacement mirrors with self applying window boss.
These mirror monitors are provided with a stalk, adaptor and universal windscreen boss with glue
should you not have a tted OEM windscreen boss. Please follow the instructions provided with the kit.
It is important to glue the boss to the glass and not the enamel painted part of the windscreen.
Page 5

MULTI FUNCTION CAMERAS - ONE BUTTON CONTROL
One button control cameras have a small control box in the loom that allows you to make changes to the
camera such as Guidelines on/o, Guideline Style, Guideline Height, Guideline Width, PAL/NTSC,
Normal/Mirror Image, Inverted/Non Inverted Image.
Ideally place the one button controller in a position where both installer and customer can access.
Protect controller from water.
Mode select.
Click within 3 seconds to change setting. i.e.. 6 Clicks to select Grid Line Height and then leave a very
short pause and then press to adjust height. Height will move to maximum and then reset to lowest
before moving back up again in a loop.
Programming.
- 1 CLICK - Guide Line switching mode: Turn ON/OFF Guide Lines
THE FOLLOWING MODES MUST BE OPERATED WITH GUIDE LINES ON.
If guidelines are o you can not access the features to modify them. If the customer does not want
guidelines turn o after making any changes. Changes will be saved.
- 2 CLICKS (Quick-continuous clicks) - Mirror / Non Mirror and Invert Switching Mode
- 3 CLICKS (Quick-continuous clicks) - PAL / NTSC Switching Mode
- 4 CLICKS (Quick-continuous clicks) - Guide Line Type selecting Mode. 2 options of guide lines.
- 5 CLICKS (Quick-continuous clicks) - Guide Line Width adjusting Mode
- 6 CLICKS (Quick-continuous clicks) - Guide Line Height adjusting Mode
Page 6

Page 7
MOUNTING AND WIRING OF CAMERAS
- Ideally keep cameras away from heavy water spray areas.
- Do not clean cameras with a pressure washer.
- Seal all connectors with self amalgamating tape to protect from water ingress.
- Check view and position of camera before mounting to make sure it provides the
view required.
- If mounting a camera in vehicle bodywork make sure you paint and exposed surfaces to protect from
rust.
Wiring.
(See also wiring examples on page 2/3)
Pay attention to the voltage of the camera if wiring directly to the vehicles power. Most cameras are only
12 volts. If the camera is to take power o the monitor video in/power out conectors there is no issue as
the monitors will provide 12 volts even if 24 volts is provided to the monitor.
Cameras with 4 pin connections.
Video, power and audio (if microphone is installed on camera) are all connected through the 4 pin con-
nector and can be connected directly to some monitors. If the monitor has a phono/RCA connector then
use the optional/supplied 4 pin aviation plug to Phono/RCA y lead. If using the y lead with a monitor
tted with Phono/RCA then you will need to provide power to the camera separately, ideally use the
same feed as the monitor.
Cameras with phono/RCA connections.
Video, power and audio (if microphone is installed on camera) are separate, Red or black connectors are
typically power, Yellow Phono/RCA will be video, White Phono/RCA will be Audio. If using a Phono/RCA
to 4 pin aviation plug y lead the power will be provided by the 4 pin aviation plug of the power feeds
are connected.
CAMERAS WITH OWN POWER SUPPLY
Some cameras have seperate power cables and should be given their own power. (See also wiring exam-
ples on page 2/3).
Suggested Wiring Example.
For suggested power
connections see page
2/3

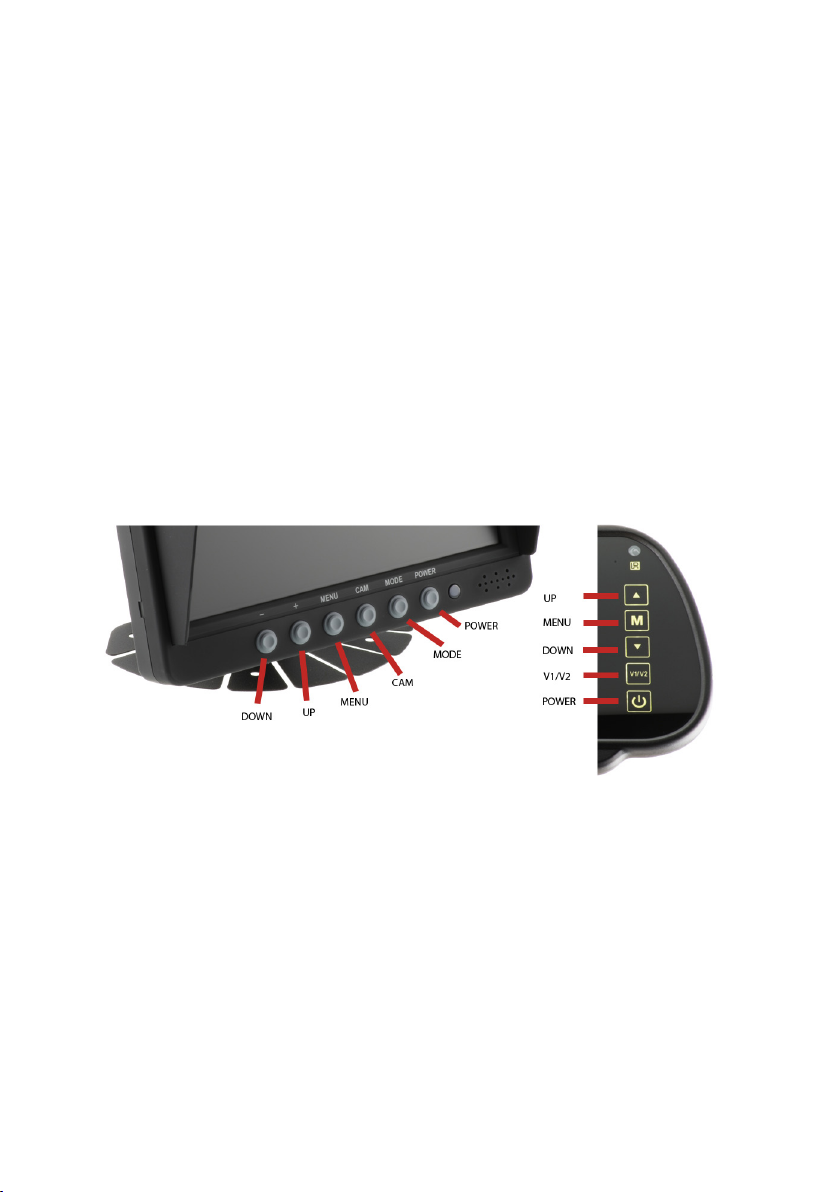

MONITOR MENUS AND CHAINGING SETTINGS
Most monitor menus are very similar so this simple guide will help you navigate the menu. Not all
monitors have all the menu options and some monitors are are xed on one view.
Please note: Some monitors when in the activated trigger mode will not let you enter the menu. You
need to make sure the trigger is not activated rst to enter the menu
Monitors keys.
The menu is easy to navigate through by using the keys.
To enter the menu press MENU or M
Then use the UP and DOWN keys to scroll through the menu
Press MENU to enter the setting you wish to change and again use the UP and DOWN key to choose the
setting
Press MEMU or M to save setting
Settings will remain when power is o.
CAM = Video Channel
V1/V2 = Video Channel
MODE = Preset screen styles
MENU = Enters Menu/Saves Settings
POWER = Turns On/O Monitor
UP = Scroll up menu / Changes volume (Only if camera has microphone)
DOWN = Scrolls down menu / Changes volume (Only if camera has microphone)
Page 8

Page 9
Monitor Menu. Examples of menu features. (Not all features are included on all monitors.)
Volume - Adjusts the volume of the internal speaker if tted.
Brightness - Adjusts the brightness of the screen.
Contrast - Adjusts the contrast of the screen (The relative dierence between light and dark
areas).
Hue - Adjusts the hue, the property of light by which the colour of an object is classied
as
red, blue, green, or yellow in reference to the spectrum.
Saturation - Adjust the colour of the image.
Colour - Adjust the colour of the image.
Video Mode - NTSC & PAL. Depending on the camera you may need to select one of these
settings to get a clear image. Most monitors are auto setting.
Language - Allows you to change the menu language.
AV or Video Source - Allows you to select the video channel or camera view you require. (AV1, AV2, AV3,
AV4 depending on model)
L/R - Screen orientation. Left and right rotation of screen. In eect of swaps the left and
right round as it would looking in a rear view mirror. So for example, if the rear
camera is not preset to show a mirror view then use this to create the eect. When
using this feature the text will also rotate, this is to remind you of the view.
U/D - Screen orientation. This inverts the image, for example if the screen is mounted
on the dashboard use U and if on the roof use D. It can also be used for a camera
that is mounted upside down. When using this feature the text will also rotate,
this is to remind you of the view.
TCON - Screen orientation. When using this feature the text will also rotate, this is to
remind you of the view.
Zoom - Oer 16:9 or 4:3 Aspect ratio of the screen.
Park Setup - Allows you to turn on/o parking guide lines and adjust them if featured.
Cam Delay - If using Triggers this is the time the image is held after trigger is deactivated
Triggers - If using Triggers this is the time the image is held after trigger is deactivated
Mode - This will set pre-dened screen settings for brightness etc.
Reset - Puts the monitor back to factory settings.
Seeing a Video Image
Depending on monitor type and wiring conguration seeing an image will depend on the on this.
Some monitors will only power up when they see a video signal from the camera. For example, if the
camera is powered by the reverse light you will need to be in reverse to see the video image.
Some monitors will show an image or images all the time power is applied on ignition.
If triggers are used then when a trigger is activated then the corresponding image will be shown.

DASH CAMERAS
CAMERAS & MONITORS PARKING SENSORS
WWW.PARKSAFEAUTOMOTIVE.COM
LIGHTING
POWER INVERTERS COMSUMABLES
Page 10

Page 11
MAINTANCE OF MONITORS AND CAMERAS
Monitors
- Clean the monitor only with a damp soft cloth.
- Do not use or spray any chemical cleaners onto the monitor as there is a possibility of damage to the
surface of the LCD and monitor case.
- Do not use any abrasive cleaners or abrasive cloths to clean the monitor as this can damage the case
and LCD Screen
- Check xings are secure
Cameras
- Clean the camera only with a damp soft cloth.
- Do not use or spray any chemical cleaners on the camera as there is a possibility of damage to the
surface, case and seals.
- Do not use any abrasive cleaners or cloths as this can damage the lens and case.
- Do not use a pressure washer to clean the camera as this can damage the seals.
- Check connector seals and xings are all secure
Trouble Shooting
Monitor not powering up - Check power and fuse on main loom and vehicle fuse.
Check cables and connections are secure.
Blue screen on monitor - Check connectors from monitor to camera are secure.
Check camera connections are secure.
Check camera power and fuse if separate.
Cannot enter menu - Check the monitor does not have a trigger activated.
Triggers not working - Check wiring.
Check settings in menu.
No video image - Check correct video channel is selected.
Check camera connection is secure.
Video image is displayed wrong - Check Settings in menu
Check camera is correctly orientated

NOTES
Page 12

WARRANTY
All monitors and cameras have a 2 year warranty.
The warranty is non transferrable and only applies to the original purchaser.
Should the product be found to be defective within the warranty period, the product or part will be
replaced without charge.
To obtain repairs or replacement under the provisions of the warranty, the product should be returned
prepaid with proof of purchase to the address below with a completed copy of our warranty returns
form. To obtain a returns form please contact Parksafe Automotive Limited.
This warranty does not cover the removal or reinstallation costs nor does it cover damage through
alteration, misuse, mishandling, neglect or accident.
Any implied warranty is limited to the duration of this written warranty and Parksafe shall not be liable
for any loss or damage, direct or consequential, arising from the use or inability to use this product.
No person or representative is authorised, to alter or amend this warranty either verbally or in writing.
This warranty does not aect your statutory rights.
Page 13

Parksafe Automotive Limited, Suppliers of Vehicle Electronics.
FORS & CLOCS Approved. DVR Recorders, Vehicle CCTV, Dash
Cameras, Reversing Systems, Parking Sensors, Lighting, Warning
Beacons & Consumables. OEM Design Services.
ISO 9001 Approved Company
‘KEEPING YOU SAFE IS OUR BUSINESS’
Parksafe Automotive Ltd,
Eden House,
High Holborn Road,
Codnor Gate Industrial Estate,
Ripley, Derbyshire,
DE5 3NW
[phone]
[e-mail]
