Parklio BOLLARD User manual
PARKLIO BOLLARD
USER MANUAL
2 | P a g e
Hercegovacka 78, 21 000 Split I Commercial Court in Split I MBS: 060323069 I Raiffeisen Bank,
Zagreb, Petrinjska 59 I IBAN: HR7724840081107194017 I VAT: HR60755958894
v
Thank you for the confidence you have shown us by purchasing our product.
Please read this manual first!
Dear Customers,
Wehopethatallyourexpectationsaboutthisproduct willbefulfilled.Parklio Bollardis
manufacturedusing the latest technologies and has undergone rigorous quality control
procedures.
The User Guide will help you use your product quickly and safely.
•
Read the user manual before installing and using yourproduct.
•
Always follow the safety instructions.
•
Keep this user manual at hand for futurereference.
PARKLIO BOLLARD
USER MANUAL
3 | P a g e
Hercegovacka 78, 21 000 Split I Commercial Court in Split I MBS: 060323069 I Raiffeisen Bank,
Zagreb, Petrinjska 59 I IBAN: HR7724840081107194017 I VAT: HR60755958894
v
PARKLIO BOLLARD DETAILED INSTRUCTIONS
01.
Dimensions....................................................................................................04
02.
Technical Data............................................................................................04
03.
Consideration for Installation.........................................................................05
04.
Method of Installation......................................................................................05
05.
Work Phases.....................................................................................................06
06.
Installation Bollard...........................................................................................07
07.
Electrical Connection................................................................................09
7.1 Emergency release...........................................................................................09
08.
Trouble Shooting..............................................................................................10
09.
Safety Precautions...........................................................................................11
9.1
Installation instructions............................................................................................ 11
9.2
Warnings for the user........................................................................................................11
PARKLIO BOLLARD
USER MANUAL
4 | P a g e
Hercegovacka 78, 21 000 Split I Commercial Court in Split I MBS: 060323069 I Raiffeisen Bank,
Zagreb, Petrinjska 59 I IBAN: HR7724840081107194017 I VAT: HR60755958894
v

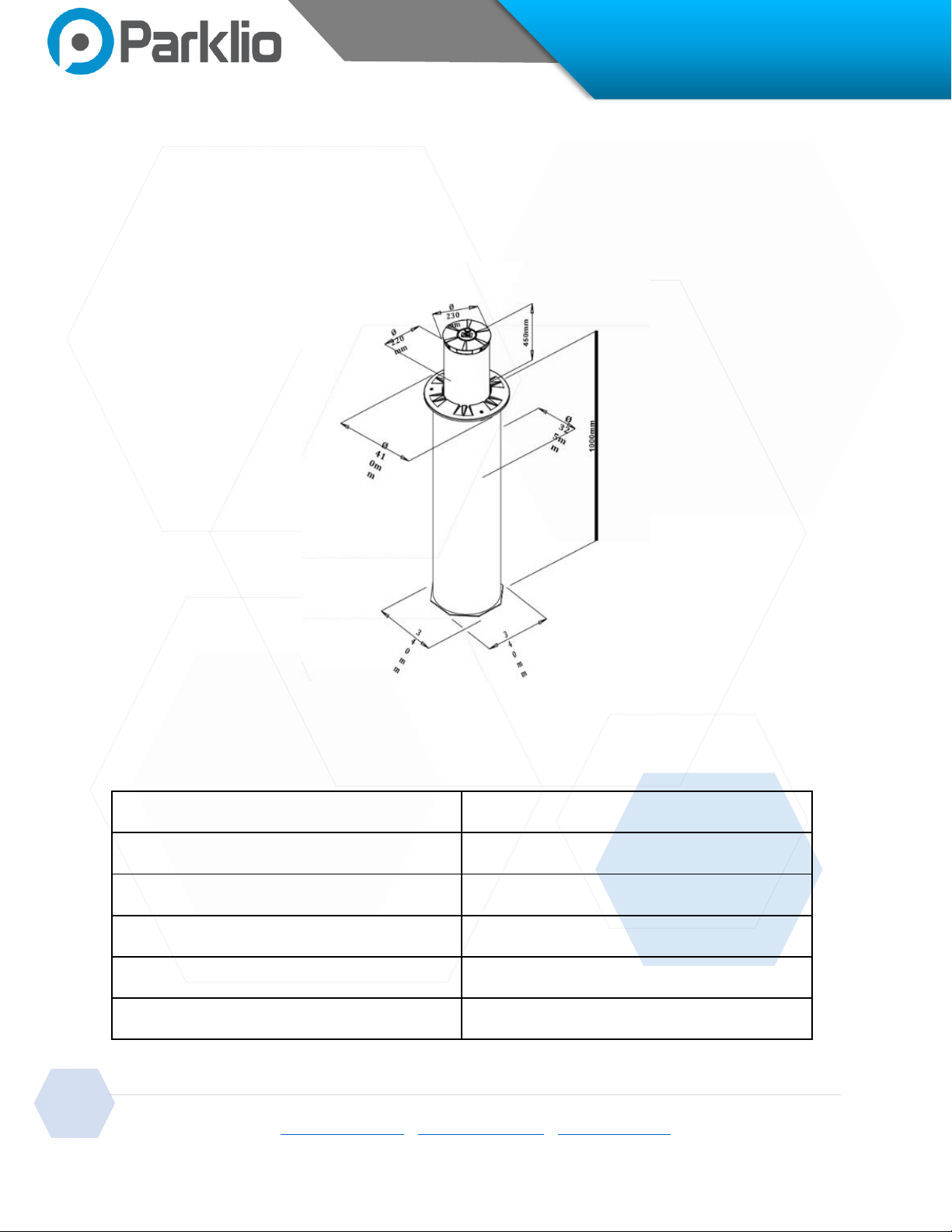

01.DIMENSIONS
02.TECHNICAL DATA
Motor power supply
230 Vac
Motor current input
250 W
Motor RPM
1400
Condenser
12.5 µF
Operating temperature
-20° C / +55° C
Led power supply
24 Vac
PARKLIO BOLLARD
USER MANUAL
5 | P a g e
Hercegovacka 78, 21 000 Split I Commercial Court in Split I MBS: 060323069 I Raiffeisen Bank,
Zagreb, Petrinjska 59 I IBAN: HR7724840081107194017 I VAT: HR60755958894
v
Protection Rating
IP66
Time of opening or closing
7 sec
Bollard stroke
450 mm
Motor current input
1 A
Weight tube of foundation
35 Kg
Weight bollard internal
45 g

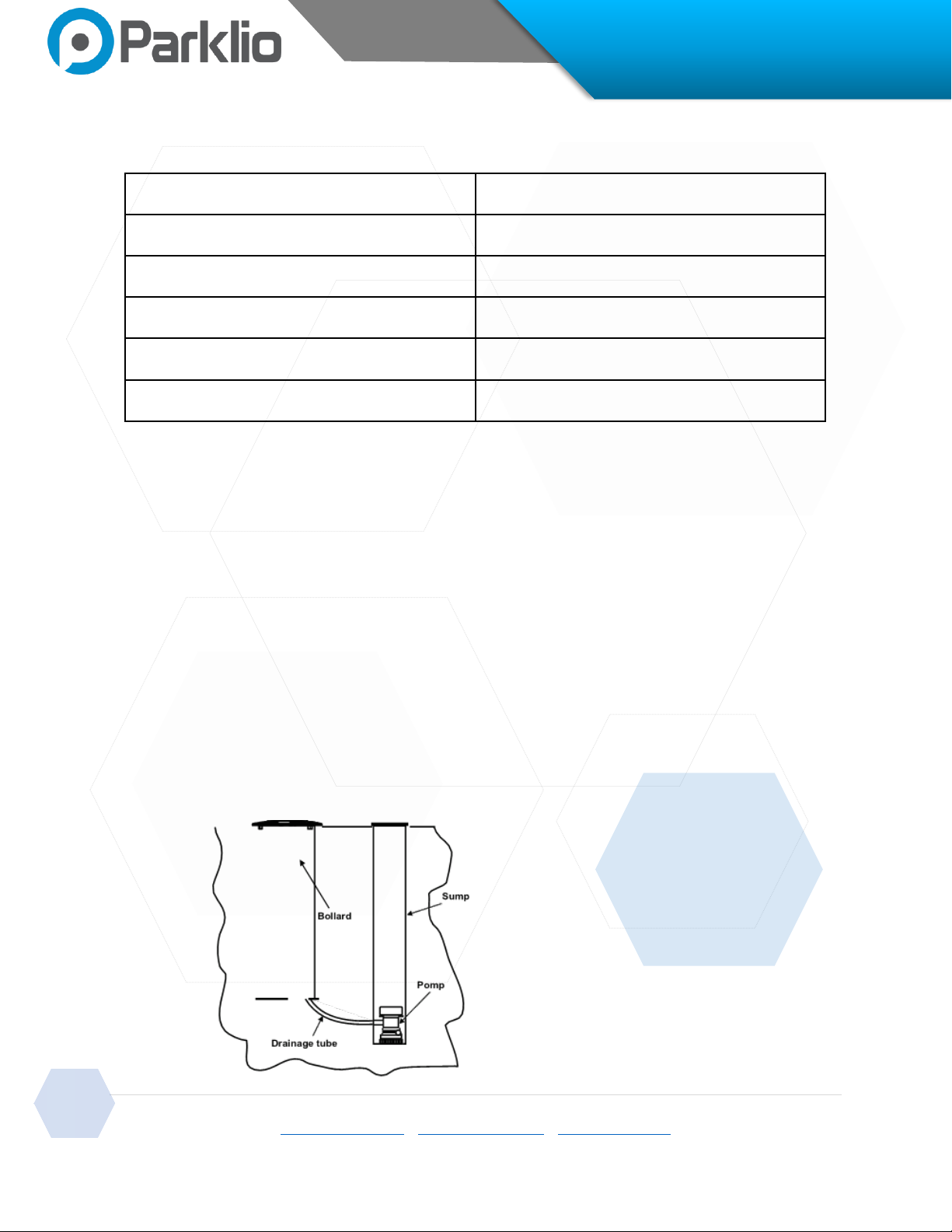

03.CONSIDERATIONS FOR INSTALLATION
•
Theinstallationandtestingoperationsmustbeperformedonly byaqualifiedpersonto
guarantee the proper and safe operation of the automatic gate.
•
Thecompanydeclinesanyresponsibilityfordamagecausedbyincorrectinstallations
due to incompetence and/or negligence.
04.METHOD OF INSTALLATION
•
Create an excavation in the ground of an adequate size tohold the tube outside of the
bollard and prepare the trunking and drainage for the water inside theholes on the
bottom of the tube.
•
Levelandcement.
IMPORTANT: It is necessary to prepare a
water drainage for the automation to
work properly
PARKLIO BOLLARD
USER MANUAL
6 | P a g e
Hercegovacka 78, 21 000 Split I Commercial Court in Split I MBS: 060323069 I Raiffeisen Bank,
Zagreb, Petrinjska 59 I IBAN: HR7724840081107194017 I VAT: HR60755958894
v

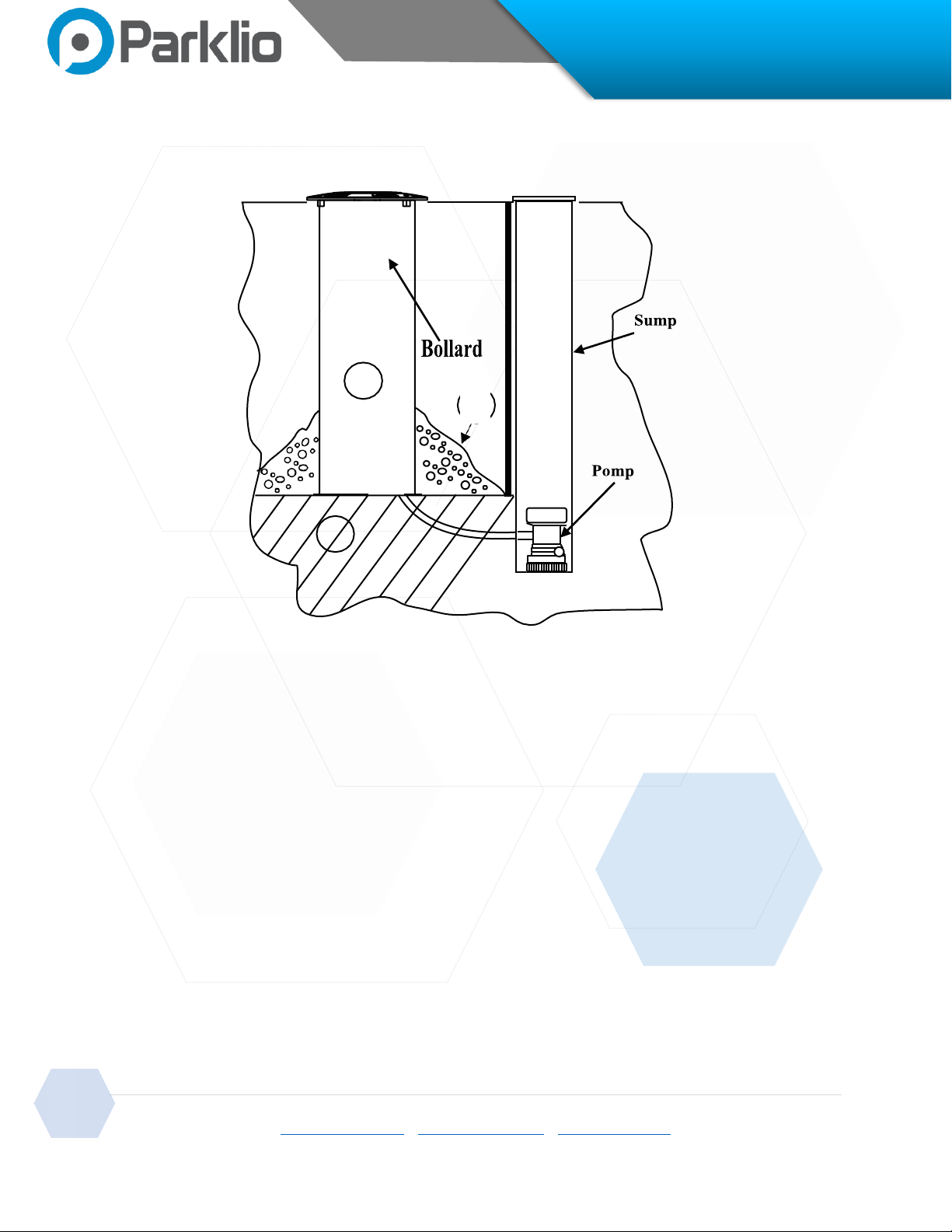

05.WORK PHASES
•
Prepare level (A) at a depth of about 1m from the surface
•
Block the tube (T) through weak-mix concrete (M)
•
Check the lead and level
•
Put cement
T
M
A
PARKLIO BOLLARD
USER MANUAL
11 | P a g e
Hercegovacka 78, 21 000 Split I Commercial Court in Split I MBS: 060323069 I Raiffeisen Bank,
Zagreb, Petrinjska 59 I IBAN: HR7724840081107194017 I VAT: HR60755958894
v
09. SAFETY PRECAUTIONS
Thesewarnings areanessential, integral part oftheproduct andmust begiventothe
user. They provide important indications onthe installation. Useand maintenancemust be
readcarefully.This formmust bepreservedandpassed ontosubsequent usersof the
system. The incorrect installation or improper use of the product may be dangerous.
INSTALLATION INSTRUCTIONS
•
Theinstallationmustbeperformedbyprofessionallycompetentpersonnelandin
compliance with current local, state, national and Europeanlegislation.
•
Before starting installation, check the integrity of the product.
•
Thelayingofcables,electricalconnectionsandadjustmentsmustbe performed in a
workmanlike manner.
•
Thepackingmaterials(cardboard,plastic,polystyrene,etc.)areapotentialhazardand
should be disposed of correctly and not left within reach of children.
•
Do not install the product in potentially explosive environments or environments
disturbedbyelectromagneticfields.Thepresenceofinflammablegasesorfumesisa
grave danger to safety.
•
Setupasafetydeviceforovervoltage,adisconnectingand/ordifferentialswitchsuitable
for the product and conforming to current standards.
•
Themanufacturerdeclinesallresponsibilityforproductintegrity,safetyandoperation in
the event incompatible devices and/or components are installed.
•
Solely original spare parts should be used for repairs and replacements.
•
Theinstallermustprovidealltheinformationrelatingtotheoperation,maintenanceand
use of the individual parts, components and system.
PARKLIO BOLLARD
USER MANUAL
12 | P a g e
Hercegovacka 78, 21 000 Split I Commercial Court in Split I MBS: 060323069 I Raiffeisen Bank,
Zagreb, Petrinjska 59 I IBAN: HR7724840081107194017 I VAT: HR60755958894
v
SAFETY WARNINGS
•
Read the instructions and enclosed documentation carefully.
•
The product must be used for the express purpose for which it was designed. Any other
useisconsideredimproperandthereforehazardous.Furthermore,theinformationgiven
in this document and in the attached documentation may be subject to modifications
without priornotice. They are in fact provided as an indication for the application of the
product. The manufacturer declines all potential responsibility.
•
Keep products, devices, documentation and anything else provided out of reach of
children.
•
Incaseofmaintenance, cleaning, breakdown ordisfunction of theproduct, disconnect the
power supply, refraining from any intervention attempt. Contact only professionally
competent and dedicated personnel.
•
Failure to comply with the above indication can be dangerous.
