Parkside PGG 15 D3 User manual

ENGRAVING TOOL PGG 15 D3
IAN 285127
GRAVÍROVAČKA
Preklad pôvodného návodu na použitie
GRAVIERGERÄT
Originalbetriebsanleitung
APARAT ZA GRAVIRANJE
Prevod originalnega navodila za uporabo
GRAVÍROVACÍ PŘÍSTROJ
Překlad původního návodu k používání
ENGRAVING TOOL
Translation of the original instructions
GRAVÍROZÓ KÉSZÜLÉK
Eredeti használati utasítás fordítása

GB Translation of the original instructions Page 5
HU Eredeti használati utasítás fordítása Oldal 24
SI Prevod originalnega navodila za uporabo Stran 43
CZ Překlad původního návodu k používání Strana 62
SK Preklad pôvodného návodu na použitie Strana 80
DE/AT/CH Originalbetriebsanleitung Seite 99

1 2 3
45
6
7

5GB
List of pictograms used..................................... Page 6
Introduction................................................................ Page 7
Intended use..................................................................... Page 7
Description of parts.......................................................... Page 8
Scope of delivery............................................................. Page 8
Technical data.................................................................. Page 8
General power tools
safety warnings ..................................................... Page 10
Initial use...................................................................... Page 14
Switching on/ off ............................................................. Page 15
Setting the cutting depth.................................................. Page 15
Changing the engraving point ........................................ Page 16
Engraving.......................................................................... Page 16
Maintenance and cleaning............................ Page 17
Disposal......................................................................... Page 18
Service............................................................................ Page 19
Warranty claim procedure.............................................. Page 19
Service .............................................................................. Page 20
Warranty...................................................................... Page 20
Translation of original
conformity declaration..................................... Page 21

6 GB
List of pictograms used
Read the instruction manual.
Wear hearing protection.
Wear a dust mask.
Wear eye protection.
Wear protective gloves.
Protection class II (double insulation)
Risk of electric shock! Unplug the mains plug from
the socket prior to performing maintenance or repairs.

7GB
Engraving tool PGG 15 D3
Introduction
We congratulate you on the purchase of your new product. You
have chosen a high quality product. The instructions for use are
part of the product. They contain important information concern-
ing safety, use and disposal. Before using the product, please fa-
miliarise yourself with all of the safety information and instructions
for use. Only use the product as described and for the specified
applications. If you pass the product on to anyone else, please en-
sure that you also pass on all the documentation with it.
Intended use
This product is designed to engrave or decorate materials such as
metal, plastic, glass, ceramics, wood and leather. Any other use or
modifiaction to the product are considered improper use and can
result in hazards such as death, life-threatening injuries and dam-
age. Damages occuring due to improper use are not covered by
the manufacturer. The product is not intended for commercial use
or for any other use.

8 GB

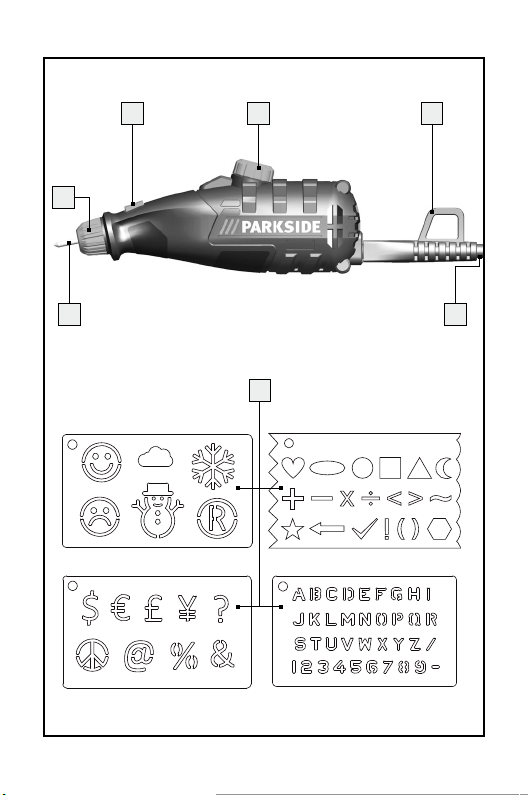

Description of parts
1ON/OFF switch
2Stroke rate rotary controller
3Eye
4Mains lead
5Engraving point
6Engraving point holder
7Templates
Scope of delivery
1 Engraving tool PGG 15 D3
4 templates
1 set of operating instructions
Technical data
Rated voltage: 230V (alternating current), 50Hz
Operating mode: periodic intermittent operation: S3 20%
Note: A duty cycle (in %) explicitly
specifies the maximum continuous dura-
tion of use and the subsequent rest
period. In this case the tool requires a
cooling phase of eight minutes after an
operating period of two minutes, for
example.
Rated current: 0.15A
Number of strokes: 6000min
Weight approx.: 370g

9GB
Noise emission value:
Noise measurement value determined in accordance with
EN 60745. The A-rated noise level of the product is typically as
follows:
Chiselling:
Sound pressure level : 71.7dB dB(A)
Uncertainty K: 3dB
Sound power level : 82.7dB(A)
Uncertainty K: 3dB
Wear hearing protection!
Total vibration value:
Total vibration values (vector total of three directions) determined
in accordance with EN 60745:
Total vibration value: 1.457m /s2
Uncertainty K: 1.5m/s2
NOTE
The vibration level specified in these instructions has been
measured in accordance with a standardised measuring pro-
cedure and can be used to make product comparisons. The
specified vibration emission value can also be used to make
an initial exposure estimate.

10 GB
The vibration level varies in accordance with the use of the
product and may be higher than the value specified in these
instructions in some cases. Regular use of the product in such
a way may cause the user to underestimate the vibration. Try
to keep the vibration loads as low as possible. Measures to
reduce the vibration load are, e.g. wearing gloves and limiting
the working time. Wherein all states of operation must be in-
cluded (e.g. times when the product is switched off and times
where the product is switched on but running without load).
General power tools
safety warnings
Read all safety directions and instructions. Failure to
follow the warnings and instructions may result in electric shock,
fire and/or serious injury.
Save all warnings and instructions for future reference.
The term “power tool“ in the warnings refers to your mains-operated
(corded) power tool or battery-operated (cordless) power tool.
Work area safety
1) Keep work area clean and well lit. Cluttered or dark
areas invite accidents.

11GB
2) Do not operate power tools in explosive atmos-
pheres, such as in the presence of flammable liq-
uids, gases or dust. Power tools create sparks which may
ignite the dust or fumes.
3) Keep children and bystanders away while operat-
ing a power tool. Distractions can cause you to lose control.
Electrical safety
1) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets will reduce risk
of electric shock.
2) Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock if
your body is earthed or grounded.
3) Do not expose power tools to rain or wet condi-
tions. Water entering a power tool will increase the risk of
electric shock.
4) Do not abuse the cord. Never use the cord for car-
rying, pulling or unplugging the power tool. Keep
cord away from heat, oil, sharp edges or moving
parts. Damaged or entangled cords increase the risk of
electric shock.
5) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of electric shock.

12 GB
6) If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of
electric shock.
Personal safety
1) Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the influence of drugs, alcohol or medication. A mo-
ment of inattention while operating power tools may result in
serious personal injury.
2) Use personal protective equipment. Always wear
eye protection. Protective equipment such as dust mask,
non-skid safety shoes, hard hat, or hearing protection used for
appropriate conditions will reduce personal injuries.
3) Prevent unintentional starting. Ensure the switch is
in the off-position before connecting to power
source and/or battery pack, picking up or carry-
ing the tool. Carrying power tools with your finger on the
switch or energising power tools that have the switch on in-
vites accidents.
4) Remove any adjusting key or wrench before turn-
ing the power tool on. A wrench or a key left attached to
a rotating part of the power tool may result in personal injury.
5) Do not overreach. Keep proper footing and bal-
ance at all times. This enables better control of the power
tool in unexpected situations.

13GB
6) Dress properly. Do not wear loose clothing or jew-
ellery. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewellery or long hair
can be caught in moving parts.
7) If devices are provided for the connection of dust
extraction and collection facilities, ensure these
are connected and properly used. Use of dust collec-
tion can reduce dust-related hazards.
Power tool use and care
1) Do not force the power tool. Use the correct
power tool for your application. The correct power
tool will do the job better and safer at the rate for which it was
designed.
2) Do not use the power tool if the switch does not
turn it on and off. Any power tool that cannot be con-
trolled with the switch is dangerous and must be repaired.
3) Disconnect the plug from the power source
and/ or the battery pack from the power tool
before making any adjustments, changing acces-
sories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.
4) Store idle power tools out of the reach of children.
Do not allow persons unfamiliar with the power
tool or these instructions to operate the power tool.
Power tools are dangerous in the hands of untrained users.
5) Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and
any other condition that may affect the power

14 GB
tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by
poorly maintained power tools.
6) Keep cutting tools sharp and clean. Properly main-
tained cutting tools with sharp cutting edges are less likely to
bind and are easier to control.
7) Use the power tool, accessories and tool bits etc.
in accordance with these instructions, taking into
account the working conditions and the work to
be performed. Use of the power tool for operations differ-
ent from those intended could result in a hazardous situation.
Service
1) Have your power tool serviced by a qualified re-
pair person using only identical replacement
parts. This will ensure that the safety of the power tool is
maintained.
Initial use
Never use the product for any purpose other than the intended
purpose and only use it with the original parts and accessories.
Using parts or accessories not specified in the instructions may
result in injuries.

15GB
Switching on/off
Plug into a socket.
Switching on:
Keep pressing the ON/OFF switch 1.
Switching off:
Release the ON/OFF switch 1.
Setting the cutting depth
The cutting depth of the engraver is set using the stroke rate rotary
controller 2. A low setting is usually sufficient for most common
applications.
Turn the stroke rate rotary controller 2towards the + sign to
increase the cutting depth.
1 2 3 4 5 6
Material metal glas wood plastic ceramic leather
Turn the stroke rate rotary controller 2towards the - depth to
decrease the cutting depth.

16 GB
Note: Take care when increasing the cutting depth not to turn
the stroke rate rotary controller 2too far towards the + sign.
Otherwise the switch could screw off the product.
Changing the engraving point
CAUTION! RISK OF INJURY!
Switch the product off and pull the plug out of the mains
socket before carrying out any work on the product.
Change the engraving point 5as soon as it gets worn down
and no longer delivers the desired results. Turn the engraving
point holder 6counterclockwise until the engraving point
can be removed.
Note: Such engraving points are available from speciality
retailers.
Remove the spring and the plain washer.
Note: Spring is under pressure.
Push the plain washer and spring onto a new engraving point
5. Then insert this and turn the engraving point holder 6
clockwise until it is firm to lock the engraving point in position.
Ensure that the engraving point 5is well secured.
Engraving
You can use this product to create attractive and unique engrav-
ings. For example, you can use it to mark valuables as your own.
You can engrave numbers and letters into metal, glass, wood,

17GB
plastic, ceramic and leather. Use the templates 7included in the
scope of delivery to do so.
Hold the product at an angle like you would a pen. Your arm
should be placed on a table while doing so.
Lead the engraving point 5over the work piece while apply-
ing a little surface pressure. Practice the feed rate on scrap
material for the best results.
Note: The engraving point 5included in the scope of deliv-
ery is made from tungsten steel. It is therefore not suitable for
engraving electronic media such as CDs, DVDs, etc. These
materials and their readability could be damaged.
Maintenance and cleaning
RISK OF ELECTRIC SHOCK!
Unplug the mains plug from the socket prior to
performing maintenance or repairs.
Clean the product regularly, preferably immediately after
every use.
Use a dry cloth to clean the housing. Never use petrol,
solvents or cleaning agents that attack plastic.

18 GB
Disposal
The packaging is made entirely of recyclable materials,
which you may dispose of at local recycling facilities.
The Green Dot is not valid for Germany.
b
a
Observe the marking of the packaging materials for
waste separation, which are marked with abbreviations
(a) and numbers (b) with following meaning: 1–7: plas-
tics/ 20–22: paper and fibreboard/80–98: compo-
site materials.
The product and packaging materials are recyclable,
dispose of it separately for better waste treatment. The
Triman logo is valid in France only.
Contact your local refuse disposal authority for more
details of how to dispose of your worn-out product.
To help protect the environment, please dispose of the
product properly when it has reached the end of its
useful life and not in the household waste. Information
on collection points and their opening hours can be
obtained from your local authority.

19GB
Service
Have your product repaired at the service centre or an electri-
cian, using only original manufacturer parts. This will maintain
the safety of this product.
Always have a plug or power cord replaced by the product
manufacturer or its service centre. This will maintain the safety
of this product.
Have your tool repaired by a qualified person
This electric tool complies with the relevant safety rules. Re-
pairs should only be carried out by qualified persons using
original spare parts, otherwise this may result in considerable
danger to the user.
Warranty claim procedure
To ensure quick processing of your case, please observe the
following instructions:
Please have the till receipt and the item number (e.g. IAN 123456)
available as proof of purchase.
You will find the item number on the type plate, an engraving on
the front page of the instructions (bottom left), or as a sticker on the
rear or bottom of the appliance.
If functional or other defects occur, please contact the service
department listed either by telephone or by e-mail.

20 GB
You can return a defective product to us free of charge to the ser-
vice address that will be provided to you. Ensure that you enclose
the proof of purchase (till receipt) and information about what the
defect is and when it occurred.
Service
Service Great Britain
Tel.: [phone]
(0.07£/min – 0.68 £/min +
0.13£/call (set up fee)
(fees depends on operator))
E-Mail: o[email protected]
IAN 285127
Warranty
The product has been manufactured to strict quality guidelines
and meticulously examined before delivery. In the event of product
defects you have legal rights against the retailer of this product.
Your legal rights are not limited in any way by our warranty
detailed below.

21GB
The warranty for this product is 3 years from the date of purchase.
Should this product show any fault in materials or manufacture
within 3 years from the date of purchase, we will repair or replace
it – at our choice – free of charge to you.
The warranty period begins on the date of purchase. Please keep
the original sales receipt in a safe location. This document is requi-
red as your proof of purchase. This warranty becomes void if the
product has been damaged, or used or maintained improperly.
The warranty applies to defects in material or manufacture. This
warranty does not cover product parts subject to normal wear,
thus possibly considered consumables (e.g. batteries) or for da-
mage to fragile parts, e.g. switches, rechargeable batteries or
glass parts.
Translation of original
conformity declaration
We, OWIM GmbH & Co. KG, Stiftsbergstraße 1, DE-74167
Neckarsulm, GERMANY, hereby declare under our sole responsi-
bility that the product: Engraving tool PGG 15 D3, Model No.:
HG02563, Version: 04/2017, to which this declaration refers,
complies with the standards/normative documents of 2006/42/
EG, 2014/30/EU, 2011/65/EU.
