Parkside PGG 15 A1 User manual

POWER ENGRAVING TOOL PGG 15 A1
3
GRAVERINGSMASKINE
Brugs- og sikkerhedsanvisninger
Oversættelse af den originale driftsvejledning
POWER ENGRAVING TOOL
Operation and Safety Notes
Translation of original operation manual
GRAVYRMASKIN
Bruksanvisning och säkerhetsanvisningar
Översättning av bruksanvisning i original
KAIVERRUSLAITE
Käyttö- ja turvaohjeet
Alkuperäisen käyttöohjeen käännös
GRAVIERGERÄT
Bedienungs- und Sicherheitshinweise
Originalbetriebsanleitung

GB/IE Operation and Safety Notes Page 5
FI Käyttö- ja turvaohjeet Sivu 21
SE Bruksanvisning och säkerhetsanvisningar Sidan 35
DK Brugs- og sikkerhedsanvisninger Side 49
DE/AT/CH Bedienungs- und Sicherheitshinweise Seite 65
Before reading, unfold the page containing the illustrations and familiarise yourself with all
functions of the device.
Käännä ennen lukemista kuvallinen sivu esiin ja tutustu seuraavaksi laitteen kaikkiin
toimintoihin.
Vik ut bildsidan och ha den till hands när du läser igenom anvisningarna och gör dig
bekant med apparatens/maskinens funktioner.
Før du læser, vend siden med billeder frem og bliv bekendt med alle apparatets funktioner.
Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus und machen Sie sich
anschließend mit allen Funktionen des Gerätes vertraut.

B
1 2 3
45
6
A
7

5GB/IE
Introduction
Proper use ..............................................................................Page 7
Features and equipment........................................................Page 7
Included items........................................................................Page 8
Technical details ....................................................................Page 8
General safety advice for
electrical power tools
1. Workplace safety..............................................................Page 9
2. Electrical safety .................................................................Page 10
3. Personal safety ..................................................................Page 11
4. Careful handling and use of electrical power tools.......Page 12
Operation
Switching on/off...................................................................Page 13
Setting the stroke rate............................................................Page 14
Changing the engraving point..............................................Page 14
Advice on use ........................................................................Page 15
Cleaning..............................................................................Page 15
Service..................................................................................Page 16
Warranty ...........................................................................Page 16
Disposal...............................................................................Page 17
Manufacturer’s Declaration of
Conformity/Manufacturer................................Page 18
Table of contents

6 GB/IE
Introduction

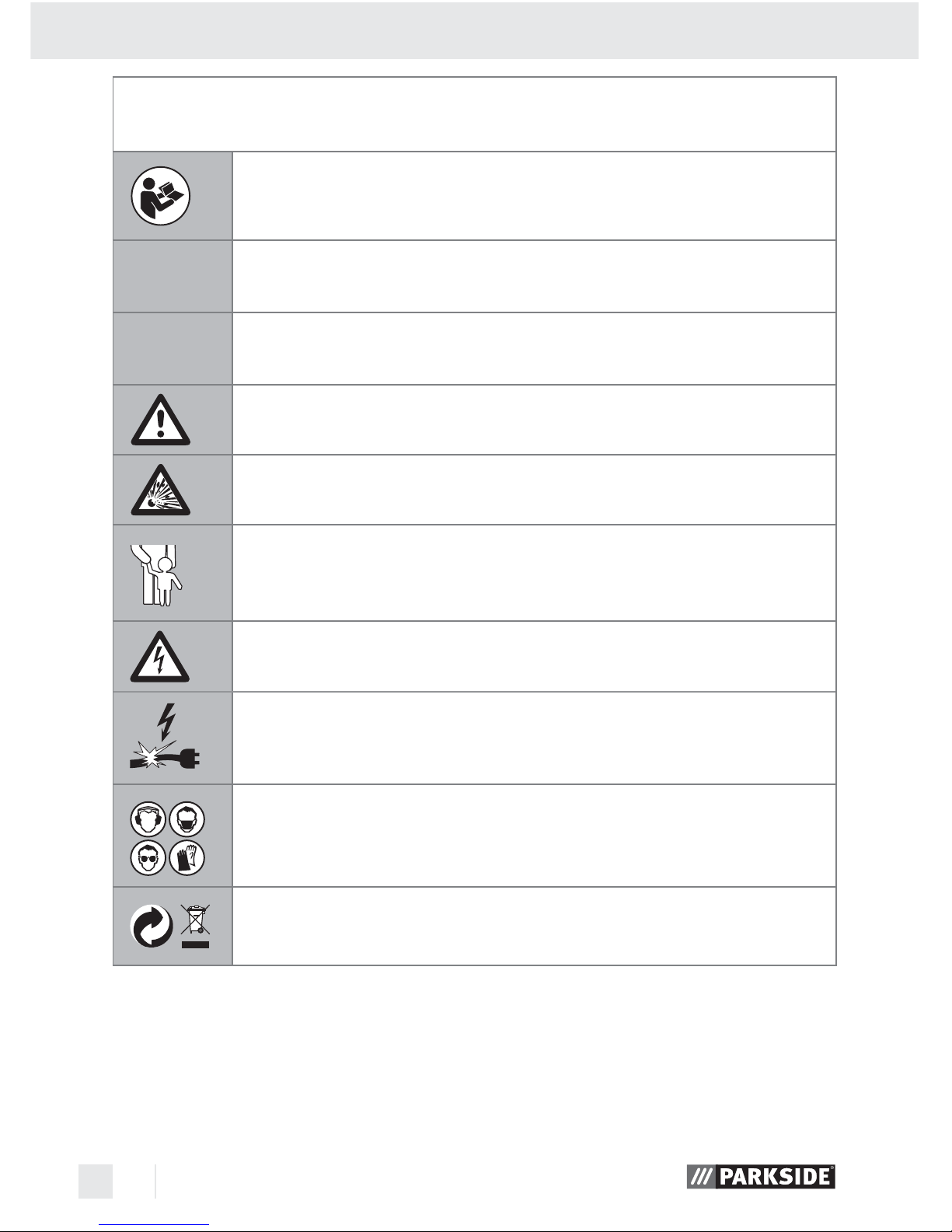

The following pictograms are used in these operating
instructions/on the device:
Read instruction manual!
V~Volt (AC)
AAmps
Observe caution and safety notes!

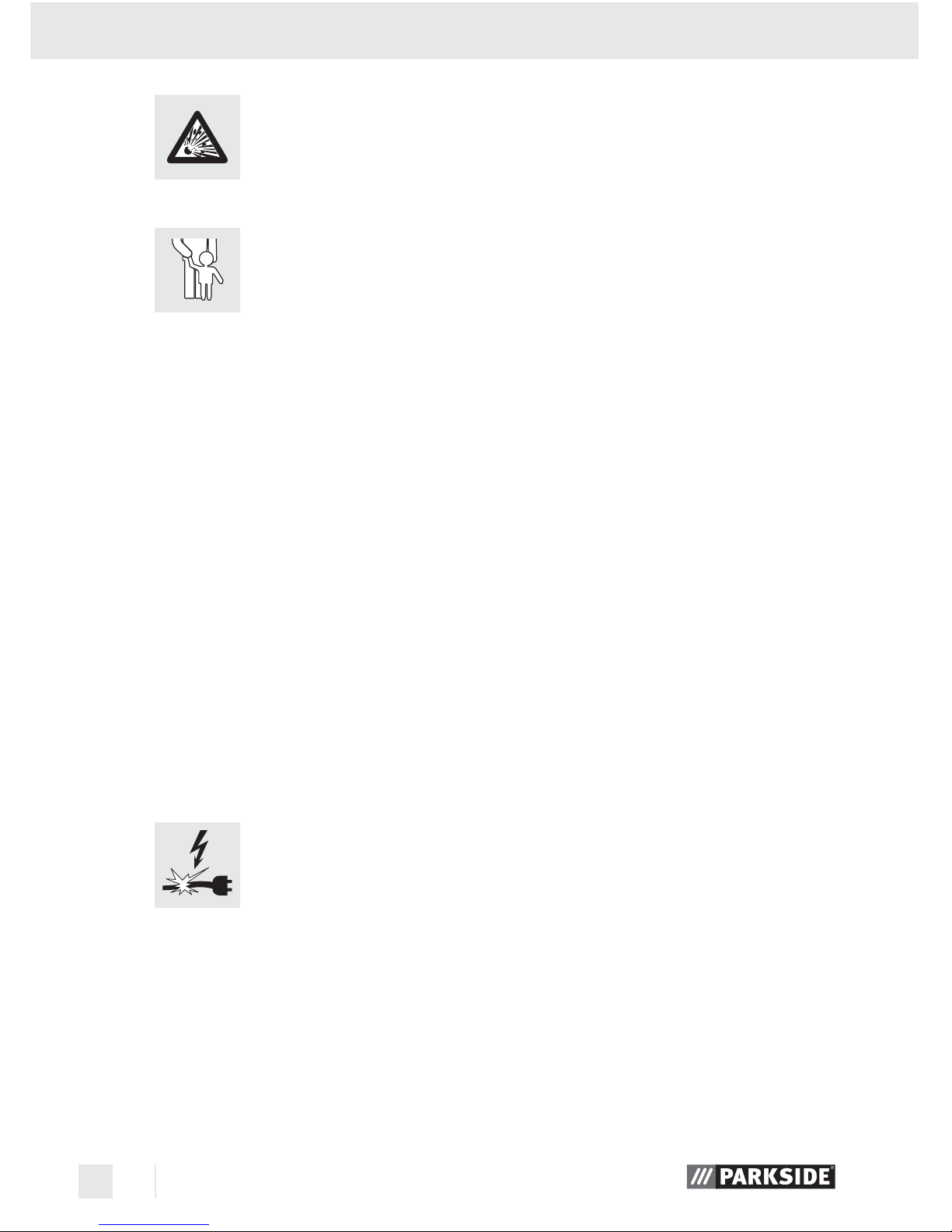

Risk of explosion!!
Keep children away from electrical power tools!
Caution–electric shock! Danger to life!
Risk of loss of life by electric shock from damaged mains
lead or mains plug!

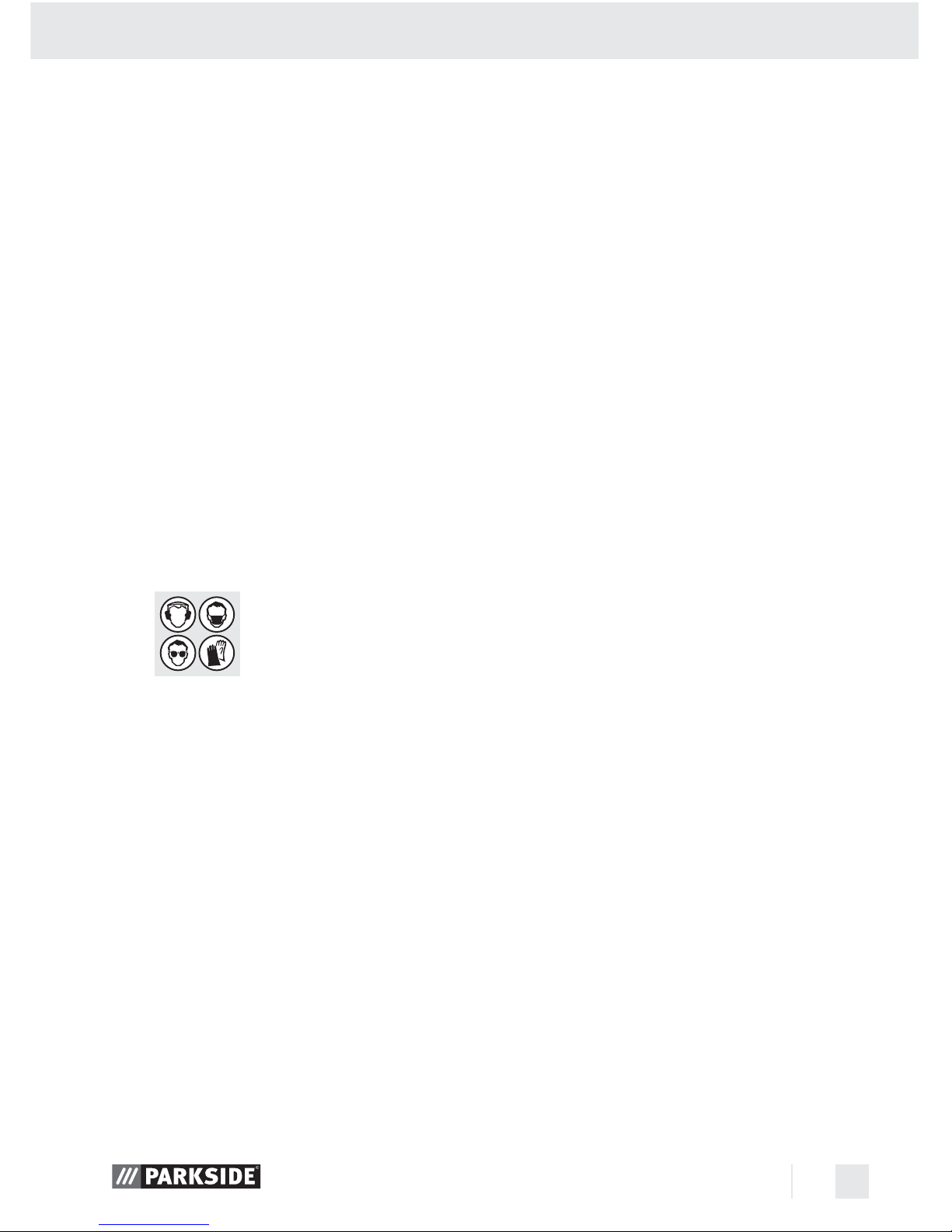

Wear hearing protection, dust protection mask, protective
glasses and protective gloves.
Dispose packaging and appliance in an environmentally-
friendly way!

7GB/IE
Introduction
Power engraving tool PGG 15 A1

Introduction
Please make sure you familiarise yourself fully with the way
the device works before you use it for the first time and that
you understand how to handle electrical power tools correctly.
To help you do this please read the accompanying operating instructions.
Keep these instructions in a safe place. If you pass the device on to an-
yone else, please ensure that you also pass on all the documentation.

Proper use
This product is intended for engraving or decorating materials such
as metal, plastic, glass, ceramic, wood and leather. Any other use or
modification to the drill/grinder shall be considered as improper use
and could give rise to considerable dangers. The manufacturer will not
accept liability for loss or damage arising from improper use. Not in-
tended for commercial use.

Features and equipment
1ON/OFF switch
2Stroke switch
3Hanging eye
4Mains lead
5Engraving point
6Engraving point holder
7Engraving stencil

8 GB/IE
Introduction

Included items
1 Engraver PGG 15 A1
1 Engraving stencil
1 Operating instructions

Technical details
Rated voltage: 230V~50Hz
Mode of operation: intermittent operation: S3 20%
Rated current: 0.15A S3 20%
Stroke rate: 6000min-1
Noise and vibration data:
Measured values for noise are determined in accordance with
EN 60745. The A-weighted noise level of the electrical power tool
are typically:
Sound pressure level: 74.4dB(A)
Sound power level: 85.4dB(A)
Uncertainty K: 3dB

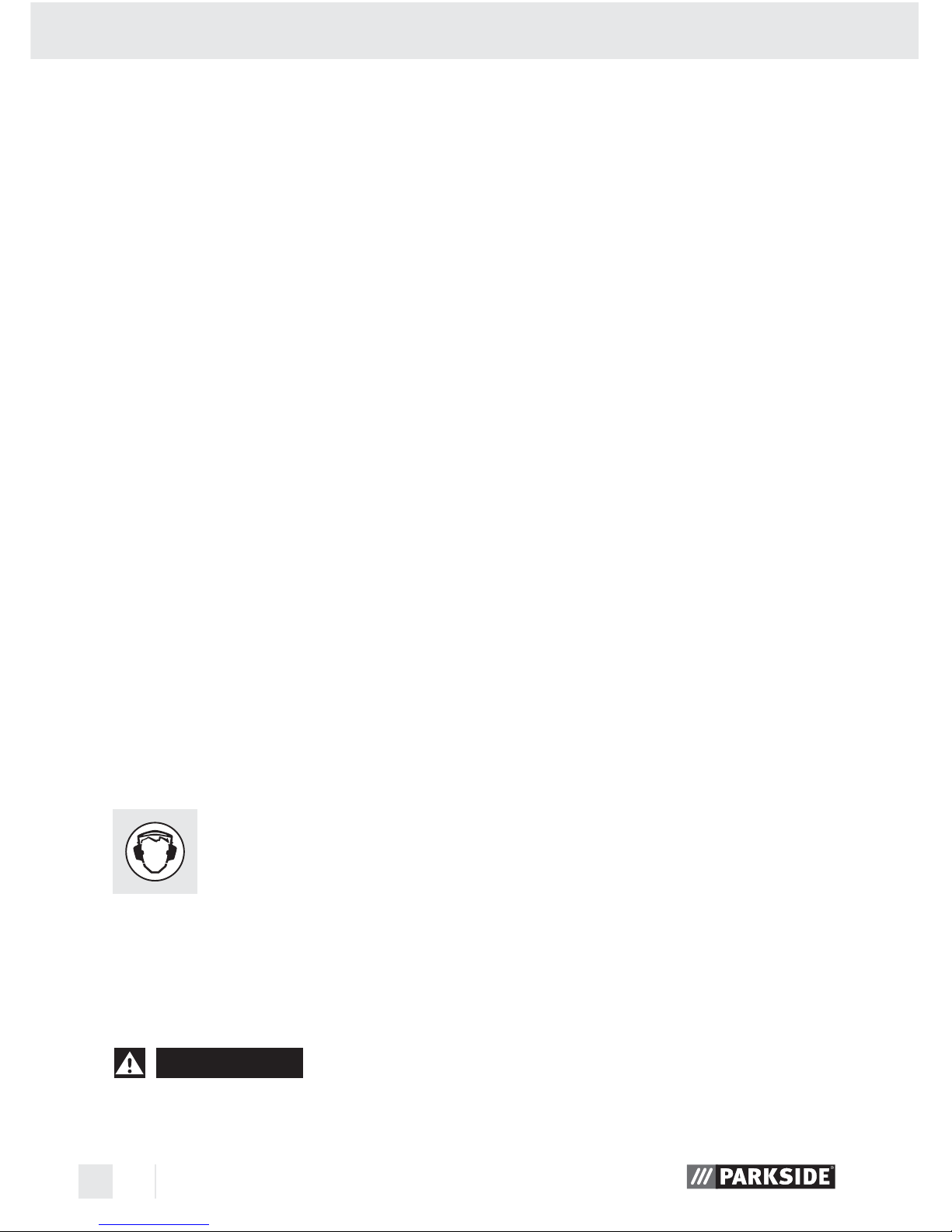

Wear ear protection!
Evaluated acceleration, typical:
Hand/arm vibration: 1.582m/s2
Uncertainty K = 1.5m/s2
WARNING!
The vibration level given in these instructions has
been measured in accordance with a standardised measurement pro-
cedure specified in EN 60745 and can be used to compare devices.

9GB/IE
Introduction/General safety advice for electrical power tools
Different uses of the device give rise to different vibration levels and in
many cases they may exceed the values given in these instructions. It is
easy to underestimate the vibration load if the electrical power tool is
used regularly in particular circumstances.
Note: If you wish to make an accurate assessment of the vibration
loads experienced during a particular period of working, you should
also take into account the intervening periods of time when the device
is switched off or is running but is not actually in use. This can result in
a much lower vibration load over the whole of the period of working.
General safety advice for
electrical power tools
WARNING!
Read all the safety advice and instruction
s!
Failure to observe the safety advice and instructions may result in electric
shock, fire and/or serious injury.
Keep all the safety advice and instructions in a safe place
for future reference!
The term “electrical tool” used in the safety advice refers to electrical
tools powered by mains electricity (by means of a mains lead) and
electrical tools powered by rechargeable batteries (without a mains
lead).
1. Workplace safety
a) Keep your working area clean and well lit. Untidy or
poorly lit working areas can lead to accidents.

10 GB/IE
General safety advice for electrical power tools
b) Do not work with the device in potentially
explosive environments in which there are
inflammable liquids, gases or dusts. Electrical
power tools create sparks, which can ignite dusts or fumes.
c) Keep children and other people away while
you are operating the electrical tool. Distrac-
tions can cause you to lose control of the device.
2. Electrical safety
a) T he mains plug on the device must match the mains
socket. The plug must not be modified in any way.
Do not use an adapter plug with devices fitted with
a protective earth. Unmodified plugs and matching sockets
reduce the risk of electric shock.
b) Avoid touching earthed surfaces such as pipes, radi-
ators, ovens and refrigerators with any part of your
body. There is an increased risk of electric shock if your body is
earthed
.
c) Keep the device away from rain or moisture. Water
entering an electrical device increases the risk of electric shock.
d) Do not use the mains lead for any purpose for
which it was not intended, e.g. to carry the de-
vice, to hang up the device or to pull the mains
plug out of the mains socket. Keep the mains lead
away from heat, oil, sharp edges or moving parts of
the device. Damaged or tangled mains leads increase the risk
of electric shock.
e) When working outdoors with an electrical power tool
always use extension cables that are also approved

11GB/IE
General safety advice for electrical power tools
for use outdoors. The use of an extension cable suitable for
outdoor use reduces the risk of electric shock.
f) Use a residual current device (RCD) for protection if
operating the electrical power tool in a moist envi-
ronment is unavoidable. The use of an RCD reduces the risk
of electric shock.
3. Personal safety
a) Remain alert at all times, watch what you are doing
and always proceed with caution. Do not use the de-
vice if you are tired or under the influence of
drugs,
alcohol or medication. One mo
ment of carelessness when us-
ing the device can lead to serious injury.
b) Wear personal protective equipment and
always wear safety glasses. The wearing of
personal protective equipment such as dust masks,
non-slip safety shoes, safety helmets or ear protectors, appropriate
to the type of electrical power tool used and work undertaken,
reduces the risk of injury.
c) Avoid unintentional operation of the device. Check
that the electrical power tool is switched off before y ou
connect it to the mains, pick it up or carry it. Accidents
can happen if you carry the device with your finger on the ON/
OFF switch or with the device switched on.
d) Remove any setting tools or spanners before you
switch the device on. A tool or spanner left attached to a
rotating part of a device can lead to injury.
e) Avoid placing your body in an unnatural position.
Keep proper footing and balance at all times. By doing

12 GB/IE
General safety advice for electrical power tools
this you will be in a better position to control the device in unfore-
seen circumstances.
f) Wear suitable clothing. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves clear
of moving parts. Loose clothing, jewellery or long hair can
become trapped in moving parts.
g) If vacuum dust extraction and collection devices are
fitted do not forget to
check that they are properly
connected and correctly used. The use of these devices
reduces the hazard presented by dust.
4. Careful handling and use of
electrical power tools
a) Do not overload the device. Always use an electrical
power tool that is intended for the task you are un-
dertaking. By using the right electrical power tool for the job
you will work more safely and achieve a better result.
b) Do not use an electrical power tool if its switch is de-
fective. An electrical power tool that can no longer be switched
on and off is dangerous and must be repaired.
c) Pull the mains plug from the socket before you make
any adjustments to the device, change accessories or
when the device is put away. This precaution is intended
to prevent you from unintentionally starting the device.
d) When not in use always ensure that electrical power
tools are kept out of reach of children. Do not let any-
one use the device if he or she is not familiar with it
or has not read the instructions and advice. Electrical
power tools are dangerous when they are used by inexperienced
people.

13GB/IE
General safety advice for electrical power tools/Operation
e) Look after the device carefully. Check that moving
parts are working properly and move freely. Check
for any parts that are broken or damaged enough
to detrimentally affect the functioning of the device.
Have damaged parts repaired before you use the
device. Many accidents have their origins in poorly maintained
electrical power tools.
f) Keep cutting tools clean and sharp. Carefully maintained
cutting tools with sharp cutting edges are less likely to jam and
are easier to control.
g) Use the electrical power tool, accessories, inserted
tools etc. in accordance with these instructions and
advice, and the stipulations drawn up for this partic-
ular type of device. In doing this, take into account the
working conditions and the task in hand. The use of
electrical power tools for purposes other than those intended can
lead to dangerous situations.

Operation
Never use the device for a purpose for which it was not intended or
with non-original parts/accessories. The use of tools or accessories
other than those recommended in the operating instructions could lead
to you suffering an injury.

Switching on/off
 Insert the mains plug into a mains socket.

14 GB/IE
Operation
Switching on:
 Press the ON/OFF switch 1.
Switching off:
 Release the ON/OFF switch 1.

Setting the stroke rate
The stroke switch 2is used to set the penetration depth of the engrav-
ing. A low setting is normally adequate for most engraving tasks.
 Turn the switch for the number of strokes 2in the +direction to
increase the penetration depth.
 Turn the switch for the number of strokes 2in the –direction to
decrease the penetration depth.

Changing the engraving point
WARNING!
RISK OF INJURY! Switch the device off before
performing any tasks on the device and pull the mains plug out of the
mains socket.
 Replace the engraving point 5as soon as it becomes too worn
and no longer provides the desired engraving performance. Turn
the engraving point holder 6anticlockwise until the engraving
point 5is released.
 Insert a new engraving point 5and turn the engraving point
holder 6clockwise to lock the engraving point in position.
 Ensure that the engraving point 5is properly fixed in position.

15GB/IE
Operation/Cleaning
Note: Engraving points are also available from specialist dealers
or DIY shops.

Advice on use
You can use the mini-engraver to produce creative, individual engravings.
For example, you can use it to place identifying marks on your valuables.
You can place numbers and letters on metal, glass, plastic, wood and
ceramic. This is done with the help of the engraving stencil 7, see Figs.
A and B.

Hold the device at an angle, as you would a pencil.
 Your arm should rest on the table.
 Using very light pressure, guide the engraving point 5over the
workpiece. Find the ideal speed of movement by trial and error on
a piece of waste material.
Note: The engraving point 5supplied with the product is made
from carbide steel. Therefore it is not suitable for engraving electronic
media such as CDs, DVDs etc. It could damage these materials and
render them illegible.

Cleaning
WARNING!
Before performing any cleaning or maintenance
work, always remove the mains plug from the socket.
 Clean all the dirt off the drill/grinder. Use a dry cloth for cleaning.

16 GB/IE
Service/Warranty

Service

WARNING!
Have your device repaired at the ser-
vice centre or by qualified specialist personnel using
original manufacturer parts only. This will ensure that
your device remains safe to use.

WARNING!
If the plug or lead needs to be re-
placed, always have the replacement carried out by
the manufacturer or its service centre. This will ensure
that your device remains safe to use.

Warranty
The warranty for this appliance is for 3 years from the
date of purchase. The appliance has been manufactured
with care and meticulously examined before delivery.
Please retain your receipt as proof of purchase. In the
event of a warranty claim, please make contact by tele-
phone with our Service Department. Only in this way
can a post-free despatch for your goods be assured.
The warranty covers only claims for material and maufacturing defects,
but not for transport damage, for wearing parts or for damage to frag-
ile components, e.g. buttons or batteries. This product is for private use
only and is not intended for commercial use.
The warranty is void in the case of abusive and improper handling,
use of force and internal tampering not carried out by our authorized
service branch. Your statutory rights are not restricted in any way by
this warranty.

17GB/IE
Warranty/Disposal
The warranty period will not be extended by repairs made unter warran-
ty. This applies also to replaced and repaired parts. Any damage and
defects extant on purchase must be reported immediately after unpack-
ing the appliance, at the latest, two days after the purchase date. Repairs
made after the expiration of the warranty period are subject to payment.
GB
DES UK LTD
Tel.: [phone] (£ 0.10/minute)
e-mail: [e-mail]
IE
Kompernass Service Ireland
Tel: [phone] (0,082 EUR/Min.) Standard call
rates apply. Mobile operators may vary.
e-mail: [e-mail]

Disposal
The packaging is wholly composed of environmentally-
friendly materials that can be disposed of at a local
recycling centre.
Do not dispose of electric tools
in the household waste!
In accordance with European Directive 2002/96/EC about waste
electrical and electronic equipment and its transposition into national
legislation, worn out electric tools must be collected separately and
taken for environmentally compatible recycling.

18 GB/IE
Disposal/Declaration of conformity/Producer
Contact your local refuse disposal authority for more details of how to
dispose of your worn out electrical devices.

Manufacturer’s Declaration of
Conformity/Manufacturer
We, Kompernaß GmbH, the person responsible for documents:
Mr Felix Becker, Burgstr. 21, D-44867 Bochum, Germany, hereby
declare that this product complies with the following standards, norma-
tive documents and EU directives:
Machinery Directive
(2006/42/EC)
EU Low Voltage Directive
(2006/95/EC)
Electromagnetic compatibility
(2004/108/EC)
Applicable harmonized standards
EN 60745-1:2009
EN ISO 12100-2/A1:2009
EN 55014-1:2006
EN 55014-2/A2:2008
EN 61000-3-2:2006
EN 61000-3-3:2008
IEC 60745-1:2006

19GB/IE
Declaration of conformity/Producer
Type/Device description:
Power engraving tool PGG 15 A1
Date of manufacture (DOM): 06-2010
Serial number: IAN 53162
Bochum, 30.06.2010
Hans Kompernaß
- Managing Director -
We reserve the right to make technical modifications in the course of
further development.

20

21FI
Sisällysluettelo
Aluksi
Määräystenmukainen käyttö................................................. Sivu 23
Varustus ................................................................................... Sivu 23
Toimitukseen kuuluu................................................................ Sivu 24
Tekniset tiedot ......................................................................... Sivu 24
Sähkötyökaluja koskevat
yleiset turvaohjeet
1. Työpaikkaturvallisuus.......................................................... Sivu 25
2. Sähköturvallisuus................................................................ Sivu 26
3. Henkilöiden turvallisuus..................................................... Sivu 27
4. Sähkötyökalujen huolellinen käsittely ja käyttö............... Sivu 28
Käyttö
Päälle-/poiskytkentä ............................................................. Sivu 29
Iskuluvun säätö ....................................................................... Sivu 29
Kaiverruskärjen vaihto............................................................ Sivu 30
Työohjeet................................................................................. Sivu 30
Puhdistus............................................................................. Sivu 31
Huolto.................................................................................... Sivu 31
Takuu...................................................................................... Sivu 31
Hävittäminen .................................................................. Sivu 32
Yhdenmukaisuusvakuutus/
Valmistaja.......................................................................... Sivu 33
