Parkside PHPA 3.6 A1 User manual

CORDLESS HOT GLUE GUN PHPA 3.6 A1
IAN 110145
AKKU-HEISSKLEBEPISTOLE
Originalbetriebsanleitung
CORDLESS HOT GLUE GUN
Translation of the original instructions

GB/IE Translation of the original instructions Page 1
DE/AT/CH Originalbetriebsanleitung Seite 19
Before reading, unfold the page containing the illustrations and familiarise
yourself with all functions of the device.
Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus und machen
Sie sich anschließend mit allen Funktionen des Gerätes vertraut.

PHPA 3.6 A1 GB│IE │ 1 ■
Contents
Introduction .................................. 2
Intended use..........................................2
Features .............................................2
Package contents ......................................3
Technical data ........................................3
General power tool safety warnings ............. 4
Use and handling of the cordless power tool.................6
Safety guidelines for battery chargers ......................7
Before initial operation ........................ 8
Charging the appliance .................................8
Battery level display ...................................9
Preparing the surfaces to be glued.........................9
Initial operation.............................. 10
Maintenance and cleaning ..................... 11
Disposal .................................... 12
Kompernass Handels GmbH warranty........... 13
Service ..................................... 16
Importer.................................... 16
Translation of the original Conformity Declaration . 17

PHPA 3.6 A1
■ 2 │ GB│IE
CORDLESS HOT GLUE GUN PHPA 3.6 A1
Introduction
Congratulations on the purchase of your new appliance. You
have selected a high-quality product. The operating instruc-
tions are part of this product. They contain important informa-
tion on safety, usage and disposal. Before using the product, familiar-
ise yourself with all handling and safety guidelines. Use the product
only as described and for the range of applications specified. Please
also pass these operating instructions on to any future owner(s).
Intended use
This appliance is intended for gluing wood, card-board, packaging,
PVC, carpet, seals, plastics, leather, ceramics, glass and fabric with
hot-melt adhesive. The material to be glued must be clean, dry and
free of grease. Any other usage of or modification to the appliance is
deemed to be improper and carries a significant risk of accidents.
The manufacturer shall assume no liability for damage attributable to
misuse. The appliance is not meant for commercial use.

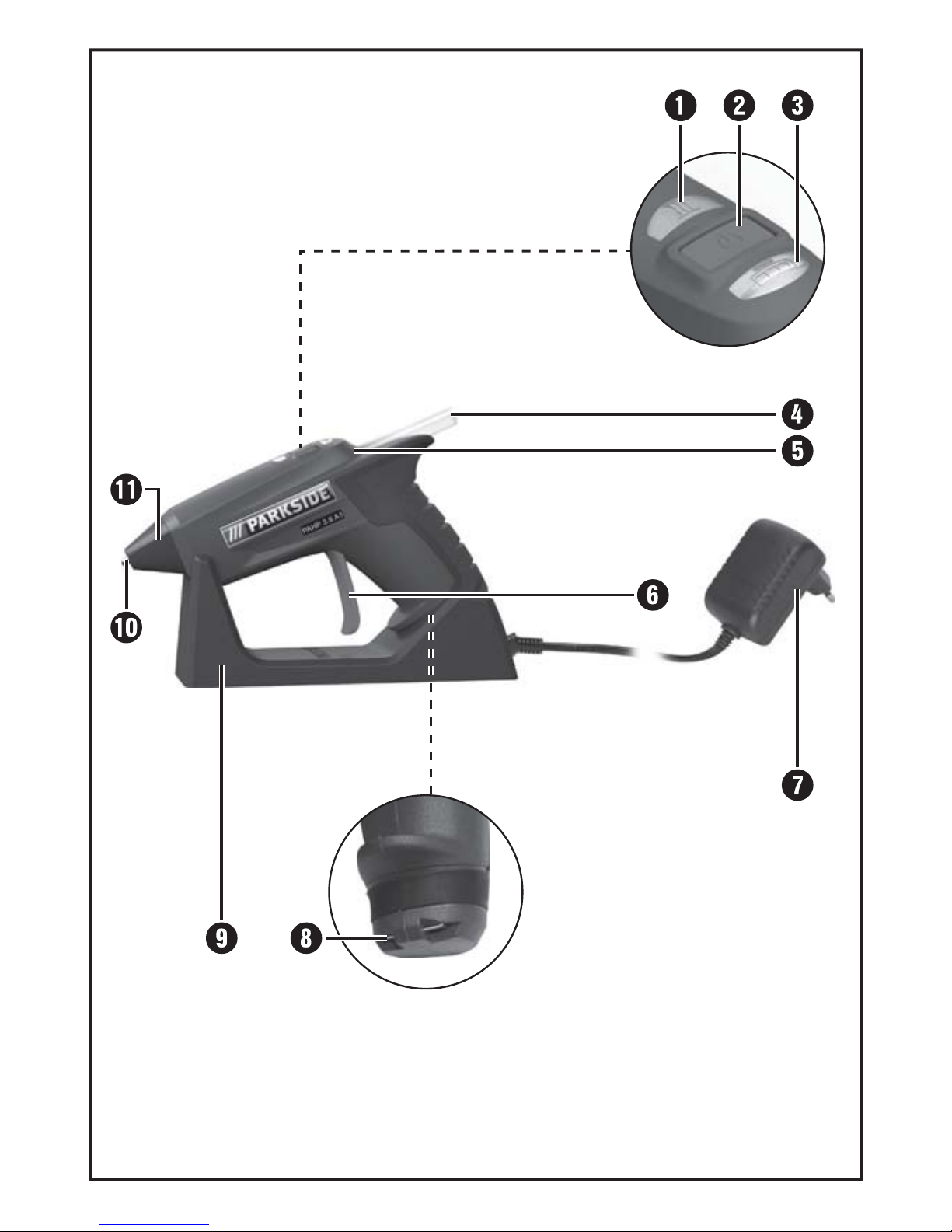

Features
Temperature indicator
ON/OFF switch
Battery capacity/charge level indicator
Glue stick
Feeder shaft
Trigger
Mains adapter
Charging contacts
Charger with appliance cradle
Nozzle
Thermal protection for nozzle

PHPA 3.6 A1 GB│IE │ 3 ■
Package contents
1 Cordless hot glue gun PHPA 3.6 A1
1 charger with stand
6 glue sticks
1 operating instructions
Technical data
Cordless hot glue gun PHPA 3.6 A1:
Rated voltage: 230 - 240 V ∼, 50 Hz (alternating current)
Rated power: 5 W
Battery rated voltage: 3.7 V (direct current)
Cells: 1
Battery (integrated): LITHIUM-ion
Battery capacity: 1500 mAh
Heating time: approx. 60 sec.
Temperature: approx. 170°C
Glue stick diameter: Ø 7 mm
Glue stick length: 140 mm
Working time with one
battery charge: approx. 30 min.
Charger PHPA 3.6 A1-2:
INPUT:
Rated voltage: 100 - 240 V~50/60 Hz
(alternating current)
Rated current: 200 mA
OUTPUT:
Rated voltage: 5.5 V (direct current)
Rated current: 600 mA
Charging time: approx. 3 hours
Protection class: II/ (double shielded)

PHPA 3.6 A1
■ 4 │ GB│IE
General power tool safety
warnings
WARNING!
► Read all safety warnings and all instructions. Failure to fol-
low the warnings and safety instructions may result in electric
shock, fire and/or serious injury.
Save all warnings and safety instructions for future
reference.
The term “power tool” in the safety instructions refers to your
mains-operated (corded) power tool or battery-operated (cordless)
power tool.
■ This appliance may be used by children of the age of 8 years or
more and by persons with reduced physical, sensory or mental
capabilities or lack of experience and/or knowledge if they are
being supervised or have been instructed with regard to the safe
use of the appliance and have understood the potential risks.
Children must not use the appliance as a plaything.
Cleaning and user maintenance should not be performed by
children unless they are under supervision.
■Children should be supervised to ensure that they do not play
with the appliance.
■CAUTION! This appliance must be placed into the charger with
appliance cradle when not in use.
■ Always protect the appliance from rain and moisture. Water
entering a power tool will increase the risk of electric shock.

PHPA 3.6 A1 GB│IE │ 5 ■
■Do not misuse the power cord, e.g. to carry or hang up the
appliance, or to pull the plug from the socket. Keep cord
away from heat, oil, sharp edges or moving parts. If the power
cord is damaged or severed during work, do not touch the cord
but rather pull out the power plug. Damaged or entangled cords
increase the risk of electric shock.
■ To avoid potential risks, if the appliance power cable is dam-
aged, it must be replaced by the manufacturer, its customer
service or by a qualified technician.
■ Only for indoor use.
■ If you take a break of longer than 30 minutes, pull out the power
plug.
■ Allow the appliance to cool completely after use and before
storage.
■ Do not work on any material containing asbestos.
■Avoid the risk of injury or fire as well as health risks: Risk of
burns! The temperature of nozzle reach a temperature of around
170°C. The temperature of adhesive reach a temperature of
around 170°C. Do not touch the nozzle or the glue. Do not
allow hot glue to come into contact with people or animals. In
case of contact with skin, rinse the affected part in cold running
water for a few minutes. Do not attempt to remove the adhesive
from the skin.
■ Always route the power cord towards the rear, away from the
appliance.

PHPA 3.6 A1
■ 6 │ GB│IE
Use and handling of the cordless power tool
a) Charge the appliance using only the charger recommended by
the manufacturer. Chargers are often designed for a particular
type of
rechargeable battery. There is a risk of fire if other types of
rechargeable battery are used.
b) Only the rechargeable battery units supplied are to be used
with the power tools. The use of other rechargeable batteries
may result in injury or a fire hazard.
c) When they are not being used, store re-
chargeable batteries away from paper clips, coins, keys. nails,
screws or other small metal objects that could cause the con-
tacts to be bridged. Short-circuiting the contacts of a rechargea-
ble battery may result in burns or fire.
d) Fluid may leak out of rechargeable batteries if they are mis-
used. If this happens, avoid contact with the fluid. If accidental
contact
occurs, rinse the affected area with water. Seek additional
medical help if any of the fluid gets into your eyes. Escaping
battery
fluid may cause skin irritation or burns.
CAUTION! RISK OF EXPLOSION! Never charge
non-rechargeable batteries!
Protect the appliance from heat, e.g. also from
continuous sunlight, fire, water and humidity.
There is a risk of explosion!

PHPA 3.6 A1 GB│IE │ 7 ■
Safety guidelines for battery chargers
■ This appliance may be used by children aged 8 years and
above and by persons with limited physical, sensory or mental
capabilities or lack of experience and knowledge, provided that
they are under supervision or have been told how to use the
appliance safely and are aware of the potential risks. Children
must not use the appliance as a plaything. Cleaning and user
maintenance tasks may not be carried out by children unless they
are supervised.
This charger is suitable for indoor use only.
WARNING! For the purposes of recharging the battery,
only use the detachable supply unit provided with this
appliance.
The temperature of the nozzle reach a temperature of
around 170°C.
WARNING!
■ Never operate the charger with a damaged power cord
or power plug. A damaged power cord causes danger to
life by electric shock.
