Parkside PAT 4 B2 User manual

CORDLESS STAPLER PAT 4 B2
CORDLESS STAPLER
Translation of the original instructions
IAN 286098
AKU SPONKOVAČKA
Překlad původního návodu
k používání
AKKU-TACKER
Originalbetriebsanleitung
AKKUS TŰZŐGÉP
Eredeti használati utasítás fordítása
AKU SPONKOVAČ
Preklad pôvodného návodu
na použitie

GB Translation of the original
instructions Page 5
HU Eredeti használati utasítás fordítása Oldal 25
CZ Překlad původního návodu
k používání Strana 46
SK Preklad pôvodného
návodu na použitie Strana 66
DE/AT/CH Originalbetriebsanleitung Seite 87

B
4
A3a3
3a
6 3 3a
9
5 4
2
8
1
77a

5GB
List of pictograms used............................................ Page 6
Introduction....................................................................... Page 7
Intended use............................................................................ Page 7
Parts description...................................................................... Page 7
Scope of delivery.................................................................... Page 8
Technical data......................................................................... Page 8
General power tools safety warnings....... Page 10
Tacker safety warnings........................................................... Page 14
Charger safety warnings ........................................................ Page 15
Before use........................................................................... Page 16
Starting the charging process................................................. Page 16
Completing the charging process.......................................... Page 17
Initial use............................................................................. Page 17
Adding Staples........................................................................ Page 17
Functions.............................................................................. Page 17
Cleaning and care........................................................ Page 19
Disposal................................................................................ Page 20
Service................................................................................... Page 21
Warranty claim procedure..................................................... Page 21
Service ..................................................................................... Page 22
Warranty............................................................................. Page 22
Translation of original
conformity declaration............................................ Page 23

6 GB
List of pictograms used
Read the instruction manual.
Wear eye protection.
Wear hearing protection.
Wear protective, slip-resistant footwear.
Wear protective gloves.
Please read the instructions for use. The instructions for
use contain additional information.
For use in dry indoor locations only.
Protection class II (double insulation)
Protect the product from moisture.

7GB
Cordless Stapler PAT 4 B2
Introduction
We congratulate you on the purchase of your new product.
You have chosen a high quality product. The instructions
for use are part of the product. They contain important infor-
mation concerning safety, use and disposal. Before using the product,
please familiarise yourself with all of the safety information and instruc-
tions for use. Only use the product as described and for the specified
applications. If you pass the product on to anyone else, please ensure
that you also pass on all the documentation with it.
Intended use
This product is intended for stapling paperboard, sheets of paper, leather,
insulation, fabric and similar materials onto soft wood (real wood),
plywood boards and medium density fibreboard. It is only intended
for private household use. Any other use or modification of the product
shall be considered improper use and may result in serious accident
hazards. The manufacturer is not liable for any damages caused by
improper use. Not intended for commercial use. This product is not
intended for securing electrical cables.

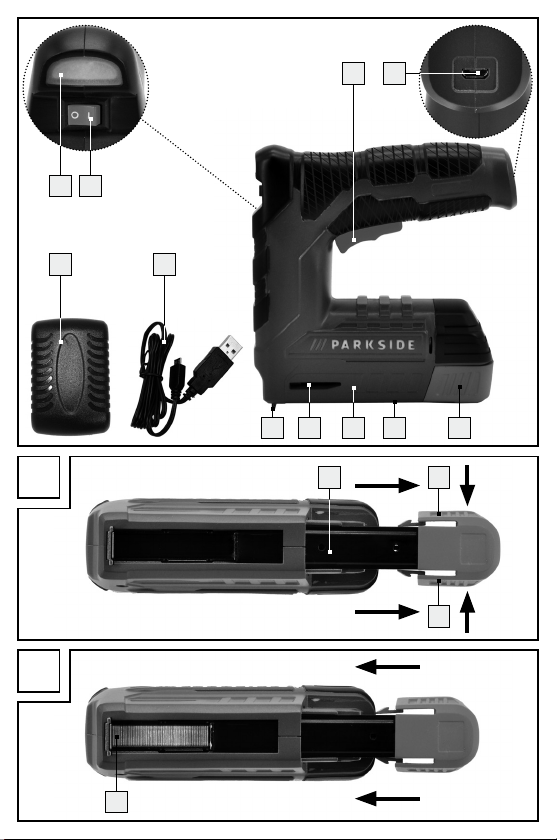

Parts description
1Trigger
2Micro-USB charging socket
3Pusher
3a Release button
4Magazine
5Fill indicator (staples)
6Safety contact

8 GB
7Charger
7a USB cable
8On/Off switch
9Charge indicator
Scope of delivery
1 Cordless stapler PAT 4 B2
1 Charger RSS1002-030050-W2E-W-C
1000 Staples 8mm
1 Operating instructions
Technical data
Cordless stapler: PAT 4 B2
Rated voltage: 4V (direct current)
Rechargeable
battery (installed): LITHIUM-ION
Cells: 1
Capacity: 1300mAh
Speed: max. 30/mn
Magazine capacity: 100 staples
Wire staples:
4-10 mm
5/32-3/8 in
Type 53 / JT21
Staple width: 11.4mm
Staple length: 4–10mm
Battery charger: RSS1002-030050-W2E-W-C
Input:
Rated voltage: 100–240V∼, 50/60Hz
Rated current: 0.2A
Connection type: USB

9GB
Output:
Rated voltage: 5V (direct current)
Rated current: 600mA
Output power: max. 3.0W
Charging time: approx. 180 min
Protection class: II/ (double insulation)
Noise emission value:
The measured values for sound comply with EN 60745. The A-weighted
single-event noise level, standardised to 1s, is typically:
Sound pressure level: L = 80.6dB(A)
Uncertainty: K = 3dB(A)
Sound power level: L = 91.6 dB(A)
Uncertainty: K = 3dB(A)
Wear hearing protection!
Vibration values determined in accordance with
EN 60745:
Vibration emission value ahw = 2.75m/s2
Uncertainty K = 1,5 m / s2
Note: The vibration level specified in these instructions has been
measured in accordance with a standardized measuring procedure
specified in EN60745 and can be use for equipment comparisons.
The specified vibration emission value can also be used to make an
initial exposure estimate.

10 GB
The vibration level varies in accordance with the use of the power tool
and may be higher than the value specified in these instructions in some
cases. Regular use of the electric tool in such a way may cause the
users to underestimate the vibration. Try to keep the vibration loads as
low as possible. Measures to reduce the vibration load are, e.g. wea-
ring gloves and limiting the working time. All states of operation much
be taken into account (e.g. time when the power tool is switched off
and time where the power tool is switched on but running without load).
General power tools safety warnings
Read all safety directions and instructions. Failure to follow
the warnings and instructions may result in electric shock, fire and/or
serious injury.
Save all warnings and instructions for future reference.
The term “power tool“ in the warnings refers to your mains-operated
(corded) power tool or battery-operated (cordless) power tool.
Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas
invite accidents.
b) Do not operate power tools in explosive atmospheres,
such as in the presence of flammable liquids, gases or
dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose control.

11GB
Electrical safety
a) Power tool plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs
with earthed (grounded) power tools. Unmodified plugs
and matching outlets will reduce risk of electric shock.
b)
Avoid body contact with earthed or grounded surfa ces,
such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body is earthed
or grounded.
c) Do not expose power tools to rain or wet conditions.
Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carry-
ing, pulling or unplugging the power tool. Keep cord
away from heat, oil, sharp edges or moving parts.
Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an exten-
sion cord suitable for outdoor use. Use of a cord suitable
for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoid-
able, use a residual current device (RCD) protected
supply. Use of an RCD reduces the risk of electric shock.
Personal safety
a) Stay alert, watch what you are doing and use common
sense when operating a power tool. Do not use a
power tool while you are tired or under the influence
of drugs, alcohol or medication. A moment of inattention
while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye
protection. Protective equipment such as dust mask, non-skid

12 GB
safety shoes, hard hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in
the off-position before connecting to power source
and/or battery pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch or energising
power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to a rotat-
ing part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at
all times. This enables better control of the power tool in unex-
pected situations.
f) Dress properly. Do not wear loose clothing or jewel-
lery. Keep your hair, clothing and gloves away from
moving parts. Loose clothes, jewellery or long hair can be caught
in moving parts.
g) If devices are provided for the connection of dust
extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection can
reduce dust-related hazards.
Power tool use and care
a) Do not force the power tool. Use the correct power
tool for your application. The correct power tool will do the
job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn
it on and off. Any power tool that cannot be controlled with the
switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or
the battery pack from the power tool before making

13GB
any adjustments, changing accessories, or storing
power tools. Such preventive safety measures reduce the risk of
starting the power tool accidentally.
d) Store idle power tools out of the reach of children. Do
not allow persons unfamiliar with the power tool or
these instructions to operate the power tool. Power tools
are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or
binding of moving parts, breakage of parts and any
other condition that may affect the power tool’s op-
eration. If damaged, have the power tool repaired
before use. Many accidents are caused by poorly maintained
power tools.
f) Keep cutting tools sharp and clean. Properly maintained
cutting tools with sharp cutting edges are less likely to bind and
are easier to control.
g) Use the power tool, accessories and tool bits etc. in
accordance with these instructions, taking into account
the working conditions and the work to be performed.
Use of the power tool for operations different from those intended
could result in a hazardous situation.
Battery tool use and care
a) Recharge only with the charger specified by the manu-
facturer. A charger that is suitable for one type of battery pack
may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated bat-
tery packs. Use of any other battery packs may create a risk of
injury and fire.
c) When battery pack is not in use, keep it away from
other metal objects, like paper clips, coins, keys, nails,
screws or other small metal objects, that can make a

14 GB
connection from one terminal to another. Shorting the
battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from
the battery; avoid contact. If contact accidentally occ urs,
flush with water. If liquid contacts eyes, additionally seek medi-
cal help. Liquid ejected from the battery may cause irritation or burns.
Service
a) Have your power tool serviced by a qualified repair
person using only identical replacement parts. This will
ensure that the safety of the power tool is maintained.
Tacker safety warnings
1. Always assume that the tool contains fasteners. Careless
handling of the tacker can result in unexpected firing of fasteners
and personal injury.
2. D
o not point the tool towards yourself or anyone n earby.
Unexpected triggering will discharge the fastener causing an injury.
3. Do not actuate the tool unless the tool is placed firmly
against the workpiece. If the tool is not in contact with the
workpiece, the fastener may be deflected away from your target.
4. Disconnect the tool from the power source when the
fastener jams in the tool. While removing a jammed fastener,
the tacker may be accidentally activated if it is plugged in.
5. Use caution while removing a jammed fastener. The
mechanism may be under compression and the fastener may be
forcefully discharged while attempting to free a jammed condition.
6. Do not use this tacker for fastening electrical cables. It
is not designed for electric cable installation and may damage the
insulation of electric cables thereby causing electric shock or fire
hazards.

15GB
Charger safety warnings
1. This product can be used by children aged
from 8 years and above and persons with re-
duced physical, sensory or mental capabilities
or lack of experience and knowledge if they
have been given supervision or instruction
concerning use of the product in a safe way
and understand the hazards involved.
2. Children shall not play with the product.
3. Cleaning and user maintenance shall not be
made by children without supervision.
4. Do not charge non-rechargeable batteries.
Disregarding this instruction may be hazardous.
5. If the supply cord is damaged, it must be re-
placed by the manufacturer, its service agent
or similarly qualified persons in order to avoid
a hazard.
6. Protect the electrical parts against moisture.
Do not immerse such parts in water or other
liquids to avoid electrical shock. Never hold
the product under running water. Pay attention

16 GB
to the instructions provided for cleaning, main-
tenance and repair.
7. The charger is suitable for indoor use
only.
Before use
Note: Remove all packaging materials from the product.
Note: The rechargeable battery comes partly charged. Charge the
battery prior to first use, ideally at least 3–5 hours. Li-Ion batteries may
be charged at any time without reducing their life. Interrupting the
charging process does not damage the rechargeable battery.
This product is equipped with a depth discharge protection which
prevents discharging below final discharging voltage.
Do not continuously pull the trigger 1to prevent damaging the
built-in rechargeable battery.
Set the On/Off switch 8to the “0“ position if the product will not
be used or will be stored for extended periods.
Note: If the charge indicator 9lights up red during use, the charge
is below 30% and the battery must be recharged.
Starting the charging process
Connect the USB cable 7a to the charger 7using the USB socket.
Connect the other end of the USB cable 7a to the micro-USB
charging socket 2on the product.
Connect the charger 7to a 100–240V∼ 50/60Hz power
source. The charge indicator 9shows the charging progress. It
will light up red whilst charging. Once the battery is fully charged
it lights up green.

17GB
Completing the charging process
Disconnect the charger 7from the power source.
Disconnect the charger 7from the micro-USB charging socket 2
on the product.
Note: The product cannot be used whilst charging. It is normal
for the handle to warm up slightly whilst charging.
Initial use
Adding Staples
Set the On/Off switch 8to the “0“ position before working on
the product.
Turn the product over.
Squeeze the release button 3a (see Fig. A).
Pull back on the pusher 3(see Fig. A).
Add staples to the magazine 4(see Fig. B).
After adding staples, slide the pusher 3in again until the maga-
zine 4is fully closed. Release the release button 3a . It must click
and lock into place for the magazine 4to be closed correctly.
Note: Use the window on the fill indicator 5to see if the maga-
zine 4is empty.
Functions
Stapling
Set the On/Off switch 8to the “I“ position to switch the product on.
Press the safety contact 6a few millimetres into the work piece.
Squeeze the trigger 1whilst holding the product against the work
piece to drive a staple into it.
Set the On/Off switch 8to the “0“ position to switch the
product off.

18 GB
Clearing Jammed Staples
If a staple is jammed, do not squeeze the trigger 1.
It may otherwise accidentally be triggered after removing the staple.
Note: Set the On/Off switch 8to “O” position prior to clearing the
jammed staple.
Open the magazine 4and pull back on the pusher 3.
Remove the jammed staple from the magazine 4.
Note: Do not trigger the staple gun when empty to prevent wear.
Determining the Staple Length
Consider two factors when determining the correct staple length:
- the thickness of the material being stapled
- the composition (hardness) of the material being stapled.
Staples 4–6mm in length will typically suffice when stapling into hard
materials such as hardwood.
Staples 8–10mm in length will typically suffice when stapling into soft
materials such as softwood. This should suffice to fasten any materials.
The crown of the staple should be flush with the top of the material
being fastened as shown.

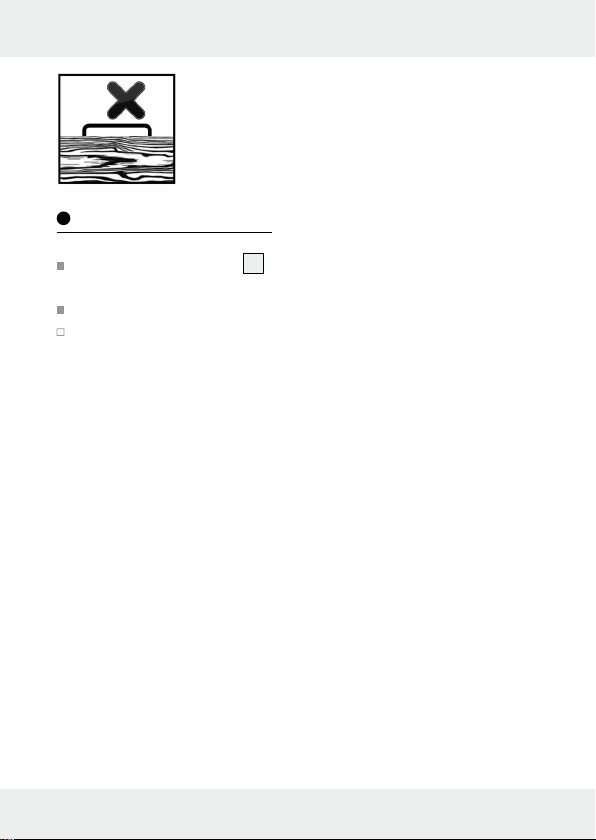

If the crown of the staple is not flush with the top of the material being
fastened, the staple is too long. In this case, use the next smaller size
staple for optimal results.

19GB
Cleaning and care
Set the On/Off switch 8to the “0“ position to switch the product
off before cleaning or maintaining the product.
The product must always be clean, dry, and free from oil and g rease.
Clean the housing with a dry cloth.
This product contains a Lithium-ion rechargeable battery and is therefore
subject to hazardous materials regulations. The user may transport the
rechargeable batteries on roads without special requirements.
The packaging and marking is subject to special requirements when
transported by third parties (e.g. airline, courier, carrier).
A hazardous materials expert must be consulted when transported by
third parties.
Rechargeable batteries may only be shipped if the housing is intact.
Cover open contacts with tape and package the rechargeable batteries
so they cannot move inside the packaging. Particularly observe the
specific national regulations.

20 GB

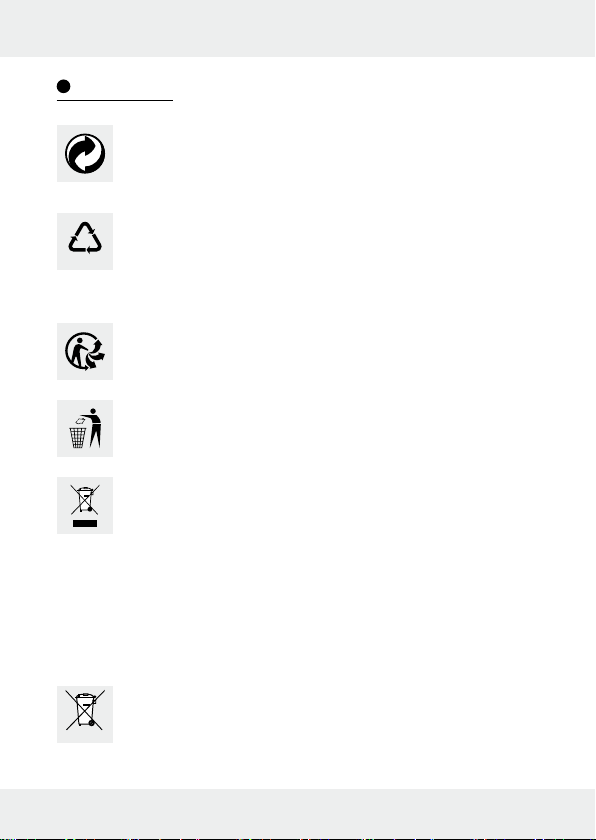

Disposal
The packaging is made entirely of recyclable materials,
which you may dispose of at local recycling facilities. The
Green Dot is not valid for Germany.
b
a
Observe the marking of the packaging materials for waste
separation, which are marked with abbreviations (a) and
numbers (b) with following meaning: 1–7: plastics/20–22:
paper and fibreboard/80–98: composite materials.
The product and packaging materials are recyclable, dispose
of it separately for better waste treatment. The Triman logo
is valid in France only.
Contact your local refuse disposal authority for more details
of how to dispose of your worn-out product.
To help protect the environment, please dispose of the product
properly when it has reached the end of its useful life and
not in the household waste. Information on collection points
and their opening hours can be obtained from your local
authority.
Faulty or used batteries must be recycled in accordance with Directive
2006/66/EC and its amendments. Please return the batteries and/
or the product to the available collection points.
Environmental damage through incorrect
disposal of the batteries!

21GB
Batteries may not be disposed of with the usual domestic waste. They
may contain toxic heavy metals and are subject to hazardous waste
treatment rules and regulations. The chemical symbols for heavy metals
are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That is why
you should dispose of used batteries at a local collection point.
Service
Have your product repaired at the service centre or an electrician,
using only original manufacturer parts. This will maintain the safety
of this product.
Always have a plug or power cord replaced by the product manu-
facturer or its service centre. This will maintain the safety of this
product.
Warranty claim procedure
To ensure quick processing of your case, please observe the following
instructions:
Please have the till receipt and the item number (e.g. IAN 123456)
available as proof of purchase.
You will find the item number on the type plate, an engraving on the
front page of the instructions (bottom left), or as a sticker on the rear
or bottom of the appliance.
If functional or other defects occur, please contact the service department
listed either by telephone or by e-mail.
You can return a defective product to us free of charge to the service
address that will be provided to you. Ensure that you enclose the proof
of purchase (till receipt) and information about what the defect is and
when it occurred.
