Parkside PPHSS 730 SE User manual

PPHSS 730 SE
6
JIGSAW
Operation and Safety Notes

GB / IE / CY Operation and Safety Notes Page 5
Before reading, unfold both pages containing illustrations and familiarise yourself with all functions of the
device.

A B C
D E
19
8
21
1 2 3
4
567
891214
19
15
16
20
17
15
18
13
16
18
17
101113
F

ø 30 mm
65 mm
205 mm
70 mm
260 mm
110 mm
150 mm
30 mm
10 mm

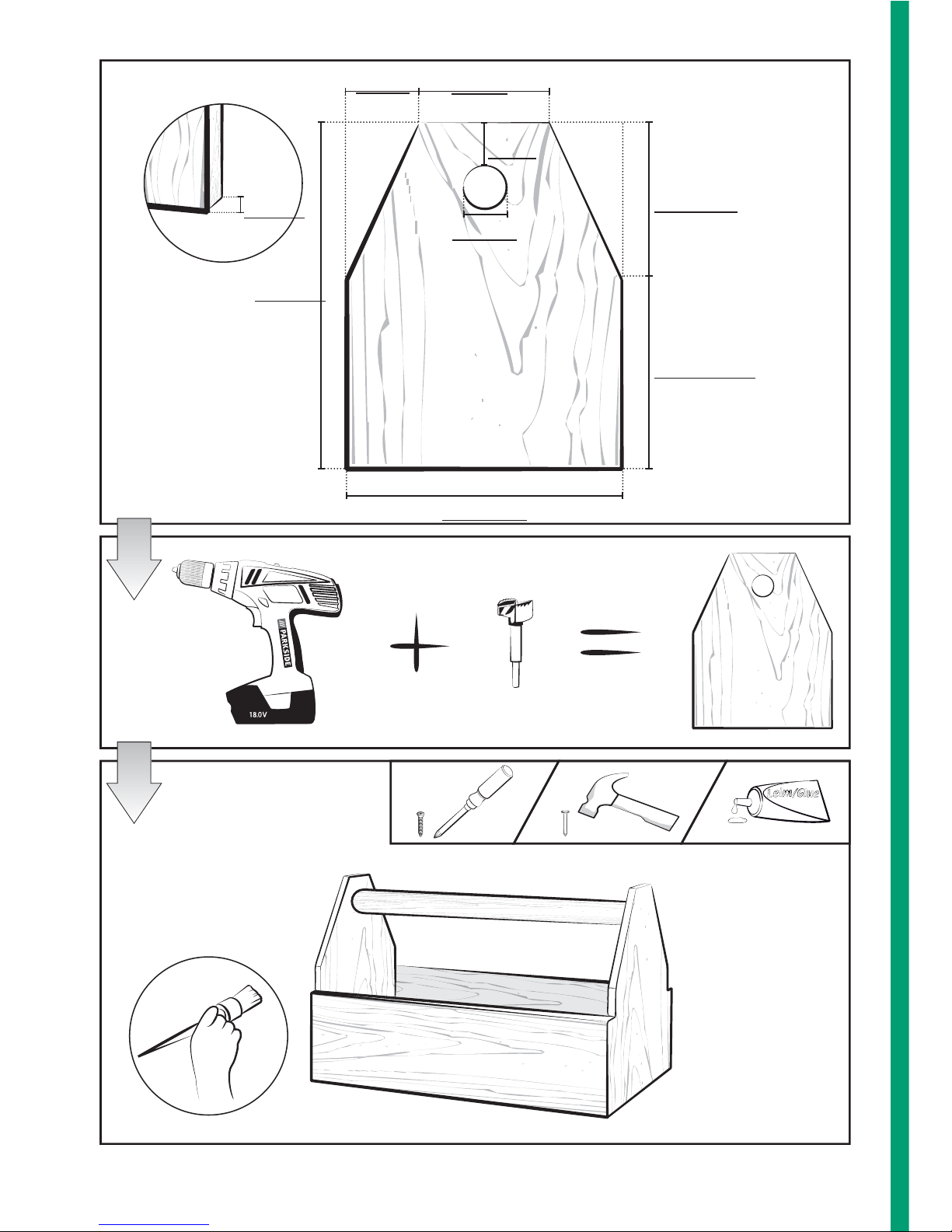

You need:
1 0

0
0
1 0

0
0
10 mm
1
2
3
4
1x 395mm x 185mm x 10mm
1x ø 30mm x 400mm
2x 395mm x 120mm x 10mm
2x 260mm x 205mm x 10mm
3
2

5GB/IE/CY
Introduction
Proper use......................................................................................................................Page 6
Features and equipment ...............................................................................................Page 6
Included items ...............................................................................................................Page 7
Technical information....................................................................................................Page 7
General safety advice for electrical power tools
1. Workplace safety .....................................................................................................Page 7
2. Electrical safety.........................................................................................................Page 8
3. Personal safety..........................................................................................................Page 8
4. Careful handling and use of electrical power tools................................................Page 8
Safety advice relating specifically to this device.........................................................Page 9
Original accessories / attachments ..............................................................................Page 10
Preparing for use

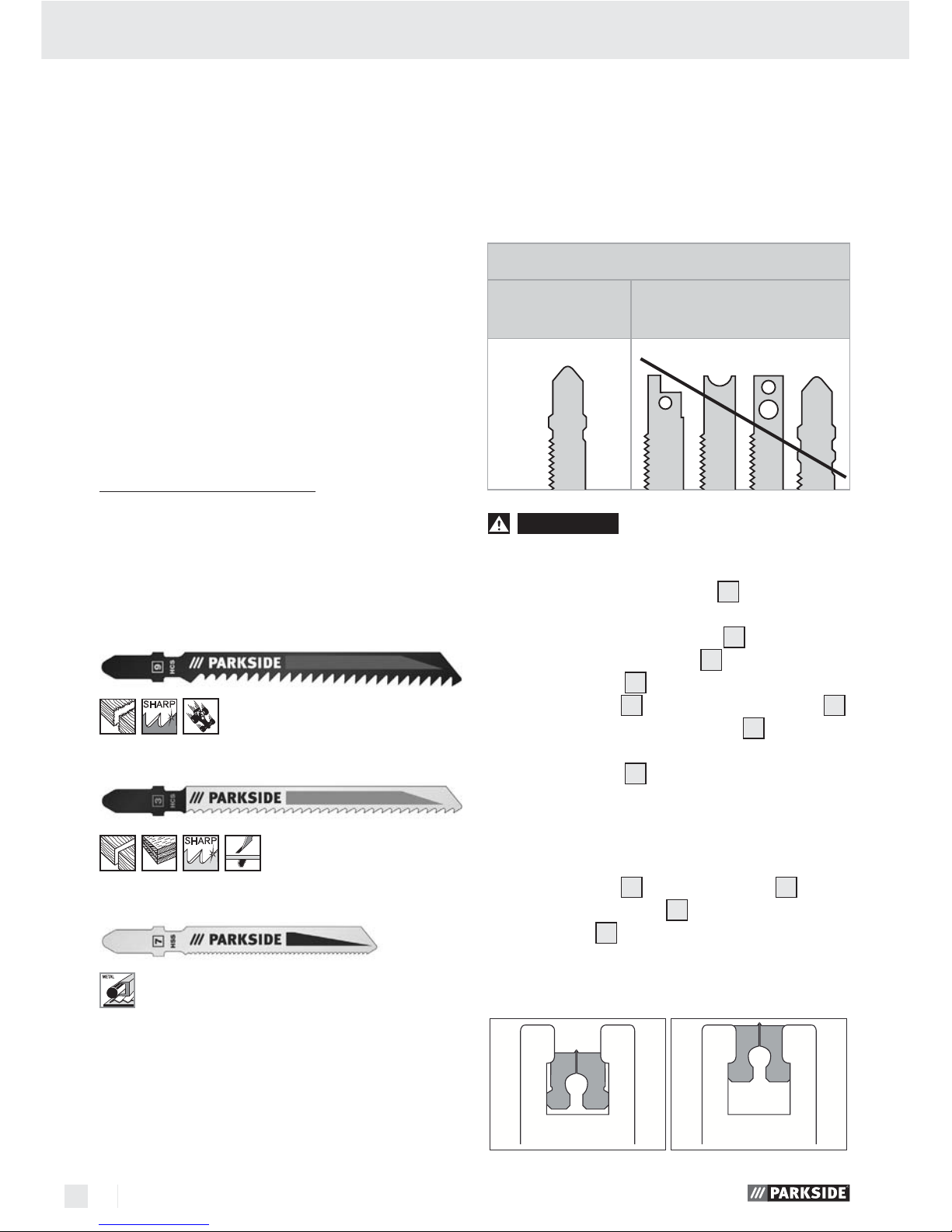

Information about saw blades .....................................................................................Page 10
Mounting / replacing saw blades ................................................................................Page 10
Attaching the chip guard..............................................................................................Page 10
Attaching the guide fence.............................................................................................Page 11
Connecting the vacuum sawdust extraction device....................................................Page 11
Operation
Setting the cutting angle ...............................................................................................Page 11
Setting the speed...........................................................................................................Page 11
Setting the pendulum action.........................................................................................Page 11
Switching On / Off ........................................................................................................Page 11
Maintenance and cleaning
Maintenance .................................................................................................................Page 11
Cleaning ........................................................................................................................Page 11
Service centre .......................................................................................................Page 12
Warranty...................................................................................................................Page 12
Disposal......................................................................................................................Page 12
Declaration of Conformity / Manufacturer ...................................Page 13
Table of contents

6 GB/IE/CY
Jigsaw PPHSS 730 SE
Introduction
Please make sure you familiarise your-
self fully with the way the device works
before you use it for the first time and
that you understand how to handle electrical pow-
er tools correctly. To help you do this please read
the accompanying operating instructions. Keep
these instructions in a safe place. If you pass the
device on to anyone else, please ensure that you
also pass on all the documentation.
Proper use
The device is suitable for making straight, curved
and bevel cuts in blocks or sheets of plastic, wood
and metal. The device is designed to be used in dry
rooms and for domestic purposes only. Observe the
advice about saw blade types. Any other use or
modification to the device shall be considered as
improper use and could give rise to considerable
dangers. The manufacturer will not accept liability
for loss or damage arising from improper use.

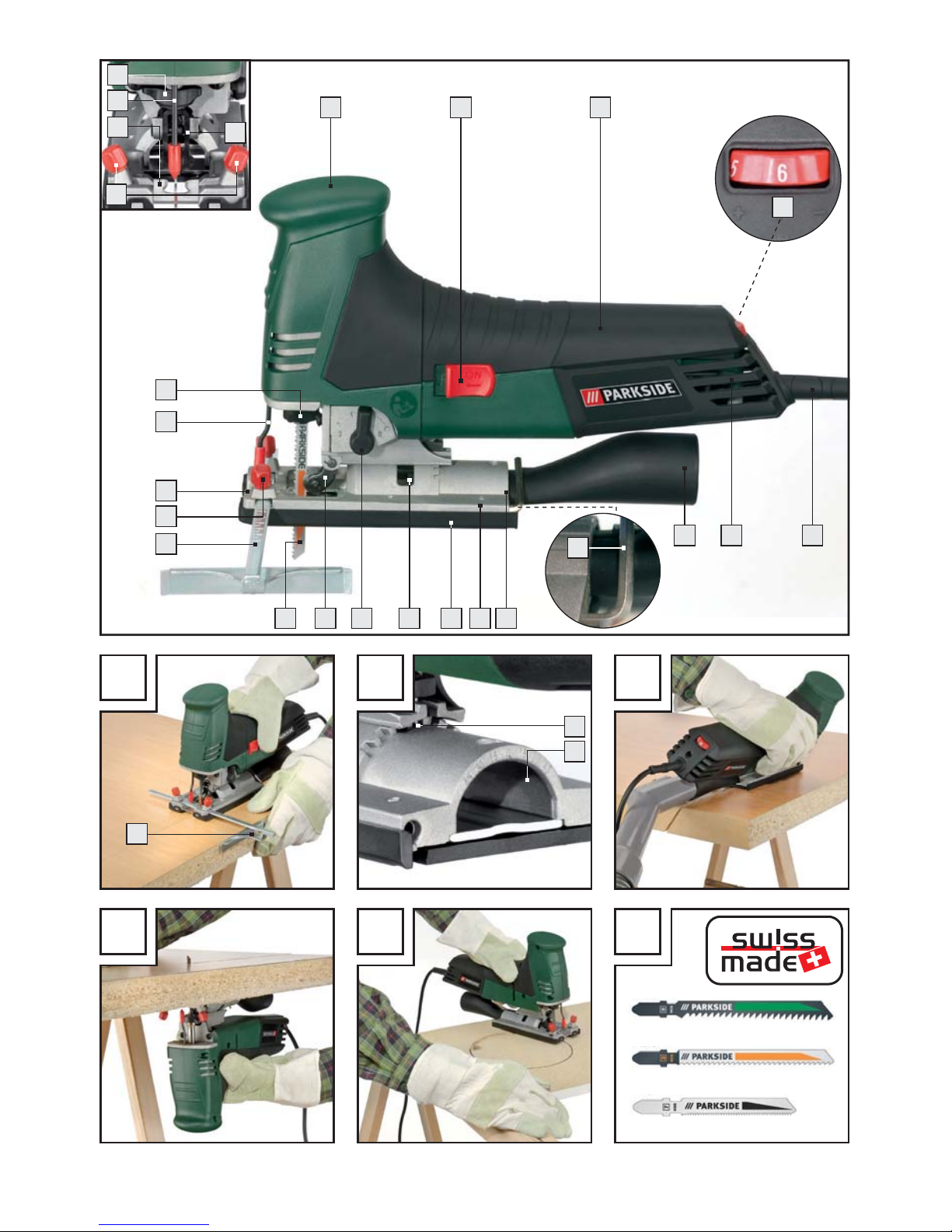

Features and equipment
1Pommel grip
2ON /OFF switch (with stop)
3Housing
4Oscillation speed setting wheel
5Mains connection lead
6Ventilation grill
7Dust extraction spout
8Vacuum extraction duct (see Fig. B)
9Base plate, light metal
10 Runner (removable)
11 Clamp screw
12 Pendulum action switch
13 Guide roller
14 Saw blade
15 Guide fence openings (with locking screws)
16 Chip guard
17 Contact guard
18 Quick-release chuck
19 Guide fence
20 Allen key
21 Stop pin (see Fig. B)
Introduction

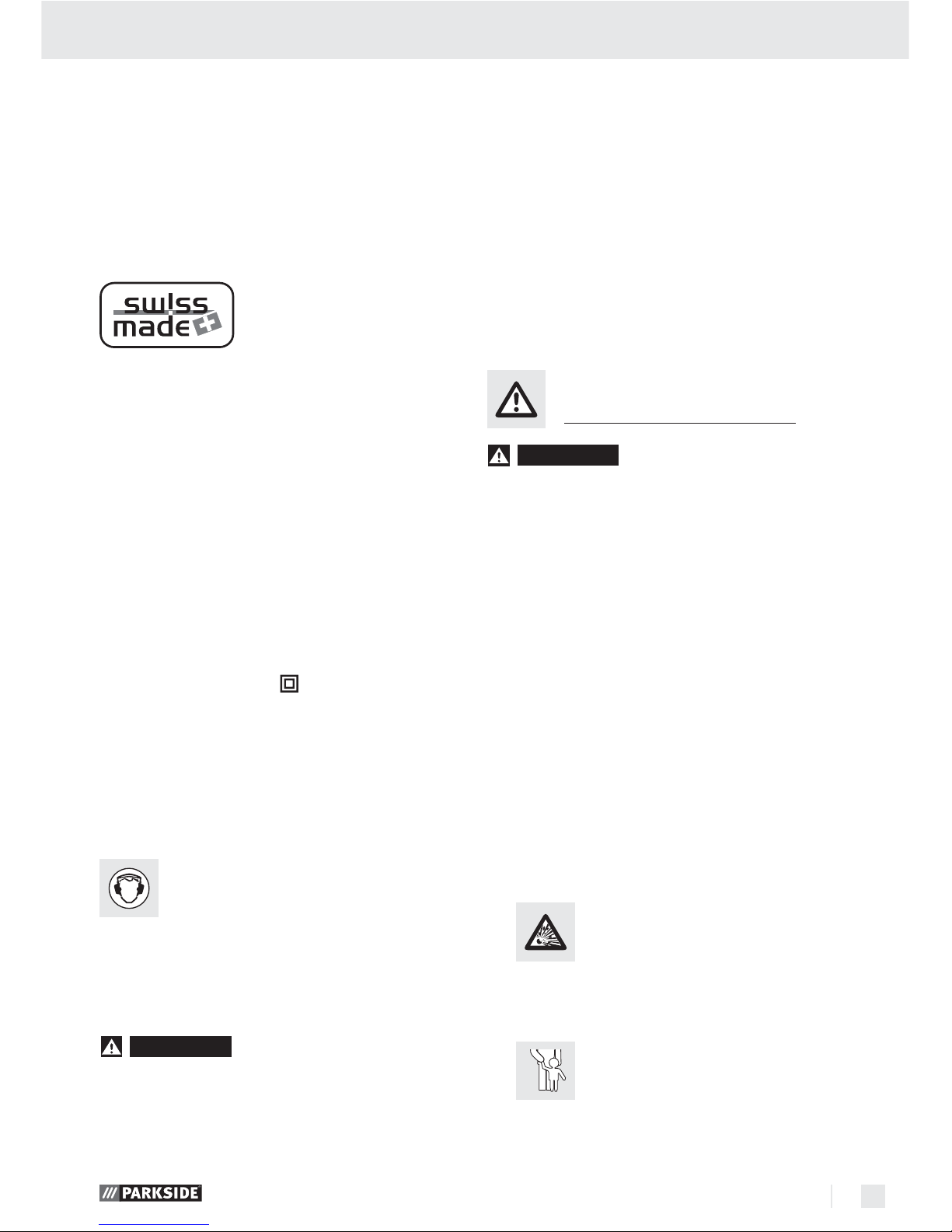

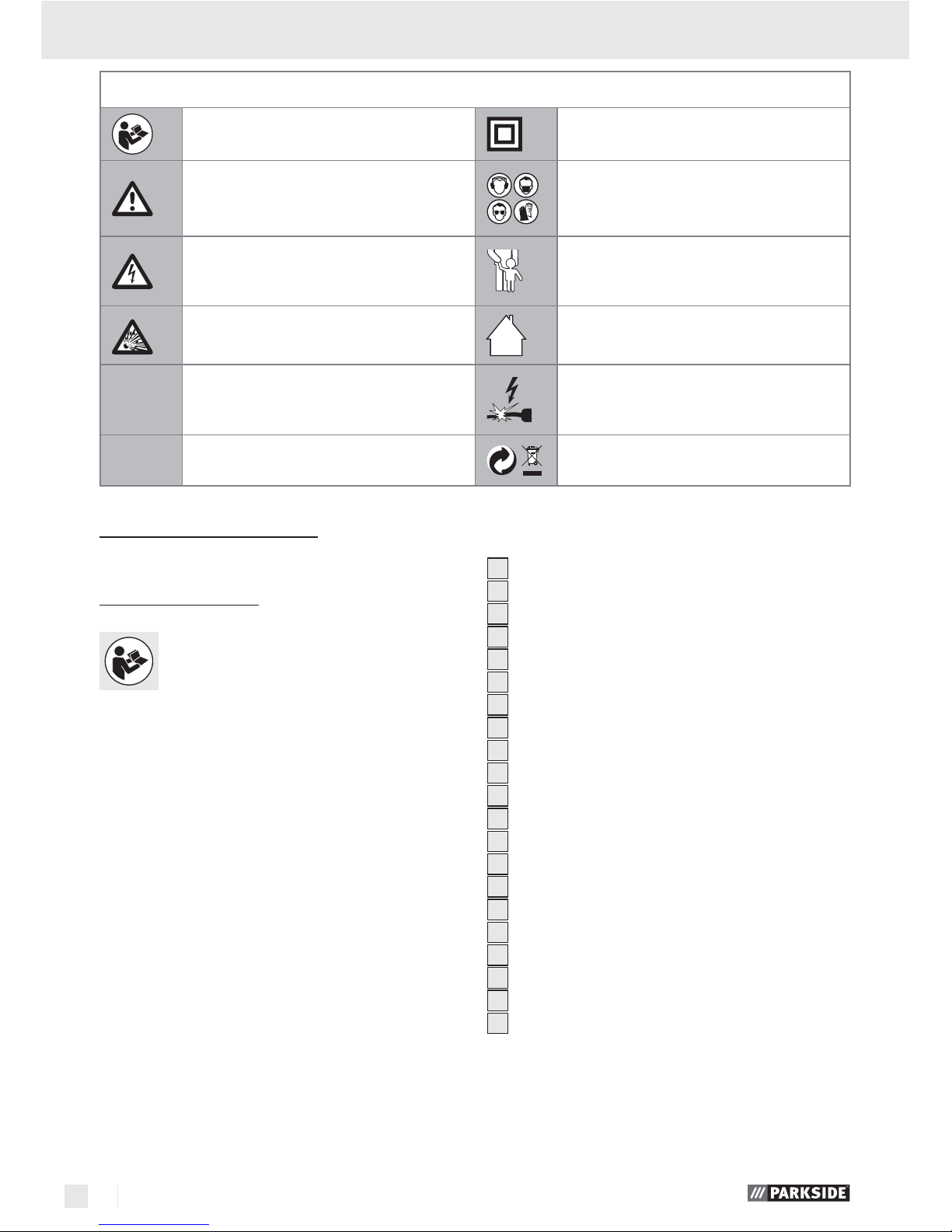

The following pictograms are used in these operating instructions /on the device:
Read instruction manual! Safety class II
Observe caution and safety notes!
Wear hearing protection, dust
protection mask, protective glasses
and protective gloves.
Caution – electric shock!
Danger to life!
Keep children away from electrical
power tools!
Explosive material! For indoor use only!
V~Volt (AC) Risk of loss of life by electric shock from
damaged mains lead or mains plug!
WWatts (Effective power) Dispose packaging and appliance in
an environmentally-friendly way!

7GB/IE/CY
Included items
1 Jigsaw including
- Dust extraction spout
- Allen key
- Chip guard
1 Guide fence
1 Operating instructions
2 Saw blades for wood
1 Saw blade for metal
Technical information
Jigsaw: Parkside PPHSS 730SE
Rated voltage: 230 V
~50 Hz
Power consumption: 730 W
No-load speed: max. n0600 - 2900 min-1
Cutting depth: max. 110 mm
Pendulum action: 3 speeds and a fine
cutting setting
Inclined cut: 0 - 45° left / right
Protection class: II /
Noise and vibration data:
Values determined in accordance with EN 60745.
The sound pressure level (A-weighted) of the
device is typically 90 dB (A). Uncertainty K = 3 dB.
The sound level while working can exceed 101dB(A).
Wear ear protection!
Evaluated acceleration, typical:
Hand / arm vibration ah= 6,268 m / s2
Uncertainty K = 1,5 m / s2
WARNING! The vibration level given in these
instructions has been measured in accordance with
a standardised measurement procedure specified
in EN 60745 and can be used to compare devices.
Different uses of the device give rise to different vibra-
tion levels and in many cases they may exceed the
values given in these instructions. It is easy to underes-
timate the vibration load if the electrical power tool is
used regularly in particular circumstances.
Note: If you wish to make an accurate assessment
of the vibration loads experienced during a particu-
lar period of working, you should also take into
account the intervening periods of time when the
device is switched off or is running but is not actual-
ly in use. This can result in a much lower vibration
load over the whole of the period of working.
General safety advice for
electrical power tools
WARNING! Read all the safety advice
and instructions! Failure to observe the safety
advice and instructions may result in electric shock,
fire and/or serious injury.
KEEP ALL THE SAFETY ADVICE AND INSTRUC-
TIONS IN A SAFE PLACE FOR FUTURE REFER-
ENCE! THE TERM “ELECTRICAL TOOL” USED
IN THE SAFETY ADVICE REFERS TO ELECTRICAL
TOOLS POWERED BY MAINS ELECTRICITY (BY
MEANS OF A MAINS LEAD) AND ELECTRICAL
TOOLS POWERED BY RECHARGEABLE BATTER-
IES (WITHOUT A MAINS LEAD).
1. Workplace safety
a) Keep your working area clean and
well lit. Untidy or poorly lit working areas
can lead to accidents.
b) Do not work with the device
in potentially explosive envi-
ronments in which there
are inflammable liquids, gases or
dusts. Electrical power tools create sparks,
which can ignite dusts or fumes.
c) Keep children and other peo-
ple away while you are op-
erating the electrical tool.
Distractions can cause you to lose control of
the device.
Introduction / General safety advice for electrical power tools

8 GB/IE/CY
2. Electrical safety
To avoid danger to life
from electric shock:
a)
The mains plug on the device must match
the mains socket. The plug must not
be modified in any way. Do not use
an adapter plug with devices fitted
with a protective earth. Unmodified
plugs and matching sockets reduce the risk of
electric shock.
b) Avoid touching earthed surfaces such
as pipes, radiators, ovens and refrig-
erators with any part of your body.
There is an increased risk of electric shock if
your body is earthed
.
c) Keep the device away from rain or
moisture. Water entering an electrical device
increases the risk of electric shock.
d) Do not use the mains lead for
any purpose for which it was
not intended, e.g. to carry the
device, to hang up the device or to pull
the mains plug out of the mains socket.
Keep the mains lead away from heat,
oil, sharp edges or moving parts of the
device. Damaged or tangled mains leads
increase the risk of electric shock.
e) When working outdoors with an electri-
cal power tool always use extension ca-
bles that are also approved for use out-
doors. The use of an extension cable suitable
for outdoor use reduces the risk of electric
shock.
f) Use a residual current device (RCD) for
protection if operating the electrical
power tool in a moist environment is
unavoidable. The use of an RCD reduces
the risk of electric shock.
3. Personal safety
a) Remain alert at all times, watch what
you are doing and always proceed
with caution. Do not use the device if
you are tired or under the influence of
drugs, alcohol or medication. One mo-
ment of carelessness when using the device
can lead to serious injury.
b) Wear personal protective
equipment and always wear
safety glasses. The wearing of
personal protective equipment such as dust
masks, non-slip safety shoes, safety helmets or
ear protectors, appropriate to the type of elec-
trical power tool used and work undertaken,
reduces the risk of injury.
c) Avoid unintentional operation of the
device. Check that the electrical pow-
er tool is switched off before you con-
nect it to the mains, pick it up or carry
it. Accidents can happen if you carry the de-
vice with your finger on the ON/OFF switch or
with the device switched on.
d) Remove any setting tools or spanners
before you switch the device on. A tool
or spanner left attached to a rotating part of a
device can lead to injury.
e) Avoid placing your body in an unnat-
ural position. Keep proper footing
and balance at all times. By doing this
you will be in a better position to control the
device in unforeseen circumstances.
f) Wear suitable clothing. Do not wear
loose clothing or jewellery. Keep your
hair, clothing and gloves clear of mov-
ing parts. Loose clothing, jewellery or long
hair can become trapped in moving parts.
g) If vacuum dust extraction and collection
devices are fitted do not forget to
check
that they are properly connected
and
correctly used. The use of these devices re-
duces the hazard presented by dust.
4. Careful handling and use of
electrical power tools
a) Do not overload the device. Always
use an electrical power tool that is
intended for the task you are under-
taking. By using the right electrical power
tool for the job you will work more safely and
achieve a better result.
General safety advice for electrical power tools

9GB/IE/CY
b) Do not use an electrical power tool if
its switch is defective. An electrical power
tool that can no longer be switched on and off
is dangerous and must be repaired.
c) Pull the mains plug out of the socket
before you make any adjustments to
the device, change accessories or
when the device is put away. This pre-
caution is intended to prevent you from uninten-
tionally starting the device.
d) When not in use always ensure that
electrical power tools are kept out of
reach of children. Do not let anyone
use the device if he or she is not famil-
iar with it or has not read the
instructions and advice. Electrical power
tools are dangerous when they are used by
inexperienced people.
e) Look after the device carefully. Check
that moving parts are working prop-
erly and move freely. Check for any
parts that are broken or damaged
enough to detrimentally affect the
functioning of the device. Have dam-
aged parts repaired before you use
the device. Many accidents have their ori-
gins in poorly maintained electrical power
tools.
f) Keep cutting tools clean and sharp.
Carefully maintained cutting tools with sharp
cutting edges are less likely to jam and are
easier to control.
g) Use the electrical power tool, accesso-
ries, inserted tools etc. in accordance
with these instructions and
advice, and the stipulations drawn up
for this particular type of device. In
doing this, take into account the
working conditions and the task in
hand. The use of electrical power tools for
purposes other than those intended can lead to
dangerous situations.
Safety advice relating
specifically to this device
Avoiding the danger of injury, fire and
damage to your health:
Securely support the workpiece. Use clamps or
a vice to grip the workpiece firmly. This is much
safer than holding it in your hand.
Always switch on the electrical power tool be-
fore placing it against the workpiece. There is
also the risk of kickback.
Keep you hands away from the area of the
saw blade. Do not grip the underside of the
workpiece. Contact with the saw blade 14
may result in the risk of injury.
Make sure that the base plate 9lies on the
workpiece when sawing.
If a dangerous situation arises, pull the mains
plug immediately out of the mains socket.
Always work with the mains lead leading
away from the rear of the device.
WARNING! NOXIOUS FUMES! Working
with harmful / noxious dusts represents a risk to
the health of the person operating the device
and to anyone near the work area.
Wear protective glasses and a dust
mask!
Do not saw materials containing substances
harmful to health.
Do not saw materials containing asbestos.
Asbestos is a known carcinogen.
When sawing wood and in particular when
working on materials that give rise to dusts that
are hazardous to health, the device must be
connected to a suitable dust extraction device.
Make sure you have adequate ventilation.
Do not work on moistened materials or damp
surfaces.
Switch off the electrical power tool after com-
pleting each stage of work but do not with-
draw the saw blade 14 from the cut until after
it has come to a standstill.
After switching off do not brake the saw blade
14 by pressing it sideways against an object.
It could cause the saw blade 14 to be dam-
aged, break or initiate a kickback.
General safety advice for electrical power tools

10 GB/IE/CY
Use only undamaged, defect-free saw blades.
Distorted or blunt saw blades can break or
cause a kickback.
Always keep the device clean, dry and free of
oil or grease.
Original accessories /
attachments
Use only the accessories and attachments de-
tailed in the operating instructions. The use of
inserted tools or accessories other than those
recommended in the operating instructions
could lead to you suffering an injury.
Preparing for use
Information about saw blades
The Parkside equipment supplied as standard with
your tool includes saw blades intended mainly for
sawing wood and metal.
1 blade (wood) for quick cutting
in softwood (green arrow marking)
1 blade (wood) for clean
cutting in softwood (orange arrow marking)
1 blade (special) for metal up to 3 mm thick
(black arrow marking)
Note: Use a suitable coolant, e.g. cutting oil. This
improves the endurance and increases the service
life of the metal saw blade.
Saw blades are available which have been opti-
mally designed for particular tasks. You can use
any of these saw blades provided they have the
correct shank fitting (single lug shank).
Mounting / replacing
saw blades
Saw blade type
Suitable for
PPHSS 730 SE
Unsuitable
WARNING! Pull the mains plug out of the
socket before you carry out any task on the
device, otherwise there may be risk of injury.
Turn the quick-release chuck 18 and hold it in
the turned position.
Press the selected saw blade 14 up to the stop
in the quick-release chuck 18 .
The saw blade 14 should then engage.
The saw blade 14 must lie in the guide roller 13 .
Release the quick-release chuck 18 . The chuck
must then return to its original position.
The saw blade 14 is then locked in place.
Attaching the chip guard
Pull the runner 10 off the base plate 9.
Insert the chip guard 16 from below into the
base plate 9and slide it into the slots provid-
ed. The chip guard can help prevent breaking
out of the surface.
General safety advice for electrical power tools / Preparing for use

11GB/IE/CY
Attaching the guide fence
The guide fence 19 can be attached on the left or
right side of the device (see Fig. A).
Release the two locking screws of the fence
guide openings 15 .
Slide the guide fence 19 into the fence guide
openings 15 .
Retighten the two locking screws.
Connecting the vacuum
sawdust extraction device
Insert the dust extraction spout 7into the
vacuum extraction duct 8until it engages.
Connect a vacuum device approved for the
extraction of sawdust and splinters to the dust
extraction spout 7(see Fig. C).
Operation
Setting the cutting angle
Release the clamp screw 11 using the Allen
key 20 .
Set the cutting angle 0° / 15° / 30° / 45°
(left/right) on the base plate 9. The embossed
marking for each recessed line indicates the
cutting angle setting. The housing has a stop
pin 21 (see Fig. B) which must engage in the
appropriate recessed line.
Tighten the clamp screw 11 using the Allen
key 20 .
Setting the speed
Set the desired speed using the oscillation
speed setting wheel 4.
If possible always determine the optimum
setting beforehand by carrying out a
practical test.
Setting the pendulum action
You can set the pendulum movement of the saw
blade 14 using the pendulum action switch 12 . By
having no pendulum action (setting “0”) you can
produce fine, clean cut edges. Turn off the
pendulum action for thin workpieces.
With the pendulum action activated (settings 1– 3)
you can cut through the workpiece at increasingly
quicker rates.
If possible always determine the optimum set-
ting beforehand using a practical test.
Switching On / Off
DANGER! Before connecting to the mains
plug check that the mains circuit supplies
230 V ~50 Hz and is fitted with a 16 A fuse or
cut-out in accordance with the regulations!
Switching on:
Push the ON / OFF switch 2into position “I”
and ensure it engages.
Switching off:
Press the rear part of the ON/ OFF switch 2.
Maintenance and cleaning
Maintenance
Replace the saw blade 14 as soon as its teeth
become blunt and it starts to produce defective
saw cuts.
Cleaning
Carry out that cleaning of the device when you
have finished sawing.
Preparing for use / Operation / Maintenance and cleaning

12 GB/IE/CY
Remove dirt (e.g. caused by sawdust or splinters).
Use a dry cloth.
Service centre
WARNING! Have your device
repaired only by qualified specialist
personnel using original manufacturer
parts only. This will ensure that your device
remains safe to use.
WARNING! If the plug or mains
lead needs to be replaced, always
have the replacement carried out by
the manufacturer or its service centre.
This will ensure that your device remains safe
to use.
Warranty
This appliance is guaranteed for 3 years
from the date of purchase. It has been
carefully produced and meti-culously
checked before delivery. Please keep your
receipt as proof of purchase. Contact your
service centre by telephone in case of
questions pertaining to the warranty.
Your goods can be transmitted free of
cost only in this manner. This warranty
applies only to the initial purchaser and
is non-transferable.
The warranty covers only material or manufactur-
ing faults, not normal wear or damage to fragile
parts such as switches or rechargeable batteries.
The appliance is intended solely for private, not
commercial, use.
If this product has been subjected to improper or
inappropriate handling, abuse, or interventions not
carried out by one of our authorised sales and
service outlets, the warranty will be considered void.
This warranty does not affect your statutory rights.
GB
DES UK LTD
Tel.: [phone] (£ 0,10 / minute)
e-mail: [email protected]
IE
Kompernaß Service Ireland
Tel.: [phone] (0,082 €/Min.)
* Standard call rates apply.
Mobile operators may vary.
e-mail: [email protected]
Disposal
The packaging is wholly composed of
environmentally-friendly materials that can
be disposed of at a local recycling centre.
Do not dispose of electrical power
tools with the household rubbish!
In accordance with European Directive
2002 / 96 / EC (covering waste electrical and elec-
tronic equipment) and its transposition into national
legislation, worn out electrical power tools must be
collected separately and taken for environmentally
compatible recycling.
Contact your local refuse disposal authority for
more details of how to dispose of your worn out
electrical devices.
Maintenance and cleaning / Service centre / Warranty / Disposal

13GB/IE/CY
Declaration of Conformity /
Manufacturer
We, Kompernaß GmbH, Burgstr. 21,
D-44867 Bochum, Germany, declare that this
product complies with the following EU directives:
Machinery Directive (89/ 392 / EC),
(91 / 368 / EC), (93 / 44 / EC)
EU Low Voltage Directive
(2006 / 95 / EC)
Electromagnetic Compatibility
(89 / 336 / EC, 92 / 31 / EC)
Type / Device description:
Jigsaw PPHSS 730 SE
Bochum, 31.10.2009
Hans Kompernaß
- Managing Director -
We reserve the right to make technical modifica-
tions in the course of product development.
Declaration of Conformity / Manufacturer

6
IAN 37833
KOMPERNASS GMBH
Burgstraße 21
D-44867 Bochum
© by ORFGEN Marketing
Last Information Update: 10 /2009
Ident.-No.: PPHSS730SE102009-6
