Parkside PGG 15 E4 User manual

ENGRAVING TOOL PGG 15 E4
GRAVIERGERÄT
Originalbetriebsanleitung
IAN 339516_1910
ENGRAVING TOOL
Translation of the original instructions ΗΛΕΚΤΡΙΚΗ ΣΥΣΚΕΥΗ
ΧΆΡΆΞΗΣ
Μετάφραση των αυθεντικών οδηγιών
λειτουργίας

GB/IE/NI/CY Translation of the original instructions Page 1
GR / CY Μετάφραση των αυθεντικών οδηγιών λειτουργίας Σελίδα 19
DE/AT/CH Originalbetriebsanleitung Seite 37
Before reading, unfold the page containing the illustrations and familiarise
yourself with all functions of the device.
Πριν ξεκινήσετε την ανάγνωση, ανοίξτε τις δυο σελίδες με τις εικόνες και
εξοικειωθείτε με όλες τις λειτουργίες της συσκευής.
Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus und machen
Sie sich anschließend mit allen Funktionen des Gerätes vertraut.

PGG 15 E4 GB│IE│NI│CY │ 1 ■
Contents
Introduction......................................2
Intended use..............................................2
Features .................................................3
Package contents ..........................................3
Technical data ............................................3
General Power Tool Safety Warnings ................5
1. Work area safety ........................................6
2. Electrical safety .........................................6
3. Personal safety..........................................7
4. Power tool use and care ..................................8
5. Service ................................................9
Operation .......................................9
Switching on and off .......................................9
Setting the stroke depth ....................................10
Changing the engraving tips ................................10
Working procedures.......................................11
Cleaning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Disposal........................................12
Disposal of the appliance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Kompernass Handels GmbH warranty ..............13
Service .........................................16
Importer .......................................17
Translation of the original Conformity Declaration .....17

PGG 15 E4
■ 2 │ GB│IE│NI│CY
ENGRAVING TOOL PGG 15 E4
Introduction
Congratulations on the purchase of your new appliance. You have
selected a high-quality product. The operating instructions are part of this
product. They contain important information on safety, usage and dis-
posal. Before using the product, familiarise yourself with all handling and
safety guidelines. Use the product only as described and for the range of
applications specified. Please also pass these operating instructions on to
any future owner.
Intended use
This appliance is intended for engraving or decorating materials such
as metal, plastic, glass, leather and stone. Any other usage of or
modification to the appliance is deemed to be improper and carries a
significant risk of accidents. The manufacturer accepts no responsibility
for damage(s) attributable to misuse. This appliance is not intended for
commercial use.

PGG 15 E4 GB│IE│NI│CY │ 3 ■
Features
ON/OFF switch
Stroke rate control
Carrying lug
Power cable
Engraving tip
Engraving tip lock
Engraving templates
Package contents
1 engraving tool PGG 15 E4
4 engraving templates
1 set of operating instructions
Technical data
Rated voltage: 230 V ∼, 50 Hz (alternating current)
Operating mode: periodic intermittent operation: S3 20%
Note: A duty cycle (in %) explicitly specifies the maximum continuous use
and the subsequent rest period. In this case, for instance, the tool needs a
cooling period of eight minutes after two minutes of operation.
Rated current: 0.15 A
Stroke rate: 6000 rpm
Approximate weight: 370 g

PGG 15 E4
■ 4 │ GB│IE│NI│CY
Noise emission value
Noise measurement value determined in accordance with EN 60745.
The A-rated noise level of the power tool is typically as follows:
Sound pressure level: LpA = 74.4 dB(A)
Uncertainty: KpA = 3 dB
Sound power level: LWA = 85.4 dB(A)
Uncertainty: KWA = 3 dB
Wear hearing protection!
Total vibration value:
ah= 1.582 m/s2
Uncertainty K = 1.5 m/s2
NOTE
► The vibration level specified in these instructions has been measured
in accordance with the standardised measuring procedure specified
in EN 60745 and can be used to make equipment comparisons.
The specified vibration emission value can also be used to make an
initial exposure estimate.

PGG 15 E4 GB│IE│NI│CY │ 5 ■
WARNING!
► The vibration level varies in accordance with the use of the power
tool and may be higher than the value specified in these instructions
in some cases. Regular use of the electric tool in such a way may
cause the user to underestimate the vibration. Try to keep the vibra-
tion loads as low as possible. Measures to reduce the vibration load
include wearing gloves and limiting your working time. Wherein all
states of operation must be included (e.g. times when the power tool
is switched off and times where the power tool is switched on but
running without load).
General Power Tool
Safety Warnings
WARNING!
► Read all safety warnings and all instructions. Failure to follow the
warnings and instructions may result in electric shock, fire and/or
serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated
(corded/mains adapter) power tools or battery-operated (cordless)
power tool.

PGG 15 E4
■ 6 │ GB│IE│NI│CY
1. Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite
accidents.
b) Do not operate power tools in explosive atmospheres, such as in
the presence of flammable liquids, gases or dust. Power tools create
sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool.
Distractions can cause you to lose control.
2. Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in
any way. Do not use any adapter plugs with earthed (grounded)
power tools. Unmodified plugs and matching outlets will reduce risk of
electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as
pipes, radiators, ranges and refrigerators. There is an increased risk
of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering
a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or
unplugging the power tool. Keep cord away from heat, oil, sharp
edges or moving parts. Damaged or entangled cords increase the risk
of electric shock.
e) When operating a power tool outdoors, use an extension cord suit-
able for outdoor use. Use of a cord suitable for outdoor use reduces
the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use
a residual current device (RCD) protected supply. Use of an RCD
reduces the risk of electric shock.

PGG 15 E4 GB│IE│NI│CY │ 7 ■
3. Personal safety
a) Stay alert, watch what you are doing and use common sense when
operating a power tool. Do not use a power tool while you are
tired or under the influence of drugs, alcohol or medication. A mo-
ment of inattention while operating power tools may result in serious
personal injury.
b) Use personal protective equipment. Always wear eye protection.
Protective equipment such as dust mask, non-skid safety shoes, hard
hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position
before connecting to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools with your finger on
the switch or energising power tools that have the switch on invites
accidents.
d) Remove any adjusting key or wrench before turning the power tool
on. A wrench or a key left attached to a rotating part of the power tool
may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times.
This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your
hair, clothing and gloves away from moving parts. Loose clothes,
jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and
collection facilities, ensure these are connected and properly used.
Use of dust collection can reduce dust-related hazards.

PGG 15 E4
■ 8 │ GB│IE│NI│CY
4. Power tool use and care
a) Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer at
the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off.
Any power tool that cannot be controlled with the switch is dangerous
and must be repaired.
c) Disconnect the plug from the power source and/or the battery
pack from the power tool before making any adjustments, changing
accessories, or storing power tools. Such preventive safety measures
reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow
persons unfamiliar with the power tool or these instructions to
operate the power tool. Power tools are dangerous in the hands of
untrained users.
e) Maintain power tools. Check for misalignment or binding of moving
parts, breakage of parts and any other condition that may affect
the power tool’s operation. If damaged, have the power tool re-
paired before use. Many accidents are caused by poorly maintained
power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools
with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with
these instructions, taking into account the working conditions and
the work to be performed. Use of the power tool for operations differ-
ent from those intended could result in a hazardous situation.

PGG 15 E4 GB│IE│NI│CY │ 9 ■
5. Service
a) Have your power tool serviced by a qualified repair person using
only identical replacement parts. This will ensure that the safety of the
power tool is maintained.
Operation
Never use the appliance for other purposes and only original parts/acces-
sories. Using attachments or accessory tools other than those recommended
in the operating instructions can lead to a risk of injury.
Switching on and off
♦ Insert the power plug into a mains wall socket.
Switching on
♦ Press the ON/OFF switch .
Switching off
♦ Let go of the ON/OFF switch .

PGG 15 E4
■ 10 │ GB│IE│NI│CY
Setting the stroke depth
You can use the stroke rate control to adjust the depth of the
engraving. A low setting is usually sufficient for the most common
applications.
♦ Turn the stroke rate control towards the +to increase the stroke
depth.
♦ Turn the stroke rate control towards the –to decrease the stroke
depth.
Changing the engraving tips
CAUTION! RISK OF INJURY!
► Switch the appliance off and remove the power plug before com-
mencing any work to the appliance.
♦ Change the engraving tip as soon as it becomes worn and no
longer delivers the desired engraving results. Turn the engraving tip
lock anticlockwise until the engraving tip can be removed.
♦ Remove the spring and washer.
♦ Slide the washer and spring onto a new engraving tip . Then insert
it into the appliance and turn the engraving tip lock clockwise to
lock the tip.
♦ Ensure that the engraving tip is fixed correctly in place.

PGG 15 E4 GB│IE│NI│CY │ 11 ■
Working procedures
You can use the mini engraver to create imaginative and unique engrav-
ings. For example, you can permanently mark valuable items. You can
engrave numbers and letters onto metal, glass, wood, plastic, ceramics,
stone and leather. To do this, use the supplied engraving templates .
♦ Hold the appliance at an angle, in the same way you would hold a
pen.
♦ Your arm should be resting on the table.
♦ Move the engraving tip over the workpiece while applying gentle
pressure. To find out the ideal engraving speed, practice on a spare
piece of material.
NOTE
► The supplied engraving tip is made of tungsten steel. It is there-
fore not suitable for engraving electronic media such as CDs, DVDs,
etc. These materials and their readability could be damaged.
Cleaning
WARNING! RISK OF INJURY!
Always remove the plug from the power socket before
all maintenance and cleaning work on the appliance.
■ Remove all dirt from the appliance. Use a dry cloth to do this.

PGG 15 E4
■ 12 │ GB│IE│NI│CY
Disposal
Disposal of the appliance

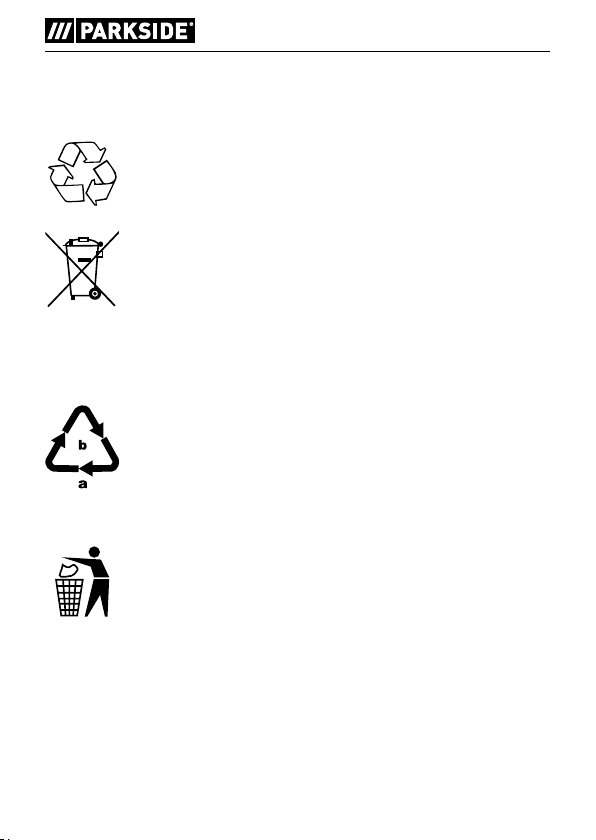

The packaging is made from environmentally friendly
material and can be disposed of at your local recycling
plant.
Do not dispose of power tools in your normal
domestic waste!
European Directive 2012/19/EU requires that worn-out
power tools be collected separately and recycled in an
environmentally compatible manner.
Your local community or municipal authorities can provide
information on how to dispose of the worn-out appliance.
Dispose of the packaging in an environmentally friendly
manner. Note the labelling on the packaging and separate
the packaging material components for disposal if necessary.
The packaging material is labelled with abbreviations (a)
and numbers (b) with the following meanings: 1–7: plastics,
20–22: paper and cardboard, 80–98: composites.
Your local community or municipal authorities can provide
information on how to dispose of the worn-out product.

PGG 15 E4 GB│IE│NI│CY │ 13 ■
Kompernass Handels GmbH warranty
Dear Customer,
This appliance has a 3-year warranty valid from the date of purchase. If this
product has any faults, you, the buyer, have certain statutory rights. Your
statutory rights are not restricted in any way by the warranty described
below.
Warranty conditions
The warranty period starts on the date of purchase. Please keep your
receipt in a safe place. This will be required as proof of purchase.
If any material or manufacturing fault occurs within three years of the date
of purchase of the product, we will either repair or replace the product
for you or refund the purchase price (at our discretion). This warranty
service requires that you present the defective appliance and the proof
of purchase (receipt) within the three-year warranty period, along with a
brief written description of the fault and of when it occurred.
If the defect is covered by the warranty, your product will either be
repaired or replaced by us. The repair or replacement of a product does
not signify the beginning of a new warranty period.
Warranty period and statutory claims for defects
The warranty period is not prolonged by repairs effected under the
warranty. This also applies to replaced and repaired components. Any
damage and defects present at the time of purchase must be reported
immediately after unpacking. Repairs carried out after expiry of the war-
ranty period shall be subject to a fee.

PGG 15 E4
■ 14 │ GB│IE│NI│CY
Scope of the warranty
This appliance has been manufactured in accordance with strict quality
guidelines and inspected meticulously prior to delivery.
The warranty covers material faults or production faults. The warranty
does not extend to product parts subject to normal wear and tear or to
fragile parts which could be considered as consumable parts such as
switches or parts made of glass.
The warranty does not apply if the product has been damaged, im-
properly used or improperly maintained. The directions in the operating
instructions for the product regarding proper use of the product are to be
strictly followed. Uses and actions that are discouraged in the operating
instructions or which are warned against must be avoided.
This product is intended solely for private use and not for commercial
purposes. The warranty shall be deemed void in cases of misuse or im-
proper handling, use of force and modifications/repairs which have not
been carried out by one of our authorised Service centres.
The warranty period does not apply to
■ Normal reduction of the battery capacity overtime
■ Commercial use of the product
■ Damage to or alteration of the product by the customer
■ Non-compliance with safety and maintenance instructions,
operating errors
■ Damage caused by natural hazards

PGG 15 E4 GB│IE│NI│CY │ 15 ■
Warranty claim procedure
To ensure quick processing of your case, please observe the following
instructions:
■ Please have the till receipt and the item number (e.g.IAN12345) avail-
able as proof of purchase.
■ You will find the item number on the type plate on the product, an en-
graving on the product, on the front page of the operating instructions
(below left) or on the sticker on the rear or bottom of the product.
■ If functional or other defects occur, please contact the service depart-
ment listed either by telephone or by e-mail.
■ You can return a defective product to us free of charge to the service
address that will be provided to you. Ensure that you enclose the proof
of purchase (till receipt) and information about what the defect is and
when it occurred.
You can download these instructions along with many other
manuals, product videos and installation software at
www.lidl-service.com.
This QR code will take you directly to the Lidl service page
(www.lidl-service.com) where you can open your operating
instructions by entering the item number (IAN) 123456.

PGG 15 E4
■ 16 │ GB│IE│NI│CY
Service
WARNING!
■Have the power tool repaired by the Service centre or a quali-
fied electrician and only using genuine replacement parts. This
will ensure that the safety of the appliance is maintained.
■Always ensure that the power plug or the mains cable is
replaced only by the manufacturer of the appliance or by an
approved customer service provider. This will ensure that the
safety of the appliance is maintained.
NOTE
► You can order spare parts (such as replacement templates and tips)
using our service hotline.
Service Great Britain
Tel.: [phone]
E-Mail: kom[email protected]
Service Ireland
Tel.: [phone]
(0,08 EUR/Min., (peak))
(0,06 EUR/Min., (off peak))
E-Mail: kom[email protected]
CY Service Cyprus
Tel.: [phone]
E-Mail: kom[email protected]
IAN 339516_1910

PGG 15 E4 GB│IE│NI│CY │ 17 ■
Importer
Please note that the following address is not the service address. Please
use the service address provided in the operating instructions.
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com
Translation of the original Conformity
Declaration
We, KOMPERNASS HANDELS GMBH, documents officer:
Mr. Semi Uguzlu, BURGSTR. 21, 44867 BOCHUM, GERMANY, hereby
declare that this product complies with the following standards, normative
documents and EC directives:
Machinery Directive
(2006/42/EC)
EMC (Electromagnetic Compatibility)
(2014/30/EU)
RoHS Directive
(2011/65/EU)*
*The manufacturer bears the full responsibility for compliance with this conformity
declaration. The object of the declaration described above complies with the
requirements of the Directive 2011/65/EU
of the European Parliament and
Council of 8 June 2011 on the limitations of use of certain dangerous substances
in electrical and electronic appliances.
