Parkside PLP 100 User manual

PLP 100
LÖTPISTOLE
Bedienungs- und Sicherheitshinweise
LODDEPISTOL
Brugs- og sikkerhedsanvisninger
ΠΙΣΤΟΛΙ ΣΥΓΚΟΛΛΗΣΗΣ
Υποδείξεις χειρισμού και ασφαλείας
SOLDERING GUN
Operation and Safety Notes

GB/IE/CY Operation and Safety Notes Page 5
DK Brugs- og sikkerhedsanvisninger Side 19
GR/CY Υποδείξεις χειρισμού και ασφαλείας Σελίδα 33
DE/AT/CH Bedienungs- und Sicherheitshinweise Seite 47
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions
of the device.
Før du læser, vend siden med billeder frem og bliv bekendt med alle apparatets funktioner.
Πριν ξεκινήσετε την ανάγνωση, ανοίξτε τη σελίδα με τις εικόνες και εξοικειωθείτε με όλες τις
λειτουργίες της συσκευής.
Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus und machen Sie sich anschließend
mit allen Funktionen des Gerätes vertraut.

1 2
3
4
5
6
10
7
8
9

5GB/IE/CY
Introduction.....................................................................Page 6
Proper use ..............................................................................Page 7
Description of parts and features.........................................Page 8
Included items........................................................................Page 8
Technical data........................................................................Page 8
Safety advice
1. Workplace safety..............................................................Page 9
2. Electrical safety.................................................................Page 10
3. Personal safety ..................................................................Page 11
4. Careful handling and use of electrical power tools.......Page 12
Original accessories/attachments......................................Page 13
Use
Switching on and off .............................................................Page 13
Replacing a soldering tip......................................................Page 14
Maintenance and cleaning.................................Page 14
Service centre ................................................................Page 14
Warranty ...........................................................................Page 15
Disposal...............................................................................Page 16
Declaration of conformity/Producer........Page 16
Table of contents

6 GB/IE/CY
Introduction
The following pictograms are used in these operating
instructions/on the device:
Read instruction manual!
Observe caution and safety notes!
Caution–electric shock! Danger to life!
Risk of explosion!
Risk of fire!
Warning - Hot surfaces!
V~Volt (AC)
WWatts (Effective power)
Wear a breathing/dust mask, protective glasses,
gloves and clothing.
Keep children away from electrical devices!
For indoor use only!
Check that the device, mains lead and plug are in
good condition!

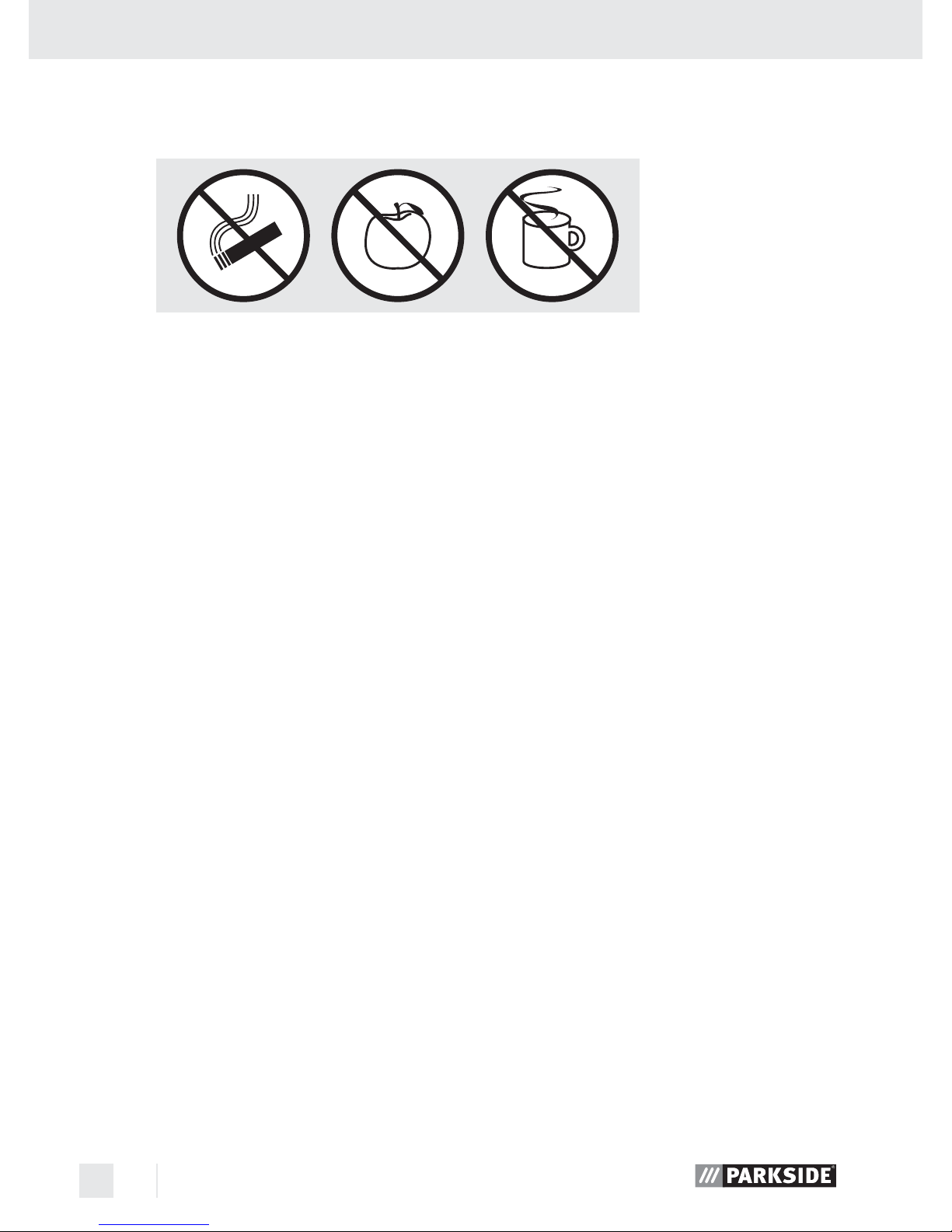

Do not smoke!

7GB/IE/CY
Introduction
Do not eat!
Do not drink!
Dispose packaging and appliance in an
environmentally-friendly way!
Soldering gun PLP 100

Introduction
Please make sure you familiarise yourself fully with the way
the device works before you use it for the first time and that
you understand how to handle it correctly. Please read the
operating instructions below. Be careful to keep these advice notes
and if necessary pass them on to a third party.

Proper use
The device is intended for soldering tasks in a DIY environment. Soft
soldering takes place at temperatures below 450C°. Suitable solders
have typical melting temperatures around 200C°. Use the device only
as described and for the indicated purposes. The device is not intend-
ed for commercial use. Any other use or modification to the device shall
be considered as improper use and could give rise to considerable
dangers. The manufacturer will not accept liability for loss or damage
arising from improper use.

8 GB/IE/CY
Introduction

Description of parts and features
1Soldering tip
2Union nut
3Soldering light
4ON/OFF switch
5Handle
6Mains lead
7Cutting tip
8Solder wire
9Open spanner
10 Solder flux

Included items
1x Soldering gun
1x Carry case
2x Soldering tips (1 cutting tip 7premounted)
1x Open spanner
20g Solder wire
10g Solder flux
1x Operating instructions

Technical data
Rated voltage: 230V~
Frequency: 50Hz

9GB/IE/CY
Introduction/Safety advice
Power: 100W
Max. soldering tip temperature: 540°C
ON max. 12 sec./OFF min. 48 sec.
Safety advice
 CAUTION! Failure to observe the instructions and advice given
below may result in electric shock, fire and/or serious injury.
1. Workplace safety
a) Keep your working area clean and well lit. Untidy or
poorly lit working areas can lead to accidents.
b) Do not work with the device in potentially
explosive environments in which there are
inflammable liquids, gases or dusts. Electrical
power tools create sparks, which can ignite dusts or fumes.
c) Keep children and other people away
while you are operating the electrical tool.
Distractions can cause you to lose control of the device.

10 GB/IE/CY
Safety advice
2. Electrical safety
To avoid danger to life from electric shock:
a)
The mains plug on the device must match the mains sock-
et. The plug must not be modified in any way. Do not
use an adapter plug with devices fitted with a protec-
tive earth. Unmodified plugs and matching sockets reduce the
risk of electric shock.
b) Keep the device away from rain or moisture. Water
entering an electrical device increases the risk of electric shock.
c) Use a residual current device (RCD) for protection if
operating the electrical power tool in a moist envi-
ronment is unavoidable. The use of an RCD reduces the risk
of electric shock.
d) Do not use the mains lead for any purpose for
which it was not intended, e.g. to carry the
device, to hang up the device or to pull the
mains plug out of the mains socket. Keep the mains
lead away from heat, oil, sharp edges or moving parts
of the device. Damaged or tangled mains leads increase the
risk of electric shock.
e) Do not operate the device if the mains lead or mains plug is
damaged.
WARNING! A damaged mains lead presents a serious
danger to life from electric shock.
f) Always keep the mains lead out of the operating area and run it
away from the rear of the device.
g) Always pull out the mains plug if you are about to leave the device
unattended or wish to carry out any tasks on the device.

11GB/IE/CY
Safety advice
3. Personal safety
a) Children or persons who lack the knowledge or ex-
perience to use the device or whose physical, sensory
or intellectual capacities are limited must never be
allowed to use the device without supervision or in-
struction by a person responsible for their safety.
Children must never be allowed to play with the device.
b) Remain alert at all times, watch what you are doing
and always proceed with caution. Do not use the
device if you are tired or under the influence of
drugs, alcohol or medication. One moment of carelessness
when using the device can lead to serious injury.
 Never touch the hot soldering tip or the molten solder.
You could suffer burn injuries. Always let the device cool
before you replace components on the device, clean it
or check its condition.
 After use let the soldering gun cool down in air only. Under no cir-
cumstances quench the tip in water!
 When allowing the device to cool or when taking a break from
using it, always stand the device up vertically with the soldering tip
at the top.
 Keep the device away from combustible materials.
CAUTION! DANGER OF INJURY! Keep your hands away
from the hot workpiece. Avoid contact with the hot soldering tip.
 If a dangerous situation arises, pull the mains plug immediately
out of the mains socket.
CAUTION! DANGER OF POISONING! Do not breathe air
contaminated with soldering fumes.
 When working with the device for long periods do not
allow the fumes from soldering to build up. They may
be hazardous to health. Always provide adequate

12 GB/IE/CY
Safety advice
ventilation of your working area. In addition, it is recommended
that you wear protective gloves, a face mask and a protective apron.

Do not eat, drink or smoke in rooms where soldering is carried
out. Otherwise your hands may transfer any adhering traces of
lead via food or cigarettes into your body.
 Always wash your hands immediately after soldering .
 Do not dispose of soldering waste with the household rubbish.
Soldering waste must disposed of as special waste.
4. Careful handling and use of electrical
power tools
a) When not in use always ensure that electrical power
tools are kept out of reach of children. Do not let any-
one use the device if he or she is not familiar with it
or has not read the instructions and advice. Electrical
power tools are dangerous when they are used by inexperienced
people.
b) Look after the device carefully. Check for broken
parts or parts that are damaged to the extent they
detrimentally affect the functioning of the device.
Have any damaged parts repaired before you use
the device. Many accidents have their origins in poorly main-
tained electrical tools.

13GB/IE/CY
Safety advice /Use

Original accessories/attachments
 Use only the accessories detailed in the operating instructions. The
use of attachments or accessories other than those recommended
here could lead to you suffering an injury.

Use

Switching on and off
Switching on:
 Insert the mains plug into a suitable mains socket. Press the
ON/OFF switch 4and keep it pressed.
 Maximum switched-on duration: 12 seconds
Switching off:
 Release the ON/OFF switch 4.
 Pause: At least 48 seconds
CAUTION! Never heat up the device if it is not fitted with a sol-
dering tip.
 ATTENTION! Never use in continuous operation mode. The flow
of electrical current controls the delivery of soldering heat. As soon
as the ON/OFF switch 4is released, the delivery of soldering
heat drops. If the ON/OFF switch 4is pressed again, the deliv-
ery of soldering heat rises. Pay particular attention to achieving an
even delivery of soldering heat to ensure the highest soldering quali-
ty. You can do this by not allowing the soldering tip 1to become
excessively hot.
Note: The device has a soldering light 3to illuminate the work-
ing area.

14 GB/IE/CY
Use/Maintenance and cleaning/Service centre

Replacing a soldering tip
CAUTION! DANGER OF BURNS! Allow the device to
cool down before replacing a soldering tip.
 Release the two union nuts 2using the open spanner 9.
 Pull the soldering tip 1or 7out of the holder.
 Insert another tip into the holder.
 Tighten the two union nuts 2using the open spanner 9.

Maintenance and cleaning
WARNING! RISK OF INJURY! Before you carry out any work
on the device always pull the mains plug out of the mains socket and
allow the device to cool.
 Clean the device after you have finished using it.
 Use a cloth and a little mild detergent for cleaning the device.
 In no circumstances use sharp objects, or petrol, solvents or clean-
ing agents that might attack plastic. Do not allow any liquids to
enter the inside of the device.

Service centre

WARNING!
Have your device repaired only by
qual-
ified specialist personnel using original manufacturer
parts only. This will ensure that your device remains safe to use.
 WARNING! If the plug or mains lead needs to be
replaced, always have the replacement carried out
by the manufacturer or his service centre. This will ensure
that your device remains safe to use.

15GB/IE/CY
Warranty

Warranty
The warranty for this appliance is for 3 years from the
date of purchase. The appliance has been manufactured
with care and meticulously examined before delivery.
Please retain your receipt as proof of purchase. In the
event of a warranty claim, please make contact by tele-
phone with our Service Department. Only in this way
can a post-free despatch for your goods be assured.
The warranty covers only claims for material and maufacturing defects,
but not for transport damage, for wearing parts or for damage to
fragile components, e.g. buttons or batteries. This product is for pri-
vate use only and is not intended for commercial use.
The warranty is void in the case of abusive and improper handling,
use of force and internal tampering not carried out by our authorized
service branch. Your statutory rights are not restricted in any way by
this warranty.
The warranty period will not be extended by repairs made unter war-
ranty. This applies also to replaced and repaired parts. Any damage
and defects extant on purchase must be reported immediately after
unpacking the appliance, at the latest, two days after the purchase
date. Repairs made after the expiration of the warranty period are
subject to payment.
GB
DES UK LTD
Tel.: [phone] (£ 0.10 / minute)
e-mail: [e-mail]

16 GB/IE/CY
Warranty/Disposal
IE
Kompernass Service Ireland
Tel: [phone] (0,082 EUR/Min.) Standard call
rates apply. Mobile operators may vary.
e-mail: [e-mail]

Disposal
The packaging and ancillary packing consist wholly of
environmentally friendly materials. They can be disposed
of at your local recycling facility.
Do not dispose of electrical devices
with the household rubbish!
In accordance with European Directive 2002 /96/EC (covering
waste electrical and electronic equipment) and its transposition into
national legislation, worn out electrical devices must be collected sep-
arately and taken for environmentally compatible recycling.
Contact your local refuse disposal authority for more details of how to
dispose of your worn-out devices.

Declaration of conformity/Producer
We, Kompernaß GmbH, the person responsible for documents: Mr
Dennis Dohm, Burgstr. 21, D-44867 Bochum, Germany, hereby declare
that this product complies with the following standards, normative doc-
uments and EU directives:

17GB/IE/CY
Declaration of conformity/Producer
EU Low Voltage Directive
(2006/95/EC)
Electromagnetic Compatibility
(2004/108/EC)
Applicable harmonized standards
EN 55014-1:2006
EN 61000-3-2:2006
EN 61000-3-3/A2:2005
EN 55014-2/A1:2001
EN 60335-2-45/A1:2008
EN 60335-1/A13:2008
EN 62233:2008
Device type/description:
Soldering gun PLP 100
Date of manufacture (DOM): 02-2010
Serial number: IAN 45841
Bochum, 31.01.2010
Hans Kompernaß
- Managing Director -
We reserve the right to make technical modifications in the course of
further development.

18

19DK
Indledning..........................................................................Side 20
Anvendelse efter bestemmelsen............................................Side 21
Beskrivelse af delene..............................................................Side 22
Leveringsomfang.....................................................................Side 22
Tekniske specifikationer..........................................................Side 22
Sikkerhedsanvisninger
1. Sikkerhed på arbejdsstedet...............................................Side 23
2. Elektrisk sikkerhed ..............................................................Side 24
3. Personlig sikkerhed ............................................................Side 25
4. Omhu i omgangen med og anvendelsen
af elektriske redskaber ...........................................................Side 26
Originalt tilbehør /ekstraudstyr.............................................Side 27
Ibrugtagen
Tænde/slukke ........................................................................Side 27
Loddespids skiftes...................................................................Side 28
Pasning og rengøring..............................................Side 28
Service...................................................................................Side 28
Garanti..................................................................................Side 29
Bortskaffelse....................................................................Side 30
Konformitetserklæring/Fremstiller............Side 31
Indholdsfortegnelse

20 DK
Indledning
I denne betjeningsvejledning/på apparatet anvendes
der følgende piktogrammer:
Læs betjeningsvejledningen!
Følg advarsels- og sikkerhedsanvisningerne!
Fare for elektrisk stød! Livsfare!
Eksplosionsfare!
Brandfare!
Advarsel mod ophedede overflader!
V~Volt (Vekselspænding)
WWatt (Effektivt)
Man bør iføre sig åndedrætsværn, beskyttelsesbriller,
sikkerhedshandsker og sikkerhedsdragt.
Hold børn væk fra elektroapparater!
Kun til indendørs anvendelse!
Apparatet, ledningen og stikket skal være ubeskadiget!
Ingen rygnigg!

21DK
Indledning
Loddepistol PLP 100

Indledning
Før ibrugtagningen bør man sætte sig ind i loddeapparatu-
rets funktioner og i dens korrekte behandling. Til dette formål
ambefales det at læse den følgende betjeningsvejdledning.
Denne vejledning skal opbevares godt. Når loddekolben overlades til
andre, skal dokumenterne til den ligeledes udleveres.

Anvendelse efter bestemmelsen
Apparatet er beregnet til loddearbejder i handyman-området. Blødlod-
ning finder sted ved temperaturer under 450°C. Passende loddemidler
smelter typisk ved temperaturer omkring 200°C. Den må kun anvendes
efter beskrivelsen og kun til de angivne formål. Loddekolben er ikke
beregnet til erhvervsmæssig anvendelse. Enhver anden anvendelse eller
forandringer af maskinen gælder som i modstrid med formålet og kan
medføre alvorlige ulykker. Fremstilleren påtager sig intet ansvar for
skader som følge formålsfremmed anvendelse.
Ingen spisning!
Ikke drikke!
Bortskaf emballagen og maskinen miljøvenligt
efter forskrifterne!
