PROGRAMMABLE WATERING TIMER
GB/IE/NI Operation and safety notes Page 5
DK Brugs- og sikkerhedsanvisninger Side 39
FR/BE Instructions d‘utilisation et
consignes de sécurité Page 72
NL/BE Bedienings- en veiligheidsinstructies Pagina 108
DE/AT/CH Bedienungs- und Sicherheitshinweise Seite 144

C
SET
SET
B12
13
16
17
15 14
3 4 6 7
18 8
A
4
9
11
10
8
1
2
7 3
6
5

D
9
10
11
1

GB/IE/NI 5
List of pictograms used................................Page 7
Introduction...........................................................Page 9
Intended use................................................................Page 9
Scope of delivery........................................................Page 10
Technical data.............................................................Page 10
Parts description..........................................................Page 11
Display indicators........................................................Page 11
Safety.........................................................................Page 13
Safety instructions........................................................Page 13
Safety instructions for batteries/ rechargeable
batteries.......................................................................Page 17
Inserting/replacing batteries................Page 20
Initial use.................................................................Page 21
Operation ...............................................................Page 23
Putting the product into operation..............................Page 23
Setting current time and day of week........................Page 23
Programming for automatic watering........................Page 24
Manual operation for watering..................................Page 27

6 GB/IE/NI
Read/ modify watering programmes........................Page 28
Reset.............................................................................Page 29
Switching 12/ 24 hours display................................Page 29
Switching on/ off the display.....................................Page 29
Battery status display..................................................Page 30
Troubleshooting ................................................Page 31
Cleaning and Care...........................................Page 32
Cleaning the filter........................................................Page 33
Storage .....................................................................Page 33
Disposal....................................................................Page 34
Warranty.................................................................Page 36
Warranty claim procedure.........................................Page 37
Service .........................................................................Page 37

GB/IE/NI 7
List of pictograms used
Direct current/voltage
Volt
Caution! Explosion hazard!
Observe caution and safety notes!
DANGER! This symbol in combination with the
signal word “Danger” marks a high-risk hazard
that if not prevented could result in death or seri-
ous injury.
CAUTION! This symbol in combination with the
signal word “Caution” marks a low-risk hazard
that if not prevented could result in minor or
moderate injury.
WARNING! This symbol in combination with
the signal word “Warning” marks a medium-risk
hazard that if not prevented could result in death
or serious injury.

8 GB/IE/NI

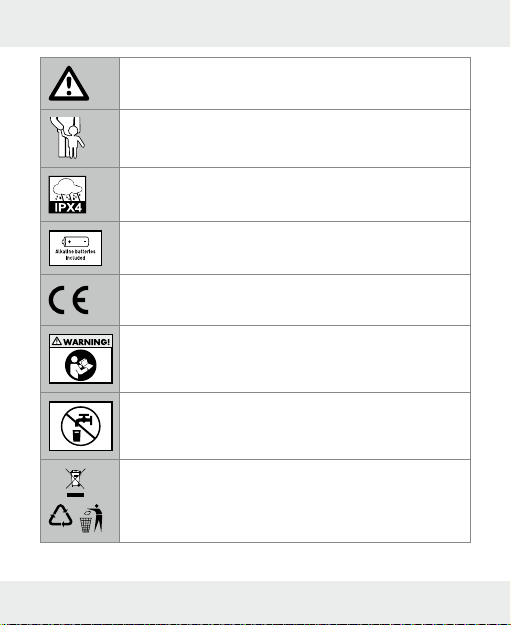

ATTENTION! This symbol with the signal word
“Attention” indicates a possible property damage.
Never leave children unattended with packaging
materials or the product.
Protects from splashing water
Alkaline-batteries are included in product
Product meets the applicable European
productspecific directives
Before using for the first time, pls read the
instruction carefully.
Do not use the product for drinks!
b
a
Dispose of the packaging and device in an
environmentally-friendly manner!

GB/IE/NI 9
UKCA mark indicates conformity with relevant
Great Britain regulations applicable for this product.
(The UKCA mark logo is valid in Great Britain only.)
Programmable Watering Timer
Introduction
We congratulate you on the purchase of your new product. You
have chosen a high quality product. The instructions for use are
part of the product. They contain important information concern-
ing safety, use and disposal. Before using the product, please
familiarise yourself with all of the safety information and instruc-
tions for use. Only use the product as described and for the speci-
fied applications. If you pass the product on to anyone else, please
ensure that you also pass on all the documentation with it.
Intended use
This product is designed to control sprinklers and sprinkler and
irrigation systems. It facilitates the automatic irrigation of outdoor
areas at a programmed time and for a programmed duration.
The product may save up to 6 programmes for automatic irrigation.

10 GB/IE/NI
The product may only be used outdoors. Any other use or modi-
fication to the product constitutes improper use. The manufacturer
assumes no liability for damages due to improper use. This pro-
duct is not intended for commercial use.
Scope of delivery
1 Programmable water timer
1 Tap connector
1 Adapter 33.3mm to 26.5 mm (G1 to G¾ )
1 Filter
2 Batteries 1.5V Type AA
1 Instructions for use
Technical data
Model No.: HG04678
Operating pressure: 34.5–827 kPa (0.34–8.27 bar)
Max. water temperature: 40°C
Power supply: 2 x 1.5V batteries type AA
Flow rate (at approx.
4 bar water pressure): approx. 50 l/ min
Programmable
Irrigation time : max. 09:59 h
Manual

GB/IE/NI 11
Irrigation time : max. 09:59 h
Water connection: G¾ (26.5 mm) or G1 (33.3 mm)
Protection class: IP X4 (splash-proof)

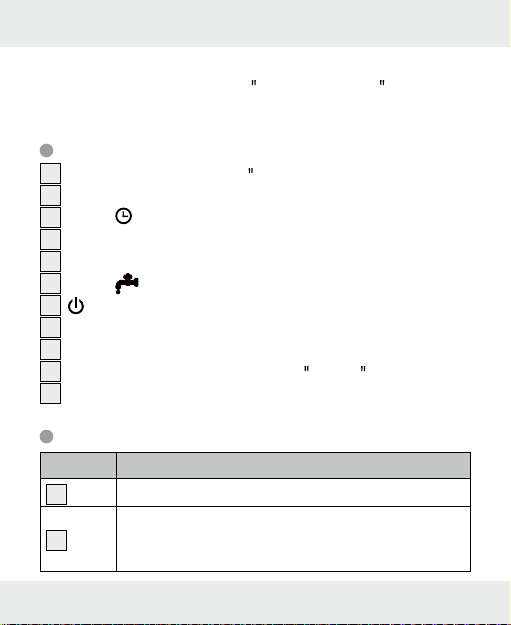

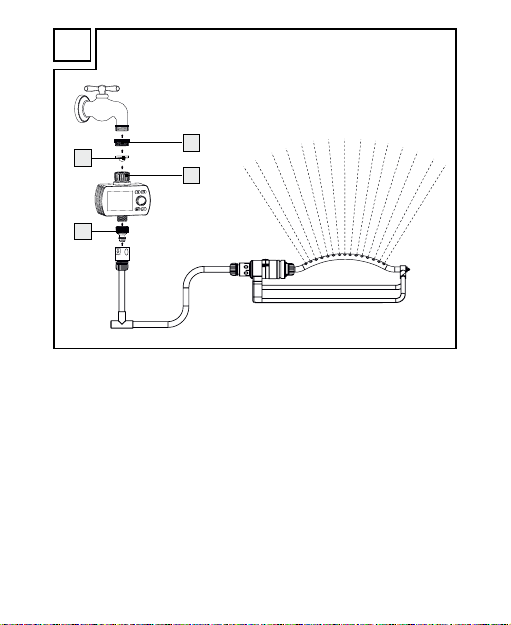

Parts description (Fig. A)
1Union nut ‒ 33.3mm (G 1 )
2Display
3Button
4Button SET
5Rotary control
6Button
7Button (ON/OFF)
8Battery compartment
9Filter
10 Adapter 33.3mm to 26.5 mm (G1 to G ¾ )
11 Adapter - for coupling the hose
Display indicators (Fig. B)
Display Meaning
12 Current time
13
Watering cycle:
24h/2nd/3rd/4th/5th/6th/7th correspond to
every 24 hours /every 2/3/4/5/6/7 days

12 GB/IE/NI
Display Meaning
14 Current watering program (1‒6)
15 Program start time
16 Run time - watering duration
17 Weekday: Current weekday or programmed
watering days
18 Battery status
Button for setting time
SET Button for setting operation mode
Button for changing irrigation mode
Button for switching device (ON/OFF)
Weak battery status display

GB/IE/NI 13
Safety
Safety instructions
Damage due to failure to comply with these
operating instructions will void the warranty!
We assume no liability for consequential
damages! We assume no liability for property
damage or personal injury due to improper
handling or failure to observe the safety
instructions!
KEEP ALL THE SAFETY ADVICE AND
INSTRUCTIONS IN A SAFE PLACE FOR
FUTURE REFERENCE!

14 GB/IE/NI
DANGER TO LIFE
AND RISK OF ACCIDENT FOR
INFANTS AND CHILDREN! Never
leave children unsupervised with the
packaging materials. The packaging ma-
terial poses a suffocation hazard. Keep
this product well away from children. This
product is not a toy.
This product may be used by children
age 8 years and up, as well as by persons
with reduced physical, sensory or mental
capacities, or lacking experience and/or
knowledge, so long as they are supervised

GB/IE/NI 15
or instructed in the safe use of the product
and understand the associated risks.
Children should not be allowed to play
with the product. Cleaning and user
maintenance should not be performed
by children without supervision.
Any repairs during the warranty period
must be performed by a manufacturer
authorised service centre, or the warranty
will be void if subsequent damages occur.
Always replace defective parts with genu-
ine spare parts. Only by using these parts
will you ensure that the safety requirements
are met.
Avoid direct sunlight.

16 GB/IE/NI
Always shut off the tap if you no longer
use the product.
Do not operate the product near open
flames.
Check the product and its supply lines at
regular intervals to ensure that they are im-
permeable and that they function perfectly.
Do not aim the water jet at electrical
equipment!
RISK OF DEATH/ ELECTRIC SHOCK!
Do not aim the water jet at persons or
animals!
The product is not suitable for supplying
drinking water.

GB/IE/NI 17
Safety instructions for
batteries/rechargeable
batteries
DANGER TO LIFE! Keep batteries/
rechargeable batteries out of reach of
children. If accidentally swallowed seek
immediate medical attention.
Swallowing may lead to burns, perforation
of soft tissue, and death. Severe burns
can occur within 2 hours of ingestion.
DANGER OF EXPLOSION!
Never recharge non-rechargeable
batteries. Do not short-circuit batteries/
rechargeable batteries and/or open them.
Overheating, fire or bursting can be the
result.

18 GB/IE/NI
Never throw batteries/rechargeable
batteries into fire or water.
Do not exert mechanical loads to batteries/
rechargeable batteries.
Risk of leakage of batteries/
rechargeable batteries
Avoid extreme environmental conditions
and temperatures, which could affect
batteries/rechargeable batteries, e.g.
radiators / direct sunlight.
If batteries/rechargeable batteries have
leaked, avoid contact with skin, eyes and
mucous membranes with the chemicals!
Flush immediately the affected areas with
fresh water and seek medical attention!

GB/IE/NI 19
WEAR PROTECTIVE GLOVES!
Leaked or damaged batteries/
rechargeable batteries can cause burns
on contact with the skin. Wear suitable
protective gloves at all times if such an
event occurs.
In the event of a leakage of batteries/
rechargeable batteries, immediately
remove them from the product to prevent
damage.
Only use the same type of batteries/
rechargeable batteries. Do not mix used
and new batteries/rechargeable batteries.
Remove batteries/rechargeable batteries
if the product will not be used for a
longer period.

20 GB/IE/NI
Risk of damage of the product
Only use the specified type of battery /
rechargeable battery!
Insert batteries/rechargeable batteries
according to polarity marks (+) and (-)
on the battery/rechargeable battery
and the product.
Use a dry lint-free cloth or cotton swab
to clean the contacts on the battery/
rechargeable battery and in the battery
compartment before inserting!
Remove exhausted batteries/rechargeable
batteries from the product immediately.
Inserting/replacing batteries (see Fig. C)
Untighten the screw of the battery compartment 8cover,
remove the cover.
