Parkside PESG 120 B4 User manual

ARC WELDER
Operation and Safety Notes
Translation of the original instructions
GB CY
APARAT ELECTRIC DE
SUDURĂ
Indicații de operare și siguranță
Traducerea instrucţiunilor de utilizare originale
RO
ΣΥΣΚΕΥΗ
ΗΛΕΚΤΡΟΣΥΓΚΟΛΛΗΣΗΣ
Υποδείξεις χειρισμού και ασφαλείας
Μετάφραση των αυθεντικών οδηγιών λειτουργίας
GR CY
ЕЛЕКТРИЧЕСКИ ЗАВАРЪЧЕН
АПАРАТ
Указания за монтаж, работа и безопасност
Превод на оригиналното ръководство за
експлоатация
BG
ELEKTRO - SCHWEISSGERÄT
Bedienungs- und Sicherheitshinweise
Originalbetriebsanleitung
DE AT CH
IAN 310867
ARC WELDER PESG 120 B4
GR
BG
RO

GB CY
Before reading, unfold the page containing the illustrations and familiarise yourself with all
functions of the device.
RO
Desfaceți înainte să citiți pagina cu ilustrații și apoi familiarizați-vă cu toate funcțiile
aparatului.
GR CY
Πριν ξεκινήσετε την ανάγνωση, ανοίξτε τη σελίδα με τις εικόνες και εξοικειωθείτε με όλες τις
λειτουργίες τηςна уреда.συσκευής.
BG
Преди да прочетете отворете страницата с фигурите и след това се запознайте с
всички функции на уреда.
DE AT CH
Klappen Sie vor dem Lesen die beiden Seiten mit den Abbildungen aus und machen Sie sich
anschließend mit allen Funktionen des Gerätes vertraut.
GB / CY Operation and Safety Notes Page 5
RO Instrucţiuni de utilizare şi de siguranţă Pagina 19
GR / CY Υποδείξεις χειρισμού και ασφαλείας Σελίδα 33
BG Инструкции за обслужване и безопасност Страница 49
DE / AT / CH Montage-, Bedienungs- und Sicherheitshinweise Seite 61

A
B
1
7
8
10
87
2
6
5
9
8
3
4
10
7

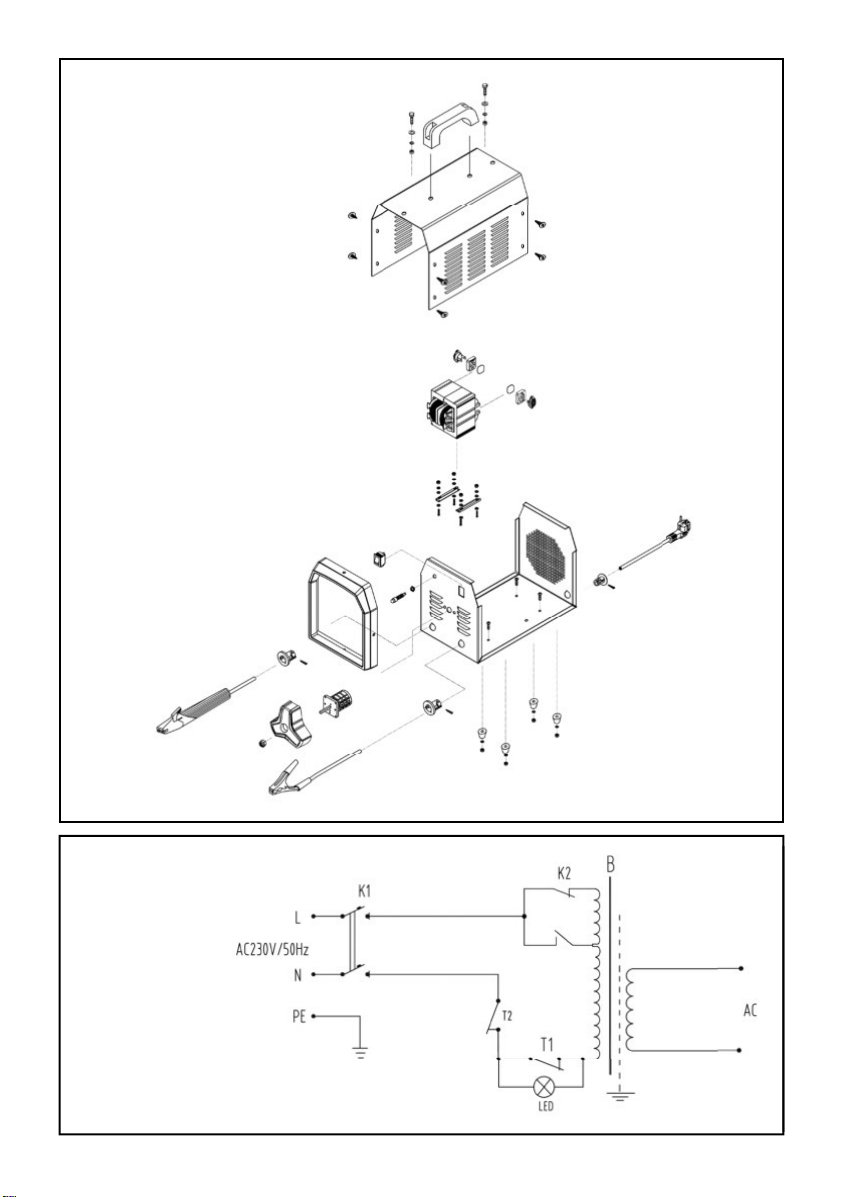

Schaltplan
Wiring diagram
Schéma de commutation

5GB/CY
Table of contents
List of pictograms used ................................................................................ Page 6
Introduction .................................................................................................. Page 7
Intended use.................................................................................................. Page 7
Parts description............................................................................................... Page 7
Technical Data ............................................................................................... Page 7
Scope of delivery.............................................................................................. Page 7
Safety instructions ........................................................................................ Page 7
Safety hazards during arc welding..................................................................... Page 9
........................................................ Page 12
Small and damp rooms and electrically dangerous conditions..................................Page 12
Protective clothing.......................................................................................... Page 12
Protecting against rays and burns .................................................................. Page 13
Assembling the welding shield .................................................................... Page 13
Preparing to weld .......................................................................................... Page 13
Welding ......................................................................................................... Page 14
Overheat protection ..................................................................................... Page 14
Maintenance ................................................................................................. Page 14
Environmental instructions and disposal information ..................... Page 15
Information about warranty and service processing .................. Page 15
Warranty terms
Extent of warranty.......................................................................................
..........................................................................................
Page 15
Page 15
Processing of warranty claims
........................................................................ Page 15
Service ........................................................................................................... Page 16
EU Conformity Declaration .......................................................................... Page 16

6 GB/CY
List of pictograms used
List of pictograms used
Caution!
Read instructions for use!
Earth terminal connection
Power input;
phase number, as well as
Attention, potential dangers!
1
~
50 Hz
Alternating current symbol and
rated value of the frequency
Potential of serious to fatal
injuries.
Do not dispose of electrical
equipment in household waste!
Caution! Risk of electric shock!
Do not use the device outdoors
and never in rain!
Important notice!
Electric shock from the welding
electrode can be fatal
Dispose of packaging and
device in an environmental-
ly-friendly way!
Inhaling welding smoke can be
hazardous to your health.
Manual metal arc welding
with covered rod electrodes
Welding sparks can cause an
explosion or fire.
IP21S
Protection type
Arc rays can damage the eyes
and injure the skin.
Highest welding time rated
value in continuous mode
Electromagnetic fields can inter-
fere with the functionality of
pacemakers.
Highest welding time rated
value in intermittent mode Σ
t
ON
Electrode holder connection
Σ
Made from recycling material.
ON (max)

7
Introduction / Safety instructions
Arc welder PESG 120 B4
Introduction
Congratulations! You have
chosen a high-quality device
from our company. Familiarise
yourself with the product before using it for the first
time. In addition, please carefully refer to the oper-
ating instructions and the safety advice below. Initial
operation of this tool must be performed by trained
personnel.
KEEP OUT OF THE REACH OF CHILDREN!
Intended use
This electric welding equipment is suitable for
manual arc welding using the appropriate coated
electrodes. Improper product handling can be dan-
gerous to persons, animals and objects. Only use
the welding shield with welding glass and protec-
tive glass overlay marked accordingly, and only for
welding. The welding shield is not suitable for laser
welding! Only use the product as described and
for the indicated purpose. Keep these instructions in
a safe place. When passing this product on to others,
please also include all the documents. Any use other
than the intended is prohibited and potentially dan-
gerous. Damages resulting from noncompliance or
misuse are not covered by the warranty and are not
included in the manufacturer‘s liability. This device
has been designed for household use and may not
be used for commercial or industrial purposes.

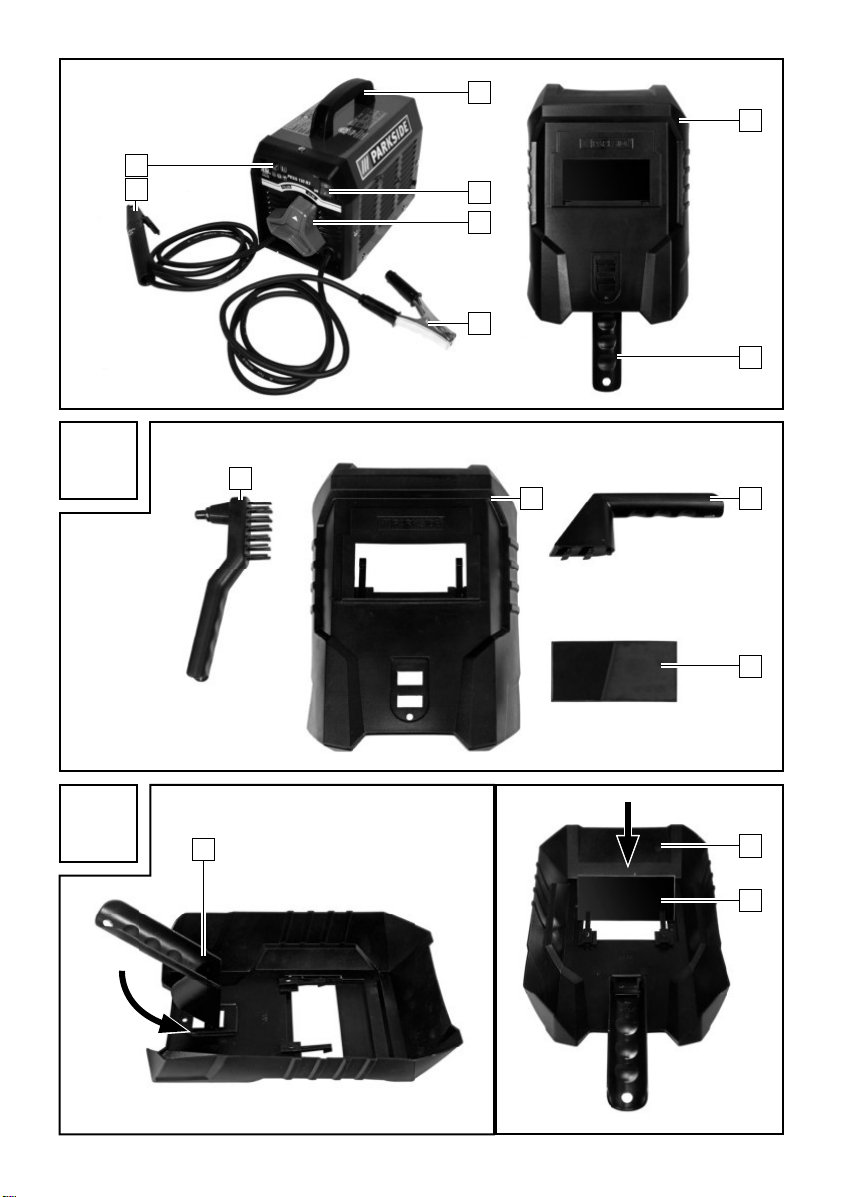

Parts description
Electric Welding Equipment
1Handle
2ON / OFF switch
3Hand wheel
4Earth terminal
5Electrode holder
6Overheating control lamp
Welding shield
7Welding shield
8Handle
9Brush
10 Protective glass
Technical Data
Mains connection: 230 V∼ 50 Hz
Max. welding current
and the respective
conventional load voltage: 75 A /
21 V-100 A / 22 V
Rated value
of the mains current: U1: 230 V
Highest rated value
of the mains current: I1max: 22.5 A
Maximum effective
input current: I1eff: 7 A
Rated value of the
no-load voltage: U0: 48 V
Protection type: IP21S
Scope of delivery
1 Arc welder
1 Welding shield
2 Welding cables
1 Combination wire brush with chipping hammer
1 Instructions for assembly and use
Safety instructions
Please carefully read the instructions
for use and follow the specified no-
tices. Familiarise yourself with the
equipment, its proper use and the
safety notices using these instructions
for use. The nameplate contains all
the technical data for this welding
5 Welding electrodes (2x 1.6mm /
2x 2mm / 1x 2.5mm)
GB/CY

8
Safety instructions
equipment, please obtain informa-
tion on the technical facts of this
equipment.
This device may be used by chil-
dren age 16 years and up, as
well as by persons with reduced
physical, sensory or mental ca-
pacities or lacking experience
and / or knowledge, so long as
they are supervised or instructed
in the safe use of the device and
understand the associated risks.
Do not allow children to play
with the device. Cleaning and
user maintenance should not be
performed by children without
supervision.
Only have repairs and/or main-
tenance performed by electrically
skilled persons.
Only use the welding cables
included (PESG 120 B4
H01N2-D1x10 mm²).
During use the equipment should
not be located directly against a
wall, be covered, or be jammed
between other equipment to en-
sure ample air can be taken in
through the ventilation louvres.
Verify the equipment is correctly
connected to the mains voltage.
Avoid any tensile load on the
mains. Unplug the mains plug
from the socket before transfer-
ring the equipment to a different
location.
Always switch the equipment off
with the ON / OFF switch when
not in use. Set the electrode
holder down on an insulated
pad and allow to cool for 15
minutes before removing the
electrodes from the holder.
Pay attention to the condition of
the welding cables, the electrode
holders and the earth terminals.
Worn insulation and conducting
parts can produce hazards and
reduce the welding quality.
Arc welding produces sparks,
melted metal parts and smoke.
Therefore note: Remove any
flammable substances and / or
materials from the work area
and its immediate surroundings.
Ensure the work area is ventilated.
Do not weld atop containers, re-
ceptacles or pipes, which do or
did contain flammable liquids or
gasses.
Avoid any direct
contact with the welding circuit.
The no-load voltage between
the electrode holder and earth
terminal can be dangerous, there
is a risk of electric shock.
GB/CY

9
Safety instructions
Do not store or use the equipment
in a moist or wet environment or
in the rain. The Protection Provi-
sion IP21S applies in this respect.
Protect the eyes with the appro-
priate safety glass (DIN Grad
9-10) to be installed in the in-
cluded welding shield. Use
gloves and dry protective cloth-
ing free from oil and grease to
protect the skin from ultraviolet
rays and the arc.
Do not use the
welding power source to thaw
pipes.
Remember:
The arc ray can damage the eyes
and cause burns to the skin.
Arc welding produces sparks
and drops of molten metal, the
w
elded work piece begins to glow
and remains very hot for a rela-
tively long time. Therefore do not
touch the work piece with bare
hands.
Arc welding releases noxious
fumes. Be careful not to inhale
these as best possible.
Protect yourself from the danger-
ous effects of the arc and keep
persons not involved in the work
at least 2 m away from the arc.
ATTENTION!
Depending on mains conditions
at the connection point, operat-
ing the welding equipment may
interfere with the voltage supply
for other loads. When in doubt,
please contact your power sup-
ply company.
Operating the welding equipment
may interfere with the functional-
ity of other devices, e.g. hearing
aids, pacemakers, etc.
Safety hazards
during arc welding
Arc welding produces a variety of
safety hazards. It is therefore par-
ticularly important for the welder to
observe the following rules to avoid
putting himself and others in danger
and to prevent damage to persons
and the equipment
Only have work to the mains
voltage end, e.g. to cables, plugs,
outlets, etc. performed by a elec-
trically skilled person in accord-
ance with national and local
regulations.
In the event of an accident, im-
mediately disconnect the welding
equipment from the mains voltage.
GB/CY

10
Safety instructions
If electrical contact voltage occurs ,
immediately switch the equipment
off and have it inspected by an
electrically skilled person.
Always ensure good electrical
contacts on the welding current
end.
Always wear insulating gloves
on both hands whilst welding.
These will protect from electric
shock (no-load voltage of the
welding current), from hazardous
rays (heat and UV rays) and
glowing metal and weld splashes.
Wear solid, insulating shoes. The
shoes should also insulate when
exposed to moisture. Low shoes
are not suitable, as glowing metal
drops falling could cause burns.
Wear suitable protective clothing,
no synthetic garments.
Do not look into the arc with
unprotected eyes, only use a
welding shield with approved
protective glass per DIN. In ad-
dition to light- and heat rays which
could result in blinding or burns,
the arc also emits UV rays. With-
out adequate protection, this
invisible ultraviolet radiation
causes very painful conjunctivitis
which is only noticed a few hours
later. UV rays further cause burns
similar to a sunburn in unprotected
areas of the body.
Persons near the arc or assistants
must also be informed of the risks
and outfitted with the necessary
protection. If necessary, set up
protective panels.
Ensure an adequate supply of
fresh air whilst welding, particu-
larly in small spaces, as it prod uces
smoke and harmful gasses.
Do not weld containers in which
gasses, fuels, mineral oils, etc.
were stored - even if emptied a
long time ago - as residue poses
an explosion hazard.
Special regulations apply in room s
posing fire- and explosion haz-
ards.
Welded joints exposed to great
strain and needing to meet cer-
tain safety requirements must be
made by specially trained and
certified welders. Examples are
pressure vessels, running rails,
tow couplings, etc.
ATTENTION! Always connect
the earth terminal as close as
possible to the point of weld to
provide the shortest possible
path for the welding current
from the electrode to the earth
terminal. Never connect the
GB/CY

11
Safety instructions
earth terminal to the housing of
the welding equipment!
Never connect the earth terminal
to earthed parts far away from
the work piece, e.g. a water pipe
in another corner of the room.
This could otherwise damage
the protective bonding system of
the room you are welding.
Do not use the welding equipment
in the rain.
Do not use the welding equip-
ment in a moist environment.
Only place the welding equip-
ment in a level location.
Danger of electric shock:
Electric shock from a weld-
ing electrode can be fatal.
Do not weld in rain or snow. Wear
dry insulating gloves. Do not touch
the electrode with bare hands. Do
not wear wet or damaged gloves.
Protect yourself from electric shock
by insulating from the work piece.
Do not open the equipment housing.
Danger due to welding
smoke:
Inhaling welding smoke can jeop-
ardize your health. Keep your head
out of the smoke. Use facilities in
open areas. Use ventilation to re-
move smoke.
Danger due to welding
sparks:
Welding sparks can cause an ex-
plosion or fire. Keep flammables
away from the welding area. Do
not weld next to flammables. Weld-
ing sparks can cause a fire. Keep a
fire extinguisher nearby and an ob-
server ready to use it. Do not weld
on top of drums or any closed con-
tainers.
Danger due to arc rays:
Arc rays can damage the eyes and
in
jure the skin. Wear a hat and safety
goggles. Wear hearing protection
and a closed, high shirt collar. Wear
welding helmets and proper filter
sizes. Wear full personal protection.
Danger due to
electromagnetic fields:
Welding current produces electro-
magnetic fields. Do not use along
with medical implants. Never wrap
The outlet is measured at an
ambient temperature of 20 °C
and welding time can be reduced
in the event of higher
temperatures.
GB/CY

12
Safety instructions
the welding cables around the
body. Consolidate welding cables.
Safety notices specific to
the welding shield
Using a hot light source (e.g.
lighter) always check the weld-
ing shield is working properly
before starting to weld.
Welding splashes can damage
the glass shield. Replace dam-
aged or scratched glass shields
immediately.
Promptly replace damaged or
heavily soiled / splashed compo-
nents.
The equipment may only be op-
erated by persons who have
turned 16.
Familiarise yourself with the
safety instructions for welding.
Also refer to the safety instruc-
tions of your welding equipment.
Always use the welding shield
when welding. Failure to use the
shield may result in serious inju-
ries to the retina.
Always wear protective clothing
when welding.
Never use the welding shield
without protective glass, as the
optics can otherwise be dam-
aged.
Replace the protective glass
early to ensure good visibility
and fatigue-proof working.
Small and damp rooms
When using welding machines
under electrically dangerous
conditions, e.g. in small rooms with
electrically conductive walls (boilers,
pipes, etc.), or wet rooms
(impregnation of work clothes),
the output voltage of the welding
device at idling speed must not be
greater than 35 volts (effective value).
Due to the output voltage, the
welding device must not be used
in small and damp rooms
or under electrically dangerous
conditions!
Protective clothing
Whilst working the welder must
be protected against rays and
GB/CY
and electrically
dangerous conditions

13
Safety instructions /Assembling the welding shield/ Preparing to weld
burns all over the body with the
appropriate clothing and face
protection. Remember the follow-
ing steps:
- Put on protective clothing before
welding.
- Put on gloves.
- Open windows or use vent to
ensure air supply.
- Wear safety goggles and a mask.
Wear gauntlet gloves made
from suitable material (leather)
on both hands. These must be
in good condition.
Wear suitable aprons to protect
the clothing from sparks and
burns. When required based on
the working method, e.g. weld-
ing overhead, wear a protective
suit and, if necessary, a head
guard.
Protecting against
rays and burns
Mark the work area with a sign
“Danger! Do not look into
flames!“ to indicate the risk to
the eyes. If possible, shield the
work areas to protect persons
nearby. Keep unauthorised per-
sons away from the welding area.
Walls in the direct vicinity of
fixed work areas should be nei-
ther light coloured nor glossy.
Protect windows against rays
passing through or reflecting at
a minimum to head height, e.g.
with suitable paint.
Assembling the welding shield
Attach the handle 8to the welding shield 7
as shown in Fig. B.
Install the protective glass 10 to the welding
shield 7as shown in Fig. B.
Preparing to weld
Note: When activating the power verify the current
indicator moves and the lead screw is not jammed.
Note: If the tensioning force of the electrode
holder 5and the earth terminal 4subsides,
replace immediately.
Connect the electric cables.
Set the ON /OFF switch 2to the “ON“ posi-
tion. The current indicator will light up when
operation starts.
To end operation, set the ON/ OFF switch 2
to the auf “OFF“ position.
Note: The yellow indicator light 6lighting
up indicates overheating. The electric circuit will
automatically be broken. Operation will end.
Attach the earth terminal 4directly to the
work piece or to the pad on which the work
piece is placed.
Note: Ensure direct contact to the work piece.
Thus avoid painted surfaces and / or insulation.
Note: Always use the welding shield 7whilst
welding. It protects the eyes from the light beam
emitted by the arc, yet allows for a clear view
of the work piece.
GB/CY

14
Preparing to weld / Welding / Overheat protection / Maintenance
Welding
After making all the electrical connections for the
power supply and for the welding circuit, proceed
as follows:
Insert the uncoated end of the electrode into
the electrode holder 5and connect the earth
terminal 4to the work piece. Be sure the
electrical contact is good.
The device features a latch for setting the plate
thickness. Switch on the device by setting the
ON/ OFF switch 2to the “ON“ position. Then
use the hand wheel 3to select the electrode
thickness: For 1.6 or 2.0mm electrodes set the
hand wheel 3to position 1.6/ 2.0. For 2.5 mm
electrodes set the hand wheel 3to position 2.5.
Hold the welding shield 7in front of your face
and guide the tip of the electrode over the work
piece as if trying to light a match. This is the best
method for sparking the arc.
Use a test piece to check if you selected the
correct electrode and current.
ATTENTION!
Do not dab the work piece with the electrode. It
could become damaged and make it more difficult to
spark the arc. Once the arc is sparked, try to main-
tain a distance to the work piece appropriate for the
selected electrode diameter. Keep the distance as
consistent as possible whilst welding. The electrode
grade in the work flow direction should be 20–30
degrees.
ATTENTION!
Always use forceps to dispose of used electrodes or
move hot work pieces. Please remember to always
place the electrode holder onto an insulating pad
after welding.
Only remove slag once the seam has cooled. If
continuing to weld on an interrupted weld seam,
first remove the slag at the start of weld.
ATTENTION!
Welding produces heat. The welding equipment
must therefore be operated in open loop after use
for at least half an hour. Or alternatively allow the
equipment to cool off for one hour. Only pack up
and store the equipment once the equipment tem-
perature has normalised.
Switch the equipment off by setting the ON/
OFF switch 2to the “OFF“ position.
Overheat protection
The welding equipment features overheat protection.
If the overheat protection is triggered, the control
light 6will light up. Allow the welding equipment
to cool down for a while.
PESG 120 B4 (with AC 230 V 50 Hz power plug):
The supply line fuses to the mains sockets must meet
the requirements (VDE 0100). Earthed wall sockets
must be protected with max. 16 A (model and tech-
nical data: NDM1-63, AC 230 / 400 V C16.
IEC 60898.time lag. Manufacturer: Nader) (fuses
or line circuit breaker). Higher fuse ratings can result
in burnt wires or fire damage to the building.
Attention: The equipment must be connected to
a mains source with the fuse rating specified above.
If the electrode holder and earth terminal is short
circuited, the fuse can be triggered in 16–20 secon ds.
Classification per EMV standard: Class B per IEC
60974-10
Warning:
When used in other areas, electromagnetic
tolerance may not be war ranted or failures may occur.-
Maintenance
Regularly clean dust and dirt off the equipment.
Clean the equipment with a fine brush or a dry
cloth.
Note: The weldable material thickness amounts to
1.5mm - 3.0mm.
GB/CY

15
Environmental instructions … / Information about warranty … / Warranty terms
Environmental instructions
and disposal information
Don‘t waste,
recycle!
Device, accessories and packaging
should be recycled in an environmen-
tally friendly manner.
Do not dispose of the power welding equipment with
your household waste, or throw into fire or water. If
possible, non-operational equipment should be re-
cycled. Contact your local retailer for information.
Information about warranty
and service processing
Dear customer, the warranty for this device is
3 years from the date of purchase. In the event of
product defects, you have legal rights against the
retailer of this product. Your statutory rights are not
limited in any way by our warranty detailed below.
Warranty terms
The warranty period begins on the date of purchase.
Please retain the original receipt safely. This docu-
ment is required as your proof of purchase.
Should this device show any fault in materials or
manufacture within three years from date of pur-
chase, it will be repaired or replaced - at our choice
- by us free of charge. This warranty is conditional
on the defective device and the receipt of purchase
(store receipt) being presented within the three year
warranty period, and that there is a brief written
description of the nature of the defect and of the
date it arose.
If the defect is covered by our warranty, we will
return the repaired equipment or replacement thereof.
A repair or exchange of the equipment does not
extend a new warranty period.
Extent of warranty
The appliance has been manufactured to strict
quality guidelines and meticulously examined
before delivery.
The warranty applies to faults in material or manu-
facture. This warranty does not apply to product
parts subject to normal wear and tear and which
can therefore be considered as wear items, or to
damage to fragile parts, e.g. switches, storage
batteries or glass parts.
This warranty becomes void if the device has been
damaged or improperly used or maintained. All
instructions provided in the operating instructions
must be followed strictly to constitute proper use of
the product. Purposes and practices which the op-
erating instructions warn of or advise against must
be avoided without fail.
This product is intended for private, non-commercial
use only. Any incorrect or improper use of the device,
use of force and changes not performed by our au-
thorized service branch will void the warranty.
Processing of warranty claims
Please follow the instructions below to ensure your
claim is processed quickly:
When inquiring about your product please have
your receipt and product number (e.g. IAN) ready
as your proof of purchase.
The product number can be found on the type plate,
an engraving, the cover page of your instructions (bot-
tom left) or the decal at the back or bottom. In the
event of malfunctions or other defects please first con-
tact the service department below by phone or e-mail.
A product recorded as defective, along with the proof
of purchase (sales receipt) and a description of the
defect and when it occurred, can then be returned
free of charge to you to the service address provided.
Creative Marketing & Consulting GmbH
warranty
GB/CY

16
Warranty terms / Service / EU Conformity Declaration
Notice:
Download this and many other manuals,
product videos and software from
www.lidl-service.com.
Service
How to contact us:
GB, CY
Name: C. M. C. GmbH
Website: www.cmc-creative.de
E-mail: [e-mail]
[e-mail]
Phone: [phone] (GB, IE)
(£ 0,10 / Min.)
8009 4409 (CY)
Registered office: Germany
Please note that the following address is not a ser-
vice address.
Please first contact the service point named above.
Address:
C. M. C. GmbH
Katharina-Loth-Str. 15
DE-66386 St. Ingbert
GERMANY
EU Conformity Declaration
We,
C. M. C. GmbH
Responsible for documentation:
Katharina-Loth-Str. 15
DE-66386 St. Ingbert
GERMANY
declare in our sole responsibility that the product
Arc welder
Serial number: 2175
Year of manufacture: 2019 / 15
IAN: 310867
Model: PESG 120 B4
meets the basic safety requirements of European
Directives
EC Low Voltage Directive
2014 / 35 / EU
EC Directive for Electromagnetic
Compatibility
2014 / 30 / EU
and its amendments.
The conformity assessment is based on the following
harmonised standards:
EN 60974-10:2014/A1:2015
EN 60974-6:2016
St. Ingbert, 30.10.2018
pp M. Sc. Alexander Hoffmann
310867IAN
Alexander Hoffmann
– Quality assurance –
IEC 61000-3-11:2000
IEC 61000-3-12:2011
GB/CY

17GB/CY

18 GB/CY

19RO
Cuprins
Legenda pictogramelor utilizate............................................................................. Pagina 20
Introducere................................................................................................................................ Pagina 21
Utilizare conform destinaţiei........................................................................................................... Pagina 21
Descrierea componentelor ............................................................................................................. Pagina 21
Date tehnice .................................................................................................................................... Pagina 21
Pachet de livrare ............................................................................................................................. Pagina 21
Indicaţii de siguranţă........................................................................................................ Pagina 21
Surse de pericol la sudura cu arc electric ..................................................................................... Pagina 23
Casca de sudură - indicaţii de siguranţă specifice ....................................................................... Pagina 26
Camere strâmte și umede, precum și condiţii de pericol de electrocutare ................................ Pagina 26
Îmbrăcămintea de protecţie ........................................................................................................... Pagina 27
Protecţie împotriva radiaţiilor și a arsurilor.................................................................................... Pagina 27
Montarea căștii de sudură ........................................................................................... Pagina 28
Pregătirea pentru sudură ............................................................................................. Pagina 28
Sudura........................................................................................................................................... Pagina 28
Protecţia la supraîncălzire............................................................................................ Pagina 29
Întreţinere................................................................................................................................... Pagina 29
Indicaţii referitoare la mediul înconjurător și date
referitoare la înlăturare................................................................................................. Pagina 29
Indicaţii referitoare la garanţie şi service....................................................... Pagina 29
Condiţii de garanţie............................................................................................................ Pagina 29
Domeniul de aplicare al garanţiei ................................................................................................. Pagina 30
Modul de desfăşurare în caz de garanţie..................................................................................... Pagina 30
Service........................................................................................................................................... Pagina 30
Declaraţie de conformitate.......................................................................................... Pagina 31

20 RO

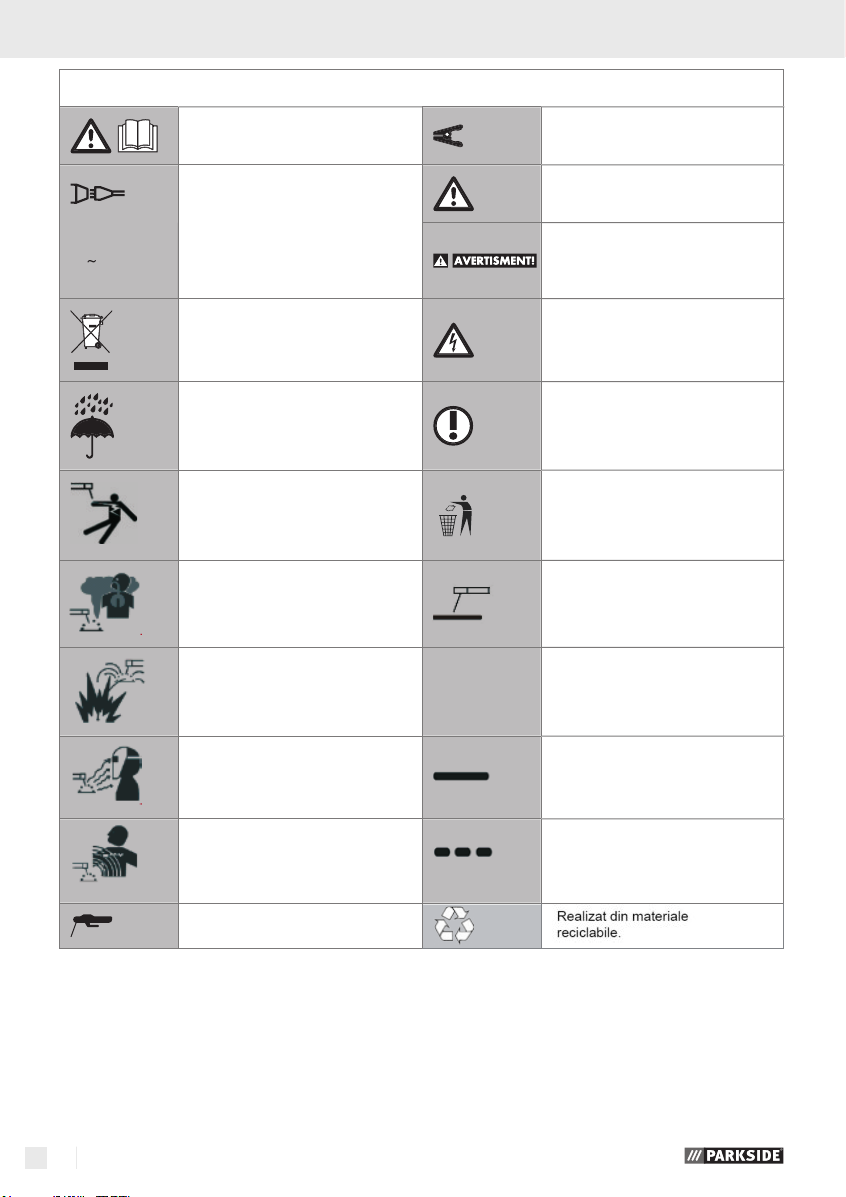

Legenda pictogramelor utilizate
Legenda pictogramelor utilizate
Atenţie!
Citiţi manualul de instrucţiuni!
Conexiunea clemei pentru masă
Tensiunea de intrare;
Numărul fazelor precum și
Atenţie, pericole posibile!
1
~
50Hz
Simbolul de curent alternativ
și valoarea de măsurare a
frecvenţei
Răniri grave până la moarte
posibile.
Nu aruncaţi aparatele electrice
la gunoiul menajer!
Atenţie! Pericol de electrocutare!
Nu folosiţi aparatul în aer liber
și pe ploaie!
Indicaţie importanta!
Scurtciruitarea cauzată de
electrodul pentru sudură poate
fi mortală
Înlăturaţi ambalajul şi aparatul
în mod ecologic!
Inspirarea fumului rezultat din
sudură vă poate pune în pericol
sănătatea.
Sudare manuală cu arc luminos
cu bară de electrozi învelită
Scâtele din sudură pot cauza
o explozie sau un incendiu.
Tip de protecţie
Razele arcului electric pot dăuna
ochilor și pielii.
Valoarea măsurare durata sudare
mare în modul în desfășurare
Câmpurile electromagnetice pot
afecta funcţionarea stimulatoa-
relor cardiace.
Valoarea măsurare durata sudare
mare în modul intermitent Σ
Conexiunea suportului electrod
ΣtON (max)
tON
IP21S
