Path medical SENTIERO HANDHELD User manual

QUICK START GUIDE
SENTIERO HANDHELD DIAGNOSTIC
(BLUE LABEL)
100800-06_Sentiero Handheld Diagnostic Quick Start Guide_Rev 2
Page 1of 6

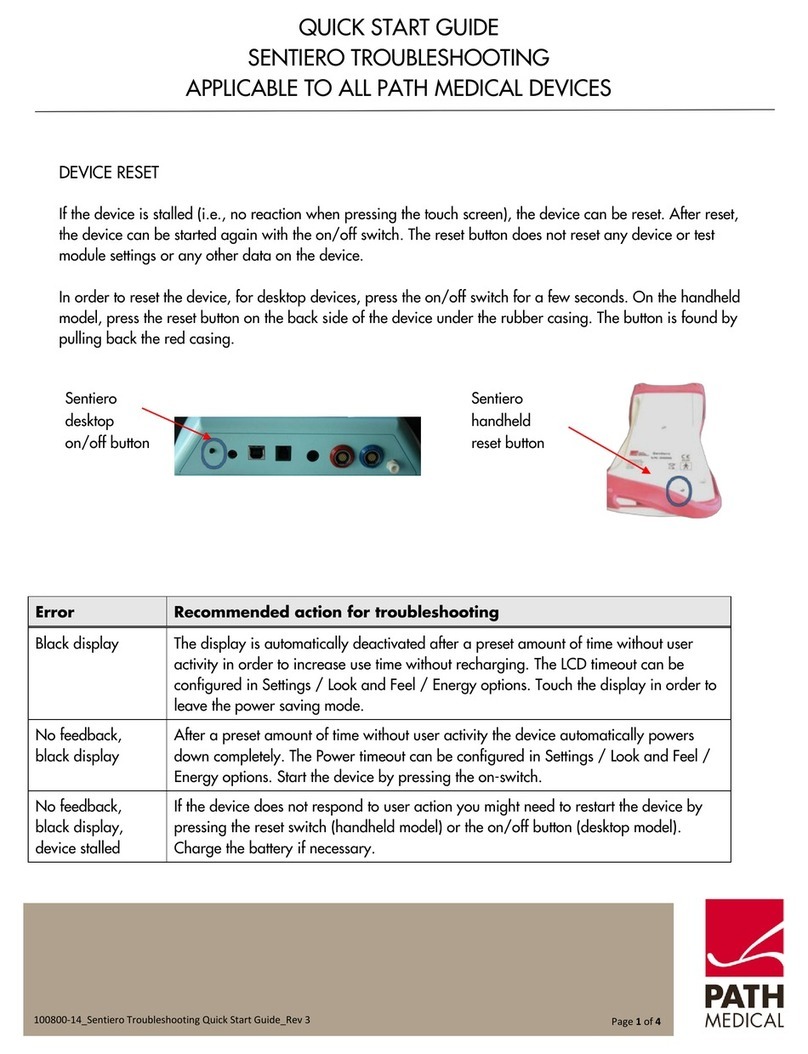

TURNING ON/OFF, CHARGING THE DEVICE
START MENU
Note: this screen (test options) can vary depending on your set up
TESTING
DISTORTION PRODUCT OTOACUSTIC EMISSIONS (DPOAE) SCREENING
Connect the probe to the red connector. Select one of the Presets for DPOAE Screening.
Current time
Battery status
Turn off device
Customize settings
On/off
button on
right side
Power
supply
connector
Select patient
View test result
history for
selected patient
Additional
information on
options for current
screen

QUICK START GUIDE
SENTIERO HANDHELD DIAGNOSTIC
(BLUE LABEL)
100800-06_Sentiero Handheld Diagnostic Quick Start Guide_Rev 2
Page 2of 6
Select the appropriate ear tip size and place it on the probe tip. Insert the probe in the ear making
sure that the ear tip fits tightly into the ear canal.
Select the test ear by pressing either the Right or Left button. Cartoon mode will start the test showing
a cartoon instead of the progress bar.
Progress for
each tested
frequency
Overall test
progress
Noise floor
level
A calibration will be performed prior to measurement. A green light indicates successful
calibration (below left). After successful ear probe calibration, the test will start automatically.
Probe fit
override for
patients
with PE
tubes or
middle ear
perforations

QUICK START GUIDE
SENTIERO HANDHELD DIAGNOSTIC
(BLUE LABEL)
100800-06_Sentiero Handheld Diagnostic Quick Start Guide_Rev 2
Page 3of 6
DPOAE SCREENING TEST RESULTS
DPOAE DIAGNOSTIC / HIGH RESOLUTION
Connect the probe to the red connector. Select one of the Presets for DPOAE Diagnostic.
Select the appropriate ear tip size and place it on the probe tip. Insert the probe in the ear making
sure that the ear tip fits tightly into the ear canal.
Select the test ear by pressing either the Right or Left button. Cartoon mode will start the test showing
a cartoon instead of the progress bar, this can be changed during the test by tapping on the plane
icon at the bottom of the device screen.
Note: These circles indicate that other
screens are available to view. Swipe
your finger right or left to get other
views.
Green check marks indicate
valid response. Red circles
indicate no valid response
Overall screening test result
Red (right ear) or blue (left ear)
bars show response amplitude.
Grey bars show noise
amplitude
Retest frequencies that did not
pass
Print results to a label or to a
pdf file
Test other ear
Switch to results of the other ear
after both ears have been tested

QUICK START GUIDE
SENTIERO HANDHELD DIAGNOSTIC
(BLUE LABEL)
100800-06_Sentiero Handheld Diagnostic Quick Start Guide_Rev 2
Page 4of 6
A calibration will be performed prior to measurement. A green light indicates successful calibration.
After successful ear probe calibration, the test will start automatically. Please note that the presets for
DPOAE diagnostics are HiRes, which allows testing frequencies in 10 Hz increments or up to 30 points
per octave.
Progress for
each tested
frequency
Overall test
progress
Noise floor level
Switch to
cartoon mode
Pause/
resume
test
Stop test
Probe fit
override for
patients
with PE
tubes or
middle ear
perforations
Skip a
frequency

QUICK START GUIDE
SENTIERO HANDHELD DIAGNOSTIC
(BLUE LABEL)
100800-06_Sentiero Handheld Diagnostic Quick Start Guide_Rev 2
Page 5of 6
DPOAE DIAGNOSTIC TEST RESULTS
Green check marks
indicate valid response
Red or blue bars
indicate response, grey
bars indicate noise
Outcome for each test
sorted by f2 and L2.
Multilevel test results shown.
Tap on screen to view
details for each level tested.
High resolution test
results (4 PPO)
Numeric values shown
in table format
Print results to a label or to a pdf file
Note: These circles indicate
that other screens are
available to view. Swipe your
finger right or left to get other
views.
Test other ear

QUICK START GUIDE
SENTIERO HANDHELD DIAGNOSTIC
(BLUE LABEL)
100800-06_Sentiero Handheld Diagnostic Quick Start Guide_Rev 2
Page 6of 6
Quick Guide Information
Release date: 2017-01-11
Revision: 02
Valid from: Firmware Rev. 2.1, Mira PC Software Rev. 1.6.4
Applies to: Model: SOH100098, web description SOH02
All mentioned items, products, brands and trademarks are registered or owned by the mentioned companies.
All information, illustrations, and specifications provided within this manual are based on the latest product
information available at the time of publication. PATH medical reserves the right to make changes at any time
without notice.
Please note that not all products displayed on our webpage or advertising materials are available in all territories.
Please contact your local distributor or PATH medical for further information.
The latest revision of the Quick Start Guide is available online at www.pathme.de/download.
Errors and omissions excepted.
