Patio Post SS63002 User manual

ASSEMBLY INSTRUCTION
ITEM CODE: SS63002

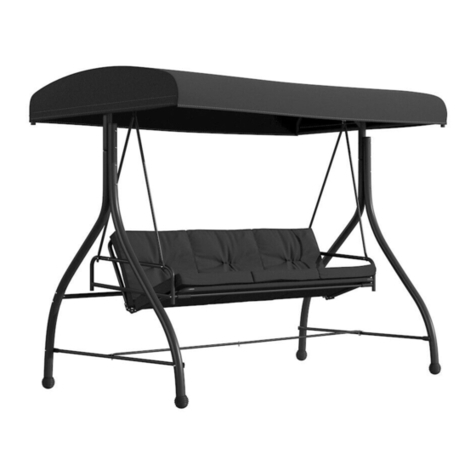

Swing Canopy Hammock
Page 1
For any assistance with assembly or for missing parts please Contact with us
Email: [e-mail]
Web: www.lhgst.com
Adress:No.99 South Heyang Road,Dayang Street, Linhai,zhejiang,China

Page 2
PRE-ASSEMBLY PREPARATION
Before you start:
1.Choose a clean, level, spacious assembly area. Avoid hard surfaces that may
damage the product
2.Take care when lifting. Product should be assembled as near as possible to
the point of use
3.Ensure that you have all required contents for complete assembly
4.Always read the assembly instructions carefully before beginning assembly.
5.Keep all hardware parts and packaging out of reach of small children.
6.Do not over tighten the screws and bolts as this may damage the threads
7.Assembly is to be carried out by a competent adult(s) ONLY
8.During assembly, children should be kept away from the product due to
possible risk to injury.
9.Do not use this item if any components are missing or damaged.
10. Please keep the instructions for future reference.

Page 3

Page 4

Page 5
You will need
Step 1
•Prepare a floor or surface with a blanket or cardboard.
•Connecting forelegs(A) to rear foot(B) as shown below.
•Secure fixing points with bolt (R )set for point. Thread 2xbolt(R)and
fasten with Allen Key(W).
•Repeat for former steps for other set.

You will need
Step 2
•Connect the legs to the top beam as shown below, Insert the top
beam(G) into legs.
•Secure outside fixing points with bolt Use bolt(P)thread through and
fasten by Allen Key(W)
•Repeat for the other set.
Page 6

Step 3
•Secure inside fixing points with bolt Use (P) by thread through and
Lock in the other end with washer(Y) ,spring washer(Z),nut(Z₁) and
screw cover(X), fasten by Allen Key(W) and Wrench(K).
•Repeat for the other set.
You will need
Page 7

You will need
Step 4
•Insert the foot connecting rod(E) into forelegs(A) and rear foot(B).
•Secure fixing points with bolt (U)by thread through and fasten by
Allen Key(W).
•Repeat for the other set.
Page 8

Step 5 You will need
•Insert the back link(D)into the frame ,as shown below
•Insert bolt(S) through the holes in the legs, as shown below, on both
end of the frame. Fasten with Allen key(W).
Page 9

Step 6 You will need
•Thread the 2x top links(G) through the tarpaulin(L) as shown below
•Insert the curved connect bar(F) to the each end of the tarpaulin.
•Secure the connect point with bolt (S),thread through the holes on
connect bar and fasten with the Allen Key(W).
•Repeat the steps for rest point.
Page 10

Step 7 You will need
•With the aid of a 2nd person, lift and attach finished the tarpaulin to
the swing frame
•Secure the connecting point with adjustable handle(M),thread
handle (M) through plastic washer(N) as shown below.
•Repeat the steps for other end.
Page 11

Step 8 You will need
•Attach 2 armrest(I) to the base (J)and back plate(J₁).
•Secure the base plate (J)and back plate(J₁)to the armrest with 4x
bolt(Q) threaded from the outside in. Fasten with Allen key(W).
•Repeat for other armrest.
Page 12

Step 9 You will need
•With the aid of a 2nd person, lift and attach the seat to the top
beam, as shown below.
•Secure the connect point bolt(T) threaded from the outside in. Lock
the other end with washer(O) and nut(V). Fasten with Allen key(W)
and Wrench(K).
•Repeat for other end.
Page 13

Step 10 You will need
•Place the cushion(I) onto the swing.
Page 14

Assembly is complete
