Patriot Lighting E4140 User manual

Questions, problems, missing parts?
Before returning to your retailer, call our customer service at 1-800-887-6326
Monday – Friday 9:00 a.m. – 5:00 p.m. CST
Sku Number: 356-4287
OUTDOOR SENSOR LIGHT
Model Number: E4140
Page 1 of 6
PACKAGE CONTENTS
A
AA
BB
CC
DD
EE
FF
GG
HARDWARE CONTENTS Note: Hardware not shown actual size.
Mounting Screw
X2
Wire Connector
X3
Lock Nut
X4
Ball Nut
X2
Rubber Pad
X2
Cross Bar
X1
Headless Screw
X2

Before beginning assembly, installation or operation of product, make sure all parts are present. Compare parts with
package contents list and diagram on previous page. If any part is missing or damaged, do not attempt to assemble,
install or operate the product. Contact customer service for replacement parts.
Tools Required for Assembly (not included): Screwdriver, Phillips Screwdriver, Pliers, Electrical Tape, Wire Cutters,
Safety Glasses, Ladder.
Page 2 of 6
ASSEMBLY INSTRUCTIONS
PREPARATION
Important to Know
SAFETY INFORMATION
• All electrical connections must be in agreement with local codes, ordinances or the national electric code (NEC).
Contact your municipal building department to learn about your local codes, permits and/or inspections.
• Risk of fire – most dwellings built before 1985 have supply wire rated for 140°F/60ºC. Consult a qualified electrician
before installation.
• Do not connect this fixture to an electrical system that does not provide a means for equipment grounding. Never use
a fixture in a two-wire system that is not grounded. If you are not sure your lighting system has a grounding means, do
not attempt to install this fixture. Contact a qualified, licensed electrician for information with regards to proper
grounding methods as required by the local electrical code in your area.
Please read and understand this entire manual before atte
WARNING
• Turn off electricity at main fuse box (or circuit breaker box) before beginning installation by removing fuse (or switching
off circuit breaker).
• Be careful not to damage or cut the wire insulation (covering) during fixture installation. Do not permit wires to contact
any surface having a sharp edge. To do so may damage or cut the wire insulation, which could cause serious injury
or death from electric shock.
CAUTION
Maximum Wattage: 60W
Work Temperature: - 4°F~104°F
1. This fixture requires a 120 VAC, 60 Hz power source.
2. For general safety and to avoid any possible damage to the sensor, be sure the power is switched "off" before
adjustment.
3. Motion sensor: turns light ON automatically when motion is detected and turns light OFF automatically when motion
stops.
4. Photocell keeps the light OFF during daylight hours.
5. Compatible with LED dimmable bulb.
6. Use the dim-to-bright illumination option where you want some minimum illumination through out the night, such as
at your front entrance or garage door. Use the dark-to-bright illumination option where you do not need minimum
brightness, such as the backyard or back porch.
mpting to assemble, operate or install the product.

Page 3 of 6
ASSEMBLY INSTRUCTIONS (continued)
1. Thread two headless screws (DD)
through the cross bar (AA), and then
secure them with four lock nuts (FF)
(two on each side of the cross bar(AA)).
Adjust the length of the headless
screws (DD) if necessary.
Note: Make sure that the headless
screws (DD) are lined up horizontally
to make the fixture level.
AA
DD FF
AA
BB
1
2
3
2. Attach cross bar (AA) to outlet box
using two mounting screws (BB).
3. Pull out the source wires from the
outlet box. Make wire connections
using wire connectors as follows:
•Connect the hot wire (usually black
insulation) from the fixture to the black
wire from the power source.
•Connect the neutral wire (usually
white insulation) from the fixture
to the white wire from the power
source.
•Attach the fixture grounding
wire (usually green insulation or
bare wire) to the cross bar (AA) with
the green grounding screw, and
then connect it to the house
grounding wire with the wire connector (CC).
Carefully put all of the wires back
into the outlet box.
AA
CC
4. Attach the fixture to the cross
bar (AA) by inserting headless
screws (DD) into holes on back
plate (A), and then secure it with
two rubber pads (GG) and two
ball nuts (EE).
CAUTION:With silicone
caulking compound, caulk
completely around where the
back plate meets with the
wall surface to prevent water
from seeping into the outlet
box.
5. Install a bulb (not included).
Check relamping label at socket
area or packaging for maximum
allowed wattage.
The Position of Adjustable Knob
Sensor
Lens Adjustable
Knob
See Detail A
Fig.1 Fig.2 Fig.3
4
5
DD
A
GG
EE
AA
DD
Bulb type
A Max. 60W
(not include)
Socket

Page 4 of 6
ASSEMBLY INSTRUCTIONS (continued)
ASSEMBLY INSTRUCTIONS (continued)
Step 1: Rotate the sensor lens counterclockwise to show
up the adjustable knobs and slide switch.
(See Fig.1)
Step 2: Use the small flathead screwdriver to adjust time,
low level brightness and sensitivity. And slide the
slide switch to choose desired mode. (See Fig.2
and Detail A view).
Step 3: Rotate the sensor lens clockwise to restore original
position. (See Fig.3)

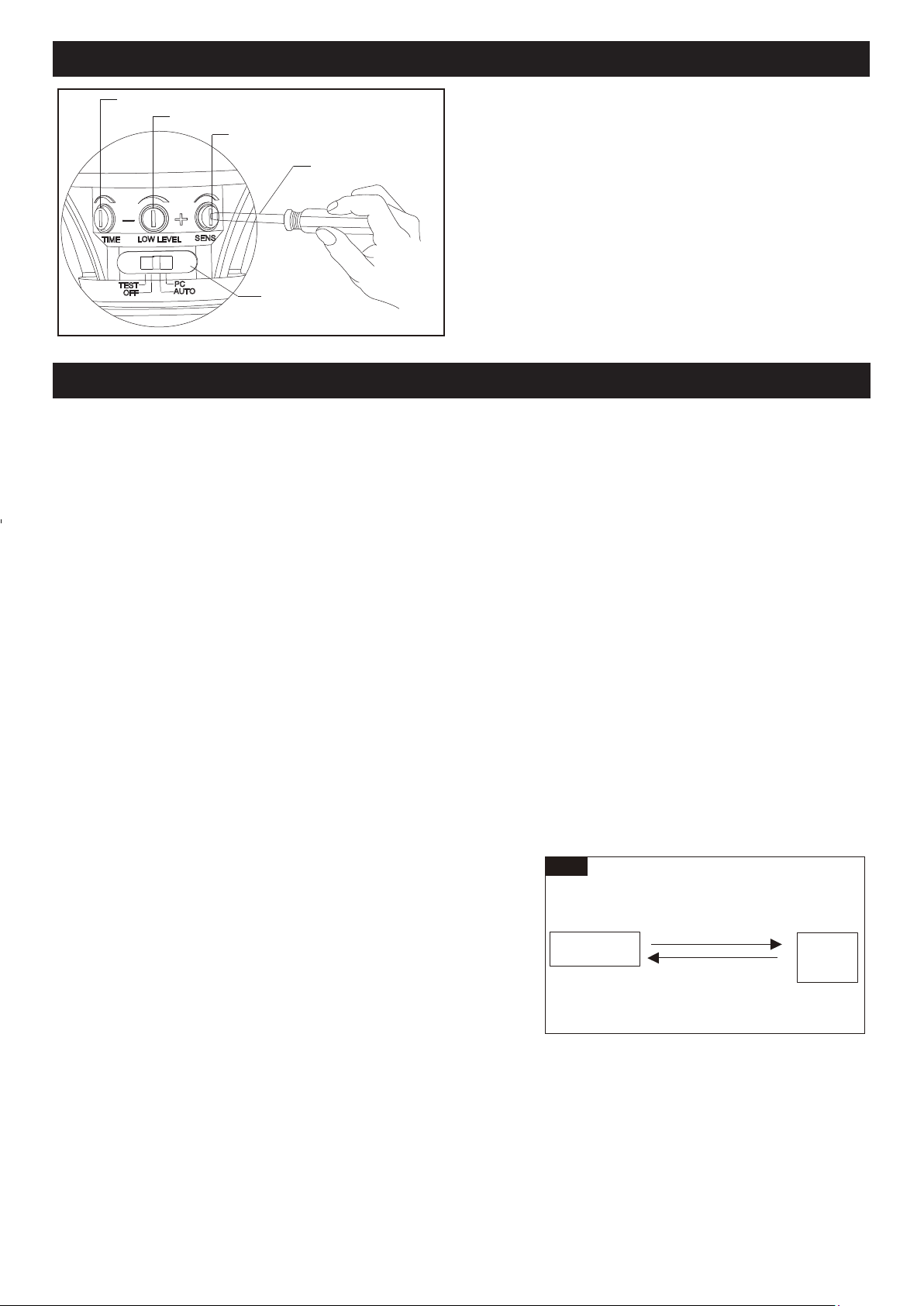

Detail A View
“TIME” Knob
“LOW LEVEL” Knob
“SENS” Knob
Flathead Screwdriver
(not included)
Slide Switch
ASSEMBLY INSTRUCTIONS (continued)
FUNCTION AND OPERATION
1. TEST MODE (daytime and nighttime operation)
• The light will turn to low-level brightness (0~50%).The light will turn to high-level brightness (full brightness)
when motion is detected,and stay on as long as the motion continues. The light will revert to low-level
brightness you set about 5 seconds after motion is no longer detected.
2. OFF MODE (nighttime operation only)
• At dusk, the light will turn on when motion is detected, and stay on as long as the motion continues. When
the motion stops, the light will remain on for the predetermined time set (5 ~ 180 seconds), then the light will
turn off automaticlly.
3. AUTO MODE (nighttime operation only)
• At dusk, the light will turn to low-level brightess (0~50%). The light will turn to high-level brightness (full
brightness) when motion is detected, and stay on as long as the motion continues. When the motion stops,
the light will remain on for the predetermined time set (5 ~ 180 seconds), and then revert to low-level
brightness you set.
• The light will turn off automatically at dawn.
4. PC MODE (nighttime operation only)
• The light will turn to high-level brightness (full brightness) at dusk. It will turn off at dawn.
5. Manual Override MODE (nighttime operation only)
• To shift to the manual override mode, set the switch to “OFF”
or “AUTO” mode.Turn the wall switch “OFF” and then turn it
“ON” within 3 seconds.The light will remain on all night long.
To shift back to the “OFF” or “AUTO” mode, turn the wall
switch “OFF” and then turn it “ON” within 3 seconds again.
(See Fig.4)
• The light will last only for one night and turn off automatically
at dawn.
Note: 1.You can adjust the low level brightness (0~50%) by rotating
“LOW LEVEL” knob at the back of sensor lens. (See Fig.5)
2.To make sure the above functions operate properly, always keep the wall switch in the “ON” position
(including the daytime).
3. Please notice the warm up time is 100 seconds, any operations are invalid during this time.
OFF Mode
AUTO Mode Manual
Override
Manual Override Operation Diagram
Turn wall switch OFF-ON
in 0.5~3 Seconds
Turn wall switch OFF-ON
in 0.5~3 Seconds
Fig. 4
Choose a mode by sliding the switch at the back of sensor lens. When power is first applied, the light will turn on
immediately. Wait for 100 seconds to allow the sensor to warm up.
Sensitivity of Motion Sensor
The sensitivity of the motion sensor can be adjusted by using the “Sens” knob located on the right side of the panel at
the back of sensor lens (See Fig.5). To increase sensitivity, turn the knob clockwise. To decrease sensitivity, turn the
knob counterclockwise. The sensitivity may be adjusted from a minimum of 5 feet to a maximum of 40 feet.

FUNCTION AND OPERATION (continued)
Page 5 of 6
Spare Parts List:
The following parts are available for re-order if damaged or missing. Call us toll-free at 1-800-887-6326.
Assembly Kit Glass Shade
9819CS
5562MM (1 SET)
Fig. 5
TEST
OFF AUTO
PC
(View from back of sensor head)
TIME SENS
CUSTOMIZATION OPTIONS
The Shut-off delay is the length of time the light will stay at high-
level brightness after motion has ceased to be detected. This
Shut-off delay can be set when operation is in “OFF”, or “AUTO”
mode by using the “TIME” knob located on the left side of the panel
at the back of sensor head (See Fig.5) . To increase the shut-off
delay, turn the knob clockwise. To decrease shut off delay,
turn the knob counterclockwise. The delay may be adjusted from a
minimum of 5 seconds to a maximum of 3 minutes. The light will stay
on as long as motion is detected continuously and will automatically
turn to low-level brightness when no more motion is detected after
the delay time has passed.
NOTE:
1. The sensitivity of the motion sensor will increase as the
environmental temperature gets cooler. For best performance,
gently clean the lens with a soft cloth every 1 or 2 months to
assure maximum sensitivity.
2. For best performance, install fixture at least 6 feet above
the ground. At such a height, the fixture will provide a
detection distance of up to 40 feet at 77 degrees
Fahrenheit. (See Fig.6)
3.The sensor detects across a detection range of 180 degrees.
(See Fig.7)
4. The sensor will be more sensitive to motion across its
detection path than motion directly towards it. (See Fig.8)
5. To reduce possible nuisances, do not mount the fixture
near a heat source like an air conditioner, vent or furnace
exhaust, or in a direction facing any reflecting object or
other light source.
LOW LEVEL
Model
Shut-off Delay
5`
6`
10`
40`
Where you install your lantern is important:
Be sure the light is mounted straight on the wall;
otherwise, the detection distance may be limited.
Fig. 6 Fig. 7
Fig. 8
180˚
Motion
Least sensitive
Motion
Most sensitive
Sensor
AA
BB
CC
DD
EE
FF
GG
Mounting Screw
X2
Wire Connector
X3
Lock Nut
X4
Ball Nut
X2
Rubber Pad
X2
Cross Bar
X1
Headless Screw
X2
