Patron 18E Series User manual

18E ELECTRIC FAN HEATER
MODEL 18E-1 (Single Phase) MODEL 18E-3 (Three Phase)
PRODUCT MANUAL
IMPORTANT
READ AND UNDERSTAND THIS MANUAL BEFORE ASSEM-
BLING, STARTING OR SERVICING THE HEATER.
IMPROPER USE OF HEATER CAN CAUSE SERIOUS INJURY.
KEEP THIS MANUAL FOR FUTURE REFERENCE.
FOR PROFESSIONAL USE ONLY
RENTQUIP USA INC. | 1-800-818-1199 | WWW.PATRONPRODUCTS.COM
OCTOBER 2014 REVISION

18E PRODUCT MANUAL
RENTQUIP USA INC. | 1-800-818-1199 | WWW.PATRONPRODUCTS.COM
IMPORTANT INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THIS HEATER
1. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Use handle when
moving this heater. Keep combustible materials at least 6 feet (2 meter) from the front of the heater and keep
them away from sides and rear
2. Extreme caution is necessary when the heater is used near children or invalids and whenever the heater is
left unattended
3. Always unplug the heater when not in use
4. Do not operate any heater with a damaged cord or plug or after the heater malfunctions, has been dropped
or damaged in any manner. Return heater to authorized service facility for examination, electrical or mechanical
adjustment or repair
5. Do not expose to rain, water spray or dripping water
6. This heater is not intended for use in bathrooms, laundry areas and similar indoor locations. Never locate the
heater where it may fall into a bathtub or other liquid container
7. Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or the like. Arrange cord away
from trafc area and where it will not be tripped over
8. To disconnect heater, turn controls to off, then remove plug from outlet
9. Connect to properly grounded outlets only
10. Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an elec-
tric shock or re, or damage the heater
11. To prevent a possible re, do not block air intakes or exhaust in any manner. Do not use on soft surfaces,
where openings may become blocked
12. A heater has hot and arcing or sparking parts inside. Do not use in areas where gasoline, paint or ammable
liquids are used or stored
13. Do not point to ammable materials
14. Use heater only as described in this manual. Any other use not recommended by the manufacturer may
cause re, electric shock or injury to persons
15. Always plug heaters directly into a wall outlet/receptacle. Never use with an extension cord or relocatable
power tap (outlet/power strip)
16. SAVE THESE INSTRUCTIONS

RENTQUIP USA INC. | 1-800-818-1199 | WWW.PATRONPRODUCTS.COM
18E PRODUCT MANUAL
RENTQUIP USA INC. | 1-800-818-1199 | WWW.PATRONPRODUCTS.COM
GENERAL INFORMATION FOR USER
Patron electric heaters are designed for professional use.
The heat is generated in sealed heating elements inside the inner mantle of the heater. Heated air is then dis-
tributed by an electric motor driven fan blowing air through the heater.
Although effectively cooled by the fan, the heating elements have high surface temperatures. That is why com-
bustible materials must be kept at a safe distance from the heater and care must be taken that no combustible
particles enter the heater with the air sucked in by the fan.
Keep the heater clean of dust at any time. Dust may cause re when heated.
Make sure that the fan blades may rotate unobstructed at all times.
Do not block air intakes or exhaust in any manner.
LIMITED WARRANTY
PATRON heater products are professional construction heaters. They are warranted for twenty-four (24) months
from original date of purchase. The warranty does not cover products modied outside our factory, damage
or failure caused by acts of God, abuse, misuse, use on other than rated voltage, abnormal usage, faulty or
improper installation, failure to provide recommended maintenance or any repairs other than those provided by
an authorized PATRON service.
THERE ARE NO OBLIGATIONS OR LIABILITIES ON THE PART OF PATRON PRODUCTS INC. FOR CON-
SEQUENTIAL DAMAGES ARISING OUT OF OR IN CONNECTION WITH THE USE OR PERFORMANCE OF
THE PRODUCT OR OTHER INDIRECT DAMAGES WITH RESPECT TO LOSS OF PROPERTY, REVENUES,
OR PROFIT, OR COST OF REMOVAL, INSTALLATION OR REINSTALLATION.
THIS WARRANTY CONSTITUTES THE EXCLUSIVE REMEDY OF ANY PURCHASER OF EQUIPMENT
SOLD BY THE MANUFACTURER AND ITS DEALERS AND DISTRIBUTORS AND IS IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED.
During the warranty period, Patron Products will, at its sole option, repair or replace any defective parts or prod-
ucts returned, freight prepaid, to Patron Products or such other location as Patron Products may designate.
Returned products must be packaged carefully, and Patron Products shall not be responsible for damage in
transit. When returning parts, the owner must provide the model number of the product and the nature of dif-
culty being experienced. This warranty does not oblige Patron Products to bear the cost of labour in replac-
ing any assembly, unit or component or part thereof, nor does the company assume any liability for secondary
charges, expenses of removal or installing, freight or damages. There will be charges rendered for product
repair after our warranty period has expired. Proof of purchase, including date, must accompany request for in-
warranty service.

18E PRODUCT MANUAL
RENTQUIP USA INC. | 1-800-818-1199 | WWW.PATRONPRODUCTS.COM
OPERATION
REVIEW AND UNDERSTAND ALL WARNINGS IN THIS MANUAL. THEY ARE ESSENTIAL FOR SAFE USE
OF THE HEATER.
FOLLOW ALL LOCAL CODES
TO START HEATING:
1. Place the heater on a stable and level surface. Make sure that no explosive or combustible fumes or dust
are present.
MINIMUM CLEARANCES FROM COMBUSTABLE MATERIALS
OUTLET = 6 feet SIDES = 1 foot
TOP = 2 feet REAR = 2 feet
FLOOR = COMBUSTABLE
2. Connect power cord of heater into 240 V / 60 Hz power source. THE POWER SOURCE MUST BE
EQUIPPED WITH A CIRCUIT BREAKER! See paragraph “Technical specications” in this manual for cor-
rect amperage rating. NOTE: Check your heater to make sure it is wired for either one or three phase use.
3. Set the room thermostat to a temperature above the ambient room temperature by turning the knob. Note!
The heater will start heating only if the thermostat “calls for heat” meaning that it is set to higher than pre-
vailing ambient temperature
4. Turn the main switch into position 2 = ”Output 13,000 W” for partial heating output or into position 3 =
”Output 19,000 W” for full heating output. THE HEATER WILL NOW OPERATE AUTOMATICALLY, CON-
TROLLED BY THE THERMOSTATS.
5. When no heating is needed, turn the main switch into position 1 = ”Ventilation only” for air circulating pur-
poses.
TO STOP HEATING
1. Turn the main switch into position “0” standby
2. Let the fan cooldown heater for 2-3 minutes
3. Disconnect the power supply plug
NOTE!
THE HEATER IS EQUIPPED WITH AN OVERHEAT LIMIT SWITCH WHICH MAY CAUSE THE HEATER TO
STOP. CHECK AND REMOVE THE CAUSE FOR OVERHEATING BEFORE RESTARTING.
RENTQUIP USA INC. | 1-800-818-1199 | WWW.PATRONPRODUCTS.COM

RENTQUIP USA INC. | 1-800-818-1199 | WWW.PATRONPRODUCTS.COM
18E PRODUCT MANUAL
RENTQUIP USA INC. | 1-800-818-1199 | WWW.PATRONPRODUCTS.COM
MAINTENANCE
WARNING!
NEVER SERVICE THE HEATER WHILE IT IS PLUGGED IN, RUNNING OR HOT. SEVERE BODILY INJURE
OR ELECTRIC SHOCK MAY OCCUR.
ONLY QUALIFIED PERSONS ARE ALLOWED TO OPEN HEATER FOR SERVICE. NO USER-SERVICE-
ABLE PARTS INSIDE.
• Keep heater clean. Use pressurized air to blow fan blades clean. Note! Use moderate pressure to avoid
damage to fan blades
• Inspect heater before and after each use
• The fan motor is sealed and has permanently lubricated bearings
STORAGE
When not in use, the heater must be disconnected from power source, cleaned of dust and stored in a dry
place.
The power supply cord should be loosely wound around the handle of the heater.
TECHNICAL SPECIFICATIONS
HEAT OUTPUT
(2 STAGE SELECTOR)
BTU/Hr 65,000 or 45,000
19,000 or 13,000
AIRFLOW CFM 590 or 1000
ELECTRIC CONNECTION V ac / Hz 240 / 60 single phase or 3 phase
AMPERAGE DRAW (3 Phase) A Full: 47 Partial: 31
AMPERAGE DRAW (1 Phase) A Full: 81 Partial: 54
AMBIENT THERMOSTAT temp. range 32 - 100 °F (0 - 40 °C)
LENGTH inches 32.0
WIDTH inches 14.0
HEIGHT inches 20.0
WEIGHT lbs 62.0

18E PRODUCT MANUAL
RENTQUIP USA INC. | 1-800-818-1199 | WWW.PATRONPRODUCTS.COM

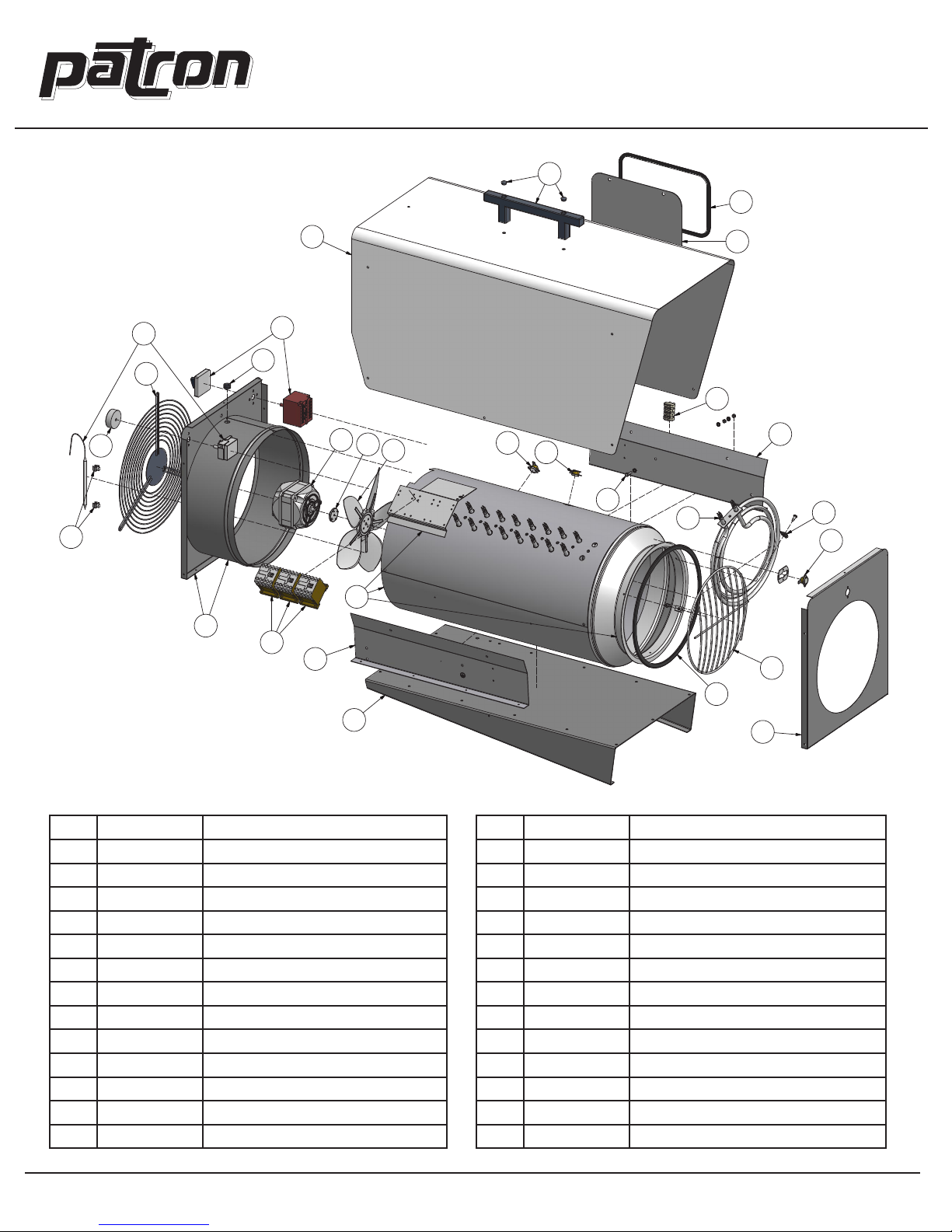

SPARE PARTS
DIAGRAM
PATRON 18E-1
1 401607 Bottom Plate
2 401606 Front Panel
3 401615 Rear Panel
4 401632 Hood
5 401605 Connection Hatch
6 401603 Inner Mantle (incl. Air Cone)
7 401609 Bracket
8 83920 Rear Grill
9 83200 Front Grill
10 42320 Heating Element (9/Heater)
11 22663 Contactor (3/Heater)
12 26605 Main Switch Asembly
13 21200 Overheat Limit Switch
14 21100 Cooldown Thermostat
15 20212 Thermostat Knob
16 37910 Plastic Bracket
17 20210 Ambient Thermostat
18 82760 Plate Nut
19 36809 Guard Ring
20 401604 Gasket for Connection Hatch
21 14201 Fan Motor
22 17907 Fan Hub
23 16410 Fan Blade
24 38500 Circuit Protector
25 80100 Handle
26 402214 Bracket for Terminal Block
27 402211 Grounding Lug
28 401604 Gasket
29 36615 Terminal Block (18E-1)
30 36616 Locking Clamp
31 402213 Bracket for Inner Mantle
13,588 kgKy-Va4418-162Pohja1
10,681 kgKy-Va4418-120APuhalluspääty2
10,599 kgKy-Va4418-130A + 4418-430
Imupääty (1-vaihe) + muutosyhde
3
16,045 kgSä-Si4418-152Ulkovaippa4
10,277 kgSä-Si4418-851Luukku5
14,160 kgKu-SiHits.
kokonaisuus
4418-180A + 4418-850 + OSTO-OSASisävaippa + kiinn.kisko + yhde6
10,49 kgKu-Si4418-140Sisävaipan jalka, oikea7
10,033 kg
-
Imuverkko8
10,052 lbmass
-
Puhallusverkko9
90,120 kg
-
Vastus10
30,093 kg
-
Kontaktori11
10,189 kg
-
26605Käyttökytkin12
20,002 kg
-
21200Ylilämpösuoja13
10,002 kg
-
21100Jälkituuletustermostaatti14
10,003 kg
-
20212Lämpötila-anturi15
20,001 kg
-
82780Huonetermostaatin nuppi16
10,036 kg
-
20210Huonetermostaatti + anturi17
20,000 kg
-
SNU S219 Cr3
sinkitty
Levymutteri18
10,001 kg
-
36809Läpivientikumi19
10,014 kg
-
38500Luukku, tiiviste20
10,407 kg
-
14201Puhallinmoottori21
10,136 kg
-
Puhallinmoottori, keskiö22
10,011 kg
-
16400Siipi23
20,000 kg
-
Kahvan tulppa32
10,048 kg
-
Kahva25
10,041 kg
-
Teline + DIN-kisko26
10,027 kgMaadoituspultti27
10,022 kg
-
Tiiviste28
20,033 kg
-
Riviliitin29
10,006 kg
-
Riviliitin, päätypuristin30
60,043 lbmass
-
Ylivirtasuoja 30A24
10,339 kgKu-Si4418-141Sisävaipan jalka, vasen31
QTYMASSMATERIALCOMMENTSDESCRIPTIONNAMEITEM
Patron E 18
(1-vaihe)
7
12
13
9
31
26
10
54
25
14
3
11
23
22
21
8
15
16
17
12
24
6
27
28
13
19
29 30
20
18
SINGLE
PHASE
MODEL
ONLY!

13,588 kgKy-Va4418-162Pohja1
10,681 kgKy-Va4418-120APuhalluspääty2
10,136 kgKy-Va4418-131A + 4418-430
Imupääty (3-vaihe) + yhde
3
16,045 kgSä-Si4418-152Ulkovaippa4
10,277 kgSä-Si4418-851Luukku5
14,160 kgKu-SiHits. kokonaisuus
4418-180A + 4418-850 + OSTO-OSA (36810)
Sisävaippa + kiinn.kisko + imuyhde6
20,49 kgKu-Si4418-140Sisävaipan jalka7
10,033 kg
-
Imuverkko8
10,052 lbmass
-
Puhallusverkko9
90,120 kgVastus10
30,093 kg
-
Kontaktori11
10,12 kg
-
26605Käyttökytkin12
20,002 kg
-
21200Ylilämpösuoja13
10,002 kg
-
21100Jälkituuletustermostaatti14
10,003 kg
-
20212Huonetermostaatin nuppi15
20,001 kg
-
82780Lämpötila-anturin pidike16
10,0 kg
-
20210Huonetermostaatti + anturi17
20,000 kg
-
SNU S219 Cr3 sinkittyLevymutteri18
10,001 kg
-
36809Läpivientikumi19
10,014 kg
-
38500Luukku, tiiviste20
10,465 kg14201Puhallinmoottori21
10,02 kg
-
Puhallinmoottori, keskiö22
10,022 kg16400Siipi23
10,006 kg
-
Riviliitin24
10,049 kgKahva25
10,004 kg
-
Maadoituspultti27
10,022 kg
-
Tiiviste28
QTYMASSMATERIALCOMMENTSDESCRIPTIONNAMEITEM
TABLE
Column 1 Column 2 Column 3 Column 4
Patron
E 18
(3-vaihe)
11
1
7
6
15
16
8
12
3
24
27
14
13
2
9
10
28
23
21 22
17
45
25
7
13
20
18
19
RENTQUIP USA INC. | 1-800-818-1199 | WWW.PATRONPRODUCTS.COM
18E PRODUCT MANUAL
RENTQUIP USA INC. | 1-800-818-1199 | WWW.PATRONPRODUCTS.COM
1 401607 Bottom Plate
2 401606 Front Panel
3 401615 Rear Panel
4 401632 Hood
5 401605 Connection Hatch
6 401603 Inner Mantle (incl. Air Cone)
7 401609 Bracket
8 83920 Rear Grill
9 83200 Front Grill
10 42320 Heating Element (9/Heater)
11 22663 Contactor (3/Heater)
12 26605 Main Switch Asembly
13 21200 Overheat Limit Switch
14 21100 Cooldown Thermostat
15 20212 Thermostat Knob
16 37910 Plastic Bracket
17 20210 Ambient Thermostat
18 82760 Plate Nut
19 36809 Guard Ring
20 401604 Gasket for Connection Hatch
21 14201 Fan Motor
22 17907 Fan Hub
23 16410 Fan Blade
24 36704 Terminal Block (18E-3)
25 80100 Handle
27 401613 Grounding Lug
28 401604 Gasket
THREE PHASE
MODEL ONLY!
SPARE PARTS
DIAGRAM
PATRON 18E-3

PATRON E18 — 4/01
8
WIRING DIAGRAMS
18E PRODUCT MANUAL
RENTQUIP USA INC. | 1-800-818-1199 | WWW.PATRONPRODUCTS.COM
WIRING DIAGRAM
C1 ... C3 Contactors & Coils 22663
F1 ... 6 Circuit Protectors 38500
M Fan Motor 14201
R1 ... R9 Heating Elements 42320
S1 Main Switch 26605
TA Ambient Thermostat 20210
TC Cooldown Thermostat 21100
TO 1 Overheat Limit Switch (inner) 21200
TO 2 Overheat Limit Switch (discharge) 21200
X1 Terminal Block 36615
SINGLE
PHASE MODEL
ONLY!
C1 ... C3 Contactors & Coils 22663
M Fan Motor 14201
R1 ... R9 Heating Elements 42320
S1 Main Switch 26605
TA Ambient Thermostat 20210
TC Cooldown Thermostat 21100
TO 1 Overheat Limit Switch (inner) 21200
TO 2 Overheat Limit Switch (discharge) 21200
X1 Terminal Block 36704
THREE PHASE
MODEL ONLY!

PATRON PRODUCTS
A DIVISION OF RENTQUIP
1-800-818-1199
www.patronproducts.com
