PCE Health and Fitness PCE-PWT 10 User manual

© PCE Instruments
PCE-PWT 10 Salt Meter
User Manual
User manuals in various languages (français,
italiano, español, português, nederlands, türk, polski,
русский, 中文) can be found by using our
product search on: www.pce-instruments.com
Last change: 18 April 2018
v1.0
English

© PCE Instruments
Contents
1Safety notes........................................................................................... 1
2Introduction ........................................................................................... 2
3Keypad ................................................................................................... 2
4Display ................................................................................................... 3
5Prior to Use............................................................................................3
6Power On/Off .........................................................................................4
7Setting the Default Parameters............................................................5
8Conductivity Calibration ......................................................................7
9Single Point Calibration ....................................................................... 8
10 2 Point Calibration ................................................................................9
11 3 Point Calibration ..............................................................................10
12 Temperature Calibration ....................................................................10
13 Switching the Measurement Mode....................................................11
14 Measurement.......................................................................................11
15 Hold Function......................................................................................11
16 Electrode Care and Maintenance ......................................................11
17 Electrode Replacement ......................................................................12
18 Replacing the Batteries......................................................................12
19 Troubleshooting.................................................................................. 13
20 Specifications...................................................................................... 13
21 Delivery Content.................................................................................. 14
22 Optional accessories..........................................................................14
23 Warranty...............................................................................................14
24 Disposal ...............................................................................................14

© PCE Instruments
1
1 Safety notes
Please read this manual carefully and completely before you use the device for the first time. The
device may only be used by qualified personnel and repaired by PCE Instruments personnel.
Damage or injuries caused by non-observance of the manual are excluded from our liability and
not covered by our warranty.
• The device must only be used as described in this instruction manual. If used otherwise,
this can cause dangerous situations for the user and damage to the meter.
• The instrument may only be used if the environmental conditions (temperature, relative
humidity, etc.) are within the ranges stated in the technical specifications. Do not
expose the device to extreme temperatures, direct sunlight, extreme humidity or
moisture.
• Do not expose the device to shocks or strong vibrations.
• The case should only be opened by qualified PCE Instruments personnel.
• Never use the instrument when your hands are wet.
• You must not make any technical changes to the device.
• The appliance should only be cleaned with a damp cloth. Use only pH-neutral cleaner,
no abrasives or solvents.
• The device must only be used with accessories from PCE Instruments or equivalent.
• Before each use, inspect the case for visible damage. If any damage is visible, do not
use the device.
• Do not use the instrument in explosive atmospheres.
• The measurement range as stated in the specifications must not be exceeded under
any circumstances.
• Non-observance of the safety notes can cause damage to the device and injuries to
the user.
We do not assume liability for printing errors or any other mistakes in this manual.
We expressly point to our general guarantee terms which can be found in our general terms of
business.
If you have any questions please contact PCE Instruments. The contact details can be found at
the end of this manual.

© PCE Instruments
2
2 Introduction
Thank you for selecting the PCE-PWT 10 pocket salinity tester. This manual provides a step-by-
step guide to help you operate the meter, please carefully read the following instructions before
use. The following list describes the standard accessories of the tester. After unpacking, please
check that all accessories are complete. If any are damaged or missing, please contact the
nearest distributor.
3 Keypad
PCE-PWT 10 pocket salinity tester has a succinct membrane keypad, names and symbols which
describe each of the function key controls.
KEY
FUNCTION
MEAS/HOLD
● Power the tester ON/OFF.
● Freezes the measured values on the
display, press the key again to resume
measuring.
● In the calibration mode, exits calibration
and returns to measurement mode.
● Press the key to enter the calibration
mode.
● Press and hold the key to enter setup
menu.
● In the calibration mode, press the key to
set calibration values.
● In the setup mode, press the key to select
default option.
ENTER
● Confirms the calibration or displayed
option.
● Toggles between conductivity and salinity
measurement modes.

© PCE Instruments
3
4 Display
The tester is equipped with a clear LCD display that is used to show measured value, mode
indicators and unit indicators.
INDICATOR
DESCRIPTION
MEAS
Indicates tester is in the measurement mode
CAL
Indicates tester is in the calibration mode
SETUP
Indicates tester is in SETUP mode
HOLD
Indicates the measured value has been frozen
ATC
Indicates temperature compensation is enabled
5 Prior to Use
● Remove the electrode protective cap from tester.
● Soak the electrode for a few minutes in tap water to remove dirt and oil stains on the
electrode.
u
S
m
ppm
ppt

© PCE Instruments
4
6 Power On/Off
● Press MEAS key to turn on the tester, the display shows measured value.
● Press and hold the MEAS key for 5 seconds, the tester will turn off.
● If you do not press any key for 8 minutes, the tester will automatically turn off to conserve
energy.
 To disable the auto-off function, please read the SETUP MENU section.
PARAMETER
DESCRIPTION
OPTION
S
DESCRIPTION
DEFAULT
Calibration Point
1 point
●
2 points
3 points
Temperature
Unit
Degrees Celsius
●
Degrees Fahrenheit
Temperature
Calibration
Enters the temperature calibration
mode
Auto-Hold
Automatically freezes a stable reading
Disable
●
Auto-Off
Automatically turns off the tester
●
Disable
Reset
Restore factory settings
Disable
●

© PCE Instruments
5

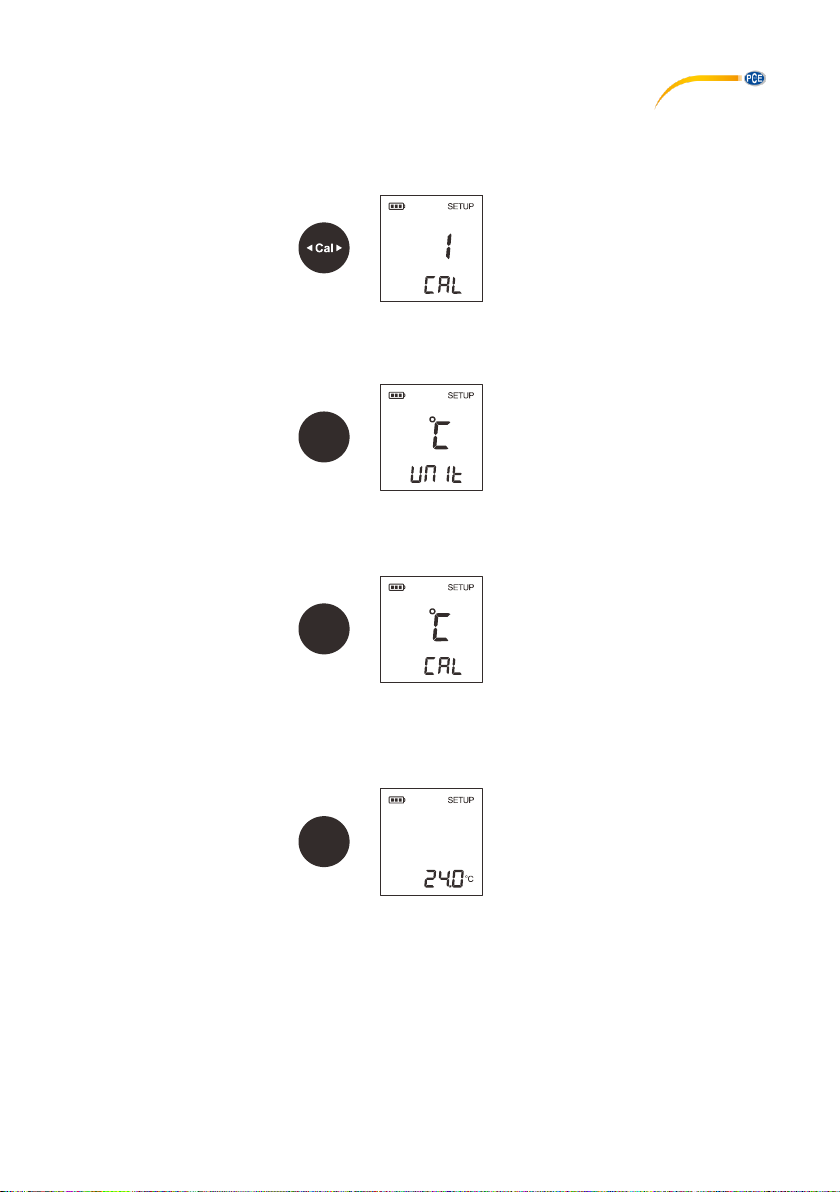

7 Setting the Default Parameters
1. Press and hold the CAL key for 3 seconds to enter setup menu, the tester shows current
selected number of calibration points.
2. Press CAL key again to select 1, 2 or 3 point calibration and press ENTER key to confirm.
The tester goes to temperature unit selection mode, the display shows “oC/UNIT”.
3. Press CAL key to select the temperature unit (oC or oF) and press ENTER key to confirm.
The tester goes to temperature calibration mode, the display shows “oC/CAL”.
4. If you do not want to perform temperature calibration, press ENTER key, the tester goes
to the next option. If needed, press CAL key to enter the temperature calibration mode,
the display shows current temperature reading.
Enter
Enter

Cal


© PCE Instruments
6
5. Press CAL key to set temperature value and press ENTER key to confirm. The tester
shows “YES/HOLD” indicating that the auto-hold function is enabled.
If the auto-hold function is enabled, the tester will automatically sense a stable endpoint
reading and freeze it. If you disable this function, the tester allows the user to freeze the
reading by pressing the HOLD key.
6. Press CAL key to enable or disable the auto-hold function and press ENTER key to
confirm. The tester shows “YES/OFF” indicating that the auto-off function is enabled.
When the auto-off function is enabled, if you do not press any keys for 8 minutes, the tester will
automatically turn off to conserve energy.
7. Press CAL key to enable or disable the auto-off function and press ENTER key to
confirm. The tester shows “NO/RST” indicating it will not reset the tester.
WARNING:
Reset function will restore the tester back to factory default settings, all calibration values and
selected parameters will be reset.
8. Press CAL key to enable or disable the reset function. Press ENTER key to confirm, the
tester returns to measurement mode. Setting is completed.
EXIT THE SETUP MENU:
During the setup mode, press MEAS key, the tester will return to measurement mode
immediately.
Enter
Enter
Enter

© PCE Instruments
7
8 Conductivity Calibration
PCE-PWT 10 pocket salinity tester allows up to 3 points calibration in the conductivity mode. To
ensure higher accuracy, we recommend that you perform 3 points calibration or select a standard
value close to the sample value you are measuring. The tester will automatically detect these
conductivity standard solutions and prompt the user to calibrate the meter. When the calibration
is done, all new calibration values will automatically override existing data. The following table
shows acceptable conductivity range of calibration solution for each measuring range.
MEASURING RANGE
CALIBRATION SOLUTION
RANGE
DEFAULT
0~20µS/cm
7~17µS/cm
10µS/cm
20~200µS/cm
70~170µS/cm
84µS/cm
200~2000µS/cm
700~1700µS/cm
1413µS/cm
2~20mS/cm
7~17mS/cm
12.88mS/cm
Ensure that you use fresh conductivity standard solution during the calibration. Do not reuse
calibration solutions as it may be contaminated and affect the calibration and accuracy of
measurement.

© PCE Instruments
8

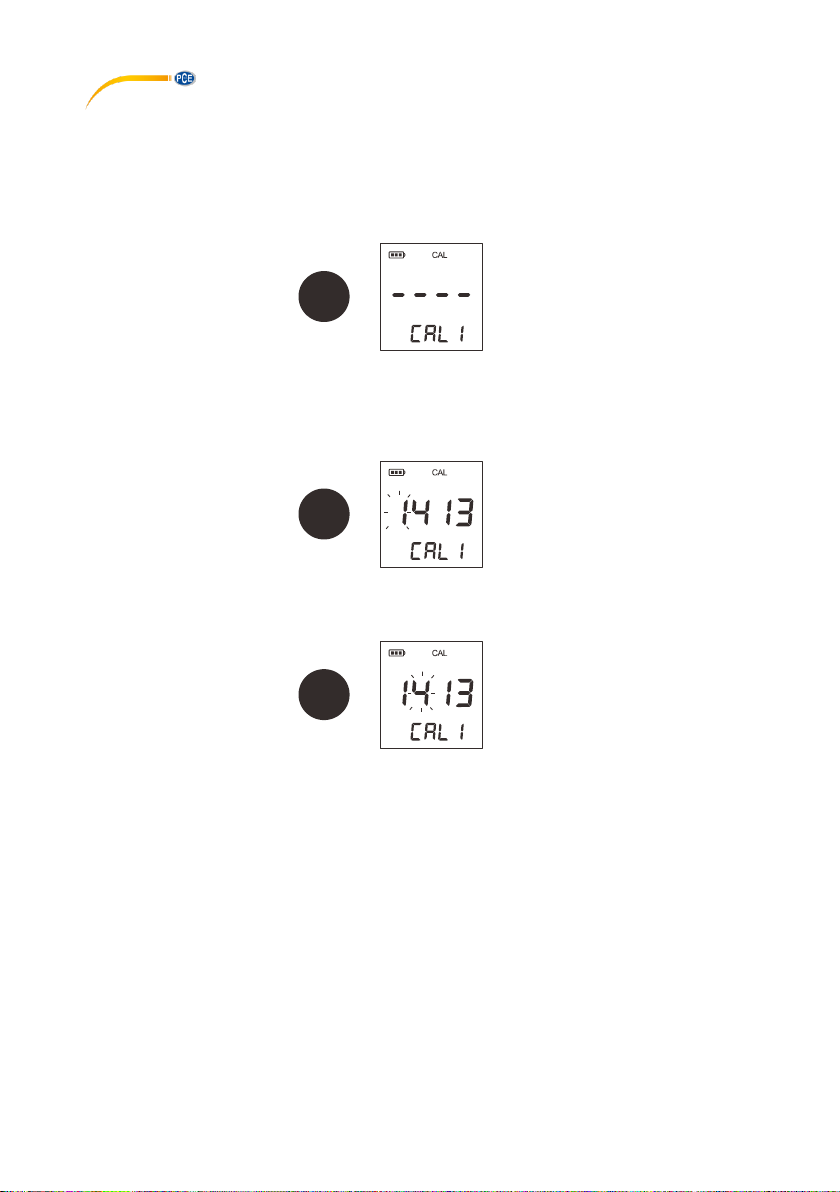

9 Single Point Calibration
1.1 Rinse the conductivity electrode with distilled water, then rinse with a small amount of
calibration solution.
1.2 Press CAL key, the tester enters the calibration mode.
1.3 Dip the conductivity electrode into the calibration solution, the tester immediately
shows current calibration standard (e.g., 1413µS/cm).
1.4 Press ENTER key, the default calibration value begins flashing.
1.5 Press CAL key to set each digit, press ENTER key to confirm. When the setting is
done, ensure the displayed value matches your calibration standard.
1.6 Press ENTER key to start the calibration. Wait for the reading to stabilize, the display shows
“END”. The tester returns to measurement mode automatically. Single point calibration is
completed.
Cal


Enter
u
S
u
S
Enter

© PCE Instruments
9

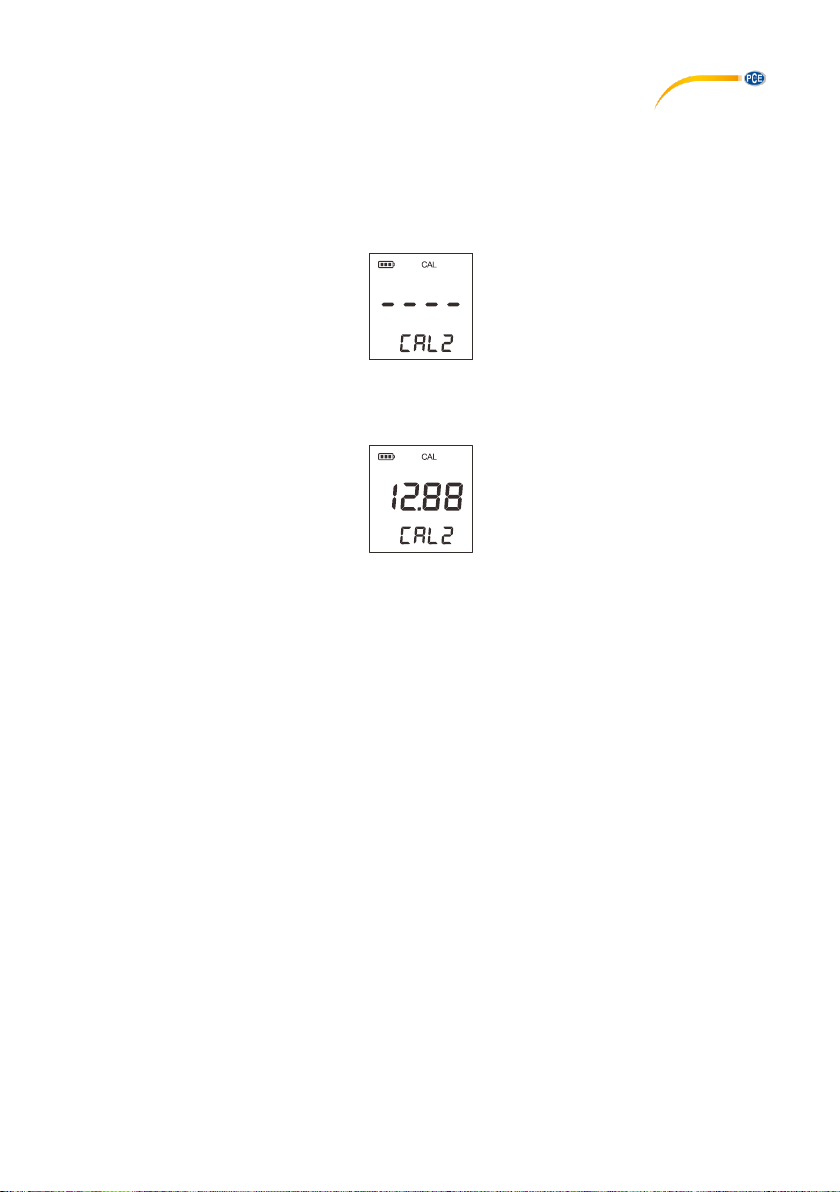

10 2 Point Calibration
1. Make sure that you have selected 2 points calibration in the setup menu.
2. Repeat steps 1.2 to 1.6 above, when the first calibration point is done, the display will
show “CAL2”. The tester prompts you to continue with second point calibration.
3. Dip the electrode into the calibration solution, the tester automatically shows current
calibration standard (e.g., 12.88mS/cm).
4. Press ENTER key, the default calibration value begins flashing.
5. Press CAL key to set each digit, press ENTER key to confirm. When the setting is
done, ensure the displayed value matches your calibration standard.
6. Press ENTER key to start the calibration. Wait for the reading to stabilize, the display
shows “END”. The tester returns to measurement mode. Second point calibration is
completed.
m
S

© PCE Instruments
10
11 3 Point Calibration

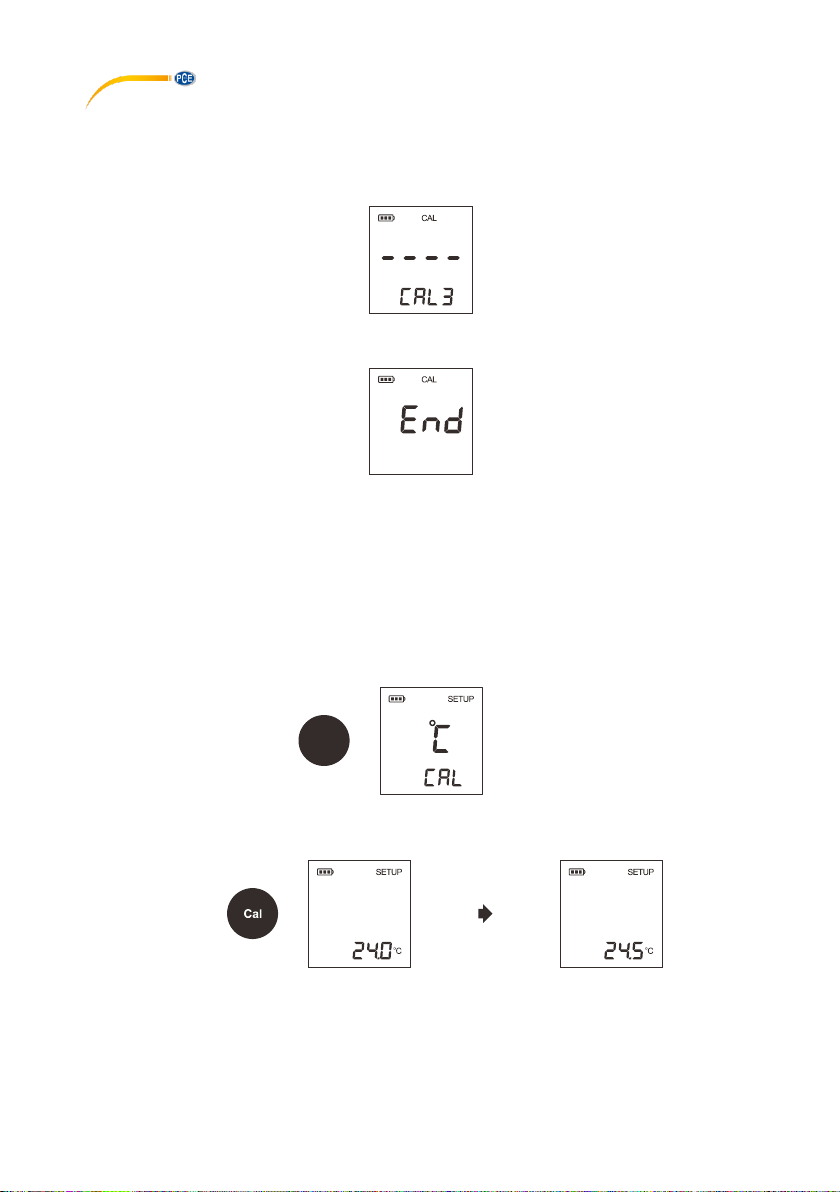

1. If you have selected 3 points calibration in the setup menu, when second calibration
point is done, the display will immediately show “CAL3”. The tester prompts you to
continue with third point calibration.
2. Repeat the above steps until the display shows “END”, the tester returns to
measurement mode. Calibration is completed.
 Performing the conductivity calibration will simultaneously calibrate the corresponding
salinity value.
12 Temperature Calibration
During the measurement, if the temperature reading displayed differs from that of an accurate
thermometer, you need to calibrate the tester.
1. Press and hold the CAL key for 3 seconds to enter setup menu.
2. Press ENTER key until tester shows the “oC/CAL” or “oF/CAL”.
3. Press CAL key to enter the temperature calibration mode.
4. Press CAL key again to set temperature value (Resolution: 0.5oC).
5. Press ENTER key to confirm, the display shows next option.
6. Press MEAS key, the tester returns to measurement mode. Calibration is completed.
EXIT THE CALIBRATION:
During the calibration process, press MEAS key, the tester will return to measurement mode.
Enter

© PCE Instruments
11

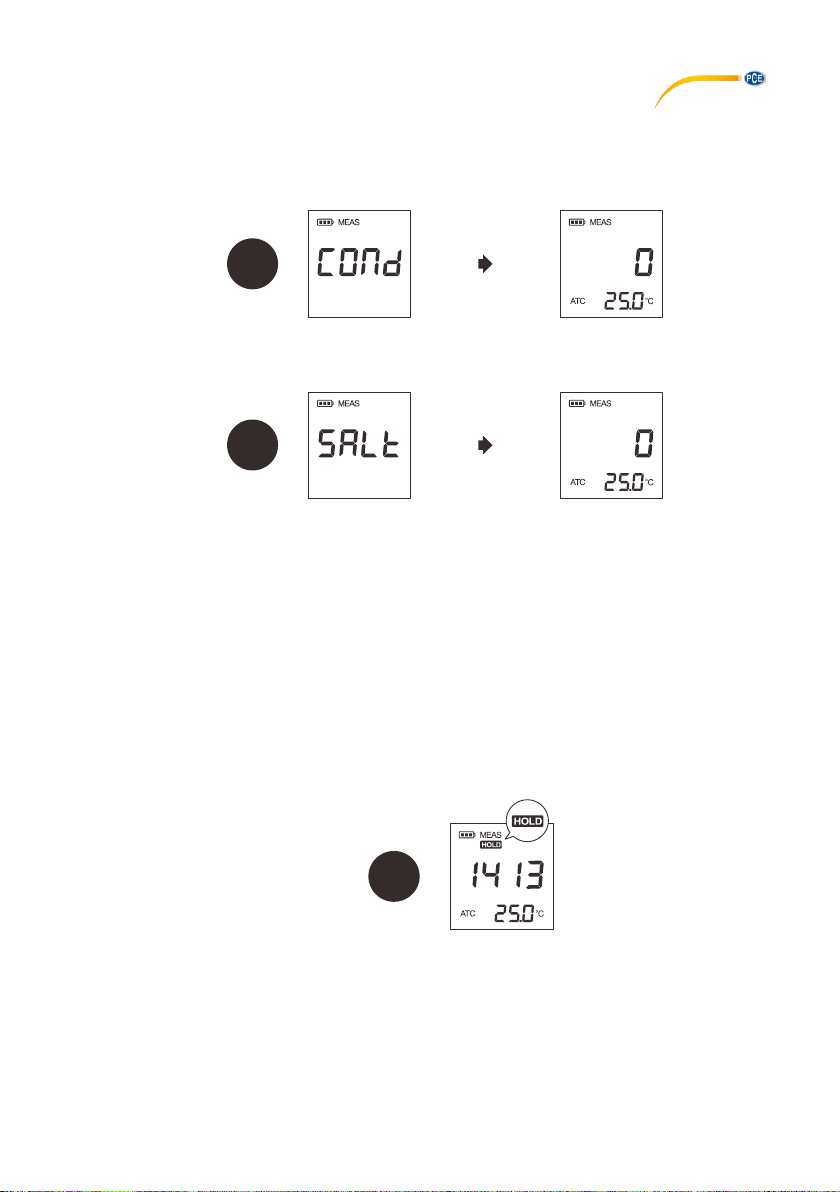

13 Switching the Measurement Mode
In the salinity mode, press ENTER key until the display shows “COND”. The tester now enters
conductivity measurement mode
Press ENTER key again, the tester returns to salinity mode.
14 Measurement
Rinse the electrode with distilled water. Dip the electrode into the sample solution. Stir the tester
gently. Wait for the reading to stabilize and record the measured value on the display.
15 Hold Function
PCE-PWT 10 pocket salinity tester contains two data hold modes. When the Auto-Hold function
is enabled, the tester will automatically sense a stable endpoint reading and freeze it, “HOLD”
indicator appears on the display. If the Auto-Hold function is disabled, press HOLD key, the
tester will immediately freeze currently displayed value. Press the key again to resume
measuring.
16 Electrode Care and Maintenance
● After each use, the conductivity electrode should be rinsed thoroughly in deionized water.
● If there is a build-up of solids inside the measurement area of the cell, these should be
removed very carefully with a cotton bud soaked in solvent, taking care not to touch the
metal parts of the inner cell.
Enter
u
S
Enter
ppt
u
S
Hold
Meas

© PCE Instruments
12

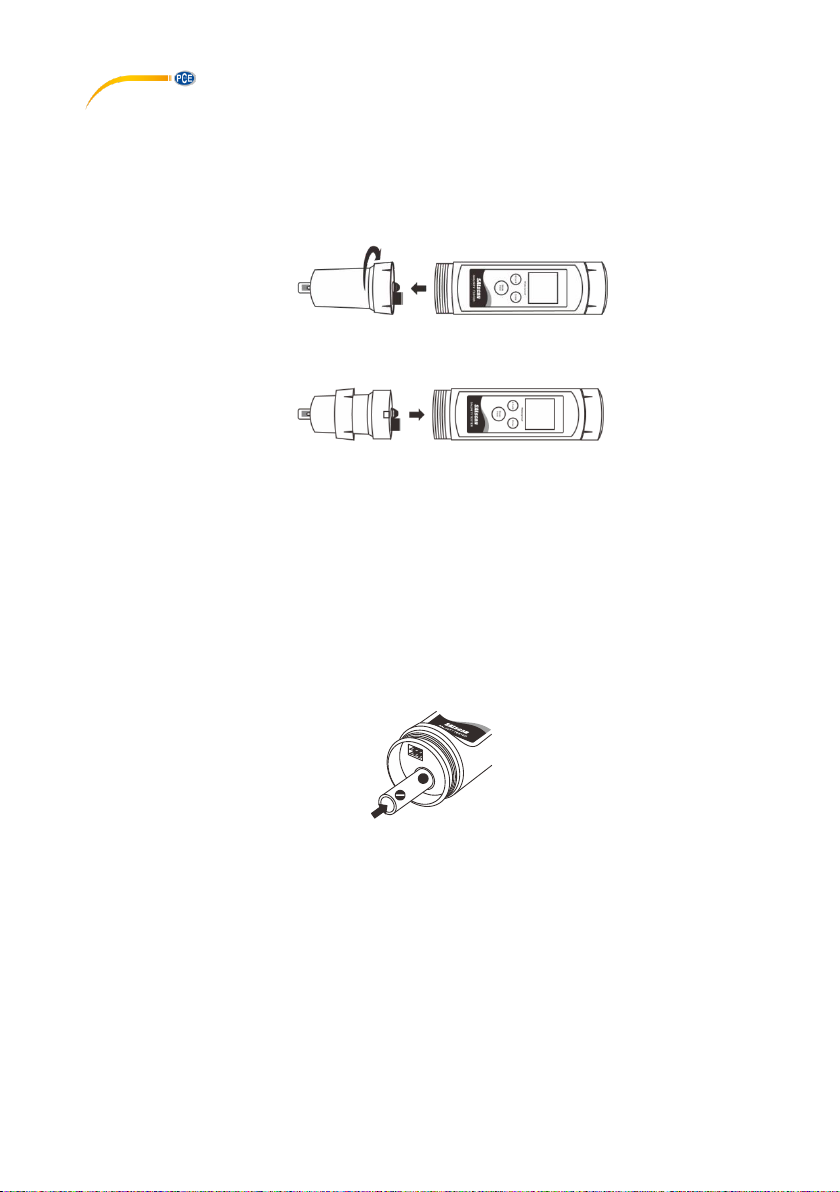

17 Electrode Replacement
When the tester fails to calibrate or gives fluctuating readings for calibration standards, you will
need to replace the electrode module.
Twist the electrode collar counter clockwise, pull the old electrode module away from the tester.
Align the slot on the new electrode module, gently push the module into the tester.
Twist the electrode collar clockwise until it is tight. Installation is complete.
18 Replacing the Batteries
If the battery indicator is disappearing during use, you will need to replace the batteries.
1. Twist the electrode collar counter clockwise, pull the electrode module out from the
tester.
2. Insert two “AAA” batteries into the battery compartment, note polarity.
3. Align the slot on the electrode module, push the module into the tester. Twist the
electrode collar clockwise until it is tight.
+

© PCE Instruments
13
19 Troubleshooting
LCD
DISPLAY
CAUSE
CORRECTIVE ACTION
Electrode dried out
Soak the conductivity electrode in tap water for 10
minutes
Measured value is out of
range
Check the electrode whether clogged, dirty or
broken
Incorrect calibration solutions
Using the fresh conductivity standard solutions for
calibration
Setting value does not match
calibration solution
Reset the calibration value
Electrode is broken
Replace the electrode module
20 Specifications
Salinity
Model
PCE-PWT 10
Range
0.00~10.00ppt
Accuracy
± 1% F.S
Resolution
0.01ppt
Conductivity
Range
0~20.00, 200.0, 2000µS/cm,
20.00mS/cm
Accuracy
± 1% F.S
Resolution
0.01, 0.1, 1
Calibration Points
1 to 3 points
Calibration Solutions
10µS/cm, 84µS/cm,
1413µS/cm, 12.88mS/cm
Temperature
Range
0~60°C, 32~140°F
Accuracy
± 1°C
Resolution
0.1°C, 0.1°F
Calibration Points
1 point
Calibration Range
Measured value ± 10°C
Others
Temperature Compensation
0~60°C, 32~140°F
Temperature Coefficient
2%/°C
Cell Constant
K=1
Normalization Temperature
25°C, 77°F
Hold Function
Manual or Automatic
Power Off
Manual or Automatic (8 minutes
after last key pressed)
Sensor Type
Order Code: ECSCAN-C1-10K
Power Requirements
2× 1.5V "AAA" Batteries
Dimensions
185(L)× 40(Dia.)mm
Weight
100g

© PCE Instruments
14
21 Delivery Content
1 x Conductivity meter PCE-PWT 10
2 x 1.5 V AAA batteries
1 x plastic box
1 x user manual
22 Optional accessories
PCE-CDS-15 250ml; potassium chloride; 15 μS/cm (12 months shelf life)
PCE-CDS-84 250ml; potassium chloride 0,005 mol/l; 84 μS/cm (12 months shelf life)
PCE-CDS-1413 500ml; potassium chloride 0,01 mol/l; 1413μS/cm (18 months shelf life)
PCE-CDS-12,88 500ml; potassium chloride 0,1 mol/l; 12,88 mS/cm (18 months shelf life)
23 Warranty
You can read our warranty terms in our General Business Terms which you can find here:
https://www.pce-instruments.com/english/terms.
24 Disposal
For the disposal of batteries in the EU, the 2006/66/EC directive of the European Parliament
applies. Due to the contained pollutants, batteries must not be disposed of as household waste.
They must be given to collection points designed for that purpose.
In order to comply with the EU directive 2012/19/EU we take our devices back. We either re-use
them or give them to a recycling company which disposes of the devices in line with law.
For countries outside the EU, batteries and devices should be disposed of in accordance with
your local waste regulations.
If you have any questions, please contact PCE Instruments.

© PCE Instruments
15
PCE Instruments contact information
Germany France Spain
PCE Deutschland GmbH PCE Instruments France EURL PCE Ibérica S.L.
Im Langel 4 23, rue de Strasbourg Calle Mayor, 53
D-59872 Meschede 67250 SOULTZ-SOUS-FORETS 02500 Tobarra (Albacete)
Deutschland France España
Tel.: [phone] Téléphone: [phone] Tel. : [phone]
Fax: [phone] Numéro de fax: [phone] Fax: [phone]
[email protected] [email protected] [email protected]
www.pce-instruments.com/deutsch www.pce-instruments.com/french www.pce-instruments.com/espanol
United States of America United Kingdom Italy
PCE Americas Inc. PCE Instruments UK Ltd PCE Italia s.r.l.
711 Commerce Way suite 8 Units 12/13 Southpoint Business Park Via Pesciatina 878 / B-Interno 6
Jupiter / Palm Beach Ensign Way, Southampton 55010 LOC. GRAGNANO
33458 FL Hampshire CAPANNORI (LUCCA)
USA United Kingdom, SO31 4RF Italia
Tel: [phone] Tel: [phone] Telefono: [phone]
Fax: [phone] Fax: [phone] Fax: [phone]
[email protected] [email protected] [email protected]
www.pce-instruments.com/us www.pce-instruments.com/english www.pce-instruments.com/italiano
The Netherlands Chile Hong Kong
PCE Brookhuis B.V. PCE Instruments Chile S.A. PCE Instruments HK Ltd.
Institutenweg 15 RUT: 76.154.057-2 Unit J, 21/F., COS Centre
7521 PH Enschede Santos Dumont 738, local 4 56 Tsun Yip Street
Nederland Comuna de Recoleta, Santiago, Chile Kwun Tong
Telefoon: [phone] Tel. : [phone] Kowloon, Hong Kong
Fax: [phone] Fax: [phone] Tel: [phone]
[email protected] [email protected] [email protected]
www.pce-instruments.com/dutch www.pce-instruments.com/chile www.pce-instruments.cn
China Turkey
PCE (Beijing) Technology Co.,Ltd PCE Teknik Cihazları Ltd.Şti.
1519 Room, 6 Building Halkalı Merkez Mah.
Men Tou Gou Xin Cheng, Pehlivan Sok. No.6/C
Men Tou Gou District 34303 Küçükçekmece - İstanbul
102300 Beijing Türkiye
China Tel: [phone]
Tel: [phone] Faks: 0212 705 53 93
[email protected] [email protected]
www.pce-instruments.cn www.pce-instruments.com/turkish
