PCE Health and Fitness PCE-XXM 20 User manual

© PCE Instruments
User Manual
PCE-XXM 20 Colorimeter
User manuals in various languages (français,
italiano, español, português, nederlands, türk, polski,
русский, 中文) can be found by using our
product search on: www.pce-instruments.com
Last change: 1 August 2019
v1.0
English

© PCE Instruments
Contents
1Safety notes........................................................................................... 1
2Working principle.................................................................................. 2
3Technical specifications ...................................................................... 3
4Device description ................................................................................3
5Operation ............................................................................................... 4
5.1 Powering On and Off........................................................................................................ 4
5.2 Calibration........................................................................................................................ 5
5.3 Comparative measurement.............................................................................................. 6
5.4 Checking XYZ, RGB, CMYK and Pantone values ............................................................ 6
6Functions menu ....................................................................................7
6.1 Set time............................................................................................................................ 7
6.2 Set language.................................................................................................................... 8
6.3 Energy saving.................................................................................................................. 9
6.4 Set number of measurements for average calculation...................................................... 9
6.5 Set tolerance.................................................................................................................... 9
6.6 Set colour formula............................................................................................................ 9
6.7 USB connection ..............................................................................................................10
6.8 Bluetooth connection.......................................................................................................10
7Memory ................................................................................................10
8Charging the battery...........................................................................10
9Troubleshooting.................................................................................. 11
10 Warranty...............................................................................................12
11 Disposal ...............................................................................................12

© PCE Instruments
1
1 Safety notes
Please read this manual carefully and completely before you use the device for the first time. The
device may only be used by qualified personnel and repaired by PCE Instruments personnel.
Damage or injuries caused by non-observance of the manual are excluded from our liability and
not covered by our warranty.
•The device must only be used as described in this instruction manual.If used otherwise,
this can cause dangerous situations for the user and damage to the meter.
•The instrument may only be used if the environmental conditions (temperature, relative
humidity, …) are within the ranges stated inthe technical specifications. Do not expose
the device to extreme temperatures, direct sunlight, extreme humidity or moisture.
•Do not expose the device to shocks or strong vibrations.
•Avoid corrosive media and heavy dust.
•The case should only be opened by qualified PCE Instruments personnel.
•Never use the instrument when your hands are wet.
•You must not make any technical changes to the device.
•The appliance should only be cleaned with a damp cloth. Use only pH-neutral cleaner,
no abrasives or solvents.
•The device must only be used with accessories from PCE Instruments or equivalent.
•Before each use, inspect the case for visible damage. If any damage is visible, do not
use the device.
•Do not use the instrument in explosive atmospheres.
•The measurement range as stated in the specifications must not be exceeded under
any circumstances.
•This instrument contains a lithium battery. Therefore, avoid high temperatures and
strong magnetic environments to protect the battery from damage.
•Non-observance of the safety notes can cause damage to the device and injuries to
the user.
We do not assume liability for printing errors or any other mistakes in this manual.
We expressly point to our general guarantee terms which can be found in our general terms of
business.
If you have any questions please contact PCE Instruments. The contact details can be found at
the end of this manual.

© PCE Instruments
2
2 Working principle
Tristimulus principle: The lightsource is reflected at the surface of the object and the colour sensor
receives the reflected light. After the digitalisation of the sensor data, the colour coordinates are
calculated and can then be used to determine colour deviations between the standard and the
sample. To do so, use the colour difference formula below.
Colour difference formula:
∆𝐸∗=√(∆𝐿∗)² − (∆𝑎∗)² − (∆𝑏∗)²
△E* = the total colour difference
△L = L*standard - L*samples △L+ = more white △L- = more dark
△a = a*standard - a*samples △a+ = more red △a-= more green
△b = b*standard - b*samples △b+ = more yellow △b- = more blue
Classification of colour difference ranges
△E
Classification
0 … 0.5
Minor difference
0.5 … 1.0
Small to medium difference, acceptable in some applications
1.0 … 2.0
Medium difference, acceptable in some applications
2.0 … 4.0
Large difference, acceptable for specific applications
4.0
Very large difference, unacceptable
Explanation: Colour differences are classified differently depending on the industry. Please
familiarise with the industry-specific requirements.

© PCE Instruments
3
3 Technical specifications
Color space
CIELAB CIEXYZ RGB, Pantone, CMYK
Color difference formula
ΔE*Lab (CIE76/CIE94)
Measuring aperture
Ø 8mm
Measuring geometry
45°/diffused illumination
Type of light source
LED
Sensor
RGB silicon photoelectric diode
Viewing angle
CIE 10°Standard angle
Measurement interval
1.5 s
Battery
Li-ion battery, chargeable via USB
Operating conditions
0 … 40 °C
˂80 %
Storage conditions
10 … 30 °C
˂70 %
4 Device description
1. LC display
Shows colour information, status and
options
2. MEAS button
Press to measure
3. Up button
Move cursor up
4. Left button
Move cursor left
5. Down button
Move cursor down
6. Speaker
For beeping sound
7. MEAS/ENTER button
Selects menu items and shows notes
8. Right button
Move cursor right
9. Power button
Turns instrument on and off
10. USB port
For charging and software connection
11. Measurement optics
Illumination of measuring area, colour
measurement
12. White reference slider
Positions the calibration tile for measurement
or calibration/storage

© PCE Instruments
4

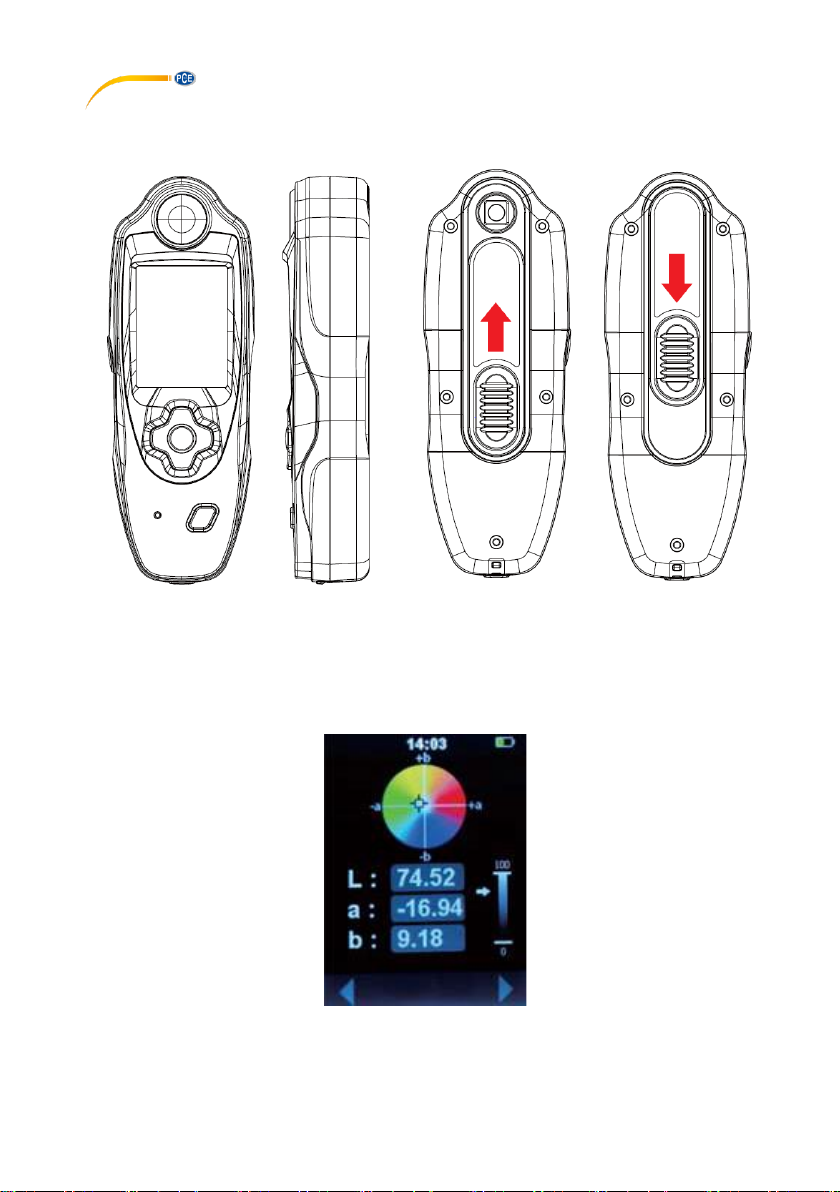

Front, side and rear view
5 Operation
5.1 Powering On and Off
Turn on the instrument by pressing the Power button. The start screen looks as follows:
To turn off the meter, press the Power button again.

© PCE Instruments
5
5.2 Calibration
When your instrument is first turned on, you should perform a calibration. Thereafter, a calibration
is required every hour or if a 5 °C temperature change has occurred. Calibration of the instrument
ensures optimum colour matching performance.
1. Move the white reference slider to the closed/calibration position over the optics.
2. Power on the instrument, then go the “Calibration” menu (left button –down button until
cursor is on “Calibration” – confirm with MEAS/ENTER). The display will show the
following:
3. Use the arrow keys to select “StandWhite” and press MEAS to initiate the calibration.
4. Open the optics and align the measuring aperture in the air without aligning it directly
with a light source. Go to the “Calibration” menu and select “StandZero”. Then press
the MEAS key to carry out the calibration.
5. If the calibration was successful, StandWhite“ or „StandZero“ will be ticked. If not, there
will be an “X” instead.
6. Make sure to always reposition the slider back to “Measure” location (optics opened)
before making a measurement.
Note: The calibration reference is dramatically affected by smudge marks and dust and must be
kept clean. It is recommended that the instrument is cleaned regularly.

© PCE Instruments
6
5.3 Comparative measurement
Power on the instrument, initiate a calibration and then do measurement on selected standard
sample (Select standard from main menu –Standard or use your own standard). Press button
MEAS or MEAS/ENTER to measure and get the measurement result as shown in photo 1. If the
measurement has already been made or if the measuring time was too short, an error message
will appear. The result will be shown as in photo 1. When the value has stabilised, press right
button to view more results as in photo 2. Then measure your desired sample by pressing MEAS
or MEAS/ENTER.
S = standard measurement value
B = sample reading
△E = overall colour difference
The meter will then compare the test results and either show “Pass” (photo 2.1, high conformity)
or “Fail” (photo 2.2, low conformity).
The three mentioned values will be saved to the memory automatically.
Photo 1
Photo 2
Photo 2.1
Photo 2.2
5.4 Checking XYZ, RGB, CMYK and Pantone values
After a measurement, when the display looks as in photo 1, press the up or down key to check
the XYZ, RGB, CMYK or Pantone value (as shown in photo 2).
Photo 1
Photo 2

© PCE Instruments
7
6 Functions menu

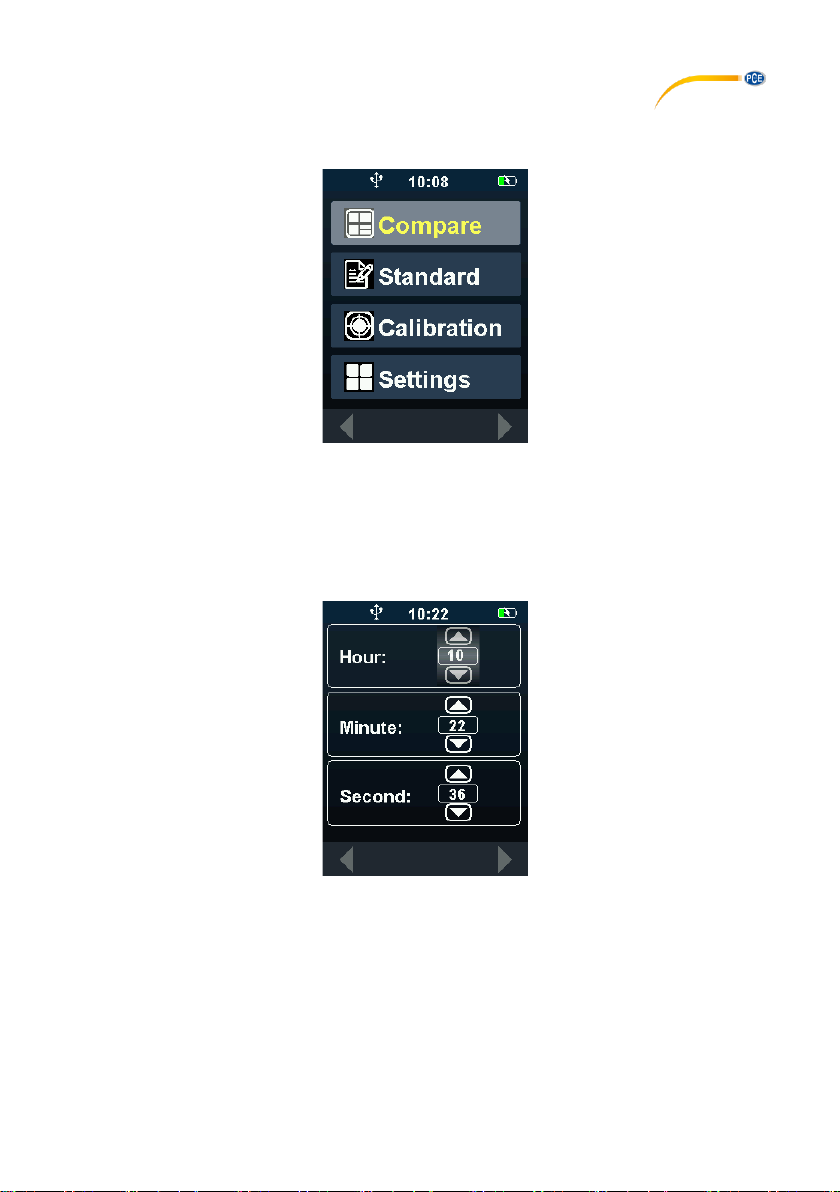

After powering on, press the left key to enter the main menu that looks as follows:
6.1 Set time
In the “Settings” menu, press the up and down keys to select “DateTime” and confirm with
MEAS/ENTER. Go to the respective menu items by using the up and down keys and press
MEAS/ENTER to be able to change the values. Set the hours and then the minutes by using the
arrow keys. The seconds cannot be changed. Confirm the individual entries with the
MEAS/ENTER key.

© PCE Instruments
8
6.2 Set language
In the main menu, go to “Settings” by pressing the up and down keys and confirm with
MEAS/ENER. The display will show the following:
On this page, select "MeterSetup" in the same way to enter the following page:
Confirm with MEAS/ENTER. You can thenchange the language (English or Chinese) with the up
and down keys. After making your selection, confirm with MEAS/ENTER.

© PCE Instruments
9
6.3 Energy saving
To save energy, you can set a time after which the display backlight or the device itself switches
off automatically. When you are in the main menu, use the up and down keys to select “Settings”
and confirm with the MEAS/ENTER key. Then select “MeterSetup” with the arrow keys and
confirm with MEAS/ENTER again get to the respective submenus.
These submenus SreenOff and PowerOff can be opened with the MEAS/ENTER key. Changes
can be made by using the up and down keys and confirmed with MEAS/ENTER.
The following can be selected:
SreenOff: 1 … 99 seconds
PowerOff: Off (No), 10, 20, 30 minutes
6.4 Set number of measurements for average calculation
In the “Settings” menu, select “MeasSetup” with the up and down keys and confirm with
MEAS/ENTER. Go to the menu item “AverTime” by using the up and down keys and press
MEAS/ENTER. Now set the desired number of measurements you want to be included in the
average calculation with the up and down keys and confirm with MEAS/ENTER.
6.5 Set tolerance
In the “Settings” menu, select “MeasSetup” with the up and down keys and confirm with
MEAS/ENTER. Go to the menu item “DeSeting” by using the up and down keys and press
MEAS/ENTER. Now set the desired tolerance with the up and down keys and confirm with
MEAS/ENTER. A tolerance of 1.0 is preset.
6.6 Set colour formula
In the “Settings” menu, select “MeasSetup” with the up and down keys and confirm with
MEAS/ENTER. Go to the menu item “Delta-E” with the down key and press MEAS/ENTER. Now
select the desired colour formula (CIE76 or CIE94) by using the up and down keys and confirm
with MEAS/ENTER.

© PCE Instruments
10
6.7 USB connection
Connect the meter to your computer by using the Micro USB cable. The colour meter is
recognised as a HID device and all drivers will be installed automatically. When the installation is
completed, the PCE-XXM 20 will be recognised as follows:
Download the PC software from the following link:
https://www.pce-instruments.com/english/download-win_4.htm
Install and start the software. Further instructions can be found in the help file of the software.
Note:
The meter can only connect to the software if the USB icon is shown in the upper left part of the
display.
6.8 Bluetooth connection
Connect the instrument to smartphone via Bluetooth to transfer the measuring data to the Android
or iOs app.
7 Memory
The colour meter has memory capacity for up to 20 groups of data (S = standard measurement
value, B = sample reading, DE = overall colour difference) which are saved automatically after a
comparative measurement. In order to read out the memory, go to the menu item “DataLog” in
the main menu and confirm with the MEAS/ENTER key. To view a group of data, select it by
means of the up and down keys and confirm your selection with MEAS/ENTER. With the arrow
right key, youcan delete the selected individual group of data. To delete all groups of data, select
“Delete All” from the overview and confirm with MEAS/ENTER.
Note:
When clearing the complete memory, you will not be asked to confirm that you wish to delete all
data.
8 Charging the battery
Before using the colorimeter for the first time, it is important that you fully charge the battery.
Otherwise, the internal lithium-ion battery may experience a shortened life.

© PCE Instruments
11
The meter can be charged when switched off or when switched on. However, operation during
charging is not possible. Connect the supplied USB cable or a USB cable of the same type to the
colour meter and to your computer's USB port. If the meter is on, you will see this icon when
the meter is charging. A full charge of a completely empty battery will take approx. 6 hours.
Battery icon information
fully charged
half charged - sufficient for a substantial number of measurements
low - measurements still possible but battery should be charged soon
charging.
9 Troubleshooting
Variables that may affect the measuring results and should be avoided include:
- Sensor blocked
- Environmental temperature too low –slow display reaction, limited accuracy
- Improper use of the instrument or unsuitable sample:
•The instrument does not lie flat on the sample.
•The sample has an uneven texture.
•The sample is dirty.
•The sample contains fluorescent, metallic, or pearlescent colorants.
•The sample looks different when viewed at different angles.

© PCE Instruments
12
10 Warranty
You can read our warranty terms in our General Business Terms which you can find here:
https://www.pce-instruments.com/english/terms.
11 Disposal
For the disposal of batteries in the EU, the 2006/66/EC directive of the European Parliament
applies. Due to the contained pollutants, batteries must not be disposed of as household waste.
They must be given to collection points designed for that purpose.
In order to comply with the EU directive 2012/19/EU we take our devices back. We either re-use
them or give them to a recycling company which disposes of the devices in line with law.
For countries outside the EU, batteries and devices should be disposed of in accordance with
your local waste regulations.
If you have any questions, please contact PCE Instruments.

© PCE Instruments
13
PCE Instruments contact information
Germany France Spain
PCE Deutschland GmbH PCE Instruments France EURL PCE Ibérica S.L.
Im Langel 4 23, rue de Strasbourg Calle Mayor, 53
D-59872 Meschede 67250 Soultz-Sous-Forets 02500 Tobarra (Albacete)
Deutschland France España
Tel.: [phone] Téléphone: [phone] Tel. : [phone]
Fax: [phone] Numéro de fax: [phone] Fax: [phone]
[email protected] [email protected] [email protected]
www.pce-instruments.com/deutsch www.pce-instruments.com/french www.pce-instruments.com/espanol
Germany United Kingdom Italy
Produktions- und PCE Instruments UK Ltd PCE Italia s.r.l.
Entwicklungsgesellschaft mbH Unit 11 Southpoint Business Park Via Pesciatina 878 / B-Interno 6
Im Langel 26 Ensign Way, Southampton 55010 Loc. Gragnano
D-59872 Meschede Hampshire Capannori (Lucca)
Deutschland United Kingdom, SO31 4RF Italia
Tel.: [phone] Tel: [phone] Telefono: [phone]
Fax: [phone] 9971 Fax: [phone] Fax: [phone]
[email protected] [email protected] [email protected]
www.pce-instruments.com/deutsch www.pce-instruments.com/english www.pce-instruments.com/italiano
The Netherlands Chile Hong Kong
PCE Brookhuis B.V. PCE Instruments Chile S.A. PCE Instruments HK Ltd.
Institutenweg 15 RUT: 76.154.057-2 Unit J, 21/F., COS Centre
7521 PH Enschede Calle Santos Dumont N° 738, Local 4 56 Tsun Yip Street
Nederland Comuna de Recoleta, Santiago Kwun Tong
Telefoon: [phone] Tel. : [phone] Kowloon, Hong Kong
Fax: [phone] Fax: [phone] Tel: [phone]
[email protected] [email protected] [email protected]
www.pce-instruments.com/dutch www.pce-instruments.com/chile www.pce-instruments.cn
United States of America Turkey China
PCE Americas Inc. PCE Teknik Cihazları Ltd.Şti. PCE(Beijing) Technology Co., Limited
711 Commerce Way suite 8 Halkalı Merkez Mah. 1519 Room, 6 Building
Jupiter / Palm Beach Pehlivan Sok. No.6/C Zhong Ang Times Plaza
33458 FL 34303 Küçükçekmece - İstanbul No. 9 Mentougou Road, Tou Gou District
USA Türkiye 102300 Beijing
Tel: [phone] Tel: [phone] China
Fax: [phone] Faks: 0212 705 53 93 Tel: [phone]
[email protected] [email protected] [email protected]
www.pce-instruments.com/us www.pce-instruments.com/turkish www.pce-instruments.cn
