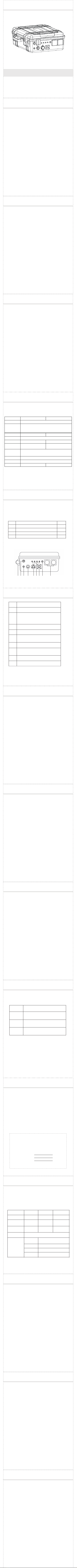

Pecron T3000 User manual

1. Product introduction：
T6000/T3000 is a portable AC/DC power station with built-in
lithium battery, which is designed with the safe lithium-ion
battery and inverter technology. It's very easy to carry and
convenient offering power to electrical appliances with
advantages of light weight, large capacity , high power and
multiple functions; This item is always used in the field of
emergency communication, power lines repair, medical facility,
exploration and survey, military, fire rescue and somewhere
is lack of power energy.
The followings are its main functions:
♦ 220V/50Hz or110V/60Hz pure-sine wave AC output
♦ Battery capacity display
♦ DC output 12V10A ,DC output 48V50A
♦ High-power LED emergency floodlights for option
Please read carefully the manual before using our product. And
please save with the purchase voucher for future reference usage.
Contents
1.Product Introduction
2.Panel Function Description
3.Operation Instructions
4.Notice About the Function
5.Warranty Service
6.Guarantee Card
T3000/T6000 Technical specification
2.Panel function description
Packed List
Front Panel
6.Guarantee Card
Dear User:
Please read carefully this manual before using our product.
And please save with the purchase voucher for future guarantee.
User Name
Contact Name
Customer Phone
Purchase Date
Product Mode
Invoice Number
Factory Serial Nu
mber
Purchase Store
Customer Address
Maintenance
Record
Date
Cause and treatment of trouble
1
23456 7 8 9
Item
Description
1
Support for high-power LED floodlights
2
Reset Button:When protecting, Please
disconnect the load, turn off the AC switch
and DC switch, and then press and hold for
10 seconds to activate.
3
DC output switch
4
DC12V10A cigar socket
5
DC charging port:DC58.8V,MAX20A
(the charger cannot be greater than 20A)
6
Power indicator light
7
DC48V50A output port,and the voltage
range of this port is 40V~58.8V
8
AC output switch
9
AC output port:110V60Hz
3.Operation Instructions
Please read the instructions carefully in order to our power
supply device correctly or it may cause damage due to incorrect
use or inadequate understanding.
3.1 Support of the floodlights: This power station can offer power
supply with AC 220V(Custom 110V can be powered by AC 110v
voltage) for two pieces of floodlights (optional)with 60W. The upport
can be adjusted according to different heights since it's made of
flexible aluminum holders; During using, first plug cable of the
floodlight into socket and then turn on the switch, the light will work;
And if you want turn off it, just need turn off the AC output or pull up
the cable directly.
3.2 Resetting Key: When overload and short- circuit protection for
lithium battery worked, you should first active output by charging
the device. Or you can press the resetting key to active it. But the
precondition is that there is no load work and short circuit products
and overload protection are removed. At this situation,at this situation,
just need to long press the key.
3.3 DC output switch: Press the switch, 12V DC output will work
from the cigar socket, at the same time, the blue light indicator for
switch and battery capacity indicator are on. And the lights will be
off after turning off the switch.This switch simultaneously controls
the output of the DC 48V.
3.4 12V10A DC output for cigar socket: The fluctuation range of
voltage is ±1V; max current is 10A and the overload protection
value is 15A.
3.5 DC charging port: The diameter of DC charging port is aviation
plug with 25mm, one pin is '+', two pins are '-'; Please use the original
charger to charge for the equipment with voltage of 58.8V and max
current 20A. The standard charger is with 9A or 13A current. During
charging ,the battery volume indicator will flash one by one and will
go off when it's fully charged.
3.6 Battery capacity indicator: showing the remaining battery volume.
There will be about 10% discrepancy for the accurate volume since it's
based on the voltage. Please charge the device when the first
indicator(20%) is flashing. And the light will be turned on when you
open the AC/DC switch. And the lighted indicators are depended on
the real volume of the battery.
4.Notice About the Function
Work Environment
Dry
Prohibited water or other liquids
Shady
Charging:0~45℃;
Discharging:-20~45℃
Ventilation
At least 20 cm space around the power pack to
prove dissipation
Safty
Avoid petrol, gas and other flammable and
corrosive gas environments
Power charging:
Please pay attention the power unit when it's charging.Please
disconnect the charger and stop charging when the T3000/T6000
is fully charged.
Please charge the power unit every six months after no use for a
long time.
AC Load:
The power consumption of some machine is often greater than its
nominal power when start, such as inductive load device, then it will
exceed the max power of the power pack, so it will power off.
5. Warranty service
This product is warranted for a period 12 months, from the
original date of purchase. This warranty is only valid when
accompanied by the original invoice or sales receipt.
The warranty does not cover any of the following actions:
-Unauthorised opening of the device
-Improper package during transport
-Improper handling, use of force or exposing to inaccurate
environmental conditions
-Improper storage
-Misuse or ignorance of the instructions in the manual
-Normal wear or tear
Certificate
Model:
Q C:
Date:
3.7 48V50A DC output port: This port is an aviation plug with 32mm;
The pin 1 and 3 are '+', pin 2 and 4 are '-'. This port is controlled by the
DC switch.The voltage range of DC output is 40V~58.8V.When you
connect the load,Please connect well the aviation plug to the required
cable first, and then plug into the opposite connector jacks. Please
connect the wire when the connector is disconnected.The output port
can not be used as a charging port.
3.8 AC output switch: Press the switch, 110V AC output will start to
work and blue switch indicator will light, same as the batteryindicator;
When you turn off of the switch, both indicator will be off and AC output
stops to work.
3.9 AC output socket: The output wave is pure-sina wave. The power
of AC output means the total power of two output plugs. These two plugs
are cascade, so the output are same.
NO.
Packed List
Quantity
1
Charger and charging cable
1
2
Aviation plug
1
3
High-power LED emergency floodlights (Option)
1
4
User manual
1
T3000/T6000 User Manual
Model T3000 T6000
AC Out Power 3000 W
Output voltage AC Pure-Sine Wave 110V/60Hz
DC 12V10A 48V50A
Battery capacity 2963Wh（51.8V57.2Ah） 5657Wh（51.8V109.2Ah）
Battery type Lithium battery
Charging time 5~6H 7~8H
Charging voltage
and current DC58.8V 9A DC58.8V13A
Protection Over-voltage,low-voltage,over temperature,overload,AC
short circuit protection
Temp 0℃~45℃(Charge),―20℃~45℃(Discharge)
Dimension(cm) L58*W46*H25
Weight(kg) 30 43
