PEERLESS ACC317 Guide

ISSUED: 09-19-06 SHEET #: 120-9025-4 01-18-11
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.
1 of 2

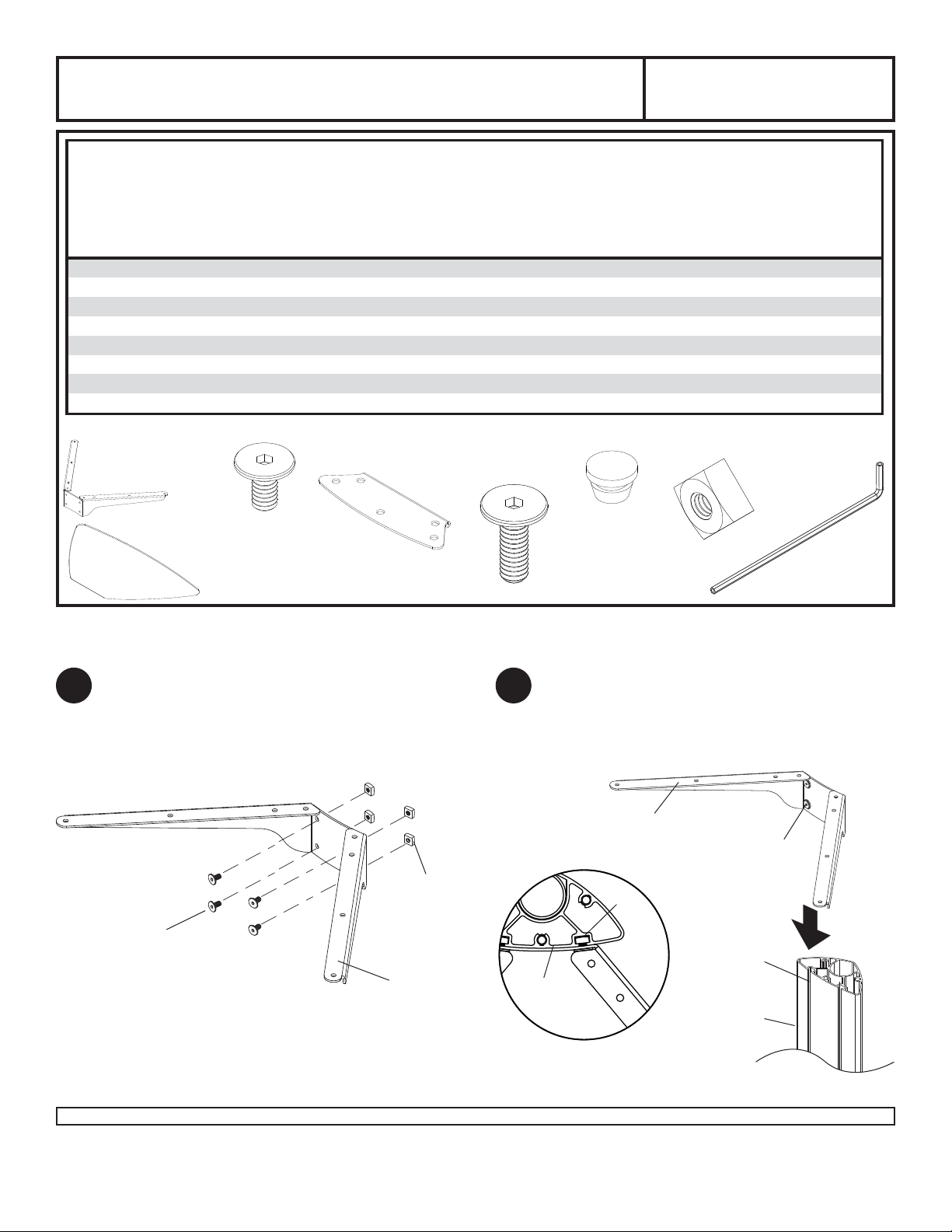

Loosely attach four 1/4-20 x 12 mm screws (E) and
1/4-20 nuts (G) to shelf support (A).
NOTE: Refer to main instruction sheet for max
shelf height.
BE D
F
G
E
A
Slide shelf support (A) onto upright so that
1/4-20 nuts (G) slide into slots of upright as shown
in figure 2 and detail 1. Slide shelf support to
desired position, level, then tighten 1/4-20 x 12mm
screws (E) using 4 mm allen wrench (I).
A
SLOT
fig 2.1
E
NOTE: If you are adding new shelf to an already assembled product, reverse steps up to the shelf installation step
(removing screen and adapter plate) following the main instruction sheet.
UPRIGHT
C
I
Installation and Assembly: Glass Shelf Model: ACC317, ACC317-S,
ACC318, ACC318-GB,
ACC318-S
1 2
DETAIL 1
G
UPRIGHT
AG
ACC317 ACC317-S ACC318 ACC318-GB ACC318-S
Description Qty. Part # Part # Part # Part # Part #
A
shelf support 1 201-1158 201-4158 201-1158 201-P1158 201-4158
Bshelf clamp bracket 1 201-1159 201-4159 201-1159 201-P1159 201-4159
Cglass shelf 1 590-0208 590-0208 590-1208 590-1208 590-1208
Dbutton bumper 9 590-1209 590-1209 590-1209 590-1209 590-1209
E1/4-20 x 12mm decorative screw 4 520-2325 520-1325 520-2325 520-2325 520-1325
F1/4-20 x 20mm decorative screw 2 520-2326 520-1326 520-2326 520-2326 520-1326
G1/4-20mm nut 6 530-1050 530-2031 530-1050 530-1050 530-2031
I4mm allen wrench 1 560-9646 560-9646 560-9646 560-9646 560-9646
Parts List
Before you begin, make sure all parts
shown are included with your product.

ISSUED: 09-19-06 SHEET #: 120-9025-4 01-18-11
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.
2 of 2
Insert three button bumpers (D) into bottom of shelf
clamp bracket (B).
Attach shelf clamp bracket (B) to shelf support
(A) using two 1/4-20 x 20mm screws (F) and two
1/4-20 nuts (G). Repeat steps 1 through 4-1, for
second shelf installation.
NOTE: After both shelves are installed, continue
with installation using the main instruction sheet.
Insert six button bumpers (D) into shelf support
(A). Place glass shelf (C) on shelf support.
C
D
A
D
G
BF
A
© 2007 Peerless Industries, Inc. All rights reserved.
Peerless is a registered trademark of Peerless Industries, Inc.
All other brand and product names are trademarks or registered trademarks of their respective owners.
3 4
