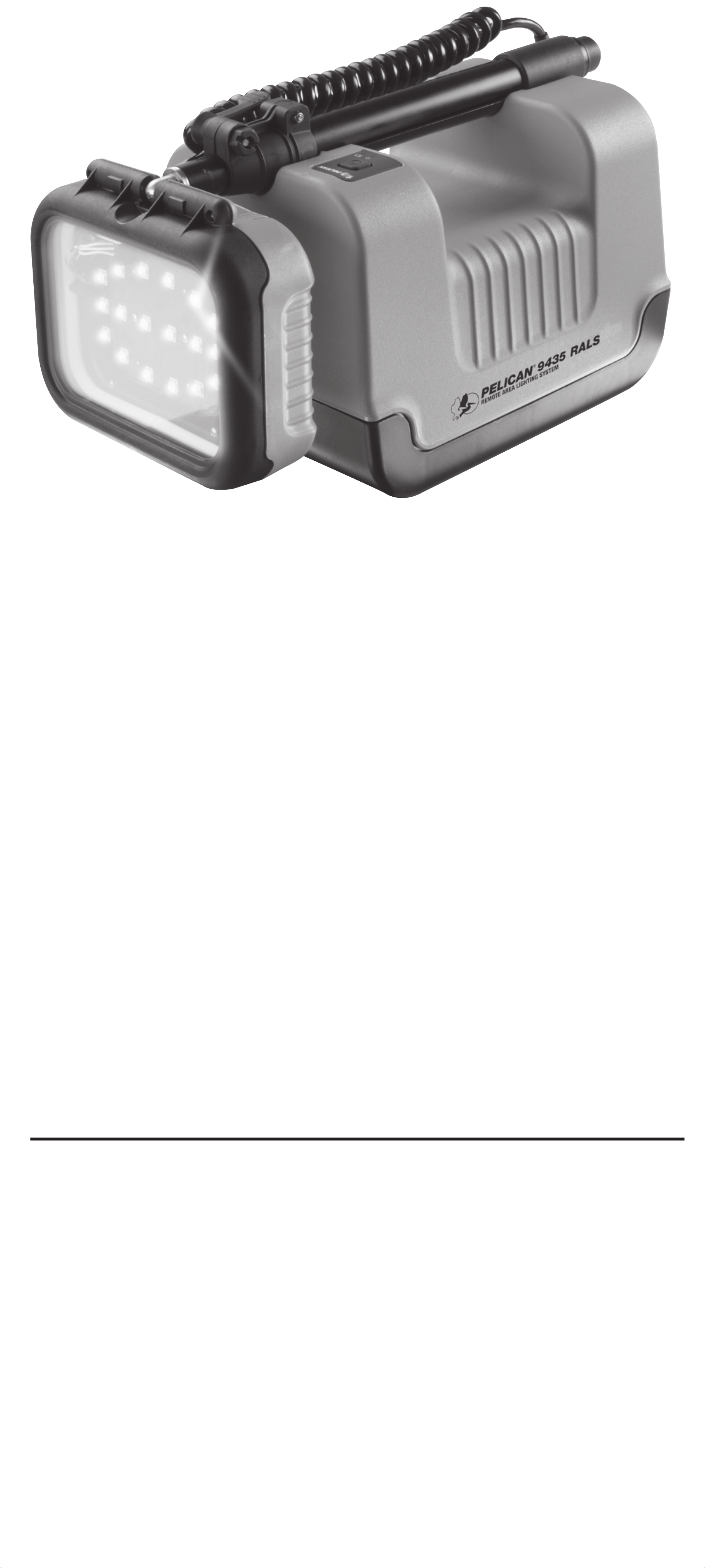

Pelican 9435 User manual

Mast Operation
1. Lift the LED head fully upwards then slide the mast
down to lock into the mount.
2. Pull the lever on the black locking clamp, lift the head
upwards and snap the lever back into place.
3. To collapse the mast, reverse the procedure.
Light Operation
1. Press keypad once for full power
2. Press again for low power
3. Press again to switch off
Low Battery Warning:
Before the battery turns off, the LED head will flash for a
short period every 10 minutes to let the user know that the
battery voltage is low. The warning period starts 30 minutes
before there is insufficient voltage to power the light.
Charging:
WARNING: RISK OF IGNITION – DO NOT
CHARGE IN A HAZARDOUS AREA DO NOT
OPERATE THE PRODUCT WITH THE CHARGER
CONNECTED
1. Insert the charger plug into the blue socket on the
rear of the light housing and twist the blue locking
collar to secure the plug.
2. Plug the charger into the electrical outlet and
switch on.
Observe the following sequence:
Slow Yellow Flash = Pre Charge
Fast Green Flash = Rapid Charge
Slow Green Flash = Maintain
Solid Green Light = Ready
Special conditions for safe use:
RISK OF IGNITION – DO NOT OPEN PRODUCT
IN HAZARDOUS AREA
RISK OF IGNITION – DO NOT CHARGE IN A
HAZARDOUS AREA
USE APPROVED BATTERY PACK ONLY -
CAT#009433-3520-000
USE APPROVED CHARGER ONLY –
CAT#009436-3435-000
(MANUFACTURER: FRIWO, MODEL: FW7300/MH2-12)
MAXIMUM CHARGING VOLTAGE = 15v
DO NOT OPERATE PRODUCT IF DAMAGED
ENVIRONMENTAL
At the end of its technical life, the battery should be sent to
a suitable recycling center or returned to point of purchase
BATTERY CONDITIONING
It is important that the new battery in this product is given
an initial conditioning.
The charger should be left connected to the product after
the green indicator on the charger is permanently on. In this
state the battery receives a trickle charge and should be left
connected for the 18-24 hours. There will be improvement
to the light duration if this is repeated for the first 8-10
charge cycles
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and
(2) This device must accept any interference,
including interference that may cause
undesired operation
CATALOG No. 9435
9435
USER MANUAL
RoHS compliant
© PELICAN PRODUCTS 2014 009435-5510-000 5-13079 REV A DE/14 All trademarks and logos displayed herein are registered and unregistered
trademarks of Pelican Products, Inc. and others.
PELICAN PRODUCTS ULC
10221-184th Street • Edmonton, Alberta T5S 2J4 • CANADA • Tel.: [phone] • FAX [phone] • www.pelican.ca
REMOTE AREA LIGHTING SYSTEMS
PELICAN 1 YEAR LIMITED WARRANTY
FOR RALS PRODUCTS
Pelican Products, Inc. (“Pelican”) warrants to the original purchaser its Remote Area
Lighting Systems (RALS) and all other products manufactured by the Remote Area
Lighting System (RALS) against defects in materials and workmanship under normal
use, service, and maintenance for a period of twelve months from the date of purchase.
This warranty applies only to the original purchaser and is not transferable.
TO THE EXTENT PERMITTED BY LAW: (A) THIS WARRANTY IS IN LIEU OF
ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED
TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE; AND (B) ALL OTHER IMPLIED WARRANTIES AND ANY
LIABILITY NOT BASED UPON CONTRACT ARE HEREBY DISCLAIMED AND
EXCLUDED.
TO THE EXTENT PERMITTED BY LAW, IN NO EVENT SHALL PELICAN BE
LIABLE FOR ANY INDIRECT, PUNITIVE, INCIDENTAL OR CONSEQUENTIAL
DAMAGES, OR SPECIAL DAMAGES, REGARDLESS OF WHETHER A CLAIM FOR
SUCH DAMAGES IS BASED ON WARRANTY, CONTRACT, NEGLIGENCE OR
OTHERWISE. To the extent permitted by law, in no event shall Pelican’s liability to the
purchaser for damages hereunder exceed the purchase price of the product in respect
of which damages are claimed.
With valid dated proof of purchase, Pelican will either repair or replace ay defective
part, at our sole option. TO THE EXTENT PERMITTED BY LAW, THE REMEDIES
HEREBY PROVIDED SHALL BE THE SOLE AND EXCLUSIVE REMEDIES OF
THE ORIGINAL PURCHASER. Any repaired or replacement part or unit is covered
only for the unexpired portion of the warranty on the original product purchased.
To make a warranty claim, the purchaser must contact Pelican Products, Inc. at
23215 Early Avenue, Torrance, CA 90505 or [email protected], or by calling
1-800-473-5422, extension 5. Any warranty claims shall be made by the purchaser
as soon as practicable and in no event more than twelve months from the date of
purchase. The purchaser must provide valid dated proof of purchase and obtain a return
authorization number from Pelican Customer Service prior to returning any product, and
is responsible for paying for all warranty freight costs. If Pelican determines that any
returned product is not defective, within the terms of this warranty, the purchaser shall
pay Pelican all costs of handling, return freight and repairs at Pelican’s prevailing rates.
All warranty claims of any nature are barred if the product has been altered or in
any way physically changed, or subjected to abuse, misuse, negligence or accident.
Some states and countries do not allow limitations on how long an implied warranty
lasts or the exclusion or limitation of incidental or consequential damages, so the above
limitation or exclusion may not apply to you. This warranty gives you specific legal rights,
and you may have other rights which vary from state to state and country to country.
In Australia: The benefits provided to you under this warranty are in addition to your
rights and remedies as a consumer under the Competition and Consumer Act 2010
(Cth). Nothing in this warranty limits the rights or obligations of a party under provisions
of the Competition and Consumer Act 2010 (Cth) in relation to the supply to consumers
of goods which cannot be limited, modified or excluded. If applicable, our goods come
with guarantees that cannot be excluded under the Australian Consumer Law. You are
entitled to a replacement or refund for a major failure and compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the failure does not amount
to a major failure. If you are not a consumer under the Competition and Consumer Act
2010 (Cth), then your rights may be limited. To make a warranty claim, the purchaser
must contact Pelican Products Australia, Suite 2.33, West Wing, Platinum Bldg., Erina
NSW 2250, Tel: [phone]. Any warranty claims shall be made by the purchaser
as soon as practicable. The purchaser must obtain a return authorization number from
Pelican Customer Service prior to returning any product, and is responsible for paying
for all warranty freight costs. If Pelican determines that any returned product is not
defective, within the terms of this warranty, the purchaser shall pay Pelican all costs
of handling, return freight and repairs at Pelican’s prevailing rates. In the event that
Pelican determines that any returned product is defective, within the terms of this
warranty, Pelican shall pay the purchaser all reasonable costs of the purchaser in
making claim under this warranty.
SISTEMAS DE ALUMBRADO DE ÁREAS REMOTAS
1 AÑO DE GARANTÍA LIMITADA PARA LOS PRODUCTOS
RALS DE PELICAN
Pelican Products, Inc. ofrece una garantía de un año a partir de la fecha de
emisión de la factura en los productos del RALS. Esta garantía se aplica al
comprador original y cubre los defectos en materiales y mano de obra.
Las reclamaciones de garantía de cualquier clase se considerarán nulas en
caso de que el producto haya sufrido alteraciones, daños o modificaciones
físicas de cualquier tipo, se haya hecho un uso incorrecto, abusivo o negligente
o haya sufrido accidentes.
Para obtener toda la información relativa a la garantía, véase
http://www.pelican.com/warranty.
SYSTÈMES D’ÉCLAIRAGE POUR ZONES D’ACCÈS
DIFFICILES GARANTIE DE PELICAN LIMITÉE À 1 ANNÉE
POUR LES PRODUITS RALS
Pelican Products, Inc. garantit à l’acheteur initial que ses produits RALS sont
exempts de tout défaut, en ce qui concerne les matériaux et la fabrication, pour
une durée de 1 année à compter de la date d’achat. Toute demande de prise en
charge sous garantie, de quelque nature que ce soit, sera refusée si le produit
a été transformé, endommagé ou physiquement modifié d’une façon ou d’une
autre, ou encore sujet à un traitement abusif, une mauvaise utilisation, une
négligence ou un accident.
Pour une version complète et détaillée de la garantie, voir
http://www.pelican.com/warranty.
