AMERBRITE™ Color LED Pool Lamp Installation and User’s Guide
IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS
SAVE THESE INSTRUCTIONS
INSTALLATION
AND
USER’S GUIDE
AMERBRITE
UNDERWATER COLOR CHANGING
LED POOL LAMP
FOR USE ONLY WITH PENTAIR AMERLITE LUMINAIRE
®
™
®

AMERBRITE™ Color LED Pool Lamp Installation and User’s Guide
Technical Support
Phone: [phone] - Fax: [phone]
Web sites: www.pentairpool.com and www.staritepool.com:
READ AND FOLLOW ALL INSTRUCTIONS IN THIS MANUAL.
Contents
IMPORTANT WARNING AND SAFETY INSTRUCTIONS...................................... i-ii
AmerBrite Underwater Color Changing LED Pool Lamp Overview .................. 1
Operating AmerBrite Color LED Lamps Using a Wall Switch ............................ 1
Operating AmerBrite Color LED Lamps Using Control System ......................... 1
Using an External Transformer for Multiple 12 VAC AmerBrite Lamps .............. 1
Maximum Wattage Using Multiple AmerBrite Color LED Lamps
(with a 300W Transformer) ................................................................................... 1
Operating AmerBrite Color Lamps Using a Wall Switch .................................... 2
Powering on the AmerBrite Color Lamps ....................................................... 2
Selecting a AmerBrite Light Color and Show Modes or Fixed Color
using a Wall Switch .......................................................................................... 2
Saving a Color Mode or Fixed Color .............................................................. 3
Selecting a AmerBrite Color Light Show Mode Using an IntelliBrite
Controller .......................................................................................................... 3
Before Replacing the Amerlite Incandescent Lamp
Read the following Information ............................................................................. 4
AmerBrite Color Lamp Installation Instructions ..................................................... 5

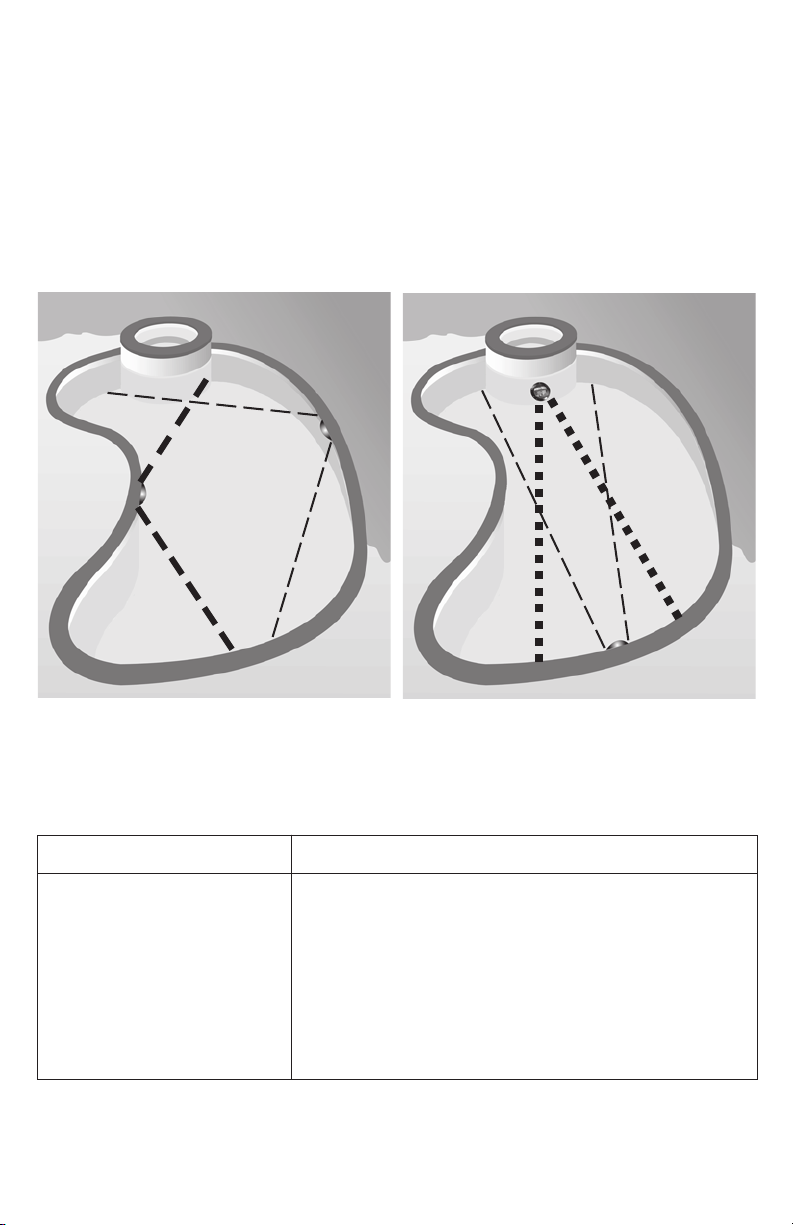

Wide and Narrow Angle Lens Adjustment ........................................................... 10
Troubleshooting .................................................................................................... 10
AmerBrite Color LED Pool Lamp Replacement Parts List ................................... 11
P/N 620072 REV A 2/13

AMERBRITE™ Color LED Pool Lamp Installation and User’s Guide
i
Most states and local codes regulate the construction, installation, and
operation of public pools and spas, and the construction of residential
pools and spas. It is important to comply with these codes, many of which directly
regulate the installation and use of this product. Consult your local building and health
codes for more information.
SERIOUS BODILY INJURY OR DEATH CAN RESULT IF THIS LAMP
IS NOT INSTALLED AND USED CORRECTLY.
Before installing this product, read and follow all warning notices
and instructions in this Guide. Failure to follow warnings and
instructions can result in severe injury, death, or property damage.
Call [phone] for additional free copies of these instructions. Please refer to
www.pentairpool.com for more information related to this products.
IMPORTANT NOTICE - Attention Installer: This Installation and User’s
Guide (“Guide”) contains important information about the installation,
operation and safe use of this underwater pool and spa lamp. This Guide
should be given to the owner and/or operator of this equipment.
IMPORTANT WARNING AND SAFETY INSTRUCTIONS
BEFORE WORKING ON the AMERBRITE™ Color Lamp always
disconnect power to the pool and/or spa lights, at the source
circuit breaker, from the light before servicing the light. Failure
to do so could result in death or serious injury to service
person, pool users or others due to electric shock. When
installing and using this electrical equipment, basic safety
precautions should always be followed, include the following:
RISK OF ELECTRICAL SHOCK OR ELECTROCUTION:
This underwater light must be installed by a licensed or certified electrician or a
qualified pool professional in accordance with the current National Electrical Code
(NEC), NFPA 70 or the Canadian Electrical Code (CEC), CSA C22.1. All applicable
local installation codes and ordinances must also be adhered to. Improper
installation will create an electrical hazard which could result in death or serious
injury to pool users, installers or others due to electrical shock, and may also cause
damage to power source. Always disconnect the power to the pool light at the circuit
breaker before servicing the light. Failure to do so could result in death or serious
injury to service person, pool users or others due to electrical shock.
THE AMERBRITE™ LAMP MAY REQUIRE HIGH VOLTAGE WHICH
CAN SHOCK, BURN, OR CAUSE DEATH.
For countries in compliance with International Electrotechnical
Commission (IEC) regulatory standards: The light fixture must be
installed by a licensed or certified electrician or a qualified pool service person, in
accordance with current IEC 364-7-702 and all applicable local codes and ordinance.
Improper installation will create an electrical hazard, which could result in death or
serious injury to pool user, installer or other due to electrical shock and may also cause
damage to the property.
INSTALLERS, POOL OPERATORS AND POOL OWNERS MUST
READ THESE WARNINGS AND ALL INSTRUCTIONS BEFORE
USING THE POOL AND/OR SPA LIGHT.

AMERBRITE™ Color LED Pool Lamp Installation and User’s Guide
ii
IMPORTANT WARNING AND SAFETY INSTRUCTIONS
Risk of Electrical Shock. Connect only to a branch circuit
protected by a ground-fault circuit-interrupter (GFCI). Contact a qualified
electrician if you cannot verify that the circuit is protected by a GFCI.
This light must be connected only to a supply circuit that is protected by a ground-fault
circuit-interrupter (GFCI). Such a GFCI should be provided by the installer and should
be tested on a routine basis. To test the GFCI, push the test button. The GFCI should
interrupt power. Push the reset button. Power should be restored. If the GFCI fails to
operate in this manner, the GFCI is defective. If the GFCI interrupts power to the light
without the test button being pushed, a ground current is present, indicating the
possibility of an electric shock. Do not use this light. Disconnect the light and have the
problem corrected by a qualified service representative before using.

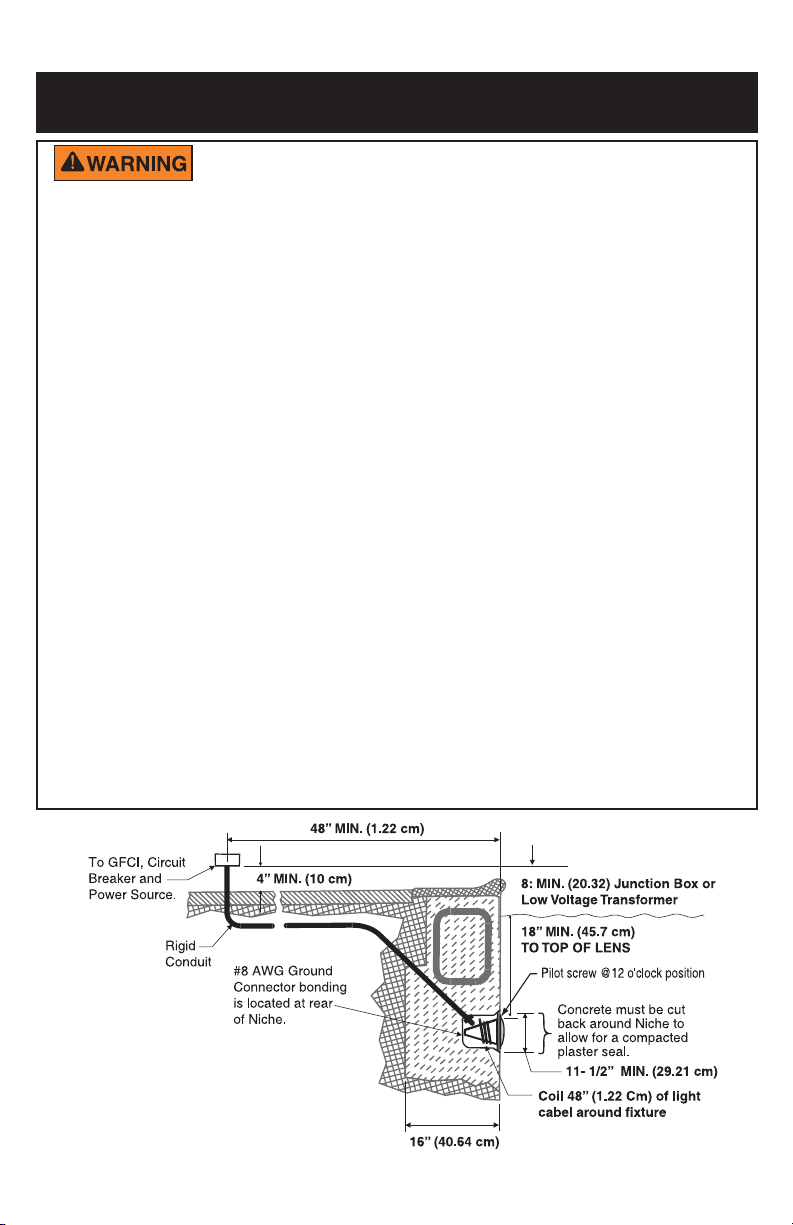

Important Safety Information for Pentair Niche and Light
Installation
• All Niche and Light installations must conform with all
codes. If local codes mandate a cord seal, use Pentair
plastic niches (P/N 79206600 and P/N 79206700) and
Cord Seal Kit (P/N 670044).
• Under no circumstances replace lights by splicing wire
under water or behind niche.

AMERBRITE™ Color LED Pool Lamp Installation and User’s Guide
AmerBrite™Underwater Color Changing LED Pool Lamp Overview
This manual describes how to replace the Amerlite®Incandescent Lamp with the
AmerBrite™ underwater color changing LED pool lamp. The AmerBrite lamp provides
brilliant vivid multi-colors with spectacular effects for your pool. The energy efficient
colored LED array utilizes IntelliBrite®Color LED Light technology and can cycle through
colors at varying speeds and in different sequences of color. Choose one of the seven
pre-programmed color light shows or select one of the five fixed colors to create virtually
endless range of dramatic underwater lighting effects for a spectacular effect in your pool
and spa.
Operating AmerBrite Color LED Lamps Using a Wall Switch
The AmerBrite lamp can be manually controlled using a standard wall-mount light switch.
Multiple AmerBrite lamps can be connected via a junction box to a single switch so that
all lamps can be switched on and off together.
Operating AmerBrite Color LED Lamps Using a Control System
AmerBrite lamps can also be automatically controlled using the Pentair IntelliTouch®,
EasyTouch®and SunTouch®Control Systems. For more information refer to the
IntelliTouch Control System User’s Guide (P/N 521075), EasyTouch Control System
User’s Guide (P/N 521044), and SunTouch®Control System User’s Guide (P/N 520785).
Using an External Transformer for Multiple 12 VAC AmerBrite Lamps
When using a 300 Watt transformer (set at 12 VAC) with multiple 12 VAC AmerBrite
lamps, it is recommended that no more than four (4) AmerBrite lamps be used with a
maximum of 75 feet 12 gauge cable run, between the transformer and the junction box.
There should be no more than 45 feet of cable between the junction box and the
AmerBrite lamp. This will ensure that the AmerBrite lamps receive a minimum operating
power of 9.5 VAC.
1
Note: If a longer cable run is
necessary, it is recommended
that separate 300 Watt
transformers be used for each
lamp with no more than 120 feet
of total cable run between the
transformer and lights.
Maximum Wattage Using multiple AmerBrite Color LED Lamps
(with a 300 Watt Transformer)
IMPORTANT! When using multiple 12 VAC Pentair®LED color pool and spa lights the
total allowable light wattage is 300 Watts maximum. The individual light wattage is as
follows:
•OneAmerBriteWhiteLEDpoollightis51Wattsmaximum
•OneAmerBriteColorLEDpoollightis36Wattsmaximum
•OneIntelliBriteColorLEDpoollightis35Wattsmaximum
•OneIntelliBriteColorLEDspalightis18Wattsmaximum
•OneIntelliBriteColorLEDlandscapelightis15Wattsmaximum
•OneColorCascadepool/spacolorLEDlightis16Wattsmaximum
J Box
12 Gauge
(minimum)
120 ft.
300Watt
Transformer

AMERBRITE™ Color LED Pool Lamp Installation and User’s Guide
Selecting a AmerBrite Light Show Mode or Fixed Color using a
Wall Switch
AmerBrite color lamps are compatible with IntelliBrite light colors and shows and can be
synchronized with IntelliBrite color lights.
First switch power on to the light, the previously selected color is displayed. To select a
color show mode (1-7) or fixed color
(8-12), turn the wall switch off/on a specific number of times. Each number (1-12) shown
below corresponds to the number of times to power-cycle the switch to activate a color
light show or fixed color. For details about saving color effects while in “show” modes,
see “Hold” and “Recall” feature on page 3.
1 SAm Mode: Cycles through white, magenta, blue and green colors
(emulates the Pentair®SAm®Color Changing Light).
2 Party Mode: Rapid color changing building energy and excitement.
3 Romance Mode: Slow color transitions creating a mesmerizing and
calming effect.
4 Caribbean Mode: Transitions between a variety of blues and greens.
5 American Mode: Patriotic red, white and blue transition.
6 California Sunset Mode: Dramatic transitions of orange, red and
magenta tones.
7RoyalMode:Richer, deeper color tones.
8 Blue: Fixed color.
9 Green: Fixed color.
10 Red: Fixed color.
11 White: Fixed color.
12 Magenta: Fixed color.
13 Hold: Save the current color effect during a color light show.
14 Recall: Activate the last saved color effect.
AmerBrite™Color Lamps can be controlled using a standard wall-mount light switch or
by the IntelliBrite®Color Light Controller (see page 3). Multiple AmerBrite lamps can be
connected via a junction box to a single switch so that all lights can be switched on and
off together. AmerBrite lamps are controlled by cycling AC power from a standard wall
switch. By turning the switch on and off a specific number of times, the light activates one
of the seven light show modes, fixed colors, or enables the “Hold” and “Recall” feature.
Powering on the AmerBrite Color Lamps
When the AmerBrite lamp is powered on, the previously selected color is displayed.
Note: If power to the lamp is off for more than five (5) seconds, the last color show mode
or fixed color that was saved will be displayed.
Operating AmerBrite™Color Lamps Using a Wall Switch
Note: When the AmerBrite lamps are powered on, the previously selected
color will be displayed, unless the HOLD or RECALL feature was
previously enabled.
2
Number of times to cycle power (1-14)

AMERBRITE™ Color LED Pool Lamp Installation and User’s Guide
3
Example: To s e l e c t California Sunset Mode; turn the light on, then turn off and on six
times. During the off/on switching process, no illumination will occur,
Saving a Color Mode or Fixed Color
When power is switched off to the AmerBrite™Color Lights, the last color show mode or
fixed color will be saved. The next time the light is powered on, the previously saved
color show mode or fixed color will be displayed. For example, while in “Party Mode”
switch the light off. Wait more than 10 seconds, switch the light back on to resume “Party
Mode.”
Instead of using a wall switch, AmerBrite lamps can
be controlled with the IntelliBrite Controller
(p/n 600054), sold separately. The IntelliBrite
Controller provides complete control of your
AmerBrite lamps. It’s easy to select a lighting
feature, just dial in any one of the pre-programmed
color light shows or fixed colors. Using the Hold and
Recall buttons you can also create special lighting
effects. The IntelliBrite Controller can control
individual or multiple AmerBrite lamps. Multiple
AmerBrite lamps can be connected via a junction
box to the Controller so that all lights can be
switched on and off together. The IntelliBrite Controller can also control multiple
AmerBrite lamps and IntelliBrite Lights.
Selecting a AmerBrite Light Color and Show Modes or Fixed
Color Using an IntelliBrite®Controller
Using the IntelliBrite Color Light Controller: AmerBrite lights are compatible with
IntelliBrite light colors and shows and can be synchronized with IntelliBrite color pool/spa
and landscape lights. To select a color light show mode or fixed color mode, rotate the
dial so that it points to the desired selection. The color mode selections start in a
clockwise direction from the 9 o’clock position (see page 2).
Hold and Recall Feature
Note: When AmerBrite lights are powered on, the previously selected color will be
displayed, unless the HOLD or RECALL feature was previously enabled.
Hold button/LED: Press this button (LED on) to capture and save a color effect while
displaying one of the light show modes. When the button is pressed, the LED will be on,
indicating that the color effect is captured.
Recall Button/LED: Use this button (LED on) to activate the last saved color effect. When
the button is pressed, the LED will be on, indicating that the color effect is being
displayed.
During the off/on switching process, before the selected color is displayed, no
illumination will occur for a brief second. This operating mode is normal during the
switching process. During this period the pool and spa will be dark and precautions
should be taken to avoid unforeseen accidents. Failure to observe this warning may
result in serious injury or death to anyone in or around the pool or spa.

AMERBRITE™ Color LED Pool Lamp Installation and User’s Guide
Be sure that the pool or spa meets the requirements of the current
National Electrical Code (N.E.C.) Article 680-22 and all local codes
and ordinances. A licensed or certified electrician must install the electrical system to
meet or exceed those requirements before the underwater light is installed. Some of
the requirements of the National Electrical Code which the pool’s electrical system
must meet are as follows:
•ThelightingcircuithasaGroundFaultCircuitInterrupter(GFCI)for120
VAC line voltage models, and has an appropriately rated circuit breaker.
The conductors on the load side of the GFCI circuit shall not occupy
conduit, boxes, or enclosures containing other conductors unless the
additional conductors are also protected by a GFCI. Refer to local codes
for complete details.
•TheJunctionBox(or,for12voltmodels,thelowvoltagetransformer)is
located at least eight (8) inches (20.3 cm) above water level and at least
48 inches (1.22 m) from the edge of the pool. See Figure 1 below.
•Thelightfixtureandallmetalitemswithinfive(5)feet(1.524m)ofthe
pool are properly electrically bonded.
•ThewetnicheisproperlyelectricallybondedandgroundedviatheNo.
8 AWG ground connector located at the rear of the niche; see Figure 1.
•Thewetnicheisproperlyinstalledsothatthetopedgeofthe
underwater light’s lens is at least 18 inches below the surface of the
water in the pool; see Figure 1.
•TheAmerlite
® Incandescent Light niche must be properly installed so
that the top edge of the Amerlite light’s lens is at least 18” below (not
more than 48 inches below in Canada) the surface of the water in the
pool or spa.
•Becertainthatthepoolorspaelectricalsystemmeetsallapplicable
requirements, the electrician should also consult the local building
department.
BEFORE REPLACING THE AMERLITE® INCANDESCENT
LAMP READ THE FOLLOWING INFORMATION
Figure 1
4

AMERBRITE™ Color LED Pool Lamp Installation and User’s Guide
Be sure to use the special pilot screw provided with the Amerlite®Light. This
screw mounts and electrically grounds the housing securely to the mounting ring
and wet niche. Failure to use the screw provided could create an electrical hazard
which could result in death or serious injury to pool users, installers or others due
to electrical shock.
Always install a new lens gasket (part number 79101601) whenever
disassembling the Amerlite incandescent light fixture assembly. Failure to do so
may permit water to leak into the assembly which could cause; (a) an electrical
hazard resulting in death or serious injury to pool users, installers or others due
to electrical shock; or; (b) breakage of the lamp or lens, which could result in
serious injury to pool users, installers, bystanders, or property damage.
AMERBRITE™ COLOR LAMP INSTALLATION INSTRUCTIONS
Before working on the AmerBrite color lamp, always disconnect
power to the pool and/or spa lights at the source circuit breaker
from the light before servicing the light. Failure to do so could
result in death or serious injury to service person, pool users
or others due to electric shock.When installing and using this
electrical equipment, basic safety precautions should always
be followed, include the following:
RISK OF ELECTRICAL SHOCK OR ELECTROCUTION:
THE AMERBRITE COLOR LAMP MAY REQUIRE HIGH VOLTAGE
WHICH CAN SHOCK, BURN, OR CAUSE DEATH.
PILOT SCREW
(12 O’clock)
5

AMERBRITE™ Color LED Pool Lamp Installation and User’s Guide
The following describes how to replace the Amerlite®Incandescent Lamp with the
“screw-in” AmerBrite™ Color Changing LED Lamp.
1. Turn off main electrical switch or circuit breaker, as well as the switch
which operates the underwater Amerlite incandescent lamp. Note: It is not
necessary to drain down the pool to replace the lamp.
2. When replacing or reassembling the pool light assembly, the Gasket
(P/N 79101601) or Gasket and Lens (P/N 619864) which is included in
the AmerBrite Lamp kit must also be replaced. See page 11 for part
numbers.
Before starting make sure that you have the AmerBrite color pool lamp
assembly (12 VAC P/N 602060, or 120 VAC P/N 602065) ready to install.
3. Remove the Amerlite incandescent light assembly: Remove the PILOT screw
at top of face ring, then remove the light assembly from the niche by tilting the
top away from the niche and then lifting the light assembly from the locking tab
at the bottom of the niche.
4. Place the light assembly on the pool deck.
5. Place a cloth on the ground. Turn the light over so the lens is resting on the
cloth. Using a 3/8" nut driver or #3 Phillips screwdriver and a 7/16" wrench,
remove the nut and uni-tension wire clamp.
6. Remove the face ring from wire clamp from the light housing.
7. With the light resting on its base, carefully pry off the gasket to remove the
lens.
8. Unscrew and remove the Amerlite lamp.
9. Discard the uni-tension wire clamp.
10. Inspect the inside of the Amerlite light housing. Be sure the inside is clean
and dry.
11. Discard the lens, gasket and Amerlite lamp.
12. Using a clean dry cloth, thoroughly wipe the inside of the light housing. Be sure
the light housing is clean and dry. Residual moisture and humidity inside the
light housing may reduce the life of the AmerBrite lamp LED assembly.
AMERBRITE™ COLOR LAMP INSTALLATION INSTRUCTIONS
(CONTINUED)
6

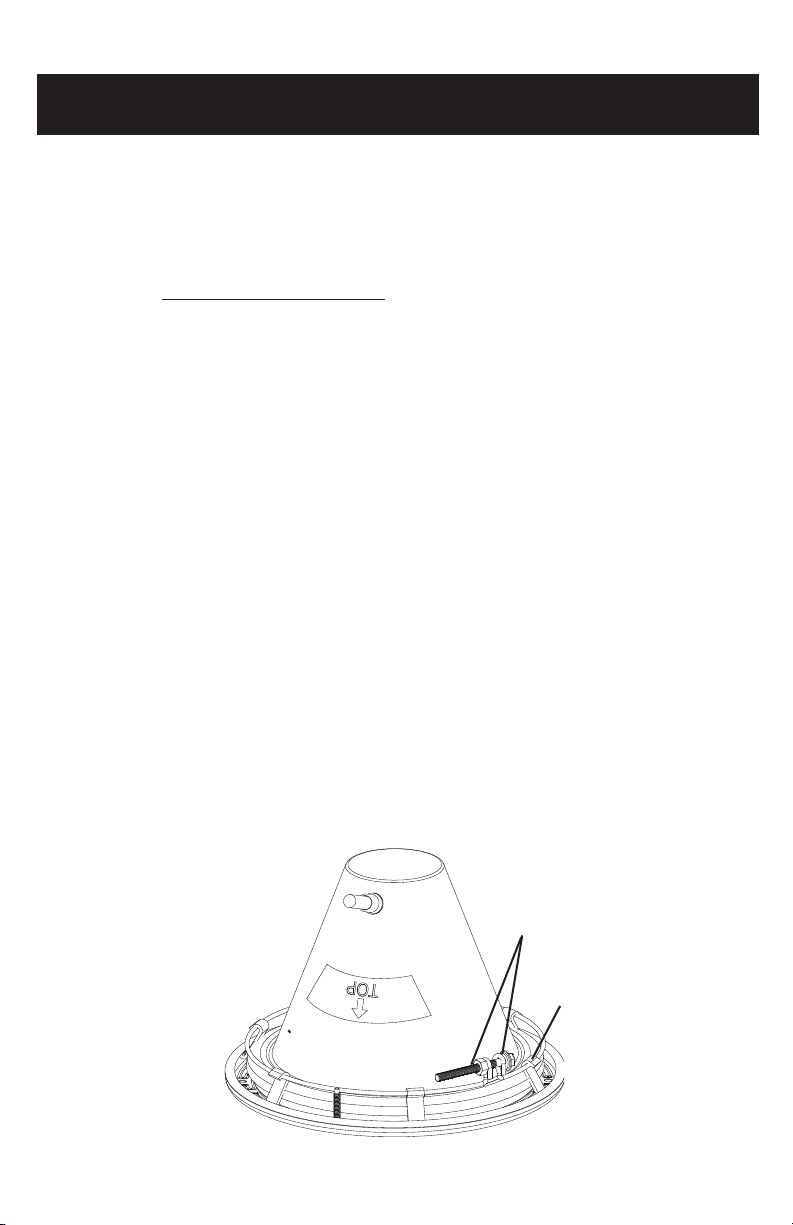

Lock
lever
Uni-tension
7/16” nut
and bolt

AMERBRITE™ Color LED Pool Lamp Installation and User’s Guide
7
13. Install the “Screw-in” AmerBrite™ Color LED Lamp (120 VAC or 12 VAC):
Insert the threaded end of the AmerBrite lamp stem assembly into the lamp
socket. Rotate the stem assembly to secure it into the socket. Do not over
tighten.
14. While holding the AmerBrite LED Lamp assembly, route the lamp power cord
connector through the hole in the top of the LED assembly.
15. Install the assembly onto the light housing. Carefully align the "TOP" indicator
arrow on the LED assembly with the "TOP" indicator on the Amerlite®Stainless
Steel Light housing. Be sure the LED assembly is level with the lamp housing.
CAUTION: If the LED assembly is not level, the LED assembly may interfere
with the lens installation and/or have improper lighting performance.
16. Connect the lamp power cord plug to the LED assembly socket.
17. Install the torque-limiting nut onto the top of the stem. Rotate the top section of
the torque-limiting nut until it continues to “click” with each rotation (similar to a
car gas cap), this indicates the nut is secured in place.
Lamp Stem assembly
Threaded end of
light stem
Lamp socket (inside
niche)
Route light power
cord connector
through the hole in
LED assembly
Connect light
power cord
plug to LED
assembly
socket
Stem
▼
▼
Torque-
limiting
nut
installed
Rotate
To r q u e -
limiting
nut
(120 VAC AmerBrite Color
LED Lamp shown)

AMERBRITE™ Color LED Pool Lamp Installation and User’s Guide
18. Install NEW LENS and GASKET: Align the lens and gasket onto the light
housing. Note: The gasket is shipped installed on the lens.
a) With the lamp housing resting on its base, place the lens/gasket on top of the
Amerlite®light housing.
b) Rotate the lens/gasket to align the letter “N” (“NARROW” angle for installing
light at either end of pool length) on the lens to the UP arrow on the LED
assembly. See page 10 to determine the best option.
19. INSTALL FACE RING: Place the face ring on top of the lens/gasket/housing.
Rotate the face ring so the pilot screw hole is aligned in the 12 O’clock
position, with the lens letter “N” (or “W”). Note: Also, verify the “TOP” position
arrow indicator label (see page 9) on the rear of the housing is aligned with the
pilot screw on the face ring.
20. INSTALL UNI-TENSION CLAMP: With the hook ends of the circular uni-tension
clamp pointing down, spread the clamp and place it in the “U” recesses of the
locking levers. Be sure the hook ends of the clamp are located between the pair
of locking levers as shown on page 9 and that the wire clamp is properly
engaged with all of the lock levers.
8
Align letter “N” (“NARROW”
angle) on lens/gasket with
pilot screw hole on face ring.
ALIGN
PILOT SCREW
(12 O’clock)
“N” ON LENS
ALIGN
For “WIDE” angle light beam,
rotate “W” to 12 O’clock
position

AMERBRITE™ Color LED Pool Lamp Installation and User’s Guide
9

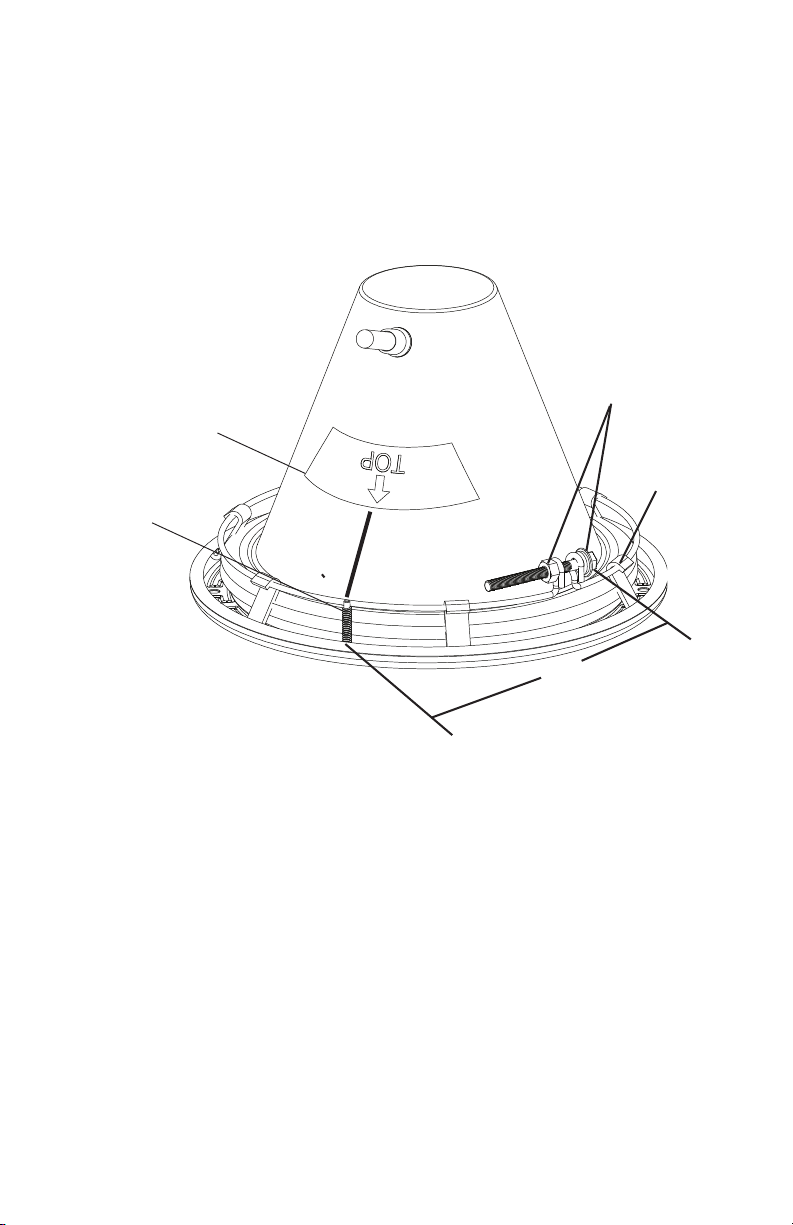

Position the wire clamp (nut and bolt) about 45°
between the PILOT SCREW and NUT/BOLT.
45°
PILOT
SCREW
Lock
lever
“TOP” label
(use to align light
housing with pilot
screw on face ring
Uni-tension
nut and bolt
21. Place a cloth on the ground to protect the lens. Turn the light over so the lens is
resting on the cloth. Be sure the orientation of the wire clamp and the bolt
connection is positioned at 45°.
22. Tighten the bolt and nut until the distance between the ends of the clamp equals
¼-inch or less.
23. Install the special bronze pilot screw at the top of face ring to secure
the light to the niche.
24. Final check for proper AmerBrite™ Color Lamp operation: Switch on the
main switch or circuit breaker to the system, and the switch that operates
the AmerBrite lamp itself. The lamp should illuminate when power is
applied. If not recheck the installation steps starting with Step 1 (page 6).
25. Reinstall the Amerlite®Light housing back into the niche by wrapping the
cord around the body. Then engage the bottom locking tab and tighten the
pilot screw.

AMERBRITE™ Color LED Pool Lamp Installation and User’s Guide
Troubleshooting
Wide and Narrow Angle Lens Adjustment
Wide and Narrow Angle Lens Feature
The AmerBrite™Color LED Lamp lens geometry provides a choice of “wide” or “narrow”
angle light beams to suit various size pools. For lights located on either side of the pool,
rotate the lens to the ‘wide’ (W) angle position, which will provide a wider angle light
beam for greater underwater coverage and light reflection the width of the pool. For lights
located either end of the pool, rotate the lens to the ‘narrow’ (N) angle light beam position
for increased underwater light intensity and distance.
WIDE ANGLE LIGHT BEAM
(FOR SIDES OF POOL)
WIDE ANGLE
LIGHT BEAM
NARROW ANGLE LIGHT BEAM
(FOR ENDS OF POOL)
10
Problem Cause/Action
The light will not illuminate. Check the GFCI ground fault wiring and reset if
necessary.
Light does not function properly. Check the light wiring connection to the junction box at
the pool side and to the AC power switch.
Be sure that there is proper AC power applied to the
light.
For AmerBrite lamp (12 VAC) - Check transformer
and connections.

AMERBRITE™ Color LED Pool Lamp Installation and User’s Guide
AmerBrite™Color LED Pool Lamp
Replacement Parts
Item No. Kit Part No. Description
2, 3, 5 600095 Face Ring assembly, stainless steel.
- Uni-tension wire clamp assembly.
- Gasket, 8-3/8 in. diameter, off white.
4 619864ZReplacementLensKit.
- Gasket, 8-3/8 in. diameter, silicone.
- Lens, IntelliBrite 5g, Pool, 8-3/8 in. diameter, tempered.
1 79104800Pilotscrew,withcaptivegumwasher.
5 79101601Gasket,8-3/8in.diameter,silicone.
3, 5 602097 Kit, Gasket and Clamp.
6 620026Z KitnuthandleassemblyAmerBrite
7 620062Z KitDiscAssemblyAmerbriteColor120/12VAC
8 620060Z Kitstem,transformerassembly120VACAmerBrite
9 620061Z Kitstem,harnessassembly12VACAmerBrite
10 602060 AmerBrite Color Lamp Assembly, 12 VAC (not shown)
11 602065 AmerBrite Color Lamp Assembly, 120 VAC (not shown)
Note: The 120 VAC AmerBrite color pool lamp has an integrated 12 VAC transformer.
Note: A 120 VAC to 12 VAC external
transformer is required for the 12 VAC
model AmerBrite color pool lamp.
See page 1 for more information.
11
98
7
6
Each time the Amerlite®
Light is opened, a new
gasket and clamp ring
(P/N 602097) must be
used to reseal the light.
Not doing so may allow
the light to leak and
damage the AmerBrite

AMERBRITE™ Color LED Pool Lamp Installation and User’s Guide
*620072*
1620 HAWKINS AVE., SANFORD, NC 27330 • [phone]
10951 WEST LOS ANGELES AVE., MOORPARK, CA 93021 • [phone]
WWW.PENTAIRPOOL.COM
All Pentair trademarks and logos are owned by Pentair, Inc. Pentair Aquatic Systems™,
AmerBrite™, Amerlite®, IntelliBrite®, EasyTouch®, IntelliTouch®and SunTouch®, are trademarks
and/or registered trademarks of Pentair Water Pool and Spa, Inc. and/or its affiliated companies
in the United States and/ or other countries. Unless expressly noted, names and brands of third
parties that may be used in this document are not used to indicate an affiliation or endorsement
between the owners of these names and brands and Pentair Water Pool and Spa, Inc. Those
names and brands may be the trademarks or registered trademarks of those third parties.
Because we are continuously improving our products and services, Pentair reserves the right
to change specifications without prior notice. Pentair is an equal opportunity employer.
© 2013 Pentair Aquatic Systems. All rights reserved.
This document is subject to change without notice.
P/N 620072 REV A 2/13
