COLORCASCADE®Color Pool and Spa Light Installation and User’s Guide COLORCASCADE® Color Pool and Spa Light Installation and User’s Guide
IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS
SAVE THESE INSTRUCTIONS
COLORCASCADE®UNDERWATER COLOR
CHANGING LED LIGHT
FOR POOL AND SPA
INSTALLATION
AND
USER’S GUIDE

COLORCASCADE®Color Pool and Spa Light Installation and User’s Guide COLORCASCADE® Color Pool and Spa Light Installation and User’s Guide
Technical Support
Phone: [phone] - Fax: [phone]
Web sites: www.pentairpool.com and www.staritepool.com:
Contents
IMPORTANT WARNING AND SAFETY INSTRUCTIONS................................ i
Overview ......................................................................................................... 1
Operating ColorCascade Lights Using A Wall Switch ...................................... 3
Operating ColorCascade Lights In Standard Mode ......................................... 5
Selecting a ColorCascade Light Show Mode or Fixed Color
Using an IntelliBrite Controller ........................................................................ 6
Installing ColorCascade Light Fixture (new pool construction) ....................... 7
Installing ColorCascade Light Fixture
(after electrical requirements are met) ............................................................ 7
Replacing ColorCascade Light Assembly (in an existing pool and spa) .......... 10
Replacing ColorCascade Light Assembly
(after electrical requirements are met) .............................................................. 11
Connecting ColorCascade Lights to the Automation Control System .............. 12
Setting Up ColorCascade Lights with the Automation Control System ............ 14
Connecting ColorCascade Lights to an IntelliBrite Controller ......................... 17
Troubleshooting .............................................................................................. 18
APPENDIX:
Accessories Bag Assembly Instructions .......................................................... 20
ColorCascade Light Extended Nozzle Installation Instructions ........................ 21
ColorCascade Light Replacement Parts .......................................................... 22
READ AND FOLLOW ALL INSTRUCTIONS IN THIS MANUAL.
P/N 512280 Rev A - 12/1712
LISTED
E344048

COLORCASCADE®Color Pool and Spa Light Installation and User’s Guide COLORCASCADE® Color Pool and Spa Light Installation and User’s Guide
Most states and local codes regulate the construction, installation,
and operation of public pools and spas, and the construction of
residential pools and spas. It is important to comply with these codes, many of which
directly regulate the installation and use of this product. Consult your local building and
health codes for more information.
SERIOUS BODILY INJURY OR DEATH CAN RESULT IF THIS LIGHT
IS NOT INSTALLED AND USED CORRECTLY.
INSTALLERS, POOL OPERATORS AND POOL OWNERS MUST
READ THESE WARNINGS AND ALL INSTRUCTIONS BEFORE US-
ING THE POOL AND/OR SPA LIGHT.
Before installing this product, read and follow all warning notices
and instructions in this Guide. Failure to follow warnings and
instructions can result in severe injury, death, or property damage.
Call [phone] for additional free copies of these instructions. Please refer to www.
pentairpool.com for more information related to this products.
IMPORTANT NOTICE - Attention Installer: This Installation and User’s
Guide (“Guide”) contains important information about the installation, operation
and safe use of this underwater pool and spa light.This Guide should be given
to the owner and/or operator of this equipment.
IMPORTANT WARNING AND SAFETY INSTRUCTIONS
BEFORE WORKING ON THIS DEVICE! Always disconnect
power to the pool and/or spa lights at the source circuit
breaker from the light before servicing the light. Failure to do
so could result in death or serious injury to service person,
pool users or others due to electric shock. When installing
and using this electrical equipment, basic safety precautions
should always be followed, include the following:
RISK OF ELECTRICAL SHOCK OR ELECTROCUTION:
This underwater light must be installed by a licensed or certified electrician or a
qualified pool professional in accordance with the current National Electrical Code
(NEC), NFPA 70 or the Canadian Electrical Code (CEC), CSA C22.1. All applicable
local installation codes and ordinances must also be adhered to. Improper
installation will create an electrical hazard which could result in death or serious
injury to pool users, installers or others due to electrical shock, and may also cause
damage to power source. Always disconnect the power to the pool light at the
circuit breaker before servicing the light. Failure to do so could result in death or
serious injury to serviceman, pool users or others due to electrical shock.
THE COLORCASCADE® LIGHT REQUIRES HIGH VOLTAGE
WHICH CAN SHOCK, BURN, OR CAUSE DEATH.
For countries in compliance with International Electrotechnical
Commission (IEC) regulatory standards: The light fixture must
be installed by a licensed or certified electrician or a qualified pool service person, in
accordance with IEC 364-7-702 and all applicable local codes and ordinance. Improper
installation will create an electrical hazard, which could result in death or serious injury
to pool user, installer or other due to electrical shock and may also cause damage to the
property.
i

COLORCASCADE®Color Pool and Spa Light Installation and User’s Guide COLORCASCADE® Color Pool and Spa Light Installation and User’s Guide
IMPORTANT WARNING AND SAFETY INSTRUCTIONS
NOTICE: The external flexible cable or cord of this luminaire cannot be replaced; if
the cord is damaged, the luminaire shall be destroyed.
Risk of Electrical Shock. Connect only to a branch circuit
protected by a ground-fault circuit-interrupter (GFCI). Contact a qualified
electrician if you cannot verify that the circuit is protected by a GFCI. This
light must be connected only to a supply circuit that is protected by a ground-fault circuit-
interrupter (GFCI). Such a GFCI should be provided by the installer and should be tested
on a routine basis. To test the GFCI, push the test button. The GFCI should interrupt
power. Push the reset button. Power should be restored. If the GFCI fails to operate in this
manner, the GFCI is defective. If the GFCI interrupts power to the light without the test
button being pushed, a ground current is following, indicating the possibility of an electric
shock. Do not use this light. Disconnect the light and have the problem corrected by a
qualified service representative before using. Locate your pool so that the wall is at least
10 feet from all electrical receptacles and at least 20 feet from all receptacles not protected
by a GFCI. It is also very important to locate the pool so that it is not under any electrical
wiring, that is less than 18 feet vertically above the pool wall and within an area located 10
feet outside the pool walls. The pool must also never be located under any lighting fixture
or within five (5) feet measured horizontally from any fixture mounted less than five (5) feet
vertically above the pool water level.
ColorCascade®Light is a 12 VAC system. ONLY USE an approved
12 volt AC transformer, sold separately. When using a Junction Box, connect
12 volt AC connections to junction box terminals. Never connect the light directly
to high voltage lines.
Under no circumstances replace lights by splicing wire under water or
behind niche.
INSTALLERS AND INSPECTORS: THE COLORCASCADE LIGHT AND PLASTIC
NICHE FORM A COMPLETE NON-METALLIC LOW VOLTAGE LIGHTING SYSTEM.
THIS CONFIGURATION DOES NOT REQUIRE BONDING OR GROUNDING WHEN
POWERED BY A LISTED 100 WATT OR 300 WATT 12 VAC TRANSFORMER AND
INSTALLED IN COMPLIANCE WITH THE CURRENT NATIONAL ELECTRIC CODE
(NEC). UNBONDED LIGHTING NEC PROVISIONS.
WHEN THE UL LISTED NON-METALLIC COLORCASCADE LIGHT LOW VOLTAGE
LIGHTS ARE USED WITH THE LIGHT APPROVED NICHE, THE CURRENT NEC
PROVIDES AN EXCEPTION TO LUMINAIRE BONDING AND GROUNDING IN
ARTICLE 680.6 AND 680.23 POOL WATER BONDING NEC PROVISIONS: FOR POOL
WATER BONDING REQUIRED BY NEC ARTICLE 680.26C, CONCRETE POOLS ARE
CONSIDERED CONDUCTIVE (REFER TO 680.26 (B)(1) DUE TO THE POROSITY
OF CONCRETE AND THE BONDING OF REBAR. NO ADDITIONAL BONDING IS
REQUIRED.
ii

COLORCASCADE®Color Pool and Spa Light Installation and User’s Guide COLORCASCADE® Color Pool and Spa Light Installation and User’s Guide
ColorCascade®Color LED Pool and Spa Light Overview
This manual describes how to install and replace the ColorCascade®Color LED Light.
The ColorCascade light provides brilliant vivid multi-colors along with spectacular lighting
and underwater “bubbling” effects for your pool and spa. The energy efficient colored array
utilizes IntelliBrite®Color LED Light technology and can cycle through colors at varying
speeds and in different sequences of colors. Choose one of the seven pre-programmed
color light shows or select one of the five fixed colors to create virtually endless range of
dramatic underwater lighting effects for a spectacular effect in your pool and spa.
If multiple LED lighting are being used, it is recommended that these lights be run
independent of each other, using a separate transformer for each group or type of light.
Otherwise all lights connected to the same transformer will be working together.
The ColorCascade light can be controlled using a standard wall-mount light switch.
Multiple ColorCascade lights can be connected via a junction box to a single switch so that
all lights can be switched on and off together. The lights are controlled by cycling the AC
power to the 12 VAC power supply and from there to the lights from a standard wall switch.
By turning the switch OFF and ON a specific number of times, the light activates one of
the three light show modes or locks a chosen color.
1
Operating Modes (Standard and IntelliBrite)
Operating ColorCascade Lights Using a Wall Switch
There are two operating settings within the ColorCascade light, Standard Mode and
IntelliBrite Mode. The default factory setting is IntelliBrite Mode. Use the Standard Mode
setting if you wish to operate the bubbler differently than your other pool lights to make the
water feature stand out and contrast. If there is a ColorCascade light model installed in
your pool or spa that does not support the IntelliBrite Mode feature, you will need to reset
the ColorCascade light to Standard Mode to match the existing set up, see page 5. To
access the Standard Mode setting, you must cycle the power to the ColorCascade light
with 16 off/on sequences. To return to the IntelliBrite Mode setting, cycle the power 17
off/on sequences.
ColorCascade lights can also be automatically controlled via Pentair IntelliTouch®and
EasyTouch®Control Systems, utilizing the IntelliBrite “Circuit Function”. For more
information refer to the IntelliTouch Control System User’s Guide (P/N 521075),
EasyTouch Control System User’s Guide (P/N 521044).
For more information, see page 14.
Operating ColorCascade Lights Using Automation Control System

COLORCASCADE®Color Pool and Spa Light Installation and User’s Guide COLORCASCADE® Color Pool and Spa Light Installation and User’s Guide
2
Using an External Transformer for Multiple ColorCascade®Lights
When using multiple ColorCascade 12 VAC lights on a 100 Watt transformer, it is
recommended that no more than four (4) ColorCascade lights be used. It is also
recommended not to exceed 100 feet of total cable run between the transformer and lights.
Note: For long cable lengths, set transformer to 14 VAC, and use only ColorCascade lights
with the 150” cord option, see diagram below.
Note: If a longer cable
run is necessary, it is
recommended that
separate 100 Watt 12 VAC
transformers be used for
each light with no more
than 100 feet of total
cable run between the
transformer and lights.
Maximum wattage when using multiple ColorCascade and
IntelliBrite®Color LED lights (using a 300 Watt Transformer)
IMPORTANT! When using multiple 12 VAC ColorCascade Light, IntelliBrite Light and
IntelliBrite Landscape Lights, the total allowable light wattage is 300 Watts maximum. The
ColorCascade and IntelliBrite light wattages are as follows:
• OneColorCascadelightis16Wattsmaximum
• OneGloBrite®Light is 23 Watts maximum
• OneIntelliBritePoolLightis30Wattsmaximum
• OneIntelliBriteSpaLightis18Wattsmaximum
• OneIntelliBriteLandscapelightis15Wattsmaximum
• OneMagicStream® Laminar is 16 Watts maximum
J Box
12 Gauge
(Minimum)
100 ft.
100 Watt
Transformer

COLORCASCADE®Color Pool and Spa Light Installation and User’s Guide COLORCASCADE® Color Pool and Spa Light Installation and User’s Guide
Selecting a ColorCascade light show mode or fixed color using
a Wall Switch
ColorCascade lights are compatible with IntelliBrite light colors and shows and can be
synchronized with IntelliBrite®lights. First switch power on to the light; the previously
selected color is displayed, unless the HOLD or RECALL feature was previously enabled..
To select a color show mode (1-7) or fixed color (8-12), turn the wall switch Off/On a
specific number of times. Each number (1-17) shown below corresponds to the number
of times to power-cycle the switch to activate a color light show or fixed color. For details
about saving color effects while in Show modes, see “Hold” and “Recall” feature on page 6.
1SAm Mode: Cycles through white, magenta, blue and green colors
(emulates the Pentair SAm® Color Light).
2 Party Mode: Rapid color changing building energy and excitement.
3 Romance Mode: Slow color transitions creating a mesmerizing and
calming effect.
4 Caribbean Mode: Transitions between a variety of blues and greens.
5 American Mode: Patriotic red, white and blue transition.
6 California Sunset Mode: Dramatic transitions of orange, red and
magenta tones.
7 Royal Mode: Richer, deeper color tones.
8 Blue: Fixed color.
9 Green: Fixed color.
10 Red: Fixed color.
11 White: Fixed color.
12 Magenta: Fixed color.
13 Hold: Save the current color effect during a color light show.
14 Recall: Activate the last saved color effect.
15 White
16 Standard Mode
17 IntelliBrite Mode
ColorCascade Lights can be controlled using a standard wall-mount light switch or by the
IntelliBrite®Controller (see page 3). Multiple ColorCascade lights can be connected via a
junction box and 12 VAC transformer to a single switch so that all lights can be switched
on and off together. ColorCascade lights are controlled by cycling AC power to the 12
VAC transformer from a standard wall switch. By turning the switch Off and On a specific
number of times, the light activates one of the seven light show modes, fixed colors, or
enables the “Hold” and “Recall” feature, see page 6.
Powering on the ColorCascade Light
When the ColorCascade light is powered on, the previously selected color is
displayed, unless the HOLD or RECALL feature was previously enabled.
Note: If power to the light is off for more than five (5) seconds, the last color show
mode or fixed color that was saved will be displayed.
Operating ColorCascade®Color Lights Using a Wall Switch
Number of times to cycle power (1-17)
3

COLORCASCADE®Color Pool and Spa Light Installation and User’s Guide COLORCASCADE® Color Pool and Spa Light Installation and User’s Guide
Example: To select California Sunset Mode; First switch power on to the light; the
previously selected color is displayed, unless the HOLD or RECALL feature was previously
enabled, then turn the switch off and on six (6) successive times. During the Off/On
switching process, no illumination will occur.
Saving a color mode or fixed color
When power is switched off to the ColorCascade®lights, the last color show mode or fixed
color will be saved. The next time the light is powered on, the previously saved color show
mode or fixed color will be displayed. For example, while in Party Mode switch the light off.
Wait more than 10 seconds, switch the light back on to resume Party Mode.
NOTE: During the off/on switching process, before the selected color
is displayed, no illumination will occur. This operating mode is normal
during the switching process. During this period the pool and spa will be
dark and precautions should be taken to avoid unforeseen accidents.
Failure to observe this warning may result in serious injury or death to
pool and spa users.
Random Mode
The ColorCascade®Light has an additional Random Mode. In Random Mode the lights
will randomly transition through the same color palette as in IntelliBrite Mode at a similar
speed to the IntelliBrite Mode. For an example, IntelliBrite American Mode lights up only
in red white and blue and when the IntelliBrite Random Mode is turned on and the light
is set to American Mode it will display red, white and blue, but randomly. The speed of the
transitions is also tied to the IntelliBrite Mode. Sam Mode will change colors slowly and
Party Mode will change more rapidly.
Activating IntelliBrite Random Mode: To toggle IntelliBrite Random Mode On or Off
you need to enter Party Mode(Off-On-Off-On), wait until the lights come on and then enter
Party Mode a second time (Off-On-Off-On) with less than 30 seconds between them.
Resetting All Lights: To Reset all the lights you need to enter Party Mode four (4) times
with less than 30 seconds between them. This will turn IntelliBrite Random Mode OFF.
This is needed because should two lights ever get into different states, toggling their
states will never fix the problem.
4

COLORCASCADE®Color Pool and Spa Light Installation and User’s Guide COLORCASCADE® Color Pool and Spa Light Installation and User’s Guide
To access the Standard Mode setting, you must cycle the power to the ColorCascade
Light with 16 Off/On sequences. To return to the IntelliBrite Mode, cycle the power Off/On
with 17 sequences By turning the switch Off and On a specific number of times, the light
activates one of the three light show modes or locks a chosen color.
Selecting a color light show mode or fixed color
Switch power on to the ColorCascade light. A random color will flash indicating the
program you are in, followed by the previously selected program mode. To select a color
show mode or fixed color, turn the wall switch off/on a specific number of times. Please
review the chart below and follow the power cycle sequence to activate the various show
feature effects while in “show” modes.
1. Fixed Color: Turn power off and then on to “Hold” the Light on that specific color (no
matter what color show you are in). If you keep the unit on that color for at least five (5)
seconds, the ColorCascade light will “save” this color and keep it in that mode until you
release it with an additional power off/on sequence. In “Fixed Color” mode the light when
powered on, will not flash its program, but immediately go to the “Fixed Color” chosen.
2. Color Show Mode: Turn power off and then on twice (Off/On, Off/On) to cycle through
the following three color modes. Turning the power on and off twice (Off/On, Off/On) will
continue to cycle through the programs.
Operating ColorCascade®Lights in Standard Mode
5
Synchronized Mode: All ColorCascade lights on the same circuit will synchronize and
cycle on the same colors. When the units are in this mode, when powered up, the light
will flash a random color one time and then turn all units on white and then start cycling
through the eight colors. The single flash of a random color is the visual confirmation
what color show you have activated. The light will stay in this mode each time the
system is powered on until a program change is made.
Random Mode: Turn the power on and then off twice (Off/On, Off/On) and the light will
cycle to the next program, Random Mode. In this mode each of the ColorCascade lights
will cycle together, but in random colors. When this mode is selected, the light will flash
twice to indicate it is in random mode and then start up in a random color sequence. If
multiple lights are on the same circuit, each light will display different random colors.
Party Mode: Turn the power on and then off twice (Off/On, Off/On) and the light will
cycle to the next program, Party Mode. In this mode each of the ColorCascade lights will
cycle together, but in random colors and in ever increasing cycle speeds until the last
ten seconds at which time the ColorCascade lights will randomly flash different colors at
different times. When this mode is selected, the light will flash three times to indicate it is
in Party Mode and then start up in a random color sequence. If multiple lights are on the
same circuit, each light will display different colors. In the event of a power interruption
or power loss and the units become out of sequence, turn the light switch on and then
off four times (Off/On, Off/On, Off/On, Off/On). The unit will flash five (5) times then
reset all of the lights and start them in Random Mode.

COLORCASCADE®Color Pool and Spa Light Installation and User’s Guide COLORCASCADE® Color Pool and Spa Light Installation and User’s Guide
Instead of using a wall switch, ColorCascade
Lights can controlled with the IntelliBrite
Controller (P/N 600054, sold separately). The
IntelliBrite controller provides complete control
of your ColorCascade lights. The IntelliBrite
controller can control individual or multiple 12
VAC transformers to control ColorCascade lights.
Multiple ColorCascade lights can be connected
via a junction box to the Controller so that all
lights can be switched on and off together. The
IntelliBrite controller can also control multiple
ColorCascade and IntelliBrite lights.
Note: For IntelliBrite controller wiring instructions, see page 17.
Selecting a ColorCascade®Light show mode or fixed color
using an IntelliBrite®Controller
PRINTED ON: 7/29/2009, 600054_ctlg pics.SLDASM
Using the IntelliBrite Controller: ColorCascade lights are compatible with IntelliBrite
colors and shows and can be synchronized with IntelliBrite color pool/spa and landscape
lights. To select a color light show mode or fixed color mode, rotate the dial so that it points
to the desired selection. The color mode selections start in a clockwise direction from the
9 o’clock position.
Hold and Recall Feature
Note: When ColorCascade lights are powered on, the previously selected color is
displayed, unless the HOLD or RECALL feature was previously enabled.
Hold button/LED: Press this button (LED on) to capture and save a color effect while
displaying one of the light show modes. When the button is pressed, the LED will be on,
indicating that the color effect is captured.
Recall Button/LED: Use this button (LED on) to activate the last saved color effect. When
the button is pressed, the LED will be on, indicating that the color effect is being displayed.
Activating IntelliBrite Random Mode: To toggle IntelliBrite Random Mode On or Off you
need to enter Party Mode, wait until the lights come on turn the dial one notch and then
enter Party Mode a second time with less than 30 seconds between them.
Resetting All Lights: To Reset all the lights you need to enter Party Mode four (4) times
with less than 30 seconds between them. This will turn IntelliBrite Random Mode OFF. This
is needed because should two lights ever get into different states, toggling their states will
never fix the problem.
There are two ways to issue the commands with an IntelliBrite controller. You can switch
to Party Mode and then turn the lights on and off using the Green button the desired
number of times or you can switch back and forth between Party Mode and Sam Mode the
desired number of times. Both methods require you to wait until the lights come back on
before repeating the procedure. If the lights are not within sight of the controller, waiting 10
seconds between each change also works.
6
IntelliBrite®Controller

COLORCASCADE®Color Pool and Spa Light Installation and User’s Guide COLORCASCADE® Color Pool and Spa Light Installation and User’s Guide
The following describes how to install the ColorCascade Light fixture.
Be sure that the pool or spa meets the requirements of the current National Electrical
Code (NEC) Article 680-22 and all local codes and ordinances. A licensed or certified
electrician must install the electrical system to meet or exceed those requirements
before the underwater light is installed. Some of the requirements of the National
Electrical Code which the pool’s electrical system must meet are as follows:
BEFORE STARTING: The following instructions must be completed by the
electrician before the ColorCascade light fixture is installed.
• ThelightingcircuithasaGroundFaultCircuitInterrupter(GFCI)for120
VAC line voltage models, and has an appropriately rated circuit breaker.
The conductors on the load side of the GFCI circuit shall not occupy
conduit, boxes, or enclosures containing other conductors unless the
additional conductors are also protected by a GFCI. Refer to local codes
for complete details.
• TheJunctionBoxandthelowvoltagetransformerislocatedatleasteight
(8) inches (20.3 cm) above ground level and at least 48 inches (1.219 m)
from the edge of the pool; see Figure 2 on page 8.
• Tobecertainthatthepoolorspaelectricalsystemmeetsallapplicable
requirements, the electrician should also consult the local building
department.
INSTALLING COLORCASCADE®LIGHT FIXTURE
(NEW POOL CONSTRUCTION)
7
INSTALLING THE COLORCASCADE®LIGHT NICHE
(AFTER ELECTRICAL REQUIREMENTS ARE MET)
Note: The pool or spa electrical system can be verified with a Pool and Spa Electrical
Qualification Test Kit. The test kit is available from Pentair Aquatic Systems. The electrical
system inspection using this kit must be performed by trained and certified personnel. To
be certain that the pool or spa electrical system meets all current applicable requirements,
the electrician should also consult the local building department. Use only Pentair Aquatic
Systems wet niches to ensure proper bonding and grounding connections.

COLORCASCADE®Color Pool and Spa Light Installation and User’s Guide COLORCASCADE® Color Pool and Spa Light Installation and User’s Guide
8

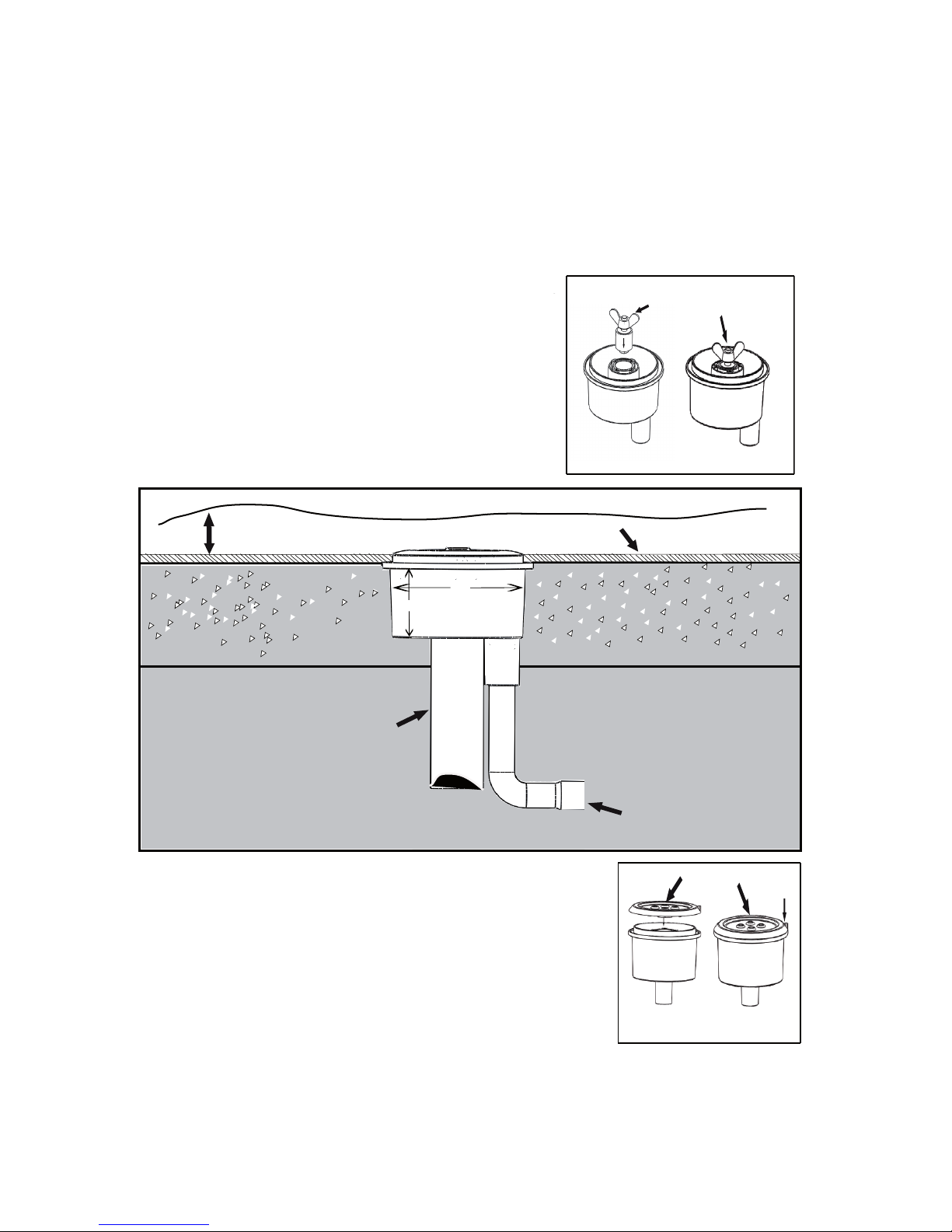

1. Install the ColorCascade light niche in the pool or spa floor as shown in Figure 2.
2. Snap on the gunite cover over the top of the niche (shown above). This will
protect the light cavity of the niche during installation. Note: If a gunite cover is
not available, use masking tape to protect niche cavity from plaster operation.
Note: Prepare the end of the ColorCascade light
power cable and install to the 12 VAC output wires
of an approved transformer (if you are using longer
runs of cables or multiple lights per transformer, it is
recommended to use the 13 VAC or even the 14 VAC
Note: For pressure testing the water line,
use an expandable plug (see Figure 1),
plug not included.
Figure 1
WATER LEVEL
NICHE
4.1”
6.2”
Water Depth
2” to 10” PLASTER
1” PVC
Electrical
Conduit
Figure 2
“
GUNITE
1-1/2 Schedule 40 PVC
GUNITE
Gunite Cover
Tab for
outer ring
Pressure Testing
Expandable Plug
(Not Included)
• TheColorCascadeLightshouldbelocatedatleast2-1/2feetfromanywallsor
other ColorCascade lights (bubblers).
• TheColorCascadelightshouldbeinstalledinwaterdepthsbetween2”and10“.
• TheColorCascadelightisdesignedtobeinstalledushwiththepoolnish.
• TheColorCascadelightnicheisdesignedfor1-1/2”PVCpipeforthewater
supply and 1” conduit for the light cable.
Determine a location for the ColorCascade®Light
Figure 3

COLORCASCADE®Color Pool and Spa Light Installation and User’s Guide COLORCASCADE® Color Pool and Spa Light Installation and User’s Guide
3. Set the niche in gunite as per current local building codes.
4. Remove the outer edge of the gunite cover by pulling the
tap and exposing the niche plaster ring.
5. Apply plaster up to the outer edge of the gunite cover.The
gunite cover should be the only exposed part of the niche
after plastering, see Figure 2 on page 8.
6. After the plastering has been completed, remove and
dispose of the gunite cover. Retain the screws to fasten
the light assembly into the niche.
1. Turn off main electrical switch or circuit breaker.
2. FeedcordthroughNicheandthenthroughconduittoJunctionBoxor12
Volt AC Transformer. The ColorCascade®Light has no serviceable parts,
so leave approximately 12 to 18 inches of cord to allow the light to be easily
removed if replacement is required.
3. CutthecordattheJunctionBoxor12VACtransformer,leavingatleastsix
(6) inches of cord to make connections.
4. Strip back three (3) inches of the outer cord jacket to expose the two
insulated wires (be careful not to damage the insulation on the two (2) inner
wires).
5. Connectboth(2)wirestothecorrespondingcircuitwiresintheJunctionBox
or12VoltACTransformerandsecuretheJunctionBoxcoverinplace.
6. Install the ColorCascade light assembly into the ColorCascade light niche
and tighten the four screws provided.
7. Install the desired eyeball fitting included with the light assembly (See
Eyeball Instructions on page 20) by firmly pressing it into the center hole. Be
sure it is pressed all the way down to provide a smooth transition. Adjust the
eyeball for proper water direction.
8. Fill the pool until the underwater light is completely submerged in water
before operating the light for more than ten (10) seconds. To check for proper
operation, switch on the main switch or circuit breaker, as well as the switch
which operates the ColorCascade light itself.
D A N G E R !
RISK OF ELECTRICAL SHOCK OR ELECTROCUTION
Always disconnect power to the pool light at the circuit breaker
before servicing the light. Failure to do so could result in death
or serious injury to installer, serviceman, pool users, or others
due to electrical shock.
9
NOTE: This is a 12 Volt AC system ONLY. An approved 12 VAC
transformer (sold separately) must be used. If a Junction Box is
used, it would be for 12 VAC connections. Never wire the
ColorCascade light directly to high voltage lines.

COLORCASCADE®Color Pool and Spa Light Installation and User’s Guide COLORCASCADE® Color Pool and Spa Light Installation and User’s Guide
REPLACING THE COLORCASCADE®LIGHT ASSEMBLY
(IN AN EXISTING POOL OR SPA)
Verify that the pool and spa meets the requirements of the current National
Electrical Code and all local codes and ordinances. A licensed or certified
electrician must install the electrical system to meet or exceed those
requirements before the underwater light is installed. Some of the requirements
of the National Electrical Code which the pool’s electrical system must meet are
as follows:
• ThelightingcircuithasaGroundFaultCircuitInterrupter(GFCI)forline
voltage models, and has an appropriately rated circuit breaker.
• TheJunctionBox(lowvoltagetransformer)islocatedatleasteight(8)
inches (20.3 cm) above ground level and at least 48 inches (1.219 m) from
the edge of the pool.
• Tobecertainthatthepool’selectricalsystemmeetsallapplicable
requirements, the electrician should also consult the local building
department.
Risk of Electrical Shock or Electrocution!
This underwater light must be installed by a licensed or certified
electrician or a qualified pool professional in accordance with
the current National Electrical Code (NEC), NFPA 70 or the
Canadian Electrical Code (CEC), CSA C22.1 and all applicable
local codes and ordinances. Improper installation will create an
electrical hazard which could result in death or serious injury to
pool users, installers or others due to electrical shock, and may
also cause damage to property.
Always disconnect the power to the pool light at the circuit
breaker before servicing the light. Failure to do so could result in
death or serious injury to serviceman, pool users or others due
to electrical shock.
10

COLORCASCADE®Color Pool and Spa Light Installation and User’s Guide COLORCASCADE® Color Pool and Spa Light Installation and User’s Guide
1. Switch off electrical switch or circuit breaker at the source.
2. RemoveJunctionBoxorTransformercover.Disconnectthelightwiresand
attach a fish tape to the existing light power cord. This will assist in pulling
the replacement light power cord through the conduit back to the junction
box.
3. Remove the ColorCascade light assembly from the pool or spa water:
4. Slowly pull the light and attached power cord (with attached fish tape) out of
the niche. Pull the light’s power cord and fish tape out of the niche and place
the light on the deck.
5. Attach the new light power cord to the fish tape and carefully feed the fish
tape and cable to the junction box.
6. FeedcordthroughNicheandthenthroughconduittoJunctionBoxor12Volt
AC Transformer. The ColorCascade light has no serviceable parts, so leave
approximately 12 to 18 inches of cord to allow the light to be easily removed
if replacement is required.
7. CutthecordattheJunctionBoxor12voltACtransformer,leavingatleast
six (6) inches of cord to make connections.
8. Strip back three (3) inches of the outer cord jacket to expose the two
insulated wires (be careful not to damage the insulation on the two (2) inner
wires).
9. Connectboth(2)wirestothecorrespondingcircuitwiresintheJunctionBox
or12VoltACTransformerandsecuretheJunctionBoxcoverinplace.
10. Install the ColorCascade light assembly into the niche and tighten the four
screws provided.
11. Install the return line fitting included with the light assembly by firmly
pressing it into the center hole. Make sure it is pressed all the way down to
provide a smooth transition. Adjust the ball for proper water direction.
12. Fill the pool until the underwater light is completely submerged in water
before operating the light for more than ten (10) seconds. To check for proper
operation, switch on the main switch or circuit breaker, as well as the switch
which operates the ColorCascade light itself. Proceed to next page for
light installation instructions. Note: The ColorCascade light should not be
powered for more than 30 sec if is not submersed in water.
The following removal and installation instructions describe how to remove and install the
ColorCascade Light assembly. Also use these instructions after completing the following
light replacement procedure.
Failure to bring the pool or spa’s electrical system up to code requirements
before installing the underwater light will create an electrical hazard which
could result in death or serious injury to pool users, installers, or others due to
electrical shock, and may also cause damage to property.
REPLACING THE COLORCASCADE®LIGHT ASSEMBLY
(AFTER ELECTRICAL REQUIREMENTS ARE MET)
11

COLORCASCADE®Color Pool and Spa Light Installation and User’s Guide COLORCASCADE® Color Pool and Spa Light Installation and User’s Guide
CONNECTING COLORCASCADE®LIGHTS
TO THE AUTOMATION CONTROL SYSTEM
1. Load Center: Unlatch the enclosure door spring latch, and open the door.
2. Discharge Electrostatic energy before removing the cover by first
touching the metal part of the enclosure.
3. Loosen the two (2) retaining screws from the HIGH VOLTAGE FRONT
PANEL. Remove the panel from the enclosure.
4. Connect the 120 Volt side of a 12 VAC transformer to the LOAD SIDE of
one of the auxiliary (AUX) relays in the load center.
5. Connect the Neutral conductor from the 12 VAC transformer to the Neutral
bus bar in the load center.
6. After the connection has been completed, close the control panel and
secure it with the two (2) retaining screws.
7. Close the load center front door. Fasten the spring latch.
D A N G E R !
RISK OF ELECTRICAL SHOCK OR ELECTROCUTION
Always disconnect AC power to EasyTouch®and IntelliTouch®Control System load
center at the circuit breaker before servicing, or removing the HIGH VOLTAGE
FRONT PANEL. Failure to do so could result in death or serious injury to installer,
service person, pool users, or others due to electrical shock.
12

COLORCASCADE®Color Pool and Spa Light Installation and User’s Guide COLORCASCADE® Color Pool and Spa Light Installation and User’s Guide
AUX 1
LINE 1
Load 1
Neutral
Ground
GROUND
Black
White
JUNCTION
BOX
Four ColorCascade 12 VAC
Lights require a 100 Watt
transformer.
120V/12V
Step Down
Transformer
( 100W or 300W )
Black
White
CIRCUIT BREAKER
LOAD 1
LINE 1
NEUTRAL
EASYTOUCH 4 AUTOMATION CONTROL
®
AUXILIARY RELAYS
AUX 1
(see page 2 for
transformer
load maximum)
ColorCascade®Light to EasyTouch or IntelliTouch Control
System Load Center Wiring Connection Diagram
ColorCascade Light Standard Wiring Connection Diagram
Four ColorCascade 12 VAC
Lights require a 100 Watt
transformer.
13
Load Center

COLORCASCADE®Color Pool and Spa Light Installation and User’s Guide COLORCASCADE® Color Pool and Spa Light Installation and User’s Guide
SETTING UP COLORCASCADE®LIGHTS
WITH THE AUTOMATION CONTROL SYSTEM
EasyTouch®Control System
The following describes how to setup the ColorCascade Light from the EasyTouch Control
System indoor control panel or wireless control panel. From the EasyTouch control
system control panel you can control the light shows.
To set up a ColorCascade light circuit; assign the “Light Circuit Name” to the relay
circuit (example; AUX 3, as “Pool Light”) and “Function”: assign the name “Pool Light”
circuit in the Circuit Func menu as a “light” circuit (IntelliBrite). After assigning the circuit
name and function, the light circuit name “Pool Light” can be setup in the CONFIG menu
for light position, color etc.
To assign a Circuit Name go to: MENU > SETTINGS > CIRCUIT NAMES
Circuit Names
Circuit #: 1/18
Circuit : AUX 1
[POOL LIGHT ] 

IntelliFlo
IntelliChlor
Circuit Names
Circuit Func. 


1. Press the Up/Down button to select a circuit number 1/18. Press the Up
button two times to select AUX 1 to choose this circuit for a light circuit On/
Off button. The circuit number (1/18) corresponds to its assigned circuit
name.
2. Press the Up/Down button to scroll through the list of preset names. Select
a name such as “Pool Light.” AUX 1 has now been assigned the circuit name
“Pool Light.”
To assign a Circuit Function go to: MENU > SETTINGS > CIRCUIT FUNC.
3. Press the Menu button to return to the Settings menu. Press the Down but-
ton to and select “Circuit Func.” Press the Right button to access the Circuit
Func. menu.
4. Press the Up/Down button to select the already assigned circuit name “Pool
Light.”
5. Press the Right button to view “Circuit Functions” to assign to light circuit
“Pool Light.”
6. Press the Up/Down button to select the type of light circuit function to use.
Select “INTELLIBRITE” for the ColorCascade light circuit function.
7. Press the Menu button three times to return to the main screen.
Operating the ColorCascade lights: The ColorCascade light is ready to operate using
the EasyTouch control panel button 1 (auxiliary 1 circuit). To access the Lights menu
screen (special Light Features), press Menu > Lights. The Lights menu settings are:
MODES, COLORS, ALL ON, ALL OFF, SYNC, MAGICSTREAM, CONFIG: From the
Modes screen you can control the color light shows. To access the Modes menu, press
Menu > Lights > Modes. See page 3 for ColorCascade color shows.
Circuit / Func. :
[POOL LIGHT ]
[INTELLIBRITE ]
Freeze: No 

14

COLORCASCADE®Color Pool and Spa Light Installation and User’s Guide COLORCASCADE® Color Pool and Spa Light Installation and User’s Guide
IntelliTouch®Control System
The following describes how to setup the ColorCascade®Light from the IntelliTouch
Control System control panel. From the IntelliTouch control system control panel you can
control the light shows. To access the ColorCascade light screens, from the IntelliTouch
control system indoor control panel or the wireless MobileTouch®Remote Control Panel.
Assigning a Circuit Name
To identify the ColorCascade light connected to the auxiliary circuits (AUX 1, AUX 2)
in the IntelliTouch control system load center, you need to assign the ColorCascade
light circuit name to the corresponding auxiliary circuits in the IntelliTouch control
system indoor control panel. Choose a circuit name from the preset list of names for
the ColorCascade light connected to the auxiliary relay installed in the IntelliTouch load
control system center.
15
Assigning a Circuit Name for the ColorCascade Light: To assign a Circuit Name for
the ColorCascade light, go to: MENU > SETUP > ADVANCED > CIRCUIT NAMES >
ASSIGN CIRCUIT NAMES > DISPLAY.
Selecting DISPLAY Screen 1, 2, 3, or 4: The auxiliary circuits that control the pool
and spa equipment can be accessed from the “Display” screen on the Indoor Control
Panel or MobileTouch wireless control panel. Selecting the button next to Display 1,
2, 3, or 4 displays the screen with circuits belonging to that particular expansion Load
Center or Power Center. “Feature Circuits” can also be assigned from this screen.
To assign circuit names for a specific display screen:
Display #1 - This screen shows circuit names for the filter pump, pool and spa modes,
and all high voltage auxiliary circuits connected to the main Load Center or Power
Center. Display #2 - This screen shows circuit names for the additional auxiliary
circuits connected to the first expansion center (Load Center or Power Center).
Display #3 - This screen shows circuit names for the additional auxiliary circuits
connected to the second expansion center (Load Center or Power Center)
Display #4 - This screen shows circuit names for the additional auxiliary circuits
connected to the third expansion center (Load Center or Power Center).
To assign a ColorCascade light circuit name for the MAIN SCREEN:
1. Select the button next to Display #1. These are the circuit names that will be
displayed on the Main Screen. Note: If there is an expansion Load Center or
Power Center installed, select the appropriate Display #2, #3, or #4 associ-
ated with that expansion Load Center or Power Center.
2. From the Main Display screen, press the button next to AUX 1.A small arrow
pointing to AUX 1 is displayed.
3. Use the Up and Down buttons at the bottom of the screen to scroll through
the alphabetical list of preset equipment names. Choose the equipment
name that matches the label name for button number 1 on the Load Center
Outdoor Control Panel.
4. Continue to name other auxiliary circuits (AUX2, AUX3, etc.): After selecting
the equipment name you want to use for AUX 1, press the button next to the
AUX 2 and choose a circuit name. The small arrow indicates which circuit is
selected for naming.
5. Repeat the process to assign the other equipment to circuits on this screen.
6. When you have finished assigning equipment circuit names, press the Save
button. Press the Exit button to return to the Main screen.
7. CONTINUE TO NEXT PAGE to set up the ColorCascade light “Function Circuit.”

COLORCASCADE®Color Pool and Spa Light Installation and User’s Guide COLORCASCADE® Color Pool and Spa Light Installation and User’s Guide
Set up a ColorCascade®Light Circuit Function
To setup an AUX circuit to control the ColorCascade Light, assign the circuit light function
an auxiliary relay circuit (AUX 1), then assign the circuit name for that light circuit. The
light circuit name will appear on the main screen. Each ColorCascade light must also be
assigned a circuit function. To assign a Circuit Name for the ColorCascade light, go to:
MENU > SETUP > ADVANCED > CIRCUIT FUNCTIONS
Setup a ColorCascade light function circuit: Assign each light auxiliary relay circuit
a circuit name, then assign that light relay circuit in the “CIRCUIT FUNCTIONS”
section, as “INTELLIBRITE.” To setup the ColorCascade light circuit function (use the
“IntelliBrite” circuit name):
1. Press the button next to the AUX button (the relay auxiliary circuit
connected to the ColorCascade (IntelliBrite) light).
2. Press the right or left side (PREV/NEXT) button next to “INTELLIBRITE.”
Scroll through the circuit functions until “INTELLIBRITE” is displayed.
3. Press the SAVE button on the bottom of the screen. Press the EXIT button to
return to the main screen.
Assign the ColorCascade light circuit to the Lights screen:
4. Press the Lights button on the bottom of the screen.
5. Press the right side button next to “CONFIGURE.”
6. Press the button next to “NONE” to assign an IntelliBrite light circuit to the
selected button. Light names can be setup to display on the left side for
“Spa” features and on the right side for the “Pool” features.
7. Press the top left or right side button to scroll through the available light cir-
cuits which can be used for the ColorCascade (IntelliBrite) lighting features.
Select at the circuit name you wish to use. The displayed circuit names are
circuit names that were previously assigned when assigning a circuit
function.
From the “Modes” screen you can select various preset show color lighting effects,
such as “American mode” and “Sunset mode,” and SAm Style (an emulation of the
SAm color scheme). Using the “Hold” and “Recall” feature you can also capture and
save a unique color effect to recall at a later time.
Modes screen: To access the IntelliBrite color show “Modes” features from the Lights
screen, press the Lights button on the bottom of the screen, then press the left side
button next to “MODES.”
Special Light Features: Up to twelve (12) IntelliBrite light circuits can be displayed
on the main Lights screen (special light features). From the Lights screen you can
activate the IntelliBrite lighting features (i.e., color swim, color set). Assuming each
ColorCascade (IntelliBrite) light has its own relay and separate circuit.
16
Activating IntelliBrite Random Mode: To toggle IntelliBrite Random Mode On or Off
you need to enter Party Mode(Off-On-Off-On), wait until the lights come on and then enter
Party Mode a second time (Off-On-Off-On) with less than 30 seconds between them.
Operating and Selecting ColorCascade (IntelliBrite) Color Modes
Resetting All Lights: To Reset all the lights you need to enter Party Mode four (4) times
with less than 30 seconds between them. This will turn IntelliBrite Random Mode OFF.
This is needed because should two lights ever get into different states, toggling their
states will never fix the problem.
