Power Supply PS1000-A6-24.10
Contents
2021-11
1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2 Terminology and Abbreviations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3 Intended Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
4 Installation Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
5 AC Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
6 DC Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
7 Input Inrush Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
8 Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
9 Hold-Up Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
10 DC-OK Relay Contact . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
11 Efficiency and Power Losses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
12 Lifetime Expectancy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
13 MTBF . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
14 Terminals and Wiring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
15 Functional Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
16 Front Side and User Elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
17 EMC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
18 Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
19 Protection Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
20 Safety Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
21 Dielectric Strength. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
22 Approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
23 Other Fulfilled Standards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
24 Physical Dimensions and Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
25 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
26 Application Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Power Supply PS1000-A6-24.10
Contents
4
2021-11

Power Supply PS1000-A6-24.10
Introduction
2021-11
5
1 Introduction
The information given in this document is correct to the best of our knowledge and experience
at the time of publication. If not expressly agreed otherwise, this information does not represent
a warranty in the legal sense of the word. As the state of our knowledge and experience is
constantly changing, the information in this data sheet is subject to revision. We therefore
kindly ask you to always use the latest issue of this document (available under
www.pepperl-fuchs.com).
No part of this document may be reproduced or utilized in any form without our prior
permission in writing.

2021-11
6
Power Supply PS1000-A6-24.10
Terminology and Abbreviations
2 Terminology and Abbreviations
PE and symbol PE is the abbreviation for Protective Earth and has the same meaning
as the symbol .
Earth, Ground This document uses the term earth which is the same as the U.S. term
ground.
T.b.d. To be defined, value or description will follow later.
AC 230V A figure displayed with the AC or DC before the value represents
a nominal voltage with standard tolerances (usually ±15%) included.
E.g.: DC 12V describes a 12V battery disregarding whether it is full
(13.7V) or flat (10V)
230Vac A figure with the unit (Vac) at the end is a momentary figure without
any additional tolerances included.
50Hz vs. 60Hz As long as not otherwise stated, AC 100V and AC 230V parameters
are valid at 50Hz mains frequency. AC 120V parameters are valid
for 60Hz mains frequency.
may A key word indicating flexibility of choice with no implied preference.
shall A key word indicating a mandatory requirement.
should A key word indicating flexibility of choice with a strongly preferred
implementation.

Power Supply PS1000-A6-24.10
Intended Use
2021-11
7
3 Intended Use
This device is designed for installation in an enclosure and is intended for the general
professional use such as in industrial control, office, communication, and instrumentation
equipment.
Do not use this power supply in equipment, where malfunction may cause severe personal
injury or threaten human life.
Function
The device is used to supply field devices with 24 V DC and 10 A.
The device has a power reserve of 20 % included, which may even be used continuously
at temperatures up to +45 °C.
The output voltage can be adjusted via a potentiometer. The device status is indicated
by an LED.
The device has a relay contact output for remote monitoring.
The device is mounted on a 35 mm DIN mounting rail according to EN 60715.
Reference Conditions
All values are typical at 24V, 10A, 230Vac, 50Hz, 25°C ambient and after a 5 minutes run-in
time unless otherwise noted.

2021-11
8
Power Supply PS1000-A6-24.10
Installation Instructions
4 Installation Instructions
This device may only be installed and put into operation by qualified personnel.
This device does not contain serviceable parts. The tripping of an internal fuse is caused
by an internal defect.
If damage or malfunction should occur during installation or operation, immediately turn power
off and send unit to the factory for inspection.
Mount the unit on a DIN mounting rail so that the input terminals are located on the bottom of
the unit. For other mounting orientations see de-rating requirements in this document.
See chapter 26.12.
This device is designed for convection cooling and does not require an external fan.
Do not obstruct airflow and do not cover ventilation grid (e.g. cable conduits) by more
than 15%!
Keep the following installation clearances: 40mm on top, 20mm on the bottom, 5mm on the left
and right sides are recommended when the device is loaded permanently with more than 50%
of the rated power. Increase this clearance to 15mm in case the adjacent device is a heat
source (e.g. another power supply).
A disconnecting means shall be provided for the output of the power supplies when used
in applications according to CSA C22.2 No 107.1-01.
Warning!
Risk of electrical shock, fire, personal injury or death.
•Do not use the power supply without proper grounding (Protective Earth).
Use the terminal on the input block for earth connection and not one of the screws
on the housing.
•Turn power off before working on the device. Protect against inadvertent re-powering.
•Make sure that the wiring is correct by following all local and national codes.
•Do not modify or repair the unit.
•Do not open the unit as high voltages are present inside.
•Use caution to prevent any foreign objects from entering the housing.
•Do not use in wet locations or in areas where moisture or condensation can be expected.
•Do not touch during power-on, and immediately after power-off. Hot surfaces may
cause burns.
Warning!
Explosion hazards
•Substitution of components may impair suitability for this environment.
•Do not disconnect the unit or operate the voltage adjustment unless power has been
switched off or the area is known to be non-hazardous.
•A suitable enclosure must be provided for the end product which has a minimum
protection of IP54 and fulfills the requirements of the EN 60079-15.
Note
If you use the device in hazardous areas, observe the safety information in the instruction
manual and in chapter 22.

Power Supply PS1000-A6-24.10
AC Input
2021-11
9
5 AC Input

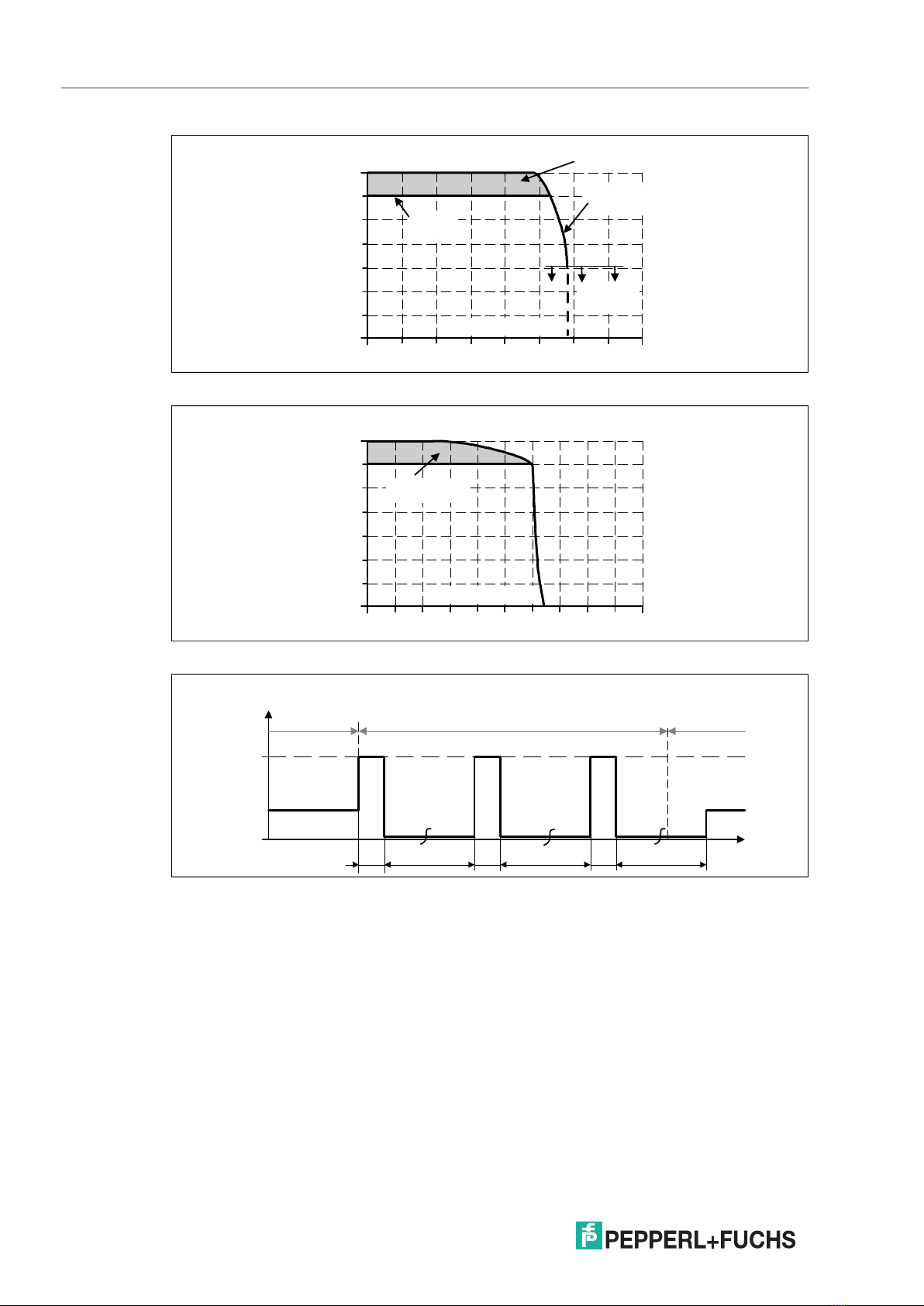

Figure 5.1 Input voltage range
AC input Nom. AC 100-240V Suitable for TN-, TT- and IT mains networks
AC input range Min. 85-264Vac Continuous operation
Min. 264-300Vac For maximal 500ms
Allowed voltage L or N to earth Max. 300Vac Continuous according to IEC 62477-1
Input frequency Nom. 50–60Hz ±6%
Turn-on voltage Typ. 80Vac Steady-state value, see Figure 5.1
Shut-down voltage Typ. 70Vac Steady-state value, see Figure 5.1
Typ. 55Vac Dynamic value for maximal 250ms
External input protection See recommendations in chapter 26.3
AC 100V AC 120V AC 230V
Input current Typ. 2.60A 2.15A 1.13A At 24V, 10A, see Figure 5.3
Power factor 1 Typ. 0.99 0.99 0.97 At 24V, 10A, see Figure 5.4
Crest factor 2 Typ. 1.5 1.5 1.65 At 24V, 10A
Start-up delay Typ. 300ms 290ms 240ms See Figure 5.2
Rise time Typ. 30ms 30ms 30ms At 24V, 10A const. current load, 0mF
load capacitance, see Figure 5.2
Typ. 75ms 75ms 75ms at 24V, 10A const. current load, 10mF
load capacitance, see Figure 5.2
Turn-on overshoot Max. 200mV 200mV 200mV See Figure 5.2
External input
protection See recommendations in chapter 26.3
1The power factor is the ratio of the true (or real) power to the apparent power in an AC circuit.
2The crest factor is the mathematical ratio of the peak value to RMS value of the input current waveform.
Tu r n-o n
85V
Rat ed
input range
max.
500ms
V
IN
P
OUT
300Vac264V
Shut-down

2021-11
10
Power Supply PS1000-A6-24.10
AC Input

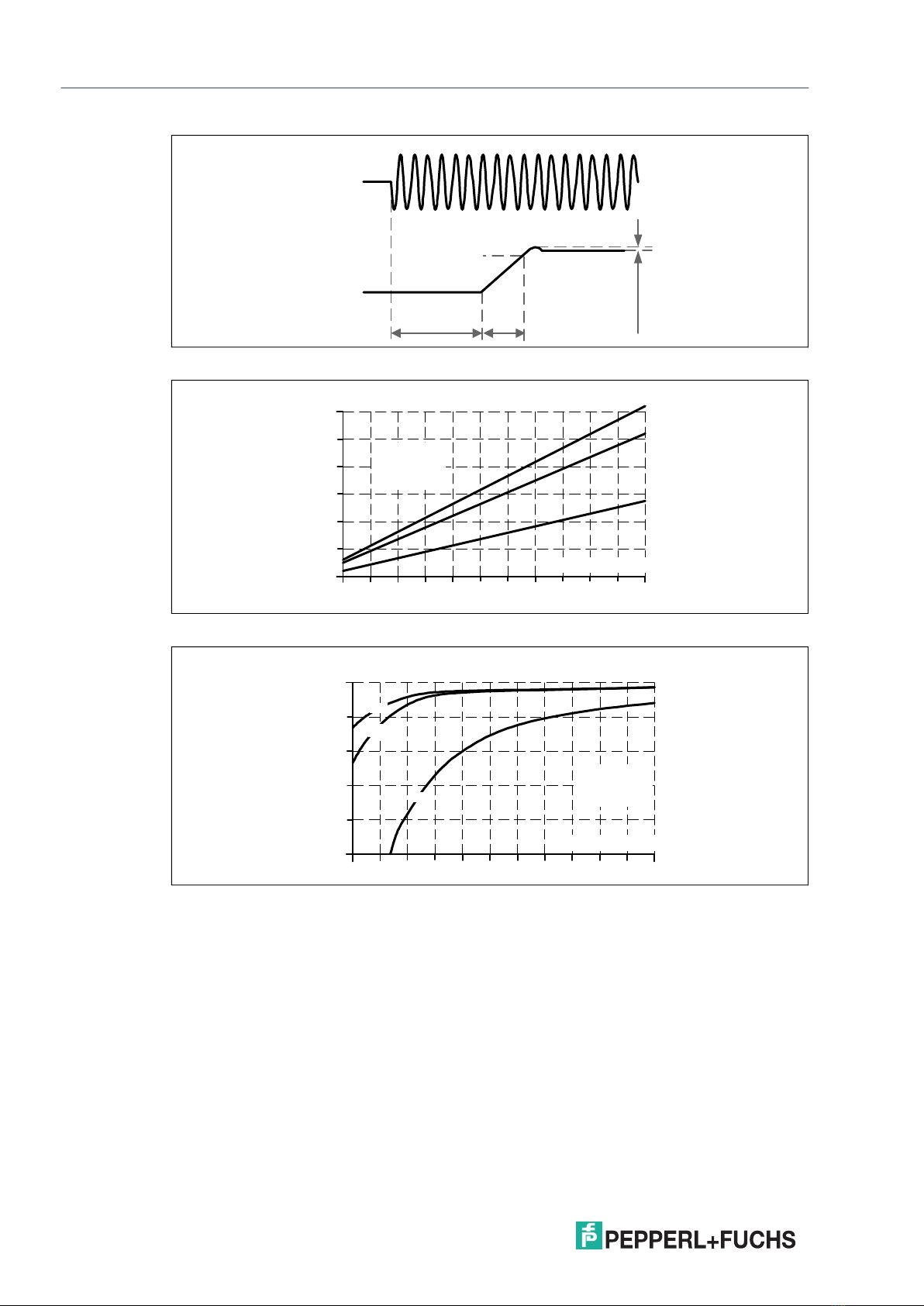

Figure 5.2 Turn-on behavior, definitions
Figure 5.3 Input current vs. output current at 24V output voltage
Figure 5.4 Power factor vs. output current at 24V output voltage
Start-up
delay Ri se Ti me
Overshoot
- 5%
Out put
Vol t age
Input
Vol t age
12A
123456789
0
0.5
1.0
1.5
2.0
2.5
3A
Input Current, typ.
10 11
a) 100Vac
b) 120Vac
c) 230Vac
b
a
c
Output Current
Power Factor, typ.
123456789 12A
0.75
0.8
0.85
0.9
0.95
1.0
10 11
Out put Current
(a) 100Vac,
(b) 120Vac,
(c) 230Vac
(a)
(b)
(c)

Power Supply PS1000-A6-24.10
DC Input
2021-11
11
6 DC Input
Figure 6.1 Wiring for DC Input
Using DC
1. Use a battery or a similar DC source. A supply from the intermediate DC-bus of a frequency
converter is not recommended and can cause a malfunction or damage the unit.
2. Connect +pole to L and -pole to N.
3. Connect the PE terminal to an earth wire or to the machine ground.
DC input Nom. DC 110-150V ±20%
DC input range Min. 88-180Vdc Continuous operation
DC input current Typ. 2.35A At 110Vdc, at 24V, 10A
Typ. 0.84A At 300Vdc, at 24V, 10A
Allowed Voltage L/N to Earth Max. 375Vdc Continuous, according to IEC 62477-1
Turn-on voltage Typ. 80Vdc Steady state value
Shut-down voltage Typ. 70Vdc Steady state value
Typ. 55Vdc Dynamic value for maximal 250ms
+
-
Load
L
PE
+
-
Po w er Supply
AC
DC
Battery
N

2021-11
12
Power Supply PS1000-A6-24.10
Input Inrush Current
7 Input Inrush Current
An active inrush limitation circuit (NTCs, which are bypassed by a relay contact) limits the input
inrush current after turn-on of the input voltage.
The charging current into EMI suppression capacitors is disregarded in the first microseconds
after switch-on.

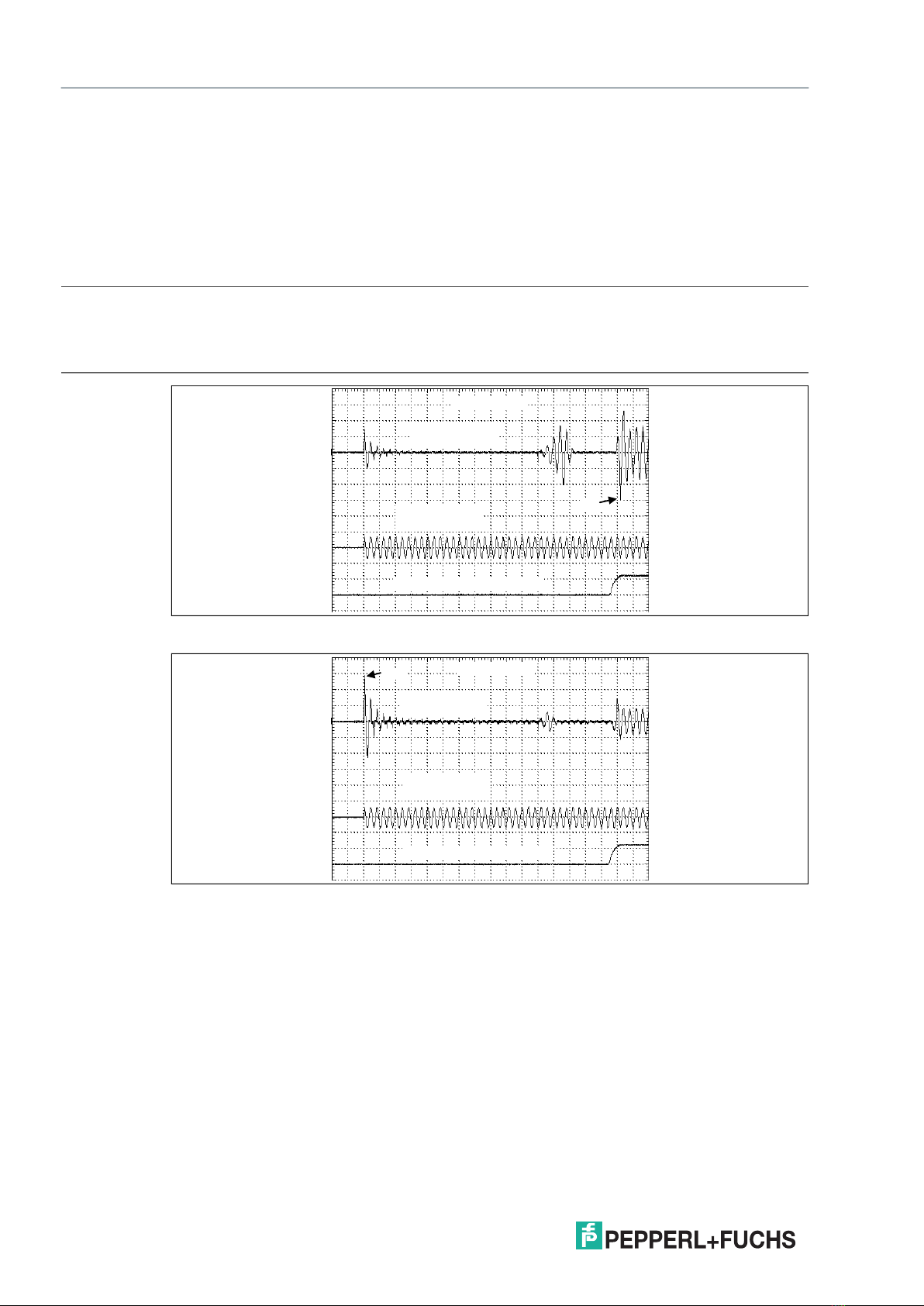

Figure 7.1 Typical turn-on behavior at nominal load, 120Vac input and 25°C ambient
Figure 7.2 Typical turn-on behavior at nominal load, 230Vac input and 25°C ambient
AC 100V AC 120V AC 230V
Inrush current Max. 11Apeak 7Apeak 11Apeak At 40°C, cold start
Typ. 9Apeak 6Apeak 6Apeak At 25°C, cold start
Typ. 9Apeak 6Apeak 9Apeak At 40°C, cold start
Inrush energy Max. 0.1A²s 0.1A²s 0.4A²s At 40°C, cold start
50ms/DIV
Input current
2A/DIV
Input volt age
250V/DIV
Output voltage 20V/DIV
6A
50ms/DIV
Input current
2A/DIV
Input volt age
500V/DIV
Output voltage 20V/DIV
6A

Power Supply PS1000-A6-24.10
Output
2021-11
13
8 Output
Output voltage Nom. 24V
Adjustment range Min. 24-28V Guaranteed value
Max. 30.0V This is the maximum output voltage which can occur
at the clockwise end position of the potentiometer
due to tolerances. It is not a guaranteed value which
can be achieved.
Factory settings Typ. 24.1V ±0.2%, at full load and cold unit
Line regulation Max. 10mV Between 85 and 300Vac
Load regulation Max. 50mV Between 0 and 12A, static value, see Figure 8.1
Ripple and noise voltage Max. 50mVpp Bandwidth 20Hz to 20MHz, 50Ohm
Output current Nom. 12A 1At 24V and an ambient temperature below 45°C,
see Figure 18.1
Nom. 10A At 24V and 60°C ambient temperature,
see Figure 8.1
Nom. 7.5A At 24V and 70°C ambient temperature,
see Figure 8.1
Nom. 10.3A 1At 28V and an ambient temperature below 45°C,
see Figure 18.1
Nom. 8.6A At 28V and 60°C ambient temperature,
see Figure 8.1
Nom. 6.45A At 28V and 70°C ambient temperature,
see Figure 18.1
Typ. 30A For minimal 12ms once every five seconds,
see Figure 8.2.
The output voltage stays above 20V.
See chapter 26.1 for more peak current
measurements. For AC 100V mains, the pulse length
is shorter than 12ms.
Overload behavior Continuous current Output voltage above 13Vdc, see Figure 8.1
Hiccup mode 2 Output voltage below 13Vdc, see Figure 8.1
Short-circuit current Min. 12.5A 3Load impedance <45mOhm, see Figure 8.3
Max. 15.5A 3Load impedance <45mOhm, see Figure 8.3
Max. 5A Average (R.M.S.) current, load impedance 50mOhm,
see Figure 8.3
Min. 28A Up to 12ms, load impedance <45mOhm,
see Figure 8.2
Typ. 30.5A Up to 12ms, load impedance <45mOhm,
see Figure 8.2
Output capacitance Typ. 4 400µF Included inside the power supply
1Power boost
This power/ current is continuously allowed up to an ambient temperature of 45°C.
Above 45°C, do not use this power/ current longer than a duty cycle of 10% and/ or not longer than 1 minute every 10 minutes.
2Hiccup mode
At heavy overloads (when output voltage falls below 13V), the power supply delivers continuous output current for 2s.
After this, the output is switched off for approx. 18s before a new start attempt is automatically performed.
This cycle is repeated as long as the overload exists. If the overload has been cleared, the device will operate normally.
See Figure 8.3
3Discharge current of output capacitors is not included.

2021-11
14
Power Supply PS1000-A6-24.10
Output
Figure 8.1 Output voltage vs. output current, typ.
Figure 8.2 Dynamic output current capability, typ.
Figure 8.3 Short-circuit on output, Hiccup mode, typ.
Out put Voltage
0
0 12.5
4
8
12
28V
16
20
24
20A7.52.5 510 15 17.5
Adj ust ment
Ra n g e
Out put Current
Continuous
current
Fact o r y
setting
Hi ccup
PLUS
mode
Output Voltage (dynamic behavi or, < 12ms)
0
0
4
8
12
28V
16
20
24
50A2010 30 405 15253545
Adj ust ment
Range
Output Current
Out put
Current
0
14A
18s 18s
18s 2s 2s
2s
t
Short -circuit Normal
operation
Normal
operation

Power Supply PS1000-A6-24.10
Hold-Up Time
2021-11
15
9 Hold-Up Time
Figure 9.1 Hold-up time vs. input voltage
Figure 9.2 Shut-down behavior, definitions
AC 100V AC 120V AC 230V
Hold-up Time Typ. 73ms 73ms 73ms At 24V, 5A, see Figure 9.1
Min. 55ms 55ms 55ms At 24V, 5A, see Figure 9.1
Typ. 37ms 37ms 37ms At 24V, 10A, see Figure 9.1
Min. 28ms 28ms 28ms At 24V, 10A, see Figure 9.1
0
10
20
30
40
80ms
90 120 155 190 230Vac
Input Voltage
50
60
Hol d -up Ti me
70
a
b
c
d
a) 24V 5A typ.
b) 24V 5A min.
c) 24V 10A typ.
d) 24V 10A min.
- 5%
Hol d-up Ti me
Zer o Tr ansi t i o n
Out put
Vol t age
Input
Vol t age

2021-11
16
Power Supply PS1000-A6-24.10
DC-OK Relay Contact
10 DC-OK Relay Contact
This feature monitors the output voltage on the output terminals of a running power supply.
Figure 10.1 DC-OK relay contact behavior
Contact closes As soon as the output voltage reaches typ. 90% of the adjusted output voltage level.
Contact opens As soon as the output voltage dips more than 10% below the adjusted output voltage.
Short dips will be extended to a signal length of 100ms. Dips shorter than 1ms will
be ignored.
Switching hysteresis 1V
Contact ratings Maximal 60Vdc 0.3A, 30Vdc 1A, 30Vac 0.5A, resistive load
Minimal permissible load: 1mA at 5Vdc
Isolation voltage See dielectric strength table in chapter 21.
100ms
0.9* V
ADJ
<
1ms
10%
open
V
OUT
= V
ADJ
opencl osed cl osed
>
1ms

Power Supply PS1000-A6-24.10
Efficiency and Power Losses
2021-11
17
11 Efficiency and Power Losses
Figure 11.1 Efficiency vs. output current at 24V, typ.
Figure 11.2 Losses vs. output current at 24V, typ.
AC 100V AC 120V AC 230V
Efficiency Typ. 92.9% 93.6% 95.2% At 24V, 10A
Typ. 92.5% 93.4% 95.1% At 24V, 12A (Power Boost)
Average efficiency 1 Typ. 92.5% 93.0% 94.3% 25% at 2.5A, 25% at 5A,
25% at 7.5A. 25% at 10A
Power losses Typ. 2.5W 2.1W 1.8W At 24V, 0A
Typ. 9.8W 8.9W 7.1W At 24V, 5A
Typ. 18.3W 16.4W 12.1W At 24V, 10A
Typ. 23.4W 21.7W 14.8W At 24V, 12A (Power Boost)
1The average efficiency is an assumption for a typical application where the power supply is loaded with 25% of the nominal load
for 25% of the time, 50% of the nominal load for another 25% of the time, 75% of the nominal load for another 25% of the time
and with 100% of the nominal load for the rest of the time.
Efficiency
234567 910 12A
90
91
92
93
94
95
96%
Output Current
811
(a)
(b)
(c)
(a) 100Vac
(b) 120Vac
(c) 230Vac
Pow e r Losses
0 1 3 4 6 7 12A
5
0
10
15
20
30W
910
25
2 5 8
Output Current
11
(a)
(b)
(c)
(a) 100Vac
(b) 120Vac
(c) 230Vac

2021-11
18
Power Supply PS1000-A6-24.10
Efficiency and Power Losses
Figure 11.3 Efficiency vs. input voltage at 24V, 10A, typ.
Figure 11.4 Losses vs. input voltage at 24V, 10A, typ.
Efficiency
120 180 230 264Vac
90
91
92
93
Input Voltage
94
95
96%
100
Pow e r Lo sses
120 180 230 264Vac
10
12
14
16
Input Voltage
18
20
22W
100

Power Supply PS1000-A6-24.10
Lifetime Expectancy
2021-11
19
12 Lifetime Expectancy
The Lifetime expectancy shown in the table indicates the minimum operating hours
(service life) and is determined by the lifetime expectancy of the built-in electrolytic capacitors.
Lifetime expectancy is specified in operational hours and is calculated according
to the capacitor's manufacturer specification. The manufacturer of the electrolytic capacitors
only guarantees a maximum life of up to 15 years (131 400h). Any number exceeding
this value is a calculated theoretical lifetime which can be used to compare devices.
AC 100V AC 120V AC 230V
Lifetime expectancy 128 000h 141 000h 176 000h At 24V, 5A and 40°C
61 000h 75 000h 120 000h At 24V, 10A and 40°C
47 000h 59 000h 101 000h At 24V, 12A and 40°C
363 000h 399 000h 499 000h At 24V, 5A and 25°C
173 000h 211 000h 338 000h At 24V, 10A and 25°C
132 000h 166 000h 286 000h At 24V, 12A and 25°C

2021-11
20
Power Supply PS1000-A6-24.10
MTBF
13 MTBF
MTBF stands for Mean Time Between Failure, which is calculated according to statistical
device failures, and indicates reliability of a device. It is the statistical representation
of the likelihood of a unit to fail and does not necessarily represent the life of a product.
The MTBF figure is a statistical representation of the likelihood of a device to fail.
A MTBF figure of e.g. 1 000 000h means that statistically one unit will fail every 100 hours
if 10 000 units are installed in the field. However, it cannot be determined if the failed unit
has been running for 50 000h or only for 100h.
For these types of units the MTTF (Mean Time To Failure) value is the same value
as the MTBF value.
AC 100V AC 120V AC 230V
MTBF SN 29500, IEC 61709 550 000h 560 000h 661 000h At 24V, 10A and 40°C
1 003 000h 1 017 000h 1 176 000h At 24V, 10A and 25°C
MTBF MIL HDBK 217F 188 000h 188 000h 213 000h At 24V, 10A and 40°C;
Ground Benign GB40
252 000h 252 000h 290 000h At 24V, 10A and 25°C;
Ground Benign GB25
40 000h 40 000h 47 000h At 24V, 10A and 40°C;
Ground Fixed GF40
51 000h 51 000h 61 000h At 24V, 10A and 25°C;
Ground Fixed GF25
