Battery
The battery of the pocket unit is not fully charged.
It is recommended to charge the pocket unit for five hours
before using it for the first time. The full capacity of the battery
is reached after 3-4 complete charge/discharge cycles.
Warranty
The warranty of this product follows the General Conditions
of Delivery and Payment of Pepperl+Fuchs SE, which are
available at www.pepperl-fuchs.com, or alternatively they can
be requested directly from the manufacturer.
Support
E-Mail: [email protected]
Note:
Please also observe the safety requirements in the specific
operating instructions and the information in the full user guide
for your device. The documents can be downloaded from the
relevant product page at www.ecom-ex.com
QUICK START GUIDE
FOR GLOBAL HAZARDOUS AREAS
ECOM Instruments GmbH | Industriestraße 2 | 97959 Assamstadt | Germany
Phone [phone] | Fax [phone]
[email protected] | www.ecom-ex.com
DOCT-8285 | 06/2022
WEEE-Reg.-Nr. DE 934 99306
Subject to change without notice.
Copyright
©
2022 ECOM Instruments GmbH.
The contents of this document, either in part or in their entirety, may not be reproduced, forwarded,
distributed or saved in any way without ECOM Instruments GmbH prior written consent.
The contents of this document are presented as they currently exist. ecom instruments GmbH does
not provide any express or tacit guarantee for the correctness or completeness of the contents of
this document, including, but not restricted to, the tacit guarantee of market suitability or fitness for a
specific purpose unless applicable laws or court decisions make liability mandatory. ecom instruments
GmbH reserves the right to make changes to this document or to withdraw it any time without prior
notice.
Unique combined head-mounted solution Visor-Ex® 01
Zone 2 Zone 1

Quick Start Guide
You can use this guide to get started with your Visor-Ex
®
01 right away and
refer to the sections in the user guide if parts are unclear. However, it is still
advisable to read through the complete user guide in order to learn all the ins
and outs of the Visor-Ex
®
01.
Please follow the steps below to continue with the quick start:
Step 1
1.
Position the Visor-Ex
®
01 flat on a surface with the display positioned on
the side of your dominant eye and the cameras faced front.
2. To change the display position to the side of your dominate eye unscrew
the connector on the top of the Visor-Ex
®
01 with a 1.5 mm hex key and
screw the connector onto the other side of the Visor-Ex
®
01.
Step 2
Download and install the Iristick Services application through Google Play on
the Smart-Ex
®
02.
Step 3
Start the Iristick Services application and grant the permissions.
Step 4
1. Open the charging dust cover of the Smart-Ex
®
02 and rotate the cover
180°.
2. Insert the smartphone into the cradle in the prescribed order as shown
in the illustration below.
STEP 2
STEP
1
↓
↓

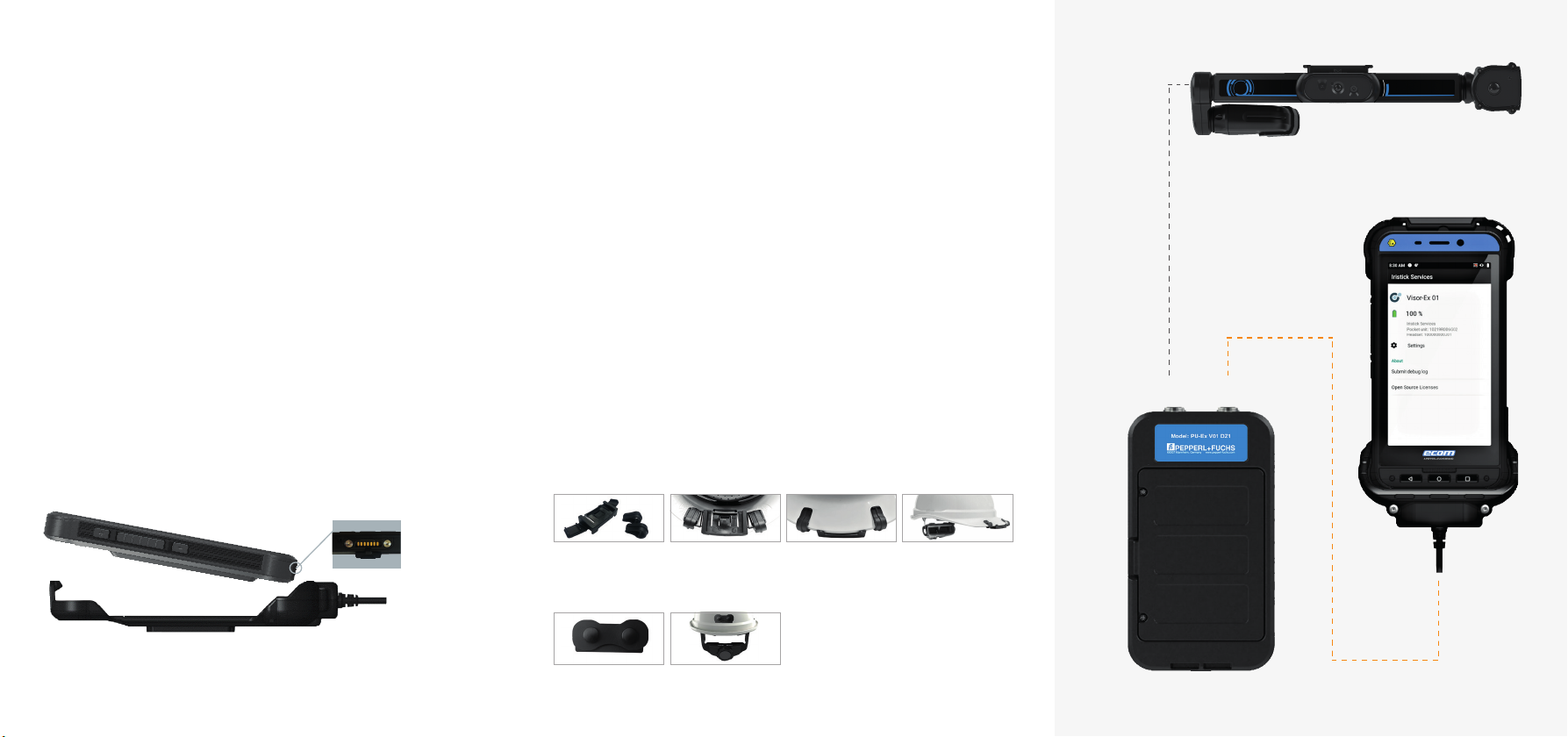

Step 5
Connect the head unit (Port 1) to the pocket unit (Port 2) with the coaxial
cable.
Pocket Unit
Head Unit
Connector
Smart-Ex®02
with Cradle
Step 6
1. Connect the coiled cable of the cradle to the pocket unit via the USB
(Port 3)
2. Tap "OK" in the dialog on the smartphone’s screen to launch the
Iristick Services app.
3. Tap "START NOW" in the dialog to activate the heads-up display.
Step 7
Use the touchpad of the head unit, voice commands and/or the Smart-
Ex
®
02 to navigate through the menus and launch for example the Iristick
Examples app or the Iristick Camera app.
*Recommendation: For optimal experience enable “Always optimize UI for HUD” in
the Iristick Services settings.
How to fix the Helmet Adapter V01 and Cable Guide
V01 to a helmet
1. Before you fix the Helmet Adapter V01 and the Cable Guide V01 to a
helmet the relevant surfaces must be clean dry and free of grease.
2. Please mark the middle position of the helmet visor and use the arrow
indicator on the adapter to align and to stick it to the right position.
3. Finally please ax the two clips as shown in the images.
Helmet Adapter V01
Bottom viewHelmet Adapter V01 Top view Side view Helmet
Adapter
Cable Guide V01
Helmet with Cable GuideCable Guide V01
Coiled
USB Cable
Coax Cable
Port 2
Port 1
Port 3
